Core mat for open mould processes
Introduction of core mat
Coremat® was developed and launched by Lantor in 1974. It is the first dedicated layered core material for open-mold processes such as hand lay-up (HLU) and spray-up (SU), with hand lay-up being the most widely applied method.
Based on polyester fiber mat and embedded with microspheres, it delivers lightweight performance while enhancing the rigidity of finished products, and greatly cuts down the consumption of high-cost raw materials.

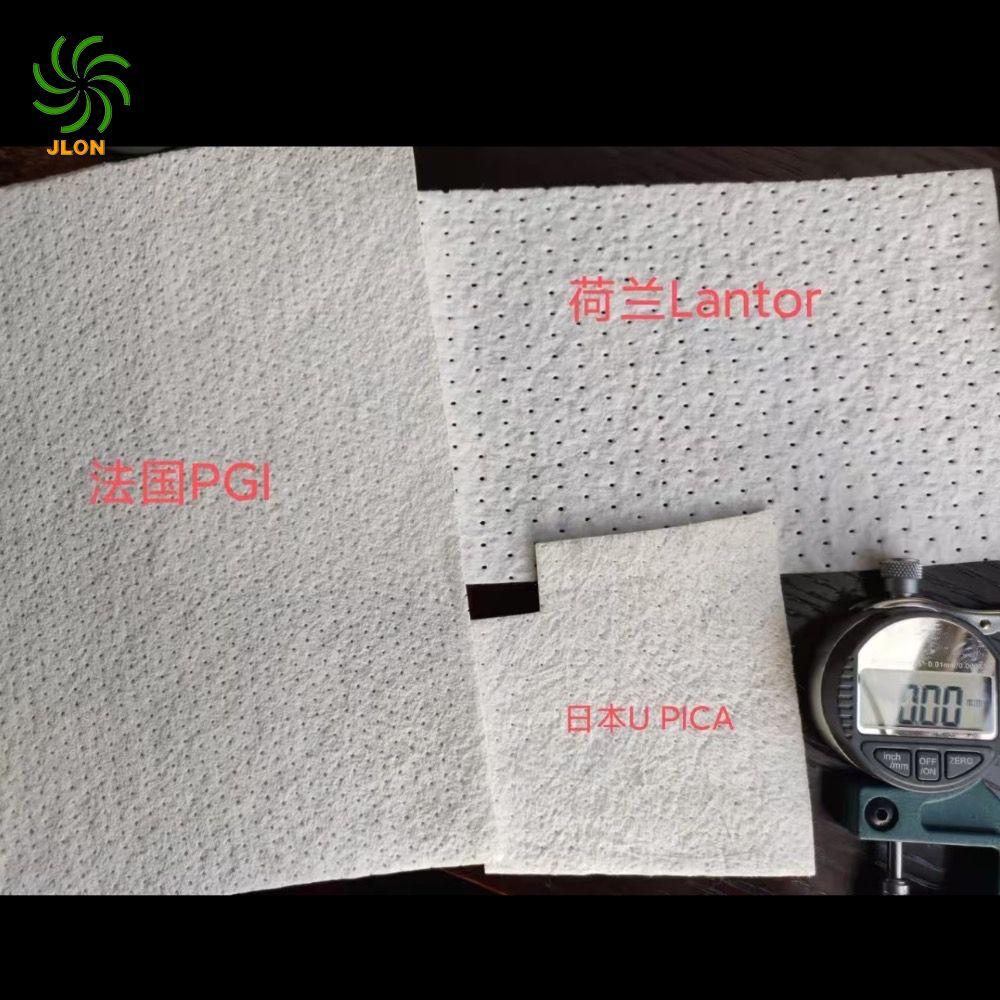

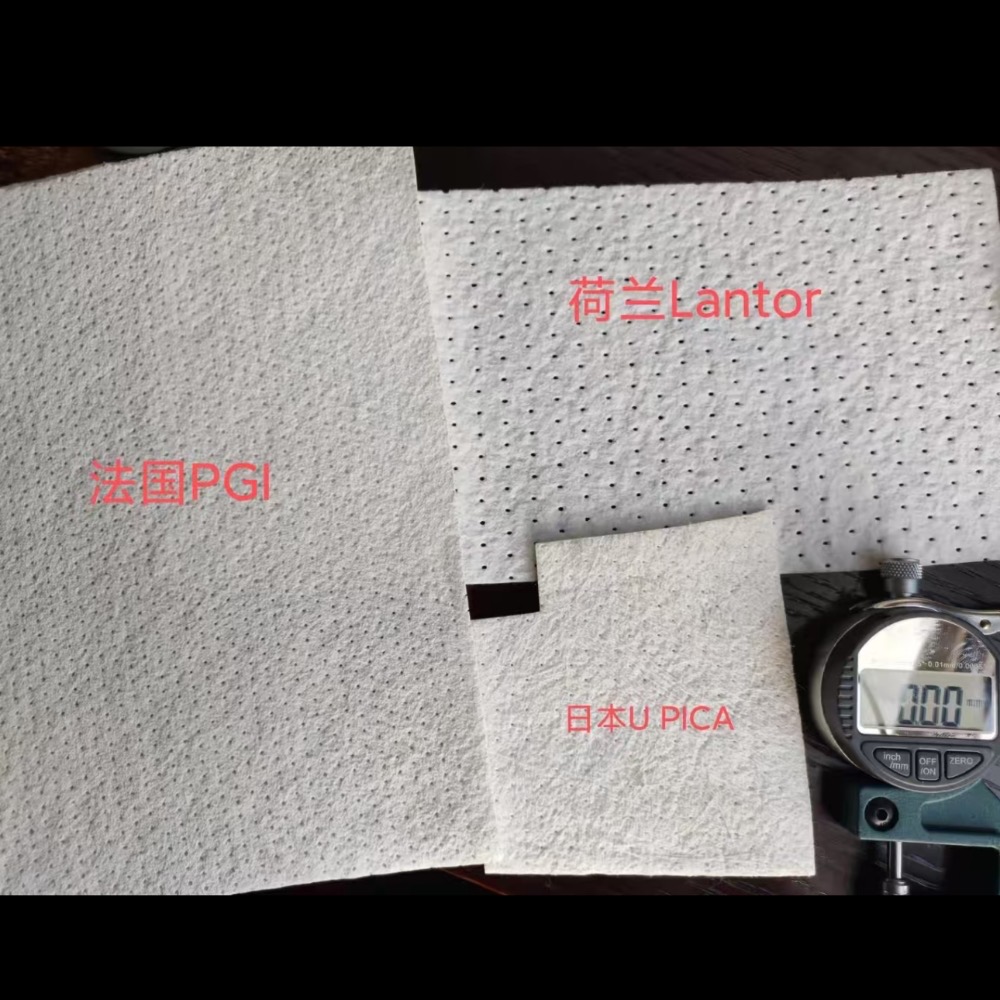

Other core mats available on the market for hand lay-up applications include the T series of Japan’s U-PICA mat and the MATLINE series from France’s PGI.
U-PICA mat work as a laminate bulker/ print control mat in order to provide remarkable workability, cost and weight advantages in FRP laminates. In fact U-PICA MAT's laminated density is only about half of that of
fiberglass laminated mat.
The MATLINE™️ range of flexible core materials is trusted by
composite and fiber reinforced plastic manufacturers
working within the aerospace, construction, marine and
wind energy industries.
Application of core mat
Marine: hulls, decks and structures of boats and yachts
Transportation: parts and panels of cars, trailers, trucks and RV’s
Mass transit: interior and exterior of trains, light rail and buses Leisure: kayaks, surfboards, pools and tubs
Technical Data sheet of core mat
Industrial: cladding panels, fans, containers and tanks
Features of core mat
Excellent wet-out
Excellent conformability
Flexural strength
Light weight
Impact strength

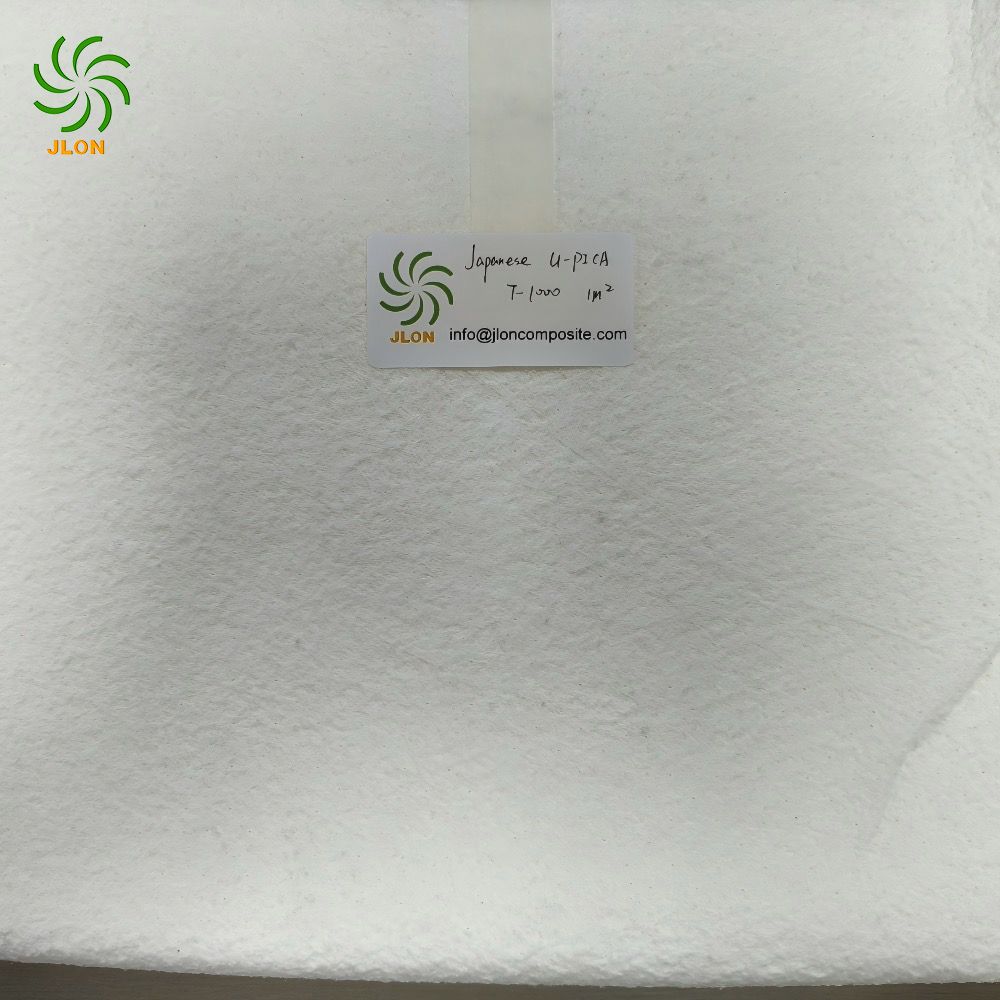

Specitication of U-PICA core mat T series
| Item | Unit | T-1000 | T-2000 | T-3000 | T-4000 | T-5000 |
| Tickness dry | mm | 1.6 | 2.1 | 3.1 | 4.1 | 5.1 |
| Wet | mm | 1.5 | 2.0 | 3.0 | 4.0 | 5.0 |
| Weight | g/m² | 60 | 90 | 135 | 160 | 200 |
| Apparent density | g/cm³ | 0.040 | 0.045 | 0.045 | 0.040 | 0.040 |
| Resin absorption | vo1.% | 55 | 60 | 55 | 55 | 55 |
| Width | mm | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 |
| Roll length | m | 50 | 50 | 50 | 50 | 25 |
| Roll weight | kg | app.4 | app.5 | app.7 | app.8 | app.10 |
| Roll diameter | cm | 33 | 40 | 48 | 55 | 60 |
| Roll volume | m³ | 0.08 | 0.12 | 0.18 | 0.25 | 0.28 |

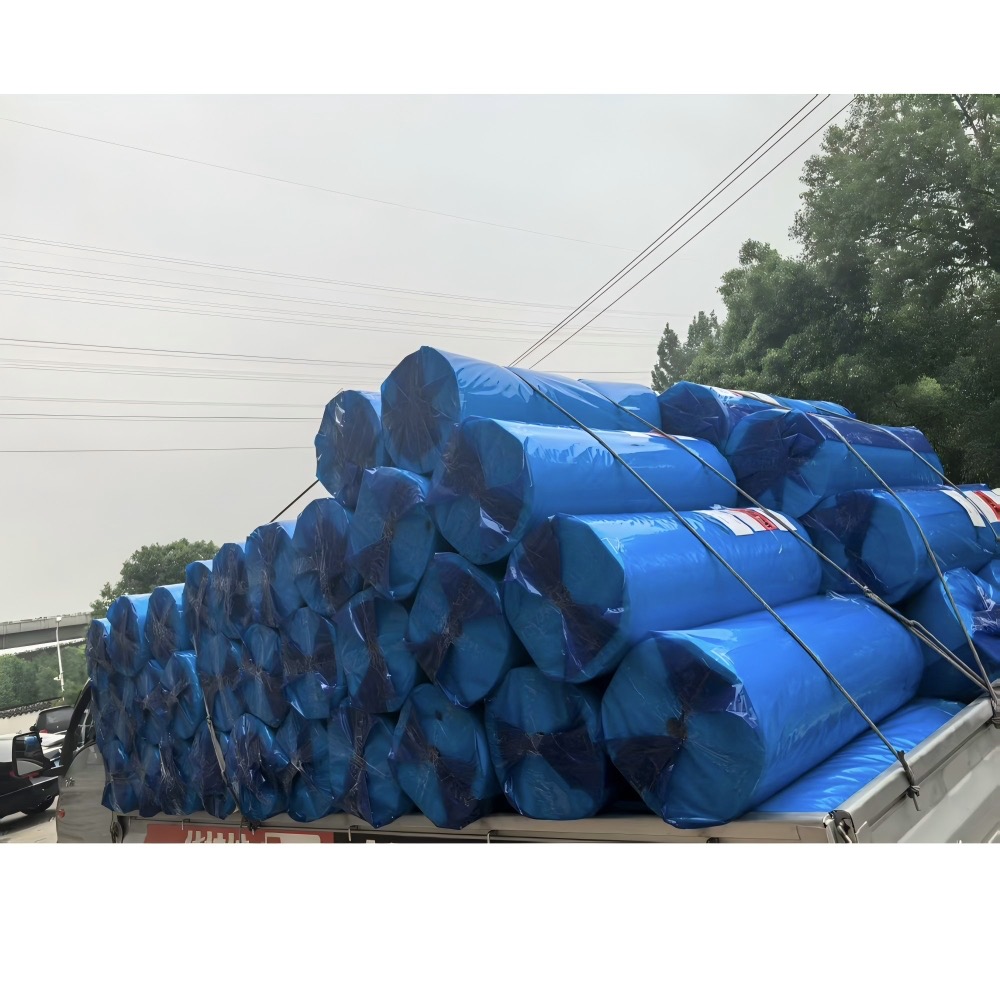

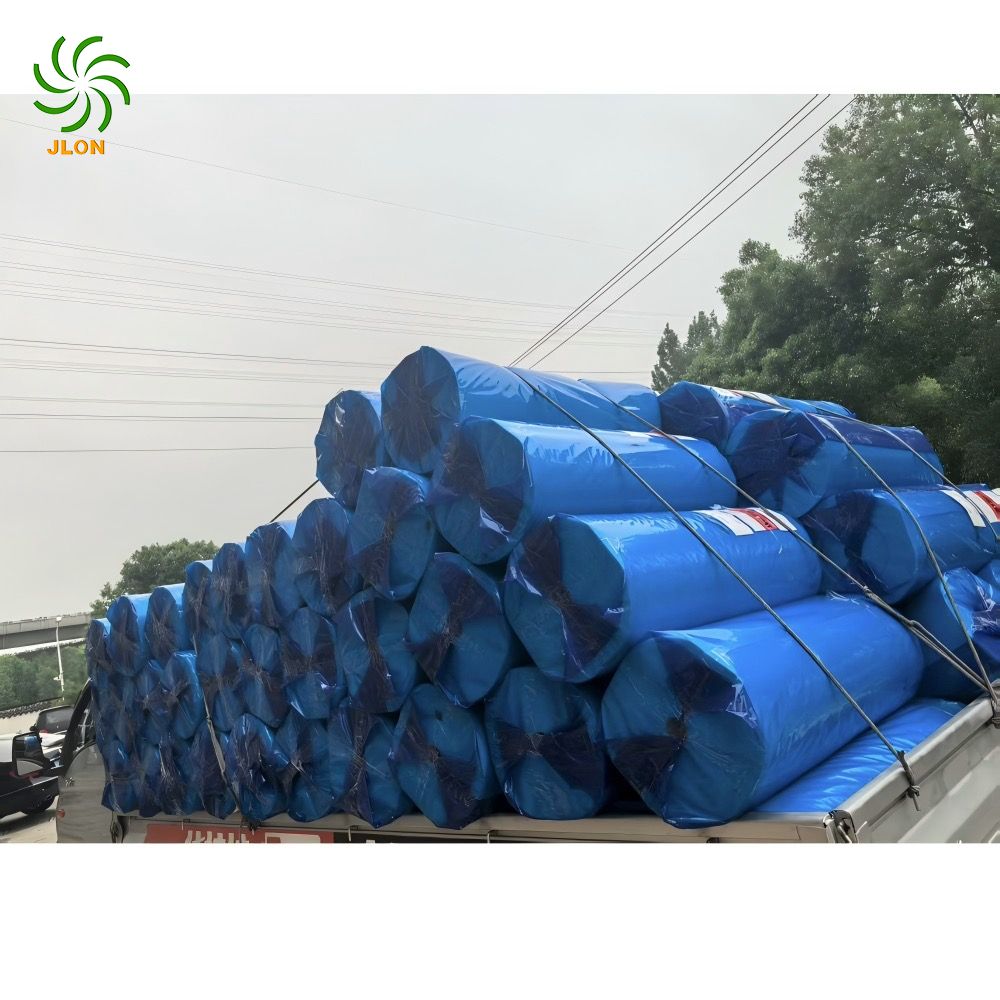

| Packaging | - | - | - | - | - | - |
Specitication of MATLINE core mat
| Type | Grade | Weight(gsm) | Thickness(mm) | performance |
| Matline+ | Matline+101N | 52 | 1,4 | |
| Matline+201N | 74 | 2 | ||
| Matline+301N | 110 | 3 | ||
| Matline+401N | 140 | 4 | ||
| Matline+501N | 170 | 5 |

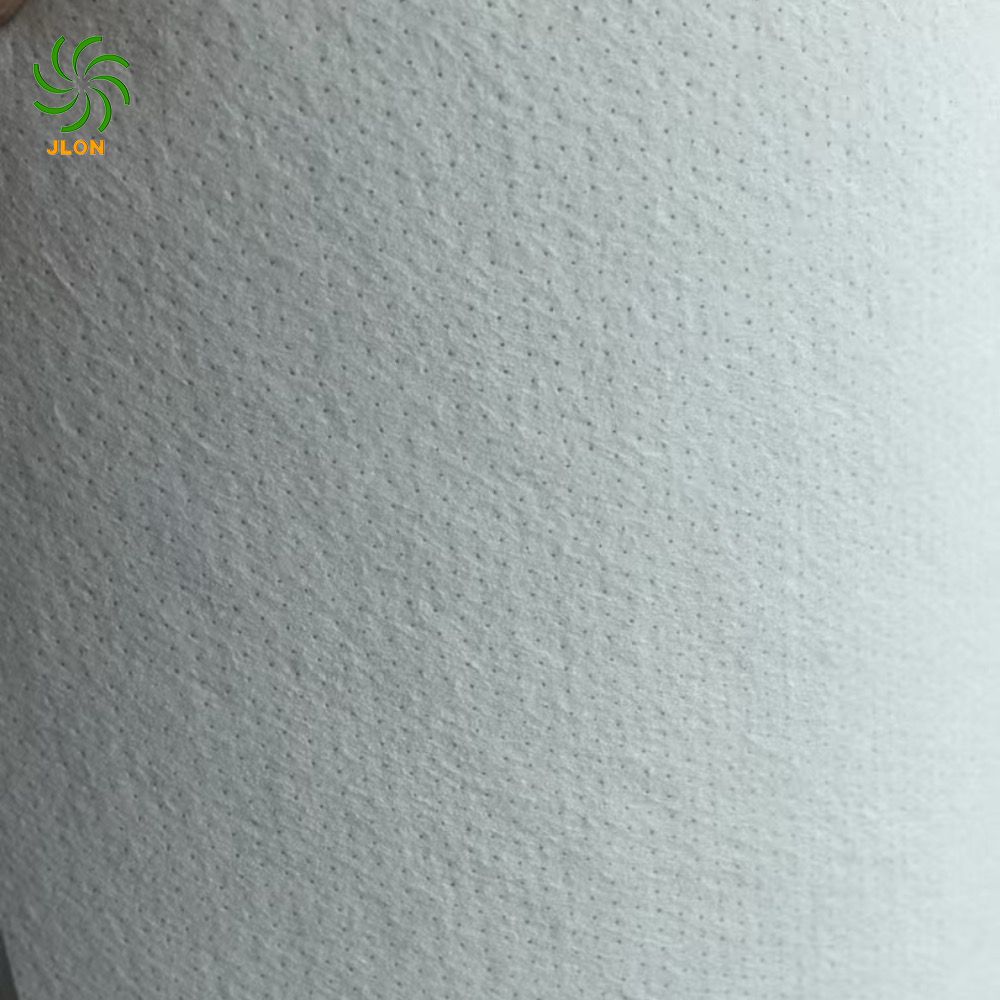

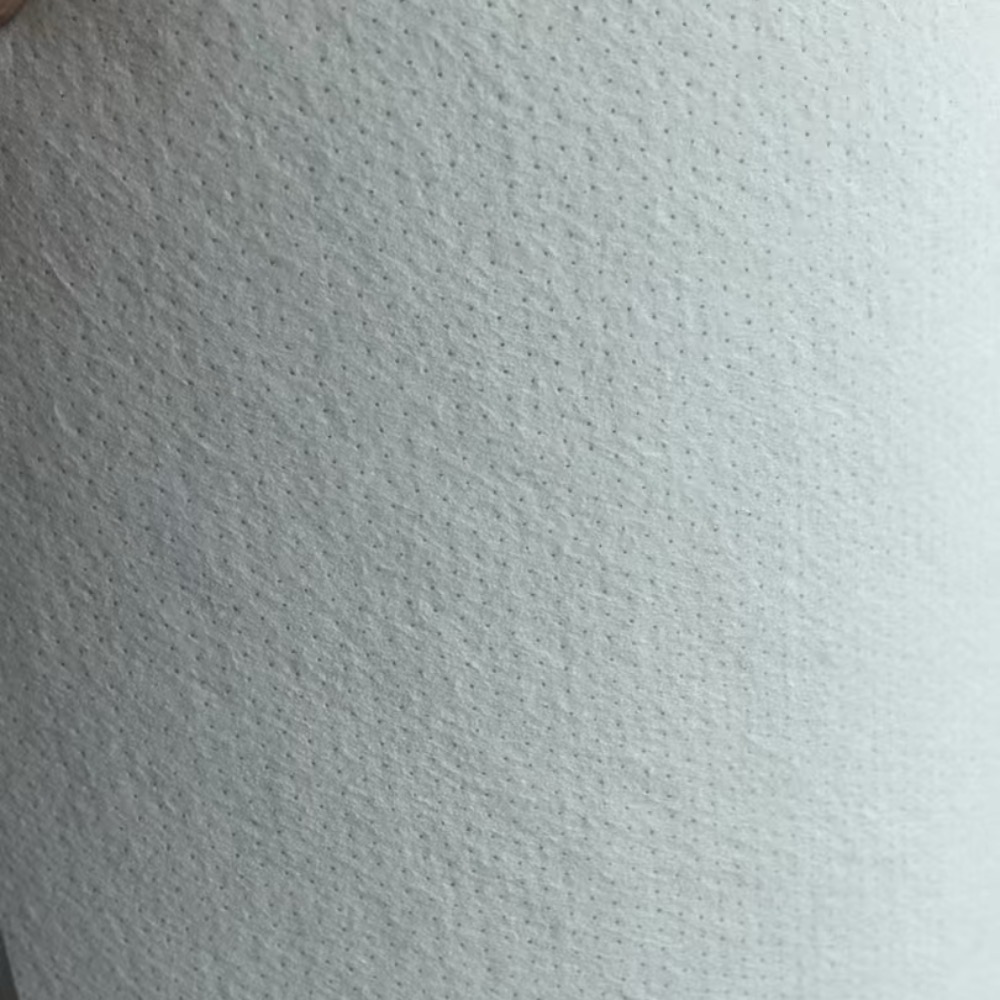

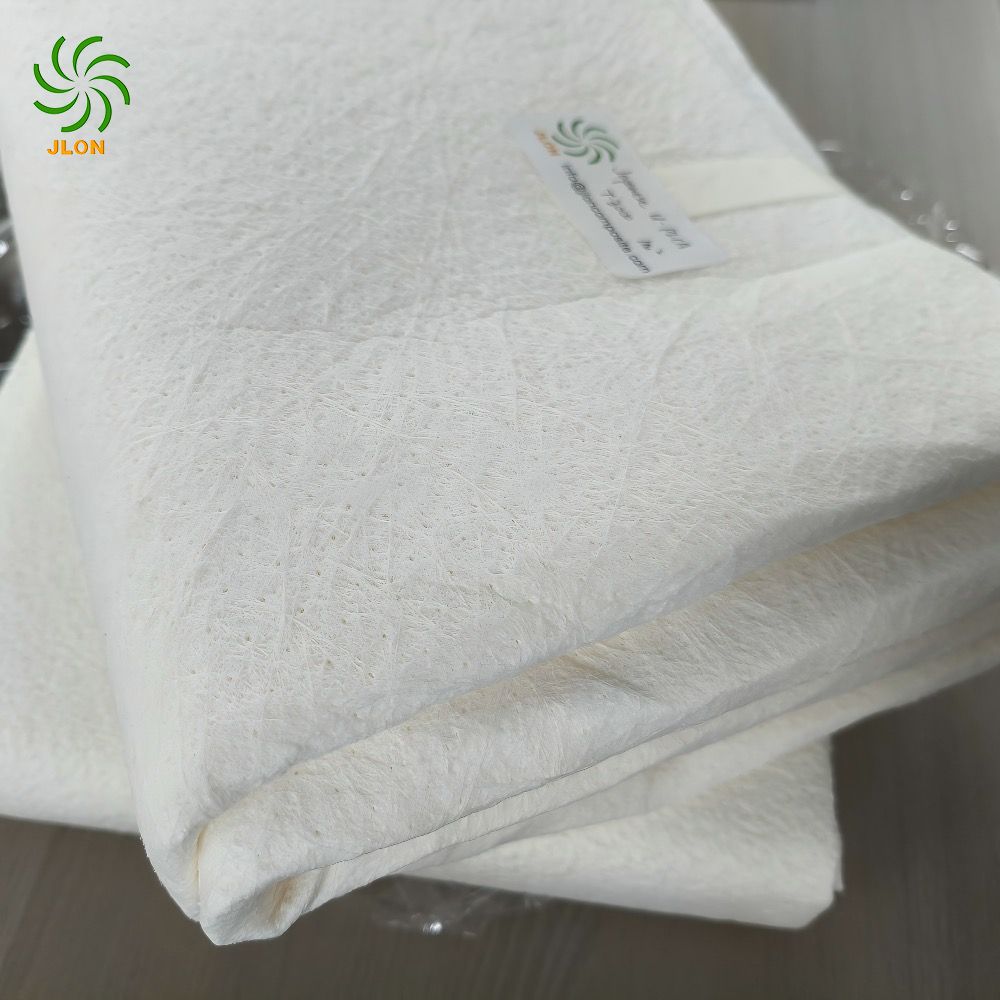

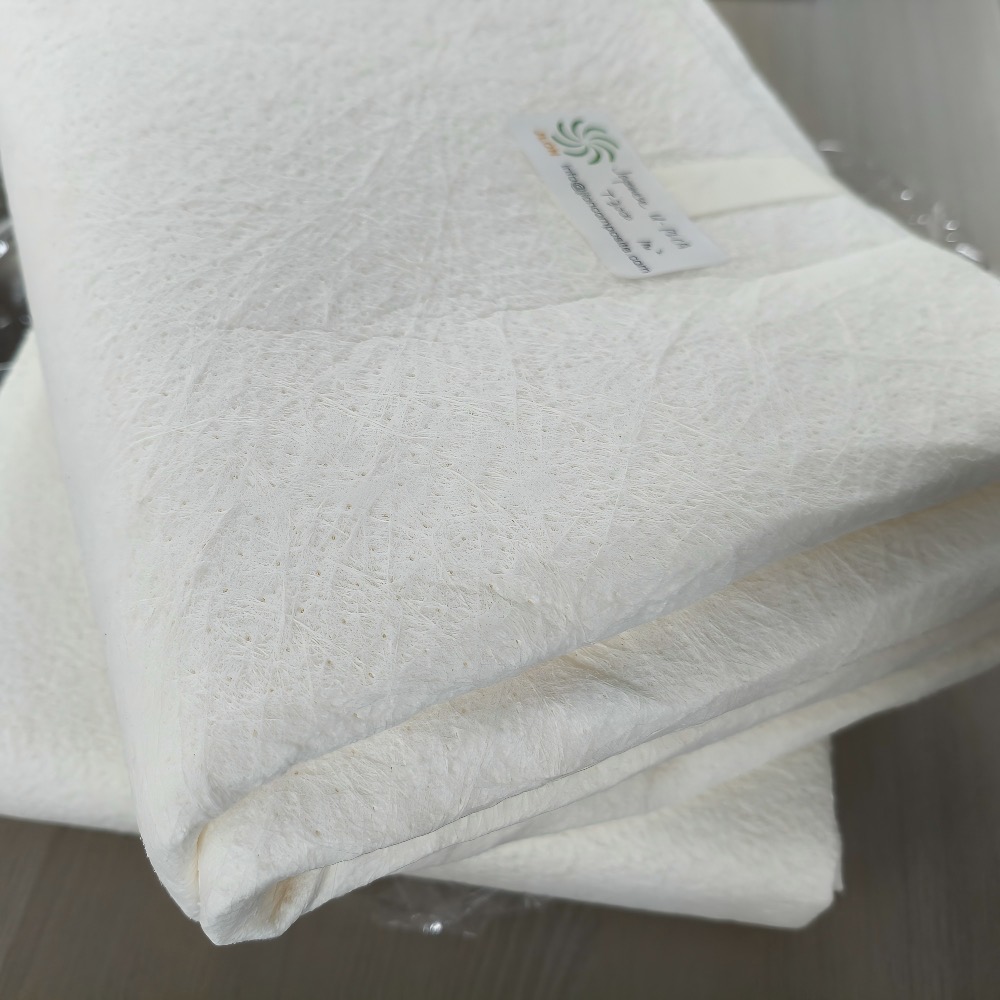

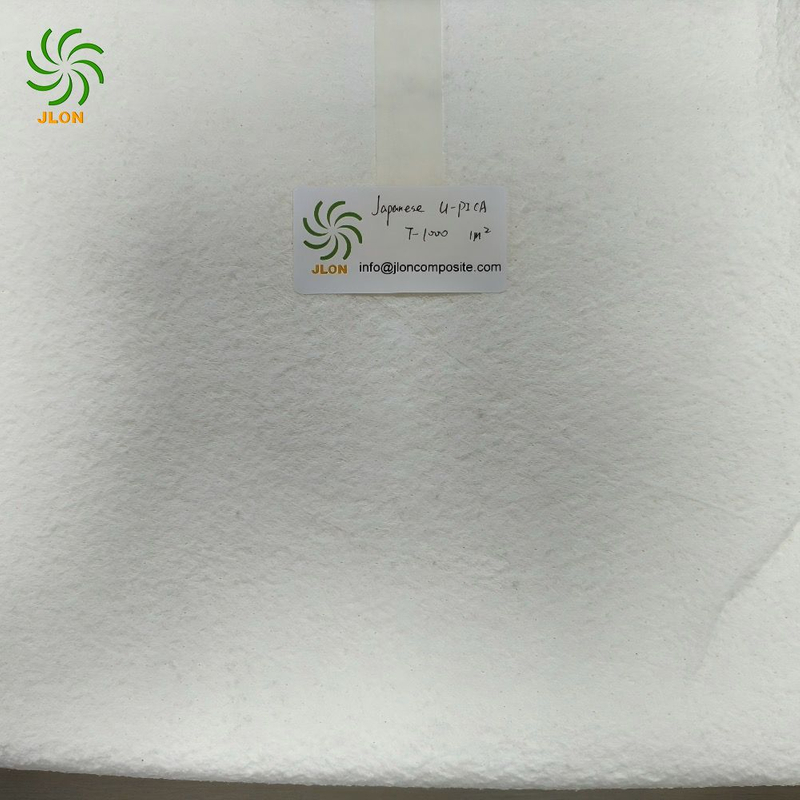

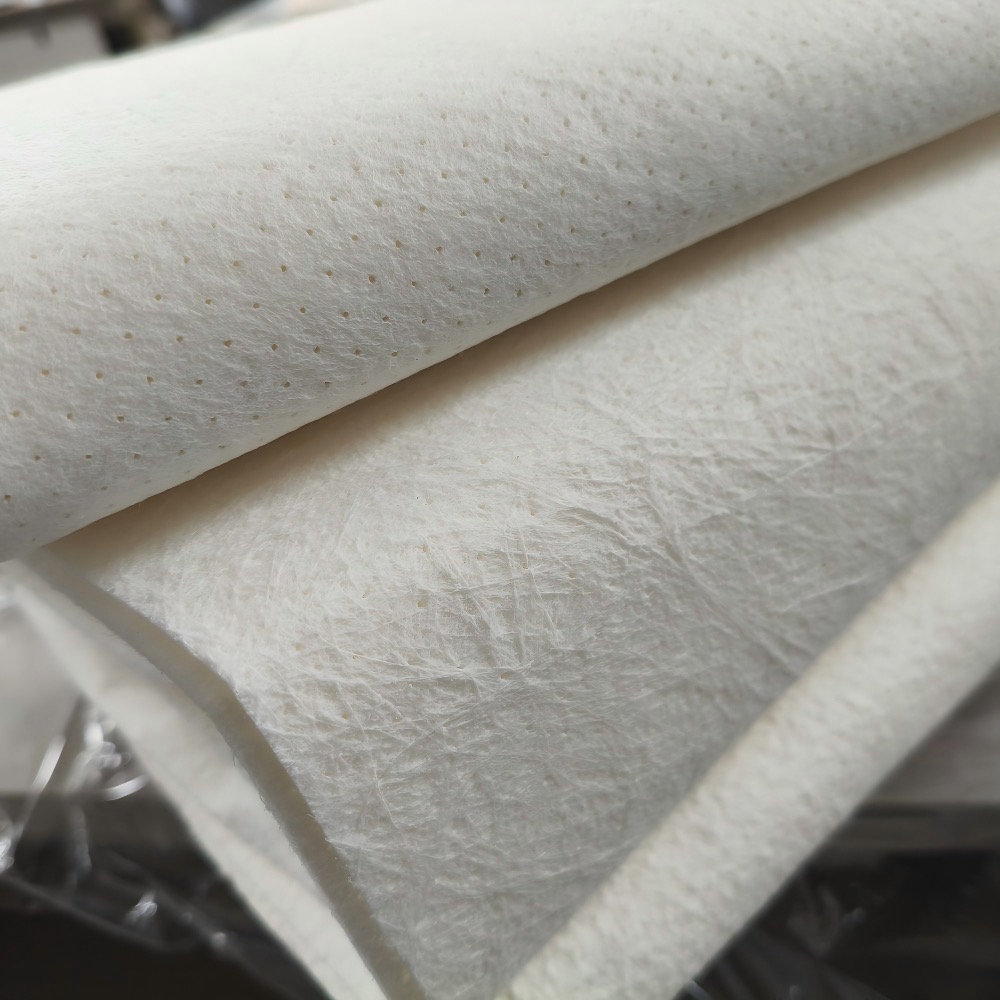

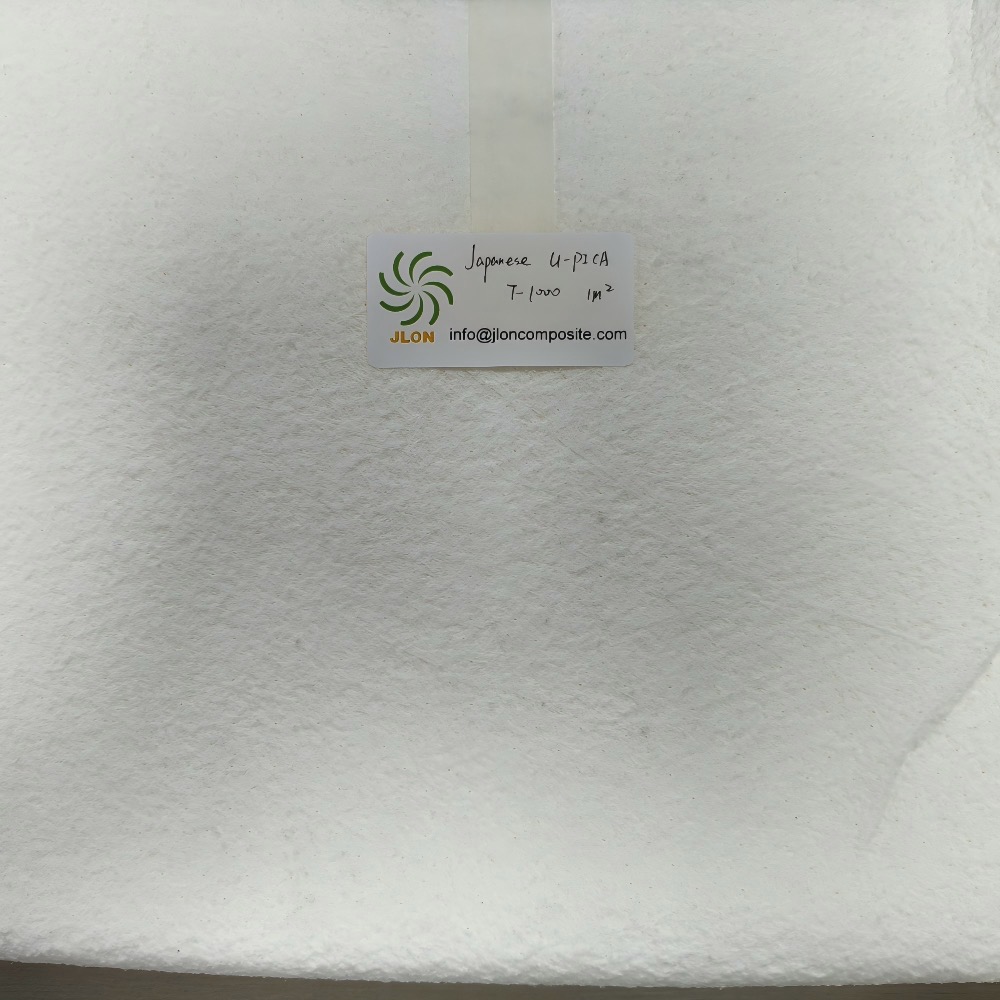

Product pictures of core mat
Technical Data sheet of core mat
MATLINE+101N-2 core mat technical data sheet.pdf
MATLINE+201N-3 core mat technical data sheet.pdf
MATLINE+301N core mat technical data sheet.pdf
U-PICA core mat technical data sheet.pdf
FAQ of core mat
1. Q: What resins is Core mat compatible with?
A: It works with polyester, vinylester, phenolic and epoxy resins.
2. Q: Which production processes can this core mat be used for?
A: It is ideal for open mould, hand lay-up and spray-up processes.
3. Q: What are the main application fields of Core mat?
A: Widely used in marine, transportation, mass transit, leisure and general industrial sectors.
4. Q: How should I store the Core mat properly?
A: Keep it sealed in the original bag and avoid direct sunlight .
5. Q: What are the available specifications of Core mat?
A: Thickness from 1.4mm--5mm.
