Weight Range: 30G–800G
Weave: Plain / Twill
Fiber: E-glass
Treatment: Silane Coating
Resin Compatibility: Epoxy / Polyester / Vinyl Ester
Max Heat Resistance: Up to 870°C
Applications: Automotive | Marine | Industrial | UAV

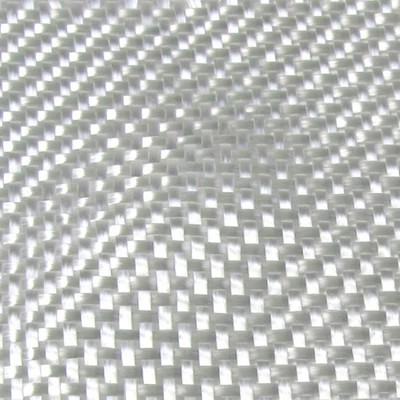

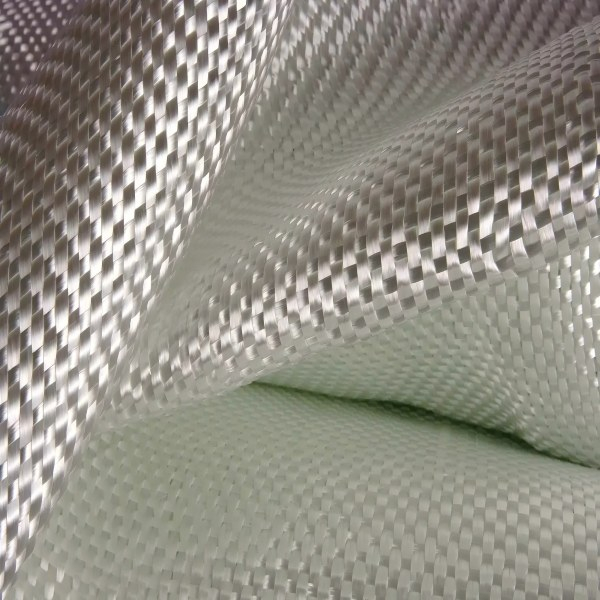

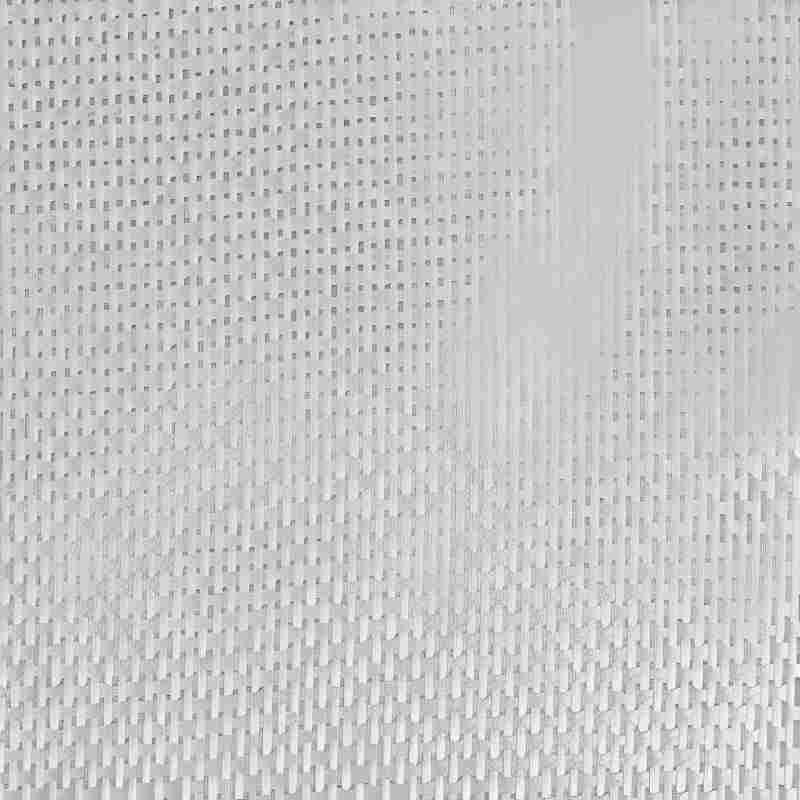

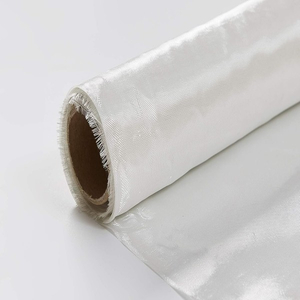

This fiberglass fabric is a fabric woven in plain or twill method with E-glass yarn. The plain or twill weave pattern ensures a smooth and even surface, making it ideal for projects that require a sleek finish. The fabric could be easily impregnated with resin and it comes out with high adhesive strength.
Our fabric is specially treated with s ilane, enhancing its resistance to moisture and improving its overall performance. This treatment also enhances the fabric's adhesion to resins, making it an excellent choice for composite application.
Whether you need fiberglass cloth for automotive repairs, boat building, or industrial applications, our Fiberglass Fabric is the perfect solution. Trust in its quality and versatility to deliver outstanding results every time.
| Product Model | Weave Structure | Warp Density | Weft Density | Weight | Tensile Strength | Tensile Strength | Yarn Count | Yarn Count | Thickness |
| EW30 | Plain weave | 20 ±2 | 18 ±2 | 23 ±2 | ≥160 | ≥70 | 8 | 4 | 4.5 |
| EW60 | Plain weave | 20 ±2 | 18 ±2 | 48 ±4 | ≥260 | ≥260 | 12.5 | 12.5 | 5.5 |
| EW80 | Plain weave | 12 ±1 | 12 ±1 | 80 ±8 | ≥300 | ≥300 | 33 | 33 | 9 |
| EWT80 | Twill weave | 12 ±2 | 12 ±2 | 80 ±8 | ≥300 | ≥300 | 33 | 33 | 9 |
| EW100 | Plain weave | 16 ±1 | 15 ±1 | 110 ±10 | ≥400 | ≥400 | 33 | 33 | 9 |
| EWT100 | Twill weave | 16 ±1 | 15 ±1 | 110 ±10 | ≥400 | ≥400 | 33 | 33 | 9 |
| EW130 | Plain weave | 10 ±1 | 10 ±1 | 130 ±10 | ≥600 | ≥600 | 66 | 66 | 9 |
| EW160 | Plain weave | 12 ±1 | 12 ±1 | 160 ±12 | ≥700 | ≥650 | 66 | 66 | 9 |
| EWT160 | Twill weave | 12 ±1 | 12 ±1 | 160 ±12 | ≥700 | ≥650 | 66 | 66 | 9 |
| EW200 | Plain weave | 8 ±0.5 | 7 ±0.5 | 198 ±14 | ≥700 | ≥650 | 132 | 132 | 9 |
| EW200 | Plain weave | 16 ±1 | 13 ±1 | 200 ±20 | ≥900 | ≥700 | 66 | 66 | 9 |
| EWT200 | Twill weave | 16 ±1 | 13 ±1 | 200 ±20 | ≥900 | ≥700 | 66 | 66 | 9 |
| EW300 | Plain weave | 8 ±0.5 | 7 ±0.5 | 300 ±24 | ≥1000 | ≥800 | 200 | 200 | 13 |
| EWT300 | Twill weave | 8 ±0.5 | 7 ±0.5 | 300 ±24 | ≥1000 | ≥800 | 200 | 200 | 13 |
| EW400 | Plain weave | 8 ±0.5 | 7 ±0.5 | 400 ±32 | ≥1200 | ≥1100 | 264 | 264 | 13 |
| EWT400 | Twill weave | 8 ±0.5 | 7 ±0.5 | 400 ±32 | ≥1200 | ≥1100 | 264 | 264 | 13 |
| EWT400 | Twill weave | 6 ±0.5 | 6 ±0.5 | 400 ±32 | ≥1200 | ≥1100 | 330 | 330 | 13 |
Automotive repairs

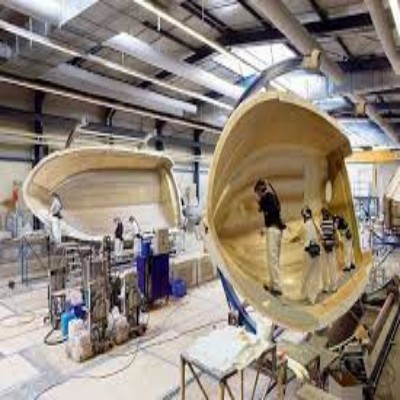

Boat building
FRP composite and Industrial applications: Insulation, Waterproof Membrane

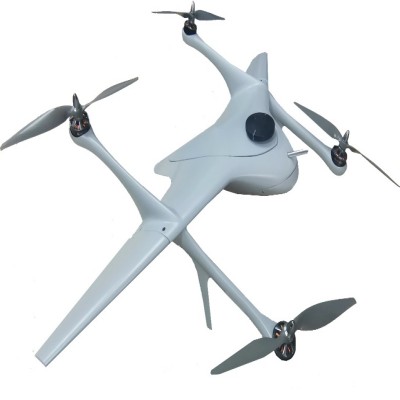

Areospace and UAV(unmanned aerial vehicle)
Electronic laminate Board and Printed Circuit Board
