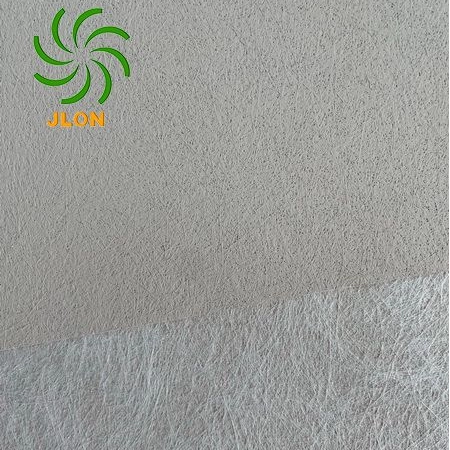

JLON coated glass facer consists of nonwoven glass fiber with mineral filled latex coating. It is an ideal surface material for gypsum board, thermal insulation board and ceiling tiles. The gypsum board and thermal insulation board with JLON coated glass facer has the advantages of fire resistance, high strength, anti-wrinkle, anti crack, moisture proof and mildew proof.
◎ Fiber Uniformly Dispersed, Smooth Surface
◎ High Strength and Bending Resistance
◎ Fire Resistance, Water Proof, Anti-UV,
◎ Antiseptic, Anti-Wrinkle
Product | Unit Weight | MD Tensile Strength | CD Tensile Strength | Thickness | Moisture | Application |
JL120 | 120 | ≥260 | ≥ 130 | 0.45±0.10 | ≤ 1.0 | ceiling tiles |
JL140 | 140 | ≥280 | ≥ 150 | 0.45±0.10 | ≤ 1.0 | |
JL200 | 200 | ≥ 350 | ≥ 250 | 0.45±0.10 | ≤ 1.0 | |
JL330 | 330 | ≥ 400 | ≥ 300 | 0.60±0.10 | ≤ 1.0 | gypsum board, PIR/PUR insulation board |
JL350 | 350 | ≥ 410 | ≥ 310 | 0.60±0.10 | ≤ 1.0 | |
JL390 | 390 | ≥ 450 | ≥ 330 | 0.70±0.10 | ≤ 1.0 | |
JL430 | 430 | ≥ 500 | ≥ 350 | 0.80±0.10 | ≤ 1.0 | |
JL480 | 480 | ≥ 550 | ≥ 380 | 1.0 ±0.20 | ≤ 1.0 | |
Testing | ISO3374 | ISO3342 | ISO4603 | ISO 3344 | ||
JLON coated glass facer can be used in three sectors: gypsum board, thermal insulation board, acoustic ceiling and wall panels.

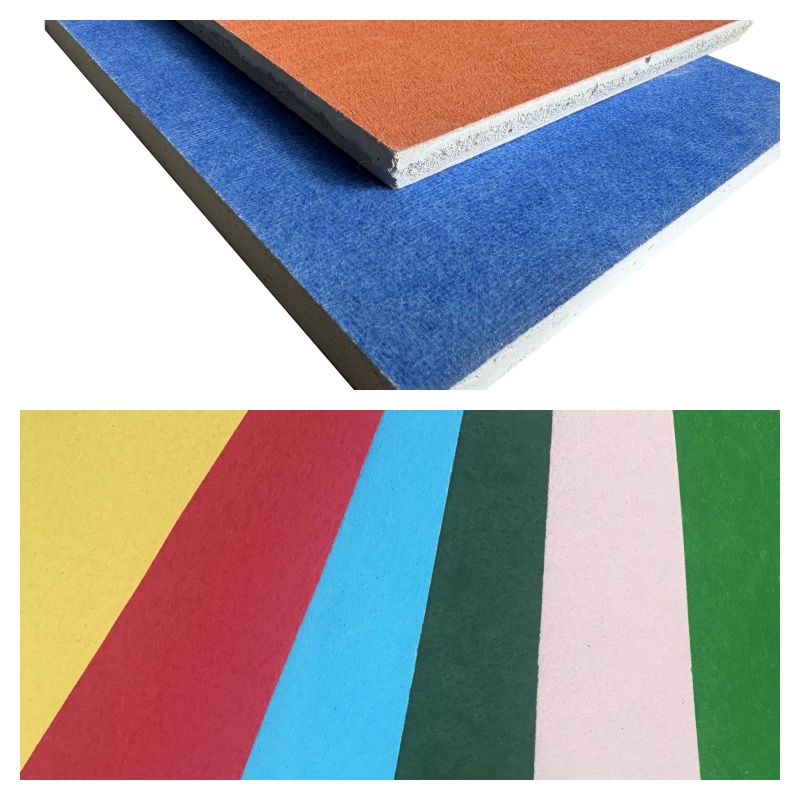

JLON offers customized coated glass facer to gypsum board manufacturers. We understand their personalized needs and highlight for brands. We can print their logo on facer and produce color they like.

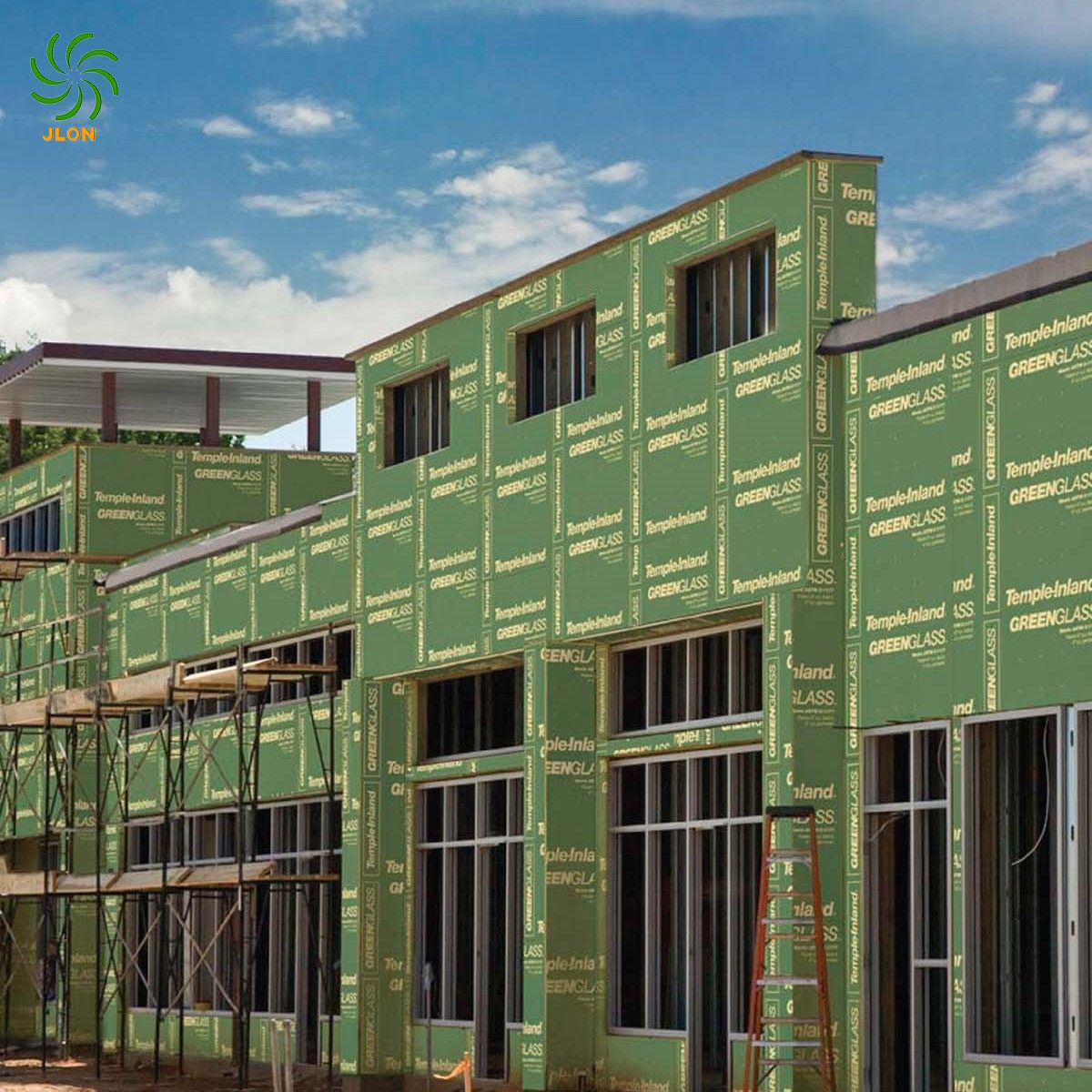

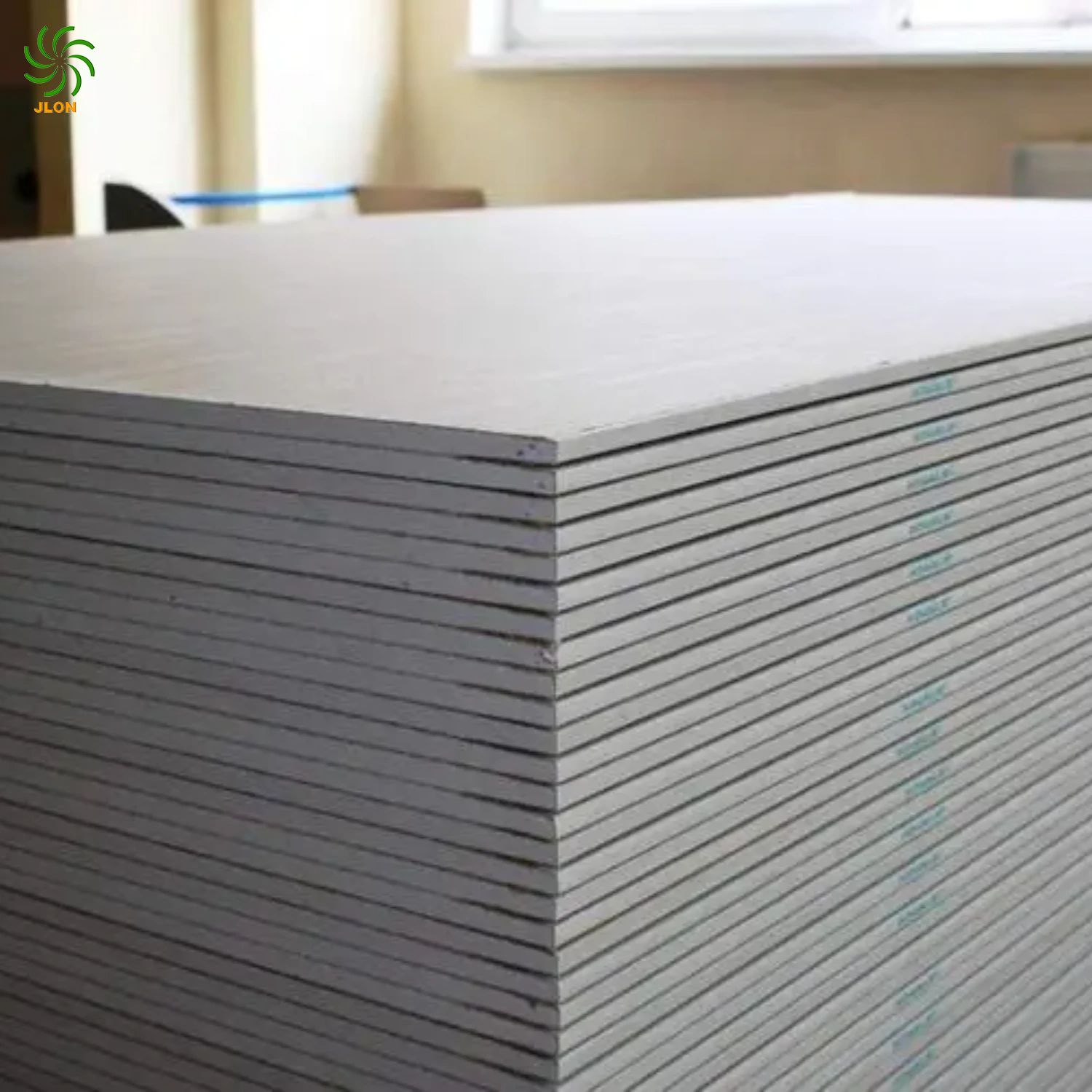

Gypsum board with JLON coated glass facer can be used in Interior and exterior walls, elevator shafts, fire passages and other public places and residential places. It is water repellent, and does not shrink or expand when exposed to water. It is dimensionally stable and fire resistant.
Though aluminum foil facer is widely used as facing material for thermal insulation board, coated glass facer is becoming more and more popular.

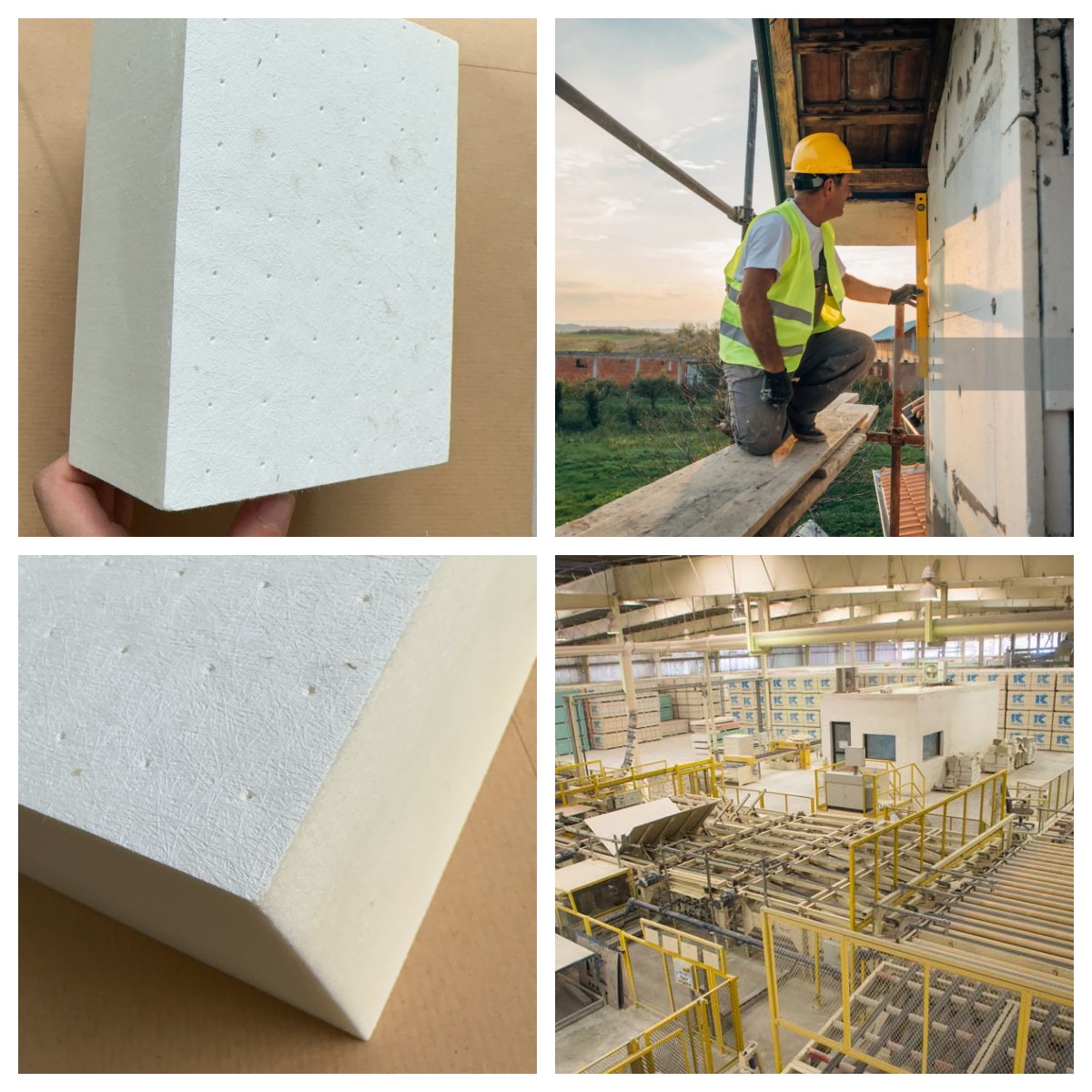

JLON coated glass facer is suitable for veneer of insulation board, including polyurethane and polyisocyanurate board (PUR/PIR board), rockwool/mineral wool board, XPS. We adjust water absorption and air permeability according to needs of different clients. The bonding strength with the core material is high, and the finished product has high bending strength and excellent compressive strength.
Insulation boards with JLON coated glass facer are widely used in the construction industry, especially in exterior wall insulation, interior wall insulation, roof insulation, and partition filling insulation of residential, apartment, hotel, office building, factory, warehouse, supermarket and other buildings. They have good insulation performance, fire resistance, water resistance, and durability, and are not moldy, wrinkled, or cracked. They are an energy-saving and environmentally friendly efficient new material.
JLON coated glass facer is widely used as a base material for sound-absorbing ceilings and wall panels using mineral wool, glass wool, rock wool, XPS, etc. The finished product has high tensile strength and bending resistance, and excellent compressive strength. Usually used in places that require noise reduction and improved acoustic quality, such as music halls, cinemas, recording studios, conference rooms, offices, etc., it has advantages such as flame retardancy, water resistance, high strength, UV resistance, no mold, no wrinkling, and no cracking. It is a new type of energy-saving and environmentally friendly material.

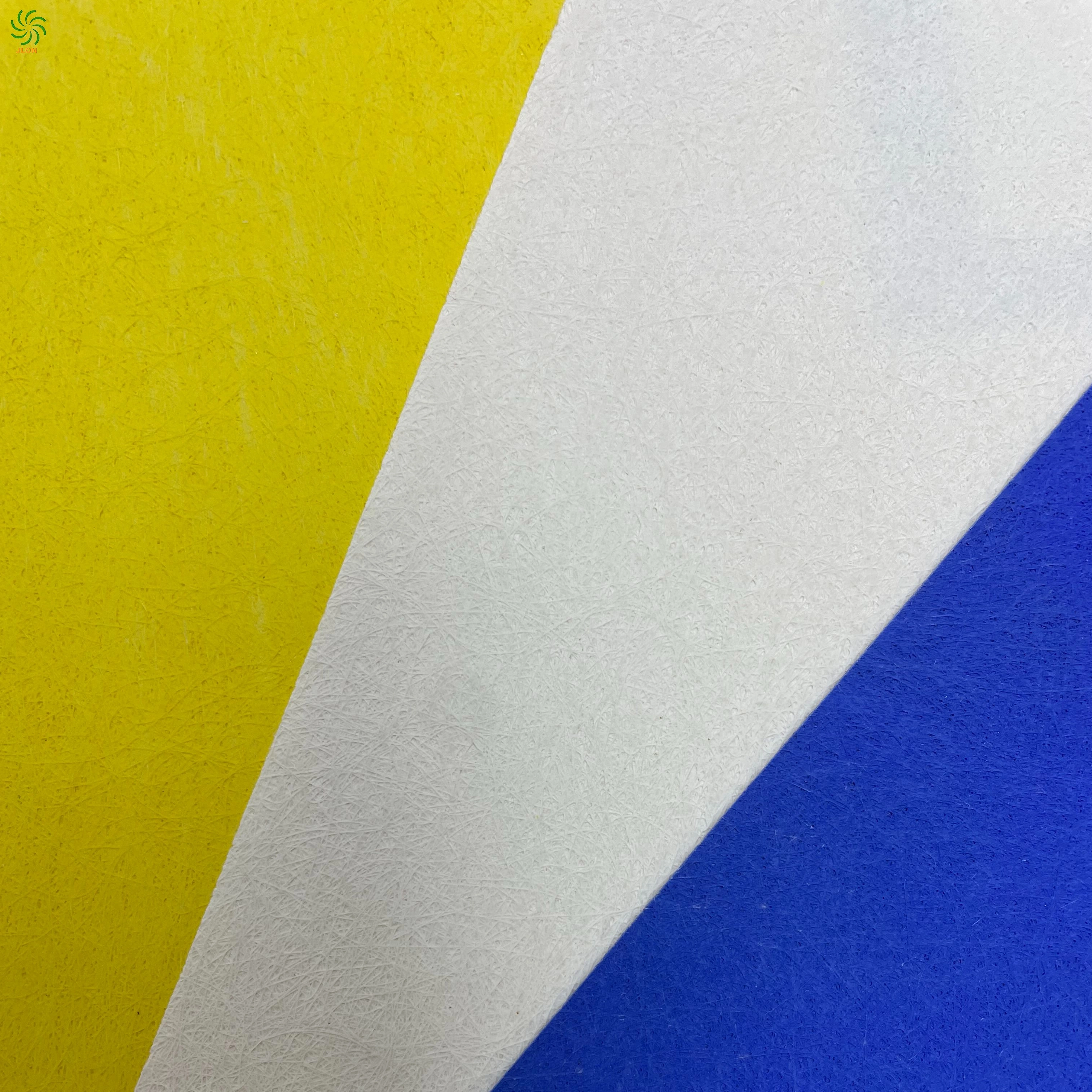

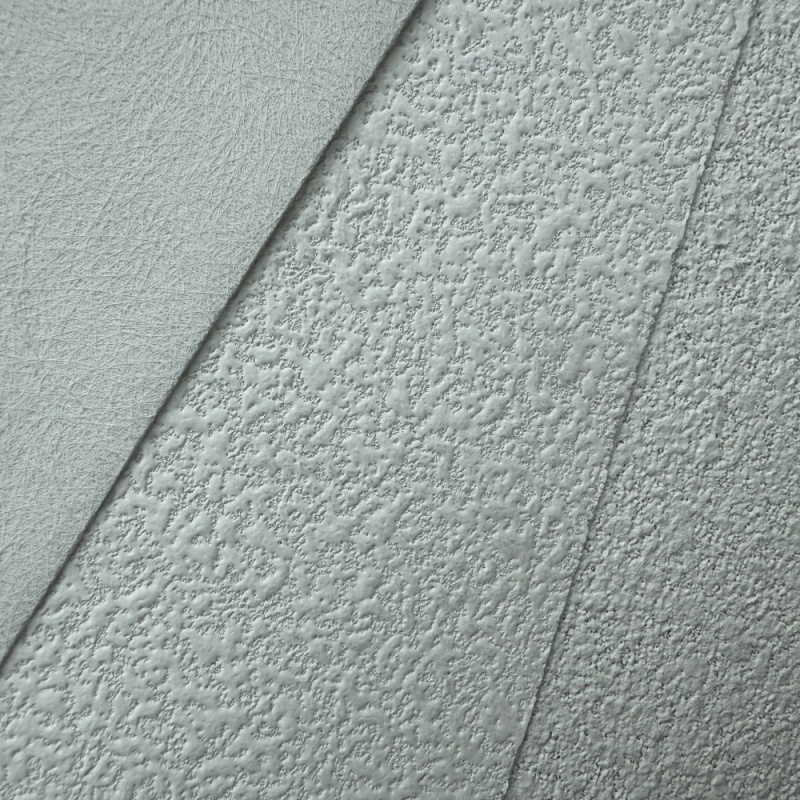

JLON offers single side coated and double side coated facer, with different patterns such as plain, 000, 600D, 600X, 700.
1. Our technical team is ready to cope with your specific needs. We have adequate knowledge and facilities to satisfy your requirements.

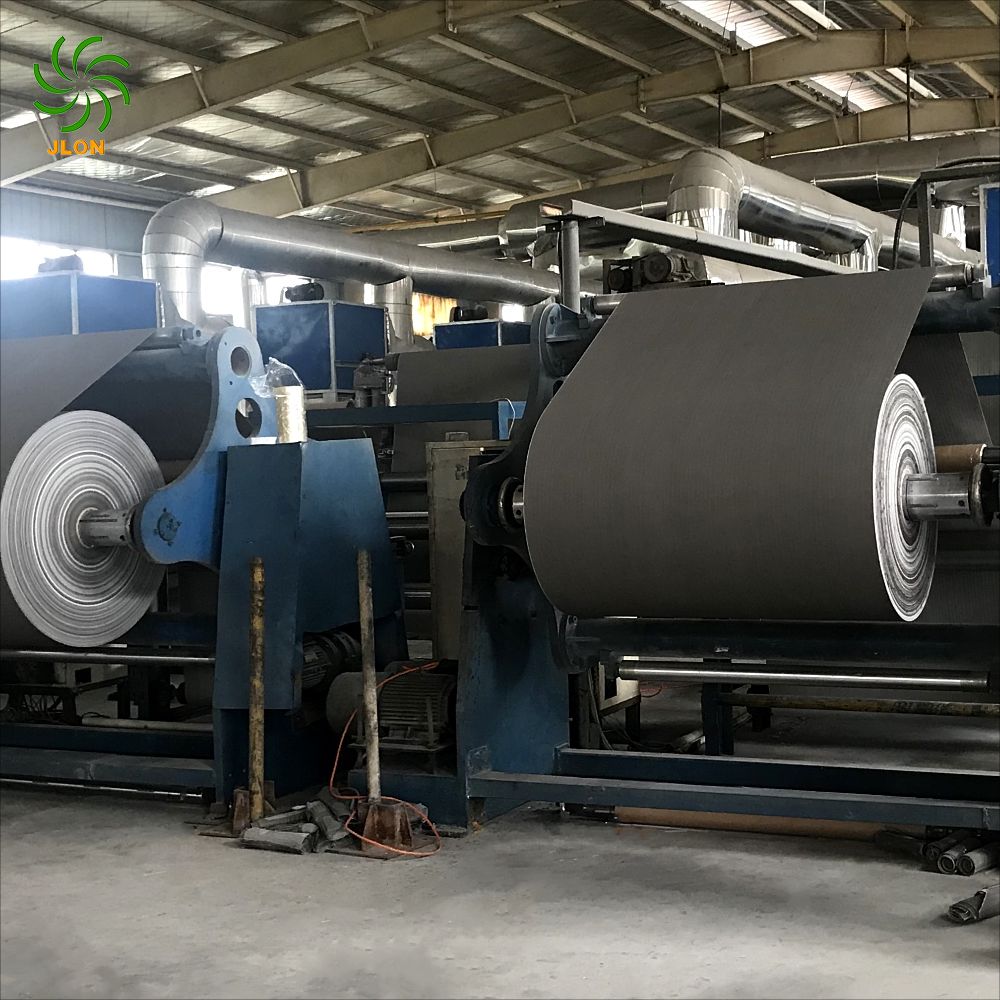

2. We control quality from each step, from glass fiber mat, to coating material, to finished product.
Picture of lab

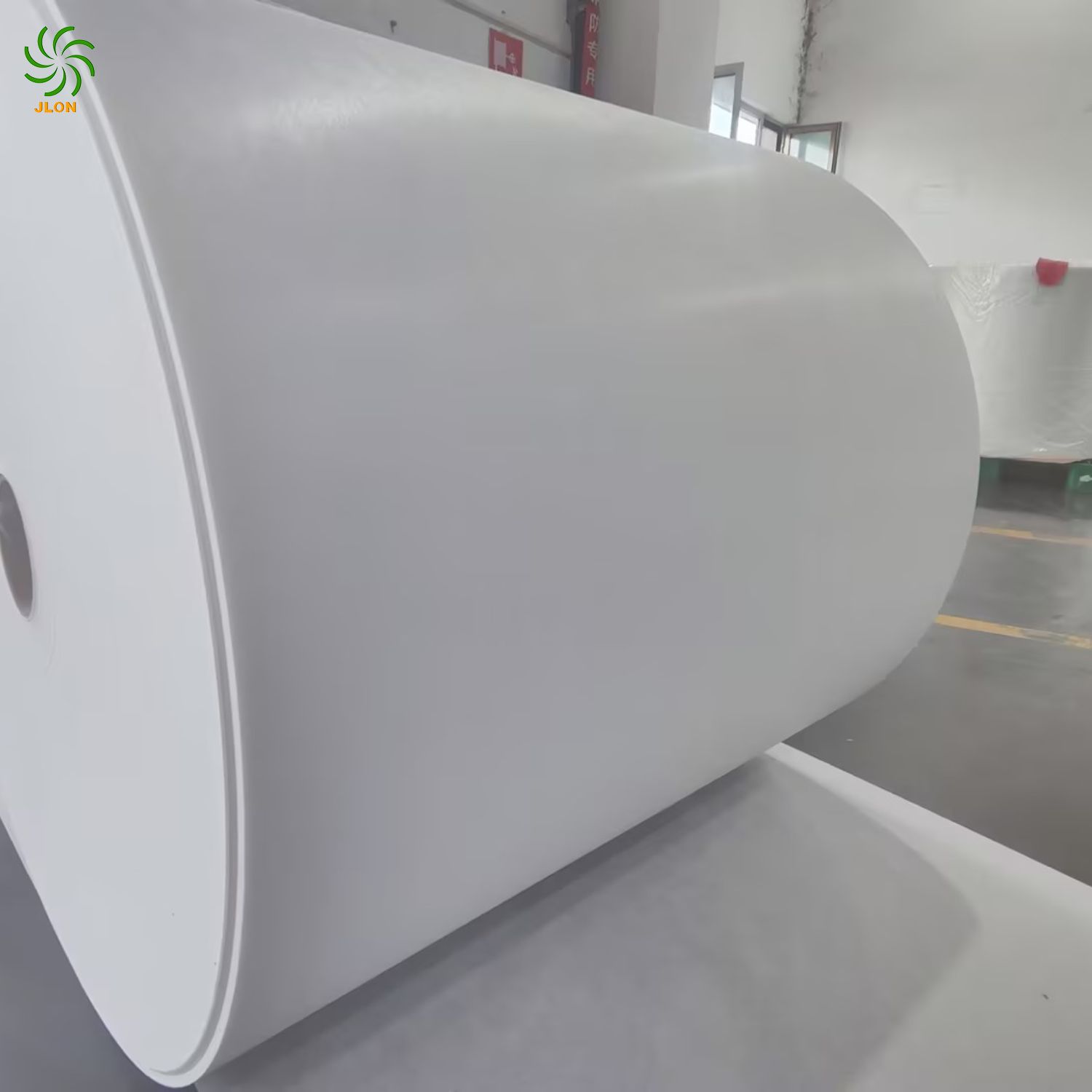

3. JLON offers big rolls up to 3500m to reduce times of roll changing. This can improve your production efficiency.
Packaging and Storage of Coated Glass Facer
Roll packaging: PE plastic film
Pallet packaging: Pallets should NOTbe stacked in more than 2 layers.
This product should be stored in a dry, ventilated and rainproof place, with temperatures from 5℃to 35℃ and humidity between 35% and 65%. It is recommended to be kept in intact package when not used to avoid damp.
A: Yes, We usually discuss with customers and help them find solutions.
Q2.How can I get a sample from you to check quality?
A: Usually a sample will be prepared within one week after specification agreed.
A: Usually around 2-3 weeks after order confirmed. Exact delivery time depends on order quantity and Off-season/ busy season.
A: Offer TDS of each lot of production for confirmation before delivery.Once you have any quality problem, you can provide samples /pictures test data With our quality tracking system, we will give you feedback in short time. If the quality problem confirmed,we will send you replacement or make refund as you like.
A: Usually we do EXW, FOB, CIF and DDU
