China Leading Carbon Fiber Fabric Supplier

1.Woven Carbon Fiber Fabric
2.Multiaxial Carbon Fiber Fabric
3.Unidirectional Carbon Fiber Fabric
4.Carbon Fiber Laminates

5.Carbon Fiber Fabric Prepreg

Carbon Fiber Fabric

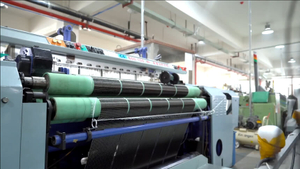

About JLON: The Leading Carbon Fiber Fabric Supplier

Changzhou JLON Composite Co. has established itself as a leading supplier of carbon fiber fabric. Our products including unidirectional carbon fiber fabric/woven carbon fiber fabric/muitiaxial carbon fiber fabric/prepreg carbon fiber fabric/carbon fiber laminates.
Application include construction, marine, pultruded profiles, transportation, wind energy, and sports.
As a one-stop source for high performance materials, we pride ourselves on our ability to meet diverse customer needs with stable quality and competitive prices.

Contact Our Support Team

24 Hours

Quick Response

Stock & Sample

Is Free & Available

Technical & Support

Provide Service & Advice

Fast Delivery

Fast Prodcution & On-time Delivery

Can't Find Ideal Carbon Fiber Fabric For Your Industries?

Consult Your JLON Expert

What Is Carbon Fiber Fabric?

Carbon fiber fabric has been described as the pinnacle of comprehensive material performance in the world today, the black revolution of the 21st century, and a new material developed to meet the needs of the development of cutting-edge industries such as astronautics, aviation and atomic energy.

With high tensile strength, high tensile modulus, low density, high temperature resistance, ablation resistance, corrosion resistance, high electrical and thermal conductivity, low thermal expansion, self-lubricating and biocompatibility and other peculiar properties.

According to the texture of carbon fiber fabric, it can be mainly divided into unidirectional carbon fiber fabric, plain weave, twill weave,and multiaxial carbon fiber fabric.

Contact Us Now

Carbon Fiber Fabric Advantage

High Strength To Weight Ratio

JLON Carbon fiber is a versatile material renowned for its exceptional strength-to-weight ratio and resistance to corrosion and heat.

Lightweight

JLON carbon fiber fabric is ideal for weight reduction.

Good Corrosion Resistance And Chemical Resistance

JLON carbon fiber plain weave fabric has excellent chemical resistance and is suitable for harsh environments.

Start an Order with Us

Specification Of Woven Carbon Fiber Fabric

Type	Yarn		Weave	Density（10mm）		Weight （g/m2）	Thickness （mm）	Width (cm)
	Warp	Weft		Warp	Weft
JZZ01P-100	1k	1k	plain	7.5	7.5	100	0.14	80-150
JZZ01T-100	1k	1k	twill	7.5	7.5	100	0.14	80-150
JZZ01P-120	1k	1k	plain	9	9	120	0.16	80-150
JZZ01T-120	1k	1k	twill	9	9	120	0.16	80-150
JZZ01P-140	1k	1k	plain	10.5	10.5	140	0.17	80-150
JZZ01T-140	1k	1k	twill	10.5	10.5	140	0.17	80-150
JZZ01E-140	1k	1k	Satin	12	12	160	0.18	80-150
JZZ03P-180	3k	3k	plain	4.5	4.5	180	0.28	80-150
JZZ03T-180	3k	3k	twill	4.5	4.5	180	0.28	80-150
JZZ03P-200	3k	3k	plain	5	5	200	0.3	80-150
JZZ03T-200	3k	3k	twill	5	5	200	0.3	80-150
JZZ03P-240	3k	3k	plain	6	6	240	0.32	80-150
JZZ03T-240	3k	3k	twill	6	6	240	0.32	80-150
JZZ03P-280	3k	3k	plain	7	7	280	0.34	80-150
JZZ03T-280	3k	3k	twill	7	7	280	0.34	80-150
JZZ03E-320	3k	3k	Satin	8	8	320	0.36	80-150
JZZ06P-280	6k	6k	plain	3.5	3.5	280	0.36	80-150
JZZ06T-280	6k	6k	twill	3.5	3.5	280	0.36	80-150
JZZ06P-320	6k	6k	plain	4	4	320	0.38	80-150
JZZ06T-320	6k	6k	twill	4	4	320	0.38	80-150
JZZ06P-400	6k	6k	plain	5	5	400	0.42	80-150
JZZ06T-400	6k	6k	twill	5	5	400	0.42	80-150
JZZ12P-400	12k	12k	plain	2.5	2.5	400	0.46	80-150
JZZ12T-400	12k	12k	twill	2.5	2.5	400	0.46	80-150
JZZ12P-480	12k	12k	plain	3	3	480	0.52	80-150
JZZ12T-480	12k	12k	twill	3	3	480	0.52	80-150
JZZ12P-640	12k	12k	plain	4	4	640	0.64	80-150
JZZ12T-640	12k	12k	twill	4	4	640	0.64	80-150

Specification of Unidirectional Carbon Fiber Fabric

Area Weight	200 g/m2	300 g/m2	600 g/m2
Fabric Design Thickness	0.111mm	0.167mm	0.333mm
Tensile Strength	>= 3400 MPa	>= 3400 MPa	>= 3400 MPa
Elastic Modulus	>= 240 GPa	>= 240 GPa	>= 240 GPa
Break Elongation	>=1.7%	>=1.7%	>=1.7%

Specification of Multiaxial Carbon Fiber Fabric

Fabric Specification	Total Weight (g/m2)	0°	90°	+45°	-45°	Stitching Yarn (g/m2)	Binder(g/m2)
Fabric Specification	Total Weight (g/m2)	0°	90°	+45°	-45°	Stitching Yarn (g/m2)	Binder(g/m2)
C-PN600-12	602			300	300	2
C-PN600-50	602			300	300	2
C-LT400-12	402	200	200			2
C-LT600-50	602	300	300			2
C-TX500-12	502	200		150	150	2
C-QX600-12	602	150	150	150	150	2
C-L150-12-B	174	150	12			4	8
C-P150-12-B	176			150	10	8	8
C-N150-12-B	176			10	150	8	8
C-L300-50-B	326	300	12			4	10
C-P300-12-B	328			300	10	8	10
C-N300-12-B	328			10	300	8	10
C-L600-50-B	628	600	12			4	12
C-PN260-12	262			130	130	2
C-LT260-12	262	130	130			2
C-PN400-12	402			200	200	2
C-QX400-12	402	100	100	100	100	2

Get The Latest Price

Application Of Carbon Fiber Fabric

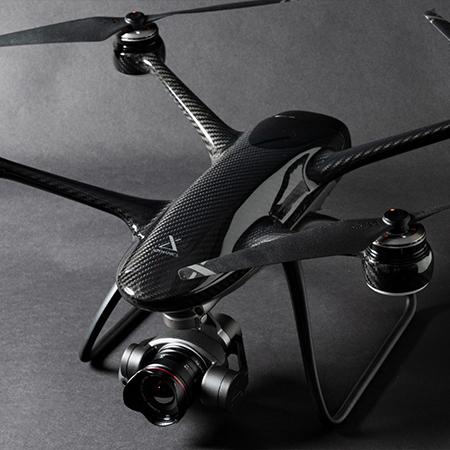

Carbon fiber fabric is widely used in Aviation, automobile, bicycle, surfboard, suite case, reinforcement to helmet, buildings… etc.

Boost Your Business Now

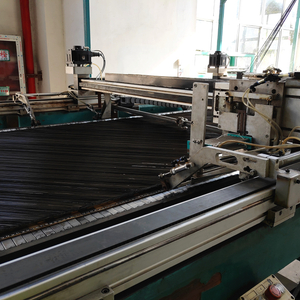

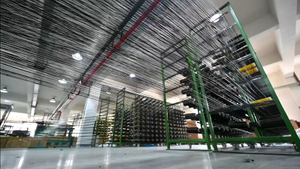

Welcome To Visit JLON

Cooperation Process

Carbon Fiber Fabric FAQ

Q What are your terms of payment?

A
Usually we do EXW, FOB, CIF, and DDU.
Q What about your delivery time? Can we receive our goods on time?

A
Usually around 2-3 weeks after order confirmed. Exact delivery time depends on order quantity and Off-season/ busy season.

Common type like 3K plain weave 200gsm is available in stock for sale .
Q What is the Guarantee to buy your products? How to resolve quality complaints?

A
Offer TDS of each lot of production for confirmation before delivery.Once you have any quality problem, you can provide samples /pictures /test data. With our quality tracking system, we will give you feedback in short time. If the quality problem confirmed,we will send you replacement or make refund as you like.
Q How can I get a sample from you to check quality?

A
Usually a sample will be prepared within one week after specification agreed.Usually A4 size.
Q Can your company customize products?

A
Yes, JLON is leading supplier for carbon fiber material.

We usually discuss with customers and help them find solutions.
We can supply 1K/3K/4K/12K/24K carbon fiber fabric.

Glass Carbon fiber can be customized too.
