P80/P100/P150/P200/P250/P320
JLON
80KG/M3 100KG/M3 150KG/M3 200KG/M3 250KG/M3 320KG/M3
white
3921199090

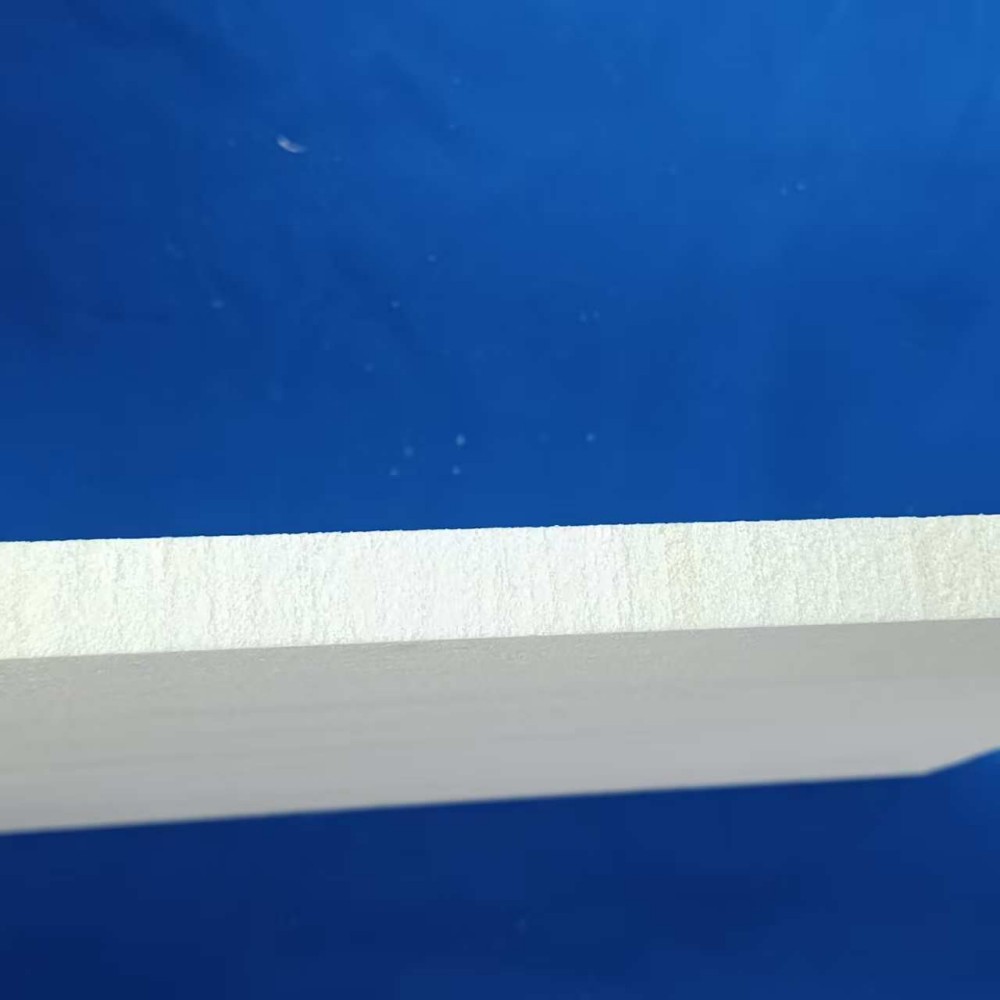

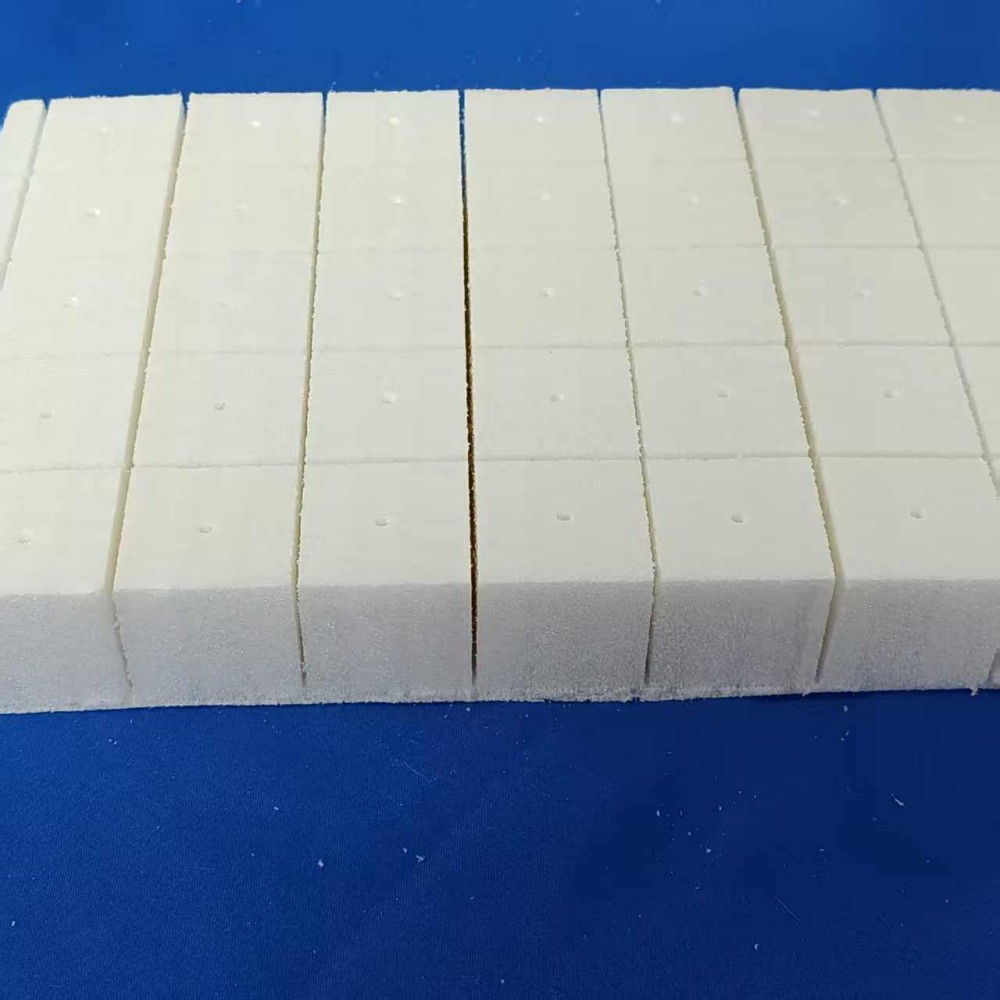

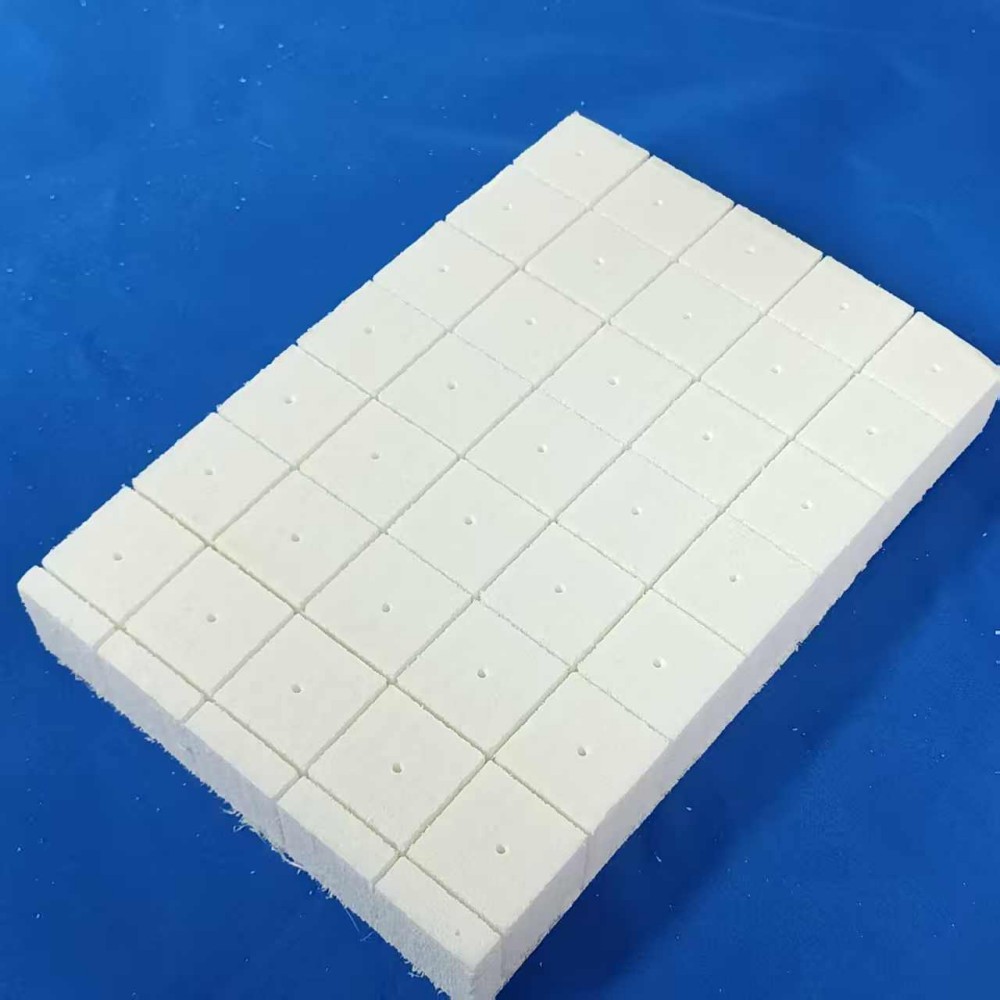

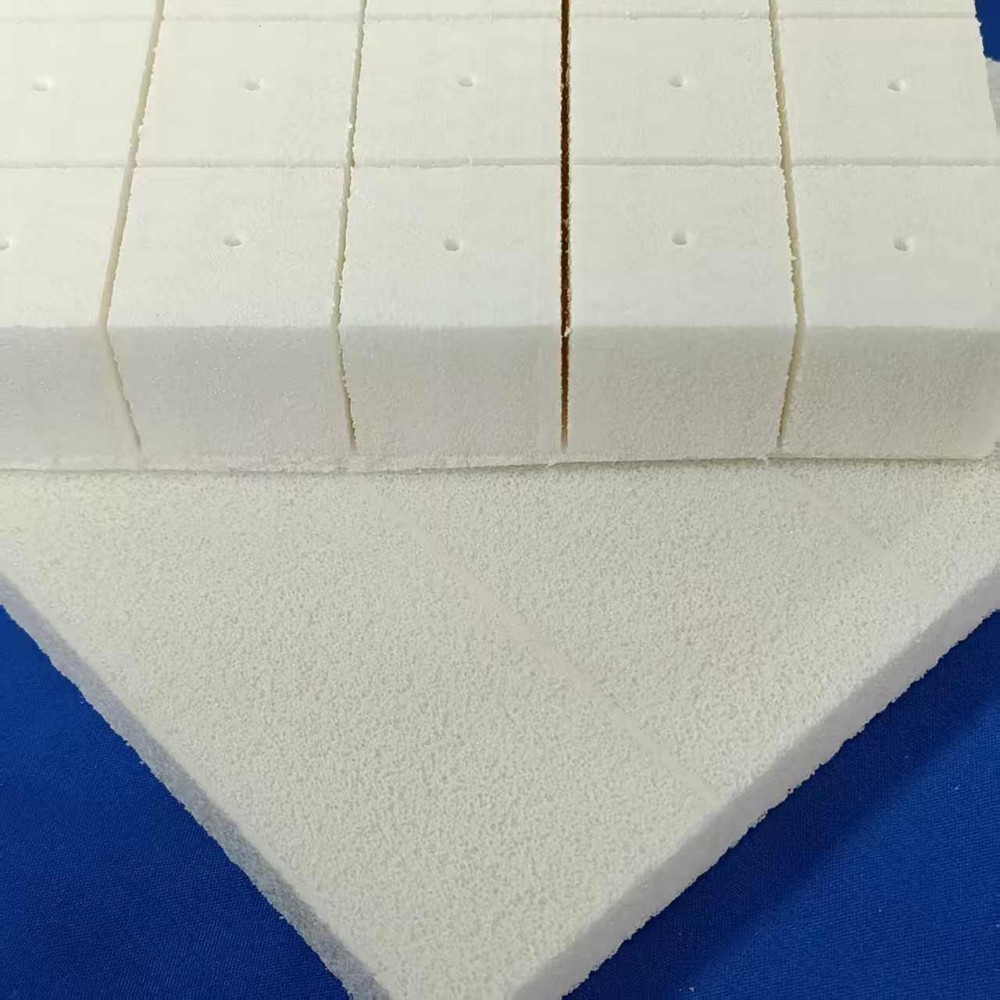

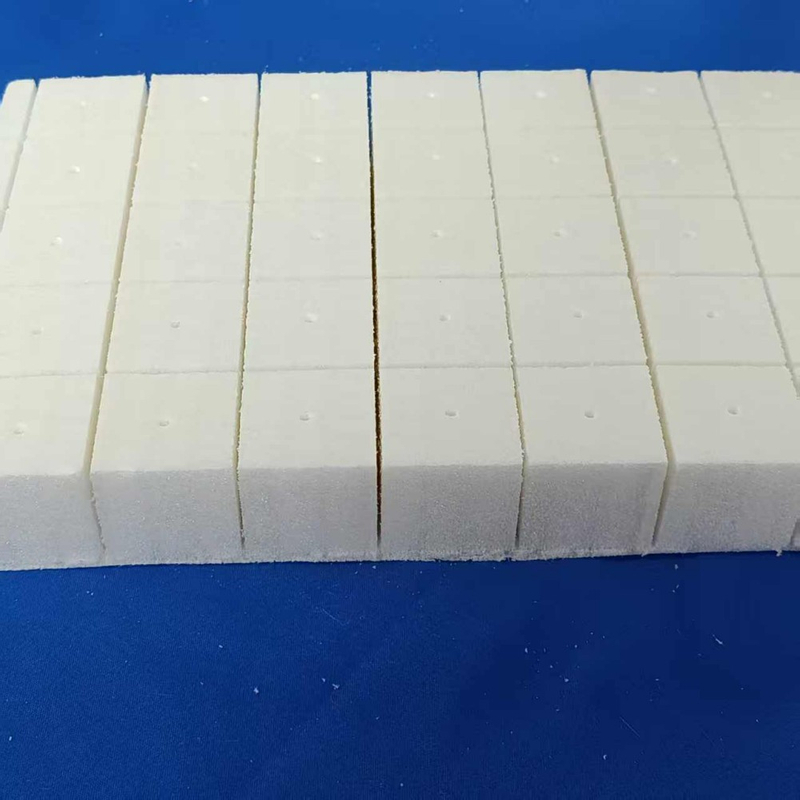

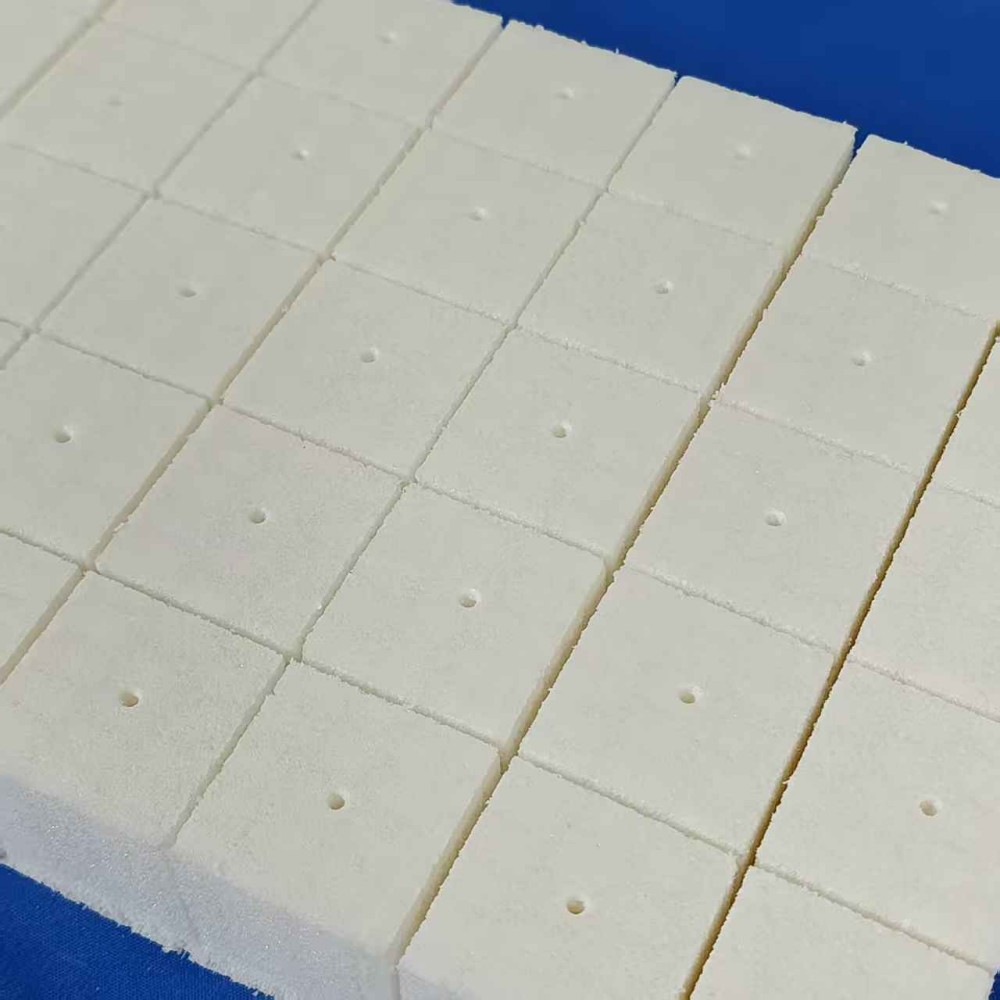

PET foam (polyethylene terephthalate) is a closed-cell thermoplastic structural foam with certain shear and compression strengths, so it is often used as core material for sandwich structure materials, and is widely used in the fields of construction, road transportation, rail transportation, new energy automobiles, aviation, shipbuilding, and wind power.
PET structural foam has good specific stiffness, specific strength. Compression, tensile, shear and bending strengths are excellent.

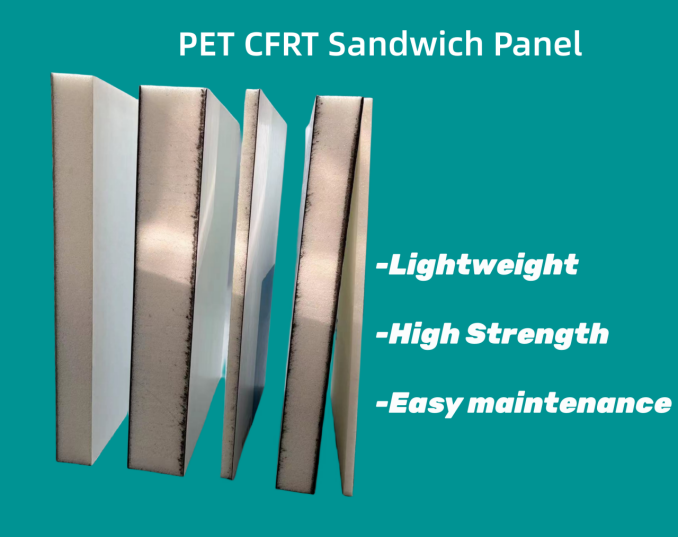

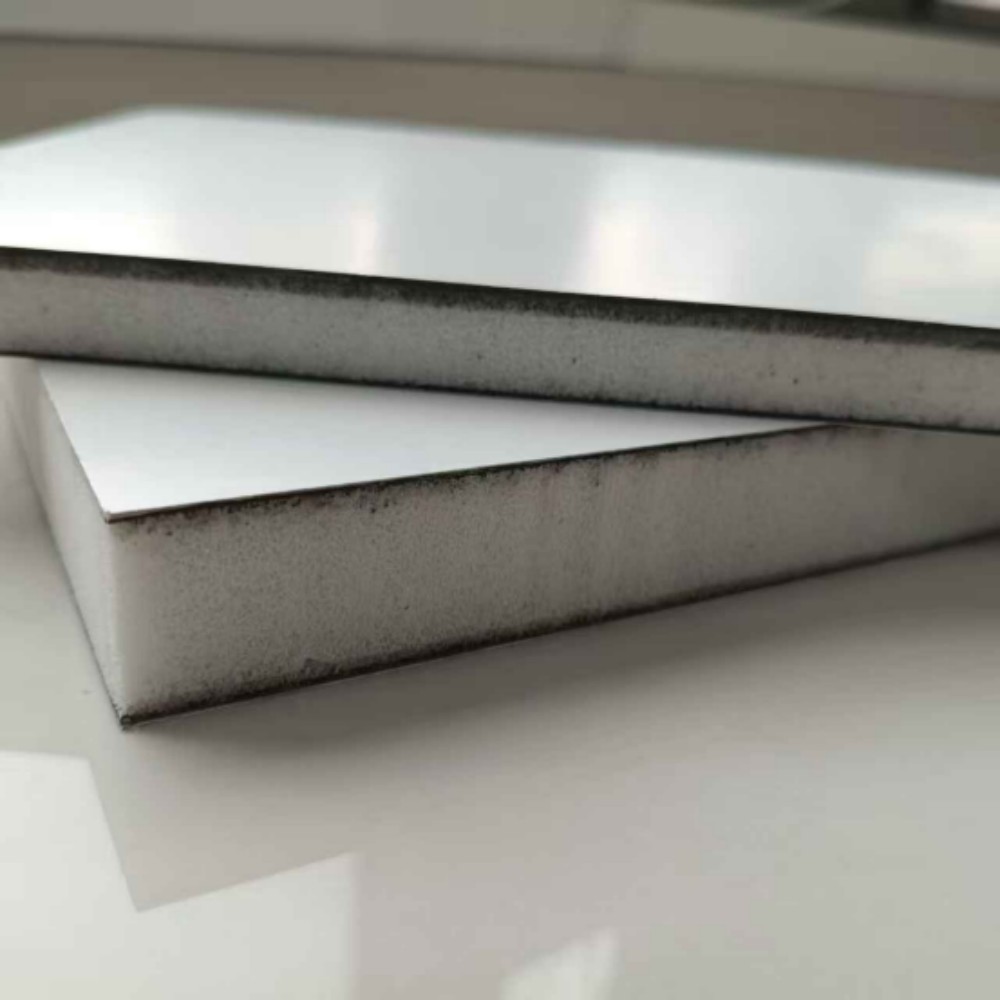

PET foam core also has good dimensional stability and easy to process, suitable for a variety of processes. It is an ideal core material for lightweight & high-strength composite sandwich structures.
It provides excellent fatigue resistance, impact resistance and very low water absorption. Heat and sound insulation are also very good.
High exothermic peak tempertaure resistance, up to 180C
High performance weight ratio, good impact resistance
Resistance to many chemicals, almost no water absorption
Low flammability, self-extinguishing from fire
Suitable for a variety of composite molding methods: Vacuum infusion, spray up, hand lay-up, vacuum bagging
Good impact strength
Low resin absorption
Good sound & thermal insulation
Marine, surface transport, aerospace, and wind energy industries

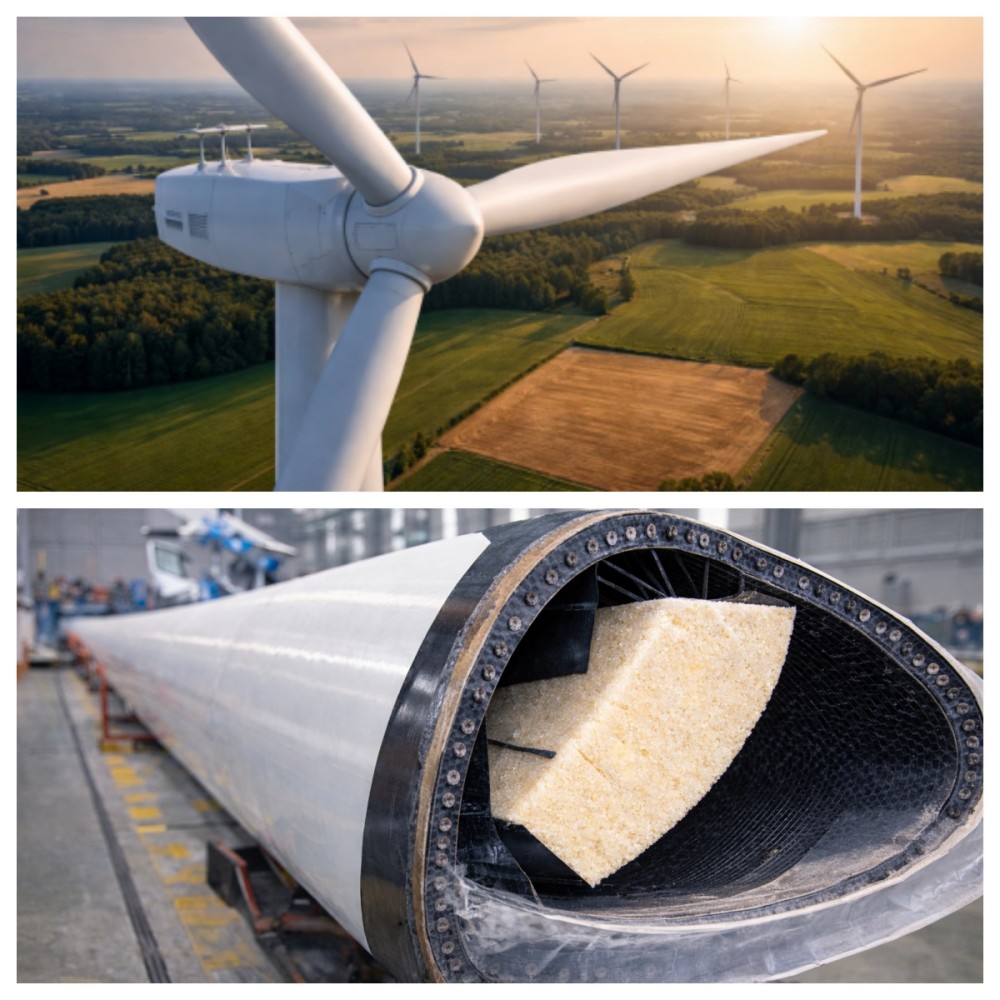

In the field of wind power, PET foam as a structural core material has achieved a very wide range of applications, and is expected to further replace the traditional core materials such as balsa wood, PVC foam and styrene-acrylonitrile copolymer (SAN) foam, so as to achieve the structure of the core material of the entire use of PET foam.
Most of the wind turbine blades use epoxy resin as the base resin, resin curing for the exothermic reaction, improper control due to the high temperature makes the core material burnt, resulting in the scrapping of the blade. The use of PET foam heat-resistant temperature increased by 20 ~ 30 ℃, the curing process is easier to control, PET foam adhesive absorption is low, can reduce the weight of the blade.
At present the world's largest wind power host manufacturer Vestas, LM, etc. has designed the completion of the whole PET core material wind turbine blade and carried out trial operation, the effect is good. Although the wind turbine core materials market is still relatively new to PET foam, this thermoplastic can provide a variety of advantages, and is expected to be widely used in the turbine blade manufacturing process, is the ideal material choice in this field.
Foamed materials meet the requirements of lightweight UAVs, enabling higher speeds, longer range, and greater payload capacity, while improving dynamic performance, which makes them ideal for use in areas that require shock and vibration resistant loads, energy savings, and increased payloads. Spongy, lightweight foams are good materials for UAVs to use as sandwich materials.
PET foam structural core material's excellent high strength, weight ratio, and cost-effective performance make it an ideal foaming material for civil UAVs, commercial UAVs, and military UAVs, among others.
PET foam has excellent flame retardant, low smoke, non-toxic performance, high temperature performance, excellent fatigue resistance (better than some of the PVC foam core), good mechanical properties and chemical corrosion resistance, and its excellent acoustic and thermal insulation properties and low water absorption can better meet the specific functional needs of the military or civilian ships, usually used for hull wall panels or structural materials, and its recyclability can also meet the specific functional needs of military or civilian ships, and its recyclability can also meet the specific functional needs of military or civilian ships. Its recyclability also meets the needs of environmental protection.
Foamed core materials are used as filler materials in boat propellers to improve strength and toughness. It is also tightly bonded to the carbon fibre composite material, which enhances the performance of the product.
Item | Standard | Unit | P80 | P100 | P120 | P150 | P200 | P250 | |
Density | ISO 845 | Kg/m3 | Average | 80 | 100 | 120 | 150 | 200 | 250 |
Tolerance | -6,+9 | ±10 | ±10 | ±15 | ±20 | ±30 | |||
Compression | ASTM D1621 | MPa | Average | 0.85 | 1.2 | 1.8 | 2.4 | 3.9 | 5.2 |
Strength | Minimum | -0.8 | -1.1 | -1.55 | -2.2 | -3.4 | -4.8 | ||
Compression Modulus | ASTM D 1621 | MPa | Average | 73 | 100 | 115 | 140 | 200 | 235 |
Minimum | -65 | -90 | -105 | -125 | -170 | -210 | |||
Tensile Strength | ASTM D 1623 | MPa | Average | 1.4 | 1.8 | 2.2 | 2.5 | 3.2 | 4 |
Minimum | -1.3 | -1.6 | -1.9 | -2.2 | -2.6 | -3.6 | |||
Tensile | ASTM D 1623 | MPa | Average | 90 | 110 | 120 | 160 | 210 | 275 |
Modulus | Minimum | -80 | -100 | -105 | -130 | -180 | -250 | ||
Shear | ASTM C 273 | MPa | Average | 0.55 | 0.8 | 0.9 | 1.25 | 1.7 | 2.05 |
Strength | Minimum | -0.45 | -0.75 | -0.8 | -1.05 | -1.5 | -1.8 | ||
Shear | ASTM C 273 | MPa | Average | 13.5 | 23 | 27 | 35 | 51 | 70 |
Modulus | Minimum | -12.5 | -21 | -23 | -30 | -47 | -65 |
A: Yes, We usually discuss with customers and help them find solutions.
A: Usually a sample will be prepared within one week after specification agreed.
A: Usually around 2-3 weeks after order confirmed. Exact delivery time depends on order quantity and Off-season/ busy season.
A: Offer TDS of each lot of production for confirmation before delivery.Once you have any quality problem, you can provide samples /pictures /test data. With our quality tracking system, we will give you feedback in short time. If the quality problem confirmed,we will send you replacement or make refund as you like.
A: Usually we do EXW, FOB, CIF, and DDU.
