Electronic Grade Fiberglass Cloth
Roll or Carton Packaging, Wrapped with PE Film
≥300 N/25 mm
≥350 N/25 mm
≤0.4%
1270mm

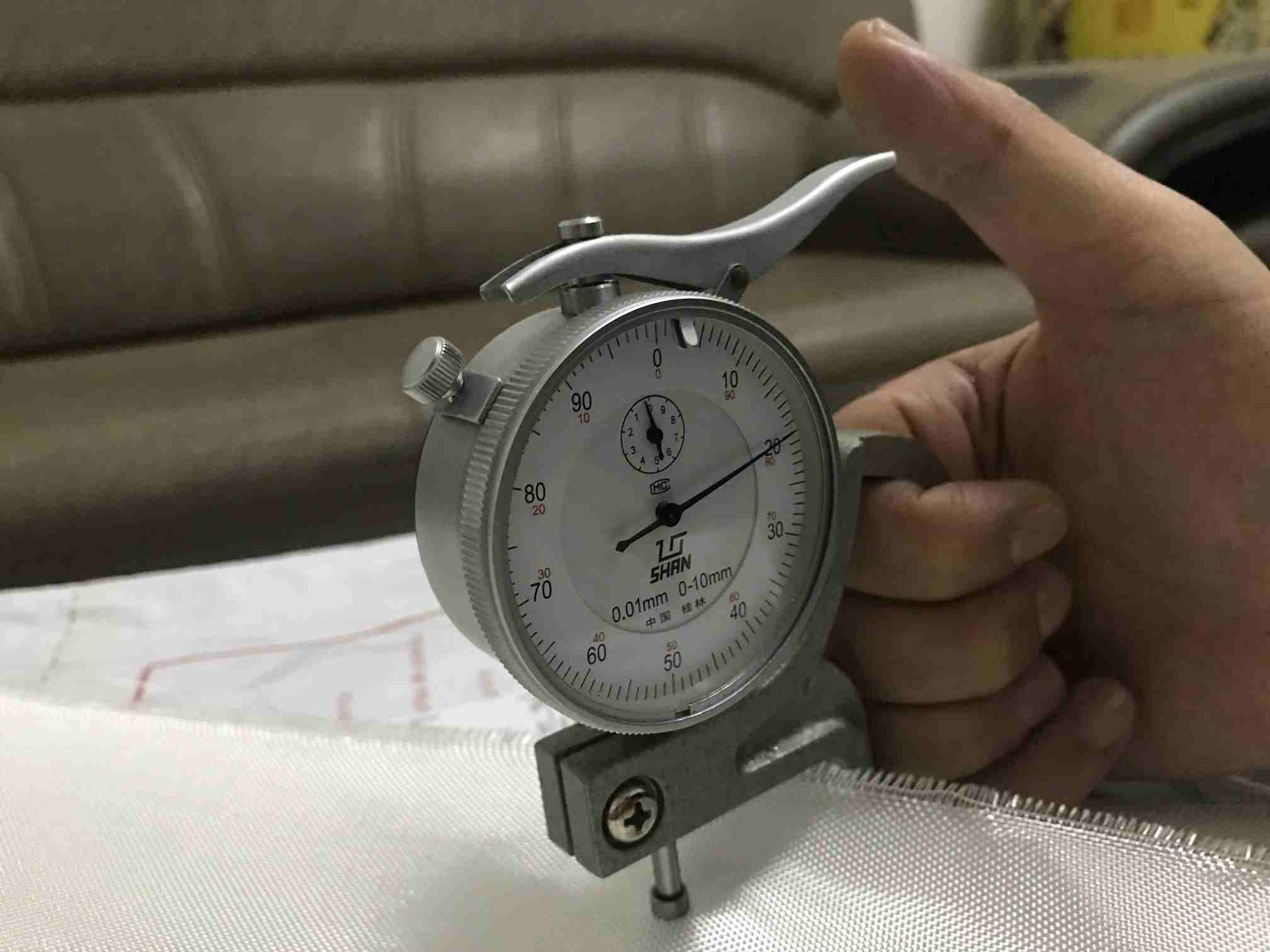

0.03–0.15 mm
White
E-Glass
High-Purity Electric Grade Fiberglass Yarn
3–5 MPa

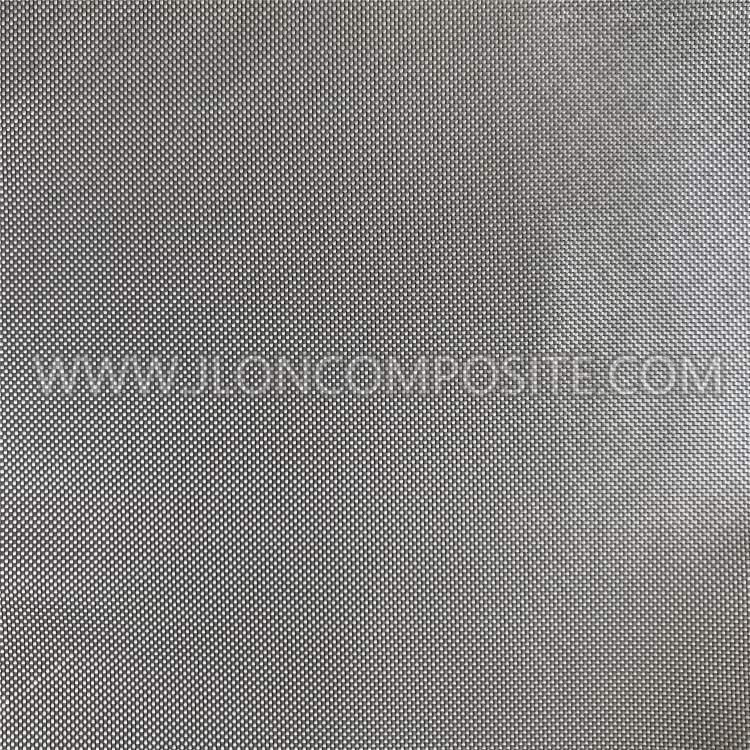

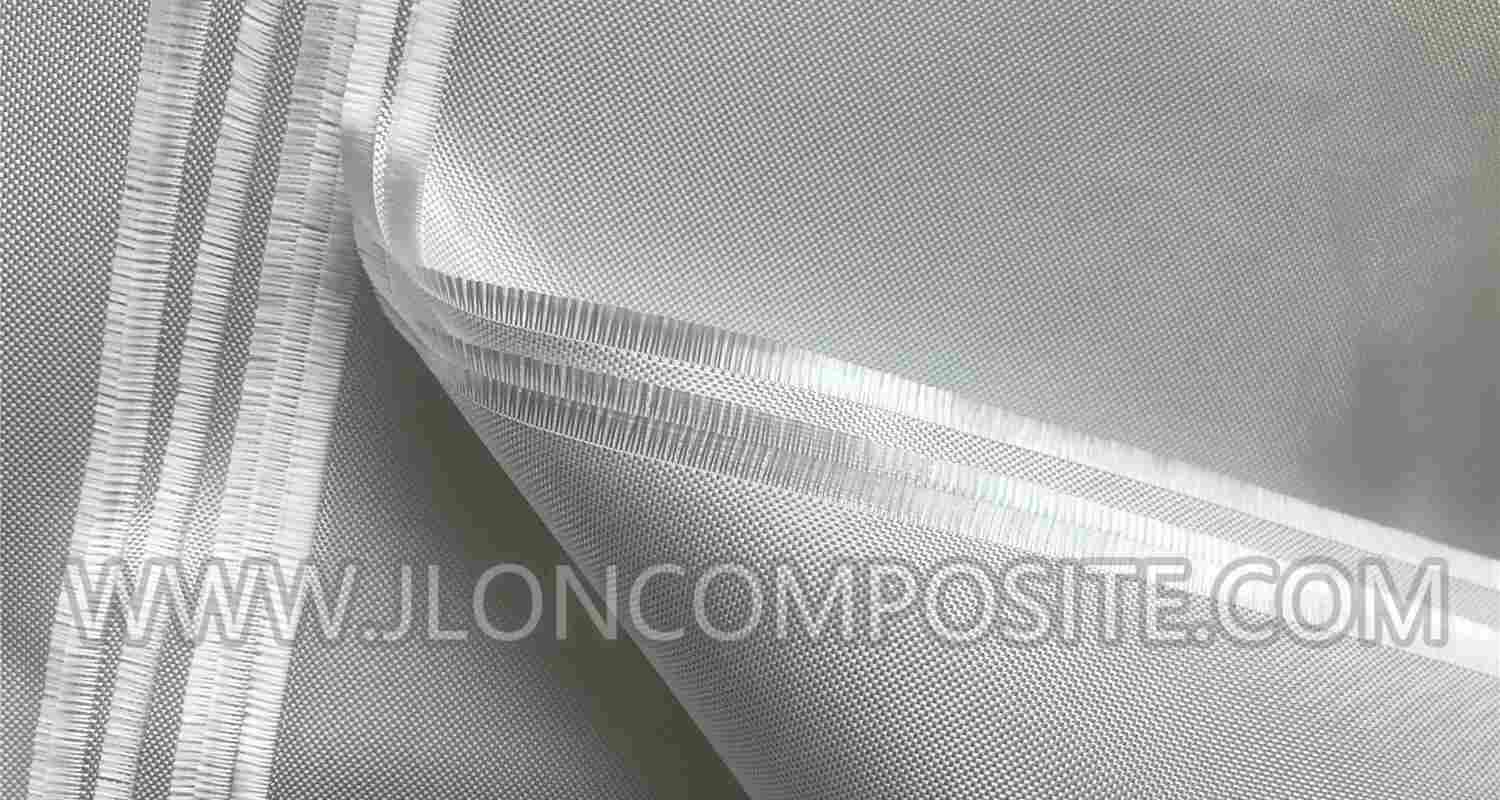

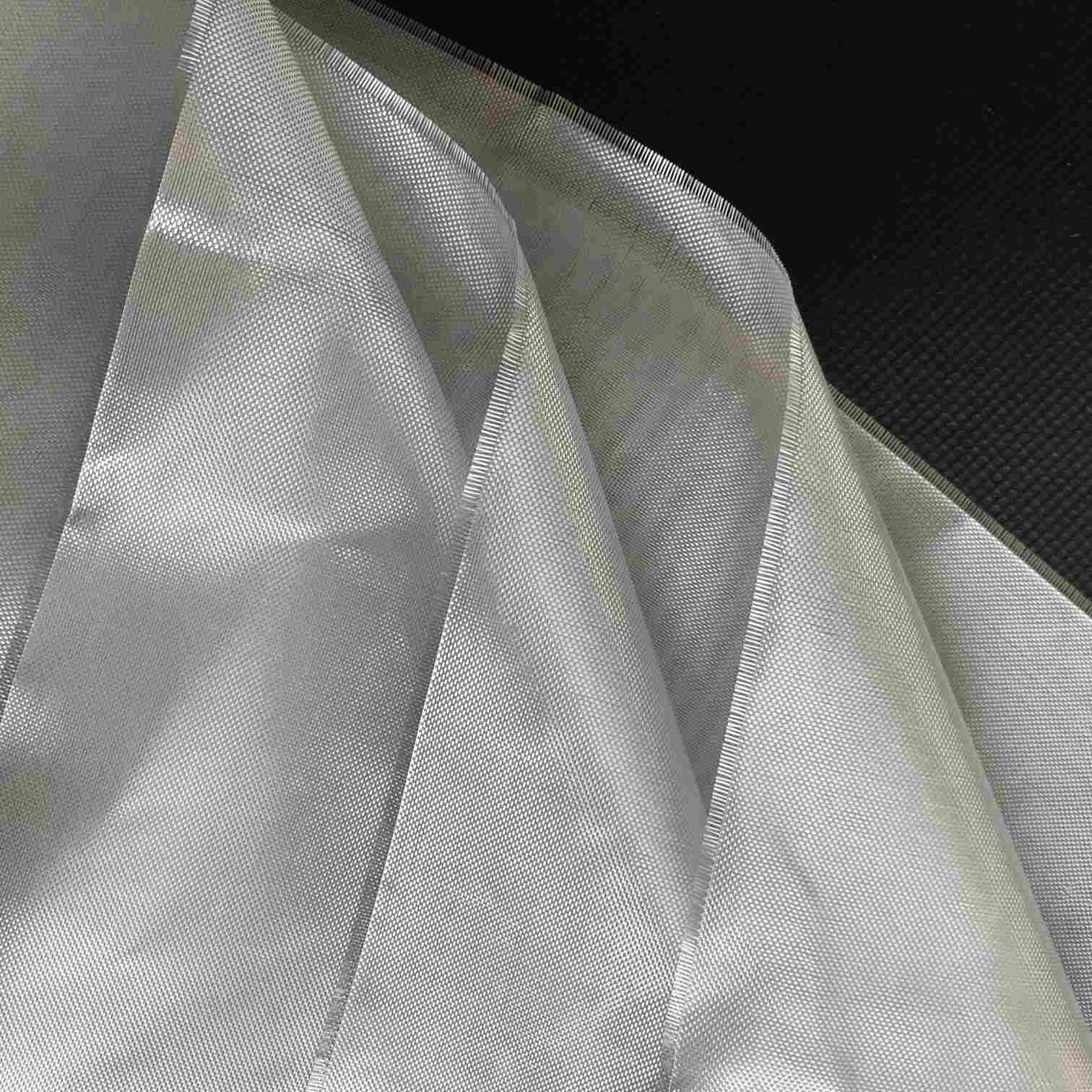

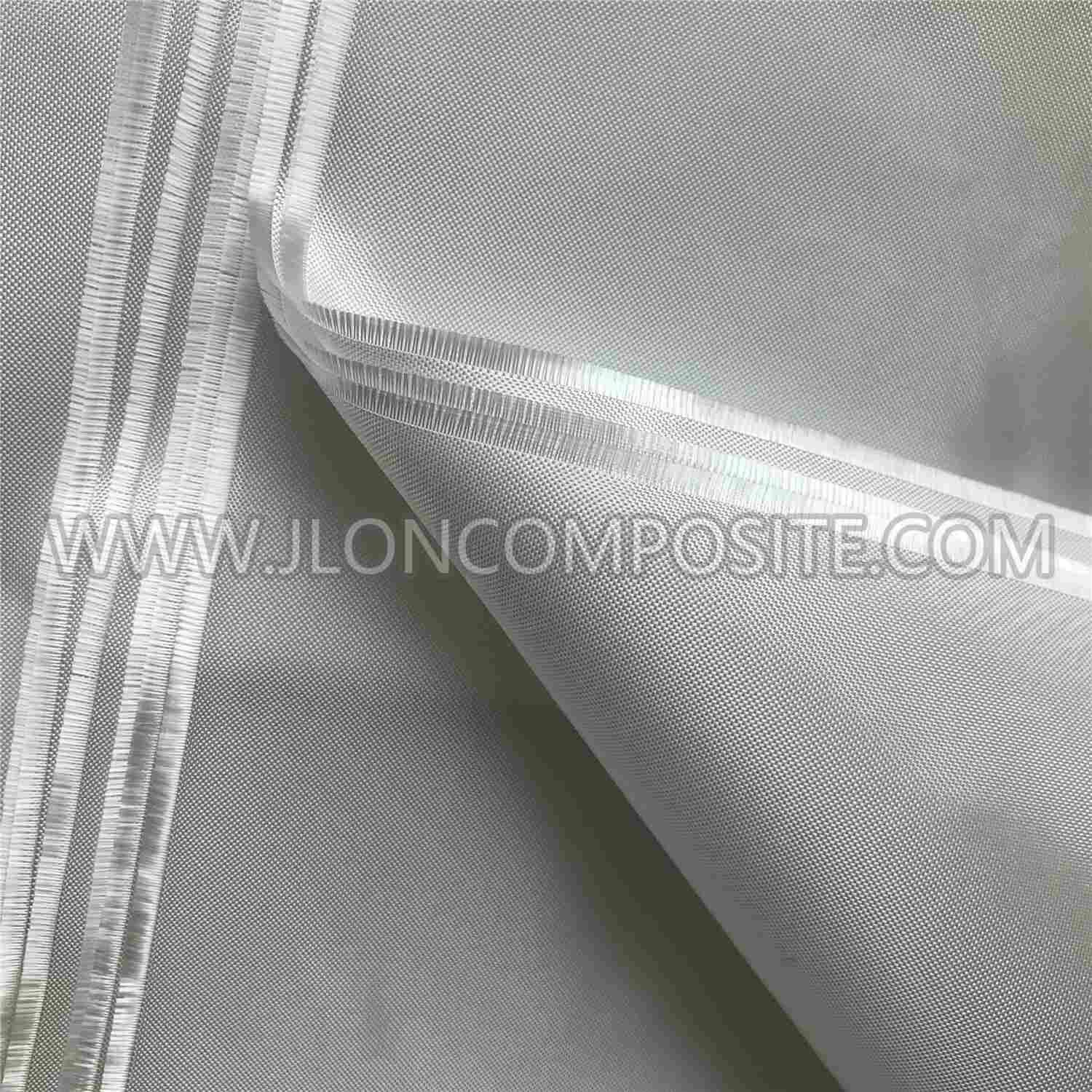

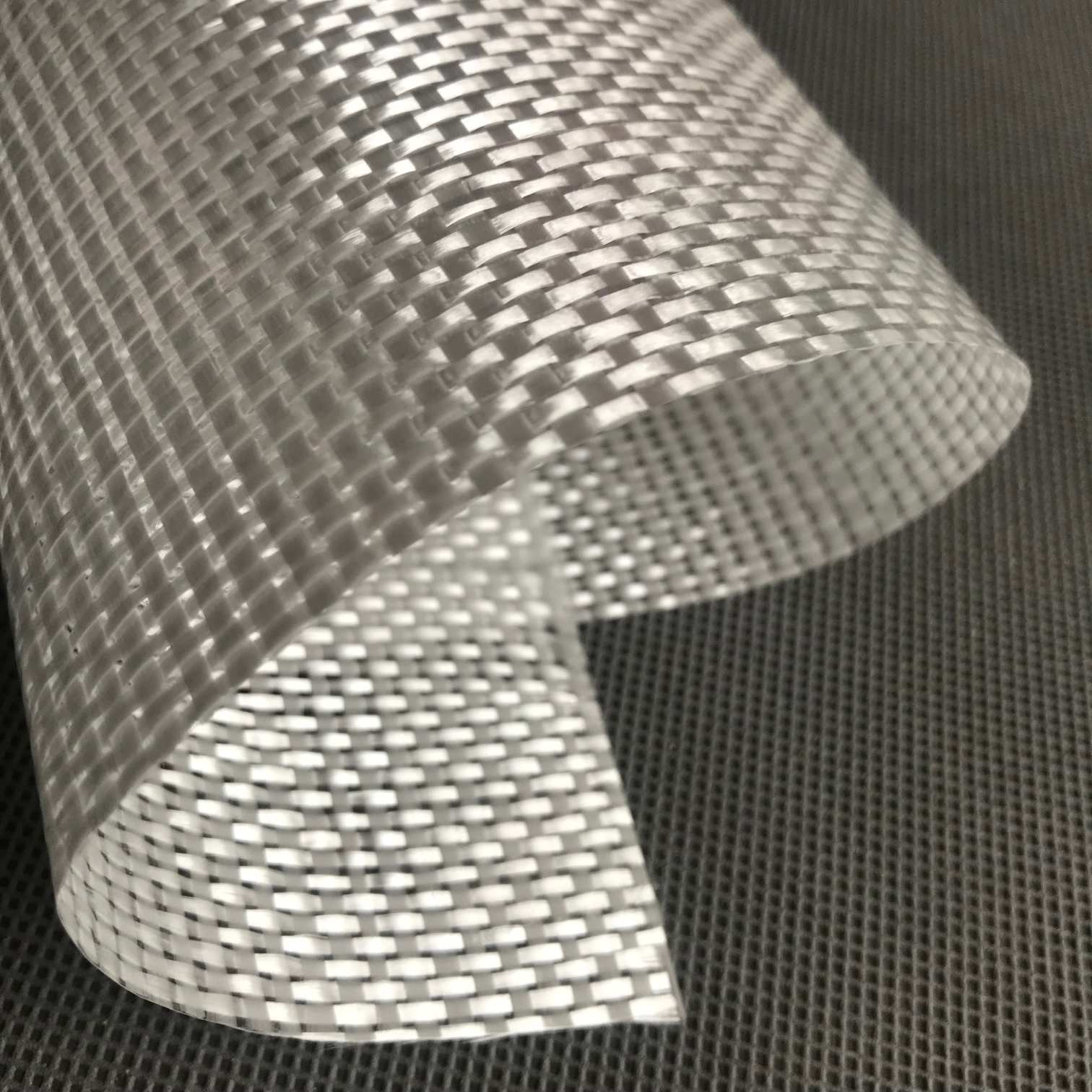

Our Electronic Grade Fiberglass Cloth is made from high-purity electric grade fiberglass and woven using air-jet plain weaving machines, ensuring excellent uniformity and dimensional stability. Each fabric is treated with surface chemical treatment to enhance adhesion, insulation, and durability, making it ideal for high-performance electronics and insulation applications.
1.Wide Temperature Range
Electronic Grade Fiberglass Cloth can operate reliably in extreme temperatures from -70℃ to 550℃, making it suitable for high-temperature industrial, electronics, and insulation applications.
2.Aging & Environmental Resistance
Electronic Grade Fiberglass Cloth resists ozone, oxygen, sunlight, and long-term aging, ensuring durability and stable performance even in harsh environmental and outdoor conditions.
3.Excellent Electrical Properties
Electronic Grade Fiberglass Cloth offers high insulating performance, with a dielectric constant of 3–3.2 and breakdown voltage of 20–50 KV/mm, ideal for electrical and electronic applications.
4.Flexibility & Surface Friction
Electronic Grade Fiberglass Cloth provides good mechanical flexibility and high surface friction, allowing easy handling, precise lamination, and reliable adhesion in composite and insulation applications.
5.Chemical Resistance
Electronic Grade Fiberglass Cloth resists corrosion from most chemicals, ensuring long-term performance and stability in chemical environments, coatings, and industrial insulation systems.

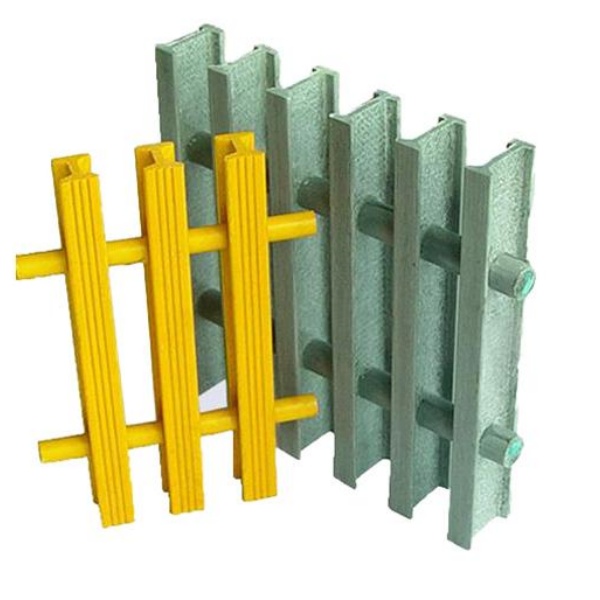

FRP Products
Electronic Grade Fiberglass Cloth reinforces FRP laminates and structural components.

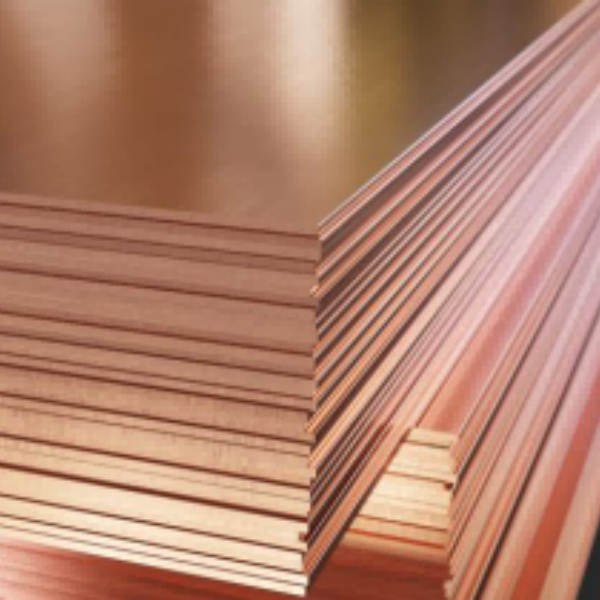

Copper Clad Laminates (CCL)
Used in PCB substrates, Electronic Grade Fiberglass Cloth ensures high insulation.

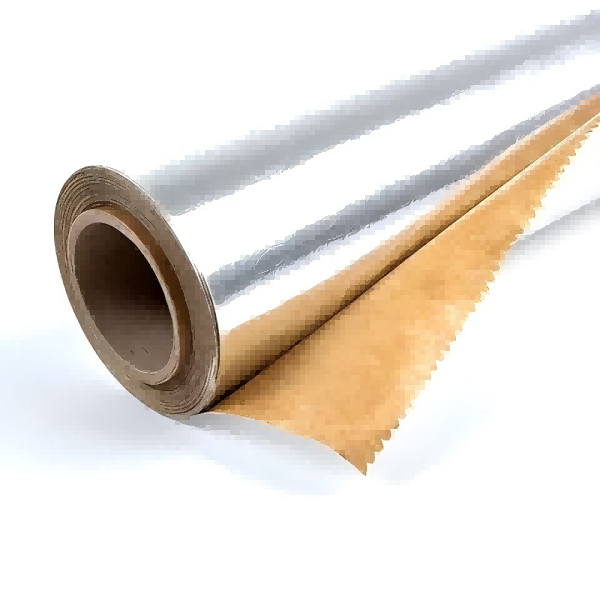

Aluminum Foil Laminates
Electronic Grade Fiberglass Cloth enhances insulation in aluminum foil laminates.

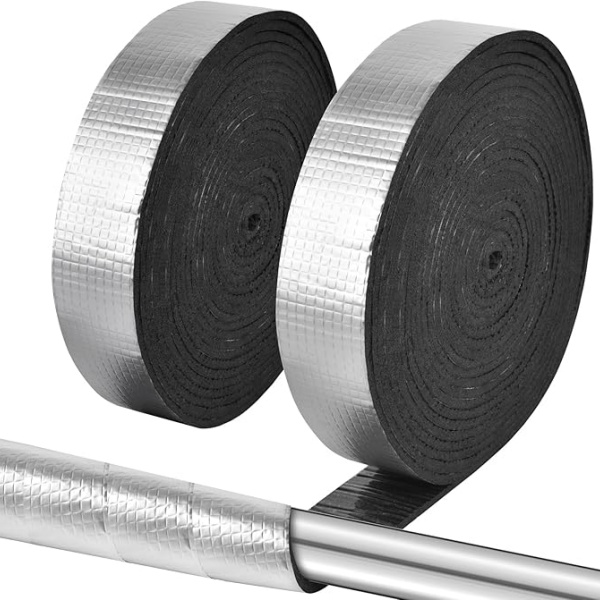

Insulation Wrapping
Wrap mineral or rock wool with Electronic Grade Fiberglass Cloth for protection.

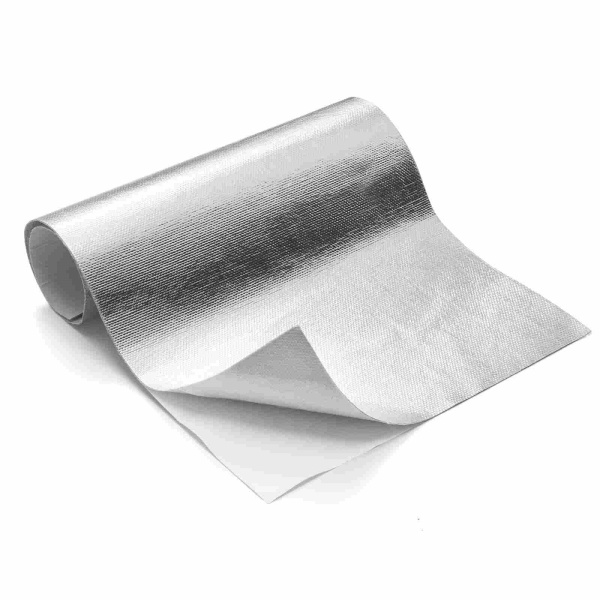

Heat Shields
Electronic Grade Fiberglass Cloth coated with PTFE, Silicone, or Neoprene shields heat.
Property | Specification |
Fiber Type | Electric Grade Fiberglass |
Weave | Plain |
Areal Weight | Customizable (30–800 g/m²) |
Thickness | 0.03–0.15 mm (depending on GSM) |
Dielectric Constant | 3.0–3.2 |
Breakdown Voltage | 20–50 KV/mm |
Temperature Range | -70℃ to 550℃ |
Surface Treatment | Yes (chemical) |
Width | 1000–1250 mm (customizable) |
Our Electronic Grade Fiberglass Cloth is made from high-purity electric grade fiberglass and woven using air-jet plain weaving machines, ensuring excellent uniformity and dimensional stability. Each fabric is treated with surface chemical treatment to enhance adhesion, insulation, and durability, making it ideal for high-performance electronics and insulation applications.
1.Wide Temperature Range
Electronic Grade Fiberglass Cloth can operate reliably in extreme temperatures from -70℃ to 550℃, making it suitable for high-temperature industrial, electronics, and insulation applications.
2.Aging & Environmental Resistance
Electronic Grade Fiberglass Cloth resists ozone, oxygen, sunlight, and long-term aging, ensuring durability and stable performance even in harsh environmental and outdoor conditions.
3.Excellent Electrical Properties
Electronic Grade Fiberglass Cloth offers high insulating performance, with a dielectric constant of 3–3.2 and breakdown voltage of 20–50 KV/mm, ideal for electrical and electronic applications.
4.Flexibility & Surface Friction
Electronic Grade Fiberglass Cloth provides good mechanical flexibility and high surface friction, allowing easy handling, precise lamination, and reliable adhesion in composite and insulation applications.
5.Chemical Resistance
Electronic Grade Fiberglass Cloth resists corrosion from most chemicals, ensuring long-term performance and stability in chemical environments, coatings, and industrial insulation systems.
FRP Products
Electronic Grade Fiberglass Cloth reinforces FRP laminates and structural components.
Copper Clad Laminates (CCL)
Used in PCB substrates, Electronic Grade Fiberglass Cloth ensures high insulation.
Aluminum Foil Laminates
Electronic Grade Fiberglass Cloth enhances insulation in aluminum foil laminates.
Insulation Wrapping
Wrap mineral or rock wool with Electronic Grade Fiberglass Cloth for protection.
Heat Shields
Electronic Grade Fiberglass Cloth coated with PTFE, Silicone, or Neoprene shields heat.
Property | Specification |
Fiber Type | Electric Grade Fiberglass |
Weave | Plain |
Areal Weight | Customizable (30–800 g/m²) |
Thickness | 0.03–0.15 mm (depending on GSM) |
Dielectric Constant | 3.0–3.2 |
Breakdown Voltage | 20–50 KV/mm |
Temperature Range | -70℃ to 550℃ |
Surface Treatment | Yes (chemical) |
Width | 1000–1250 mm (customizable) |

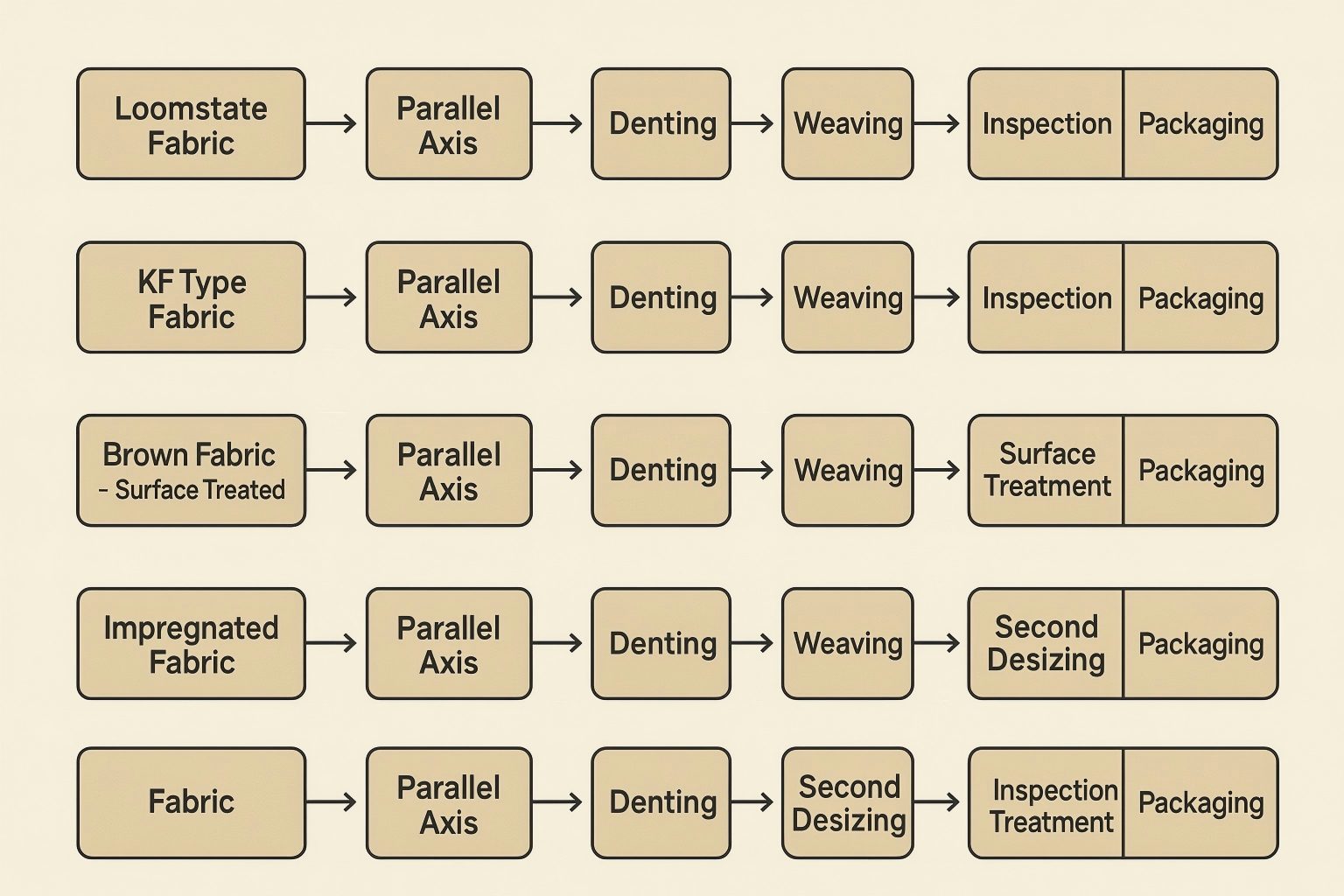

The production of Jlon Electronic Grade Fiberglass Cloth involves multiple precise processes. Loomstate brown fabric of KH and KF types undergo warping & sizing, parallel axis alignment, denting, weaving, and inspection, with KF type additionally requiring pre-desizing.
