P45, P60, P80,P100, P200, P250, P300
JLON
Pallet and carton
2.26MPa
2.26MPa
Customized
5-50mm
45kg/m3, 60kg/m3, 80kg/m3, 100kg/m3, 200kg/m3, 250kg/m3, 300kg/m3
Green, Pink, Yellow
39211290
PVC
50,000,000m2
PVC Foam Core has good specific stiffness, specific strength. Compression,tensile, shear and bending strengths are excellent. PVC core also has good dimensional stability and easy to process, suitable for a variety of processes. JLON compressible pvc foam is an ideal structural foam core material for lightweight & high-strength composite sandwich structures. JLON PVC foam core board provides excellent fatigue resistance, impact resistance and very low water absorption. Heat and sound insulation are also very good.
JLON PVC core is approved by DNV certificate.
Technical Data Sheet of PVC Foam Core:
PVC processing technology加工工艺.pdf
High performance weight ratio, good impact resistance
Resistance to many chemicals, almost no water absorption
Low flammability, self-extinguishing from fire
Suitable for a variety of composite molding methods: Vacuum infusion, spray up, hand lay-up, vacuum bagging
Good impact strengthLow resin absorption
Good sound & thermal insulation
Application: Wind energy, Transport, Boat&Marine
Item | Standard | Unit | P48 | P60 | P80 | P100 | P130 | P200 | P250 | ||
Density | ISO 845 | Kg/m3 | Average | 48 | 60 | 80 | 100 | 130 | 200 | 250 | |
Tolerance | 43-55 | -6,+9 | ±10 | ±10 | ±15 | ±20 | ±30 | ||||
Compression Strength | ASTM D1621 | MPa | Average | 0.60 | 0.9 | 1.4 | 2.0 | 3.0 | 4.8 | 6.2 | |
Minimum | （0.50） | （0.7） | （1.15） | （1.65） | （2.4） | （4.2） | （NA） | ||||
Compression Modulus | ASTM D 1621 | MPa | Average | 48 | 70 | 90 | 135 | 170 | 240 | 300 | |
Minimum | （35） | （60） | （80） | （115） | （145） | （200） | （NA） | ||||
Tensile Strength | ASTM D 1623 | MPa | Average | 0.95 | 1.8 | 2.5 | 3.5 | 4.8 | 7.1 | 9.2 | |
Minimum | （0.8） | （1.5） | （2.2） | （2.5） | （3.5） | （6.3） | （NA） | ||||
Tensile | ASTM D 1623 | MPa | Average | 35 | 75 | 95 | 130 | 175 | 250 | 320 | |
Modulus | Minimum | （28） | （57） | （85） | （105） | （135） | （210） | （NA） | |||
Shear | ASTM C 273 | MPa | Average | 0.55 | 0.76 | 1.15 | 1.6 | 2.2 | 3.5 | 4.5 | |
Strength | Minimum | （0.50） | （0.63） | （0.95） | （1.4） | （1.9） | （3.2） | （NA） | |||
Shear | ASTM C 273 | MPa | Average | 16 | 20 | 27 | 35 | 50 | 85 | 104 | |
Modulus | Minimum | （14） | （16） | （23） | （28） | （40） | （75） | （NA） | |||
Shear Elongation | ASTM C 273 | % | Average Minimum | 10 （8） | 20 （10） | 30 （15） | 40 （25） | 40 （30） | 40 （30） | 40 （NA） | |
Width | mm | ±5 | 1270 | 1120 | 1010 | 940 | 840 | 740 | 700 | ||
Standard | |||||||||||
Length | mm | ±5 | 2730 | 2350 | 2160 | 2040 | 1880 | 1600 | 1500 | ||
Size | |||||||||||
Thickness | mm | ±0.5 | 5~80 | 5~70 | 3~65 | 3~60 | 3~50 | 3~40 | 3~40 | ||
Application: Sports equipment, Aerospace and aviation, UAV
Thickness of cell PVC foam can reach 1mm.
Test Item | Standard | Unit | Results | D60 | D80 |
Density | ISO 845 | Kg/ m³ | Mean | 62.07 | 80.8 |
Range | 54-69 | 72-92 | |||
Compressive strength | ISO 844:2006 | MPa | Mean | 0.996 | 1.72 |
Msmv | 0.7 | 1.3 | |||
Compressive modulus | ISO 844:2006 | MPa | Mean | 87.4 | 135 |
Msmv | 55 | 75 | |||
Shear strength | ISO 1922:2012 | MPa | Mean | 0.914 | 1.15 |
Msmv | 0.7 | 1.0 | |||
Shear modulus | SO 1922:2012 | MPa | Mean | 26.7 | 33.9 |
Msmv | 22 | 25 | |||
Tensile strength | ASTMC297 | MPa | Mean | 1.81 | 2.66 |
Msmv | 1.0 | 2.2 | |||
Tensile modulus | ASTMC297 | MPa | Mean | 96.1 | 130 |
Msmv | 45 | 85 |

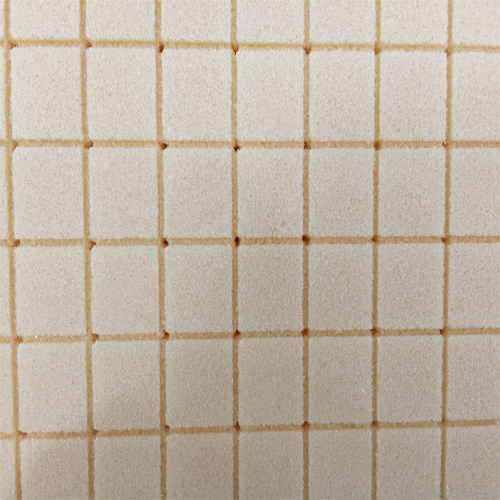

b. Shallow groove and Drill sheet-two side
We can provide series products for Marine, for example, infusion materials(bagging film, release film, sealant tape...), PVC foam, PET foam, fiberglass products(chop strand mat, Quaxial fabric).
PVC foam, PEF foam, fiberglass products
Cell PVC foam
PVC foam, PEF foam, fiberglass products

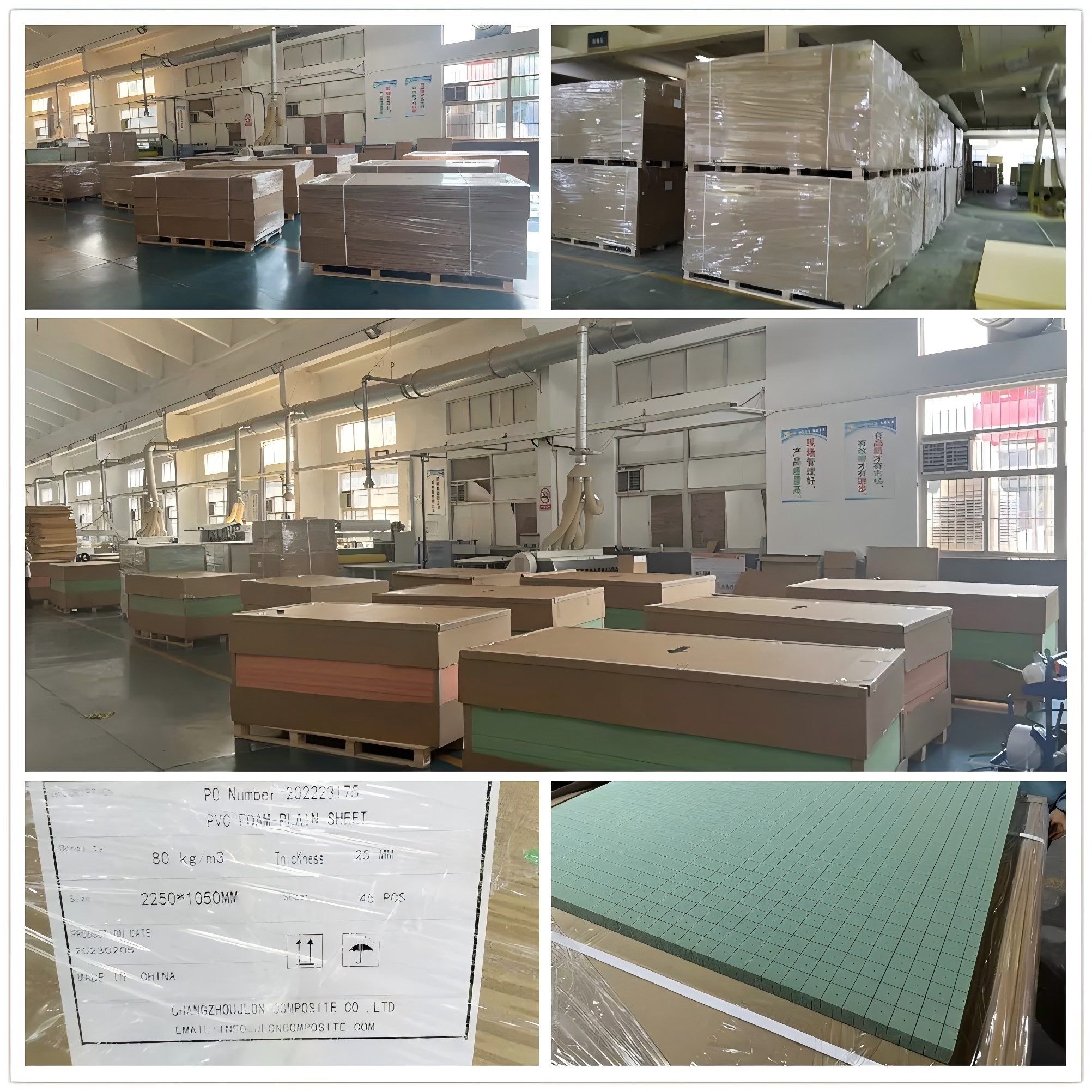

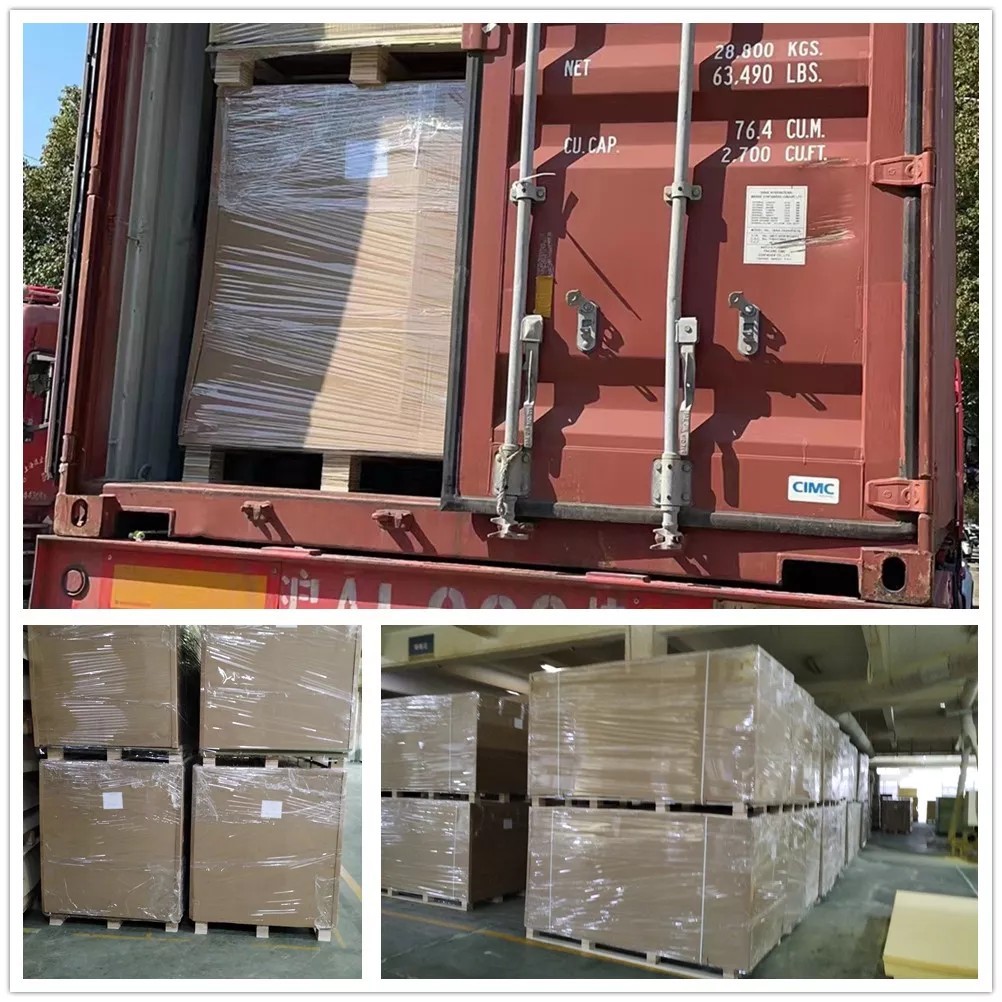

PVC foam core will be packaged in wooden case and then in pallet.
We can package cargon with label for clients to recognize their products in different density and different thickness.
PVC foam is one of our common product, we have different kinds of stock to meet client's urgent small order quantity.
Also, our production time for PVC foam is only 7-10 days, so if you have bulk order of urgent delivery time, we can satisfy you.
Roll packaging: PE plastic film
Pallet packaging: Pallets should NOTbe stacked in more than 2 layers.
This product should be stored in a dry, ventilated and rainproof place, with temperatures from 5℃to 35℃ and humidity between 35% and 65%. It is recommended to be kept in intact package when not used to avoid damp.
Changzhou JLON Composite Co., Ltd.
A company who believes a satisfied customer is the best business accomplishment.
Changzhou JLON Composite Co. provides a wide range of reinforcements tailored to many applications such as construction, marine, pultruded profiles, transportation, wind energy, sports, etc. We’re one stop source for FRP raw materials.
In recent years we’ve entered new business axial fan and PVB/SGP film. Now there’re mainly two business sectors in our company:
A. Composite reinforcement materials and building materials:
Fiberglass products such as roving, chopped strand mat, woven roving, stitch mat, multiaxials, infusion mat, nonwovens for roofing, flooring, ceiling and walls of buildings
High performance fiber such as carbon fiber, aramid fiber, basalt fiber, high silica fiberglass, quartz
Core materials such as PVC/PET foam, PP honeycomb
Chemicals such as UP resin, vinyl ester resin, epoxy resin, SMC/BMC, MDI
Auxiliary materials such as infusion consumables, FRP tools
B. Axial fan:
We provide PAG and aluminum axial fan for HVAC, engineering equipment...We have different blades, hubs to satisfy customers’ specific needs.
A: Yes, We usually discuss with customers and help them find solutions.
A: Usually a sample will be prepared within one week after specification agreed.
A: Usually around 2-3 weeks after order confirmed. Exact delivery time depends on order quantity and Off-season/ busy season.
A: Offer TDS of each lot of production for confirmation before delivery.Once you have any quality problem, you can provide samples /pictures test data With our quality tracking system, we will give you feedback in short time. If the quality problem confirmed,we will send you replacement or make refund as you like.
A: Usually we do EXW, FOB, CIF and DDU
