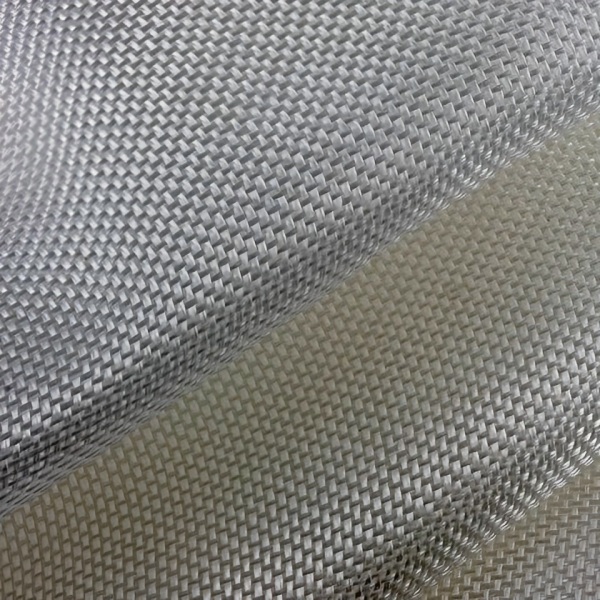

Fiberglass Cloth
Moisture-proof film, reinforced carton or pallet
>130 lbs/inch
>150 lbs/inch
38" / 50" (customizable)

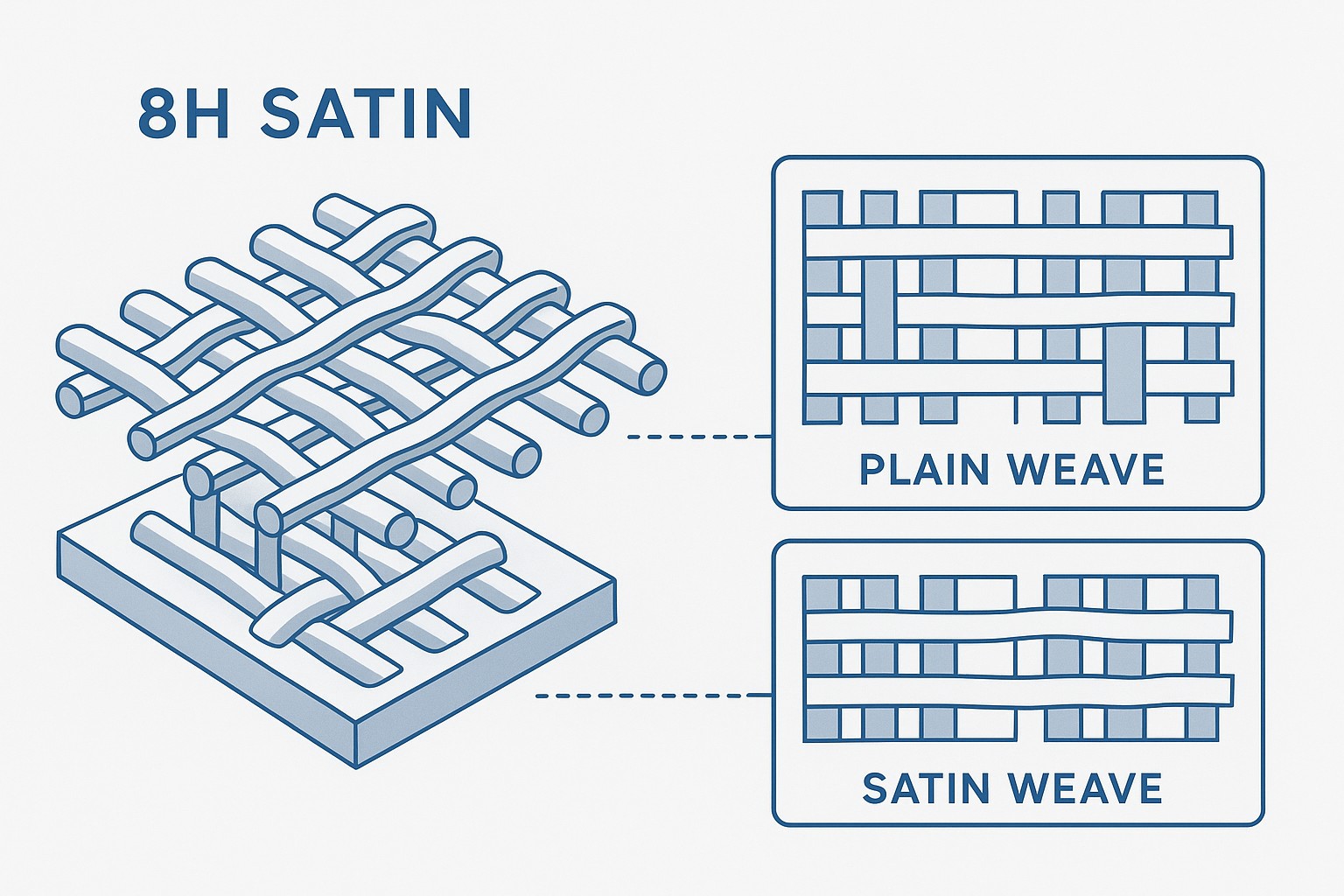

Woven Fabric (8H Satin Weave)
0.008" – 0.012" (0.20 – 0.30 mm)
Warp 22–24 / Fill 20–22
65997-17-3 (E-glass fiber)
Style 7781, 8.0–10.2 oz/yd² (270–345 g/m²)
White
Continuous E-glass Filament Yarn
Satin weave easily adapts to complex or curved shapes.
Offers higher tensile strength than standard plain weaves.
Ideal for surfacing layers in precision composite parts.
Available in 38" and 50" standard widths.
Ensures consistent thickness, uniform resin absorption, and low shrinkage.
Item | Specification |
Style | 7781 |
Weave Type | 8H Satin Weave |
Warp Count | 57–61 |
Fill Count | 51–55 |
Warp Tensile Strength | >150 lbs/inch |
Fill Tensile Strength | >130 lbs/inch |
Thickness | 0.008" – 0.012" |
Weight | 8.0 – 10.2 oz/yd⊃2; |
Color | White |
Full Roll Length | 125 yards (typical) |
Available Widths | 38", 50" |
High glass content for excellent mechanical strength
Excellent resin wet-out and dimensional stability
Compatible with epoxy, polyester, and phenolic resin systems
Outstanding surface finish for paint or gel coat applications
Ideal balance between drape, strength, and smoothness
Standad roll length: 125 yards, packed in moisture-proof film
Rolls secured in reinforced cartons or pallets for safe transport
Store in a cool, dry area away from direct sunlight or humidity
Satin weave easily adapts to complex or curved shapes.
Offers higher tensile strength than standard plain weaves.
Ideal for surfacing layers in precision composite parts.
Available in 38" and 50" standard widths.
Ensures consistent thickness, uniform resin absorption, and low shrinkage.
Item | Specification |
Style | 7781 |
Weave Type | 8H Satin Weave |
Warp Count | 57–61 |
Fill Count | 51–55 |
Warp Tensile Strength | >150 lbs/inch |
Fill Tensile Strength | >130 lbs/inch |
Thickness | 0.008" – 0.012" |
Weight | 8.0 – 10.2 oz/yd⊃2; |
Color | White |
Full Roll Length | 125 yards (typical) |
Available Widths | 38", 50" |
High glass content for excellent mechanical strength
Excellent resin wet-out and dimensional stability
Compatible with epoxy, polyester, and phenolic resin systems
Outstanding surface finish for paint or gel coat applications
Ideal balance between drape, strength, and smoothness
Standad roll length: 125 yards, packed in moisture-proof film
Rolls secured in reinforced cartons or pallets for safe transport
Store in a cool, dry area away from direct sunlight or humidity
