Coated fiberglass cloth is a high-performance composite material made by coating the surface of fiberglass cloth substrate with functional materials. Classified by the coating substances, it mainly includes Silicone / PU / Vermiculite / Calcium Silicate / PTFE / Acrylic / PVC, with their respective characteristics and application scopes as follows:

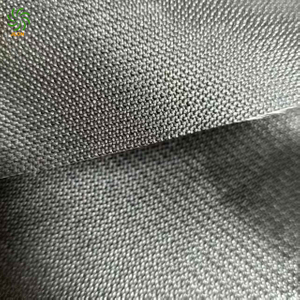

| Product Code | Thickness (mm) | Color | Recommended Applications |
| JL-PU 001 | 0.25 | Black | Lamination for rubber and plastic insulation boards |
| JL-PU 002 | 0.4 | Silver Gray | Fireproof cloth |
| JL-PU 003 | 0.40 | Silver Gray | Fireproof cloth for bag-type air ducts; 2-hour smoke barrier curtains compliant with European standards |
| JL-PU 004 | 0.75 | Silver Gray | Fire curtains; insulation sleeves for exhaust pipes |
| JL-PU 005 | 0.75 | Silver Gray | Electric welding blankets |
Width: 100cm,120cm,150cm, 200cm; other widths are available on request
Grammage: 200g/m² - 3000g/m²

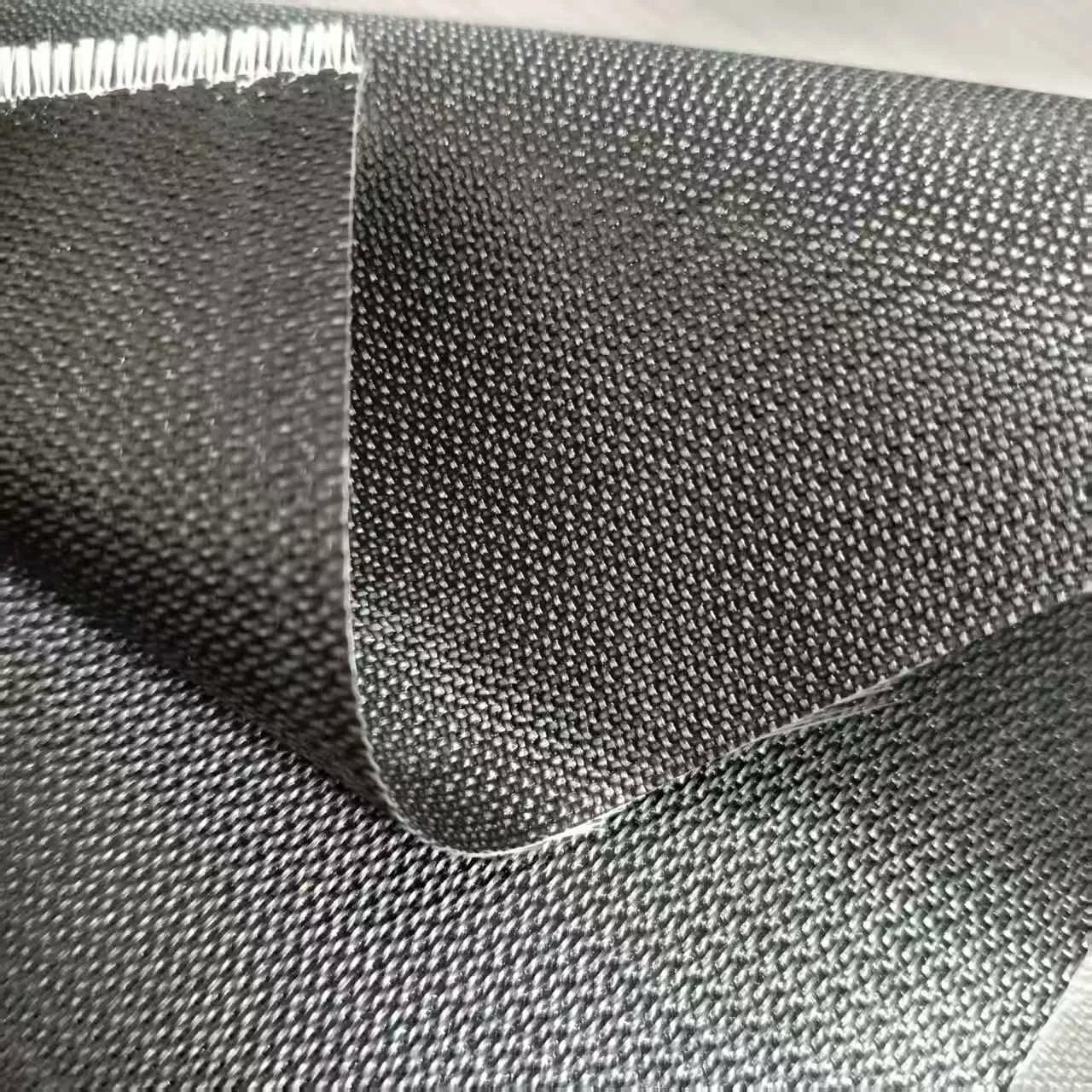

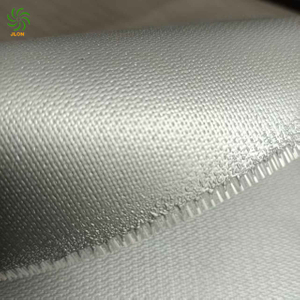

| Code | Thickness (mm) | Grammage (g/m²) | Color | Recommended Applications |
| JL-SI-001 | 0.2 | 280 | White | Nano-calcium silicate insulation wraps, lamination for rubber-plastic insulation boards |
| JL-SI-002 | 0.40 | 510 | Silver Gray | Detachable insulation sleeves, insulation covers |
| JL-SI-003 | 0.42 | 570 | Silver Gray | Detachable insulation sleeves, welding fire cloth, fire-resistant flexible connectors |
| JL-SI-004 | 0.42 | 570 | Iron Red | Detachable insulation sleeves, fire-resistant connectors, welding fire cloth |
| JL-SI-005 | 0.42 | 510 | Lemon Yellow | Colored fire blankets |
Width: 100cm, 120cm,150cm, 200cm; custom widths available on request
Grammage: 200g/m² - 3000g/m²

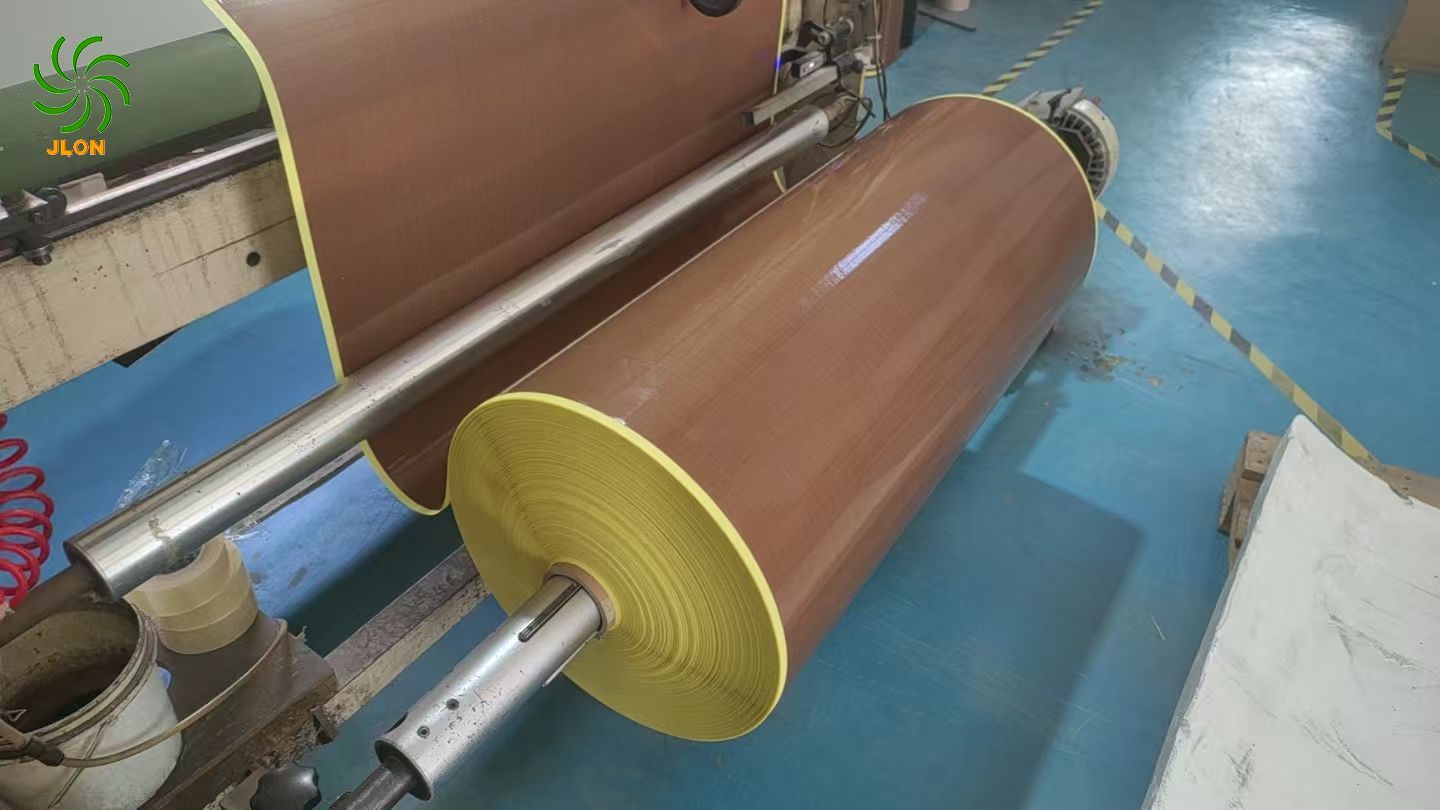

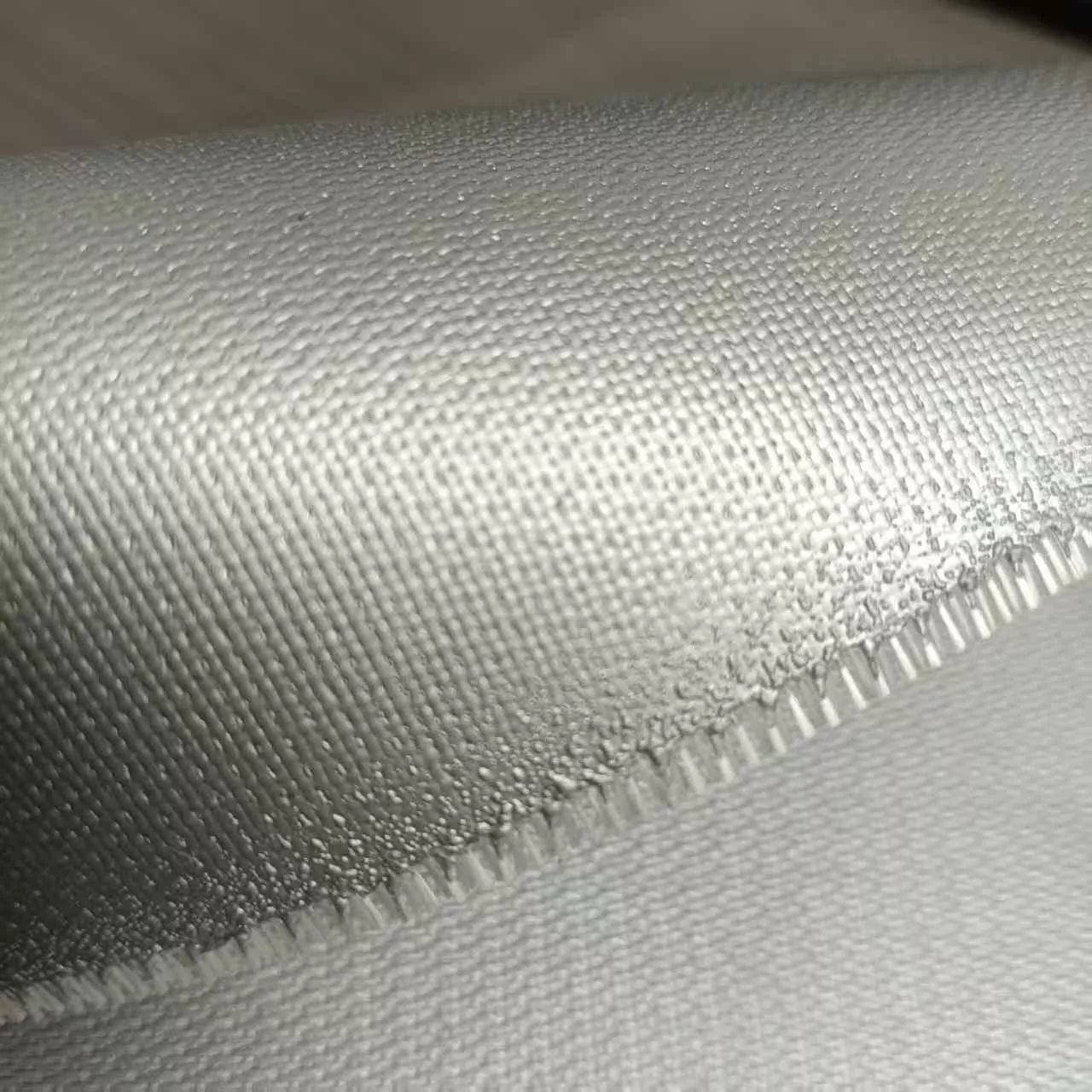

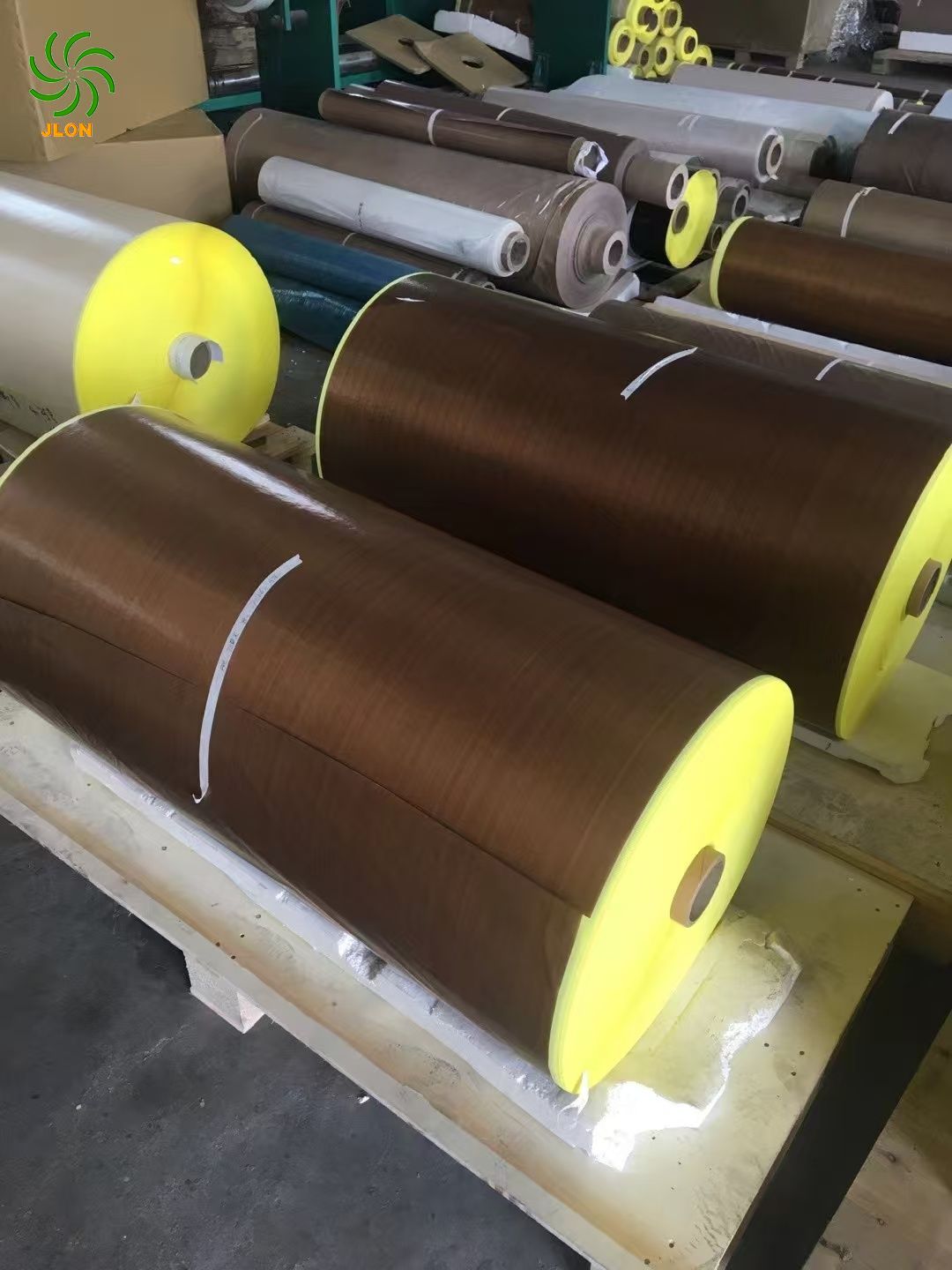

| Item | Thickness | Max width | Weight | Tensile strength | Temperature | Color |
| JLKB008 | 0.08 | 1250 | 140 | 550/450 | -70~260 | Brown |
| JLKB0008B | 0.08 | 1250 | 140 | 550/450 | -70~260 | Black |
| JLKB0008W | 0.08 | 1250 | 140 | 550/450 | -70~260 | Cream |
| JLKB012 | 0.115 | 1250 | 220 | 1100/1000 | -70~260 | Brown |
| JLKB012B | 0.115 | 1250 | 220 | 1100/1000 | -70~260 | Black |
| JLKB013 | 0.125 | 1250 | 250 | 1100/1000 | -70~260 | Brown |
| JLKB013B | 0.125 | 1250 | 250 | 1100/1000 | -70~260 | Black |
| JLKB015 | 0.145 | 1250 | 300 | 1200/1100 | -70~260 | Brown |
| JLKB018 | 0.18 | 1250 | 340 | 1800/1700 | -70~260 | Brown |
| JLKB025 | 0.23 | 2600 | 480 | 2100/1800 | -70~260 | Brown |
| JLKB025B | 0.23 | 2600 | 480 | 2100/1800 | -70~260 | Black |
| JLKB030 | 0.3 | 3000 | 600 | 2800/2400 | -70~260 | Brown |
| JLKB030B | 0.3 | 3000 | 600 | 2800/2400 | -70~260 | Black |
| JLKB035 | 0.33 | 2600 | 680 | 2600/2300 | -70~260 | Brown |
| JLKB035B | 0.33 | 2600 | 680 | 2600/2300 | -70~260 | Black |
| JLKB040 | 0.38 | 3000 | 800 | 3000/2500 | -70~260 | Brown |
| JLKB040B | 0.38 | 3000 | 800 | 3000/2500 | -70~260 | Black |
| JLKB055 | 0.55 | 2600 | 1080 | 4400/4000 | -70~260 | Cream |
| JLKB070 | 0.70 | 2600 | 1250 | 5000/4800 | -70~260 | Cream |
| JLKB095 | 0.95 | 3000 | 1550 | 6000/5000 | -70~260 | Cream |
| JLKB100 | 1.00 | 3000 | 1700 | 6000/5000 | -70~260 | Cream |

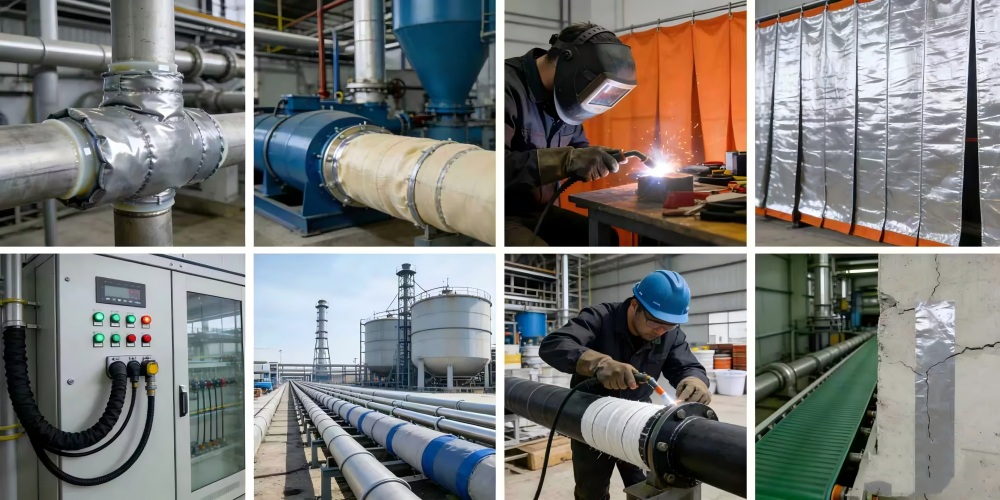

1. Detachable/energy-saving/equipment pipe insulation sleeves
2. Fan flexible connectors, non-metallic expansion joints (compensators), fire-resistant flexible connectors
3. Welding/fire/fire extinguishing blankets
4. Fire insulation curtains, smoke barriers, fire safety curtains
5. Electrical insulation cloth (high insulation rating, high-voltage resistant)
6. Aerospace, chemical, petroleum, energy, metallurgy, power generation, cement, machinery, construction, etc.
7. Corrosion protection: Internal/external pipeline anti-corrosion layers.
8.Building sealing materials, high-temperature anti-corrosion conveyor belts, packaging materials, etc.
1. Good fire resistance performance.
2. Brown color. Various color available.
3. Easy to use .
4. Good abrasion resistance property.
5. Good tensile strength.
6. Thickness, weight, weave, all can be customized base on your application.
Q1. What is the purpose of coating fiberglass cloth?
Coatings enhance the cloth’s performance by adding heat resistance, abrasion protection, waterproofing, chemical resistance, or improved handling properties. Each coating provides unique advantages for specific applications.
Q2. What is the highest temperature the coated fiberglass cloth can withstand?
Depending on the coating type, the cloth can resist temperatures from 260°C up to 550°C. Some coatings (like vermiculite or calcium silicate) are designed for extreme thermal environments.
Q3. What industries commonly use coated fiberglass cloth?
It is widely used in insulation, fire protection, welding protection, expansion joints, industrial sealing, and high-temperature equipment covers.
Q4. Can I customize the weight, thickness, or color?
Yes. Weight (105–1750 g/m²), thickness, coating color, weave type, and roll width can all be customized.
Q5. Are coated fiberglass cloths fireproof?
Fiberglass itself is non-combustible. When combined with heat-resistant coatings (e.g., vermiculite, silicone, calcium silicate), the material provides excellent flame resistance and is suitable for fire-protection applications.
