Core mat is a flexible, resin-absorbing core material widely used in fiberglass-reinforced plastic laminates. It helps manufacturers increase laminate thickness, improve panel stiffness, reduce fiberglass print-through and produce more consistent composite parts without adding many layers of heavy glass reinforcement.
However, different polyester core mat products can vary considerably in thickness, resin consumption, compressibility, conformability and resin-flow performance. A core mat designed for hand lay-up may not be suitable for RTM, Light RTM or vacuum infusion. Likewise, the thickest material is not always the best choice for a curved or complex component.
This 2026 core mat selection guide explains the main product types, available thicknesses, applications and purchasing considerations. It also explains how JLON helps composite manufacturers source suitable core mat, fiberglass reinforcement, structural foam core and vacuum bagging materials.

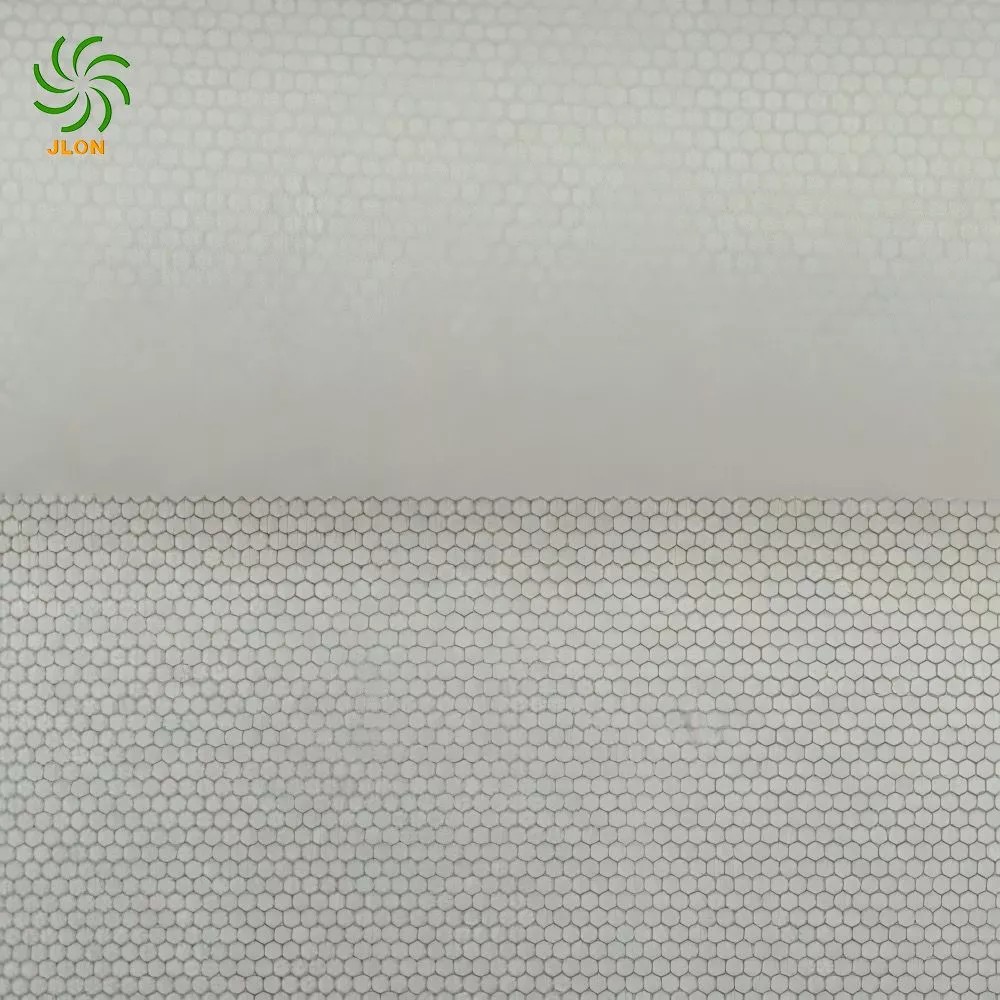

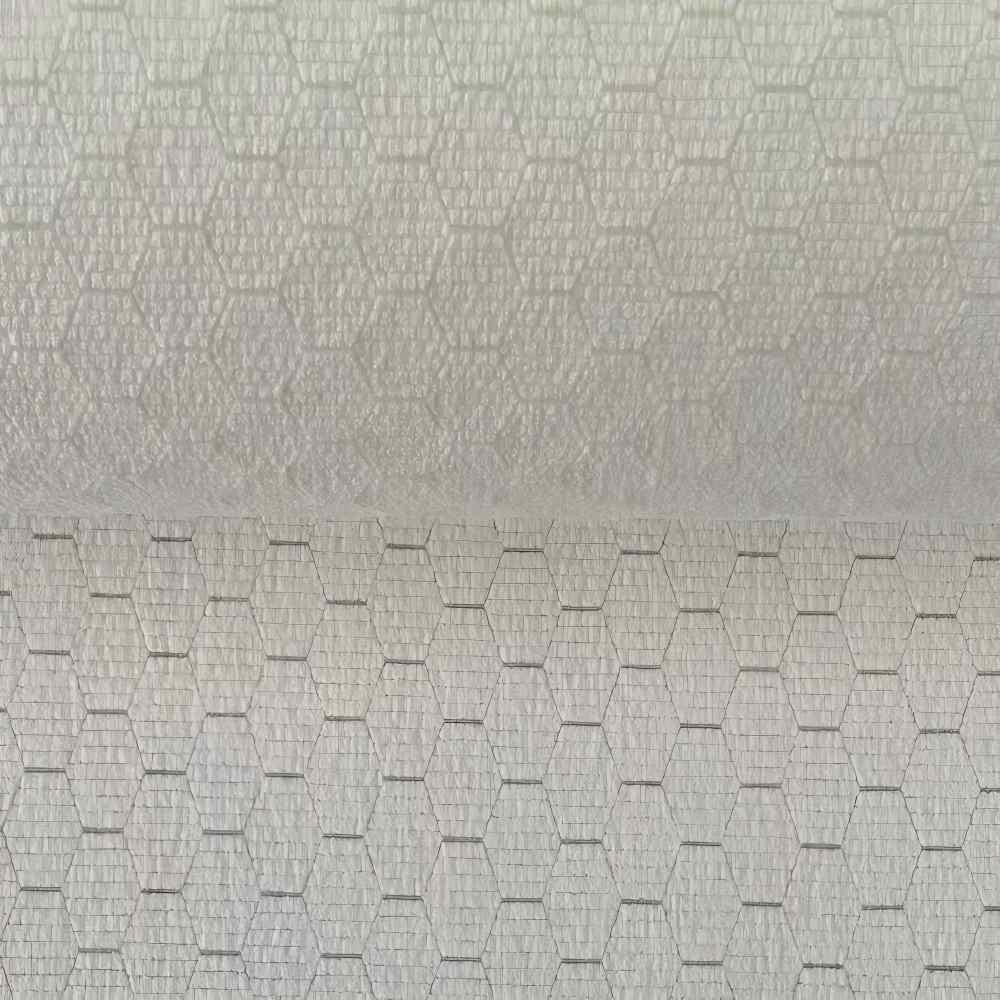

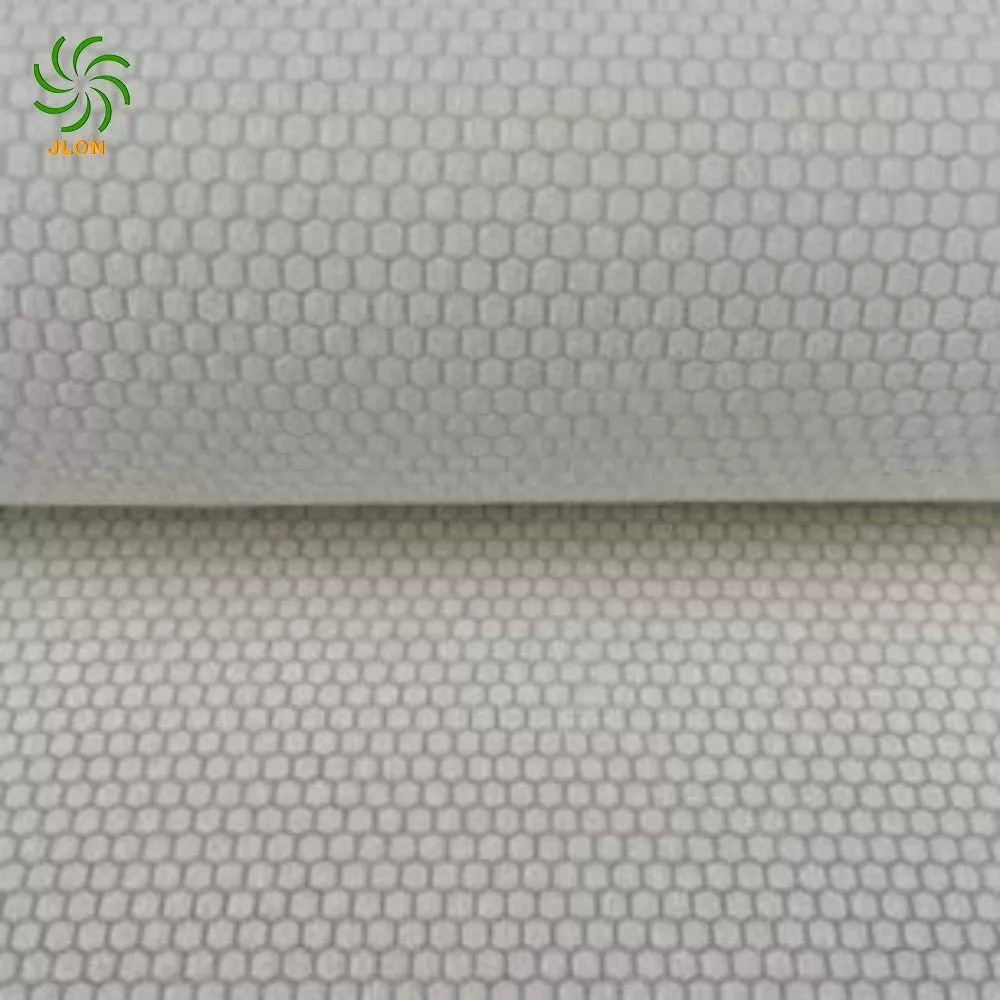

Core mat, also known as polyester core mat, FRP core mat or resin-absorbing core mat, is a nonwoven sheet material placed between fiberglass reinforcement layers. During molding, it absorbs resin and becomes an integrated part of the cured composite laminate.
The material is generally made from synthetic polyester fibers combined with a compatible binder and functional filling materials. Its internal structure allows it to build thickness while remaining sufficiently flexible for curved molds and shaped FRP components.
Unlike PVC foam, PET foam, PMI foam or honeycomb, conventional core mat is not supplied as a rigid structural core panel. It is primarily a flexible thickness-building material for molded fiberglass products.
Polyester core mat is commonly used with unsaturated polyester and vinyl ester resin systems. Compatibility with epoxy resin or other special resins must be confirmed according to the binder system, processing temperature and supplier’s technical data.
Customers may use different names when searching for this material. Important product keywords include core mat, polyester core mat, FRP core mat, composite core mat, resin-absorbing core mat, flexible core mat, sandwich core mat, fiberglass core mat, core mat for hand lay-up, core mat for RTM and marine core mat.
“Coremat” may also appear as a registered product or brand name in the market. When referring to the general product category, “core mat” or “polyester core mat” is normally the more appropriate description.
The main purpose of core mat is to increase laminate thickness without producing the entire thickness from solid fiberglass reinforcement.
Because bending stiffness is strongly influenced by laminate thickness, adding a core layer between fiberglass skins can make a panel more rigid. Nevertheless, the finished mechanical performance still depends on the fiberglass type, fiber orientation, resin system, core thickness, bonding quality and laminate design.
Core mat separates the outer fiberglass reinforcement layers and increases the total laminate thickness. This can improve the bending stiffness of flat and moderately curved FRP panels.
Compared with using several additional layers of chopped strand mat, a polyester core mat may provide a more efficient way to build thickness in non-primary structural components.
Core mat should not, however, be treated as a direct replacement for structural PVC foam, PET foam or honeycomb in highly loaded sandwich structures.
The pattern of fiberglass reinforcement may become visible on the surface of a molded composite part. This effect is known as fiber print-through or glass print-through. It may become more obvious after curing, post-curing or exposure to temperature changes.
A suitable thin core mat can create separation between the visible surface and the heavier fiberglass reinforcement. This helps reduce the appearance of the underlying glass structure and can improve the surface quality of molded FRP parts.
Core mat may reduce the amount of fiberglass required to reach a target laminate thickness. However, conventional polyester core mat absorbs resin, and this resin becomes part of the cured component.
For this reason, manufacturers should compare the total cured laminate weight and cost instead of comparing only the dry weight or purchase price of the core mat.
The total cost calculation should include the core mat, absorbed resin, fiberglass reinforcement, labor, processing time and production waste.
A core mat with controlled thickness and resin absorption can help manufacturers produce parts with more consistent laminate dimensions. It may also reduce the labor required to build thickness using multiple reinforcement layers.
Consistency is particularly important in repetitive production, matched molds and components that must fit with other assembled parts.
There is no single product that can be described as the best core mat for every application. The appropriate type depends on the molding process, resin system, part geometry, target thickness and finished performance requirements.
Standard polyester core mat is commonly used in hand lay-up and spray-up production. It absorbs resin during impregnation and forms a thickness-building layer between the fiberglass skins.
Typical applications include boat interiors, FRP covers, equipment housings, sanitaryware, vehicle body panels, architectural components and general industrial fiberglass parts.
The main selection criteria are nominal thickness, area weight, resin absorption, roll width, conformability and resin compatibility.
Resin can represent a major part of the cost and weight of an FRP laminate. Low resin-consumption core mat is designed to create laminate thickness while limiting unnecessary resin uptake.
It may be selected to reduce cured laminate weight, control resin cost, improve production repeatability and manufacture large-area fiberglass panels.
Buyers should not rely only on descriptions such as “low resin consumption.” They should request measurable resin-uptake data based on a defined thickness and test method.
Resin consumption should normally be expressed as the amount of resin absorbed by one square meter of core mat at a specified nominal thickness.
When comparing two grades, the buyer should check whether the figures were measured using the same resin type, impregnation method, pressure and cured-thickness conditions. Values measured under different conditions may not be directly comparable.
Resin Transfer Molding requires resin to flow through the reinforcement package and fully impregnate the laminate before gelation. An RTM core mat may contain an open structure, perforations or resin-flow channels to support resin distribution.
Its performance depends on the complete process, including resin viscosity, injection pressure, mold temperature, inlet position, vent position, part size and reinforcement layout.
Before recommending a core mat for RTM or Light RTM, JLON needs information about the finished-part dimensions, resin system, required core thickness, injection conditions, target filling time, fiberglass construction and surface-quality requirements.
Laboratory data cannot reproduce every mold shape and injection condition. A trial allows the manufacturer to evaluate filling time, dry spots, air entrapment, final thickness, surface quality and part weight.
A small production test is therefore strongly recommended before a new RTM core mat is approved for continuous manufacturing.
For hand lay-up and spray-up, wet-out speed and visual confirmation of impregnation are especially important.
A suitable hand lay-up core mat should provide predictable resin absorption, good drape, easy cutting, stable thickness and effective bonding with adjacent fiberglass layers. It should remain in position during resin application and rolling.
Operators must ensure that the material is fully impregnated. Dry areas, trapped air and excessive resin-rich zones can reduce laminate consistency and finished-part quality.
Complex molds, corners and tight curves require a flexible core mat that conforms without bridging, lifting or wrinkling.
Thin core mat generally offers better drape than thick material. For a complex part, two thinner layers may sometimes conform more easily than one thick layer. Nevertheless, using multiple layers can increase labor and resin consumption, so the final construction must be tested.
Some specialty core mat products combine thickness-building properties with resin-flow functions. These products may be developed for closed molding or vacuum-assisted processes.
A standard resin-absorbing core mat should not automatically be used as vacuum infusion flow media. Under full vacuum, the material may compress, lose thickness or restrict resin flow.
Before selecting a core mat for infusion, manufacturers should confirm its in-plane flow, through-thickness impregnation, compression under vacuum, cured thickness and resin consumption.
JLON can also supply vacuum bagging film, release film, peel ply, flow media and other vacuum infusion consumables, allowing customers to source core materials and process materials together.
Polyester core mat is available in several nominal thicknesses. Common options may include approximately 1 mm, 2 mm, 3 mm, 4 mm and 5 mm, although the exact range depends on the product grade and supplier.
Thickness should be selected according to the finished laminate design rather than purchase price alone.
A 1 mm core mat is commonly selected as a thin thickness-building or print-control layer. It may be suitable for molded covers, interior decorative panels, small FRP components, complex curves and local laminate transitions.
Its relatively low thickness generally provides good conformability and makes it easier to position around detailed mold surfaces.
A 2 mm core mat provides a practical balance between flexibility and thickness. It can be used in marine interior panels, sanitaryware, vehicle panels, equipment housings and general-purpose fiberglass components.
It is often considered when a 1 mm grade does not provide enough thickness but a heavier grade would be difficult to form.
A 3 mm core mat provides a more noticeable increase in laminate thickness and panel rigidity. Possible applications include boat components, large fiberglass covers, industrial enclosures, wall panels and transportation components.
As the thickness increases, complete resin impregnation and effective air removal become more important.
Thicker core mat can build laminate thickness efficiently, particularly in large and relatively flat FRP panels. Potential applications include large industrial covers, access panels, sanitaryware, building panels and non-primary structural marine components.
A thicker product may absorb more resin and provide less conformability around sharp curves. For lightweight or highly loaded structures, manufacturers should also compare it with PVC foam, PET foam or PP honeycomb.
Nominal dry thickness does not always equal the final cured laminate thickness. Rolling pressure, mold closing, resin injection and vacuum pressure can compress the material.
For accurate laminate design, the buyer should confirm dry thickness, thickness under pressure, final cured thickness, thickness tolerance and recovery after compression.
These values are especially important for RTM, Light RTM and matched-mold production.
Choosing the best polyester core mat requires an evaluation of the entire application and manufacturing process.
The first step is to confirm whether the component is produced by hand lay-up, spray-up, RTM, Light RTM, vacuum infusion or another closed-mold process.
A product that wets out easily during hand lay-up may not provide sufficient resin flow in RTM. A flow-enhanced product developed for closed molding may also behave differently in an open mold.
The customer should identify the resin chemistry, viscosity, gel time, processing temperature, cure schedule and any fillers or flame-retardant additives.
Polyester and vinyl ester resins are commonly used with polyester core mat. If epoxy resin is involved, compatibility with the core mat binder must be verified before production.
The customer should determine whether the core mat is mainly required to build thickness, improve stiffness, reduce print-through, lower part weight, support resin flow or improve dimensional consistency.
One product may provide several benefits, but the primary objective will influence the grade and thickness selection.
The lowest-priced core mat is not necessarily the most economical option. A lower-cost grade may absorb more resin, increase finished-part weight or require additional production labor.
Buyers should calculate the combined cost of core mat, resin, fiberglass reinforcement, labor and manufacturing waste.
Flat panels can normally accommodate thicker and less flexible core materials. Components with deep curves, corners and complex details require better drape and conformability.
A sample trial should check for bridging, wrinkling, core movement, trapped air, visible edges, inconsistent thickness and surface print-through.
The complete laminate should be evaluated for flexural stiffness, impact resistance, compression, water resistance, temperature resistance, fatigue and fire performance where applicable.
Core mat can improve stiffness by increasing laminate thickness, but it should not automatically be specified for primary structural components.
Core mat is used in selected marine components that require additional thickness, improved rigidity or reduced fiberglass print-through.
Possible applications include interior liners, deck liners, hatches, covers, consoles, seating components, sanitary modules and non-primary structural partitions.
For hulls, decks, transoms and other highly loaded structures, designers should evaluate structural PVC foam, PET foam or another engineered sandwich core.
JLON supplies core mat, fiberglass reinforcement, PVC foam core, PET foam core and vacuum consumables for marine composite production.
Polyester core mat can be used in lightweight molded panels, interior components, covers and selected exterior parts.
The complete laminate must meet the required impact, temperature, dimensional, surface and fire-performance standards. Transportation customers should validate the finished laminate rather than relying only on the core mat datasheet.
Bathtubs, shower trays, washbasins and similar fiberglass sanitary products may use core mat to build thickness and improve rigidity.
Important factors include wet-out speed, conformability around corners, compatibility with filled resin, surface appearance, water resistance and production cycle time.
Core mat may be suitable for FRP doors, wall panels, architectural elements, industrial housings, equipment enclosures and molded covers.
For outdoor applications, the complete composite system must be designed for water exposure, UV resistance, thermal cycling and local fire requirements.
Core mat is only one category of composite core material. Its advantages and limitations should be compared with other available options.
PVC foam is a closed-cell structural foam used in marine, wind-energy, transportation and industrial sandwich panels. It normally provides lower resin absorption and better structural efficiency than conventional core mat.
Core mat is more flexible and easier to apply in many open-mold FRP parts. PVC foam is usually more suitable when low weight, structural shear performance and sandwich-panel efficiency are critical.
PET foam is a recyclable thermoplastic structural core used in wind blades, transportation, marine and industrial sandwich structures.
Polyester core mat may be more convenient for thin, curved and non-primary structural molded components. PET foam is generally more suitable for engineered lightweight sandwich panels.
Chopped strand mat is a fiberglass reinforcement. Core mat is primarily a thickness-building layer.
Adding chopped strand mat increases the fiberglass content and may improve certain mechanical properties, but several layers may be needed to reach the required thickness. Core mat can build thickness more efficiently, although its mechanical contribution and resin consumption are different.
PP honeycomb provides a high thickness-to-weight ratio and is commonly used in lightweight sandwich panels. It requires compatible skins, suitable edge treatment and an appropriate bonding or molding process.
Core mat is thinner and more flexible, making it easier to incorporate into many conventional fiberglass laminates.
Before ordering, the buyer should confirm the product composition, nominal thickness, thickness tolerance, area weight, resin absorption, roll width, roll length, compatible resin systems, recommended molding process, cured thickness, storage conditions, shelf life and packing method.
The supplier should provide an applicable technical datasheet and safety information. For RTM or infusion applications, the customer may also require resin-flow and compression data.
Samples should be tested using the customer’s actual resin, reinforcement, mold and processing conditions before mass production.
JLON is a composite-material supplier serving marine, transportation, building and industrial FRP customers. As a trading and technical sourcing company, JLON works with qualified manufacturing partners and helps customers match materials with their actual production requirements.
JLON can supply polyester core mat, PVC foam core, PET foam core, PMI foam, PI foam, PP honeycomb, aramid honeycomb, fiberglass fabrics, carbon fiber materials, SMC, BMC and vacuum bagging consumables.
This product range allows customers to consolidate compatible composite materials within one sourcing plan.
JLON does not recommend a core mat based only on thickness. The application, resin system, molding process, component geometry and finished-performance requirements are reviewed before a suitable grade is proposed.
Available thicknesses, roll widths, roll lengths and packing methods may be selected according to project requirements and order quantity.
Customers can provide their current material specification, target technical data or an existing sample for comparison.
Ordering a small quantity of core mat separately may result in inefficient international freight costs. Subject to packing and shipping compatibility, JLON can consolidate core mat with fiberglass fabrics, foam core and vacuum consumables.
This service is particularly useful for overseas composite manufacturers purchasing several categories of production materials.
Core mat can increase laminate thickness and improve bending stiffness. However, conventional polyester core mat is generally not equivalent to structural PVC foam, PET foam or honeycomb.
Its suitability depends on the load, resin system, laminate design and required safety factor.
Some grades may be compatible with epoxy resin, but this should not be assumed. The buyer must check the core mat binder system and conduct a production trial using the intended epoxy formulation.
Only a product designed and tested for the intended infusion process should be selected. Standard core mat may compress under vacuum, restrict resin flow or produce a cured thickness below the target value.
Flow performance, vacuum compression, resin consumption and final laminate thickness must be confirmed before production.
Thin core mat is generally more suitable for surface improvement, tight curves and complicated shapes. Thicker grades provide a greater increase in laminate thickness and rigidity but may consume more resin and offer less conformability.
The final choice should be based on the finished laminate specification and verified by sample testing.
Core mat can reduce the number of fiberglass layers required to build thickness, but conventional core mat itself absorbs resin. Some specialized products are designed for lower resin uptake.
The manufacturer should compare total cured laminate weight and total production cost.
Sample availability depends on the required grade, thickness, roll width and delivery destination.
To select a relevant sample, JLON needs to know the customer’s application, resin type, molding process, required thickness and expected performance.
The best core mat is not simply the thickest or least expensive product. It is the material that matches the customer’s resin system, molding process, component geometry, target thickness and finished-laminate requirements.
For hand lay-up and spray-up, wet-out, drape and thickness stability are key considerations. For RTM and other closed-mold processes, resin flow and compression behavior are equally important. Resin consumption must also be calculated because it directly affects the final weight and cost of the component.
Polyester core mat is particularly useful for increasing laminate thickness, improving rigidity and reducing fiberglass print-through in marine, sanitaryware, transportation, building and general industrial FRP products.
For highly loaded or lightweight structural components, manufacturers should compare core mat with PVC foam, PET foam, PMI foam and honeycomb materials.
JLON can help customers compare core mat specifications and source complementary fiberglass reinforcement, foam core and vacuum-processing consumables.
