Unmanned aerial vehicles (UAVs) require lightweight composite materials that balance strength, stiffness, durability, and manufacturing efficiency. Choosing the right fiberglass cloth is an important part of UAV composite design, especially for manufacturers producing fuselage shells, wing skins, fairings, equipment covers, and sandwich panels.
Fiberglass cloth for UAV applications is available in different fabric weights and weaving constructions. Among the commonly considered options, 60gsm, 110gsm, 160gsm, 200gsm, and 300gsm fiberglass fabrics offer different reinforcement characteristics and processing advantages.
Lightweight fabrics can be suitable for thin surface layers and complex shapes, while heavier fiberglass cloth may be selected for components requiring greater reinforcement per layer.
JLON supplies woven E-glass fiberglass cloth in multiple fabric weights, including plain weave and twill weave constructions, for UAV manufacturing and other advanced composite applications.
This guide focuses on practical material selection for different UAV components, helping composite manufacturers understand how to choose fiberglass cloth according to fabric weight, part geometry, laminate construction, and manufacturing requirements.
Modern UAV manufacturing increasingly uses composite materials to achieve lightweight structures with controlled mechanical performance.
Although carbon fiber is commonly selected for components requiring high specific stiffness, fiberglass cloth remains useful for many UAV applications.
E-glass fiberglass cloth provides several characteristics that make it suitable for selected UAV components.
Lightweight Reinforcement: Thin woven fiberglass fabric allows manufacturers to build lightweight laminate skins while controlling reinforcement weight.
Electrical Insulation: Glass fibers are electrically insulating, making fiberglass useful for components where conductive carbon reinforcement may be undesirable.
Compatibility with Composite Resins: Properly sized fiberglass cloth can be used with compatible epoxy, polyester, and other composite resin systems.
Flexible Fabric Construction: Different fabric weights and weave patterns allow manufacturers to select reinforcement for flat panels, curved shells, and complex composite geometries.
Cost Considerations: E-glass reinforcement is generally less expensive than aerospace-grade carbon fiber reinforcement, although total component cost depends on materials, processing, and performance requirements.
Fiberglass and carbon fiber are not interchangeable in every UAV application.
Carbon fiber offers higher stiffness relative to weight in many composite systems, making it valuable for stiffness-critical structural components.
Fiberglass cloth provides electrical insulation and can be useful for radio-frequency-transparent components when combined with an appropriate resin system.
However, actual RF performance depends on operating frequency, laminate thickness, dielectric properties, and component geometry.
Fiberglass may be considered for UAV antenna covers, selected radomes, equipment housings, and other components where electrical conductivity is undesirable.
For highly loaded structural members, the choice between fiberglass and carbon fiber should be based on engineering requirements and validated laminate performance.
Different fiberglass fabric weights influence the amount of glass reinforcement introduced into each laminate layer.
For UAV manufacturers, selection should begin with the component's function rather than choosing a fabric based only on its nominal weight.
60gsm fiberglass cloth is among the lighter woven reinforcement options considered for thin composite laminates.
It can be useful where minimizing added reinforcement weight is important.
Potential applications include small UAV covers, model aircraft components, lightweight surface reinforcement, and thin composite shells.
Because the fabric is relatively light, manufacturers should pay particular attention to handling, cutting, positioning, and resin application.
60gsm fiberglass fabric can be evaluated for weight-sensitive skins and low-load components where a very thin reinforcement layer is required.
It may also be combined with other reinforcement materials as part of a multi-layer laminate.
However, using 60gsm fabric does not automatically result in the lightest finished component. Additional layers or excess resin can increase total laminate weight.
110gsm fiberglass cloth provides an intermediate option between ultra-light fabrics and heavier reinforcement materials.
It can be considered for lightweight UAV fuselage shells, small fairings, equipment covers, and selected composite surface layers.
Compared with very light fiberglass fabrics, it provides more dry reinforcement mass per layer, which may be useful where additional reinforcement is required.
JLON offers fiberglass fabric constructions with nominal weights around 110gsm, including plain weave and twill weave options.
110gsm fabric can be evaluated for lightweight fuselage skins, particularly where thin laminate construction and manageable fabric handling are priorities.
For a complete fuselage structure, engineers must also consider aerodynamic loads, local reinforcement requirements, impact exposure, and the connection between composite components.

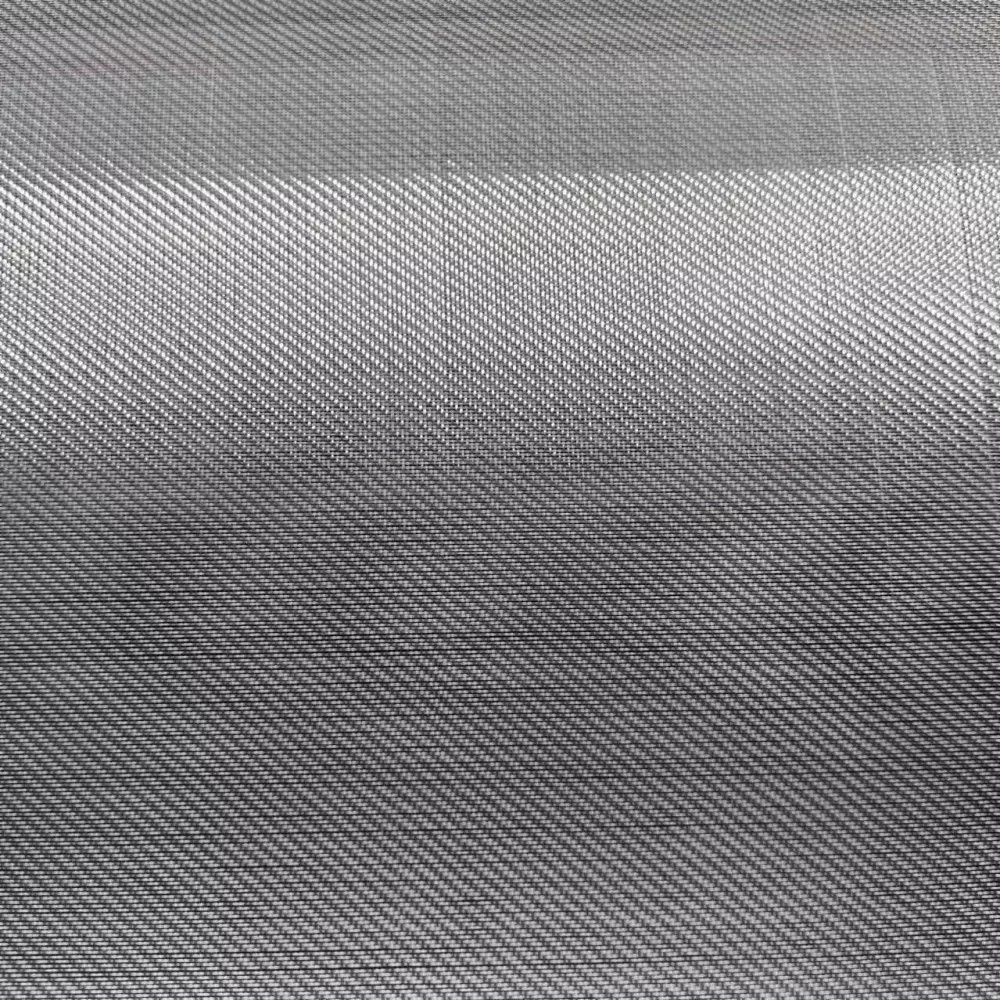

160gsm fiberglass cloth is a useful middle-weight option for a range of composite manufacturing applications.
It provides more reinforcement per layer than 60gsm or 110gsm fabrics while remaining suitable for relatively thin laminate structures.
Potential UAV applications include fuselage panels, aerodynamic fairings, access covers, composite housings, and selected wing skin constructions.
Both plain weave and twill weave constructions can be considered according to the component geometry.
160gsm fiberglass cloth offers a useful balance between reinforcement weight and laminate handling.
For manufacturers producing different composite components, it can serve as one of several options in a material selection range.
However, its suitability for any specific UAV part must be confirmed through laminate design and testing.

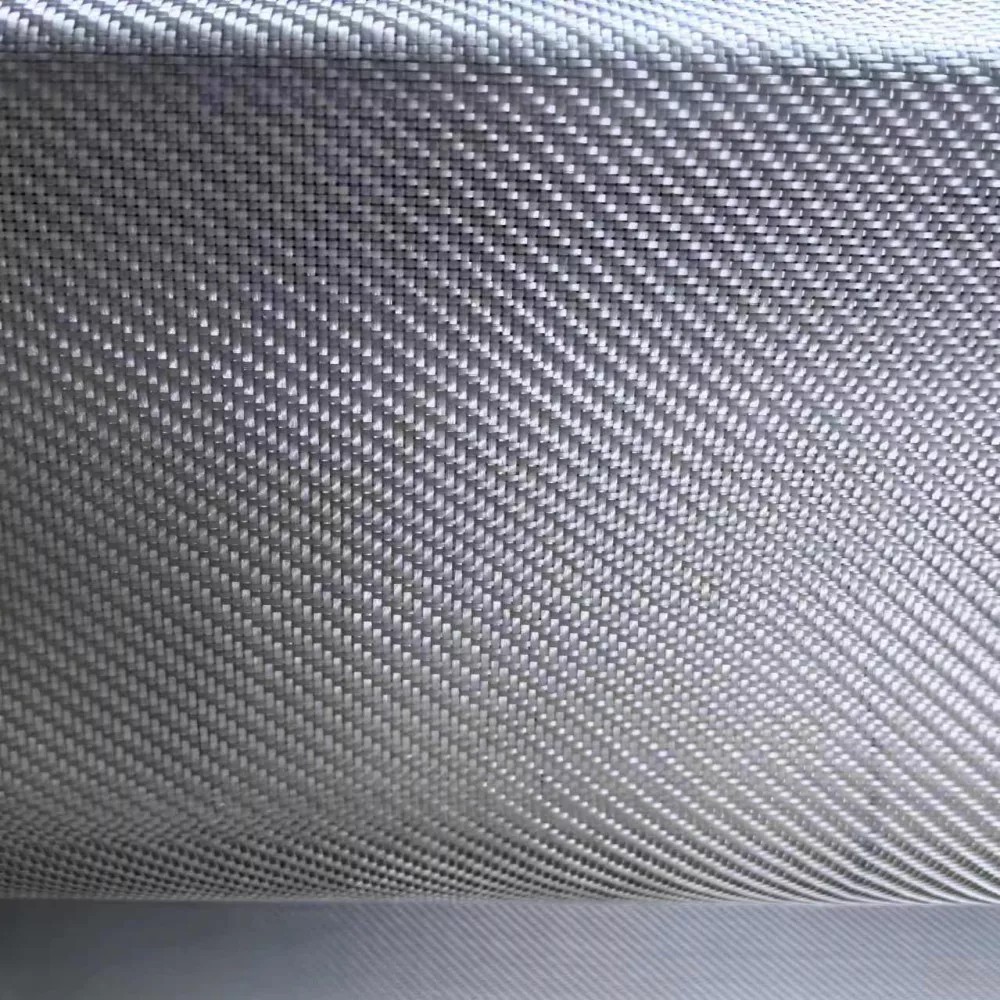

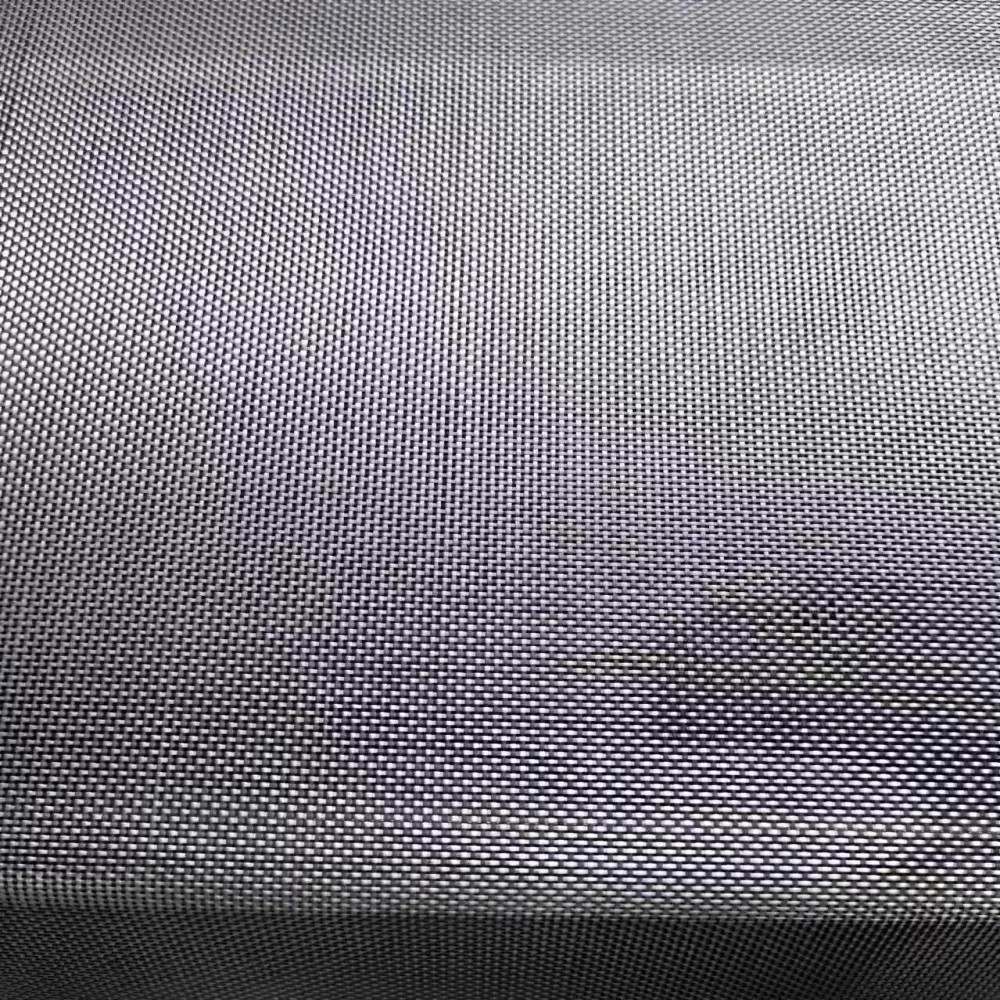

200gsm fiberglass cloth provides a higher reinforcement weight per layer and may be appropriate for UAV components requiring more substantial glass reinforcement.
Potential applications include composite mounting panels, equipment enclosures, thicker skins, and selected reinforced sandwich structures.
Compared with lighter fabrics, 200gsm cloth may reduce the number of layers needed to achieve a target dry glass mass.
However, it can also influence drapability and resin processing.
200gsm fabric may be useful for relatively flat or moderately curved UAV components where additional reinforcement is required.
For complex geometries, manufacturers should compare plain weave and twill weave options through actual layup trials.
300gsm fiberglass cloth contains considerably more glass reinforcement per square meter than the lighter options.
It may be considered for selected UAV support panels, ground-handling equipment components, reinforced housings, or thicker composite structures where minimizing the number of fabric layers is desirable.
Because heavier fabrics can be less convenient around tight contours, component geometry should be evaluated carefully.
No. A heavier fabric is not necessarily a better choice.
For small curved fairings or very lightweight covers, a lighter fiberglass cloth may offer easier handling and finer control over laminate construction.
300gsm fabric should be selected when its reinforcement mass and processing characteristics match the part requirements.
UAV components have different structural, aerodynamic, and manufacturing requirements.
Consequently, the most suitable fiberglass fabric can vary even within the same aircraft.
The fuselage protects internal equipment and connects various UAV systems.
Fiberglass cloth can be used for selected fuselage shells, covers, and locally reinforced regions.
For lightweight shells, 110gsm or 160gsm fabric may be evaluated as a starting material.
Where additional reinforcement is necessary, 200gsm fabric or a multi-layer construction may be considered.
The correct design depends on the UAV size, loading conditions, mounting arrangements, and laminate structure.
For relatively simple fuselage surfaces, plain weave fiberglass cloth may provide suitable fabric stability.
For more complex curved surfaces, twill weave can offer handling advantages due to its interlacing structure.
The best choice should be established through molding trials rather than weave type alone.
Wing skins must maintain the intended aerodynamic profile while meeting structural requirements.
Fiberglass may be used in selected wing skin constructions, including sandwich panels and components requiring electrical insulation or radio-frequency transparency.
Depending on design requirements, lightweight fabrics such as 60gsm, 110gsm, or 160gsm may be evaluated.
However, primary load-carrying wing structures require engineering analysis and validated mechanical properties.
Aerodynamic fairings and equipment covers often feature curved surfaces and relatively thin walls.
These components may benefit from lightweight woven fiberglass reinforcement.
60gsm and 110gsm fabrics can be considered for thin, weight-sensitive covers, while 160gsm and 200gsm materials may be evaluated where additional reinforcement is needed.
Drapability describes how well a fabric conforms to a three-dimensional shape.
Poor fabric conformity can produce wrinkles, bridging, and local fiber distortion during layup.
These defects can reduce manufacturing consistency and may affect laminate performance.
Therefore, weave selection is particularly important for complex UAV fairings and curved housings.
Sandwich composites combine relatively thin skins with a lightweight core material.
The skins carry significant in-plane stresses and contribute to bending performance, while the core separates the skins and resists shear loads.
Fiberglass cloth may be used as the reinforcement for selected sandwich skins.
JLON also supplies PVC foam, PET foam, and PMI foam core materials for composite applications.
Depending on the intended design, fiberglass cloth and an appropriate foam core may be evaluated together.
Start with the required panel stiffness, bending strength, impact resistance, core shear properties, and expected service conditions.
Fabric weight alone cannot determine sandwich panel performance.
The resin system, core bonding, skin thickness, and complete laminate construction must all be evaluated.
In addition to fabric weight, weave construction influences how fiberglass cloth behaves during composite processing.
JLON supplies plain weave and selected twill weave fiberglass cloth for applications requiring different handling characteristics.
Plain weave features alternating warp and weft yarns.
Its regular woven structure provides good fabric stability and controlled yarn placement.
It is commonly considered for flat composite panels, relatively simple molds, and applications where fabric positioning is important.
Twill weave uses an interlacing pattern that creates a diagonal appearance.
Depending on yarn construction and fabric density, twill weave may conform more easily to curved surfaces than an equivalent plain-weave fabric.
This characteristic can be useful for UAV fuselage shells and fairings with more complex contours.
Not necessarily.
Weave structure affects fabric handling, yarn crimp, and reinforcement distribution, but finished laminate strength depends on additional factors.
A reliable comparison requires equivalent materials, controlled processing, and appropriate mechanical testing.
Selecting a fabric weight is also a laminate design decision.
Manufacturers should consider the relationship between reinforcement mass, layer count, and finished component weight.
For one square meter of fabric, the nominal dry masses are straightforward.
60gsm fiberglass cloth: 60 grams per square meter.
110gsm fiberglass cloth: 110 grams per square meter.
160gsm fiberglass cloth: 160 grams per square meter.
200gsm fiberglass cloth: 200 grams per square meter.
300gsm fiberglass cloth: 300 grams per square meter.
These are nominal dry fabric masses, not finished laminate weights.
Using several lightweight layers allows manufacturers to adjust reinforcement orientation and local laminate construction.
For example, three layers of nominal 110gsm fiberglass cloth provide 330gsm of dry fabric reinforcement, while two layers of nominal 160gsm cloth provide 320gsm.
Although these constructions have similar total dry fabric masses, their mechanical behavior and manufacturing characteristics may differ.
The number of interfaces, fabric weave, fiber orientation, resin content, and consolidation process can all influence the result.
Not automatically.
Fewer layers may reduce layup labor, but the finished component weight depends on the amount of resin retained and the achieved fiber volume fraction.
For a meaningful comparison, manufacturers should measure the weight and thickness of cured laminate samples.
Fiberglass cloth must be compatible with the manufacturing process and resin system selected for the UAV component.
Epoxy resin is commonly used in composite manufacturing where controlled mechanical properties and laminate performance are required.
Fiberglass cloth intended for epoxy processing should have appropriate sizing.
Manufacturers should verify resin compatibility, wet-out behavior, curing conditions, and finished laminate quality before production.
Hand lay-up can be suitable for prototype UAV components and small production batches.
Vacuum bagging may improve laminate consolidation when properly applied.
For thin fiberglass cloth, careful handling is important to avoid wrinkles, unwanted fiber movement, and excessive resin accumulation.
Before selecting one fiberglass fabric for large-scale UAV manufacturing, a practical trial should be completed using the intended resin and production process.
The trial can help evaluate fabric cutting, drapability, resin wet-out, cured thickness, surface quality, and finished part weight.
Important inspection considerations include visible wrinkles, dry spots, resin-rich areas, voids, surface defects, and dimensional consistency.
Where structural performance is relevant, laminate samples should also undergo appropriate mechanical testing.
For professional UAV composite production, nominal GSM is not sufficient to define a reinforcement material.
Buyers should review the technical specifications of the actual fabric.
Confirm the nominal fabric weight, permitted tolerance, yarn specification, and weave structure.
For example, a fabric identified by a manufacturer's style code may have an actual nominal mass that differs from the number suggested by its code.
Fabric width should match mold dimensions, cutting layouts, and production requirements.
Buyers should also confirm roll length, edge condition, packaging, and consistency between production batches.
The fiberglass sizing should be suitable for the intended resin system.
If the application requires epoxy compatibility, this should be stated clearly when requesting a quotation.
For demanding UAV projects, buyers should request available technical data and evaluate samples before full-scale purchasing.
Required Fabric Weight: 60gsm, 110gsm, 160gsm, 200gsm, 300gsm, or another specified weight.
Weave Type: Plain weave or twill weave.
Application: UAV fuselage, wing skin, fairing, equipment cover, or composite panel.
Resin System: Epoxy or another specified resin.
Manufacturing Method: Hand lay-up, vacuum bagging, or another composite process.
Fabric Dimensions: Required width, roll length, and dimensional tolerances.
Technical Requirements: Any necessary strength, thickness, electrical, or other performance requirements.
Purchase Quantity: Estimated order volume and delivery destination.
Providing complete information helps JLON identify suitable woven fiberglass fabric specifications.
JLON supplies woven fiberglass cloth and related composite materials for international industrial customers.
Our available fiberglass fabric range covers multiple fabric weights and constructions, allowing customers to evaluate suitable reinforcement for different composite manufacturing requirements.
JLON offers fiberglass cloth options including 60gsm, approximately 110gsm, 160gsm, 200gsm, and 300gsm.
Available constructions include plain weave and selected twill weave materials, subject to the required specification.
UAV manufacturers may have different requirements for reinforcement weight, weaving construction, width, sizing, and resin compatibility.
JLON works with customers to review these requirements and identify appropriate available fabric options.
In addition to fiberglass cloth, JLON supplies composite core materials such as PVC foam, PET foam, and PMI foam.
This allows UAV composite manufacturers to discuss both reinforcement and lightweight sandwich construction materials with one sourcing partner.
For new UAV composite projects, material evaluation is an important step before bulk procurement.
Contact JLON to discuss the required fiberglass cloth weight, weaving structure, technical specifications, and sample availability.
110gsm, 160gsm, and 200gsm fiberglass cloth can be evaluated for selected fuselage shells and panels.
The appropriate material depends on UAV size, structural requirements, laminate design, and production method.
Not necessarily.
60gsm fiberglass cloth can be useful in thin surface layers and lightweight, low-load composite components.
However, suitability must be determined from the complete laminate construction and application requirements.
160gsm fabric contains more dry glass reinforcement per square meter than 110gsm fabric.
This may affect layer count, handling, and laminate construction, but it does not determine finished component strength by itself.
Plain weave can be suitable for relatively simple surfaces and stable fabric positioning.
Twill weave may offer improved drapability over complex contours.
Manufacturers should compare actual fabric constructions through layup trials.
Yes, for selected components where greater reinforcement per layer is appropriate.
However, 300gsm fiberglass cloth may not be the preferred choice for very thin skins or complicated curved surfaces.
Yes. Fiberglass reinforcement can be combined with suitable PMI foam in appropriately designed sandwich composites.
Core grade, resin compatibility, bonding quality, and mechanical performance must be verified for the specific component.
JLON supplies plain weave and selected twill weave fiberglass fabric options across different weight ranges.
Customers should confirm the required construction, width, and technical specifications before ordering.
Provide the required fiberglass fabric weight, weave, dimensions, resin system, intended UAV component, and estimated purchase quantity.
JLON can review the requirements and discuss available specifications, sampling, and quotation details.
Selecting the right fiberglass cloth for UAV applications requires an understanding of the component's function, structural requirements, manufacturing process, and finished weight target.
60gsm fiberglass cloth can be considered for very lightweight reinforcement and thin surface layers.
110gsm and 160gsm fiberglass fabrics provide intermediate options for lightweight UAV skins, covers, and selected composite panels.
200gsm and 300gsm fiberglass cloth may be appropriate where additional reinforcement per layer is required.
Plain weave and twill weave constructions provide further options for fabric stability and conformity to different component geometries.
However, no single GSM value or weave construction is suitable for every UAV component. Successful material selection depends on the complete laminate design, resin compatibility, manufacturing quality, and validated performance.
JLON supplies lightweight woven fiberglass cloth, plain weave fiberglass fabric, twill weave fiberglass cloth, and composite core materials for UAV and advanced composite manufacturing applications.
Contact JLON to discuss 60gsm, 110gsm, 160gsm, 200gsm, and 300gsm fiberglass cloth options for your UAV composite project.
Fiberglass Cloth Product Category:
https://www.jloncomposite.com/fiberglass-cloth.html
Official Website:
https://www.jloncomposite.com/
Supplier: JLON Composite
