Choosing the right fiberglass roving affects production efficiency, resin impregnation, material handling and finished composite performance. Two widely used options are direct roving and assembled roving. Although both contain continuous glass filaments, their strand construction and processing characteristics differ.
For buyers, the decision should go beyond price or nominal tex. A roving that performs well in filament winding may not deliver the chopping behavior required for spray-up or sheet molding compound production.
JLON supplies fiberglass reinforcement materials for composite manufacturing. This guide compares direct roving and assembled roving, explains their typical applications and identifies the specifications buyers should confirm before ordering.
Fiberglass roving is a bundle of continuous glass filaments gathered together, generally without intentional twist. It can be processed directly into composite parts, converted into fabrics or chopped during manufacturing.
Unlike woven fiberglass cloth, roving is supplied as a wound package rather than a finished fabric. The material feeds from the package into equipment such as winding machines, pultrusion lines, weaving machines or chopping systems.
“E-glass roving” describes the glass composition, while “direct roving” and “assembled roving” describe how the strands are produced and combined. These terms therefore identify different aspects of a product.
A complete specification should include glass type, strand construction, linear density, filament diameter, sizing designation and intended process. Ordering only “fiberglass roving” leaves several performance-critical details undefined.
Direct roving, also called single-end roving, consists of continuous glass filaments gathered into one strand during fiber production and wound into a package without a separate strand-assembling operation.
Its construction is widely used where continuous reinforcement must feed consistently through processing equipment.
Direct fiberglass roving is commonly selected for filament winding, pultrusion, weaving and non-crimp fabric production. Specific grades are also designed for long-fiber thermoplastic processing. Suitability depends on the individual sizing and product specification.
In filament winding, continuous reinforcement is placed around a rotating mandrel according to a defined winding pattern. Typical products include FRP pipes, tanks and other hollow composite structures.
Buyers should evaluate payout stability, fuzz generation, impregnation and compatibility with the selected resin. Winding tension and fiber placement also need to remain consistent at the intended operating speed.
Pultrusion draws reinforcement through a resin impregnation stage and a shaping and curing die to produce continuous profiles.
For fiberglass pultrusion roving, useful evaluation points include strand handling, resin penetration, pulling stability and performance in the cured profile. The selected grade must suit the actual resin formulation and production conditions.

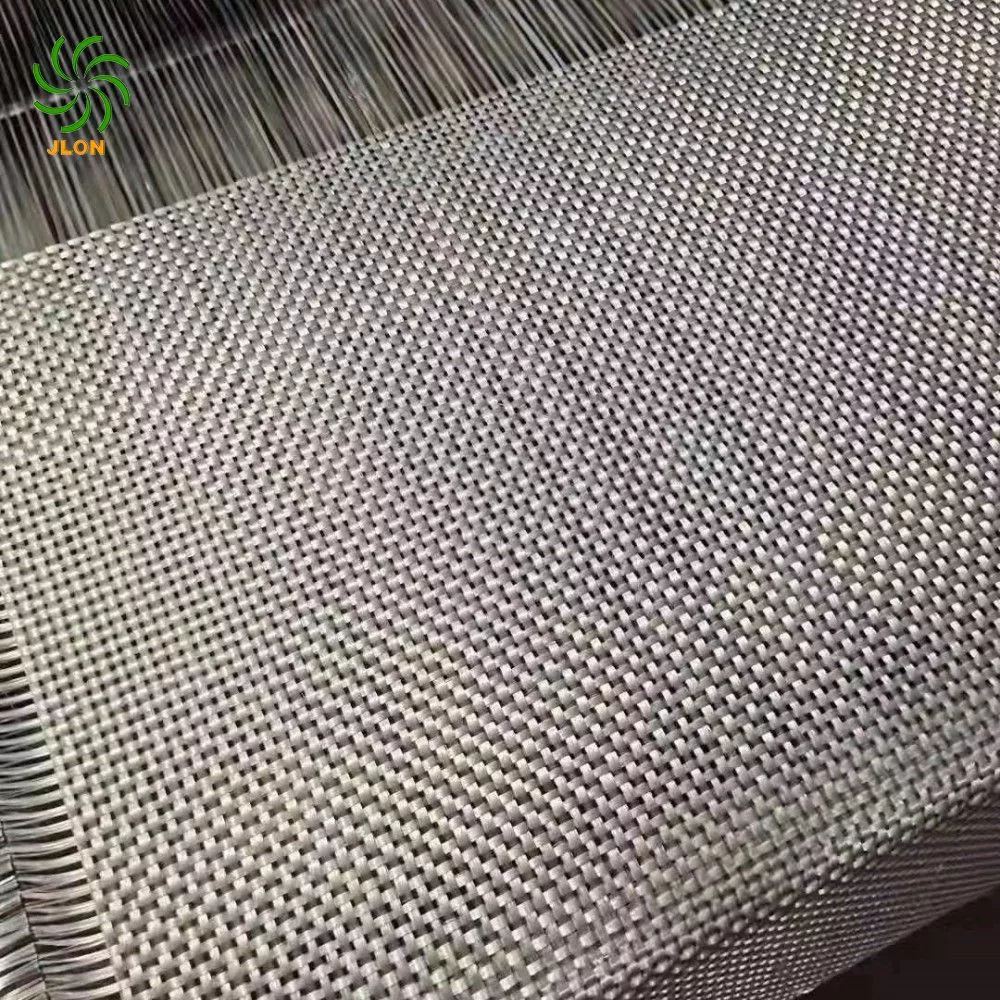

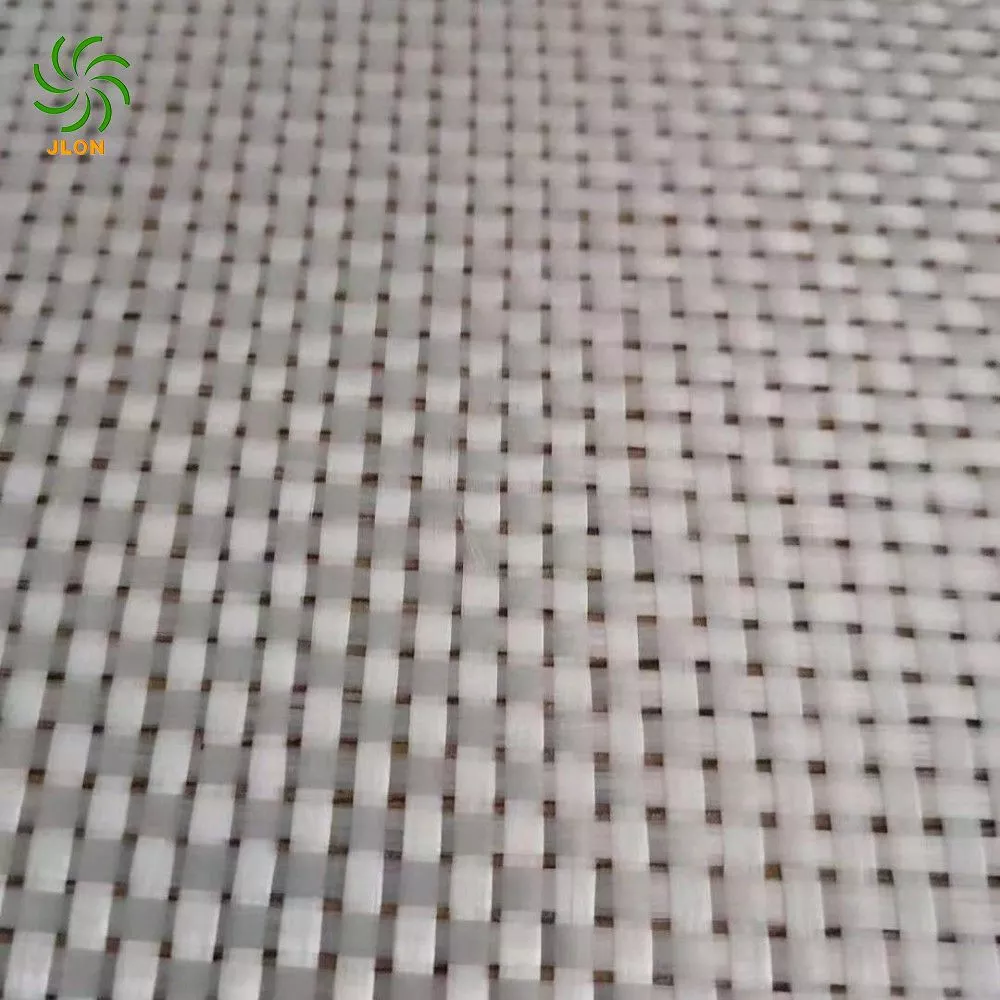

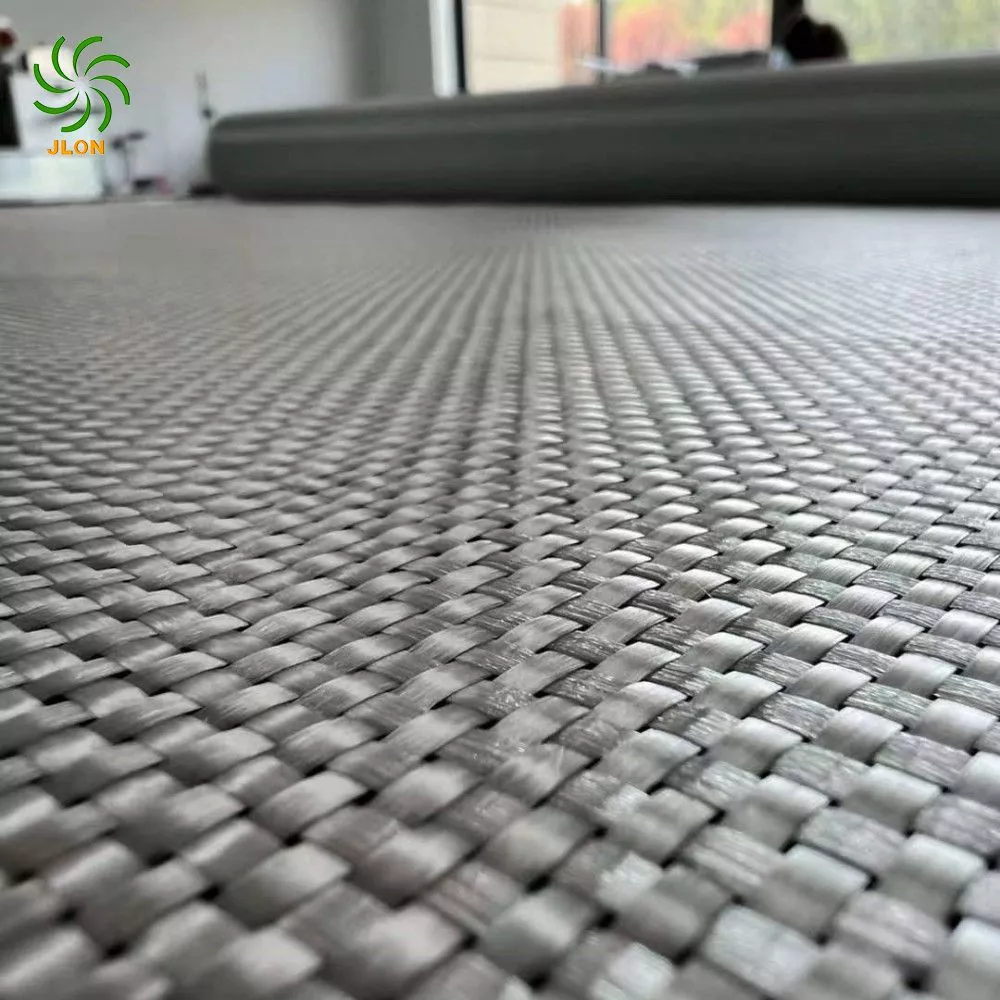

Weaving-grade roving is converted into reinforcement fabrics such as woven roving. Stable feeding and resistance to filament damage help support consistent fabric production.
A weaving grade should be assessed on the loom. Matching nominal tex alone does not establish equivalent handling or fabric quality.
Assembled roving, often called multi-end roving, is produced by combining several previously formed strands into one package.
The resulting bundle contains multiple constituent strands. Their construction and sizing influence how the roving feeds, chops, disperses and becomes impregnated with resin.
Common assembled fiberglass roving categories include spray-up roving, SMC roving and grades for continuous panel production. These products have different processing requirements and should not be treated as interchangeable.
Spray-up equipment chops the roving and deposits the cut reinforcement with resin onto a mold.
A suitable fiberglass spray-up roving should feed reliably through the chopper and produce consistent cut strands. Buyers should also check distribution across the mold, wet-out and ease of rolling out trapped air.
During sheet molding compound production, roving is chopped and distributed onto a resin paste before compaction.
SMC roving selection involves more than whether the fiber can be cut. Strand distribution, impregnation and behavior during molding all matter. Different SMC grades may target different surface, mechanical or durability requirements.
For continuous FRP panel production, the reinforcement must work with the line’s resin application, fiber deposition and consolidation stages.
Where translucent panels are required, buyers should evaluate the appearance of the finished panel alongside processing performance. Dry roving appearance alone cannot predict the optical quality of a cured laminate.
The main distinction is strand construction. It creates useful starting points for selection, but the final decision must be made at grade level.
Direct roving consists of filaments gathered directly into one strand. Typical evaluation points include payout stability, tension consistency, impregnation and resistance to filament damage.
Assembled roving combines multiple previously formed strands. In chopping applications, buyers should pay particular attention to feeding, cutting behavior, strand distribution and impregnation.
Both categories require a sizing system suited to the intended resin. Neither the construction name nor the nominal tex provides enough information to approve a grade.
Finished composite strength depends on glass composition, fiber content, orientation, retained fiber length, resin properties, interface quality and manufacturing conditions.
Comparing a continuously wound laminate with a chopped-fiber molded component does not isolate the effect of direct versus assembled construction. Their reinforcement architectures differ.
For a meaningful comparison, test candidate materials in the same application against the same acceptance criteria.
Direct roving is a common starting point for continuous processes, but assembled roving is not restricted to chopping applications. Manufacturers also offer assembled grades for particular continuous-profile applications.
Consequently, a product’s technical data sheet and processing recommendation take priority over a broad category rule.
Describe what the roving must do on the production line.
Will it remain continuous, pass through a chopper or be converted into fabric? Does your equipment use internal or external payout? What line speed, tension and impregnation conditions are involved?
These details give a fiberglass roving supplier a more useful starting point than the finished product name alone.
Provide the current grade designation and technical data sheet, together with the reason for changing materials.
For example, a buyer seeking less fuzz needs a different comparison from one seeking faster impregnation or better chopped-strand distribution. Define the problem before requesting an equivalent.
Sizing is the surface treatment applied to glass filaments. It helps protect the fibers during handling and influences their interaction with the resin.
Available roving grades may be designed for unsaturated polyester, vinyl ester, epoxy, polyurethane or specific thermoplastic systems. Compatibility belongs to the grade, not simply to the words “direct” or “assembled.”
Tell the supplier which resin you use, including relevant fillers, additives and processing conditions.
A general compatibility statement is a screening tool. Production trials should establish whether the proposed roving works with your formulation and process window.
Tex expresses linear density: grams per 1,000 meters of material. A nominal 2,400 tex roving therefore has a nominal mass of 2,400 grams per 1,000 meters.
Tex helps buyers describe reinforcement feed requirements, but it does not specify glass chemistry, filament diameter, sizing or processing suitability.
Two rovings with the same tex can behave differently during payout, chopping or impregnation.
Compare the complete product specification. For replacements, retain the existing material as a benchmark and document any equipment adjustments required by the candidate.
Resin must penetrate the reinforcement sufficiently for the intended manufacturing process.
However, the desired strand behavior varies. A chopping process may require controlled strand integrity and distribution, while a continuous process may prioritize stable feeding and impregnation under tension.
Avoid selecting a roving solely because it appears to wet out quickly in a simple demonstration.
Use the intended resin, temperature, line speed and equipment settings wherever practical. Record the trial conditions so results can be repeated.
Evaluate cured parts as well as processing observations. Easy handling does not, by itself, demonstrate that the finished component meets its specification.
Package format can affect creel fit, changeovers, payout and material handling.
Before ordering, confirm package dimensions, net weight, payout method, labeling and pallet configuration. Request storage and conditioning instructions for the proposed grade rather than assuming one universal requirement applies to all fiberglass rovings.
A lower price per kilogram does not necessarily reduce the cost of an acceptable finished part.
The comparison should include material waste, interruptions, cleaning, changeovers, production speed and rejected components. For chopped-fiber processes, also examine whether fiber distribution remains consistent throughout the run.
Run the current material and proposed alternative under comparable conditions. If settings need adjustment, record the changes and their effects.
Identify the roving grade, batch and resin formulation used in each trial. Record operating conditions, including relevant line settings and production speed.
This establishes whether differences arise from the material itself or from changes elsewhere in the process.
Record material consumption, production output, feeding interruptions and visible fuzz. Include observations about chopping, strand distribution or impregnation, depending on the process.
Check finished parts against the agreed inspection and testing requirements. Define acceptance criteria before the trial so the results provide a clear basis for purchasing decisions and future deliveries.
E-glass identifies a glass family, not a complete processing specification. Products can differ in sizing, filament diameter and strand construction even when their glass designation and tex match.
“Roving for FRP tanks” is incomplete because tanks can be manufactured using different processes and reinforcement arrangements. Specify the production method and the role of the roving.
A material intended for winding should not automatically replace a spray-up grade. Likewise, one assembled roving should not automatically replace another merely because both can be chopped.
A successful sample trial should lead to a documented purchase specification. Record the approved grade, required documentation, packaging and acceptance criteria so future deliveries can be checked consistently.
JLON supplies fiberglass roving and related reinforcement products for composite manufacturing. Its product range also includes fiberglass chopped strands, woven roving, chopped strand mat and multiaxial fiberglass fabrics.
For buyers comparing direct roving and assembled roving, the most useful inquiry explains the application, current material and production requirements. This allows the discussion to focus on a suitable grade rather than a generic product category.
Describe the finished product, manufacturing process and resin type. Include relevant formulation details and the performance requirements of the finished component.
Provide your current roving grade or technical data sheet. State the required tex, glass type and any other specifications that must be maintained when evaluating an alternative.
Explain your equipment’s payout method and package requirements. Describe any current problems, such as excessive fuzz, unstable feeding, inconsistent chopping or incomplete impregnation.
Indicate the trial quantity, expected purchasing volume and delivery destination. These details help establish a practical basis for discussing sampling, packaging and supply arrangements.
Start with your current product label, a description of the process and the results you need to achieve. Identify which specifications are fixed and which can be evaluated during trials.
Share this information with JLON to discuss fiberglass roving options and prepare a meaningful comparison before bulk purchasing.
Neither is universally better. Direct roving is commonly used for continuous reinforcement processes, while assembled roving is widely used in spray-up, SMC and panel production. Select the specific grade for your equipment, resin and finished-part requirements.
Yes, certain assembled grades are designed for pultrusion applications. Confirm the manufacturer’s recommendation and validate the material under your production conditions.
Yes, epoxy-compatible direct roving grades are available. Check the sizing designation and technical data sheet rather than assuming every direct roving is suitable for epoxy.
No. Assembled roving is supplied as continuous strands combined into a package. Fiberglass chopped strands are already cut to specified lengths. Some manufacturing processes chop assembled roving directly on the line.
Compare their full specifications and conduct a controlled trial. Evaluate feeding, impregnation or chopping behavior, material consumption and finished-part performance. Share your results and requirements with JLON when discussing the next order.
