Release film is an essential consumable in composite manufacturing, particularly in vacuum bagging, prepreg processing, and selected resin infusion applications. Although release films may look similar, choosing between perforated release film and non-perforated release film can significantly affect resin bleed, air evacuation, laminate quality, and processing efficiency.
For composite manufacturers producing fiberglass parts, carbon fiber components, marine structures, wind turbine blades, and industrial panels, selecting the correct release film is more than a matter of cost. The wrong perforation pattern may cause excessive resin loss, insufficient bleeding, or difficulties during demolding.
The main difference is simple: perforated release film allows controlled passage of resin and air through its openings, while non-perforated release film creates a substantially impermeable separation layer.
However, the correct choice depends on the resin system, manufacturing process, laminate structure, and desired surface finish.
In this guide, JLON explains the differences between perforated and non-perforated release films, their applications, technical considerations, and how composite manufacturers can select the right material for production.
Release film is a thin polymer film used as a separation layer in composite processing. Its primary function is to prevent vacuum bagging consumables, breather fabrics, or other processing materials from bonding permanently to the composite laminate.
It is commonly positioned between the laminate or peel ply and other consumable layers, depending on the manufacturing process.
Release film performs several important functions.
Easy Demolding: Helps separate processing consumables from the cured laminate without unwanted adhesion.
Resin Bleed Control: Perforated grades allow controlled resin movement toward absorbent layers.
Surface Protection: Prevents unwanted bonding between the laminate and adjacent processing materials.
Process Consistency: Supports repeatable vacuum bagging and curing operations.
Consumable Separation: Makes removal of breather cloth and other processing materials easier after curing.
Release films are available in different polymer materials, thicknesses, widths, and perforation patterns.
Common material options include polyethylene (PE), polypropylene (PP), and temperature-resistant fluoropolymer films. The appropriate material depends on the resin chemistry and processing temperature.
Release film and vacuum bagging film are not interchangeable.
Vacuum bagging film forms the outer airtight envelope that allows vacuum pressure to be applied to the laminate.
Release film is an internal processing layer that separates materials and, when perforated, controls the passage of resin or air.
A typical prepreg vacuum bagging arrangement may include the following layers, listed from the laminate outward:
Layer 1: Composite laminate or prepreg layers.
Layer 2: Peel ply, where required.
Layer 3: Perforated or non-perforated release film.
Layer 4: Breather or bleeder material.
Layer 5: Vacuum bagging film.
The exact arrangement varies with the manufacturing process and laminate specification.
JLON supplies a range of vacuum infusion consumables, including release film, peel ply, bagging film, breather fabric, infusion mesh, and sealant tape for composite production.

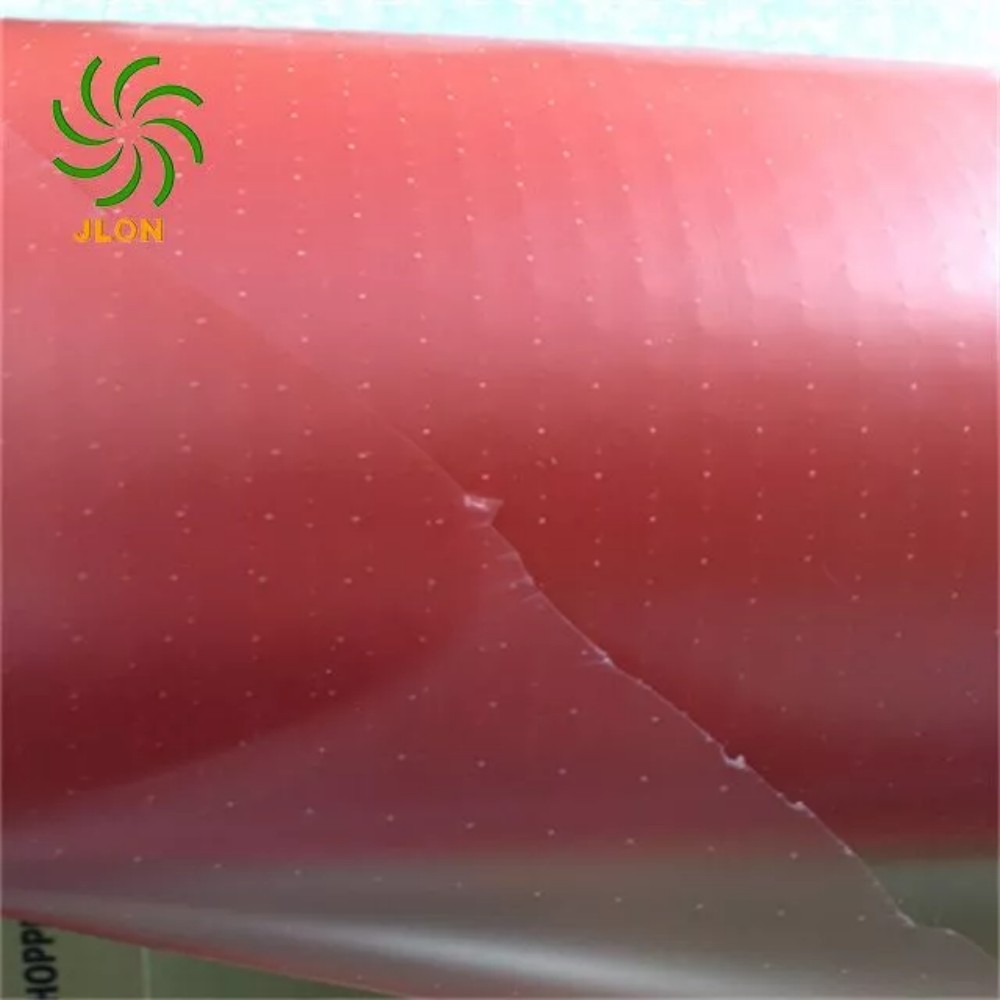

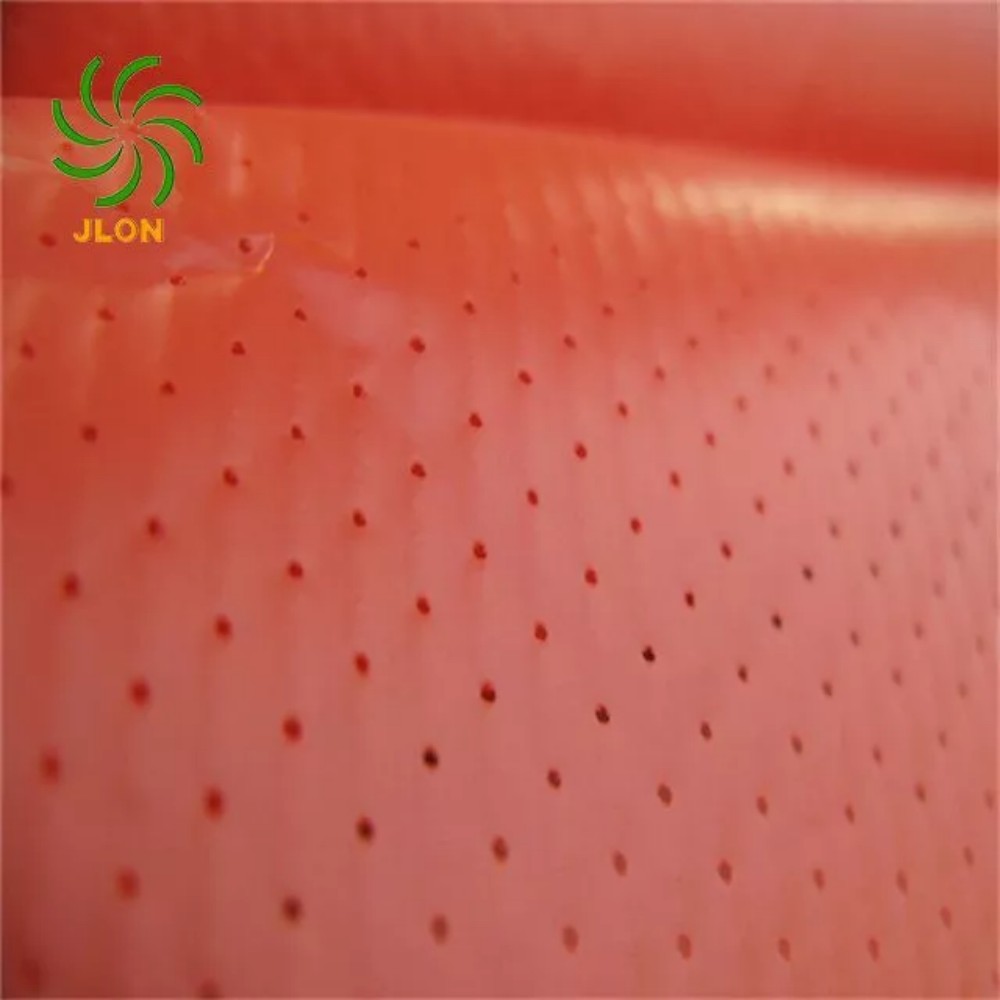

Perforated release film is a polymer separation film containing small openings distributed across its surface.
These openings provide controlled pathways through which resin and, under suitable conditions, air can pass.
Perforated films are commonly used when the manufacturing process requires resin bleeding, air evacuation through the film, or controlled communication between adjacent processing layers.
During vacuum bagging or prepreg curing, pressure and temperature may cause excess resin to move from the laminate toward the outer processing layers.
A perforated release film allows resin to pass through its openings into a bleeder material.
The amount of resin transferred depends on several factors.
Perforation Diameter: Influences the available openings for resin movement.
Hole Spacing and Open Area: Affect the distribution of resin passage across the film.
Resin Viscosity: Determines how readily resin can flow through the perforations.
Processing Temperature: Influences resin viscosity and curing behavior.
Vacuum and Consolidation Pressure: Affect resin movement and laminate consolidation.
Bleeder Material: Determines how resin passing through the film is absorbed.
Cure Cycle: Influences the time available for resin movement before gelation.
A film with a larger effective open area may permit greater resin transfer under comparable conditions, but the actual result must be verified through processing trials.
Perforation pattern directly influences the interaction between the laminate and absorbent processing materials.
Too much resin bleeding may reduce the resin content below the intended level, potentially affecting laminate quality.
Insufficient bleeding may leave more resin than required in a process designed for controlled resin removal.
Therefore, perforation selection should follow the laminate manufacturer's processing recommendations rather than a universal rule.
Perforated release film is commonly used in several composite manufacturing processes.
Prepreg Vacuum Bagging: Supports controlled resin bleeding in prepreg systems designed for resin removal.
Wet Lay-Up Vacuum Bagging: Allows excess resin to pass into absorbent layers when the process requires bleeding.
Fiberglass Composite Manufacturing: Provides separation and resin management in suitable laminate constructions.
Carbon Fiber Component Manufacturing: Supports selected prepreg and wet lay-up curing processes.
Specialized Resin Infusion Arrangements: May serve as a permeable separation layer when required by the process design.
In conventional vacuum infusion, perforated release film is not automatically necessary. Peel ply and flow media are often selected according to the resin distribution strategy.
JLON recommends confirming the complete consumable stack before selecting a perforated film for infusion applications.
Non-perforated release film is a continuous polymer film without intentionally manufactured perforations.
It provides a separation barrier between the laminate and surrounding consumables while restricting resin movement through the film.
Non-perforated release films are particularly useful when the manufacturing process requires resin retention or isolation between processing layers.
Unlike perforated film, a non-perforated film does not provide designed openings for resin bleeding.
When installed correctly, it helps prevent resin from passing into adjacent breather or bleeder materials.
This can be important in processes where the laminate resin content is controlled by the prepreg specification or other manufacturing parameters.
However, non-perforated film also restricts air movement through the film. Manufacturers must therefore provide suitable evacuation paths around its edges or through other parts of the vacuum bagging arrangement.
No-Bleed Prepreg Systems: Helps retain resin within laminates designed for no-bleed curing.
Composite Surface Separation: Prevents adhesion between the laminate and surrounding processing materials.
Resin Retention Applications: Restricts resin transfer into absorbent layers.
Specialized Composite Processing: Provides a continuous separation barrier where required.
Not necessarily.
Although non-perforated film provides a continuous separation surface, the final laminate finish also depends on the mold surface, resin system, laminate consolidation, and processing conditions.
For cosmetic or precision composite components, manufacturers should evaluate the complete process rather than relying on release film alone.
The main technical differences involve film structure, resin movement, air passage, and manufacturing applications.
Perforated Release Film: Contains controlled openings distributed across the film surface.
Non-Perforated Release Film: Has a continuous surface without designed openings.
Perforated Release Film: Allows resin to pass through the perforations when pressure and resin conditions permit.
Non-Perforated Release Film: Restricts resin passage through the film.
Perforated Release Film: Allows air passage through the openings under suitable processing conditions.
Non-Perforated Release Film: Requires alternative air evacuation paths because air cannot pass directly through the continuous film.
Perforated Release Film: Suitable for controlled-bleed manufacturing processes.
Non-Perforated Release Film: Suitable for resin-retention and no-bleed processes.
Perforated Release Film: Commonly used in prepreg bleed systems and wet lay-up vacuum bagging.
Non-Perforated Release Film: Commonly used in no-bleed prepreg systems and applications requiring a continuous separation barrier.
Neither type is universally superior.
Perforated release film may improve process control where resin bleeding is required.
Non-perforated release film may be more appropriate where resin retention is essential.
The correct selection depends on the laminate design and curing process.
For consistent production, composite manufacturers should validate the selected release film through sample laminates before changing an established process.
The manufacturing method is one of the most important factors in release film selection.
In wet lay-up vacuum bagging, resin is applied to the reinforcement before the vacuum bag is installed.
Depending on the target fiber-to-resin ratio and laminate requirements, the process may use a perforated release film with a bleeder layer to remove excess resin.
For applications where resin bleeding is not required, a non-perforated film may be appropriate.
The choice should account for resin viscosity, laminate thickness, pressure, and the desired final resin content.
Prepreg materials contain a controlled quantity of resin before processing.
Some prepreg systems are designed for resin bleeding during cure, while others are specifically formulated for no-bleed processing.
Perforated release film may be used to allow excess resin to move toward the bleeder material.
Non-perforated release film may be selected to retain resin within the laminate.
For both systems, the prepreg manufacturer's recommended bagging arrangement should take priority.
Vacuum infusion introduces liquid resin into dry reinforcement under a pressure differential.
Common consumables include peel ply, infusion mesh, vacuum bagging film, sealant tape, spiral tubing, and resin feed and vacuum lines.
Release film may be used in certain infusion configurations, but it should not be treated as a mandatory layer for every infusion process.
For example, a perforated separation layer may be appropriate in a specifically engineered system, but its hole pattern must not obstruct the required resin flow or compromise the process.
Manufacturers should confirm compatibility between the release film, flow media, resin system, and vacuum arrangement.
Elevated-temperature processing introduces additional requirements.
The release film must tolerate the full curing temperature and duration without melting, excessive shrinkage, or losing its release properties.
High-temperature prepreg and autoclave applications may require specialized film materials rather than standard polyethylene release film.
When sourcing release film for composite manufacturing, purchasing teams should review more than film price and nominal thickness.
Common polymer materials include PE, PP, and specialized high-temperature films.
Polyethylene release films are frequently used in low- to medium-temperature composite processes.
Higher-temperature applications may require other polymer grades with appropriate thermal stability.
The release film must remain suitable throughout the actual processing cycle.
Important factors include maximum curing temperature, duration at peak temperature, heating and cooling rates, and contact with resin and other consumables.
A nominal temperature rating should not be interpreted as unlimited resistance under every processing condition.
Film thickness affects handling, flexibility, and mechanical durability.
Thin films may conform more easily to certain geometries, while thicker films may provide additional handling strength.
The correct thickness depends on the film material, laminate shape, and processing conditions.
For perforated release film, hole diameter and spacing are critical specifications.
Buyers should request the perforation pattern designation, hole diameter, hole spacing, percentage of open area if available, and recommended manufacturing processes.
Perforation designations are not always interchangeable between suppliers. Buyers should verify the actual pattern rather than relying only on a product code.
Release film must be compatible with the resin system.
Common composite resins include epoxy resin, unsaturated polyester resin, and vinyl ester resin.
Compatibility depends on the specific film formulation, resin chemistry, temperature, and exposure conditions.
A film suitable for one epoxy process may not automatically be suitable for every epoxy curing cycle.
For industrial composite production, roll dimensions affect material handling, cutting efficiency, and procurement cost.
Manufacturers should select widths that suit their laminate dimensions while minimizing unnecessary waste.
For recurring production, consistent roll specifications also simplify inventory management.
JLON supplies composite processing materials for customers manufacturing fiberglass, carbon fiber, and other fiber-reinforced composite products.
Our product range includes release film, vacuum bagging film, peel ply, infusion mesh, breather fabric, and sealant tape.
For customers seeking a cost-effective perforated release film, JLON offers the RF35 polyethylene release film.

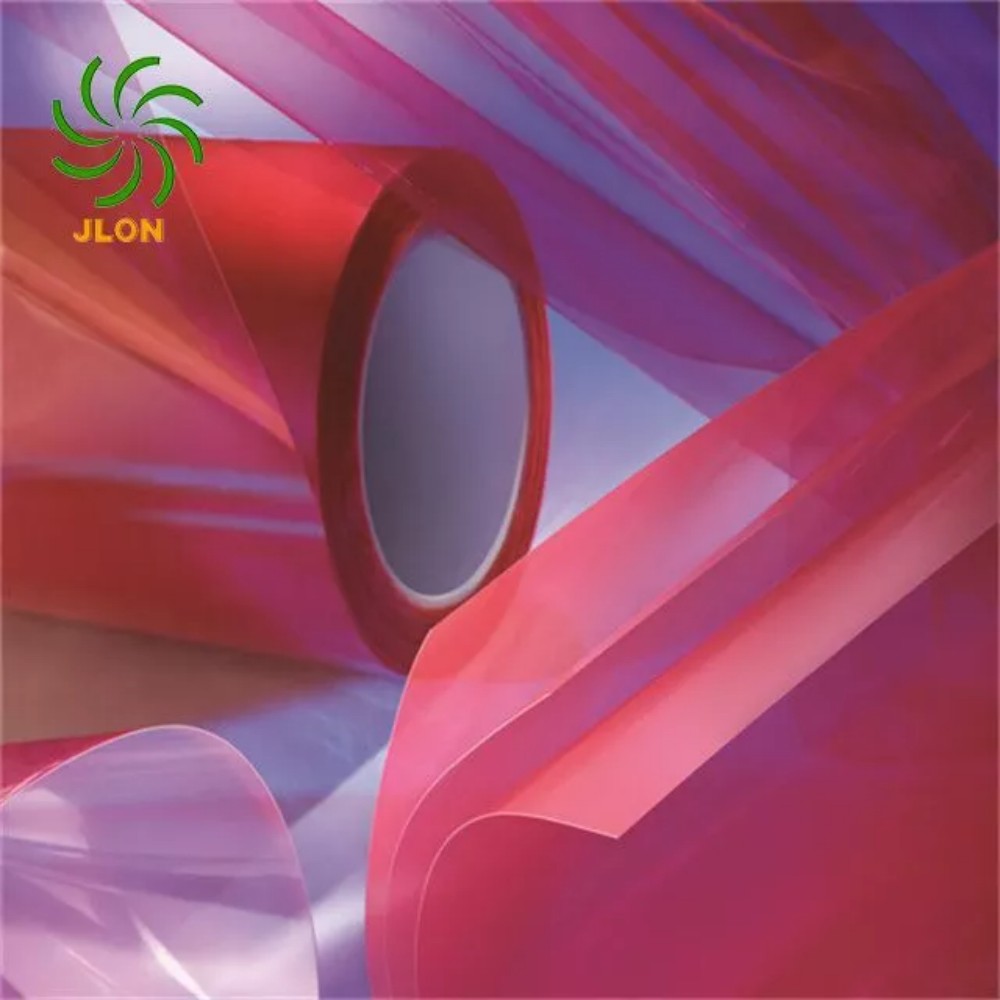

RF35 is a PE release film designed for low- to medium-temperature composite applications.
It is intended for use with compatible epoxy, polyester, and vinyl ester resin systems.
Material: Polyethylene (PE)
Film Thickness: 35 μm
Maximum Use Temperature: 121°C / 250°F
Tensile Strength: 30 MPa
Elongation at Break: 500%
Color: Red / Blue
Example Width: 1,200 mm
Example Roll Length: 500 m
Perforation Option: P16
The listed values are reference specifications for RF35. Actual order specifications and suitability should be confirmed before purchasing.
JLON's RF35 release film is designed to provide a practical balance of release performance, flexibility, and cost for compatible composite manufacturing processes.
For projects requiring different release film materials, perforation patterns, dimensions, or operating temperatures, buyers can contact JLON to discuss available sourcing options and technical requirements.
JLON works with manufacturing partners to supply composite materials and processing consumables for industrial customers.
Our product offering allows buyers to source multiple consumable categories through one supplier.
For example, a composite manufacturer purchasing release film may also require the following materials.
Vacuum Bagging Film: Creates an airtight enclosure for vacuum consolidation and composite curing.
Peel Ply: Provides a removable separation fabric and can help prepare surfaces for subsequent processing.
Infusion Mesh: Facilitates resin distribution during vacuum infusion.
Breather Fabric: Provides air evacuation pathways and supports vacuum distribution in suitable bagging arrangements.
Sealant Tape: Seals vacuum bagging film to the mold or other suitable sealing surfaces.
Consolidating compatible materials can simplify purchasing coordination, particularly for overseas composite manufacturers managing multiple consumable suppliers.
JLON can also discuss material specifications, sample requirements, and shipment arrangements based on the customer's project.
Two perforated films may have different hole sizes, spacing, and open areas.
These differences can affect resin bleeding and processing behavior.
Always verify the perforation specification.
Vacuum infusion and vacuum bagging are related but different manufacturing processes.
Perforated release film is not universally required for infusion.
The consumable stack should follow the resin distribution and vacuum design.
A release film suitable for room-temperature processing may not withstand elevated-temperature curing.
Confirm the film's thermal limits before production.
An inexpensive film may create higher overall costs if it causes processing defects, difficult removal, or inconsistent resin bleeding.
Purchasing decisions should consider process reliability as well as unit price.
Replacing a release film with another grade may alter resin movement and laminate consolidation.
A controlled trial is recommended before full-scale production.
Perforated release film contains openings that allow controlled resin and air passage. Non-perforated release film provides a continuous separation barrier and restricts through-film resin movement.
It depends on whether the process requires resin bleeding. Perforated film is useful in controlled-bleed applications, while non-perforated film may be more suitable for no-bleed processes.
Yes. Non-perforated release film can be suitable for prepreg systems designed to retain resin during curing. Always follow the prepreg manufacturer's processing recommendations.
Yes, provided the selected film is compatible with the specific epoxy formulation and curing temperature. JLON RF35 is intended for compatible epoxy, polyester, and vinyl ester resin systems.
No. Peel ply is a removable woven fabric that can create a textured laminate surface for subsequent processing. Release film is a polymer separation layer used to prevent adhesion and, in perforated grades, control resin movement.
Not automatically. Resin distribution in vacuum infusion primarily depends on the reinforcement, flow media, feed locations, vacuum arrangement, and resin characteristics. Perforated release film is used only where its function is appropriate to the process design.
Buyers should specify the manufacturing process, resin type, maximum curing temperature, required film thickness, perforation pattern, roll width, roll length, and estimated purchasing quantity.
The choice between perforated and non-perforated release film depends on the composite manufacturing process and the required resin management strategy.
Choose Perforated Release Film: When the process requires controlled resin bleeding or through-film air passage.
Choose Non-Perforated Release Film: When the process requires a continuous separation barrier and resin retention.
Neither type is universally better. Correct selection requires consideration of resin chemistry, curing temperature, laminate design, perforation pattern, and the complete vacuum bagging arrangement.
For composite manufacturers, choosing the correct release film helps maintain process consistency and reduce avoidable production problems.
JLON supplies release film and related vacuum bagging consumables for fiberglass, carbon fiber, marine, wind energy, and industrial composite manufacturing.
Contact JLON with your resin system, processing temperature, perforation requirements, film dimensions, and estimated order quantity to discuss a suitable product and request a quotation.
