Choosing the right fiberglass cloth weight is an important step in composite manufacturing. Fiberglass fabrics are available in a wide range of weights, from lightweight fabrics below 100 GSM to heavy-duty woven fabrics of 600 GSM, 800 GSM or more. The right choice depends on the required laminate thickness, strength, surface quality, resin consumption, molding process and final application.
Fiberglass cloth weight is commonly expressed in GSM (grams per square meter) or oz/yd⊃2; (ounces per square yard). For composite manufacturers and buyers sourcing internationally, understanding the relationship between GSM, oz/yd⊃2; and fabric thickness makes it easier to compare different fiberglass fabric specifications.
JLON supplies a broad range of E-glass fiberglass cloth, including lightweight woven fiberglass cloth, industrial fiberglass fabric, surfboard fiberglass cloth and heavier reinforcement fabrics for composite applications.
This guide explains fiberglass cloth weight, common GSM and oz values, approximate thickness ranges and how to select the appropriate fiberglass fabric for different applications.
Fiberglass cloth weight refers to the mass of a fiberglass fabric over a specified surface area.
The two most common units are GSM — grams per square meter and oz/yd⊃2; — ounces per square yard.
GSM is widely used in Europe, Asia and international industrial specifications, while oz/yd⊃2; is particularly common in North America and applications such as boat building and surfboard manufacturing.
For example, 100 GSM fiberglass cloth ≈ 3 oz/yd⊃2;; 160 GSM fiberglass cloth ≈ 4.7 oz/yd⊃2;; 200 GSM fiberglass cloth ≈ 5.9 oz/yd⊃2;; 300 GSM fiberglass cloth ≈ 8.8 oz/yd⊃2;; 400 GSM fiberglass cloth ≈ 11.8 oz/yd⊃2;; 600 GSM fiberglass cloth ≈ 17.7 oz/yd⊃2;.
A heavier fiberglass fabric generally contains more glass fiber per unit area and can build laminate thickness faster. However, fabric weight alone does not determine final composite performance.
The approximate conversion is:
1 oz/yd⊃2; ≈ 33.9 GSM
Therefore:
GSM ÷ 33.9 = oz/yd⊃2;
and:
oz/yd⊃2; × 33.9 = GSM
For example, a 6 oz fiberglass cloth is approximately:
6 × 33.9 = 203 GSM
This is why fabrics described as 6 oz fiberglass cloth are often close to 200 GSM.
Actual commercial specifications can vary slightly depending on yarn construction, weaving tolerance and manufacturer standards.
Generally, a heavier fiberglass cloth contains more reinforcement per square meter. If the glass type, fiber orientation and laminate process remain similar, increasing reinforcement weight can increase the amount of glass reinforcement in the finished laminate.
However, higher GSM does not automatically mean better performance.
Mechanical properties also depend on glass fiber type, yarn size and construction, warp and weft density, weave pattern, fiber orientation, sizing and resin compatibility, resin-to-fiber ratio, lamination process, number of layers, void content and processing quality.
A lightweight, well-designed laminate can sometimes perform better than a poorly processed laminate made with heavier fiberglass fabric.
The following table provides a practical reference for common fiberglass cloth weights.
Fiberglass Cloth Weight | Approx. oz/yd⊃2; | General Fabric Category | Typical Applications |
80 GSM | 2.4 oz | Ultra-light | Surface layers, lightweight parts |
100 GSM | 3.0 oz | Lightweight | Model parts, surface reinforcement |
135 GSM | 4.0 oz | Lightweight | Surfboards, lightweight composites |
160 GSM | 4.7 oz | Light/medium | Surfboards, marine, general composites |
200 GSM | 5.9 oz | Medium | Boats, panels, automotive parts |
300 GSM | 8.8 oz | Medium | General structural laminates |
400 GSM | 11.8 oz | Medium/heavy | Marine and industrial composites |
600 GSM | 17.7 oz | Heavy | Structural laminates, boats, tanks |
800 GSM | 23.6 oz | Heavy | Thick industrial laminates |
These values should be used as a selection reference rather than an absolute design specification.
Fabric thickness generally increases with fabric weight, but there is no universal GSM-to-thickness conversion.
Two fiberglass fabrics with the same GSM may have different thicknesses because of differences in yarn tex, yarn twist, warp/weft density, weave pattern, fiber treatment and fabric compaction.
For this reason, buyers who have a strict thickness requirement should specify both fabric weight and required thickness rather than selecting fiberglass cloth based only on GSM.
Dry fiberglass cloth thickness is not the same as finished laminate thickness.
The final laminate depends on the amount of resin, compaction pressure, vacuum level and manufacturing method.
For accurate engineering applications, laminate thickness should therefore be determined using the actual reinforcement, resin system and processing conditions.
Different weight ranges are suited to different composite structures and manufacturing processes.

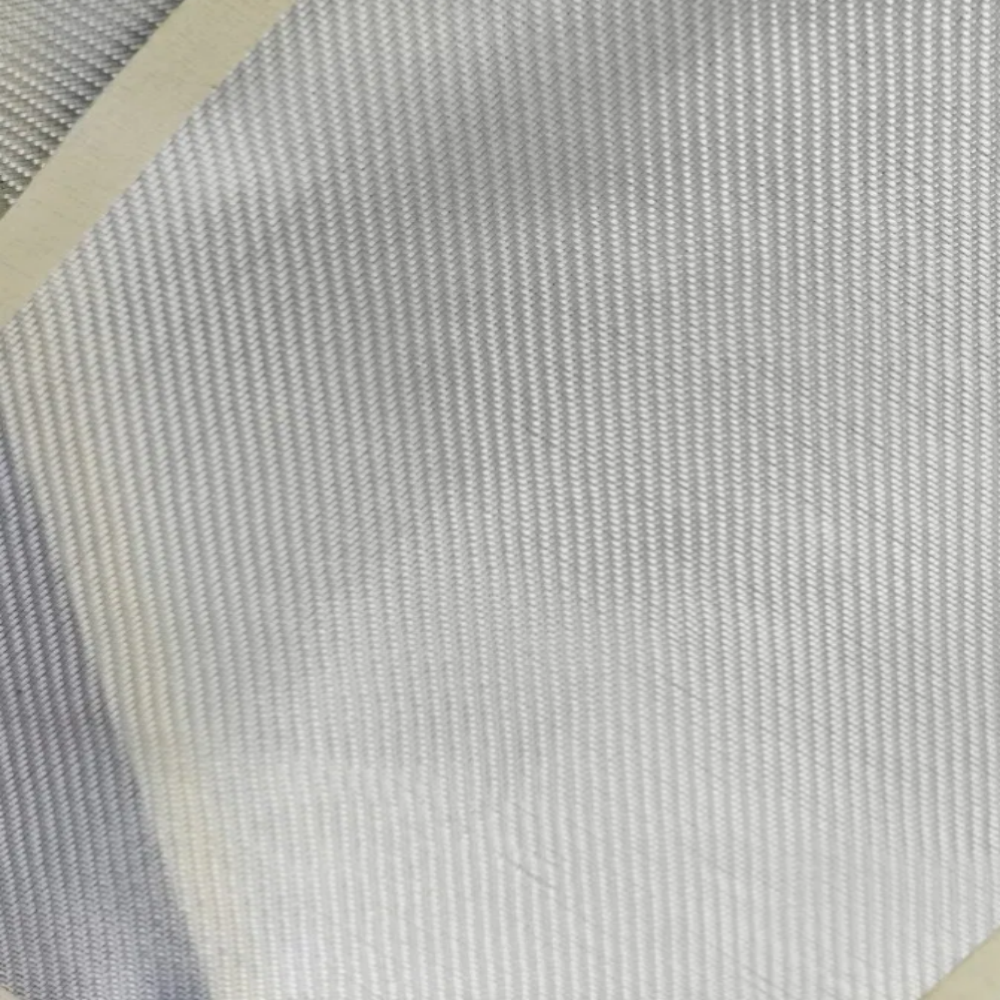

Lightweight fiberglass cloth is commonly selected when low weight, flexibility and a relatively smooth laminate surface are important.
Typical applications include surfboards, model aircraft, UAV components, lightweight panels, surface reinforcement, small composite parts and repair laminates.
Light fiberglass fabric conforms more easily to curved surfaces and adds less weight to the final component.
4 oz fiberglass cloth is approximately 135 GSM and is especially common in surfboard manufacturing and other lightweight composite structures.
It provides a useful balance between reinforcement, conformability and surface quality.
JLON supplies fiberglass fabrics suitable for surfboards and lightweight composite applications, including common 4 oz and 6 oz fabric constructions.
The 160–300 GSM range is one of the most versatile categories of woven fiberglass cloth.
Typical applications include boat building, marine components, automotive composite parts, industrial panels, FRP products, sporting goods and composite repair.
200 GSM fiberglass cloth is particularly common because it provides more reinforcement than very light fabrics while remaining relatively easy to wet out and handle.
A nominal 6 oz fiberglass cloth is approximately 200 GSM.
This weight is widely used in general composite fabrication, marine laminates, repairs and sporting goods.
When purchasing 6 oz fiberglass fabric, buyers should also check the weave pattern, yarn construction, width and surface treatment rather than relying only on the nominal weight.
Heavier fiberglass cloth is used when faster laminate build-up and higher reinforcement content are required.
Typical applications include boat hulls, marine structures, industrial tanks, FRP panels, structural composite parts and large molded components.
A 600 GSM fiberglass reinforcement can build laminate thickness much faster than a 100 or 200 GSM fabric.
However, heavier fabrics may be less suitable for tight corners and highly complex geometries.
Heavy fiberglass fabrics are most useful when productivity and structural reinforcement are more important than very fine surface finish.
For complex components, manufacturers may combine different reinforcement weights rather than use the same fiberglass cloth throughout the laminate.
There is no single fiberglass cloth weight that is suitable for every composite product.
The selection should start with the final component and manufacturing process.
For lightweight components, using multiple thin layers may provide better control over fiber orientation and surface quality.
For thicker industrial components, heavier reinforcement can reduce the number of layers required.
For example, a laminate may use a lightweight fiberglass cloth near the surface and heavier reinforcement in the structural layers.
Lightweight fiberglass cloth generally drapes more easily around curves, corners and complex shapes.
Heavy fabric is usually better suited to large flat panels, simple curved surfaces and thick structural laminates.
For complicated geometries, fabric drapability can be just as important as reinforcement weight.
Most composite-grade E-glass fiberglass cloth can be supplied with surface treatments designed for compatibility with common resin systems, including epoxy resin, unsaturated polyester resin and vinyl ester resin.
Good compatibility helps improve wet-out and fiber-to-resin adhesion.
Sizing is a surface treatment applied to glass fibers during manufacturing.
The appropriate sizing can improve handling and compatibility between fiberglass reinforcement and the selected resin system.
When sourcing fiberglass cloth for a specific composite process, buyers should therefore provide the resin type whenever possible.
Application is often the most practical starting point when choosing fiberglass fabric.
Fiberglass remains one of the most widely used reinforcements for FRP boats.
Depending on the structure and manufacturing process, boat builders may use lightweight woven fiberglass cloth, medium-weight fiberglass fabric, woven roving, biaxial fiberglass fabric, multiaxial fiberglass fabric and fiberglass mat.
Lightweight cloth can be used where surface quality and conformability are important, while heavier reinforcement is generally selected for structural laminate build-up.
For repair work, 200 GSM or similar medium-weight fiberglass cloth can be convenient because it is easy to cut, position and laminate.
The actual reinforcement should still be selected according to the original laminate construction and required repair strength.
Surfboard construction typically uses lightweight fiberglass cloth because weight and surface finish are critical.
Common choices include 4 oz fiberglass cloth, 6 oz fiberglass cloth and warp-enhanced surfboard fiberglass fabrics.
Different layers may be combined to balance board weight, impact resistance and durability.
JLON supplies surfboard fiberglass cloth in commonly used lightweight constructions for board manufacturing and repair.
Industrial FRP applications cover a much broader weight range.
Applications can include composite panels, covers and housings, tanks, pipes, structural profiles and equipment components.
The appropriate fiberglass fabric depends on mechanical requirements, manufacturing process and production efficiency.
Fiberglass fabric can also be used in automotive and transportation composite structures where strength, dimensional stability and weight reduction are required.
Medium and heavier fiberglass reinforcements may be selected for structural parts, while lighter fabrics can be used for thin laminates and surface layers.
Fiberglass cloth should not be selected by GSM alone because different reinforcement structures behave differently.

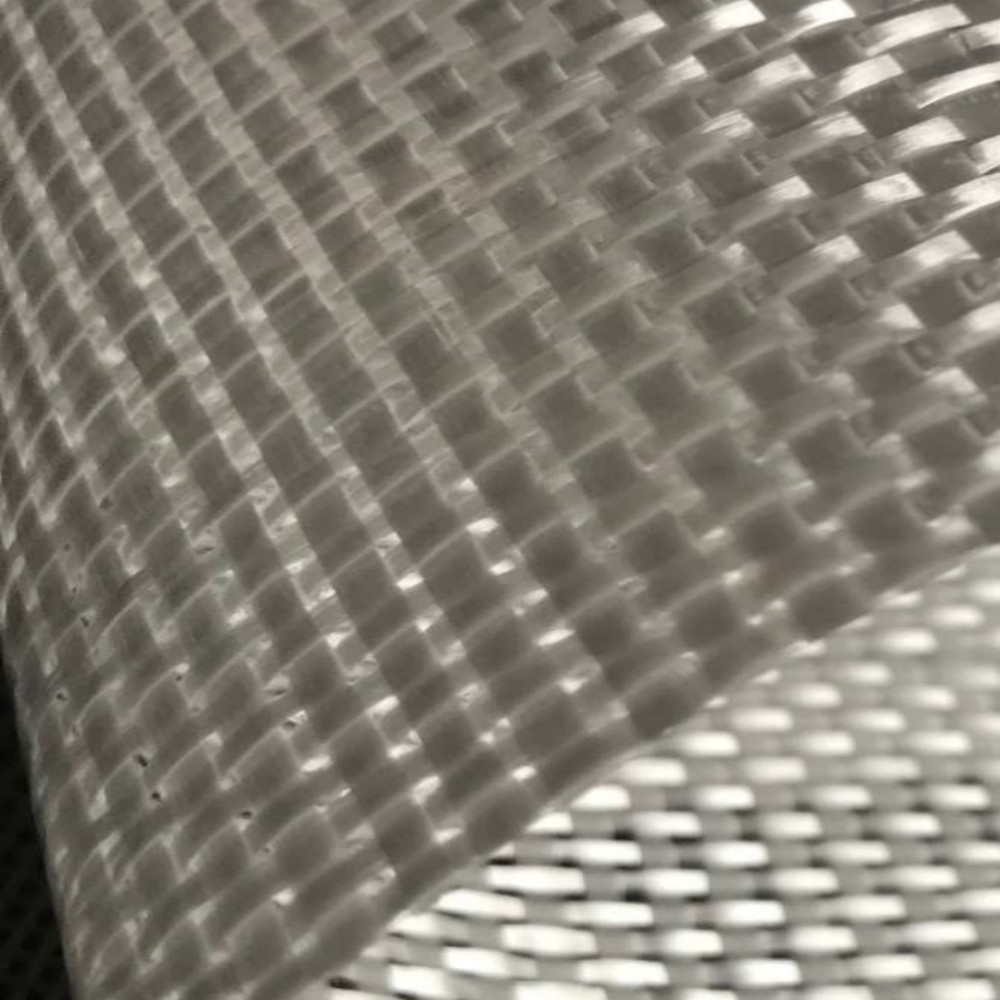

Woven fiberglass cloth contains warp and weft yarns interlaced through a weaving process.
Common weave patterns include plain weave, twill weave and satin weave.
Woven fabrics provide good handling, dimensional stability and balanced reinforcement.
Woven roving uses heavier glass fiber bundles and is commonly selected for thicker FRP laminates.
It can provide faster thickness build-up than lightweight fiberglass cloth.
Biaxial and multiaxial fabrics place fibers in specific orientations such as 0°/90°, +45°/-45°, 0°/+45°/-45° and other multi-directional combinations.
These reinforcements are often selected when load direction and structural efficiency are important.
A 600 GSM woven fabric and a 600 GSM ±45° biaxial fabric do not provide identical mechanical behavior.
Weight describes how much reinforcement is present per unit area; fiber orientation describes where that reinforcement works.
Both should be considered during composite laminate design.
A clear technical specification helps fiberglass suppliers recommend the correct product and reduces sampling and quotation time.
Buyers should provide as much of the following information as possible: glass type (E-glass, ECR-glass or other), fabric weight in GSM or oz/yd⊃2;, weave type, yarn specification or tex, warp and weft density, fabric width, roll length, required thickness, resin system, manufacturing process, end-use application and annual or order quantity.
A complete technical specification is not always available.
In this case, providing the application, manufacturing process, resin system and target performance can help narrow down the suitable fiberglass fabric construction.
For replacement projects, buyers can also provide an existing product specification or sample for comparison.
JLON supplies fiberglass cloth and fiberglass fabric for composite and industrial applications, with products covering lightweight through heavy reinforcement requirements.
Available fiberglass reinforcement options include E-glass fiberglass cloth, woven fiberglass cloth, plain weave fiberglass cloth, twill fiberglass cloth, satin weave fiberglass cloth, surfboard fiberglass cloth, woven roving, biaxial fiberglass fabric, multiaxial fiberglass fabric and coated fiberglass cloth.
Different fabric weights, widths, yarn constructions and surface treatments can be selected according to the customer's application and processing requirements.
For projects that cannot use a standard fiberglass fabric specification, JLON can work with manufacturing partners to evaluate customized constructions.
Customization may include GSM, yarn tex, warp/weft construction, fabric width, weave, surface treatment, resin compatibility and roll dimensions.
This is particularly useful for industrial customers replacing an existing fiberglass fabric or developing a new composite product.
There is no universal standard weight. Around 200 GSM / 6 oz fiberglass cloth is common for many general composite applications, while lighter 4 oz fabrics are widely used for surfboards and lightweight laminates. Heavy structural applications may require 300–800 GSM or other reinforcement constructions.
6 oz/yd⊃2; is approximately 203 GSM, so commercial 200 GSM fiberglass cloth is often described as approximately 6 oz fiberglass cloth.
4 oz/yd⊃2; is approximately 136 GSM. Commercial products may therefore be specified around 135 GSM depending on the fabric construction.
200 GSM fiberglass cloth is a versatile medium-weight reinforcement used in many composite applications. Whether it provides sufficient strength depends on the number of layers, fiber orientation, resin system, glass content and laminate design.
Choose based on the required laminate structure rather than assuming that 400 GSM is automatically better.
200 GSM fiberglass cloth provides easier handling and finer control over laminate construction, while 400 GSM fabric can build reinforcement and thickness more quickly.
There is no fixed thickness for all 200 GSM fiberglass fabrics. Thickness depends on yarn size, weave, fabric density and construction.
Always check the technical datasheet when thickness is a critical specification.
No. Fiberglass cloth is woven or otherwise fabric-structured reinforcement, while fiberglass mat consists primarily of randomly oriented fibers.
A 300 GSM fiberglass cloth and a 300 GSM fiberglass mat therefore have different structures, handling characteristics and laminate behavior.
There is no single best weight for every part of a boat. Lightweight and medium woven fabrics can be useful for surface layers and complex shapes, while heavier woven, biaxial or multiaxial reinforcement may be selected for structural laminate layers.
Epoxy can be used with many fiberglass fabric weights. Selection depends primarily on the required laminate thickness, strength, geometry and processing method.
For best results, the fiberglass sizing should also be compatible with the epoxy resin system.
Understanding fiberglass cloth weight in GSM and oz/yd⊃2; makes it easier to compare products and select suitable reinforcement for composite manufacturing.
Lightweight fabrics such as 80–160 GSM are useful for thin laminates, complex shapes, surfboards and lightweight composite parts. Medium weights around 160–300 GSM offer a versatile balance between handling and reinforcement. Heavy fiberglass fabrics from 300–800 GSM can provide faster laminate build-up for marine, industrial and structural applications.
However, fiberglass cloth weight should never be considered alone. Weave type, yarn construction, fiber orientation, sizing, resin compatibility and manufacturing process can all affect the performance of the finished composite.
