Fiberglass cloth and fiberglass mat are two widely used reinforcement materials in composite manufacturing. Although both products are made from glass fibers and combined with resin to produce fiberglass-reinforced plastic, they differ considerably in fiber structure, mechanical performance, resin consumption, surface quality and suitable manufacturing processes.
Choosing between fiberglass cloth and fiberglass mat is not simply a matter of deciding which material is stronger. The correct choice depends on the required mechanical properties, laminate weight, surface finish, resin system, molding process and final application.
JLON supplies fiberglass cloth, chopped strand mat, woven roving, multiaxial fiberglass fabric, combination mat, fiberglass tape and related composite materials. This guide explains the main differences between woven fiberglass cloth and chopped strand mat and helps composite manufacturers select the appropriate fiberglass reinforcement.
Fiberglass cloth is a woven reinforcement made from continuous glass fiber yarns or rovings. The fibers are arranged in defined warp and weft directions and woven into a stable fabric structure.
Because the glass fibers remain continuous and aligned, fiberglass cloth can transfer loads efficiently through a composite laminate. It generally provides higher tensile strength and better strength-to-weight performance than randomly distributed chopped fibers.
Fiberglass cloth is available in different weave patterns, areal weights, widths, yarn structures and surface treatments. Common products include plain weave fiberglass cloth, twill weave fiberglass cloth, satin weave fiberglass cloth, woven roving, electronic-grade fiberglass cloth, surfboard fiberglass cloth, fiberglass cloth for electrical insulation, coated fiberglass cloth and texturized fiberglass cloth.
JLON can supply fiberglass cloth in different specifications according to the customer’s resin system, manufacturing process and final application.
In woven fiberglass cloth, continuous fibers cross one another in the warp and weft directions. This woven construction keeps the fibers aligned and provides reinforcement primarily in the 0° and 90° directions.
The mechanical performance of the finished laminate depends on the fiber type, weave pattern, areal weight, fiber orientation, resin system and fiber-to-resin ratio.
When the direction of the main load is known, fiberglass cloth can be positioned so that the fibers efficiently resist tensile and bending forces. For components exposed to loads from other directions, biaxial or multiaxial fiberglass fabrics may be more suitable.

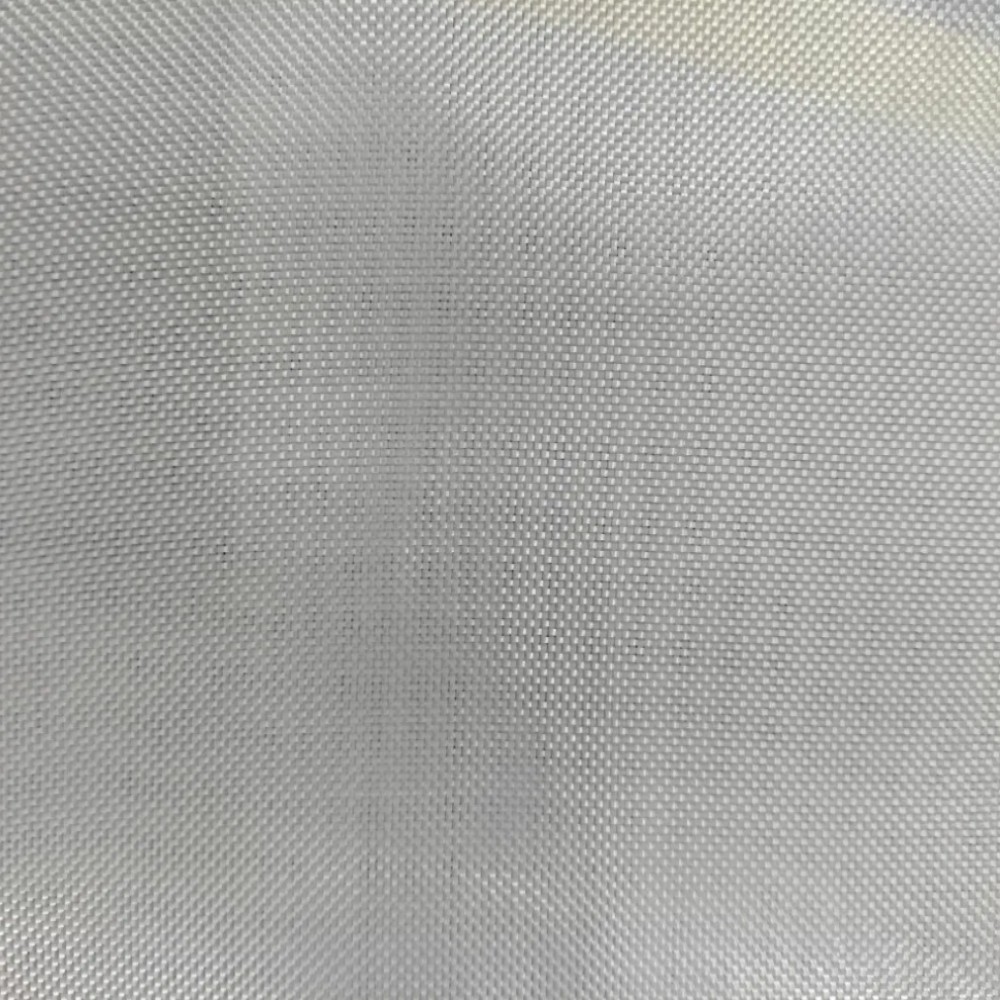

Plain weave fiberglass cloth uses a simple over-one and under-one weaving pattern. This construction provides good dimensional stability, balanced reinforcement and easy handling.
It is commonly used for general composite components, electrical insulation, surfboards, lightweight panels, repair work and applications requiring a stable woven fabric.

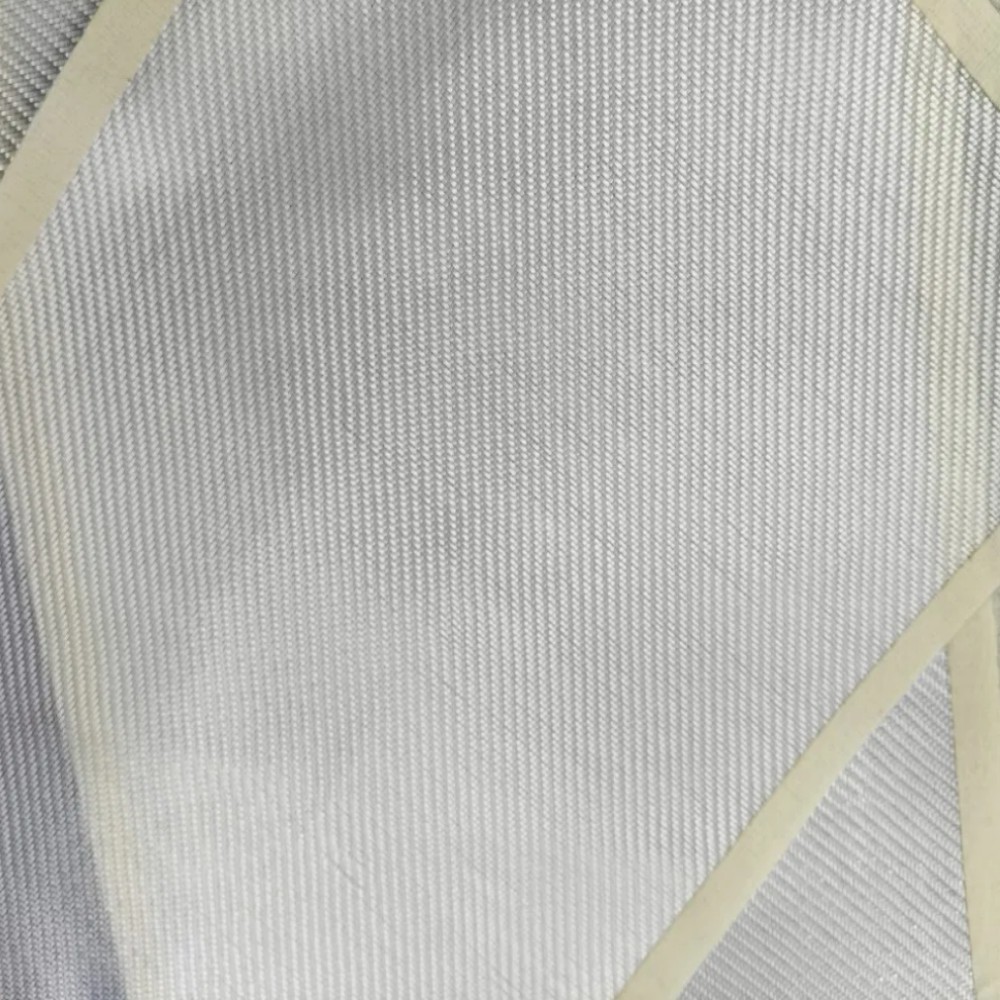

Twill weave fiberglass cloth has a recognizable diagonal pattern. It generally drapes more easily than plain weave cloth and can follow curved molds and complex surfaces more effectively.
Twill weave is often selected for molded parts with compound curves or applications where the fabric pattern may remain visible on the finished surface.
Satin weave fiberglass cloth has fewer intersections between the warp and weft yarns. This structure improves drapability and allows the fabric to conform to complicated shapes.
However, satin weave fabric may move or distort more easily during cutting and placement, so careful handling is required.
Woven roving is made from direct fiberglass rovings rather than fine yarns. It is generally heavier and coarser than standard fiberglass cloth and can build structural laminate thickness more quickly.
Woven roving is commonly used in boat hulls, tanks, pipes, vehicle components, industrial panels and other large FRP structures manufactured by hand lay-up.
Fiberglass mat is a nonwoven reinforcement made from glass fibers distributed in a random pattern. The most common form is chopped strand mat, which is also called CSM or fiberglass chopped strand mat.
During production, continuous glass fibers are cut into short strands. These strands are randomly distributed and held together with a binder. When the mat is wetted with a compatible resin, the binder softens or dissolves and the material conforms to the mold surface.
Common chopped strand mat weights include 100, 225, 300, 450 and 600 g/m². Other weights, widths and roll specifications may also be supplied according to the application.
JLON supplies chopped strand mat for hand lay-up, continuous lamination, panel production, pipe and tank manufacturing, marine components, sanitary products and general FRP fabrication.
Chopped strand mat does not have a defined warp or weft direction. Its short glass fibers are distributed randomly across the mat.
This structure provides relatively uniform reinforcement in different directions within the plane of the laminate. However, because the fibers are short and discontinuous, chopped strand mat does not transfer structural loads as efficiently as continuous woven or stitched fiberglass fabric.
The main advantages of chopped strand mat include easy handling, good mold conformity, rapid laminate thickness build-up and the ability to form a resin-rich transition layer.
Emulsion-bonded chopped strand mat normally has a soft feel and good mold conformity. It is widely used in conventional hand lay-up processes.
Its handling behavior, resin wet-out speed and final laminate performance depend on the binder content, glass fiber sizing and resin system.
Powder-bonded chopped strand mat generally provides good handling, rapid resin penetration and effective air release. It is used in a range of hand lay-up and molding applications.
Traditional chopped strand mats are primarily designed for unsaturated polyester and vinyl ester resins because their binders soften or dissolve in styrene. They may not wet out properly with epoxy resin.
When epoxy resin is used, buyers should specify an epoxy-compatible chopped strand mat and confirm compatibility before production.
The most important differences between fiberglass cloth and chopped strand mat concern fiber orientation, mechanical strength, resin consumption, laminate thickness, drapability and resin compatibility.
Fiberglass cloth consists of continuous fibers woven in controlled directions. Standard woven cloth normally provides reinforcement in the 0° and 90° directions.
Chopped strand mat consists of short glass fibers distributed in random directions. It provides more uniform multidirectional reinforcement, but its discontinuous fibers are less efficient at carrying structural loads.
Fiberglass cloth generally provides higher tensile strength, stiffness and strength-to-weight performance than chopped strand mat.
The continuous fibers in fiberglass cloth can carry loads across a larger section of the composite component. In chopped strand mat, the load must transfer through the resin between many separate short fibers.
For components requiring high structural performance, low weight or controlled fiber orientation, fiberglass cloth, woven roving, biaxial fabric or multiaxial fiberglass fabric is normally more suitable.
Chopped strand mat is better suited to general FRP molding, surface layers, thickness build-up and transition layers between heavier reinforcements.
Chopped strand mat generally absorbs more resin than woven fiberglass cloth of the same reinforcement weight. Its random and open fiber structure creates more space for resin.
The resulting laminate is normally thicker and more resin-rich, but it can also be heavier and less structurally efficient.
Fiberglass cloth can achieve a higher fiber-to-resin ratio when processed correctly. This improves strength-to-weight performance and can reduce the total weight of the finished component.
Actual resin consumption depends on the fiberglass product, resin viscosity, application method, compaction pressure and operator technique.
Chopped strand mat is useful when a manufacturer needs to build laminate thickness quickly and economically. Heavier CSM grades can create substantial thickness with relatively few layers.
Fiberglass cloth usually produces a thinner laminate at the same reinforcement weight, especially when the laminate is consolidated through vacuum bagging or vacuum infusion.
Laminate thickness should not be treated as a direct indication of strength. A thick, resin-rich laminate made mainly with chopped strand mat may be heavier and weaker than a thinner laminate engineered with continuous fiberglass fabric.
Lightweight fiberglass cloth can conform effectively to gradual curves. Twill and satin weave fiberglass fabrics provide better drapability for more complex shapes.
Heavy woven roving is less suitable for tight corners because the coarse roving bundles may bridge over the mold surface instead of following it closely.
Chopped strand mat can conform well to many curved surfaces because it does not have a rigid woven construction. It can also be torn rather than cut, producing feathered edges that blend more smoothly between adjacent layers.
For sharp corners or deep molds, manufacturers should still evaluate the mat weight, binder system and molding method before starting production.
The woven pattern of fiberglass cloth or woven roving may become visible on the finished surface. This effect is known as fabric print-through and may become more noticeable after curing, post-curing or long-term temperature exposure.
Chopped strand mat is often placed behind a gel coat or surface veil to create a more uniform transition between the cosmetic surface and the heavier structural reinforcement.
However, the final surface quality depends on the complete laminate design, including gel coat thickness, resin shrinkage, curing conditions, mat selection and reinforcement sequence.
Fiberglass cloth can be supplied with different surface treatments or sizings for use with epoxy, unsaturated polyester, vinyl ester and other resin systems. The buyer should always confirm that the fabric sizing is compatible with the selected resin.
Conventional chopped strand mat is mainly designed for styrene-containing polyester and vinyl ester resins. For epoxy laminates, an epoxy-compatible chopped strand mat must be selected.
Fiberglass cloth is usually preferred when structural performance, fiber orientation and component weight are important.
Typical applications include boat hulls, marine decks, composite panels, surfboards, automotive panels, industrial covers, pipes, tanks, electrical insulation components, UAV parts, lightweight sandwich panels, molds and structural repairs.
Fiberglass cloth, woven roving, biaxial fabric and multiaxial fiberglass fabric are widely used in marine composite manufacturing.
The correct reinforcement depends on the location and function of the component. Boat hulls and structural decks require materials that can carry significant loads, while interior panels and cosmetic surface layers may use lighter fiberglass fabrics.
For vacuum infusion, stitched biaxial and multiaxial fabrics are often selected because they provide controlled fiber orientation and predictable laminate performance. Woven fiberglass cloth and woven roving remain widely used in hand lay-up and repair processes.
Fiberglass cloth is frequently combined with epoxy resin to produce lightweight and high-performance composite structures.
Lightweight fiberglass cloth is commonly used for surfboards, UAVs, model aircraft, marine panels and composite repairs where good surface quality and low weight are important.
Before ordering, users should confirm that the glass fiber sizing is compatible with the selected epoxy system.

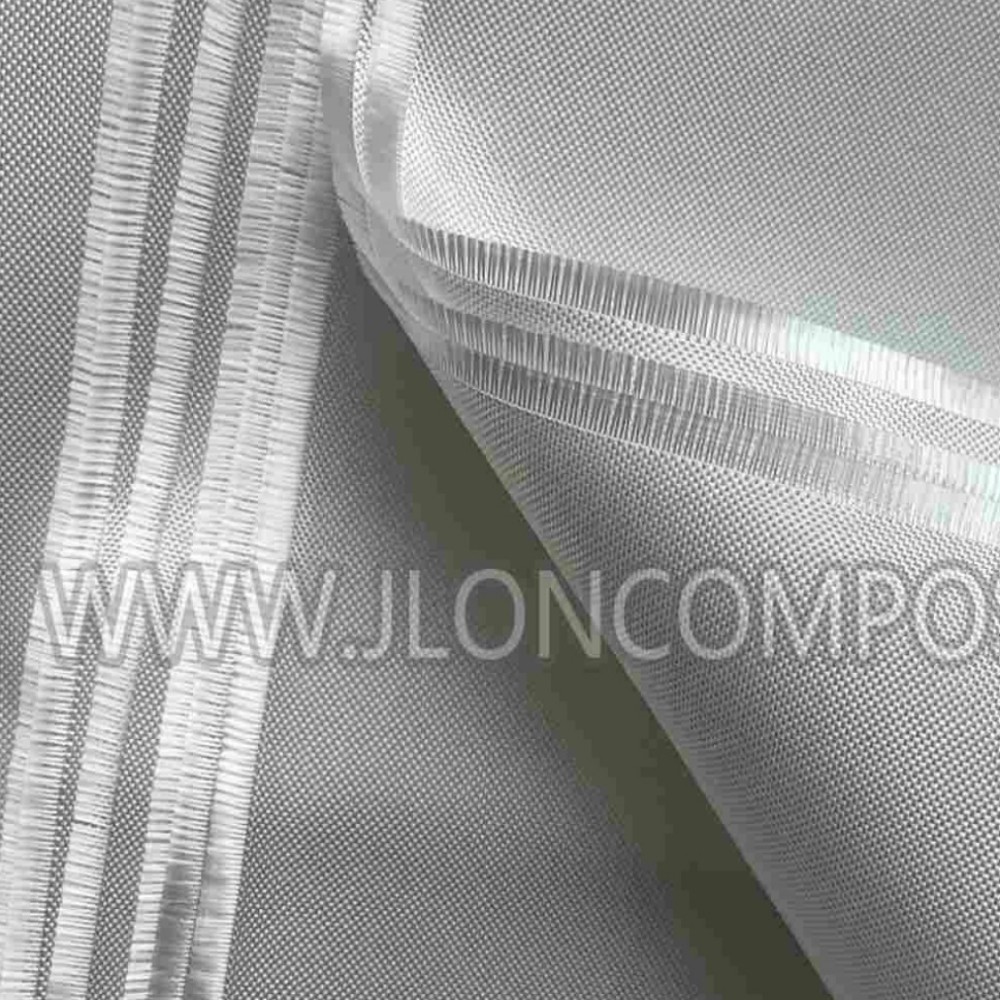

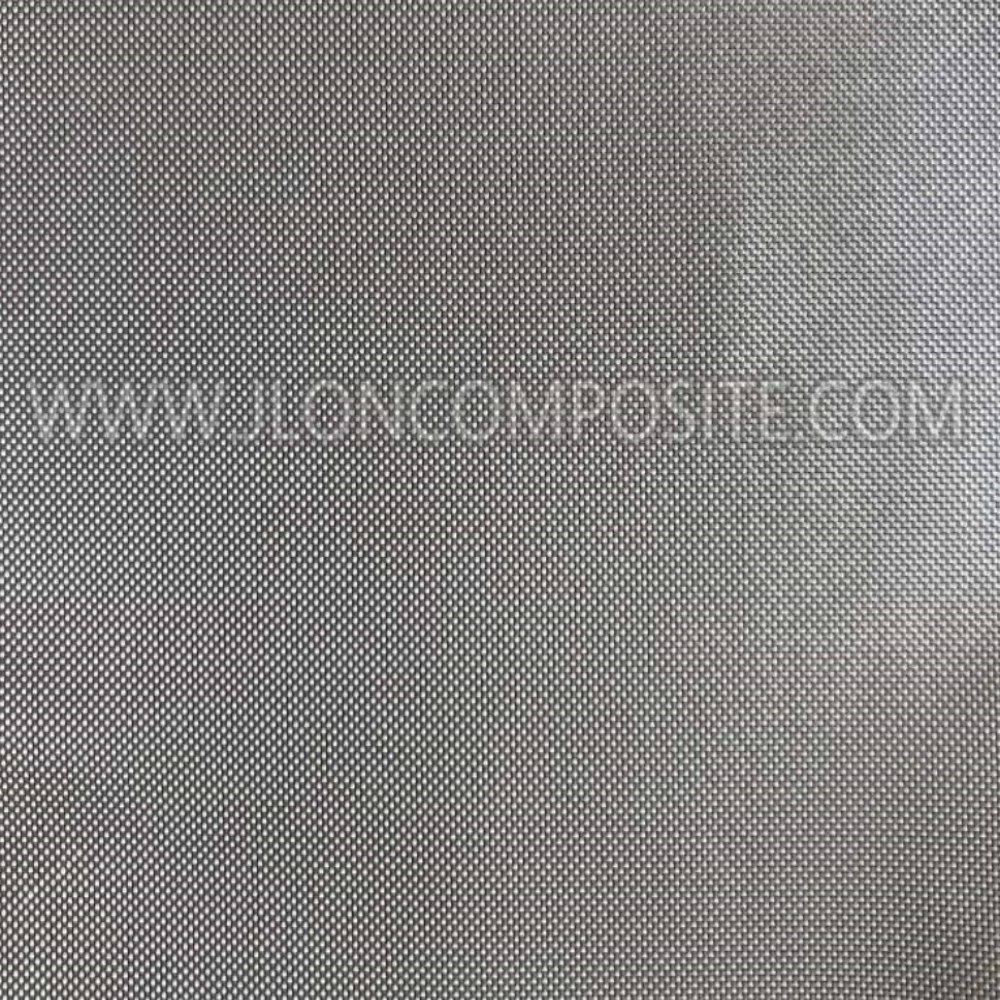

E-glass fiberglass cloth has good electrical insulation properties, dimensional stability and heat resistance. It can be used as reinforcement in laminates, insulation components, circuit-related materials and electrical equipment.
The required yarn type, thickness, weave pattern and surface treatment depend on the electrical and mechanical requirements of the finished product.
Chopped strand mat is commonly selected for general-purpose FRP production using unsaturated polyester or vinyl ester resin.
Typical applications include boat hulls, marine parts, FRP tanks, pipes, automotive panels, sanitary ware, swimming pools, cooling towers, building panels, equipment covers and industrial molded components.
A lightweight chopped strand mat layer is frequently applied behind the gel coat. It helps support the cosmetic surface and creates a more uniform transition to the heavier structural reinforcement.
Careful resin application and air removal are essential. Trapped air near the gel coat can cause pinholes, blisters, weak areas or visible surface defects.
Chopped strand mat may be placed between woven roving layers to improve bonding and fill the uneven surface created by coarse roving bundles.
This laminate structure is commonly used in traditional hand lay-up processes with polyester resin.
Modern composite manufacturers may also use stitched combination fabrics that integrate woven or directional reinforcement with a chopped fiber layer in a single product.
Fiberglass cloth and chopped strand mat are often used in the same laminate because they perform different functions.
A typical laminate may begin with a gel coat, followed by a surface veil or lightweight chopped strand mat. Structural fiberglass cloth, woven roving or multiaxial fabric is then applied. Additional chopped strand mat may be inserted between structural layers where a resin-rich transition or improved interlaminar bonding is required.
Fiberglass cloth provides directional structural strength, while chopped strand mat helps build thickness, follow mold surfaces, support the gel coat and reduce print-through.
The final laminate schedule should be designed according to the required mechanical properties, resin system, manufacturing process, environmental exposure and applicable engineering or classification requirements.
A combination mat integrates two or more reinforcement structures into one stitched product.
Woven roving combo mat combines woven roving with a chopped fiber layer. Other combination fabrics may combine unidirectional fiberglass, biaxial fiberglass or triaxial fiberglass with chopped strand mat.
These materials can reduce manual layer placement, improve production efficiency and provide both structural reinforcement and resin-rich bonding characteristics.
The suitability of a combination mat still depends on its weight, fiber orientation, resin compatibility and manufacturing process.
The correct reinforcement should be selected according to the complete composite design rather than the fiberglass price alone.
Fiberglass cloth, woven roving or multiaxial fiberglass fabric should be considered when the component requires controlled tensile strength, stiffness, fatigue resistance or a high strength-to-weight ratio.
Chopped strand mat is appropriate when moderate mechanical performance, multidirectional reinforcement and economical laminate thickness are sufficient.
The resin system must be confirmed before ordering the reinforcement.
Fiberglass cloth can be supplied with finishes suitable for epoxy, polyester, vinyl ester and other resin systems. Conventional chopped strand mat is normally intended for polyester and vinyl ester resin.
An epoxy-compatible chopped strand mat should be specified when epoxy resin is used.
For hand lay-up, fiberglass cloth, woven roving and chopped strand mat can all be used.
Vacuum bagging commonly uses woven fiberglass cloth or stitched fabric. Vacuum infusion frequently uses biaxial fiberglass fabric, multiaxial fiberglass fabric or specially engineered infusion reinforcement.
RTM applications may use continuous filament mat, stitched fabrics or RTM-compatible reinforcement systems. Compression molding requires process-specific glass fiber mats, preforms or molding compounds.
When a smooth cosmetic surface is required, the laminate may need a suitable gel coat, surface veil, lightweight chopped strand mat and controlled curing process.
Heavy woven roving should generally not be placed directly behind a cosmetic gel coat without a suitable transition layer.
Fiberglass cloth generally provides better structural strength at a lower laminate weight. Chopped strand mat may have a lower reinforcement price, but it consumes more resin.
Buyers should compare the total cost of fiberglass, resin, labor, processing time and finished component weight rather than comparing only the price per kilogram of reinforcement.
Fiberglass cloth generally provides higher tensile strength and better strength-to-weight performance because it contains continuous, aligned fibers.
Chopped strand mat contains short, randomly oriented fibers and is normally used for general reinforcement, thickness build-up, surface support and transition layers.
Yes. Chopped strand mat usually absorbs more resin than fiberglass cloth of the same reinforcement weight.
This produces a thicker and more resin-rich laminate, but it also increases the total laminate weight.
Traditional chopped strand mat may not be suitable for epoxy because its binder is usually designed to dissolve in styrene-containing resin.
Epoxy-compatible chopped strand mat is available, but the resin compatibility must be confirmed before production.
Both fiberglass cloth and chopped strand mat can be used in boat construction.
Fiberglass cloth, woven roving and multiaxial fiberglass fabric provide structural reinforcement. Chopped strand mat can be used behind gel coat, between woven layers and in general hand lay-up laminates.
The appropriate material depends on the boat component, resin system, molding process, required strength, target weight and relevant marine standards.
Fiberglass cloth can replace chopped strand mat in some structural applications, but the two materials do not perform exactly the same function.
Fiberglass cloth may improve strength and reduce weight, but it may not provide the same laminate thickness, resin-rich transition, mold conformity or gel coat support.
Any replacement should be evaluated as part of the complete laminate design.
JLON supplies fiberglass reinforcement materials for marine, automotive, pipe and tank, construction, electrical insulation, sports equipment and industrial composite applications.
The available product range includes fiberglass cloth, fiberglass fabric for composites, surfboard fiberglass cloth, electronic-grade fiberglass cloth, fiberglass cloth for electrical insulation, woven roving, woven roving combo mat, chopped strand mat, continuous filament mat, multiaxial fiberglass fabric, fiberglass tape, coated fiberglass cloth, texturized fiberglass cloth and vacuum infusion reinforcement materials.
Specifications such as glass type, fabric construction, areal weight, roll width, surface treatment, resin compatibility and packaging can be selected according to the customer’s application.
To recommend a suitable fiberglass cloth or chopped strand mat, JLON needs information about the required weight, width, resin system, manufacturing process, final application, mechanical requirements and estimated order quantity.
Contact JLON to discuss fiberglass cloth, chopped strand mat and other reinforcement materials for your composite manufacturing project.
