Choosing the right laid scrim for aluminum foil laminates starts with understanding the finished product. An insulation facing, a reinforced foil tape and a flexible packaging laminate may all contain aluminum foil, but their reinforcement requirements can differ considerably.
Buyers need to consider fiber type, mesh size, yarn specification, directional strength, binder compatibility and production conditions. Selecting only by weight or price can overlook factors that affect lamination quality and finished-product performance.
JLON supplies glass and polyester laid scrim options for reinforcement applications. This guide explains how to evaluate a suitable construction, avoid common selection mistakes and prepare a practical specification for sampling and quotation.

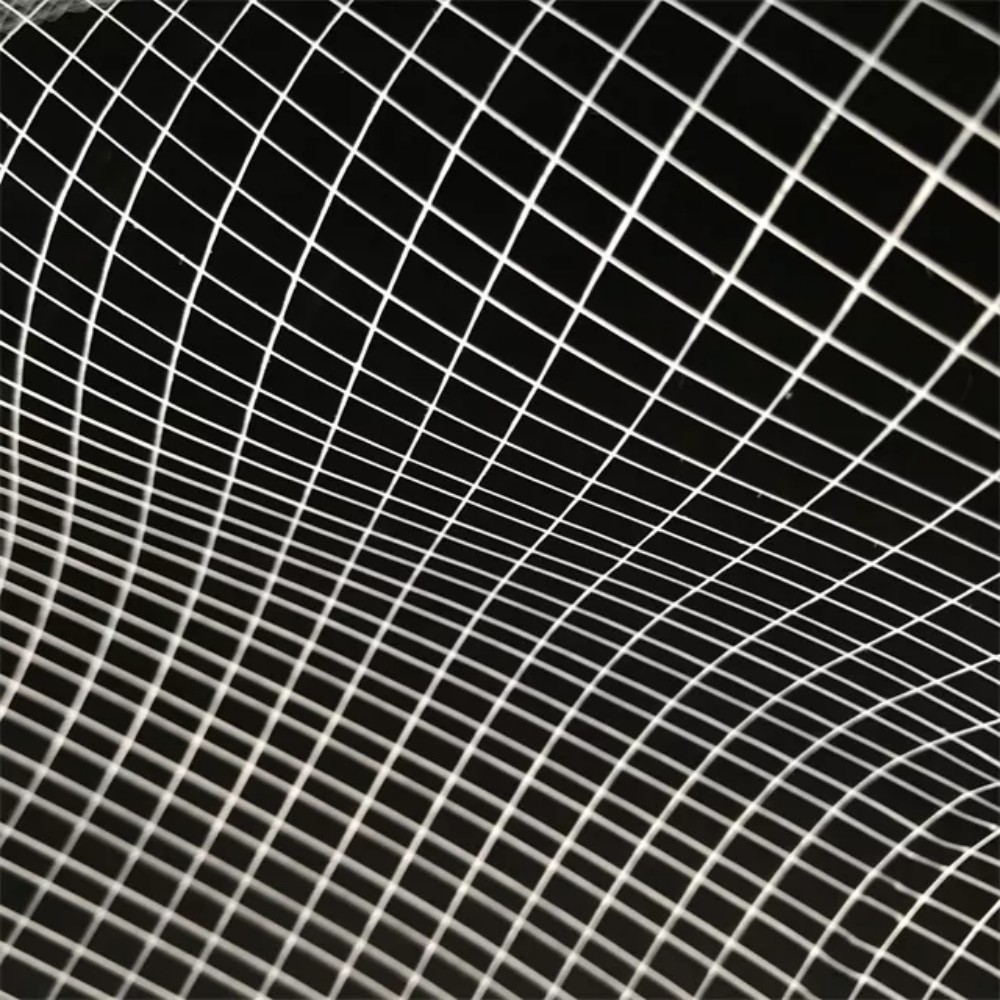

Laid scrim is an open reinforcement structure made by arranging continuous yarns in selected directions and bonding them together. Unlike woven fabrics, its yarns are laid across one another rather than repeatedly interlaced.

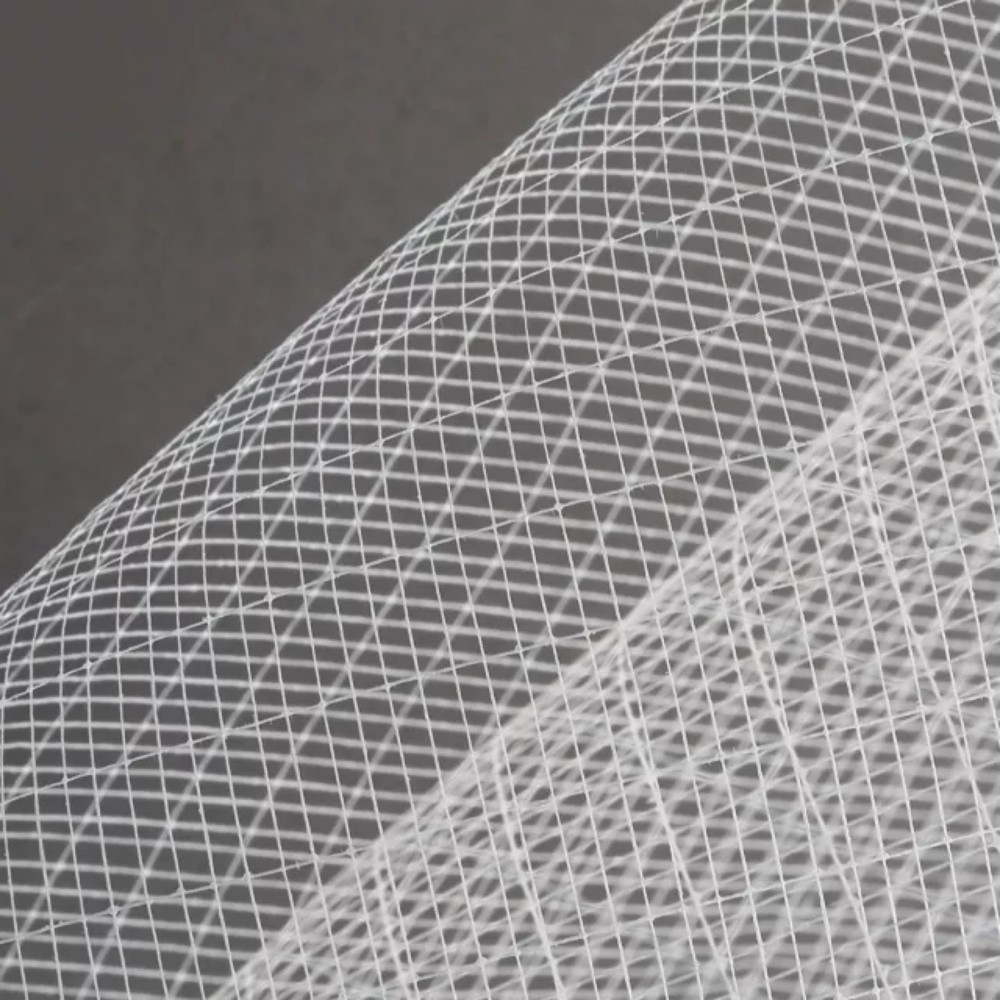

A typical biaxial construction provides reinforcement in the machine and cross directions. Other constructions introduce additional yarn directions to address different reinforcement requirements.
In a bonded laminate, scrim helps distribute tensile loads that thin foil alone may struggle to withstand. Its contribution depends on yarn strength, spacing, orientation and adhesion to the surrounding layers.
The aluminum foil, scrim, adhesive and any paper or film backing work together. A strong scrim cannot compensate for weak bonding, damaged foil or an unsuitable laminate structure.
An open laid scrim provides reinforcement without forming a continuous fabric surface. Woven fiberglass cloth has a different construction and may be appropriate where a fabric layer is required.
The choice should follow the laminate design. Neither reinforcement type is automatically better for every aluminum foil application.
Before comparing scrim specifications, define what the finished laminate must do during manufacturing, installation and service.
Common applications include insulation facings, foil-scrim-kraft laminates, reinforced foil tapes and other flexible laminated materials.
Specify each layer, including foil thickness, paper grade, polymer film and adhesive. Also identify whether the scrim sits directly against the foil or between other layers.
Describe the finished product, its intended use and the required balance between strength and flexibility. Explain whether the laminate will be folded, slit, wrapped or repeatedly handled.
Include the expected temperature and humidity conditions. These details help JLON narrow the candidate specifications before a production trial.
Laid scrim provides an open reinforcing network. It does not create a continuous moisture or vapor barrier.
Barrier performance depends on the foil or film, its integrity, the laminate construction and the finished installation. Seams, punctures and damaged areas also matter.
If vapor resistance is critical, evaluate the completed laminate rather than assuming that adding scrim guarantees a particular barrier performance.
Fiber selection affects stiffness, elongation and response to processing conditions. Compare specific grades rather than relying only on the material name.
Fiberglass laid scrim is a candidate where dimensional stability and relatively low extension are important. In aluminum foil laminates, it can help control stretching when properly bonded into the structure.
However, the temperature capability of glass fibers alone does not establish the operating temperature of the finished scrim or laminate. The binder, laminating adhesive and other layers must also remain suitable.
Review directional tensile strength, elongation, yarn integrity and handling behavior. Check whether the construction can pass through the intended rollers and winding conditions without unacceptable damage.
Polyester laid scrim may be considered when a more extensible reinforcement is useful. Its suitability depends on the selected yarn and the required balance between flexibility and dimensional stability.
Processing temperature, tension and exposure time should be assessed together. A flexible sample at room temperature does not establish that it will remain dimensionally stable through a heated production line.
Ask about elongation and dimensional change under the intended process conditions. Validate these properties in the complete laminate, particularly when different layers respond differently to heat.
Mesh size describes yarn spacing, while yarn specification helps define the reinforcing material within that spacing. Both influence performance.
Closer spacing places reinforcement at more frequent intervals. Wider spacing reduces the number of yarns across a given area.
Neither arrangement should be selected in isolation. Foil thickness, backing layers, bonding and the required mechanical performance determine whether a particular pattern is suitable.
With smaller openings, evaluate reinforcement distribution, adhesive wetting and surface appearance. With larger openings, assess how the laminate behaves between yarns during handling and testing.

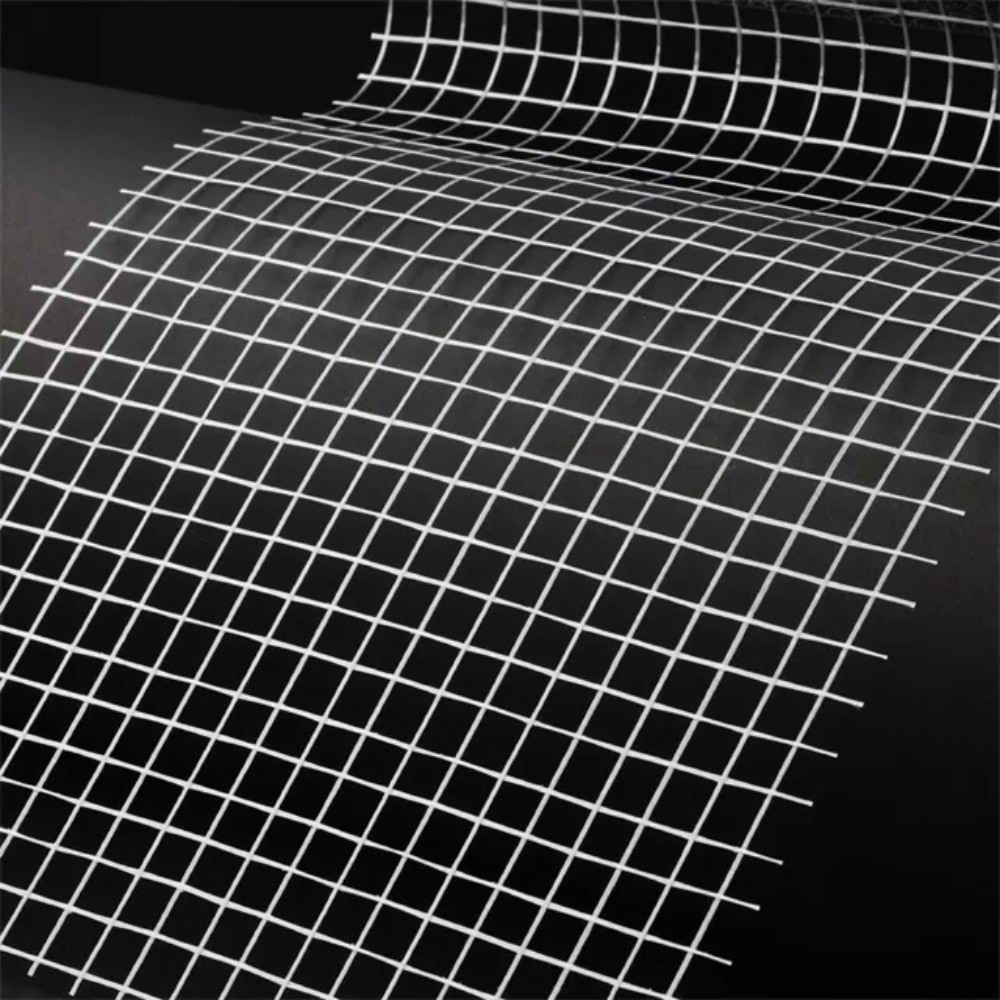

A square pattern provides similar spacing in both principal directions. A rectangular pattern can accommodate different reinforcement requirements along and across the roll.
Glass yarn is commonly specified in tex, while polyester yarn may be specified in dtex. These units describe mass per unit length; they do not directly state breaking strength.
A heavier yarn may change strength, thickness and flexibility, but performance also depends on fiber properties and construction.
Two reinforcement scrims with similar grams per square meter can use different yarns, spacing and binder levels. Their directional strength and processing behavior may therefore differ.
Request the complete construction alongside the weight. JLON’s glass and polyester laid scrim specifications include information on yarn, mesh size, area weight and directional tensile strength.
Strength requirements should reflect how the aluminum foil laminate is processed and used.
Machine direction, or MD, follows the roll length. Cross direction, or CD, runs across its width.
Web tension creates demands during production, while installation and service can load the material differently. A laminate that runs well on the line may still need additional cross-direction reinforcement for handling.
Specify minimum requirements in both directions when both are relevant.
A tensile value is meaningful only with its test conditions. Confirm specimen width, test method, conditioning and whether the result describes bare scrim or finished laminate.
Values reported in N, N/25 mm and N/50 mm should not be treated as automatically equivalent.
Tensile testing measures response to a pulling load under defined conditions. Tear testing examines the initiation or propagation of a tear.
A higher tensile result does not guarantee better tear performance. Where tear resistance matters, test the finished aluminum foil laminate directly.
Binder compatibility is a key part of selecting scrim reinforcement for foil laminates.
The scrim binder holds the reinforcement yarns together. The laminating adhesive bonds the scrim to foil, paper, film or other layers.
These functions are related but distinct. A stable scrim structure does not automatically provide strong adhesion within the finished laminate.
Suitable bonding must preserve the scrim structure during handling and create an effective connection between the laminate layers.
Provide the adhesive type, application method, drying or curing conditions, nip settings and intended line speed.
Compatibility should be confirmed for the specific formulation. A broad description such as “acrylic adhesive” or “hot melt” may not provide enough information to select the scrim binder.
Check bonding after the required cure period and after exposure representative of service conditions.
Depending on the application, this may include humidity, heat, folding or thermal cycling. Record where separation occurs, because failure within paper or adhesive differs from separation at the scrim interface.
A suitable reinforcement must work on the production line as well as in the final application.
Processing may involve brief heating, while service can involve sustained exposure. Both require evaluation.
Record exposure time and, where possible, actual material temperature. An oven setting alone does not describe the full thermal history of the laminate.
Do not assign the finished laminate a temperature rating based only on the glass or polyester fiber.
Review roll width, winding consistency, edge condition, core dimensions and splice requirements.
Poorly controlled rolls can create difficulties even when laboratory material properties are acceptable. The trial should assess tracking, unwinding and behavior under normal operating tension.
Inspect the laminate for wrinkles, grid impressions, local separation and foil damage. Consider whether the appearance is acceptable for the intended product.
Changes in yarn thickness, adhesive application or nip conditions may affect the outcome. Record the settings used for each trial so that successful results can be reproduced.
A technical data sheet helps screen candidates. Production trials establish whether a selected construction works in your system.
Compare candidate scrims using the same foil, adhesive and backing materials wherever practical. Keep process settings consistent initially.
Changing several variables at once makes it difficult to identify why one sample performs differently.
Check MD and CD tensile performance, tear behavior and layer adhesion using agreed methods. Test folding and handling where these actions are relevant to installation or use.
Apply exposure conditions appropriate to the application, then check performance retention. Inspect for wrinkles, separation, foil defects and other changes that could affect product acceptance.
Define what constitutes an acceptable result before approving a sample. Include mechanical requirements, appearance, tolerances and applicable test methods.
For fire-related requirements, evaluate the relevant finished construction against the required standard. The use of glass reinforcement alone does not establish a fire classification for the laminate.
The lowest laid scrim price per square meter may not produce the lowest cost per acceptable finished roll.
Consider adhesive consumption, start-up waste, roll changes, usable width, rejected material and achievable production speed.
Any expected savings should be supported by trials. A more expensive scrim is worthwhile only when its performance or production benefits justify the difference.
The heaviest yarn or smallest mesh is not automatically the best choice. Additional reinforcement can increase cost and change flexibility or appearance.
Choose the construction that consistently meets the agreed requirements with an appropriate manufacturing margin.
A detailed inquiry allows JLON to review suitable reinforcement options more efficiently.
Provide the finished application, laminate layer structure, foil thickness and backing material. State whether you prefer fiberglass laid scrim or polyester laid scrim, or whether both can be evaluated.
Include the required mesh size, yarn specification, target GSM and minimum MD/CD strength. State the test method and specimen dimensions associated with the strength requirement.
Share the adhesive type, processing temperature, line conditions and any known compatibility concerns.
Specify roll width, roll length, core dimensions and tolerances. Include the sample quantity, estimated annual demand and any required test reports or customer specifications.
Share the current specification and a representative sample where possible. Explain the reason for the change, such as unstable processing, inadequate strength, bonding problems or cost.
Matching appearance alone is insufficient. Two grids that look similar may differ in binder, yarn properties and performance.
No. The choice depends on dimensional stability, elongation, processing conditions and finished-product requirements. Compare specific constructions through testing.
No. Mesh size must be evaluated with yarn specification, foil thickness, adhesive and backing layers. The best construction meets the application requirements without unnecessary material.
No reinforcement can guarantee that. Scrim can support the laminate mechanically, but bonding, foil integrity, handling and loading conditions still affect damage.
Send JLON your laminate structure, current specification and performance targets. These details provide the basis for discussing suitable laid scrim options and arranging sample evaluation.
A reliable selection process connects material specifications with production conditions and finished-laminate testing.
Whether you are evaluating fiberglass laid scrim, polyester laid scrim or a different reinforcement pattern, start with clear requirements and validate the complete construction.
Contact JLON with your foil structure, adhesive system, required reinforcement specifications and target properties to discuss suitable laid scrim samples and a quotation.
