Industrial insulation and coated textile products require fabrics that combine mechanical strength, practical handling, and compatibility with the intended manufacturing process. For coating companies and insulation fabricators, selecting the right base cloth is an important step toward producing a consistent finished product.

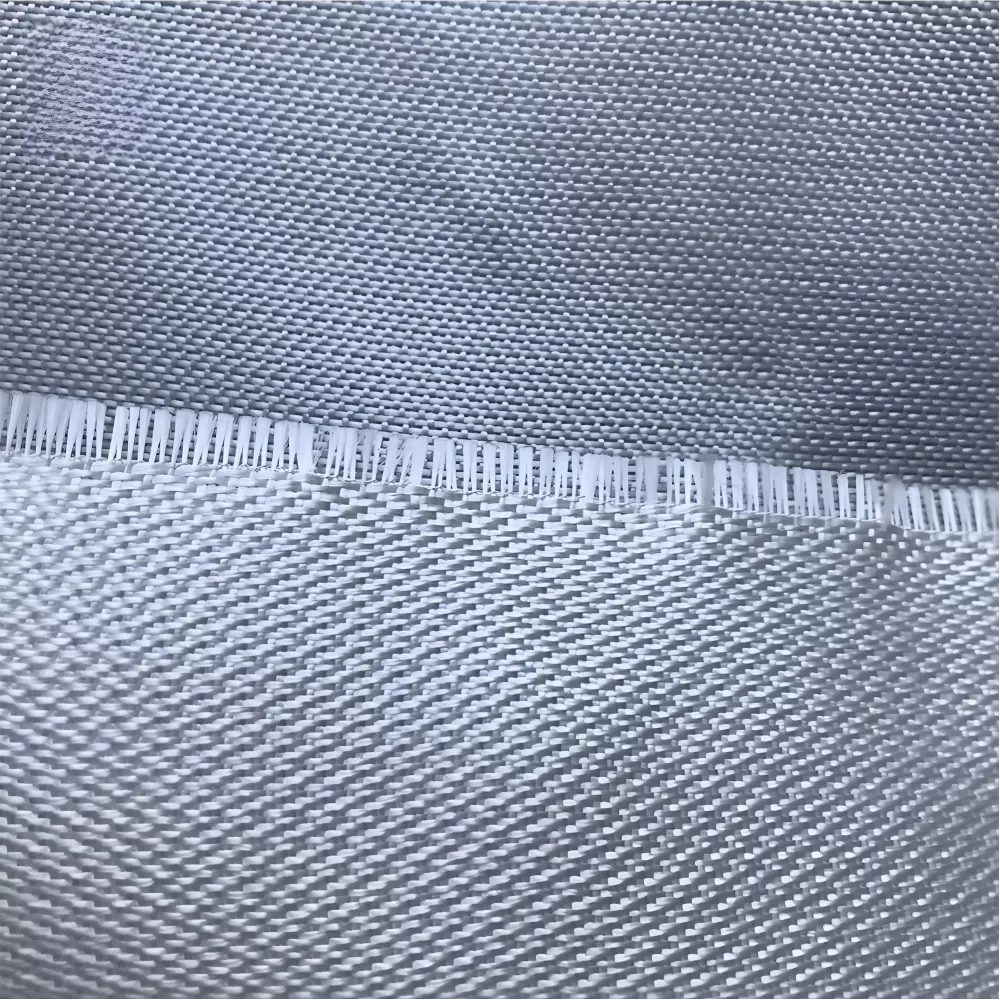

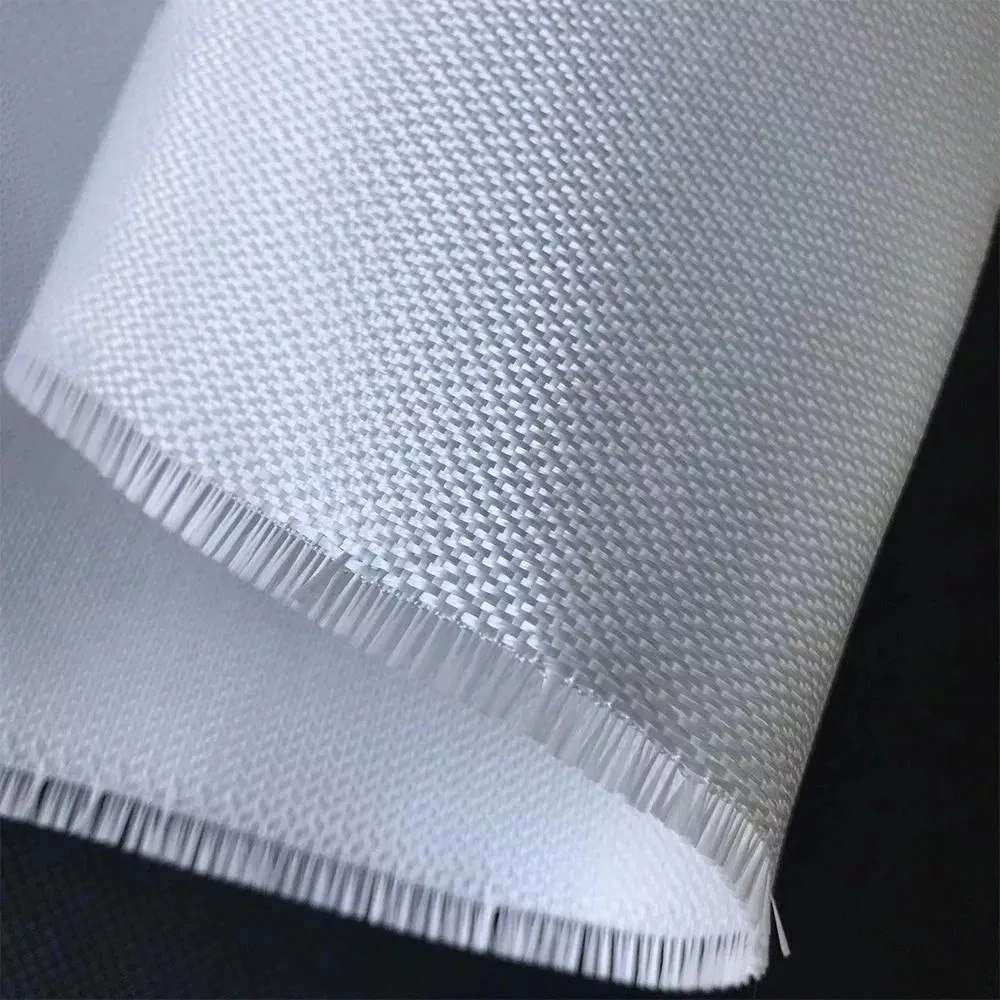

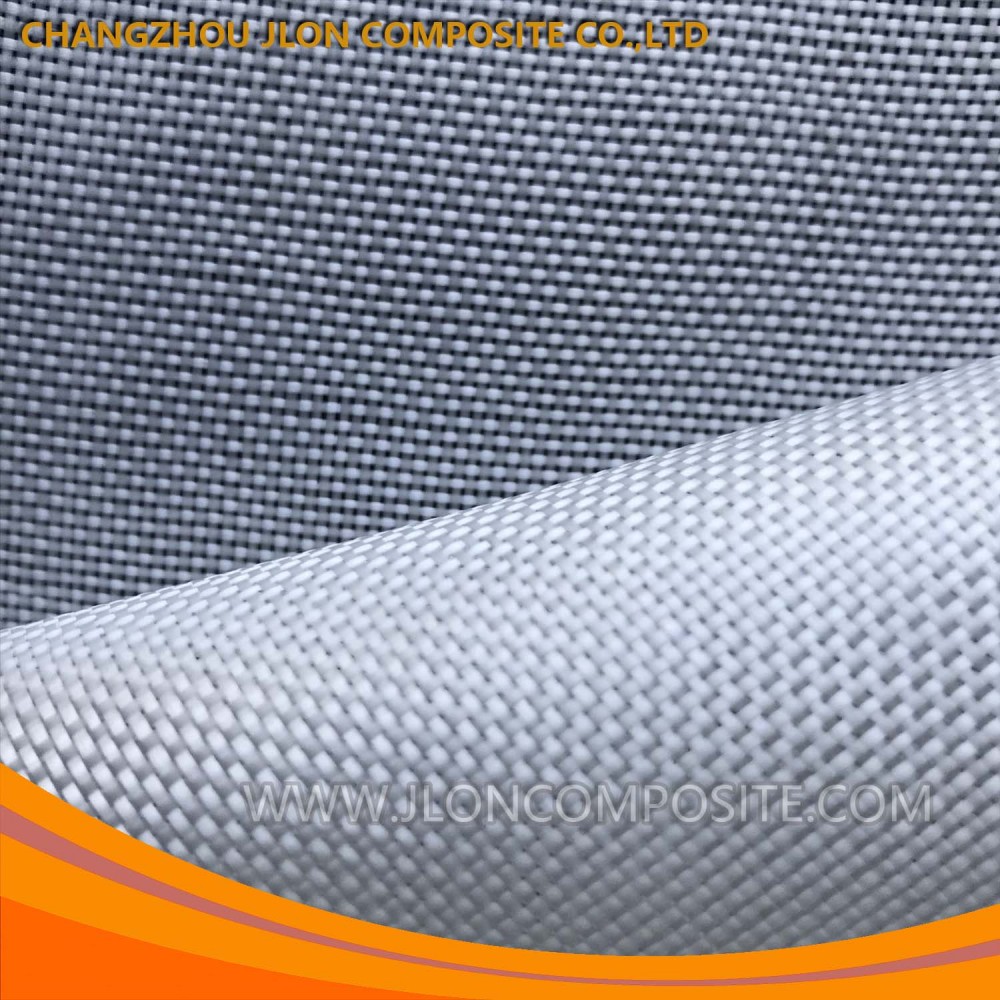

3732 E-glass fabric is a woven fiberglass textile used in industrial insulation and coating applications. It can provide reinforcement for a coated material or serve as a fabric layer within a thermal insulation assembly. Its suitability depends on the fabric specification, surface treatment, coating formulation, and operating conditions.
JLON supplies 3732 fiberglass cloth for industrial material requirements. When selecting this material, buyers should look beyond the style number and consider how the fabric will be processed and used.
This article explores five application areas for 3732 E-glass fabric in thermal insulation and coating, along with practical considerations for material selection. The applications are presented as useful selection categories rather than a ranking based on market size.
3732 E-glass fabric is a woven material made from E-glass yarns. Its fabric construction provides a supporting structure for further processing, including coating, cutting, sewing, and assembly.
The style designation is a starting point for specifying the material. Buyers should also confirm the supplied weight, thickness, weave, width, and surface finish.
These characteristics influence how the fabric behaves during manufacturing. For example, a fabric suitable for one coating process may need a different surface treatment before being used with another formulation.
In a coated textile, the fiberglass fabric provides reinforcement, while the coating modifies the surface properties. Depending on its formulation, the coating may improve handling, reduce permeability, or provide resistance to particular environmental exposures.
In an insulation assembly, the fabric may cover, contain, or protect an insulating layer. The insulation material and its thickness provide much of the resistance to heat transfer.
The properties of the glass fibers should not be treated as the performance rating of the finished product.
Coatings, adhesives, sewing threads, closures, and assembly details can all influence operating limits. A finished insulation cover or protective blanket should therefore be evaluated as a complete construction.
Removable insulation covers provide access to equipment that requires regular inspection or maintenance. They can be designed around valves, flanges, fittings, and other components where permanent insulation would make servicing more difficult.
3732 fiberglass cloth can be evaluated as a textile layer within these assemblies. Its position in the cover determines the requirements for its finish, coating, and thermal exposure.
An insulation jacket must be practical to cut, sew, install, remove, and reinstall. Fabric selection should consider how the material behaves throughout this cycle.
Important questions include how often the cover will be opened, whether it will be folded during maintenance, and whether the surface may rub against nearby equipment.
Fabricators should also assess edge fraying, seam formation, and handling around curved sections. A material that performs well as a flat sample may behave differently after being shaped into a finished cover.
The hot equipment surface and the outside of an insulation jacket may operate at different temperatures.
An outer protective layer and a hot-side liner can therefore require different materials. Buyers should identify where the proposed 3732 E-glass fabric will sit within the construction before choosing its coating.
For a JLON material inquiry, provide the equipment temperature, proposed insulation thickness, fabric position, and expected maintenance frequency. Prototype evaluation should then address fit, seams, handling, and the thermal performance of the complete cover.
Fixed insulation systems also require suitable facings or coverings. These layers help contain the insulation and provide an exterior surface that can be handled during installation and maintenance.
Unlike removable covers, fixed insulation facings may remain in place for extended periods. Their selection should account for the surrounding environment and the likelihood of mechanical damage.
E-glass fabric for thermal insulation can be considered where a flexible woven reinforcement is needed within a covering system.
The choice between uncoated and coated material depends on the required surface performance. Indoor installations may prioritize handling and fabrication, while outdoor installations introduce additional requirements for weather exposure and water management.
A woven glass fabric should not automatically be regarded as a weatherproof barrier. Where protection against water entry is required, the coating and installation details must support that function.
Pipe insulation includes more than straight sections. Elbows, supports, penetrations, and terminations often require additional fabrication.
During sample assessment, check whether the cloth conforms to the intended geometry without excessive wrinkling or damage. Confirm how edges, overlaps, and adjoining sections will be secured.
For coated 3732 fiberglass fabric, evaluate compatibility with the proposed adhesives, tapes, or mechanical fasteners. These components contribute to the performance of the installed covering and should be reviewed alongside the fabric itself.
One important application direction for 3732 fiberglass base fabric is further coating or surface treatment.
For coating manufacturers, the fabric must work with both the coating chemistry and the production process. A satisfactory finished textile depends on the interaction between the substrate, surface preparation, coating application, and curing conditions.
Before ordering material, confirm the supplied condition of the fabric. Ask whether it carries a sizing or another surface treatment and whether this is compatible with the intended coating formulation.
The inquiry should identify the coating type, application method, target coating weight, and processing temperature. These details provide a clearer basis for sample selection than the style number alone.
JLON offers fiberglass and coated fiberglass product options. For a specific project, the proposed base cloth and coating combination should be confirmed individually.
A coating trial should examine more than the appearance of the finished surface.
Check coverage, adhesion, flexibility, finished thickness, and uniformity across the fabric width. Where relevant, assess the material after folding, thermal exposure, or contact with expected service liquids.
Trials should represent the planned manufacturing conditions as closely as practical. Differences in line speed, coating viscosity, tension, or curing can affect the result.
Record the approved base-fabric specification together with the successful processing conditions. This helps purchasing and production teams maintain a consistent reference for future orders.
For production coating, fabric uniformity matters throughout the roll.
Inspection should cover visible defects, width variation, roll edges, and yarn distribution. Buyers should agree on acceptable quality limits before bulk supply, particularly where surface appearance or continuous coating performance is important.
Welding protection is another application area in which a suitably finished fiberglass textile may be evaluated.
However, the material requirements vary considerably with the exposure. A vertical screen exposed to occasional sparks faces different conditions from a horizontal blanket that may collect hot particles.
3732 E-glass cloth should therefore be considered as a candidate substrate within a defined protective construction, rather than assumed to be suitable for every welding task.
Start by describing what the product must protect and how it will be positioned.
Will it shield nearby machinery, separate a work area, or cover a surface below the operation? Will exposure involve occasional sparks, accumulated particles, or another thermal hazard?
These details help determine whether the proposed fabric and coating are appropriate for evaluation. In more demanding conditions, a different material or multilayer construction may be necessary.
Untreated 3732 fabric should not be described as a certified welding blanket solely because it contains glass fibers.
The completed product includes hems, seams, attachment points, and potentially additional layers. These details should be included in the relevant testing and acceptance process.
Request evidence that applies to the actual construction being purchased. If the base fabric, coating, or assembly changes, review whether earlier test results remain applicable.
For buyers, a clearly defined specification is more useful than a broad description such as “fireproof fiberglass cloth.” It connects the material choice to the real protection requirement.
Flexible duct connectors and fabric expansion joints accommodate movement within engineered systems. A coated fiberglass textile can form part of selected constructions, depending on the design requirements.
3732 fiberglass fabric for coating applications may be evaluated as a supporting layer, but suitability depends on the complete assembly and its operating environment.
A flexible connector may experience repeated movement, vibration, pressure differences, and exposure to process gases.
These conditions create a different material selection problem from a stationary insulation facing. Temperature is important, but it is only one part of the specification.
Buyers should provide expected movement, operating pressure, temperature variations, gas composition, and installation dimensions. The proposed attachment method should also be included.
A multilayer expansion joint may contain separate reinforcing, insulating, and sealing components.
The selected fiberglass textile should be evaluated for its intended role. A reinforcing fabric should not automatically be expected to provide the sealing performance required from another layer.
Clamping areas and transitions also require attention. Prototype assessment should use representative connection details and movement conditions.
Depending on the application, testing may need to address leakage, repeated flexing, or changes after thermal cycling. Final acceptance should follow the engineering requirements of the complete connector, not the base-fabric specification alone.
A useful material inquiry explains both the required fabric and its intended function. This reduces the risk of comparing quotations that describe different supplied conditions.
Provide the target weight, thickness, width, and roll length, including acceptable tolerances.
Where available, specify the weave, yarn construction, surface finish, and required test methods. For mechanical properties, identify the test direction and reporting units.
If replacing an existing material, provide a reference sample and its technical data sheet. These are generally more informative than the style number by itself.
For coated 3732 fiberglass cloth, distinguish the weight and thickness of the base textile from those of the finished material.
Identify whether coating is required on one side or both sides. Include any requirements for coating weight, color, surface appearance, or final dimensions.
Clear measurement definitions make sample approval and incoming inspection easier.
For insulation applications, explain the fabric’s position in the assembly and its expected exposure.
For coating projects, provide the coating chemistry, application process, and curing conditions. For moving assemblies, include the expected flexing and attachment arrangement.
Avoid using a single maximum temperature as the entire specification. Exposure duration, mechanical loading, and environmental conditions may also influence selection.
Agree on how the sample will be assessed before production supply.
Keep an identified reference sample together with the approved specification and relevant trial results. This gives purchasing, quality, and production teams a common basis for evaluating later deliveries.
It can form part of an insulation system, but a thin woven fabric should not be treated as a replacement for the required insulating thickness. Assess the complete assembly against the project’s thermal objectives.
Compatibility should be confirmed through processing trials. The fabric’s surface finish, silicone formulation, application method, and curing conditions all need consideration.
Thickness alone does not determine suitability. A thicker fabric may change handling, flexibility, and fabrication without addressing the main application requirement. Selection should follow the complete specification.
Approval for one product does not automatically establish suitability for another. An insulation facing, welding protection product, and flexible connector can impose very different demands on the fabric and its coating.
Selecting 3732 E-glass fabric for thermal insulation and coating starts with understanding the finished product.
For insulation covers, consider the fabric’s position, handling requirements, and assembly design. For coating operations, focus on substrate compatibility and processing consistency. For protective or moving assemblies, evaluate the complete construction under representative conditions.
JLON welcomes inquiries for 3732 fiberglass cloth, fiberglass base fabric, and coated fiberglass cloth requirements.
Share your target specification, intended application, coating requirements, operating conditions, and estimated quantity. Where available, include an existing sample or technical data sheet to support the material review.
Contact JLON to discuss your project and request a suitable sample for processing and application evaluation before bulk supply.
