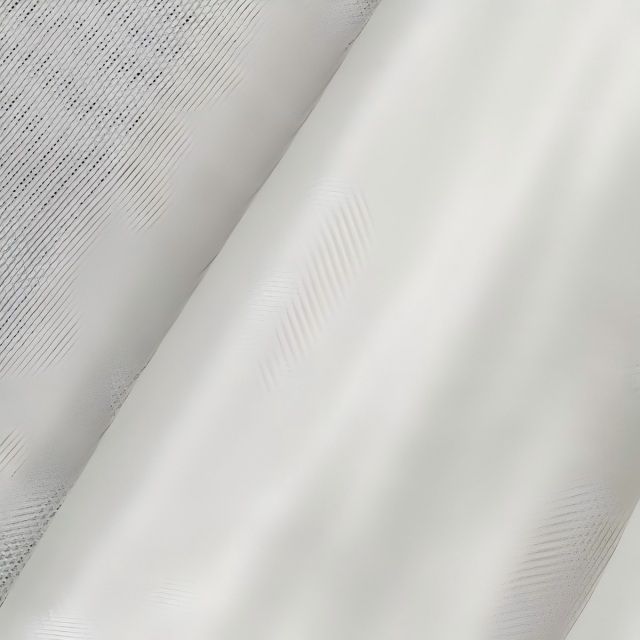

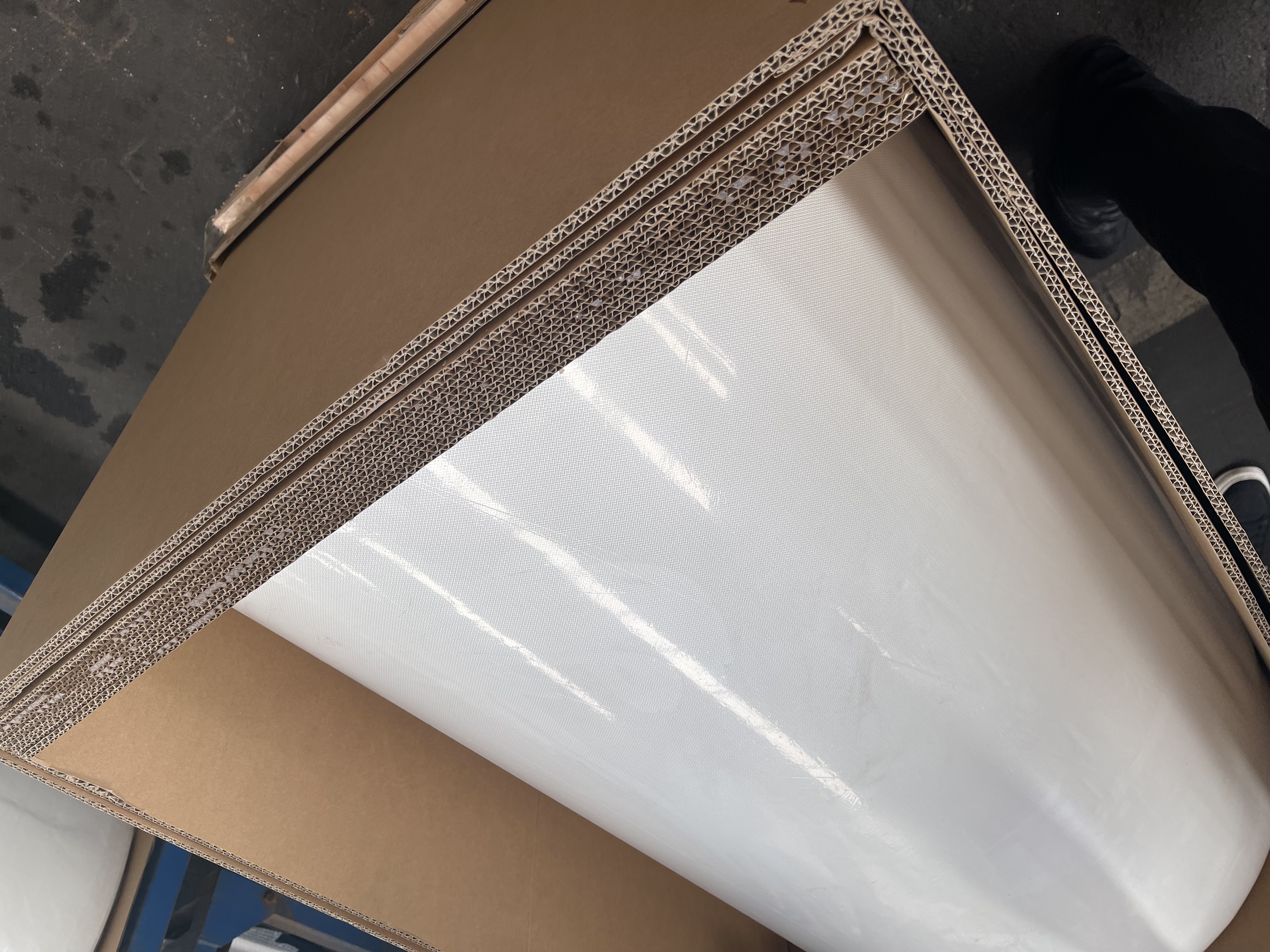

7628 Fiberglass Cloth is an electronic-grade E-glass woven fabric designed for high-performance laminate, electrical insulation, and composite reinforcement applications.
Manufactured with fine-denier continuous filament glass fibers and woven in a uniform plain weave pattern, this fabric offers excellent strength, dimensional stability, and superior dielectric performance.
With smooth surface quality, consistent thickness, and excellent resin wet-out, 7628 is widely used in PCB laminates (FR-4), composite panels, structural parts, and industrial insulation.
Continuous filament fibers and balanced weave provide strong mechanical reinforcement.
Uniform yarn distribution ensures consistent thickness and high laminate flatness.
E-glass composition offers low dielectric constant, high breakdown voltage, and stable insulation performance.
Suitable for applications requiring thermal stability and low thermal expansion.
Performs reliably in harsh or corrosive industrial environments.

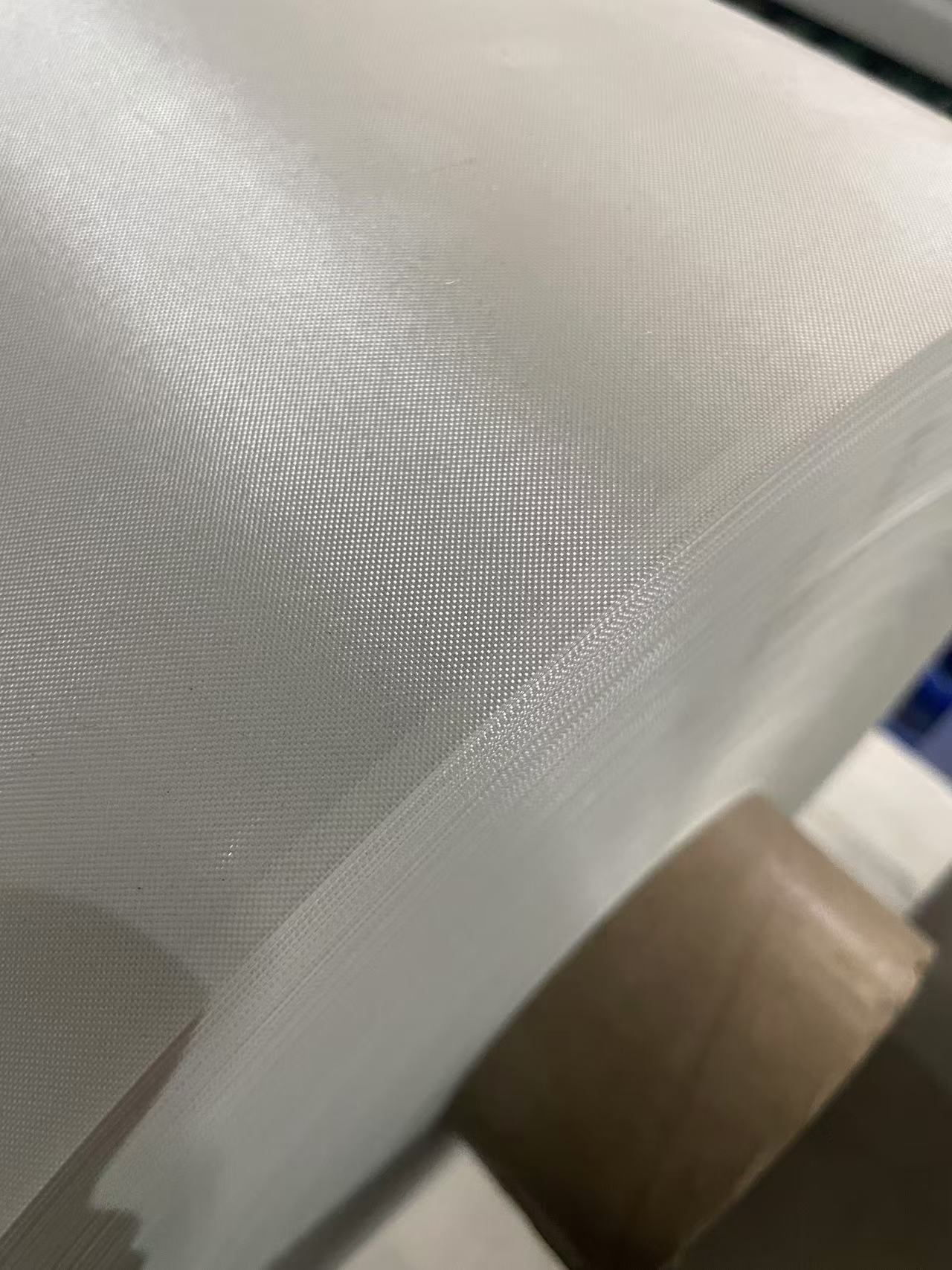

Plain weave structure ensures easy lay-up and efficient wet-out with various resin systems.
| Item | Value | 7628 Impregnated Fabric | 7628 Loomstate Fabric |
|---|---|---|---|
| Weave Type | Plain | — | — |
| Fiber Type | E-glass (Electronic Grade) | — | — |
| Resin Compatibility | Epoxy, Polyester, Vinyl Ester | — | — |
| Standard Width | Customized (typically 1000 mm / 1270 mm) | — | — |
| Unit Weight | GBT 9914.3-2013 | 210 ± 3 | 213 ± 5 |
| Meridional Density | GBT 7689.2-2013 | 17.2 ± 0.2 | 17.2 ± 0.3 |
| Zonal Density | GBT 7689.2-2013 | 13.1 ± 0.2 | 13.1 ± 0.3 |
| Thickness | GBT 7689.1-2013 | 0.18 ± 0.02 | 0.18 ± 0.02 |
| Loss on Ignition | GBT 9914.2-2013 | 0.09 ± 0.03 | ≤ 3 |
| Permeability | GBT 5453-1997 | ≤ 5 | ≤ 5 |
| Meridional Tension | GBT 7689.5-2013 | ≥ 500 | ≥ 1100 |
| Zonal Tension | GBT 7689.5-2013 | ≥ 350 | ≥ 800 |

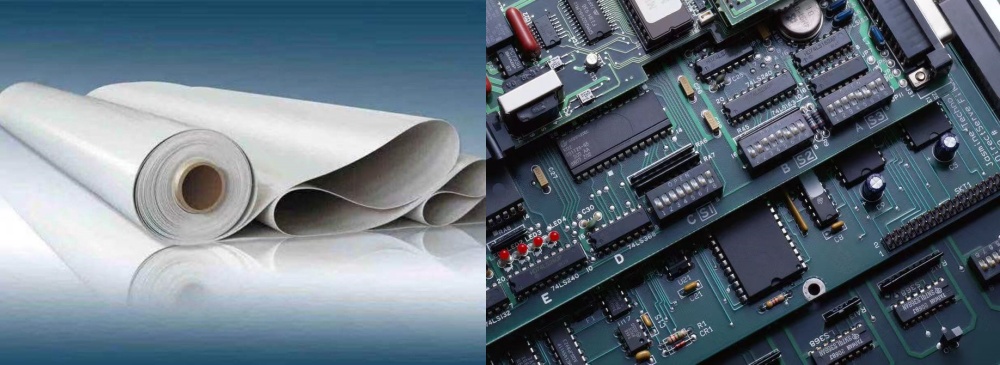

Dielectric substrate and reinforcement for printed circuit boards.
Insulation boards, transformer insulation, and protective layers.
Panels, covers, structural components, and molded parts.
Tank linings, pipe reinforcement, and corrosion-resistant layers.
Lightweight composite housings, covers, and structural reinforcements.
