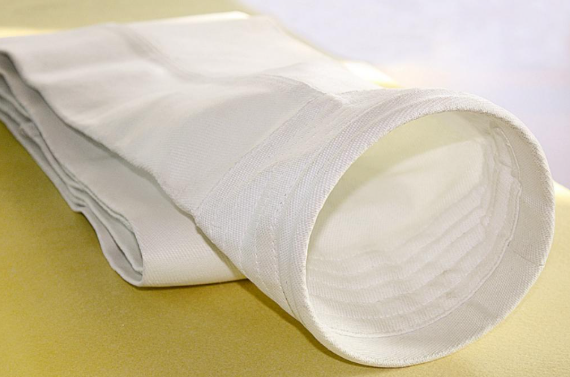

Fiberglass texturized cloth is woven by glass continuous texturized yarns in accordance with different requirements of density, thickness, structure, weave type and application, etc.
Because of stuffy yarns, the fabrics possess low density, low shrink, high strength, high temperature resistance, non-deformation, high coverage and insulation.
Heavy-weight filtration fabric with 750 g/m² areal weight
Stable woven construction suitable for filtration processes
Good mechanical support for industrial filter structures
Consistent fabric surface for controlled filtration performance
| Type | Weave | Warp | Weft | Width (cm) | Density (/cm) | Weight (g/m2) | Thickness (mm) |
| 84215 | Plain | ET6-204 T 215 | ET6-204 T 215 | 100-220 | 8×6 | 280 | 0.38 |
| 2025 | Plain | ET6-408 T 430 | ET6-408 T 430 | 100-220 | 8×6 | 600 | 0.75 |
| 2626 | Twill | ET9-544 T 580 | ET9-544 T 580 | 100-220 | 10×6 | 950 | 1.00 |
| M24 | Plain | ET9-816 T 860 | ET9-816 T 860 | 100-220 | 6×3.8 | 816 | 1.00 |
| M30 | Plain | ET9-816 T 860 | ET9-1224 T 1250 | 100-220 | 6×4 | 1020 | 1.40 |
| M35 | Plain | ET9-816 T 860 | ET9-1768 T 1800 | 100-220 | 6×3.8 | 1190 | 1.50 |
| M52 | Plain Panama | ET9-816 T 860 | ET9-952 T 1290 | 100-220 | 6×2/2.5×2 | 1780 | 3.00 |
| M35(G) | Plain Panama | ET9-612 T 625(G) | ET9-612 T 625(G) | 100-220 | 6×2/3.4×2 | 1200 | 1.50 |
| EWTF750 | Satin Double Weft | ECT-68 1/2 | ET6-272 T 280 | 100-220 | 18×16 | 750 | 0.75 |
| Note:Other special models depend on our customer's requirements. | |||||||
Reliable fabric strength for filtration use
Uniform weaving for stable filtration efficiency
Suitable for systems needing heavy-weight fiberglass filter media
Q1: What is the main use of EWT750A/B?
A1: It is mainly used as a filtration fiberglass fabric in industrial filtration systems.
Q2: What is the areal weight of the product?
A2: The areal weight is 750 g/m².
Q3: What materials are used?
A3: It is made from fiberglass yarns.
Q4: Can EWT750A/B be customized in width?
A6: Yes, the width can be adjusted based on customer requirements.
Q5: Is surface treatment available for this filtration fabric?
A7: Yes, surface treatments can be provided if required for specific filtration applications.
