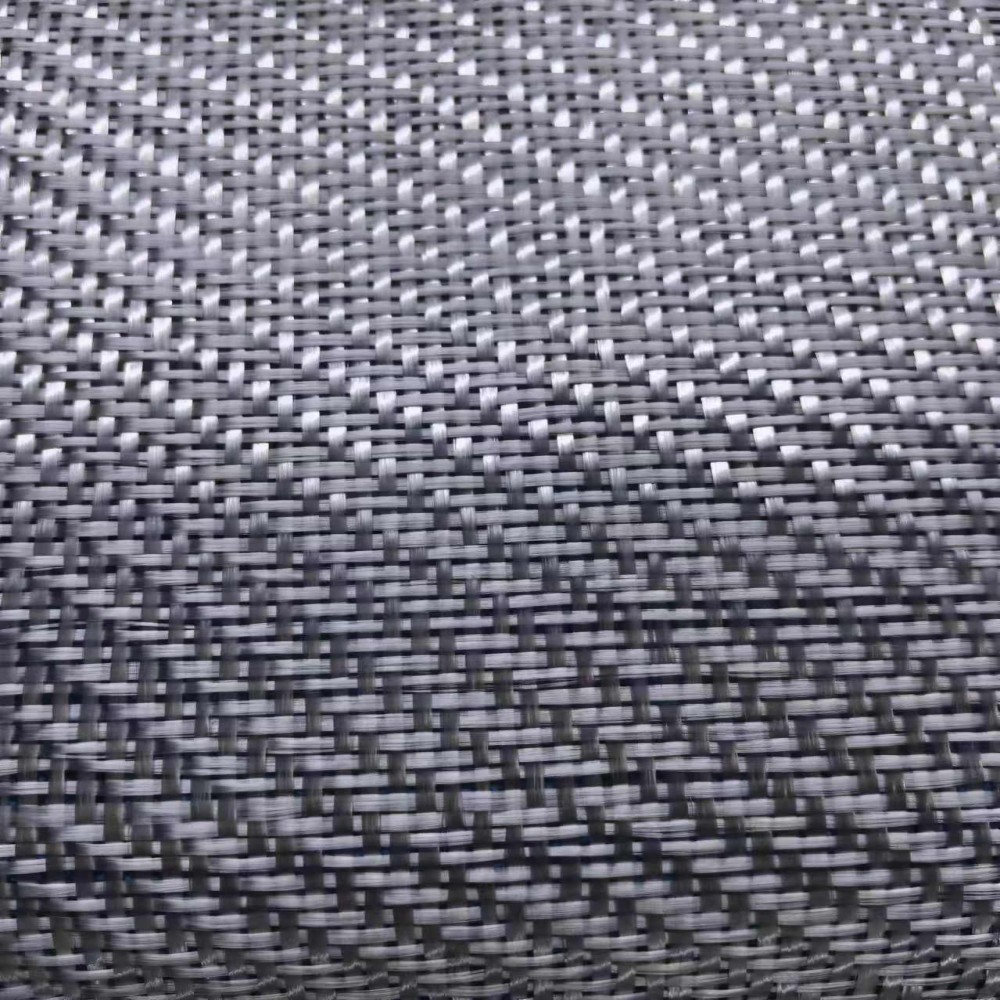

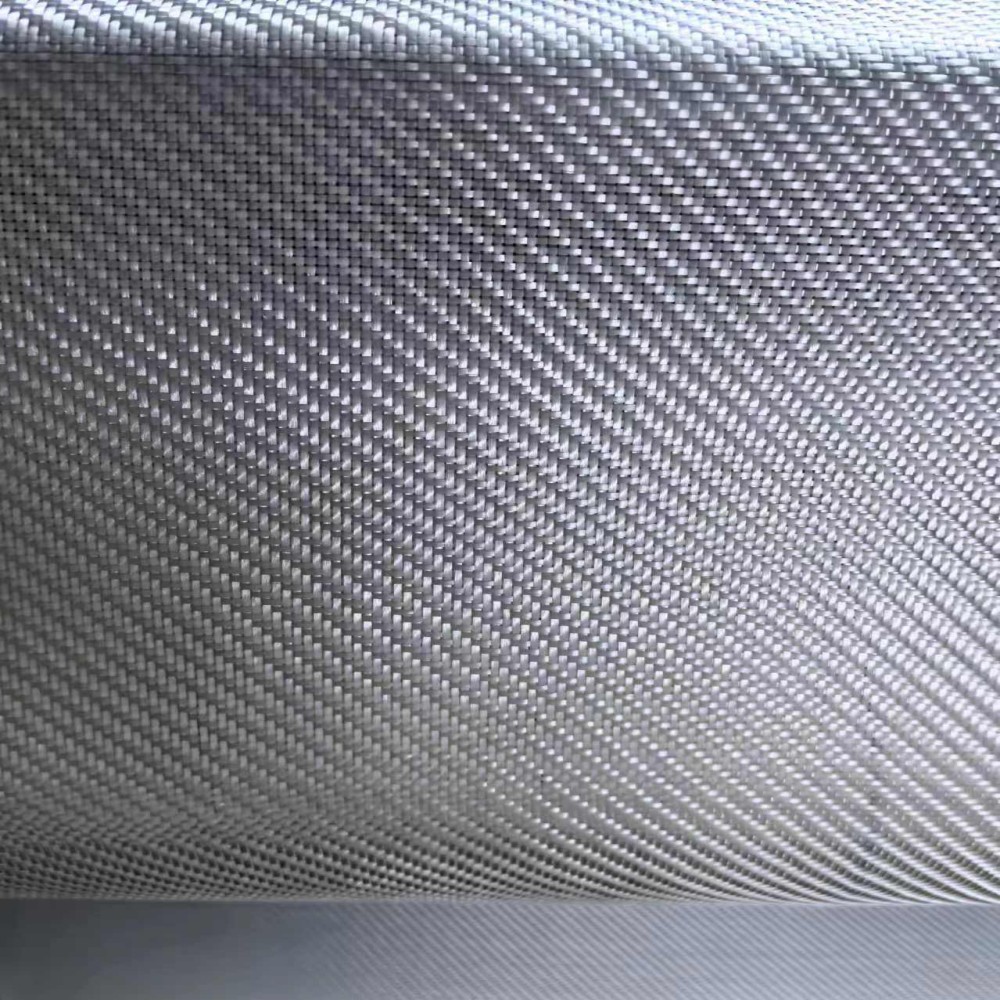

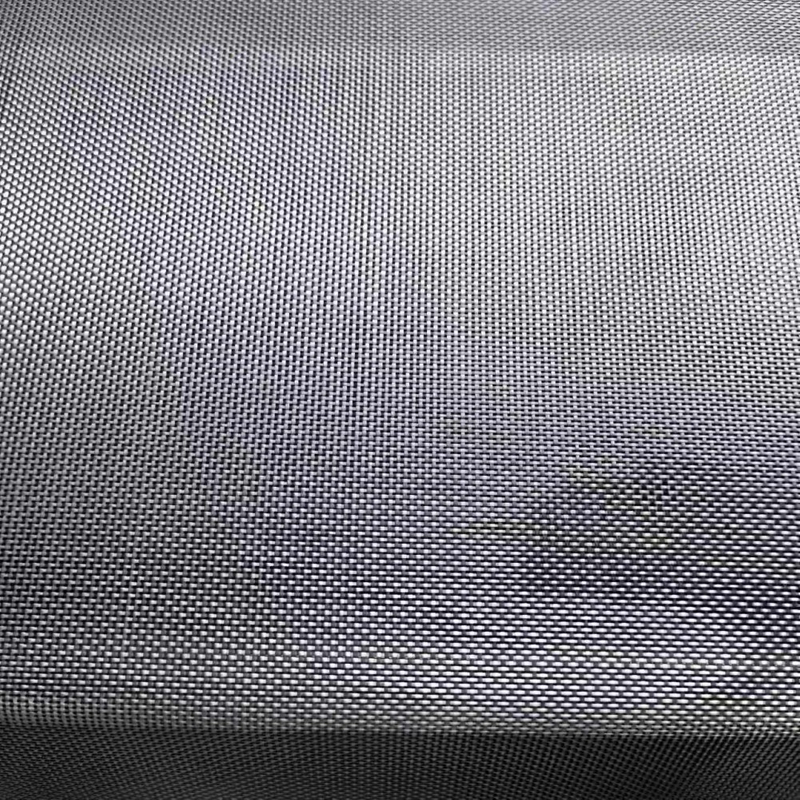

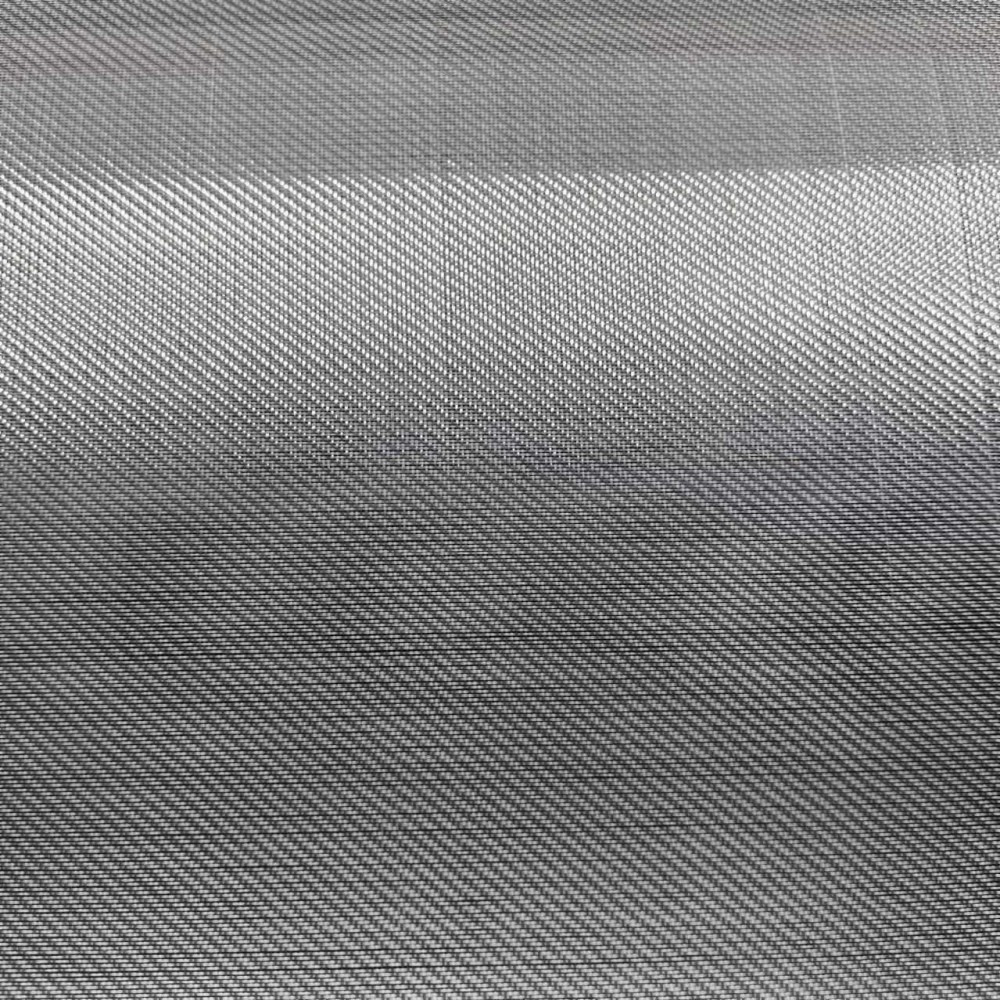

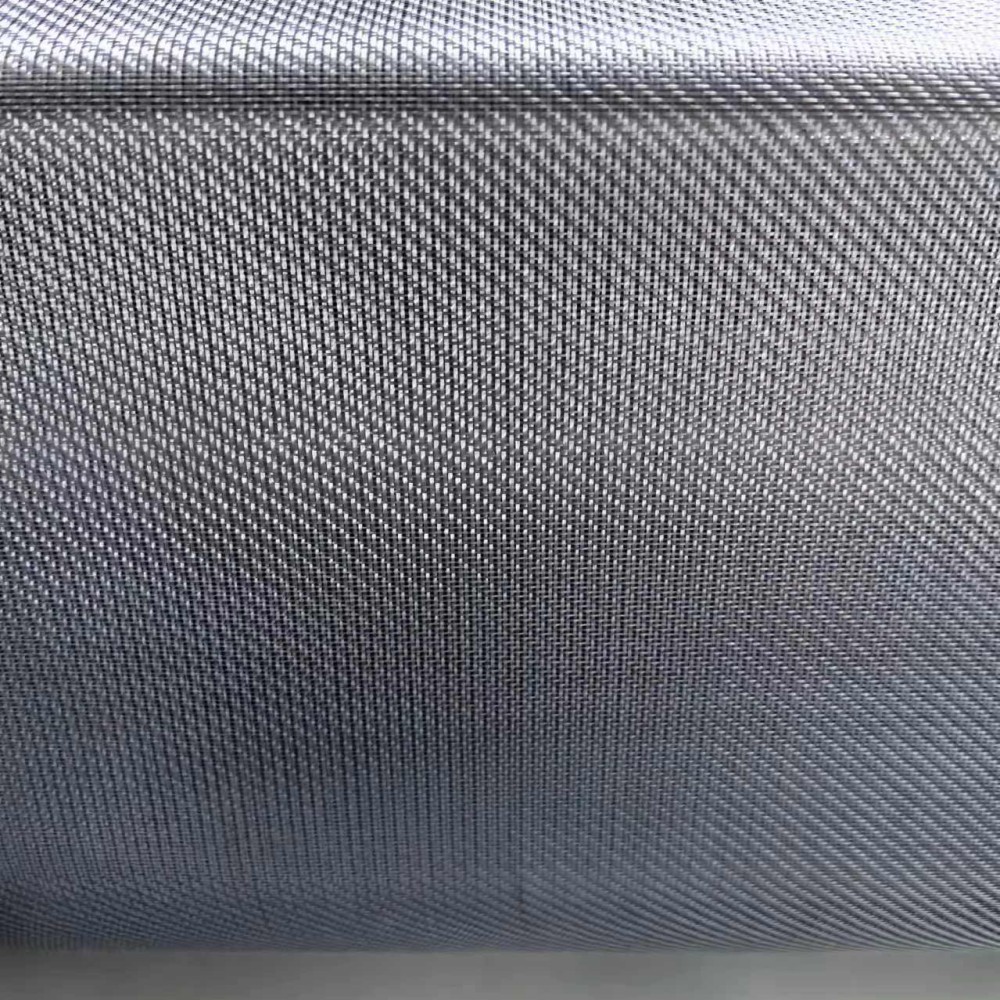

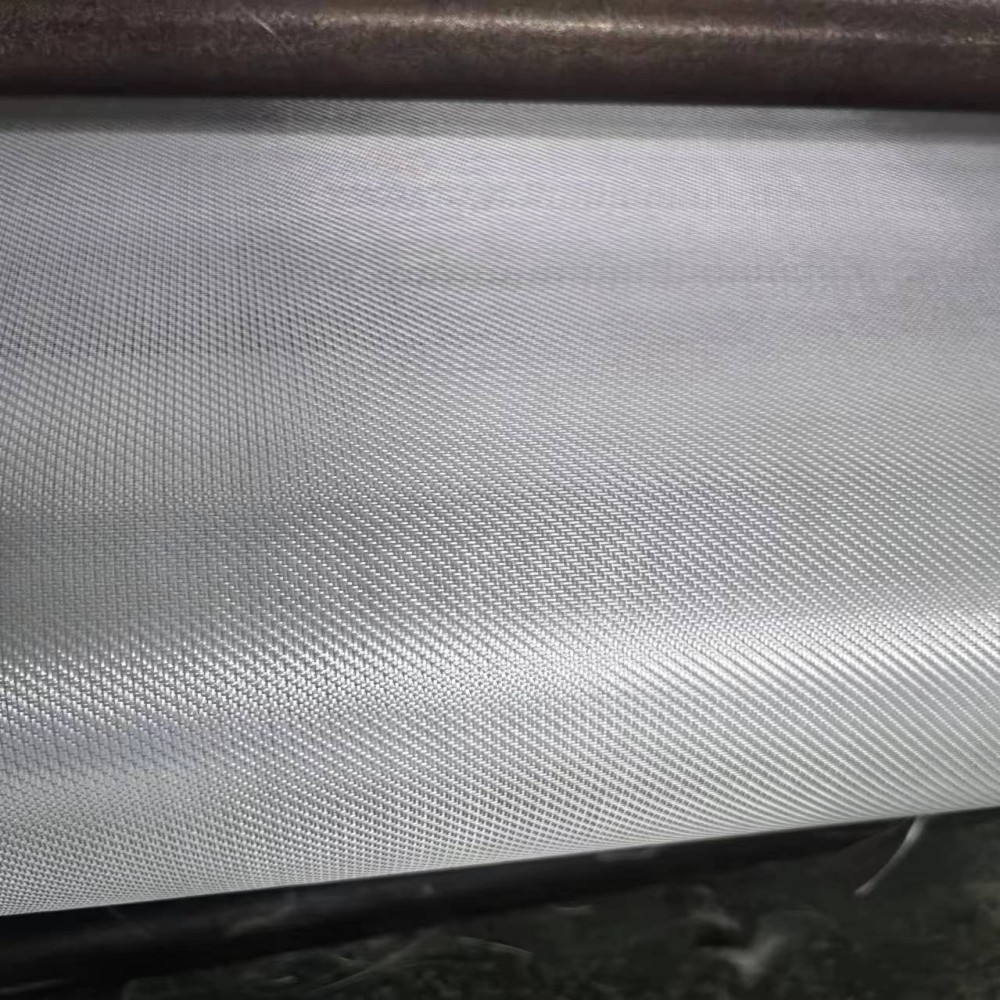

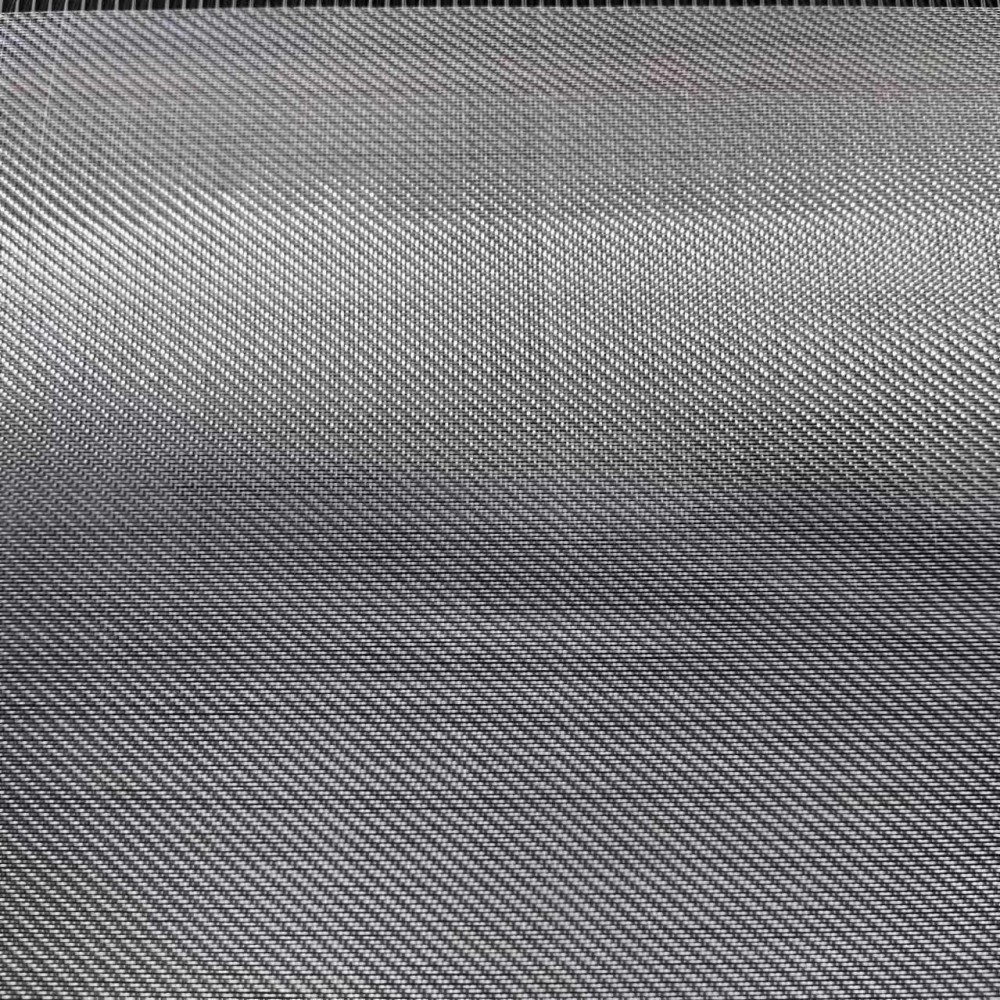

This fiberglass fabric is a fabric woven in plain or twill method with E-glass roving. The plain or twill weave pattern ensures a smooth and even surface, making it ideal for projects that require a sleek finish. The fabric could be easily impregnated with resin and it comes out with high adhesive strength.
Our fabric is specially treated with s ilane, enhancing its resistance to moisture and improving its overall performance. This treatment also enhances the fabric's adhesion to resins, making it an excellent choice for composite application
Whether you need fiberglass cloth for automotive repairs, boat building, or industrial applications, our Fiberglass Fabric is the perfect solution. Trust in its quality and versatility to deliver outstanding results every time.
Characteristics:
| Item | Weight | Thickness | Filament | Density | Tensile strength | Weave | Moisture Content | Loss Ignition | Agent type | ||
| (g/m2) | (mm) | (um) | (/cm) | (N/25mm) | (%) | (%) | |||||
| Warp | Weft | Warp | Weft | ||||||||
| JLP100 | 100 | 0.1 | 9 | 16 | 15 | 580 | 550 | Plain | 1 | 0.6-1.0 | Silane |
| JLT100 | 100 | 0.1 | 9 | 16 | 15 | 580 | 550 | Twill | 1 | 0.6-1.0 | Silane |
| JLP140 | 140 | 0.14 | 11 | 9 | 7.5 | 680 | 650 | Plain | 1 | 0.6-1.0 | Silane |
| JLT140 | 140 | 0.14 | 11 | 9 | 7.5 | 680 | 650 | Twill | 1 | 0.6-1.0 | Silane |
| JLP160 | 160 | 0.16 | 11 | 12 | 11 | 860 | 800 | Plain | 1 | 0.6-1.0 | Silane |
| JLT160 | 160 | 0.16 | 11 | 12 | 11 | 860 | 800 | Twill | 1 | 0.6-1.0 | Silane |
| JLP200 | 200 | 0.2 | 11 | 8 | 7 | 1280 | 1130 | Plain | 1 | 0.6-1.0 | Silane |
| JLT200 | 200 | 0.2 | 11 | 8 | 7 | 1280 | 1130 | Twill | 1 | 0.6-1.0 | Silane |
Boat hull layers and surface laminates
Surfboards, paddle boards, kiteboards, and other sports products
Industrial composite panels and covers
Automotive repair and reinforcement layers
Model making, DIY composite projects
Tubes, casings, and lightweight structural laminates
Ideal for lightweight structural designs
Balanced strength and flexibility
Can be combined with other weights for custom performance
Reliable molding consistency with fewer defects
Compatible with most composite production processes
Weight Options: 100 / 160 / 200gsm
Weave Type: Plain weave (standard)
Width: Customizable
Sizing: Compatible with multiple resin systems
Surface Treatment: Optional enhanced wet-out finish
Q1. What is the difference between 100gsm, 160gsm, and 200gsm?
Lower gsm fabrics are better for surface layers, while higher gsm fabrics offer greater reinforcement strength.
Q2. Are these fiberglass cloths suitable for epoxy?
Yes. They are compatible with epoxy, polyester, and vinyl ester systems.
Q3. Can I customize width and roll length?
Yes. Various widths and lengths can be supplied on request.
Q4. What molding processes can they be used for?
Suitable for hand lay-up, vacuum bagging, infusion, RTM, and press molding.
Q5. Can they be used for transparent or semi-transparent laminates?
Yes, especially 100gsm and 160gsm, which deliver finer surface appearance.
