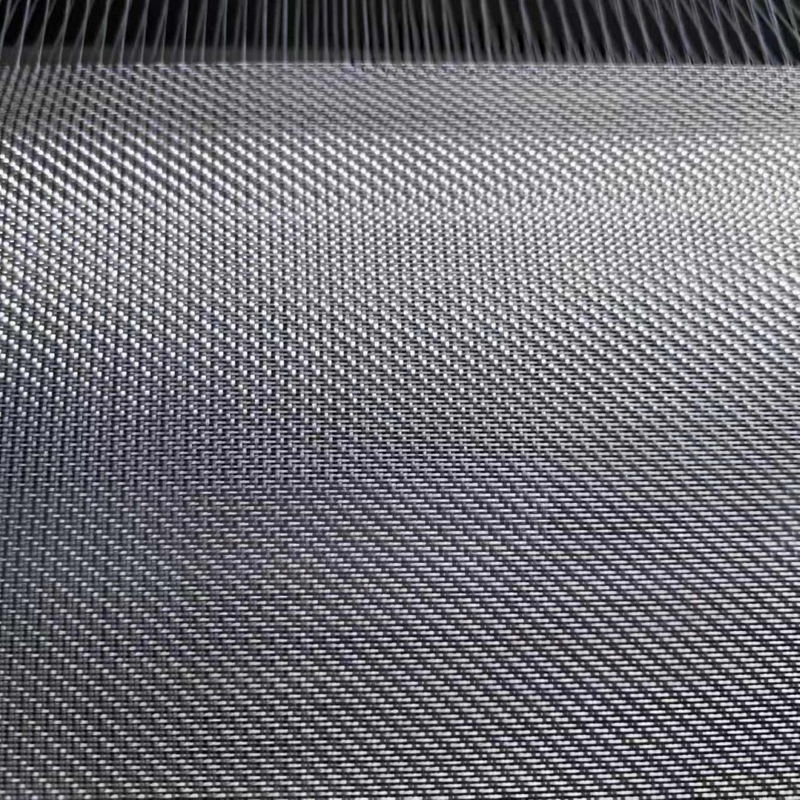

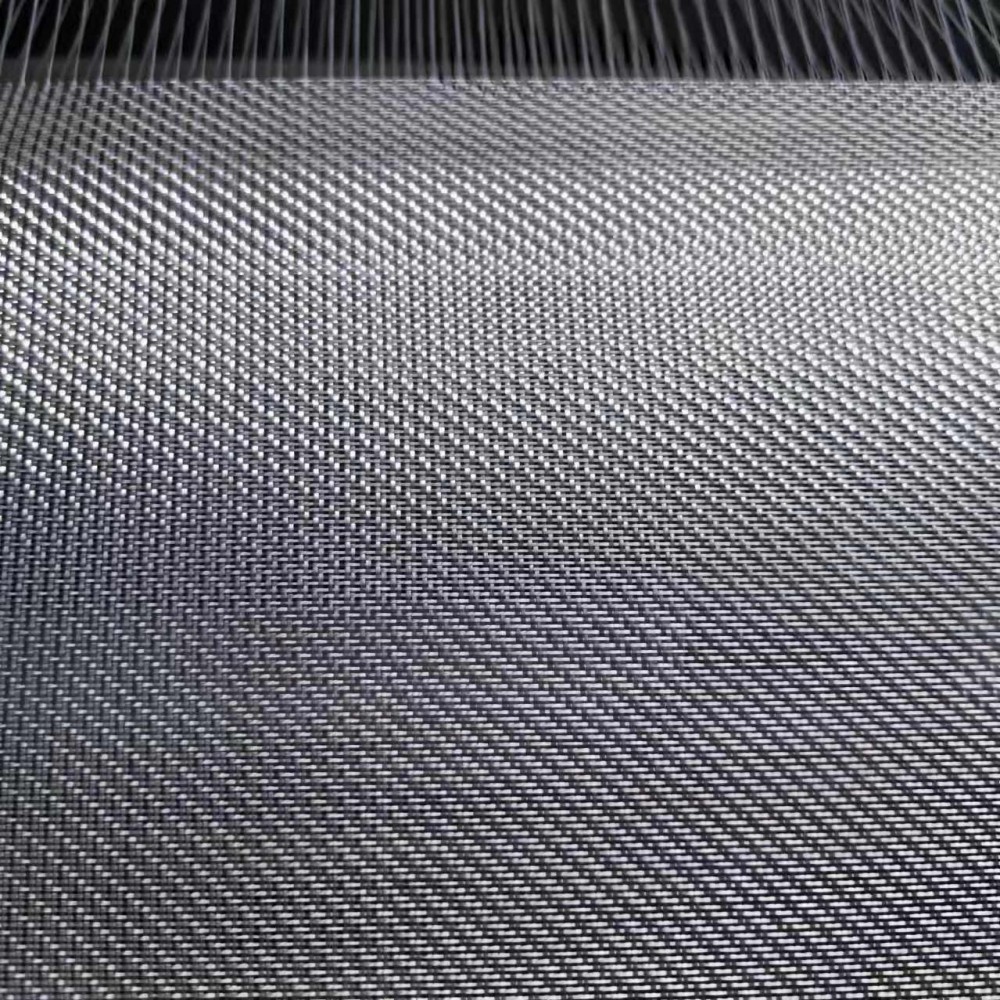

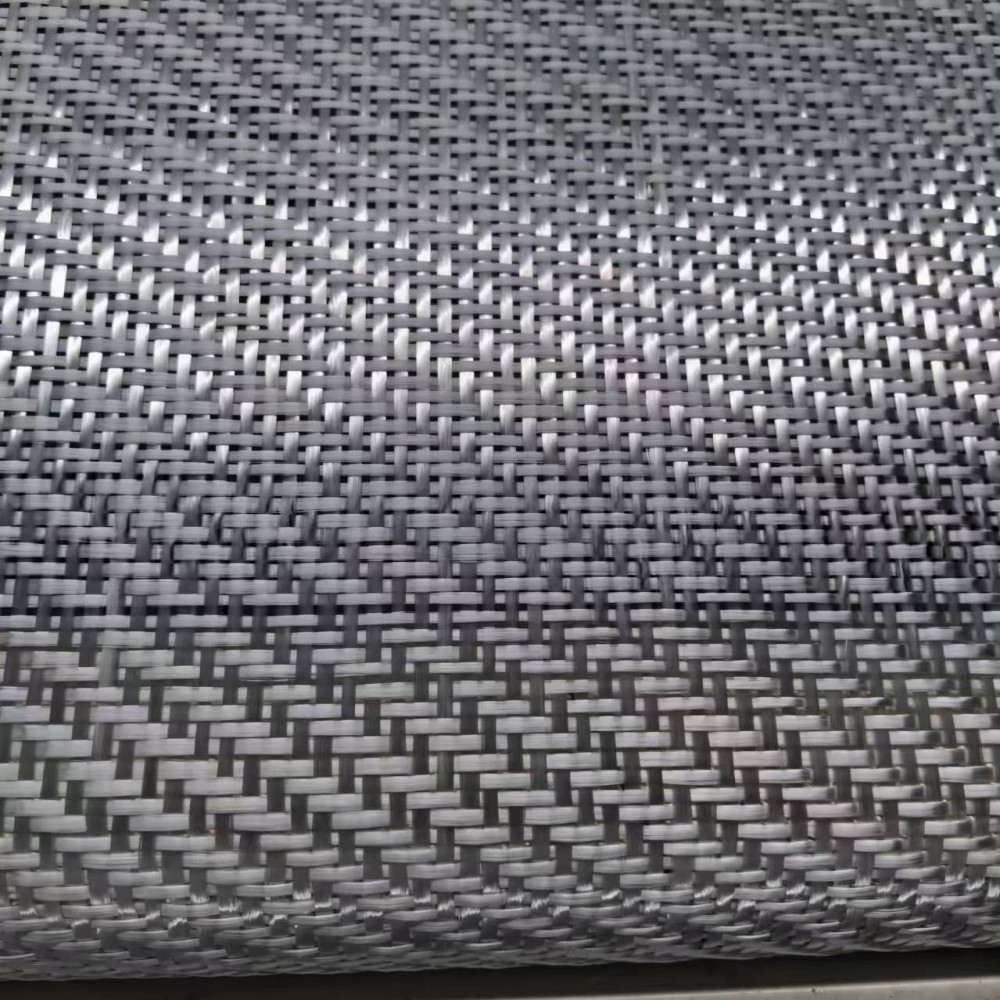

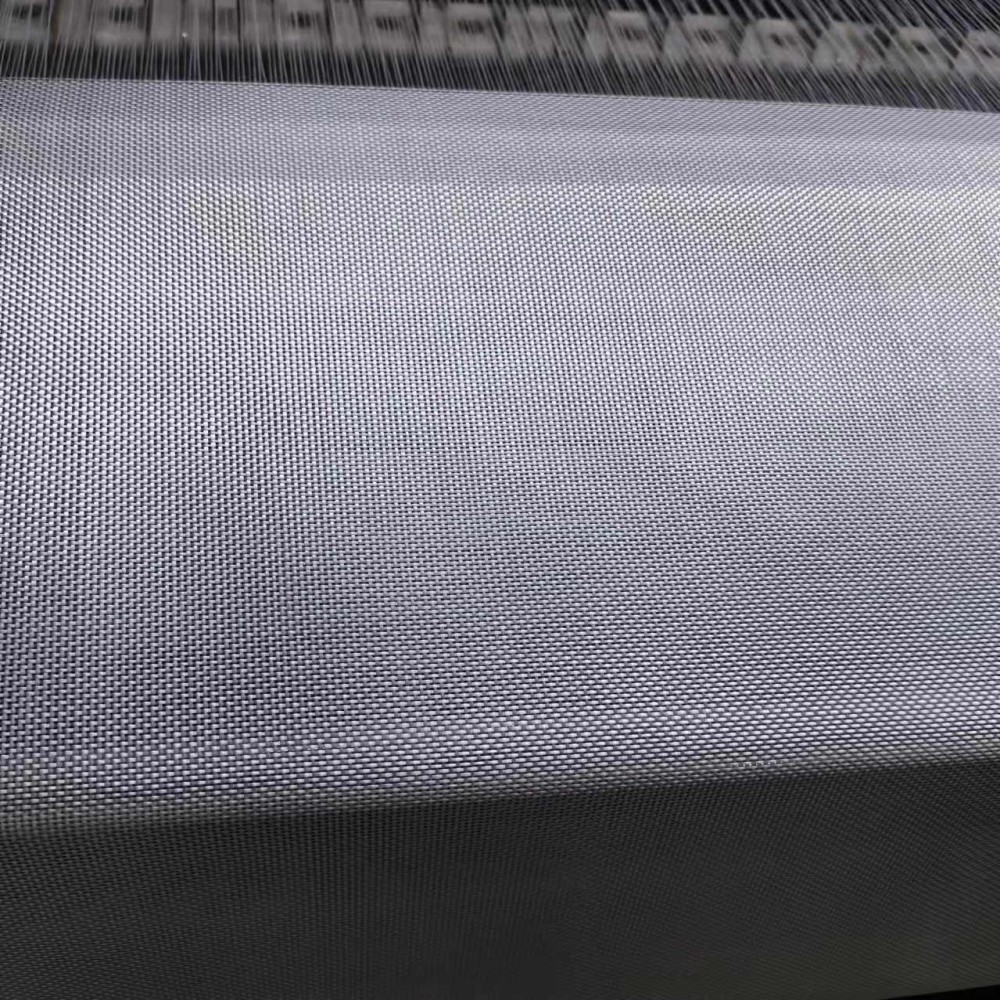

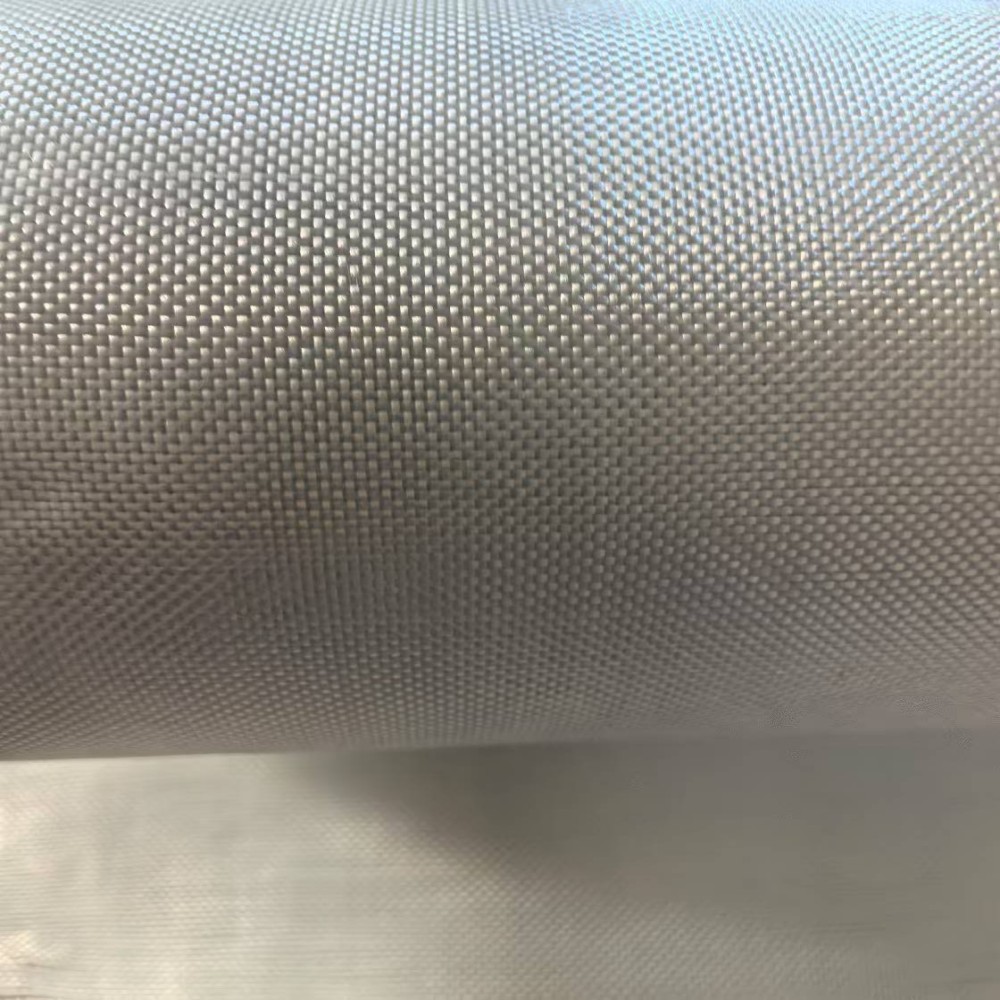

This fiberglass fabric is a fabric woven in plain or twill method with E-glass roving. The plain or twill weave pattern ensures a smooth and even surface, making it ideal for projects that require a sleek finish. The fabric could be easily impregnated with resin and it comes out with high adhesive strength.
Our fabric is specially treated with s ilane, enhancing its resistance to moisture and improving its overall performance. This treatment also enhances the fabric's adhesion to resins, making it an excellent choice for composite application
Whether you need fiberglass cloth for automotive repairs, boat building, or industrial applications, our Fiberglass Fabric is the perfect solution. Trust in its quality and versatility to deliver outstanding results every time.
Characteristics:
3.Easily impregnated with resin, high cohesive strength.
| Item | Weight | Thickness | Filament | Density | Tensile strength | Weave | Moisture Content | Loss Ignition | Agent type | ||
| (g/m2) | (mm) | (um) | (/cm) | (N/25mm) | (%) | (%) | |||||
| Warp | Weft | Warp | Weft | ||||||||
| JLP225 | 225 | 0.22 | 11 | 12 | 10 | 1380 | 1180 | Plain | 1 | 0.6-1.0 | Silane |
| JLT225 | 225 | 0.22 | 11 | 12 | 10 | 1380 | 1180 | Twill | 1 | 0.6-1.0 | Silane |
| JLP280 | 280 | 0.28 | 11 | 7 | 7 | 1800 | 1800 | Plain | 1 | 0.6-1.0 | Silane |
| JLT280 | 280 | 0.28 | 11 | 7 | 7 | 1800 | 1800 | Twill | 1 | 0.6-1.0 | Silane |
| JLP300 | 300 | 0.3 | 13 | 8 | 7 | 1000 | 800 | Plain | 1 | 0.6-1.0 | Silane |
| JLT300 | 300 | 0.3 | 13 | 8 | 7 | 1000 | 800 | Twill | 1 | 0.6-1.0 | Silane |
| JLP400 | 400 | 0.4 | 13 | 8 | 7 | 1200 | 1100 | Plain | 1 | 0.6-1.0 | Silane |
| JLT400 | 400 | 0.4 | 13 | 8 | 7 | 1200 | 1100 | Twill | 1 | 0.6-1.0 | Silane |
| JLT400 | 400 | 0.4 | 13 | 6 | 6 | 1200 | 1100 | Twill | 1 | 0.6-1.0 | Silane |
Boat hulls, decks, bulkheads, and structural layers
Composite panels, casings, and industrial covers
Sports equipment such as boards, paddles, and shafts
Automotive parts, repair laminates, and reinforcement patches
Molds, tooling layers, and prototype structures
Structural shells, tubes, and load-bearing composite parts
Stronger reinforcement than lightweight fabrics
Improved laminate thickness and rigidity with fewer layers
Versatile use in both structural and semi-structural applications
Reliable molding performance with low air entrapment
Easy processing in hand lay-up and vacuum techniques
Weight Options: 300gsm / 400gsm
Weave Type: Plain weave (standard)
Resin Compatibility: Epoxy, Polyester, Vinyl Ester
Surface Treatment: Optional sizing for enhanced wet-out
Q1. What are the typical uses of 300gsm and 400gsm cloth?
They are commonly used for structural layers in boats, automotive parts, industrial components, and reinforcement panels.
Q2. Can these fabrics be used with epoxy resin?
Yes. They are compatible with epoxy, polyester, and vinyl ester systems.
Q3. What is the difference between 300gsm and 400gsm?
400gsm provides higher stiffness and thickness, while 300gsm offers easier draping and slightly lower weight.
Q4. Is custom width available?
Yes. Widths and roll lengths can be customized.
Q5. Are they suitable for vacuum infusion?
Yes. Both weights wet out well and work reliably in vacuum bagging and infusion processes.
