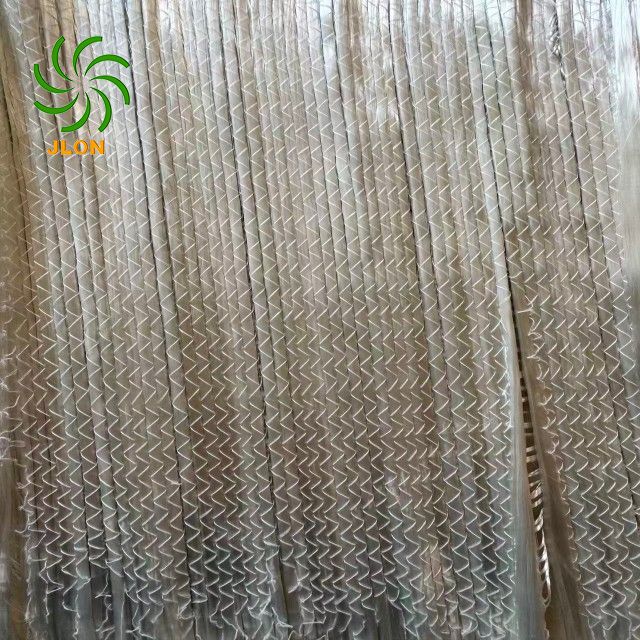

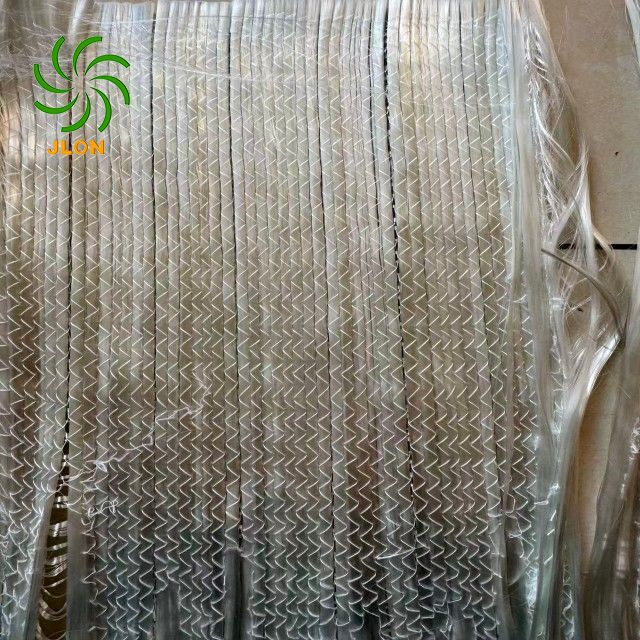

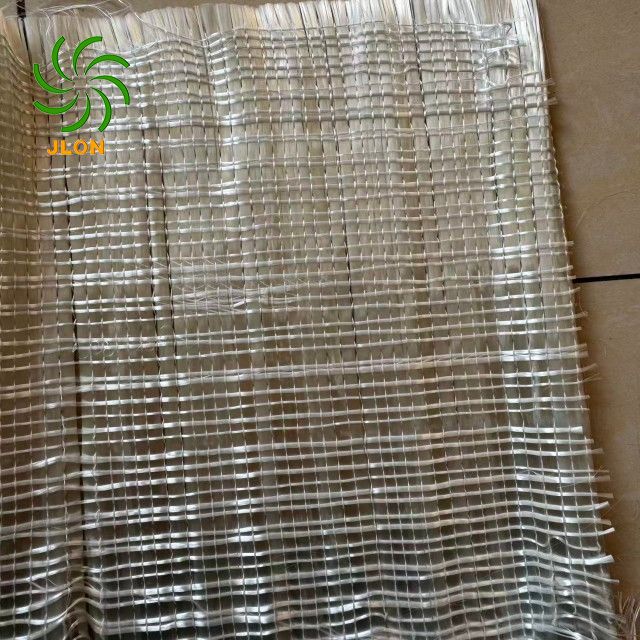

Our 2340g High-Weight Unidirectional Fiberglass Cloth is specially designed for manufacturing FRP (Fiber Reinforced Polymer) poles using the RTM-Light (LRTM, ECO, Vacuum Molding, VARTM) process. This advanced material offers exceptional tensile strength, durability, and reliability, making it ideal for heavy-duty applications in harsh environments.
Engineered for applications requiring heavy load-bearing capacity and extreme environmental resistance. Provides superior axial rigidity and tensile strength.
Fibers are predominantly aligned in one direction, ensuring outstanding tensile performance and rigidity, ideal for applications under high axial loads.
Utilizes a low-cost resin transfer molding technique that allows precise fiber alignment and resin infusion, enabling efficient production with minimal environmental impact.

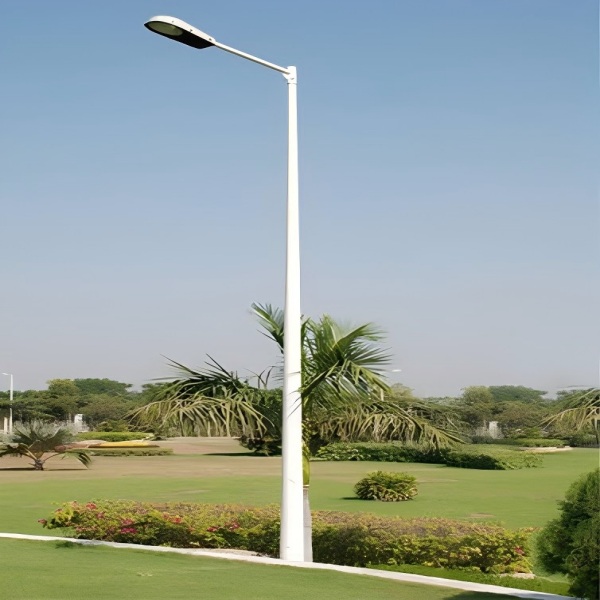

Perfect for outdoor applications such as light poles, traffic signal posts, and other infrastructure exposed to the elements.
Compared to traditional metal materials, fiberglass composites are lighter, stronger, more durable, and offer superior electrical insulation properties.
While the precise specifications for the 2340g high-weight unidirectional fiberglass cloth are currently in development, we can provide reference data from our existing range of fiberglass fabrics, which offer insight into typical densities and compositions. These fabrics are designed for similar high-performance applications using the RTM-Light process and provide a foundation for the upcoming high-weight product:
Product No. | Overall Density (g/m²) | 0º Roving Density (g/m²) | 90º Roving Density (g/m²) | Chop Density (g/m²) | Polyester Yarn Density (g/m²) |
UDL300 | 312 | 261 | 39 | / | 12 |
UDL400 | 412 | 355 | 45 | / | 12 |
UDL460 | 469.5 | 413 | 47 | / | 9.5 |
UDL600A | 612 | 533 | 67 | / | 12 |
UDL600 | 612 | 480 | 120 | / | 12 |
UDL800 | 812 | 710 | 90 | / | 12 |
UDL950 | 956 | 866 | 84 | / | 6 |
UDL1000 | 1022 | 710 | / | 300 | 12 |
UDL1200 | 1195 | 1134 | 55 | / | 6 |
UDT125 | 126 | / | 120 | / | 6 |
UDT300 | 309.5 | / | 300 | / | 9.5 |
UDT500 | 509.5 | / | 500 | / | 9.5 |
UDT600 | 609.5 | / | 600 | / | 9.5 |
UDTM225/225 | 459.5 | / | 225 | 225 | 9.5 |
UDTM300/300 | 609.5 | / | 300 | 300 | 9.5 |
UDTM600/300 | 909.5 | / | 600 | 300 | 9.5 |
A cost-effective and efficient resin transfer molding technique that uses vacuum infusion and low-pressure molding, ensuring uniform material distribution and reducing production costs. This process is ideal for large-scale production.
RTM-Light offers a more sustainable alternative to traditional RTM processes by reducing waste, solvent use, and energy consumption, meeting modern production’s environmental standards.
We offer tailored solutions, providing different weights, widths, and thicknesses to meet your specific needs.
Our high-weight unidirectional fiberglass cloth ensures outstanding stability and durability under extreme loads.
The RTM-Light process ensures efficient, high-quality production at a lower cost, making it ideal for large-volume manufacturing.
