4 oz & 4 oz Warp Enhanced Surfboard Fiberglass Cloth

Style: 1522 / 1521

Weight: 4 oz

Width: 25" / 27" / 30"

Construction: 24×22 / 30×18 (Warp Enhanced)

Weave Type: Plain Weave

Fiber Type: E-Glass

Features: Standard / Enhanced Warp Strength
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Introduction of 4 oz & 4 oz Warp Enhanced Fiberglass Cloth

JLON supplies specialized 4oz fiberglass cloth for surfboard manufacturing, available in standard and warp-enhanced constructions. Designed for composite reinforcement and surfboard lamination, our fabrics combine a fine woven structure with reliable reinforcement characteristics.

We offer both transparent and opaque fiberglass cloth to meet different manufacturing and finished-surface requirements. Our transparent surfboard fiberglass cloth is designed to provide excellent clarity after resin impregnation, making it suitable for surfboards with visible colors, graphics and decorative finishes.





Features of 4 oz & 4 oz Warp Enhanced Fiberglass Cloth


4 oz Standard (1522)

Style 1522 is a standard plain-weave fiberglass fabric with a balanced woven construction. It provides conventional reinforcement in both warp and weft directions and is suitable for general surfboard lamination.

Its uniform fabric structure makes it a practical choice for surfboard manufacturers looking for consistent reinforcement and a smooth laminate surface.

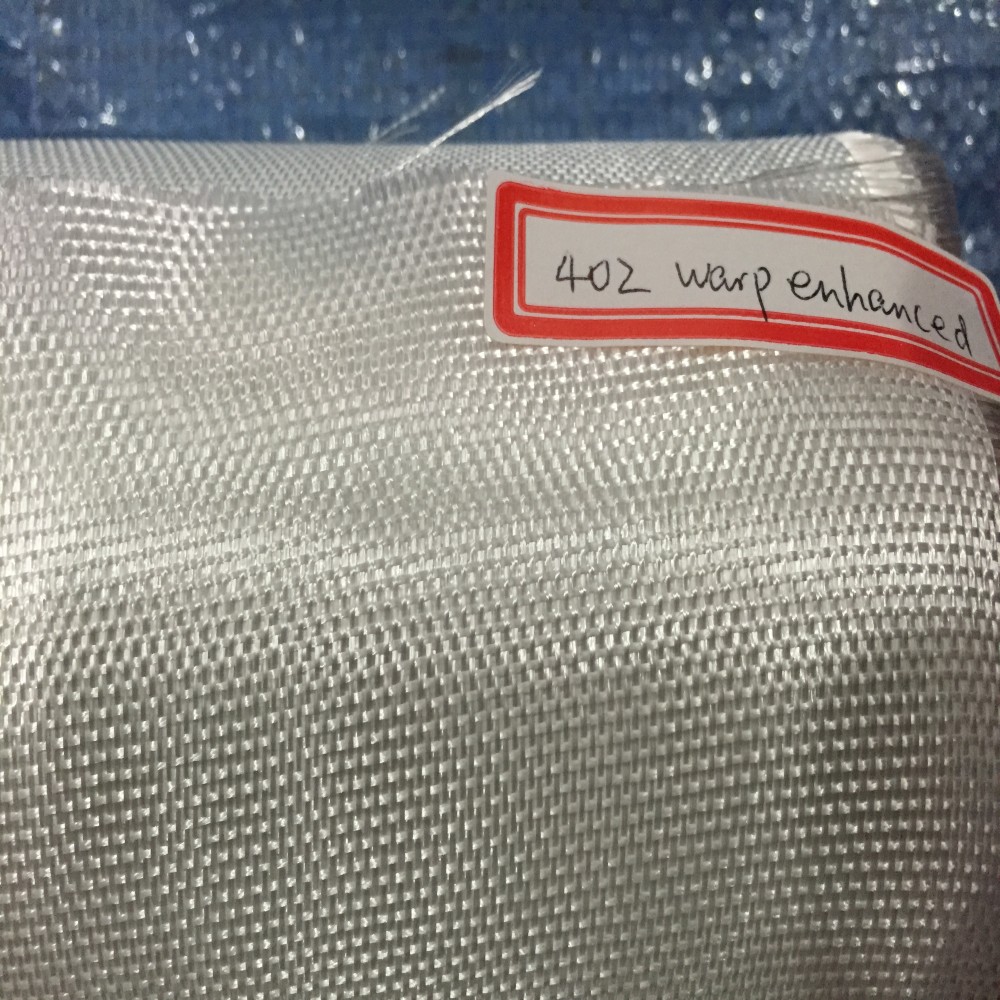

4 oz Warp Enhanced (1521)

Style 1521 features a warp-enhanced construction with a higher warp yarn count compared with the standard style.

The increased warp reinforcement provides improved longitudinal tensile performance and helps maintain dimensional stability during fabric handling and lamination.

It is suitable for surfboard manufacturers who require additional reinforcement in the warp direction.



Specifications of 4 oz Standard & 4 oz Warp Enhanced Fiberglass Cloth


Item

4 oz Standard (1522)

4 oz Warp Enhanced (1521)

Style

1522

1521

Width

25" / 27" / 30"

25" / 27" / 30"

Construction

24 × 22

30 × 18 (Warp Enhanced)

Weight

4 oz

4 oz

Features

Standard 4 oz fiberglass cloth

Higher warp strength, enhanced tensile performance



Transparent and Opaque 4oz Fiberglass Cloth


The appearance of fiberglass cloth after resin impregnation is an important consideration in surfboard manufacturing. Different fabric and sizing specifications can result in different finished laminate appearances.

JLON offers both transparent and opaque 4oz fiberglass cloth.


Transparent 4oz Surfboard Fiberglass Cloth


Our transparent surfboard fiberglass cloth is manufactured using specialized fiberglass yarn and sizing designed for good resin wet-out and laminate clarity.

After proper resin impregnation, the fabric becomes transparent, allowing the underlying surfboard colors, graphics and decorative finishes to remain visible.

Key characteristics:

· Excellent transparency after resin impregnation

· Fine and uniform woven appearance

· Suitable for clear-finish surfboard laminates

· Available in standard and warp-enhanced constructions

JLON's transparent surfboard fiberglass cloth offers quality comparable to Aerialite.


Opaque 4oz Surfboard Fiberglass Cloth


For applications where transparency is not required, JLON also supplies opaque 4oz fiberglass cloth woven directly from E-glass yarn.

This option is suitable for surfboard reinforcement applications where the finished laminate does not need to maintain a transparent appearance.

Important: Transparent and opaque fiberglass cloth have significant price differences. Please specify your required appearance when requesting a quotation.


Fabric Characteristics


4oz fiberglass cloth is a lightweight woven reinforcement material designed for composite manufacturing applications.

Its fine fabric structure and relatively low area weight make it suitable for surfboard production, where fabric handling, surface appearance and laminate reinforcement are important considerations.

Key fabric characteristics include:


Lightweight Reinforcement

The 4oz fabric weight provides a lightweight reinforcement option for surfboard laminates. It can be incorporated into different reinforcement schedules according to the board design.


Fine Woven Structure

The plain-weave construction provides a consistent arrangement of warp and weft yarns, supporting uniform fabric placement during lamination.


Fabric Handling and Drapability

The woven fabric can be positioned and adapted to surfboard contours during lay-up. Actual handling performance depends on the board geometry and lamination process.


Resin Impregnation

The fabric is designed for resin impregnation during composite manufacturing. For transparent grades, proper resin wet-out is particularly important for achieving the desired laminate clarity.


Resin Compatibility and Lamination



4oz fiberglass cloth is commonly used in surfboard manufacturing processes involving resin impregnation and hand lay-up.

The fabric is incorporated into the laminate together with a compatible resin system to form a fiberglass-reinforced composite structure.

Typical manufacturing considerations include:


Resin Selection

Epoxy and polyester resin systems are commonly used in surfboard manufacturing. The appropriate resin should be selected according to the fabric sizing, board construction and manufacturing requirements.

For transparent laminates, resin compatibility and complete wet-out are important factors affecting the final appearance.


Hand Lay-Up

The fabric is positioned over the surfboard surface and impregnated with resin during the lay-up process. Proper placement and wet-out help achieve a consistent laminate.


Layer Arrangement

4oz fiberglass cloth can be used in deck and bottom reinforcement. The number of layers and fabric arrangement should be determined according to the surfboard design and required mechanical properties.





Applications of 4 oz & 4 oz Warp Enhanced Cloth



application of fiberglass cloth 6oz

Surfboard lamination (deck & bottom)


Performance shortboards


Longboards, SUP, and foil boards


Surfboard reinforcement patches


Graphic lamination and clear coat finishing


Lightweight composite structures



Quality and Supply Options


For surfboard manufacturers, consistent fabric specifications and reliable supply are important for maintaining production quality.

JLON focuses on the following aspects of surfboard fiberglass cloth supply:


Fabric Specification Consistency

Maintaining consistent fabric weight, weave construction and product specifications across production batches.


Woven Fabric Quality

Uniform yarn arrangement and fabric appearance are important for consistent handling and laminate production.


Width Options

Standard available widths include 25", 27" and 30", providing options for different surfboard dimensions and manufacturing requirements.


Samples and Customized Supply

Samples can be discussed for fabric evaluation before bulk purchasing. Please contact JLON to confirm current availability, packaging and customized supply requirements.


FAQ


Q1: What is the difference between Style 1521 and Style 1522?

Both are 4oz plain-weave E-glass fabrics. Style 1522 is the standard construction with a 24 × 22 construction, while Style 1521 features a 30 × 18 warp-enhanced construction, providing increased reinforcement in the warp direction.


Q2: Does 4oz fiberglass cloth become transparent after resin impregnation?

JLON's specially manufactured transparent surfboard fiberglass cloth is designed to become transparent after proper resin impregnation. However, not all fiberglass fabrics have this characteristic. We also offer opaque alternatives.


Q3: Which resin systems can be used with 4oz surfboard fiberglass cloth?

Epoxy and polyester resin systems are commonly used in surfboard manufacturing. Compatibility should be confirmed according to the specific fabric sizing and resin formulation.


Q4: Can 4oz fiberglass cloth be used for both surfboard decks and bottoms?

Yes. 4oz fiberglass cloth can be used for both deck and bottom lamination. The actual reinforcement schedule depends on the surfboard design and manufacturing requirements.


Q5: What widths are available for 4oz surfboard fiberglass cloth?

Standard available widths include 25", 27" and 30". Please contact JLON to confirm current availability and other customized requirements.


Q6: Is JLON 4oz surfboard fiberglass cloth comparable to Aerialite?

JLON's transparent surfboard fiberglass cloth offers quality comparable to Aerialite. Samples can be provided for customers to evaluate fabric appearance, resin wet-out and processing performance.
