Insulation Material: Electrical iulationsn and protective layers
Non-Stick Tape: Industrial and food processing
Microwave Liners: High-temperature, reusable liners
Conveyor Belts, Fusing Belts, Sealing Belts: Textile, printing, food, and chemical industries
Wrapping Materials: For petroleum and chemical industries
Electrical Industry: High-temperature insulation and protective layers
Desulfurizing Materials: Power plants and chemical desulfurization
Feature | Description |
High Temperature Resistance | Continuous use: -70~260℃, Max: 300℃+ |
Surface Property | Non-stick, easy to clean |
Chemical Resistance | Acid, alkali, and solvent resistant |
Fire Retardant | Complies with industrial flame retardancy standards |
Strength | Excellent tensile strength in warp and weft directions |
Item | Thickness (mm) | Max Width (mm) | Weight (g/m²) | Tensile Strength (N/5cm) | Temperature (℃) | Color |
JLKB008 | 0.08 | 1250 | 140 | 550/450 | -70~260 | Brown |
JLKB012 | 0.115 | 1250 | 220 | 1100/1000 | -70~260 | Brown |
JLKB013 | 0.125 | 1250 | 250 | 1100/1000 | -70~260 | Brown |
JLKB015 | 0.145 | 1250 | 300 | 1200/1100 | -70~260 | Brown |
JLKB025 | 0.23 | 2600 | 480 | 2100/1800 | -70~260 | Brown |
JLKB030 | 0.3 | 3000 | 600 | 2800/2400 | -70~260 | Brown |
JLKB100 | 1.00 | 3000 | 1700 | 6000/5000 | -70~260 | Cream |
Product | 0.13 mm | 0.165 mm |
Product Type | JLKB008AS | JLKB012AS |
Color | Brown | Brown |
Material | Fiberglass | Fiberglass |
Coating Material | PTFE | PTFE |
Basic Thickness | 0.075 mm | 0.075 mm |
Glue Type | Silicone | Silicone |
Total Thickness | 0.13 mm | 0.165 mm |
Total Weight | 195 g/m² | 400 g/m² |
Tensile Strength (Warp) | 898 N/5mm ±5% | 1690 N/5mm ±5% |
Tensile Strength (Weft) | 660 N/5mm ±5% | 1460 N/5mm ±5% |
Temperature Range | -70~260℃ | -70~260℃ |
JLON Composite specializes in the production and sale of high-performance industrial composite materials. Our professional team has extensive experience in thermal materials, applying strict quality control and service systems. Our products serve customers in textile, dyeing, printing, food drying, petroleum, steel, chemical, and pharmaceutical industries, both domestically and internationally, with an excellent reputation.

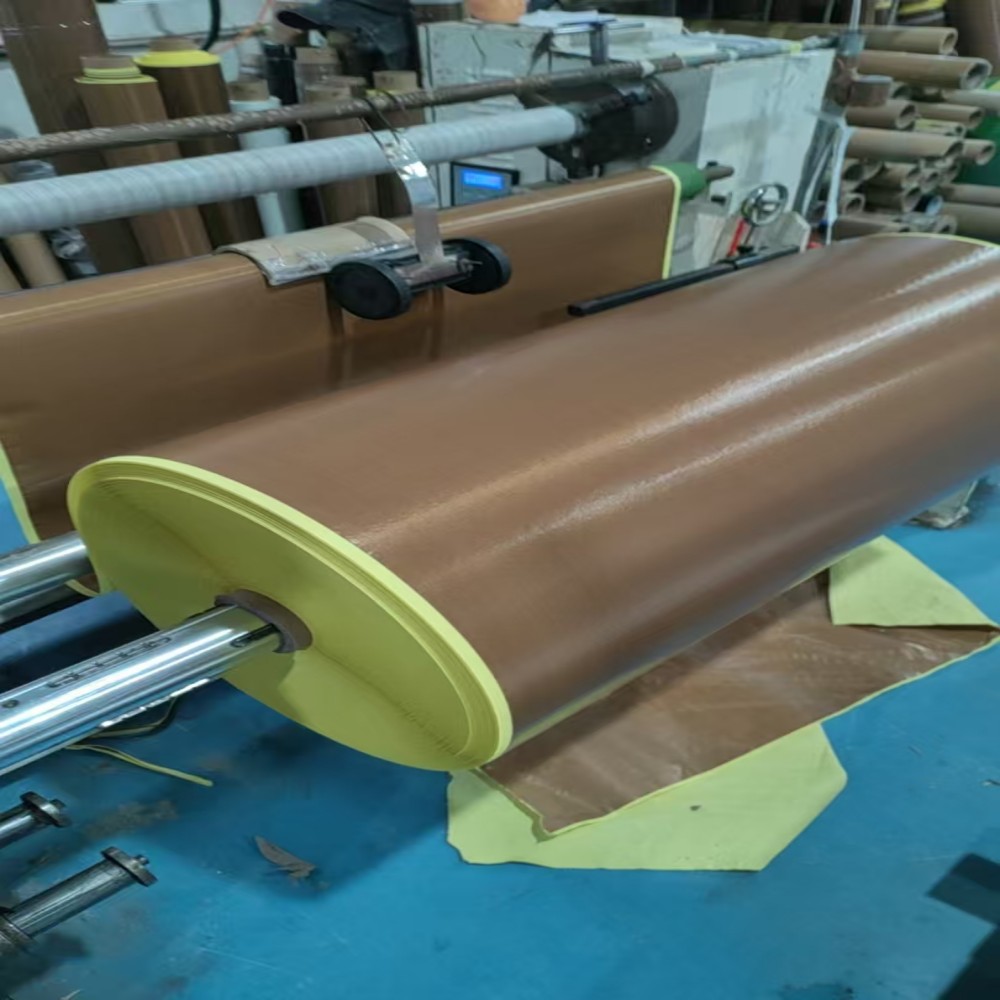

Q1: What is the maximum temperature for PTFE-Teflon coated fiberglass fabric?
A1: Continuous use up to 260℃, with short-term tolerance over 300℃.
Q2: Is the surface sticky?
A2: No, the surface is smooth and non-stick, easy to clean.
Q3: Can this product be used in the food industry?
A3: Yes, suitable for non-direct contact applications like microwave liners and non-stick layers.
Q4: Is it chemical resistant?
A4: Yes, it resists acids, alkalis, and most organic solvents.
Q5: What thicknesses and colors are available?
A5: Thickness ranges from 0.08mm to 1.0mm, with brown, black, and cream colors available. Custom sizes can also be provided.
