Electric vertical take-off and landing aircraft, commonly known as eVTOL aircraft, are emerging as an important part of advanced air mobility. Designed for passenger transportation, airport connections, emergency services, logistics and short-distance regional travel, these aircraft combine vertical take-off capability with electric propulsion.
Weight is one of the most important challenges in eVTOL design. Batteries, electric motors, power electronics and safety systems add considerable mass to the aircraft. Manufacturers must therefore reduce structural weight without compromising stiffness, strength, fatigue resistance or passenger safety.
Carbon fiber composites for eVTOL aircraft offer an attractive combination of low weight, high specific strength, design flexibility and corrosion resistance. They can potentially be used in airframes, wings, rotor blades, battery enclosures, interior structures and many other components.
As a composite materials supplier, JLON provides carbon fiber fabric, carbon fiber sheet, carbon fiber plate, carbon fiber tube, carbon fiber laminates and related composite processing materials for lightweight applications. Material selection should always be based on the structural requirements, manufacturing process, qualification standards and certification requirements of each project.

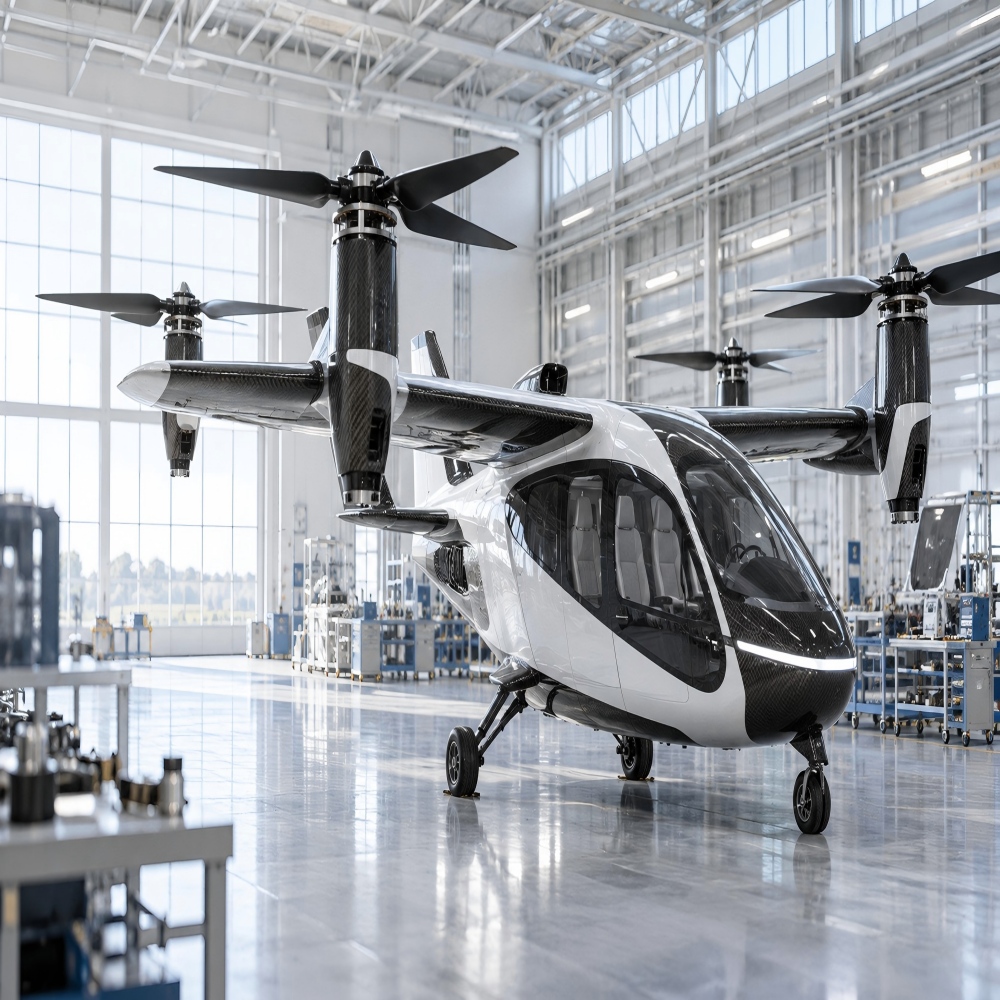

An eVTOL aircraft is an electrically powered aircraft capable of taking off and landing vertically. Unlike conventional fixed-wing aircraft, it does not require a long runway. Unlike traditional helicopters, most eVTOL designs use distributed electric propulsion with several electric motors and rotors.
Depending on the aircraft configuration, an eVTOL may use multiple lift rotors, tilting rotors, ducted fans, lift-and-cruise propulsion or fixed wings for efficient forward flight. The propulsion system may be fully electric or based on a hybrid-electric design.
Potential applications include urban air taxis, airport shuttles, emergency medical transport, cargo delivery, offshore access, tourism and short-distance regional transportation.
Every additional kilogram affects an electric aircraft’s payload, range, energy consumption and take-off performance. Batteries have a lower energy density than aviation fuel, making structural lightweighting particularly important for electric aircraft.
Reducing structural weight can help increase flight range, carry more passengers or cargo, reduce energy consumption, improve vertical take-off performance and decrease the required propulsion power.
However, lightweighting cannot come at the expense of safety. Structural materials must withstand static loads, repeated vibration, fatigue, impact, temperature changes and thousands of take-off and landing cycles.
Carbon fiber reinforced polymer, generally known as CFRP, combines carbon fiber reinforcement with a polymer resin matrix. The carbon fibers carry most of the structural load, while the resin binds the fibers together, transfers loads between them and protects the reinforcement against environmental damage.
Compared with many conventional metals, carbon fiber composites can offer high strength-to-weight and stiffness-to-weight ratios. They also provide good fatigue resistance, corrosion resistance, low thermal expansion and greater freedom in component design.
Another important advantage is the ability to tailor mechanical properties by changing fiber orientation. Engineers can place carbon fibers in the directions where the highest loads occur rather than using the same material thickness in every direction.
These characteristics make carbon fiber composites highly relevant to eVTOL aircraft and other lightweight aerospace structures.
Carbon fiber composites may be used in primary and secondary aircraft structures. The appropriate material system depends on the loads, operating temperature, impact requirements, fire performance, production volume and manufacturing process.
The fuselage must carry flight loads while protecting passengers, batteries and electronic systems. Carbon fiber composites may be used for fuselage skins, structural shells, frames, floor supports and local reinforcement.
Composite construction may also allow manufacturers to integrate several metal components into a larger molded part. Reducing the number of joints, fasteners and separate components can lower structural weight and simplify assembly.
Large aerospace structures generally require controlled material systems, validated laminate designs and repeatable manufacturing processes. Aerospace-grade carbon fiber prepreg is frequently used, although resin infusion and thermoplastic composite processes may also be considered for selected components.
Some eVTOL aircraft use fixed wings to improve efficiency during forward flight. Carbon fiber materials can provide the stiffness required to maintain the aerodynamic shape of the wing while keeping the structure lightweight.
Typical carbon fiber applications include wing skins, spars, ribs, flaps, ailerons, tail structures and other control surfaces.
Carbon fiber is anisotropic, meaning its properties depend strongly on fiber direction. Unidirectional carbon fiber is highly efficient at carrying loads along one main direction, while woven carbon fiber fabric provides more balanced properties and easier handling.
A wing laminate may include 0-degree layers for longitudinal stiffness, positive and negative 45-degree layers for shear and torsional loads, and 90-degree layers for transverse stability. Woven carbon fiber cloth may also be used as a surface layer to improve handling and provide reinforcement in two directions.
The final laminate structure must be determined through engineering analysis, physical testing and applicable aerospace design requirements.
Rotor blades and propellers experience repeated bending, torsion, vibration and centrifugal forces. Low weight is especially important because rotating mass affects motor loads, dynamic balance, noise and aircraft control response.
Carbon fiber composites may be used in rotor blade skins, spar caps, internal reinforcement, propeller blades and local attachment areas.
Rotor components require accurate dimensions, consistent fiber placement and strict manufacturing control. Small variations in mass or stiffness between blades may affect rotor balance and aircraft performance.
Battery systems are among the heaviest and most safety-critical parts of an eVTOL aircraft. The battery enclosure must protect the cells and modules against vibration, impact, moisture, foreign objects and environmental exposure.
Carbon fiber composites may reduce enclosure weight, but carbon fiber is electrically conductive. This property must be considered when designing electrical insulation, grounding, electromagnetic compatibility and interfaces with metal components.
A complete battery protection system may combine structural composite skins, electrical insulation, thermal barriers, flame-resistant materials, impact protection, controlled venting and thermal runaway management.
Carbon fiber alone does not provide a complete fire-protection solution. Resin selection, laminate design, insulation materials, connection design and system-level testing are equally important.
Not every eVTOL component requires an aerospace primary-structure material system. Carbon fiber composites may also be suitable for secondary and interior components such as seats, seat supports, instrument panels, interior panels, equipment brackets, access covers, electronic housings and lightweight support members.
For these applications, carbon fiber sheet, carbon fiber plate and carbon fiber tube can provide a useful combination of low weight, stiffness, dimensional stability and corrosion resistance.
Different forms of carbon fiber are selected according to component geometry, load direction, production volume, surface requirements and manufacturing process.

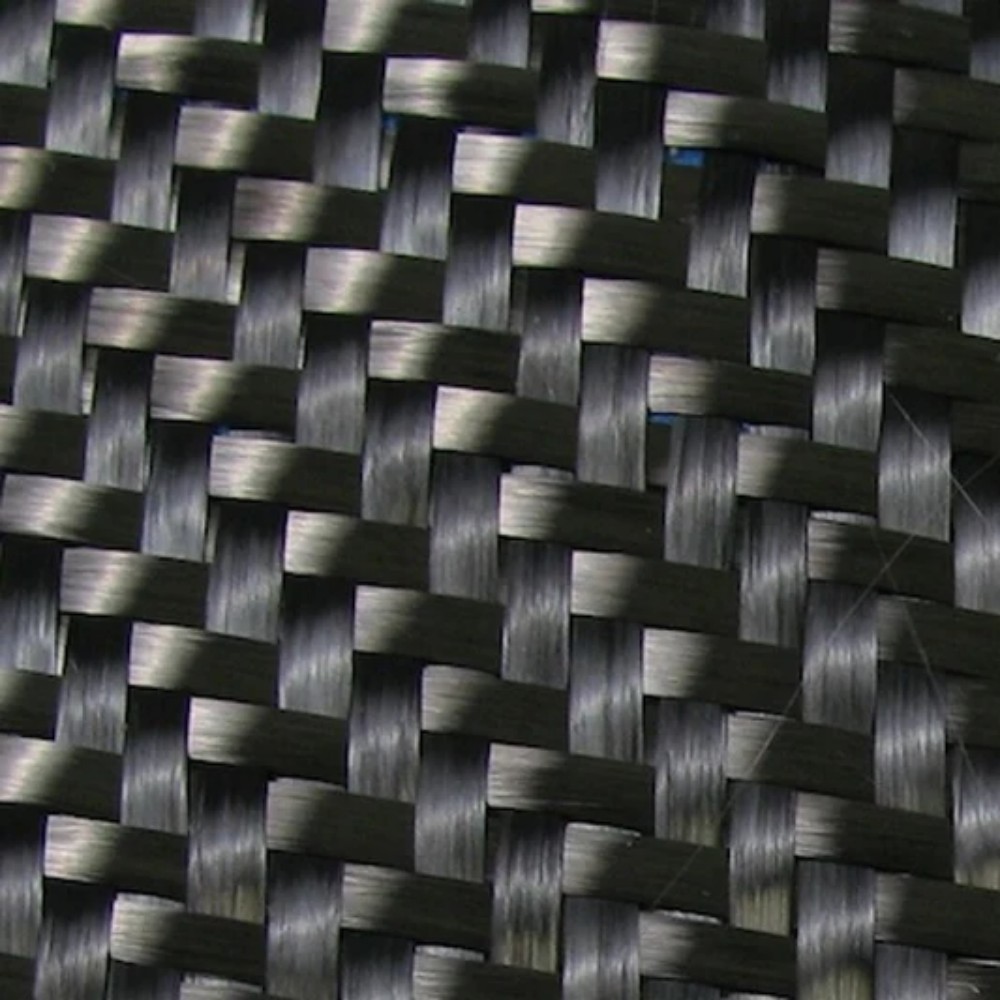

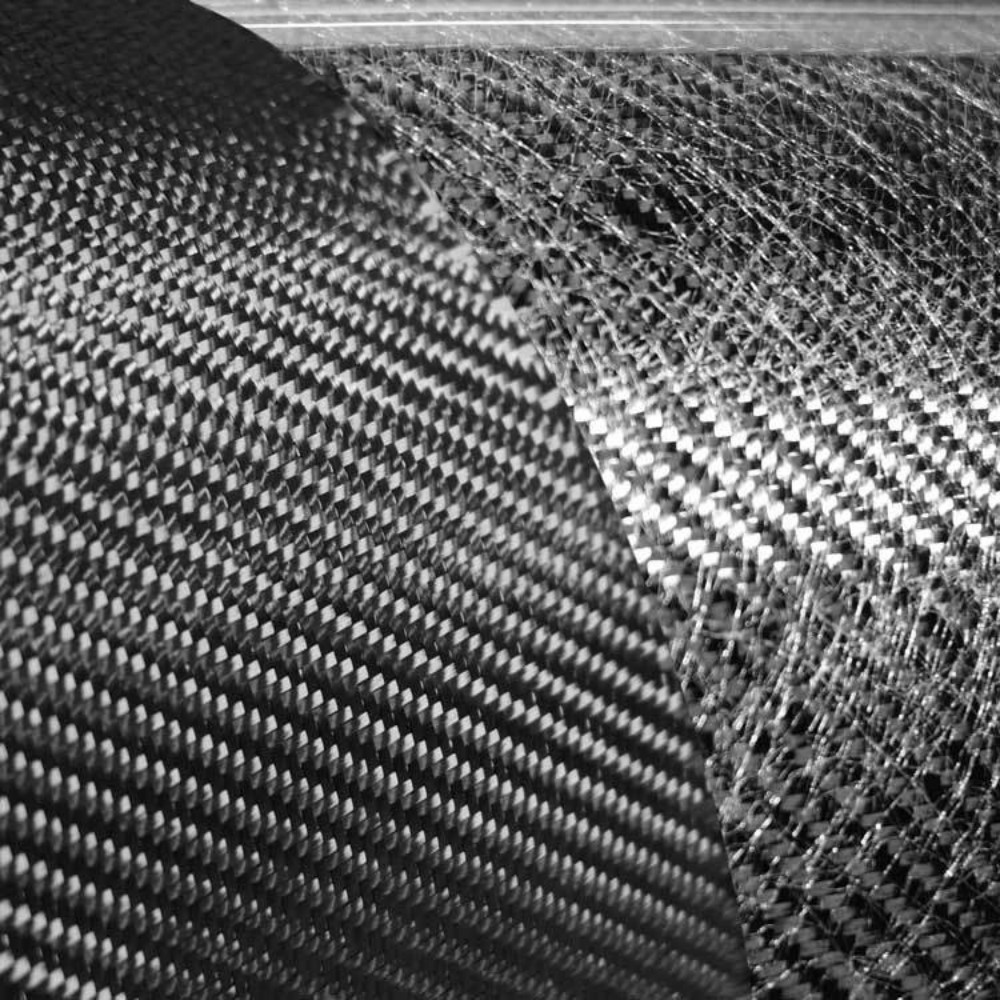

Carbon fiber fabric is available in plain, twill and satin weave patterns, as well as different tow sizes, widths and areal weights.
Woven carbon fiber fabric offers good handling, balanced in-plane reinforcement and the ability to conform to curved surfaces. It can be used in resin infusion, wet lay-up, prepreg production and other composite manufacturing processes.
Plain-weave carbon fiber fabric provides good dimensional stability because the fibers interlace frequently. Twill-weave carbon fiber fabric generally provides better drapability and a smoother appearance, making it suitable for components with curved geometry or visible carbon surfaces.
JLON supplies carbon fiber fabric in different weave patterns, fabric weights, fiber configurations and roll widths for lightweight composite manufacturing.
Unidirectional carbon fiber places most fibers in one direction, allowing engineers to concentrate stiffness and strength along the primary load path.
It may be considered for wing spars, beam reinforcement, rotor blade reinforcement, longitudinal structural members and local high-load areas.
Unidirectional carbon fiber is normally combined with off-axis or woven layers to create a laminate capable of carrying loads in multiple directions. A structure containing only one fiber direction may have excellent longitudinal properties but inadequate transverse or shear performance.
Carbon fiber prepreg consists of reinforcement pre-impregnated with a controlled quantity of resin. It offers accurate resin content and consistent material distribution when stored, handled and processed correctly.
Potential advantages include a stable fiber-to-resin ratio, repeatable laminate performance, good surface quality and low void content under properly controlled manufacturing conditions.
However, many thermoset prepregs require refrigerated storage, controlled thawing, limited out-time and oven or autoclave curing. These requirements increase logistics complexity, manufacturing cost and production control requirements.

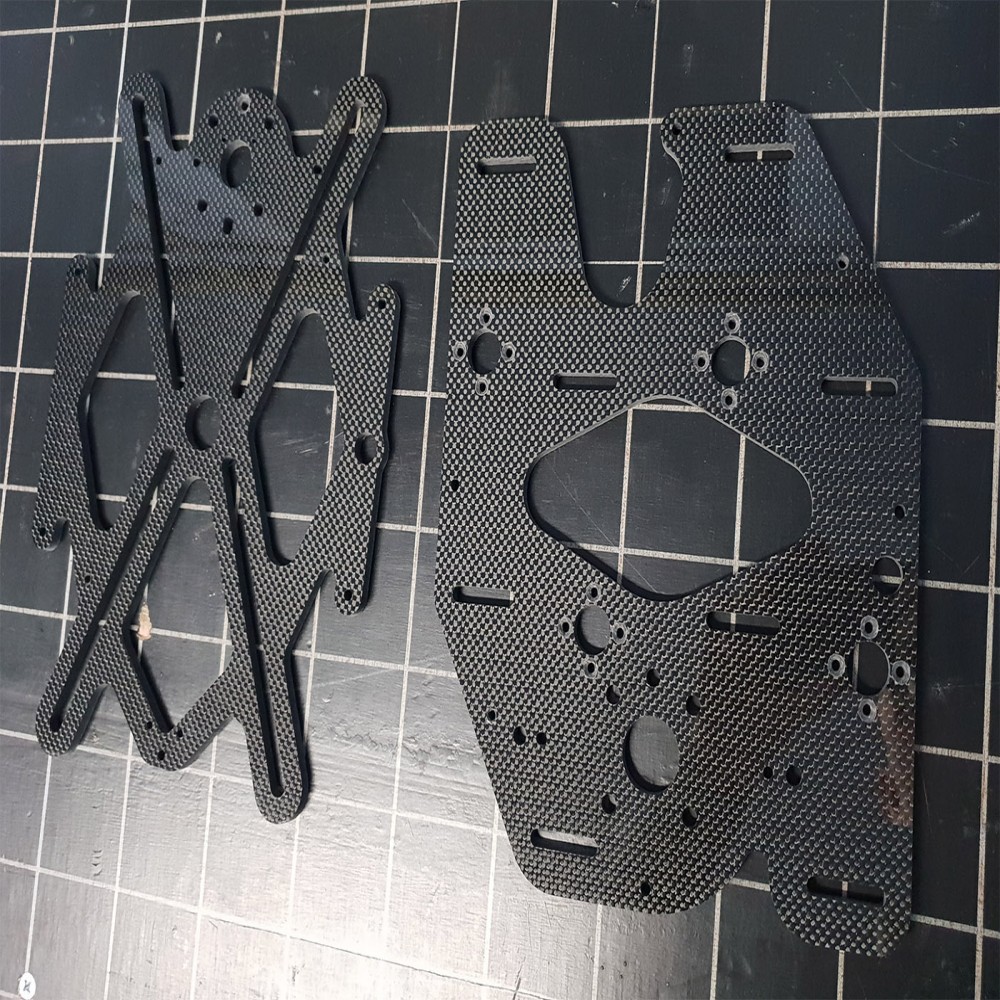

Carbon fiber sheet and carbon fiber plate are cured laminates supplied in standard or customized thicknesses. They can be machined into brackets, covers, frames, panels and support components.
Carbon fiber sheets are particularly useful for prototyping and secondary structures where customers require high bending stiffness, low weight, dimensional stability, corrosion resistance and machinable flat stock.
JLON supplies carbon fiber sheets, carbon fiber plates and carbon fiber laminates for industrial, UAV, transportation and other lightweight structural applications.
Carbon fiber tubes may be used for lightweight frames, struts, equipment supports, control links and mounting structures.
Important specifications include outside diameter, inside diameter, wall thickness, fiber orientation, manufacturing process, dimensional tolerance, straightness and surface finish.
Pultruded carbon fiber tubes generally contain fibers oriented mainly in the longitudinal direction. They provide high axial stiffness but may have limited torsional performance. Roll-wrapped carbon fiber tubes can incorporate several fiber orientations to improve bending, torsional and transverse properties.
The selected production process affects laminate quality, dimensional accuracy, cost, cycle time and production scalability.
Autoclave-cured carbon fiber prepreg remains an important process for high-performance aerospace composite structures. Heat, vacuum and external pressure help consolidate the laminate and control void content.
The process can produce excellent laminate quality, but it requires expensive equipment, controlled material storage, labor-intensive lay-up and relatively long production cycles.
Autoclave manufacturing may be appropriate for flight-critical structures and early-stage aircraft production. However, eVTOL manufacturers targeting higher annual production volumes are also evaluating faster and more automated processes.
Out-of-autoclave materials are designed to cure in an oven under vacuum pressure without requiring a full autoclave cycle.
Potential benefits include lower equipment investment, greater flexibility and the ability to manufacture larger components. Nevertheless, material storage, vacuum integrity, debulking, cure temperature, tooling quality and moisture control remain important.
Out-of-autoclave does not mean that process control can be reduced. The selected material and manufacturing process must still be validated for the intended component.
Vacuum infusion draws liquid resin through dry carbon fiber reinforcement under vacuum. It is widely used for large composite structures and can reduce the need for high-pressure curing equipment.
A typical vacuum infusion system uses carbon fiber fabric together with peel ply, release film, flow media, vacuum bagging film, sealant tape, spiral tubing, resin inlet lines and vacuum lines.
JLON supplies carbon fiber reinforcement and vacuum infusion consumables for composite manufacturing. The suitability of vacuum infusion for a particular eVTOL component must be verified through engineering evaluation, process validation, structural testing and any required certification.
Compression molding is attractive for repeatable production of medium- and high-volume composite components. It can process thermoset or thermoplastic composite materials, including sheet molding compounds, preforms and pre-consolidated laminates.
Potential advantages include shorter cycle times, repeatable dimensions, component integration and reduced finishing requirements.
For eVTOL production, compression molding may be considered for brackets, covers, interior parts, battery components and selected secondary structures.
Thermoplastic carbon fiber composites are receiving increasing attention because they can offer short forming cycles, high impact resistance, long material shelf life and the possibility of fusion welding.
They may also support more automated manufacturing and potentially improved end-of-life recycling compared with conventional thermoset composites.
Processing methods include thermoforming, compression molding, automated tape placement and fusion welding. High processing temperatures, consolidation pressure, material cost and equipment requirements remain important considerations.
Carbon fiber selection should not be based only on tensile strength. The complete fiber-and-resin system must be evaluated against the requirements of the final component.
Important mechanical properties include tensile strength, tensile modulus, compression strength, flexural strength, interlaminar shear strength, fatigue resistance, impact resistance and fracture toughness.
The required values depend on whether the carbon fiber material is intended for a primary structure, secondary structure, interior component, equipment support or protective enclosure.
The resin matrix affects operating temperature, impact resistance, fire performance, moisture resistance, chemical resistance and processing conditions.
Common matrix materials include epoxy, phenolic resin, high-temperature thermosetting resin, polyamide, PEEK, PEKK, PPS and other engineering thermoplastics.
Aerospace resin systems normally require extensive testing, process qualification and customer approval before they can be used in flight structures.
Passenger-carrying aircraft must consider fire safety at both material and system levels. Required testing depends on component location, aircraft design, operating conditions and applicable regulations.
Carbon fiber itself has high temperature resistance, but the polymer matrix may burn, soften, decompose or produce smoke. A carbon fiber composite should therefore not automatically be described as flame resistant without supporting test data.
Carbon fiber is electrically conductive but does not behave in exactly the same way as a conventional metal structure.
Aircraft designers may need additional protection for lightning strikes, electrical grounding, electromagnetic interference, static dissipation and electrical isolation.
Galvanic corrosion must also be considered when carbon fiber comes into direct contact with aluminum or other susceptible metals, particularly in humid or marine environments.
Materials used in flight-critical structures normally require batch traceability, controlled raw materials, stable manufacturing conditions, certificates of analysis, mechanical test data, approved process specifications and customer qualification.
Commercial carbon fiber fabric should not be described as aerospace-qualified unless the necessary documentation, testing and approvals are available.
The eVTOL industry must balance aerospace safety requirements with the need for faster and more cost-efficient production.
Traditional aircraft are normally produced in relatively limited quantities. Successful air-taxi programs may eventually require much higher annual production volumes.
Manual lay-up and long autoclave cycles can restrict production capacity. Manufacturers are therefore developing automated fiber placement, automated tape laying, compression molding, thermoplastic forming, robotic trimming and integrated composite structures.
Carbon fiber, aerospace resin systems, tooling, quality inspection and certification all contribute to component cost. Material waste may also be significant when parts are cut from wide carbon fabric or prepreg rolls.
Potential cost-reduction methods include automated cutting, optimized nesting, near-net-shape preforms, faster curing, reusable tooling, reduced scrap and consolidation of multiple parts into a single structure.
Composite damage is not always visible on the surface. An impact may cause internal delamination, matrix cracking or fiber damage even when the exterior appears undamaged.
Inspection methods may include ultrasonic testing, thermography, shearography, tap testing, X-ray inspection and structural health monitoring.
Repair procedures must be developed according to component design, material system and applicable aviation requirements.
The environmental benefits of electric flight depend on more than electric propulsion. Material production, manufacturing waste, battery service life and end-of-life treatment must also be considered.
Thermoplastic composites and recycled carbon fiber are attracting attention because they may support more circular material strategies. However, recycled carbon fiber is not automatically suitable for primary aerospace structures. Fiber length, surface condition, traceability and mechanical performance must be evaluated for each application.
JLON supplies a range of carbon fiber and composite materials for UAV, transportation, sports equipment, industrial and other lightweight applications.
JLON’s product range includes carbon fiber fabric, woven carbon fiber cloth, carbon fiber sheet, carbon fiber plate, carbon fiber tube, carbon fiber laminates, carbon fiber veil, carbon fiber chopped strand and carbon fiber powder.
JLON can also provide fiberglass reinforcement and vacuum infusion consumables for customers using resin infusion and other composite manufacturing processes.
To identify a suitable material, customers should provide the final application, component dimensions, required strength and stiffness, preferred fabric weave, areal weight, fiber grade, roll width, resin system and manufacturing process.
Operating temperature, required testing, applicable certification, surface requirements and estimated order quantity should also be clarified before final material selection.
JLON can support customers with material selection, product information, samples and customized specifications. Final suitability for eVTOL or other aviation applications must be confirmed by the aircraft manufacturer or responsible engineering organization through structural analysis, testing, process validation and applicable certification.
Carbon fiber composites for eVTOL aircraft can help reduce structural weight, increase stiffness and enable integrated aerodynamic designs. Potential applications range from fuselages, wings and rotor blades to battery enclosures, seats, brackets and secondary structures.
Selecting the right carbon fiber material requires more than choosing the highest tensile strength. Engineers must consider fiber form, orientation, resin system, fatigue, impact, fire behavior, electrical conductivity, production rate, inspection requirements and certification.
As eVTOL technology develops, the industry is expected to use a combination of aerospace prepreg, dry carbon fiber fabric, thermoplastic composites, compression-molded materials and automated manufacturing processes. Each material and process must be matched to the requirements of the individual component.
