From Fiber to Hull: The Art and Science of Building FRP Boats
Imagine crafting a vessel that is lighter than steel, immune to rust, and shaped to slice through waves—all starting as liquid resin and dry fabric. For over 50 years, fiberglass-reinforced plastic (FRP) boats have revolutionized marine design, combining glass fiber strength with polymer resilience to create hulls that endure harsh oceans for decades. Whether it’s a Royal Navy patrol boat hitting 40 knots4 or a handcrafted fishing dinghy2, the magic lies in the materials and craftsmanship. Let’s break down how raw transforms into seaworthy art.
Every FRP boat starts with four core ingredients:

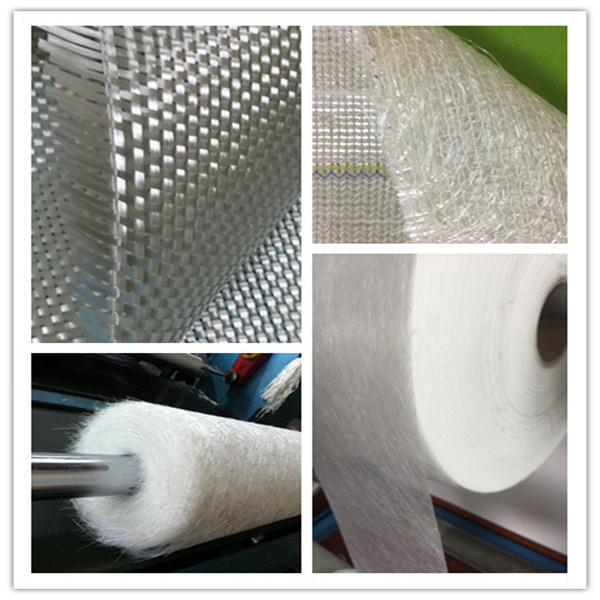

E-glass fiber dominates marine builds for its cost-to-performance balance, typically delivered as:
Chopped Strand Mat (CSM): Random fibers (ideal for conforming curves)
Woven Roving (WR): Directional strength for high-load areas (keels, stringers)
Surface Veil: A fine cosmetic layer beneath the gel coat17.
Pro tip: Opt for ''alkali-free glass' (E-glass) when saltwater exposure is expected—its corrosion resistance is critical3.

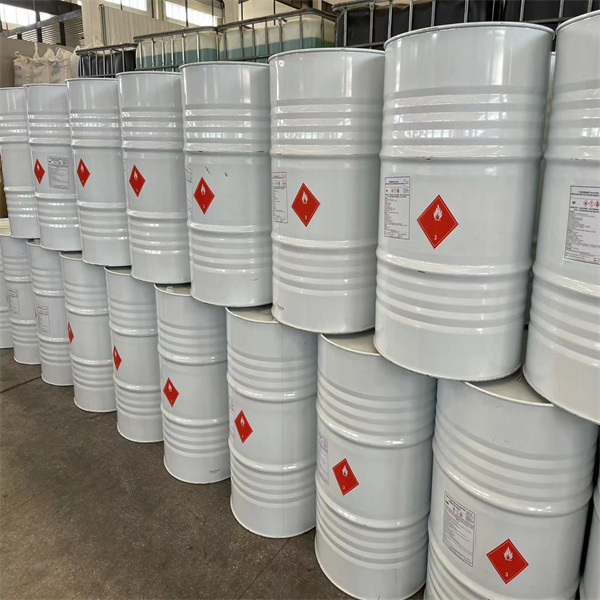

Key types:
Polyester Resin: Budget-friendly and widely used (e.g., Orthophthalic 191A)
Vinyl Ester: Superior waterproofing for high-performance hulls (common in naval craft)
Epoxy: Premium adhesion/moisture resistance—ideal for repairs or critical joints.
Critical ratio: Fiber content should hit 35-50% by weight—too much resin weakens the boat; too little leaves dry spots.

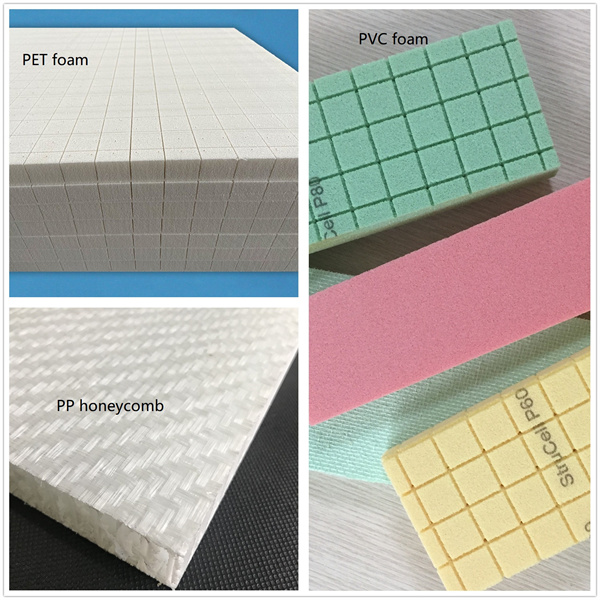

Sandwiched between fiber layers, cores add rigidity without weight:
End-Grain Balsa Wood: High strength but must be pre-wetted to avoid rot at cut edges19.
PVC Foam: Closed-cell (e.g., Divinycell)—immune to water ingress, easily CNC-cut for complex hull shapes.
Watch out: Core joints are failure points.
Bevel edges or wrap fibers around cuts to prevent cracks and water intrusion
Gel Coat: UV-resistant colored surface layer (0.5–0.75 mm thick)
Catalysts & Accelerators: MEKP hardeners + cobalt additives cure resin—use 1–3% by weight.
Release Wax/PVA: Prevents the boat from sticking to molds2.
Functional Fillers: Graphene for anti-aging; zinc oxide for UV stability

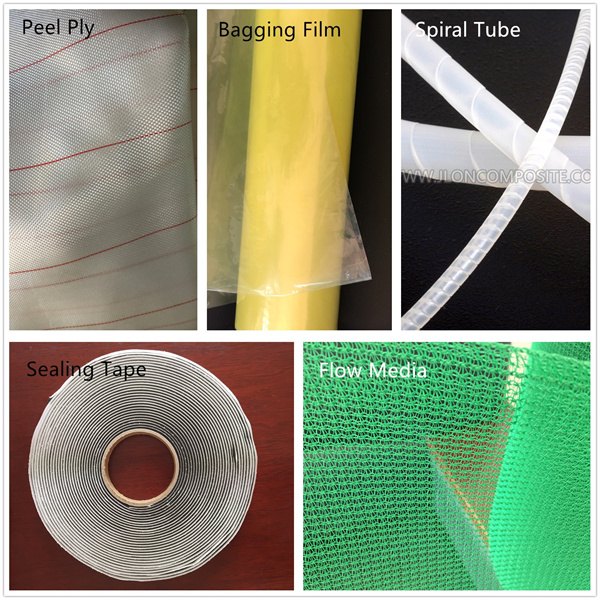

Vacuum infusion consumables: Bagging film, peely ply, core mat
FRP boats start life in a female (concave) mold—often wood or existing FRP—coated with release wax. This ensures a smooth, consistent outer finish3. For one-off builds, carvers shape plug models from timber/foam, then cast a mold in fiberglass2. Precision matters: any flaw replicates onto every hull.
Spray or brush the gel coat into the mold. 0.5–0.75 mm is the sweet spot—thinner risks poor texture; thicker invites cracks19. Let it reach “finger dry” (tacky but not sticky).
Apply a resin-rich surface veil or CSM (80% resin) over the gel coat to prevent “print-through” fabric textures.
Roll resin into fabric, aiming for 65% resin/35% fiber.
Bag the mold, suck resin through dry fibers—boosts fiber content to 50% for lighter, stronger hulls.
Place pre-wetted balsa or foam onto wet laminate. Wrap edges with fibers to lock the core to the skin. Never fill core gaps with resin alone—it cracks under stress!
Fiber-to-Resin Ratios by Layup Method
Method | Fiber Content | Resin Content | Use Case |
Hand Layup | 35% | 65% | Small boats, repairs |
Vacuum Infusion | 45–50% | 50–55% | High-performance vessels |
All-Woven Roving | 50% | 50% | Rarely used (poor bonding) |
Once the shell cures:
Add longitudinal stringers and bulkheads (often foam-cored or wood) for stiffness.
Bond using structural adhesive + fiber tabs—avoid drilling weak points
For older hulls (>3 months), soften surfaces with styrene—not acetone (it dissolves FRP!).
After 12–24 hours curing (or per resin specs):
Pry the hull free, trim edges, and sand.
Flip, then install internals: decks, cabins, engine beds.
Post-cure in sunlight or warm rooms maximizes strength.
Mix small batches—curing generates heat that can warp laminates.
Work at 15–25°C; humidity slows curing
Always trial resin/catalyst ratios on scrap—it’s chemistry, not guesswork.
Use Darcy's law simulations to optimize vacuum infusion flow paths—saves time and material
From 6-meter fishing boats to naval interceptors, FRP balances durability with design freedom.
Modern tweaks—like graphene-doped resins5 or carbon-reinforced stringers4—keep pushing performance. Yes, it demands skill: measuring resin, placing cores, rolling out air bubbles. But when resin bonds to fiber under a shipwright’s hands, liquid becomes armor—ready to take on the sea.
A boat is the closest thing we have to wings on water. Whether you are crafting or cruising, remember: every FRP hull is science shaped by sweat.
