Carbon fiber, also known as graphite fiber, is a high-performance material composed primarily of carbon atoms arranged in microscopic crystalline structures that form long, thin fibers. Each fiber is typically 5–10 micrometers in diameter and contains 90–99% carbon, giving you exceptional strength, stiffness, and lightweight properties. Carbon fiber is widely used in your aerospace, automotive, sports equipment, wind energy, and electronics projects, thanks to its high tensile strength, high modulus, corrosion resistance, and thermal stability.
Production Process:
You can obtain carbon fibers by pyrolyzing precursor materials (commonly PAN, pitch, or rayon) in oxygen-free environments at high temperatures. This process aligns carbon atoms into a crystalline structure along the fiber axis, giving you fibers with high mechanical performance.
Types of Carbon Fiber by Precursor:
PAN-based: High strength, widely used in aerospace and automotive.
Pitch-based: High modulus, ideal for industrial precision applications.
Rayon-based: Lower cost, suitable for general industrial use.
Properties Overview:
High tensile strength: Stronger than steel by weight.
High stiffness: Excellent resistance to bending.
Lightweight: 4–7 times lighter than steel.

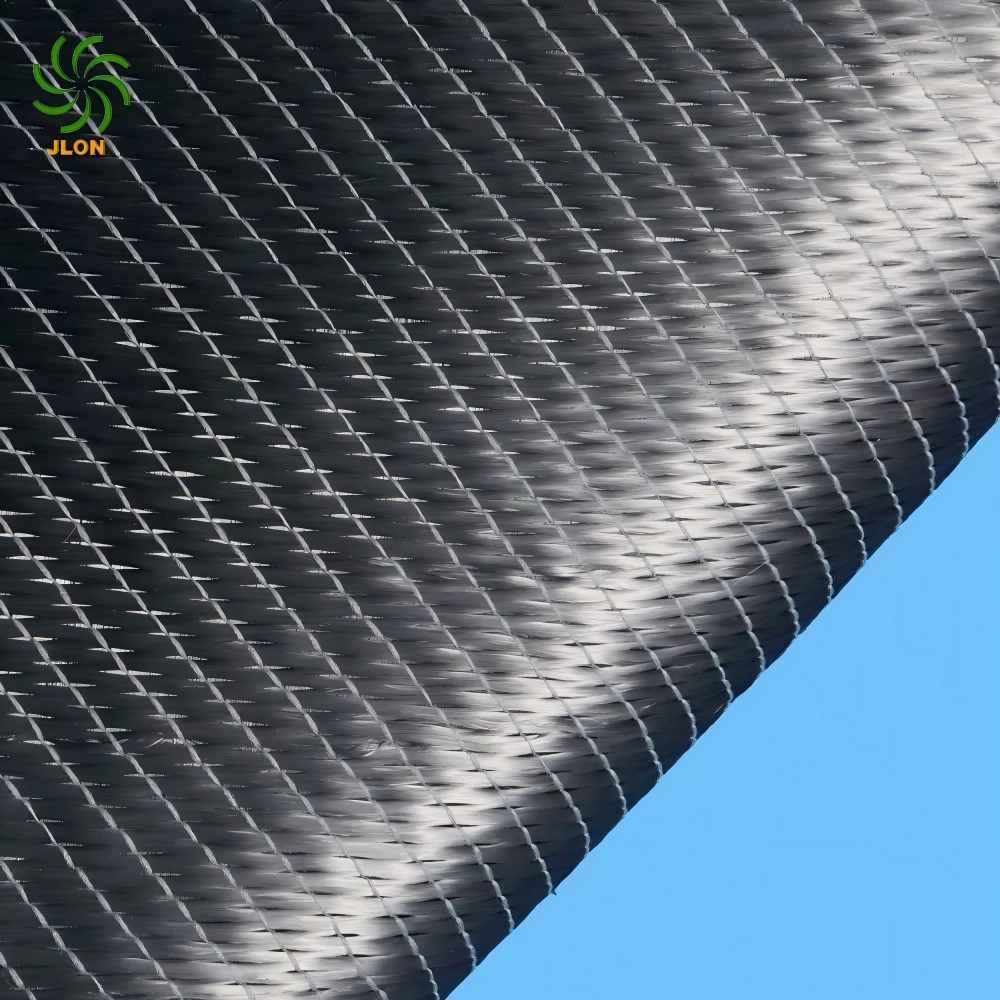

Characteristics:

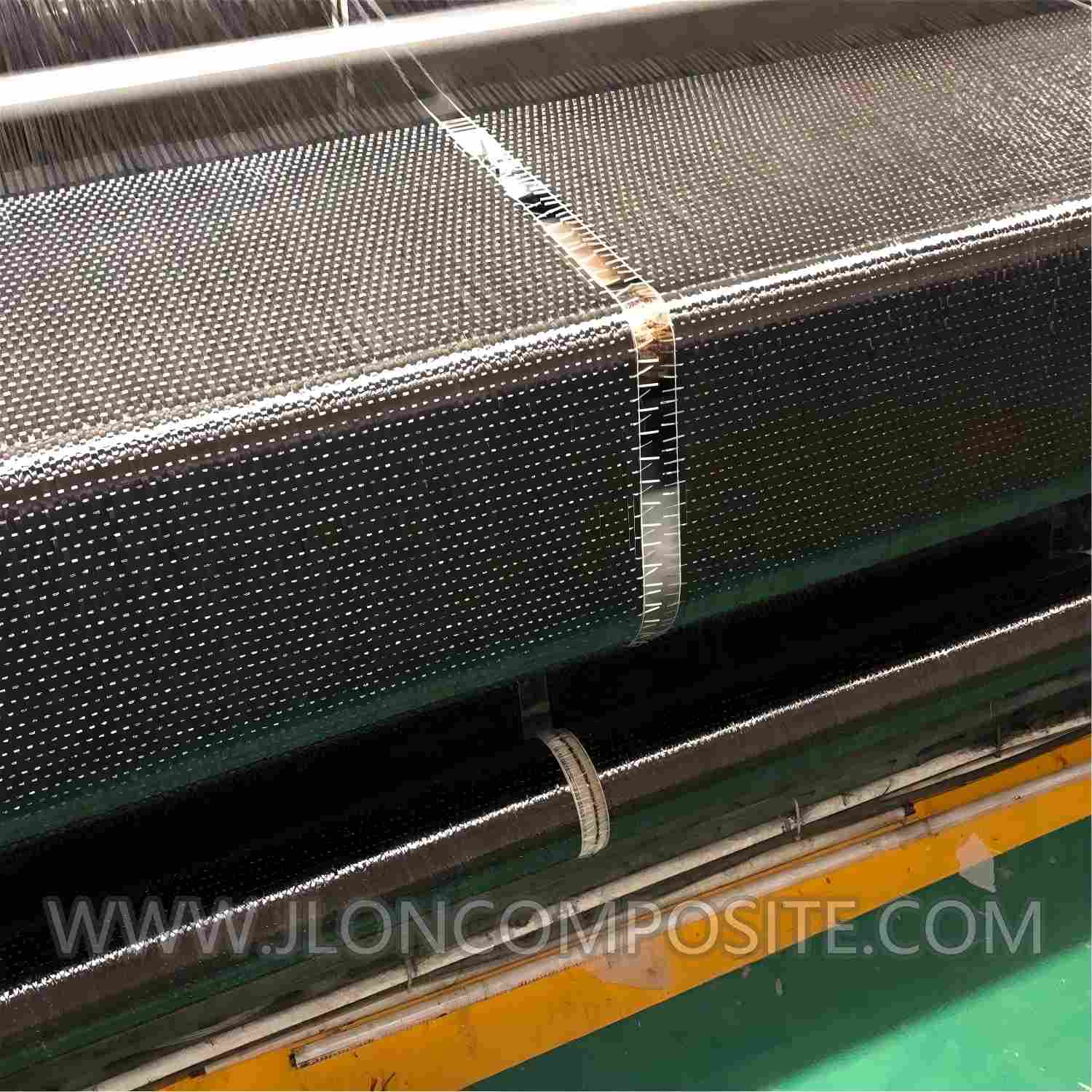

Woven material, available in UD, bidirectional, and twill weaves.
Flexible, easy to cut and shape, compatible with multiple processing methods: hand layup, vacuum bag molding, resin infusion.
Provides fatigue resistance, corrosion resistance, and high-temperature tolerance.
Applications:
Automotive body panels, interior trims, spoilers.
Boat hulls, decks, rudders.
Motorcycles fairings, fuel tanks, protective covers.
Wind turbine spars and skins.
Aerospace UAV frames, satellite components, and sports equipment.
Characteristics:

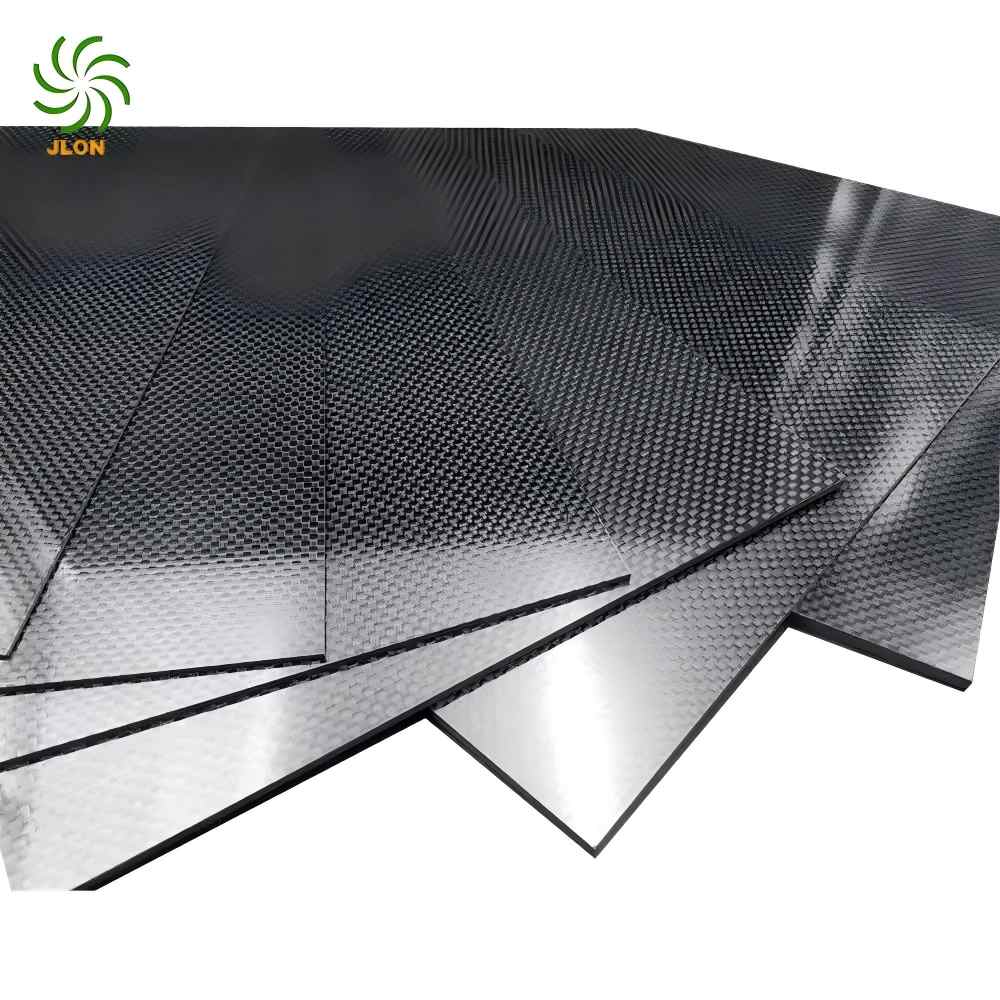

Rigid composite panels made from layered carbon fabrics with resin.
Available in different thicknesses and fiber orientations.
High stiffness, dimensional stability, and fatigue resistance.
Can be cut, drilled, and machined.
Applications:
Electronics and industrial brackets, mounts, protective panels.
Automotive reinforcement panels and chassis plates.
Skateboards, drone plates, RC chassis.
Lightweight aerospace panels.
Characteristics:

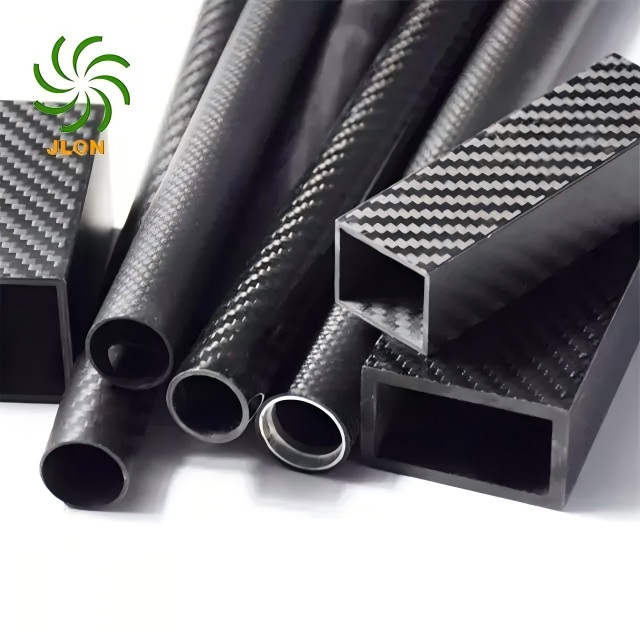

Hollow cylindrical structures with high strength, low weight, and torsion resistance.
Produced via filament winding, pultrusion, or roll-wrapping.
Resistant to corrosion and high temperatures.
Applications:
UAV frames, aerospace structures.
Bicycle frames, golf club shafts, ski poles.
Automotive drive shafts, suspension components, roll cages.
Robotic arms and industrial structural supports.
Characteristics:

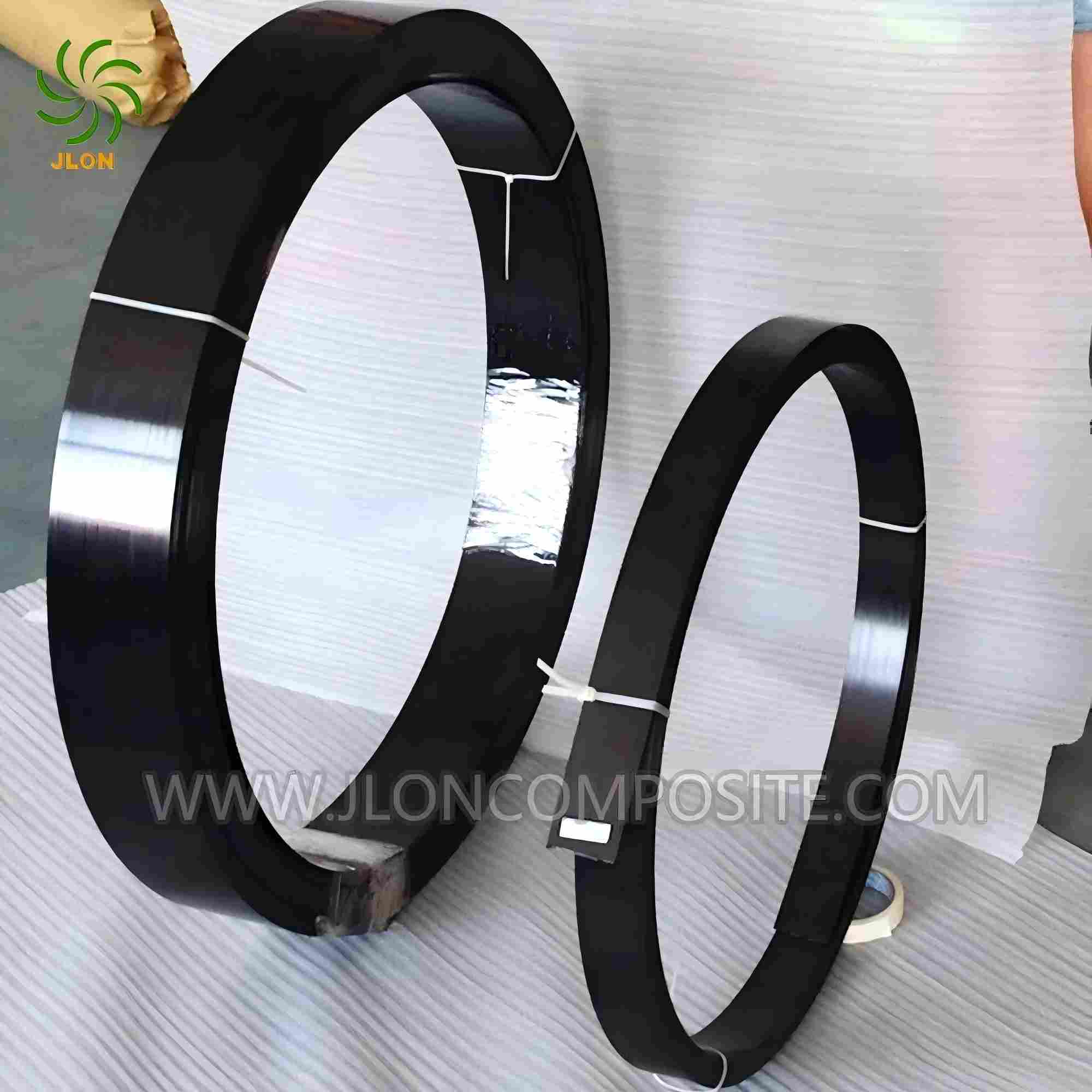

Multi-layer composites for customized directional strength and stiffness.
Available as pre-preg or wet-layup laminates.
High fatigue resistance and dimensional stability.
Applications:
Aerospace fuselage panels, wings, UAV frames.
Automotive chassis panels, spoilers, and bodywork.
Wind turbine blades.
Industrial machine parts and molds.
Characteristics:

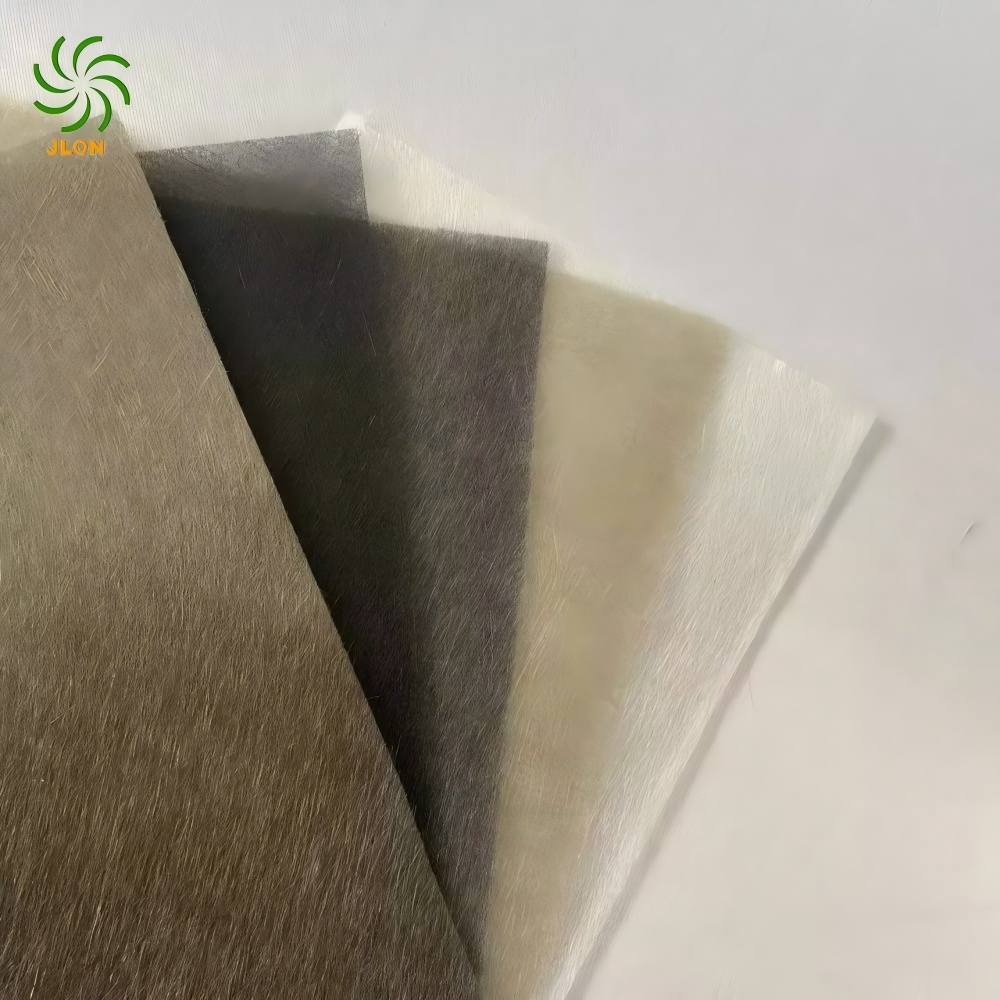

Thin, lightweight, randomly oriented fibers.
Enhances surface finish, resin flow, and scratch resistance.
Applications:
Cosmetic layers on visible aerospace and automotive parts.
Protective layers for marine decks and hulls.
Reinforcement in industrial laminates and molds.

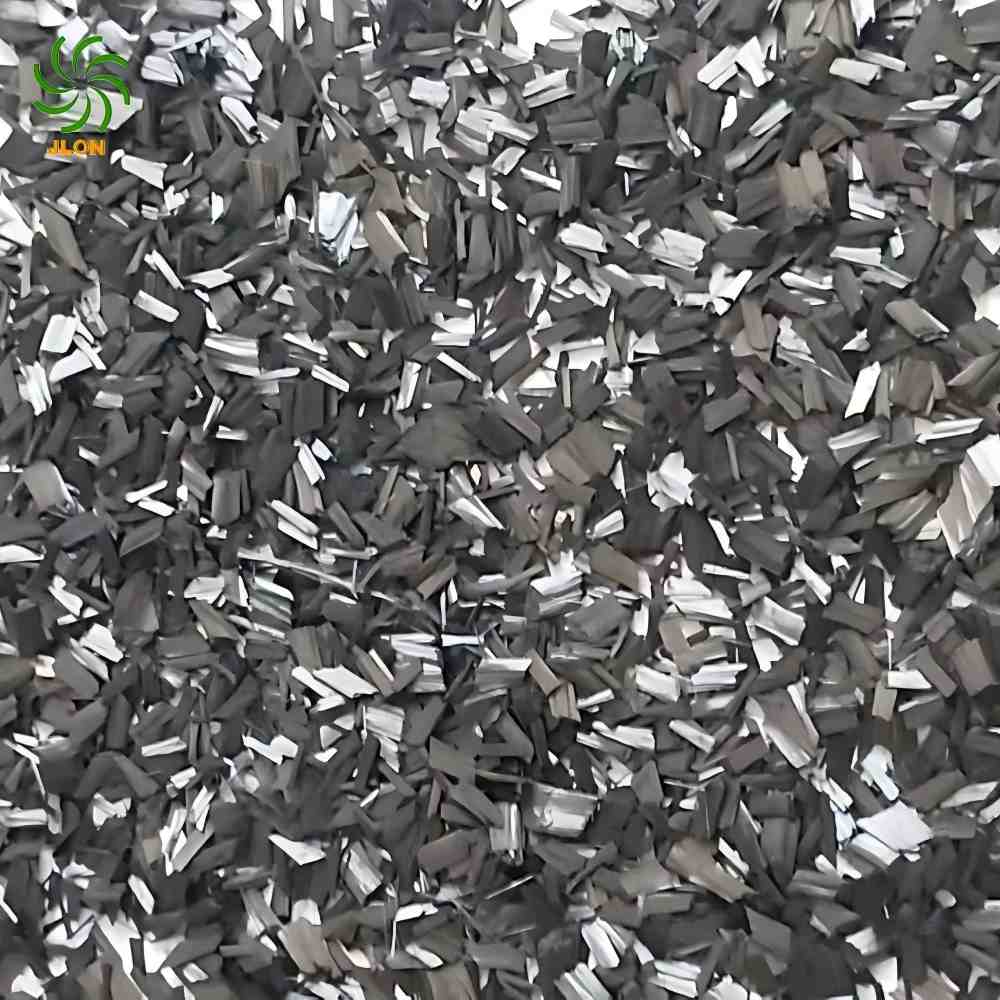

Characteristics:
Short fibers for mixing with resins or thermoplastics.
Improves tensile strength, stiffness, and impact resistance.
Suitable for injection molding, compression molding, and 3D printing.
Applications:
Automotive interior panels and dashboards.
Machine housings and industrial components.
3D printed carbon fiber filaments.
Consumer sports equipment and electronics casings.
Characteristics:

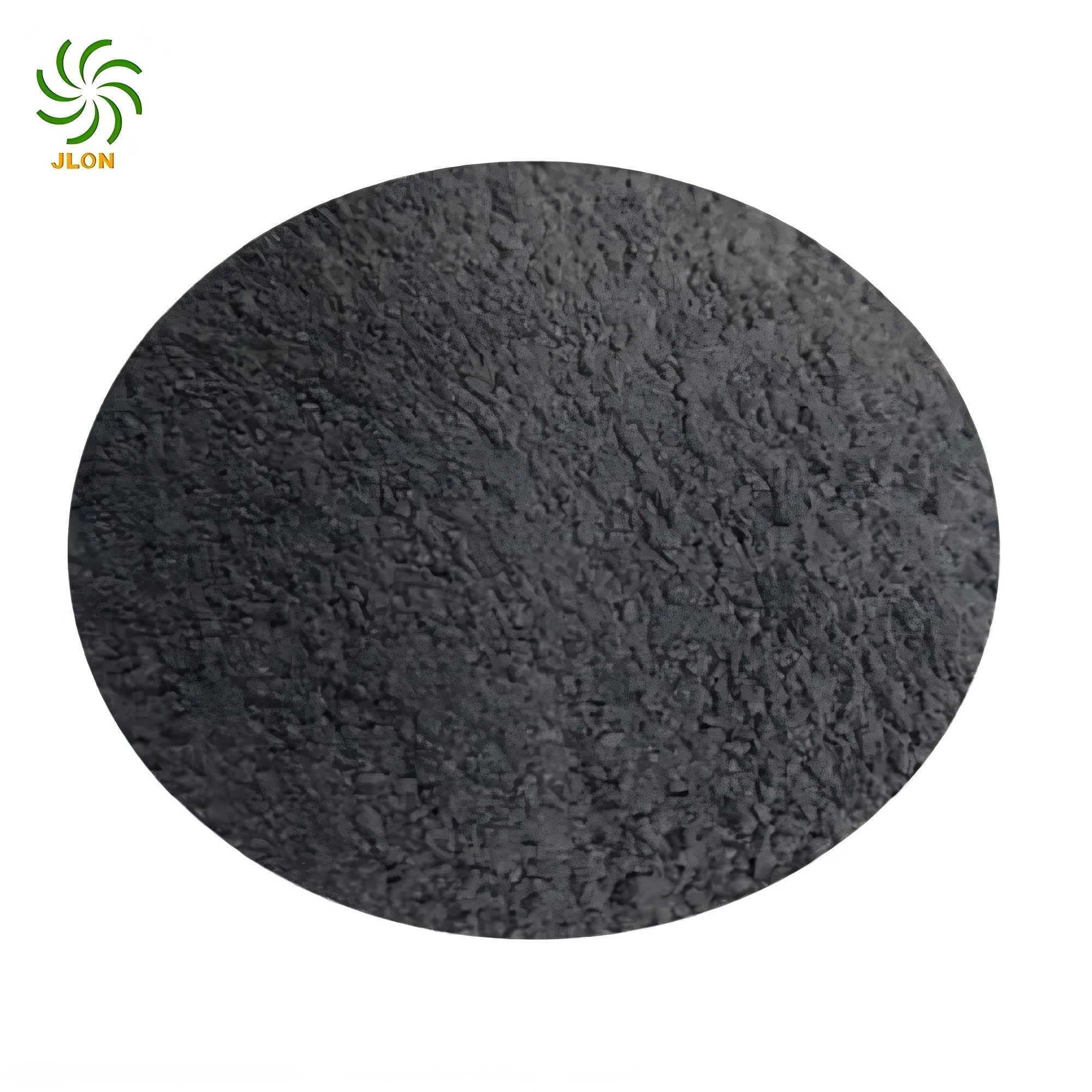

Finely ground carbon fibers used as additives in composites, metals, or plastics.
Improves mechanical, thermal, and electrical properties.
Applications:
Conductive coatings, EMI shielding, heat-dissipating parts.
3D printing high-performance filaments.
Reinforced plastics, molds, and panels.
Lightweight fillers for automotive and aerospace composites.
Material Type | Density | Tensile Strength | Modulus | Flexibility | Typical Use |
Fabric | 1.6 g/cm³ | 3.5 GPa | 230 GPa | High | Automotive, aerospace |
Sheet | 1.6–1.7 g/cm³ | 3.2 GPa | 200–220 GPa | Medium | Panels, brackets |
Tube | 1.5–1.6 g/cm³ | 3.0 GPa | 220 GPa | Medium | Frames, poles |
Laminates | 1.6–1.8 g/cm³ | 3.5 GPa | 240 GPa | Low | Structural parts |
Veil | 0.5 g/cm³ | 1.0 GPa | 50 GPa | Very High | Surface layer |
Chopped Strand | 1.5–1.6 g/cm³ | 2.8 GPa | 200 GPa | Medium | Molded parts |
Powder | 1.4–1.6 g/cm³ | 2.5 GPa | 180 GPa | Low | Fillers, coatings |
Material | Strength-to-Weight | Corrosion Resistance | Cost | Typical Use |
Carbon Fiber | Excellent | Excellent | High | Aerospace, automotive |
Glass Fiber | Medium | Good | Low | Boats, general composites |
Steel | High | Poor | Medium | Structural, automotive |
Aluminum | Medium | Medium | Medium | Automotive panels |
Fabric / Laminates: Hand layup, vacuum bag, resin infusion.
Sheet / Tube: Cutting, drilling, CNC machining.
Chopped Strand / Powder: Injection molding, compression molding, 3D printing.
Surface Treatments: UV coating, paint, resin finishing.
Carbon fiber’s unique combination of lightweight strength, stiffness, and corrosion resistance makes it indispensable across multiple industries. Below, we’ll explore how different sectors leverage JLON’s carbon fiber materials, supported by real-world case examples.

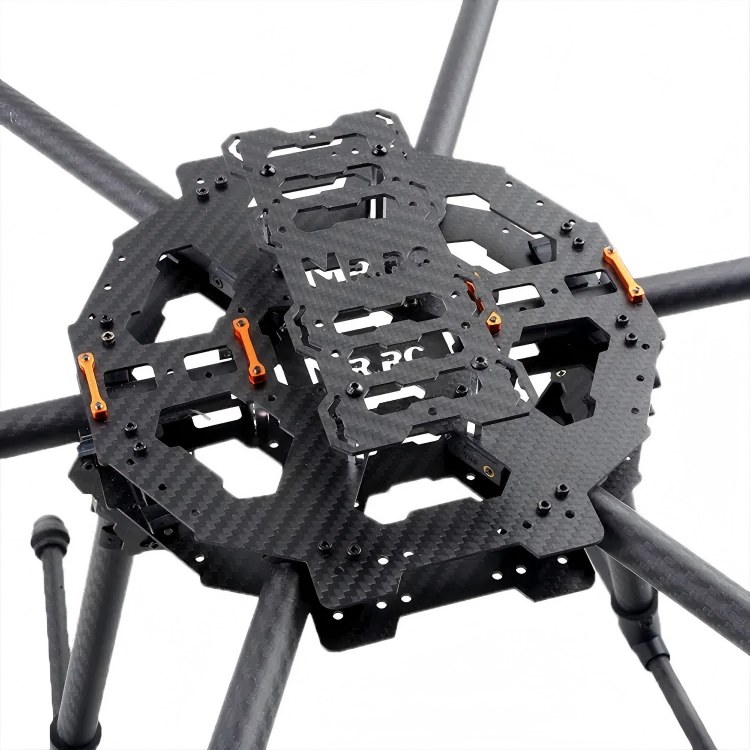

Applications:
Aircraft fuselage panels, wing spars, and control surfaces
UAV (unmanned aerial vehicle) frames and structural shells
Satellite brackets, antenna booms, and instrument housings
Case Example:
A UAV manufacturer replaced traditional aluminum frames with JLON carbon fiber tubes and fabrics, achieving a 20% reduction in structural weight and enhanced flight stability in turbulent conditions.
Applications:

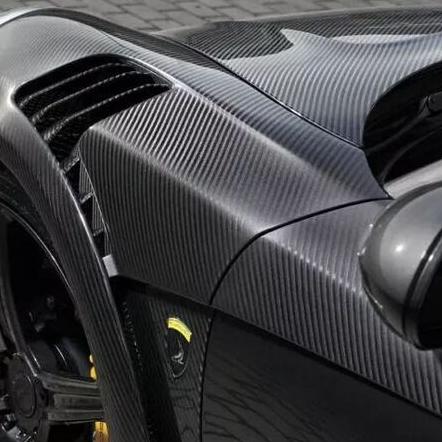

Racing car body panels, spoilers, and chassis components
Interior trims, dashboards, and seat frames
Structural reinforcements for lightweight electric vehicles
Case Example:
A high-performance racing car project used JLON carbon fiber laminates in the chassis and body panels, reducing overall weight by 30 kg and improving 0–100 km/h acceleration by 0.2 seconds.
Applications:
Wind turbine blades, spars, and nacelle covers
Boat hulls, decks, and rudders
Structural reinforcements for yachts and marine equipment
Case Example:
A wind turbine manufacturer integrated JLON carbon fiber laminates into 60-meter blades, increasing blade stiffness and extending service life by 25% while improving power efficiency.
Applications:

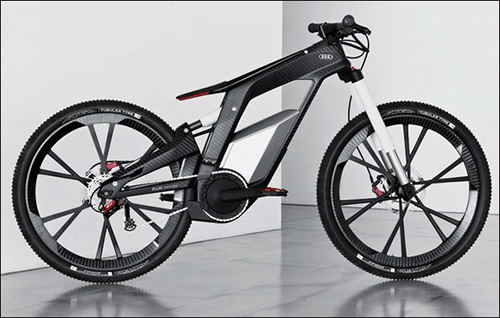

Bicycle frames, tennis rackets, ski poles, fishing rods
Helmets, protective gear, and performance paddles
Golf club shafts and hockey sticks
Case Example:
A professional bicycle brand adopted JLON carbon fiber fabrics for its frame design, achieving a 15% stiffness increase with no added weight, leading to better power transfer and durability.

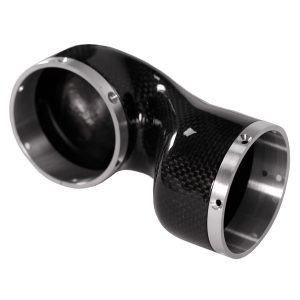

Applications:
Electrnic brackets, structural mounts, and EMI shielding panels
Conductive composites and heat-dissipating housings
Industrial robotics arms and machine structural components
Case Example:
An industrial automation company replaced aluminum robotic arms with JLON carbon fiber tubes, achieving 30% lighter assemblies and faster actuation response without loss of strength.
Carbon fiber technology is continuously evolving, and JLON is at the forefront of innovation to help you stay competitive. Here are the key trends that you should be aware of:
High-Modulus and Ultra-High Strength Carbon Fibers:
Designed for aerospace, automotive, and industrial applications that demand extreme performance.
3D Printing and Additive Manufacturing:
Carbon fiber filaments and powders enable lightweight, complex geometries with strong structural performance.
Sustainable and Recyclable Carbon Fiber:
Advances in recycling technologies make carbon fiber more environmentally friendly, helping your projects meet sustainability goals.
Hybrid Composites:
Combining carbon fiber with other materials like glass fiber or resins to optimize cost and performance for specific applications.
Customized Material Solutions:
JLON provides tailored carbon fiber fabrics, laminates, and tubes to meet your unique strength, stiffness, and design requirements.
By leveraging these trends and JLON’s advanced materials, you can design products that are lighter, stronger, more durable, and more environmentally responsible, giving you a clear edge in today’s competitive market.
Carbon fiber comes in various forms, each with unique properties and applications. From fabrics and laminates to powders and chopped strands, JLON provides you with lightweight, strong, and durable solutions for your aerospace, automotive, sports, and industrial projects. Choosing the right material depends on your performance requirements, application, and processing method. As your industry demands high-performance, lightweight materials, JLON’s carbon fiber remains a critical resource to help you innovate and advance your manufacturing capabilities.
