Electrical meter boxes and distribution boxes may be exposed to live conductors, internal heat, moisture, dust, ultraviolet radiation, mechanical impact and corrosive contaminants. The enclosure material therefore directly affects electrical safety, fire performance, outdoor durability, dimensional accuracy and service life.
Sheet Molding Compound, commonly known as SMC, is widely used for compression-molded electrical enclosures. A properly formulated electrical-grade SMC can combine electrical insulation, flame resistance, mechanical strength, corrosion resistance, weather resistance and efficient mass production.
However, not every SMC formulation is suitable for electrical applications. Manufacturers should select the material according to the operating voltage, installation environment, enclosure design, molding conditions and applicable testing requirements.
This guide explains how to choose SMC for electrical meter boxes and distribution boxes, which technical properties should be evaluated and what information buyers should provide when requesting customized JLON electrical-grade SMC.

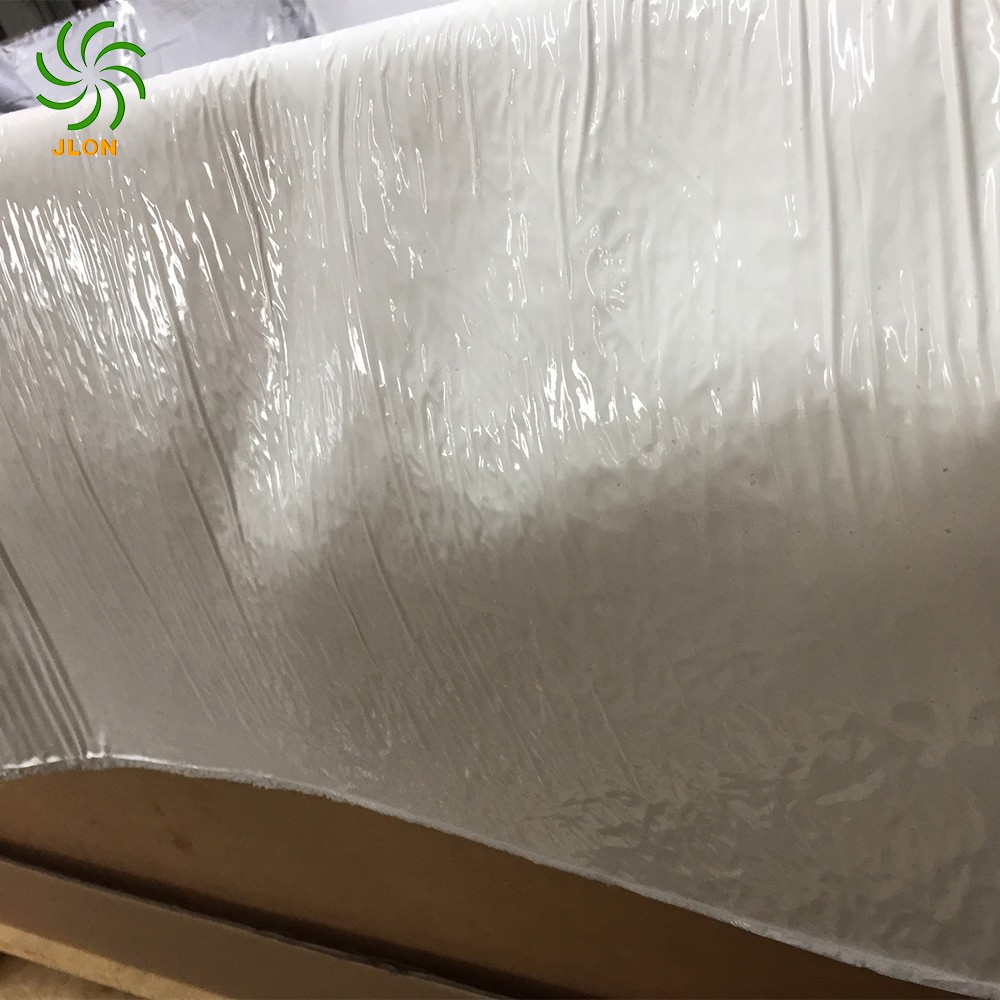

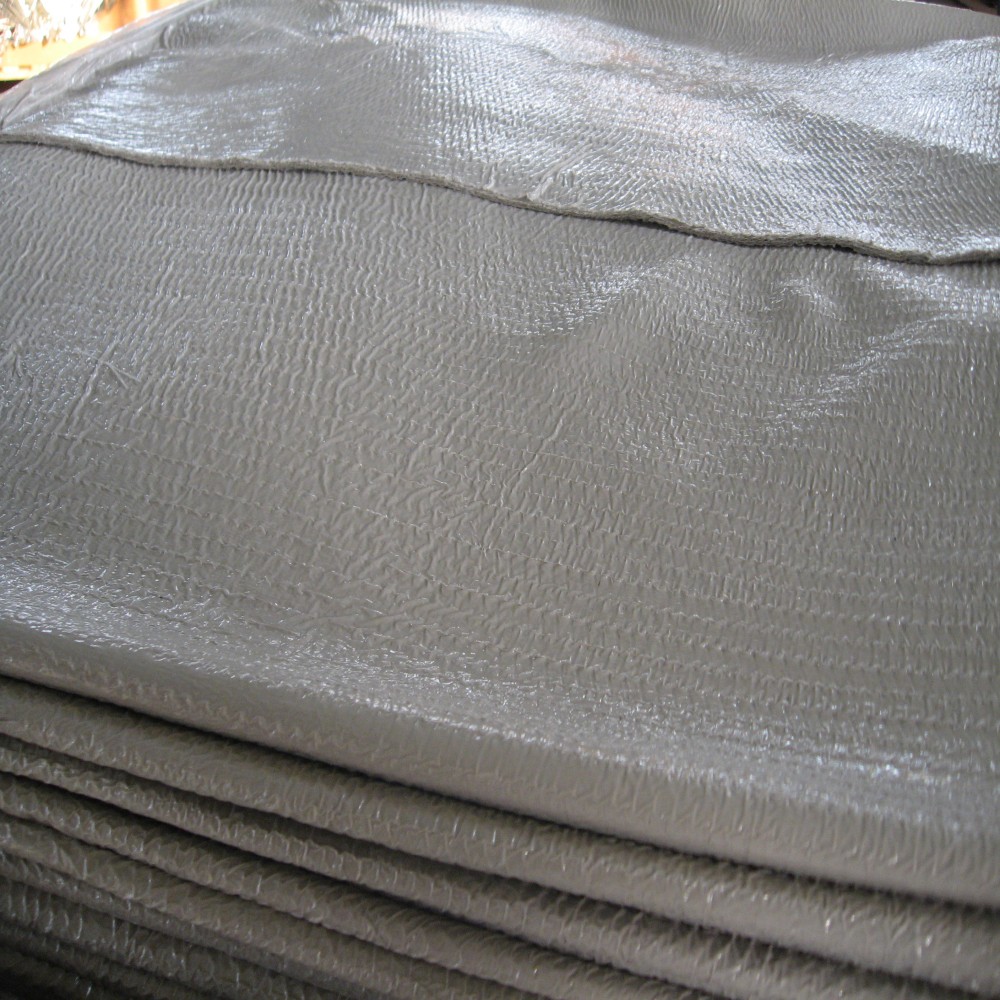

Sheet Molding Compound is a ready-to-mold thermoset composite material supplied in sheet or roll form. It normally consists of a polyester or vinyl ester resin system, chopped glass fiber, mineral fillers and functional additives.
During compression molding, measured pieces of SMC are placed inside a heated mold. Pressure causes the material to flow through the mold cavity, while heat cures it into a rigid composite component.
Electrical-grade SMC is specifically formulated to provide the electrical, thermal, mechanical and environmental properties required by meter boxes, distribution boxes and other FRP electrical enclosures.
The thermoset resin binds the compound together and influences its electrical insulation, heat resistance, chemical resistance and weathering performance.
Unsaturated polyester resin is commonly used for general electrical SMC. Vinyl ester or modified resin systems may be considered when the enclosure requires higher chemical resistance, heat resistance or long-term environmental durability.
Chopped glass fiber provides strength, stiffness and dimensional support.
Increasing the glass fiber content may improve selected mechanical properties, but it can also reduce material flow inside complex molds. The correct fiber content therefore depends on the wall thickness, flow distance, ribs, bosses and load requirements of the finished electrical enclosure.
A higher glass fiber percentage does not automatically mean that the SMC is more suitable. The formulation must balance mechanical strength with moldability.
Mineral fillers help control cost, density, mold flow, shrinkage, surface quality and selected flame-retardant properties.
The filler system must be chosen carefully because it can also influence electrical performance, impact resistance, heat resistance and processing stability.
Flame-retardant additives are used when the electrical enclosure must achieve a specified material flammability classification, such as UL 94 HB, V-1 or V-0.
The flame-retardant system must be compatible with the required dielectric performance, mechanical strength, wall thickness and compression-molding process.
Low-shrink additives help control molding shrinkage, warpage and dimensional variation.
This is particularly important for meter-box covers, sealing surfaces, hinges, locks, mounting points and interchangeable components.
Outdoor electrical boxes require suitable UV stabilizers, weather-resistant pigments and an appropriate resin system.
Color alone does not provide outdoor protection. The complete SMC formulation must be designed to resist sunlight, rain, humidity and temperature cycling.
Electrical-grade SMC is commonly used for residential and commercial electricity meter boxes, low-voltage distribution boxes, cable distribution cabinets, outdoor electrical cabinets, junction boxes, control boxes, photovoltaic combiner boxes, energy-storage equipment housings, communication equipment enclosures and railway electrical components.
It can also be used for switchgear covers, molded insulation panels and other compression-molded FRP electrical enclosure components.
Glass-fiber-reinforced electrical SMC is an electrically insulating material. Unlike steel and aluminum, it does not create a conductive external housing.
The most relevant electrical properties normally include dielectric strength, Comparative Tracking Index, arc resistance, volume resistivity and surface resistivity.
A properly selected SMC meter box can provide an additional insulation barrier around internal electrical components. However, the enclosure material does not replace appropriate creepage distance, electrical clearance, grounding, internal insulation or complete system-level safety design.
Metal meter boxes may corrode when exposed to rain, humidity, salt spray, weak acids, alkalis or industrial pollutants.
SMC does not rust and can provide good resistance to outdoor moisture and many corrosive environments. This makes fiberglass meter boxes and SMC distribution boxes attractive for coastal, agricultural and industrial installations.
Chemical resistance must still be evaluated according to the specific chemical, concentration, temperature and exposure duration. The general description “chemical-resistant SMC” is not sufficient for final material approval.
Outdoor electrical enclosures may remain in service for many years. During this period, they can experience direct sunlight, rain, heat, cold and repeated wet-and-dry or hot-and-cold cycles.
A properly formulated outdoor-grade SMC can provide UV resistance, low water absorption, stable pigmentation, corrosion resistance and good dimensional stability.
An indoor electrical SMC should not automatically be used outdoors without confirming its UV and weathering performance.
Meter boxes and distribution boxes must withstand transportation, installation, door operation, fastening loads and accidental impact.
SMC generally provides higher rigidity and better dimensional stability than many conventional plastics. Reinforcing ribs, mounting bosses, hinge supports and other structural features can also be integrated directly into the molded component.
SMC compression molding is suitable for medium- and high-volume production.
The process can integrate reinforcing ribs, screw bosses, hinge supports, locking features, cable-entry positions, identification areas and internal mounting points into one molded part.
This can reduce secondary assembly work and provide more consistent dimensions than many hand-laminated FRP processes.
Dielectric strength indicates how much electric field an insulating material can withstand before electrical breakdown.
It is normally expressed in kV/mm. However, the reported result is affected by specimen thickness, test method, moisture conditioning, test temperature and electrode configuration.
Two dielectric-strength values should not be compared unless they were obtained under comparable testing conditions.
The enclosure manufacturer should provide the operating voltage, required insulation level, nominal wall thickness, minimum wall thickness and applicable test method.
The design of the complete enclosure, including creepage distance, electrical clearance and internal component arrangement, must also be considered.
A typical JLON electrical-grade SMC can achieve dielectric strength of at least 12 kV/mm. The final guaranteed value should be confirmed in the approved technical data sheet for the selected formulation.
Moisture, dust and contaminants can create a conductive path across the surface of an insulating material. This process is known as electrical tracking.
The Comparative Tracking Index, or CTI, evaluates the resistance of an insulating material to surface tracking under specified laboratory conditions.
High CTI is particularly important for outdoor meter boxes, electrical enclosures used in humid climates, coastal installations, industrial cabinets and components with limited creepage distances.
The buyer should request the CTI value or performance level, the applicable test method, specimen thickness and sample-conditioning method.
The supplier should also confirm that the test result applies to the SMC formulation being offered, rather than to a different reference grade.
A typical JLON high-insulation SMC formulation can achieve a CTI value of 600 V or above, subject to final grade confirmation.
Arc resistance indicates how long an insulating material can resist the formation of a conductive surface path under a specified high-voltage, low-current arc test.
It may be important for electricity meter boxes, switchgear covers, electrical insulation panels and distribution equipment.
A typical JLON electrical-grade SMC can provide arc resistance of 180 seconds or higher. The required value should be determined according to the complete electrical design and applicable product requirements.
UL 94 classifications such as HB, V-1 and V-0 describe the burning behavior of material specimens under specified laboratory conditions.
A UL 94 V-0 SMC does not automatically make the complete meter box or distribution box compliant with every fire-safety or electrical-equipment standard.
The manufacturer must separately confirm the required material classification, tested thickness, normal operating temperature, abnormal internal temperature, possible ignition sources and complete-product certification requirements.
Requirements relating to smoke, toxicity or halogen content must also be specified separately when applicable.
The same SMC formulation may achieve different flame classifications at different thicknesses.
A material tested at 3 mm should not automatically be assumed to provide the same result at 1.5 mm. The flame-retardant performance must be confirmed at a thickness relevant to the actual enclosure wall.
JLON can customize flame-retardant SMC according to the customer’s target classification, wall thickness and molding requirements.
Electrical enclosures experience loads during molding, demolding, assembly, transportation, installation and service.
The relevant mechanical properties may include tensile strength, flexural strength, flexural modulus, impact resistance, screw retention, creep resistance and fatigue resistance.
Flexural strength is particularly important for large enclosure panels and covers that must resist bending.
A typical JLON electrical-insulation SMC formulation can provide flexural strength of approximately 170 MPa. This is a typical formulation reference rather than a universal guaranteed value for every JLON SMC grade.
Increasing the glass fiber content may improve strength and stiffness, but it can also reduce mold flow, increase fiber visibility and make thin sections, deep ribs or complex corners more difficult to fill.
An electrical enclosure with a complicated mold may require better flow rather than the highest possible glass fiber content.
The correct SMC grade is the one that fills the customer’s mold consistently while meeting the required mechanical performance of the finished part.
Heat may come from internal electrical connections, circuit breakers, transformers, power electronics, solar radiation or the surrounding industrial environment.
The main thermal properties may include heat deflection temperature, continuous-use temperature, short-term peak temperature, thermal aging and dimensional stability after temperature cycling.
Heat deflection temperature is measured under a specified load and test condition. It should not be interpreted as the maximum continuous operating temperature of the finished electrical enclosure.
A typical JLON electrical-grade SMC formulation can provide an HDT of at least 200°C.
However, the permitted continuous operating temperature must be evaluated separately according to the material formulation, mechanical load, required service life and complete enclosure design.
Low water absorption helps maintain electrical insulation and dimensional stability in humid or outdoor environments.
When comparing SMC materials, buyers should confirm the test method, test duration, water temperature, specimen thickness, conditioning procedure and acceptance limit.
The enclosure must also prevent water from entering through joints, cable glands, locks, inspection windows, fasteners and vents.
The SMC material contributes to environmental durability, but the material alone does not determine the final IP rating of the assembled box.
Meter boxes and distribution boxes commonly contain flat covers, sealing surfaces, hinges, screw bosses, locks, mounting rails, cable entries and interchangeable components.
Poor dimensional stability may cause warpage, uneven assembly gaps, poor sealing, hinge misalignment, locking problems and difficulty installing internal components.

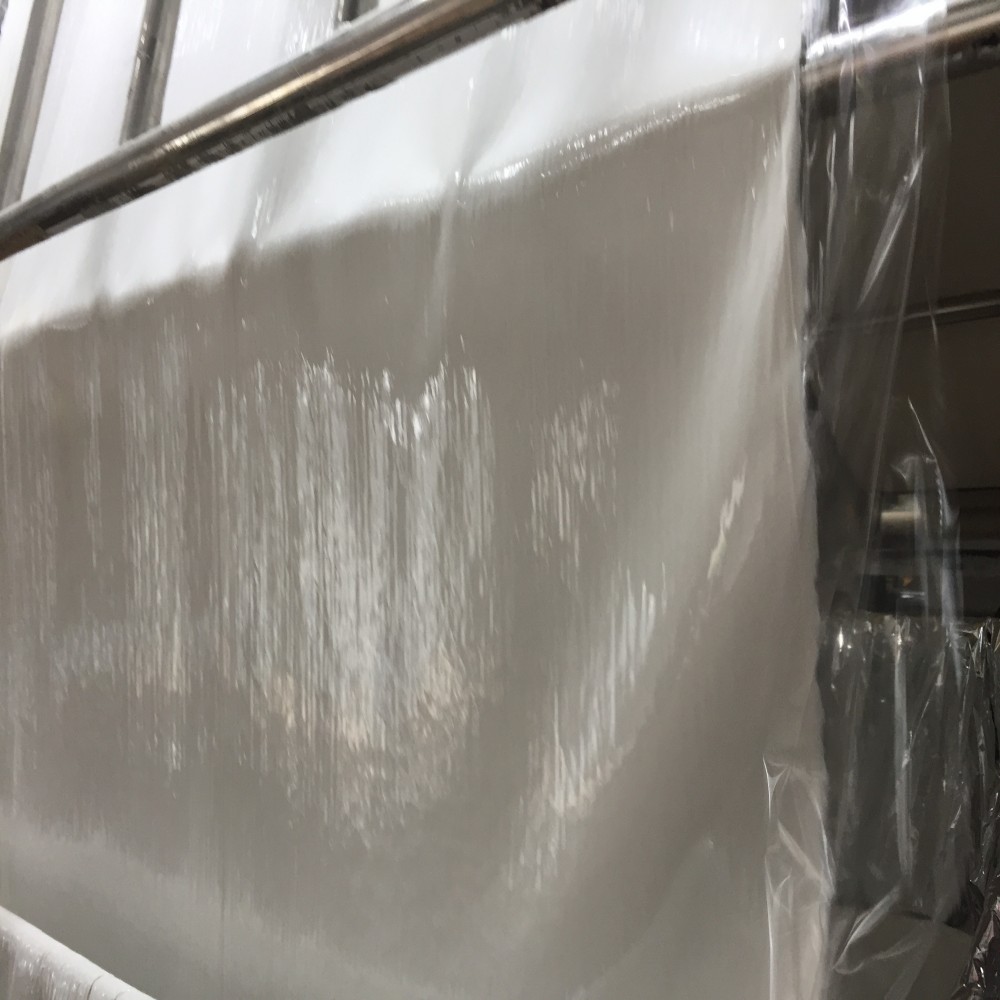

Low-shrink SMC is generally selected when dimensional consistency and stable assembly are the main priorities.
Low-profile SMC is used when the molded part requires an exceptionally smooth and appearance-sensitive surface, such as an automotive exterior panel.
An electrical distribution box does not automatically require low-profile SMC. When the enclosure only requires a functional molded texture, an appropriate low-shrink electrical grade may provide better cost-performance.
An SMC formulation may provide excellent laboratory properties but still perform poorly in the actual enclosure mold.
Mold flow is affected by material viscosity, glass fiber content, thickening level, charge size, charge position, mold temperature, molding pressure, closing speed, wall thickness, rib depth, insert position and mold venting.
Poor matching between the material, mold and molding process may cause short shots, incomplete ribs, exposed fibers, surface porosity, weld lines, blisters, warpage or cracks around inserts.
JLON should receive the part drawing, overall dimensions, nominal wall thickness, finished part weight and the positions of ribs, bosses, inserts and thin-wall sections.
The customer should also provide the mold temperature, molding pressure, press capacity, target cycle time, existing charge pattern and details of any current molding defects.
This information allows JLON to recommend an SMC grade with more appropriate flow and curing characteristics.
Outdoor meter boxes require an SMC formulation specifically designed for long-term sunlight exposure.
The material may need to be evaluated for color change, surface chalking, gloss retention, resin degradation, microcracking and retention of mechanical and electrical properties.
Accelerated weathering tests can help compare materials, but they cannot reproduce every actual outdoor climate.
The installation region, expected UV intensity, temperature range and service-life target should therefore be communicated to the SMC supplier.
SMC meter boxes and distribution boxes are often manufactured in molded-in colors such as gray, beige, black or green.
The customer should provide a RAL or other color reference and specify the acceptable color tolerance, gloss, texture, UV stability and batch-to-batch consistency.
A color approved under indoor lighting may appear different outdoors. Color approval should therefore consider the actual installation environment.
A functional electrical enclosure may require a uniform molded texture, consistent color and freedom from exposed fibers, major porosity and blisters.
A highly visible enclosure may require a smoother surface, lower waviness, improved gloss consistency, reduced fiber read-through or a paint-ready finish.
Surface expectations should be defined before material selection because they can affect the formulation, mold design, processing conditions and cost.
Indoor meter boxes generally experience limited UV exposure and less severe weathering.
The main selection priorities are normally electrical insulation, flame-retardant performance, dimensional stability, mechanical strength, mold flow, surface quality and cost-performance.
An economical electrical-grade SMC may be sufficient when the enclosure is installed in a clean and controlled indoor environment.
Outdoor distribution boxes require additional resistance to UV radiation, rain, humidity, temperature cycling, environmental contamination and long-term aging.
The SMC formulation should provide suitable outdoor weather resistance, low water absorption, dimensional stability and impact performance.
The complete enclosure should also include correctly designed seals, cable glands, drainage, ventilation and fastening systems.
Electrical boxes installed near the sea may be exposed to salt spray, high humidity, strong sunlight, wind-blown sand and repeated wet-and-dry cycles.
SMC does not rust, making it attractive for coastal applications. However, the formulation should still be selected for UV resistance, moisture resistance and long-term outdoor durability.
Metal inserts, hinges, locks and fasteners must also be suitable for the same corrosive environment.
The description “chemical-resistant SMC” is too broad for accurate material selection.
The customer should identify the chemical name, concentration, exposure temperature, contact duration, cleaning procedure and expected service life.
JLON can then evaluate whether a standard polyester SMC is suitable or whether a modified resin system should be considered.
Both SMC and hand-laminated FRP are fiberglass-reinforced materials.
SMC generally provides faster production cycles, more consistent thickness, better dimensional repeatability and easier integration of ribs and mounting features.
Hand-laminated FRP may be more suitable for very large components, low production volumes or projects that do not justify compression-molding tools.
PC, ABS and other thermoplastics can provide low weight, fast injection molding and good reproduction of complex details.
Electrical-grade SMC can provide higher rigidity, better dimensional stability at elevated temperatures, lower creep and strong outdoor durability when correctly formulated.
The final choice should consider wall thickness, heat resistance, UV aging, flame performance, production quantity and tooling cost.
Steel and aluminum offer high toughness, thin-wall capability and electromagnetic shielding.
However, metal is electrically conductive and may require grounding, corrosion protection and additional fabrication or assembly.
SMC is attractive when electrical insulation, corrosion resistance and integrated molded features are more important than inherent electromagnetic shielding.
Identify whether the product is an electricity meter box, distribution box, cabinet door, junction box, insulation panel, photovoltaic combiner box or another electrical component.
Provide the dimensions, nominal wall thickness, finished weight, annual demand and surface requirements.
Confirm the operating voltage, dielectric-strength requirement, CTI, arc resistance, creepage and clearance design, applicable test method and complete-product standard.
Confirm the required material flammability classification, tested thickness, internal heat sources, abnormal operating conditions and complete-enclosure testing requirements.
Any smoke, toxicity or halogen restrictions should also be identified.
Specify whether the enclosure will be used indoors or outdoors. Provide the installation region, temperature range, UV exposure, humidity, salt spray, dust, pollution, chemical contact and required service life.
JLON should review the part geometry, flow distance, wall thickness, ribs, bosses, inserts, press capacity, mold temperature, molding pressure, charge pattern and target molding cycle.
The molding trial should evaluate mold filling, curing, demolding, surface quality, warpage, dimensions, insert retention, assembly and sealing surfaces.
The formulation or molding process should be adjusted if short shots, porosity, warpage or other defects are found.
Material specimens can confirm SMC properties, but final approval should also include the molded and assembled enclosure.
Finished-product validation may include electrical testing, flame testing, impact testing, thermal cycling, water and dust ingress testing, dimensional inspection and long-term environmental testing.
One typical JLON electrical-insulation formulation contains approximately 25% glass fiber.
The fiber content can be adjusted to balance mechanical strength, material flow, enclosure geometry and surface requirements.
A typical density is approximately 1.8 g/cm³.
The finished enclosure weight also depends on part dimensions, thickness tolerances, inserts and molded structural features.
A typical JLON electrical-grade SMC can provide flexural strength of approximately 170 MPa.
The final requirement should specify the applicable test method and specimen condition.
A typical JLON electrical formulation can provide an HDT of at least 200°C.
This value should not be interpreted as the continuous operating temperature of the finished enclosure.
A typical JLON electrical-grade SMC can achieve dielectric strength of at least 12 kV/mm.
The test method, specimen thickness and conditioning procedure must be confirmed.
A typical high-insulation JLON SMC can achieve a CTI value of at least 600 V.
This property is particularly relevant to electrical equipment used in humid or contaminated environments.
A typical JLON electrical-grade formulation can provide arc resistance of at least 180 seconds.
The required value should be selected according to the complete product design.
JLON can provide low-shrink electrical SMC to improve dimensional accuracy, panel flatness, sealing and assembly.
A quantified shrinkage requirement should be agreed for the selected formulation when dimensional tolerance is critical.
JLON electrical SMC can be formulated for low water absorption.
The final technical specification should identify the applicable test method, duration and maximum accepted value.
These values describe one typical JLON electrical-insulation formulation. They should not be treated as guaranteed values for every JLON SMC grade. The final specification must be confirmed according to the customer’s application.
JLON does not use one universal SMC formulation for every electrical enclosure.
The resin system, glass fiber content, filler package and additives can be adjusted according to the finished product, performance requirements, mold geometry and processing conditions.
JLON can supply electrical-grade SMC developed for high dielectric strength, high CTI, arc resistance, flame-retardant performance, low water absorption and heat resistance.
The final technical values are confirmed in the approved technical data sheet for the selected grade.
JLON can adjust the formulation to balance flexural strength, impact resistance, rigidity, shrinkage, warpage control, screw retention and mold flow.
For outdoor SMC meter boxes and distribution boxes, JLON can customize the resin system, UV stabilizers, pigment system, moisture resistance and weathering performance.
Customers can provide an existing TDS, product drawing, molded sample, test requirement or current production problem.
JLON can evaluate this information, recommend a starting formulation, provide samples and refine the specification through molding trials and finished-product testing.
Depending on the project, JLON can discuss both electrical-grade SMC material and compression-molded enclosure components.
For finished enclosure projects, the customer should provide drawings, tooling status, dimensional tolerances, insert requirements, surface requirements, testing standards and forecast quantity.
Standard glass-fiber-reinforced electrical SMC is an insulating material.
Its actual dielectric strength, resistivity, CTI and arc resistance depend on the resin, fillers, additives, moisture condition and complete formulation.
Yes. Outdoor-grade SMC can provide UV resistance, low water absorption, corrosion resistance and good dimensional stability.
The complete meter box must still be designed and tested for water and dust ingress.
No. The required classification depends on the product standard, operating conditions, installation location and customer specification.
UL 94 V-0 is a material flammability classification at a specified thickness. It is not complete electrical enclosure certification.
SMC is one type of fiberglass-reinforced plastic.
An SMC meter box is manufactured by compression molding a ready-to-mold fiberglass-reinforced compound.
The broader term FRP meter box may also include enclosures produced by hand lay-up, RTM or other composite processes.
JLON can evaluate an existing TDS, material sample and performance requirement and develop a comparable or optimized formulation.
Material equivalence should be confirmed through agreed laboratory testing, molding trials and finished-enclosure validation.
Yes. JLON SMC can be manufactured in customized colors.
The customer should specify the color reference, acceptable tolerance, gloss, surface texture, UV stability, batch consistency and whether the product will be used indoors or outdoors.
The customer should first confirm the technical requirements and select a starting formulation.
The next stages should include a molding trial, dimensional inspection, assembly verification, material testing, finished-product testing and approval of a production reference sample.
Choosing SMC for electrical meter boxes and distribution boxes requires more than comparing price, color or glass fiber content.
The correct electrical-grade SMC must balance dielectric strength, tracking resistance, arc resistance, flame-retardant performance, mechanical strength, heat resistance, water resistance, outdoor weather resistance, dimensional stability, mold flow and surface quality.
Material selection should treat the SMC formulation, mold design, compression-molding conditions and finished enclosure as one complete system.
A strong laboratory value has limited practical value if the material cannot fill the mold, maintain flat sealing surfaces or deliver consistent production results.
JLON provides customized Sheet Molding Compound for SMC meter boxes, fiberglass meter boxes, SMC distribution boxes and other FRP electrical enclosure applications.
Send JLON your enclosure drawing, technical requirements, applicable standards and molding conditions. Our team can help evaluate the application and recommend a suitable electrical-grade SMC solution.
Contact JLON to request an electrical-grade SMC technical data sheet, sample, molding evaluation or customized quotation.
