Is Carbon Fiber a Type of Plastic?

What Is Carbon Fiber?

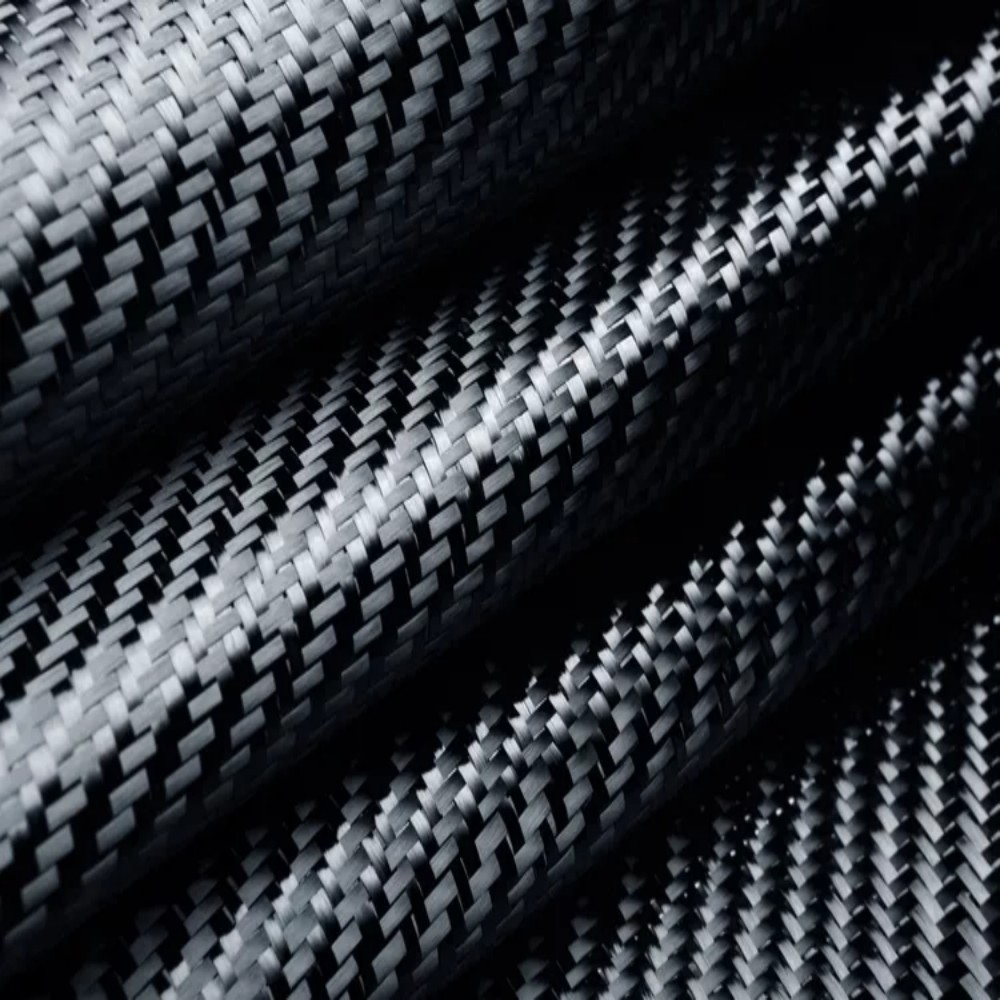

Carbon fiber is an advanced engineering material made from very thin filaments composed primarily of carbon atoms. Each filament is typically 5–10 microns in diameter, which is thinner than a human hair. Thousands of these filaments are bundled together to form a carbon fiber tow, which can then be woven into fabrics or used in composite manufacturing.

Most commercial carbon fibers are produced from a precursor called polyacrylonitrile (PAN). The production process involves several complex stages that transform the precursor fibers into strong carbon filaments.

The typical process includes:

After these steps, the fibers achieve remarkable mechanical properties.

Property	Typical Value
Density	~1.7–1.9 g/cm³
Tensile Strength	Up to 7 GPa
Elastic Modulus	Up to 600 GPa
Strength-to-Weight Ratio	Extremely high

Because of these characteristics, carbon fiber is widely used as a reinforcement material in advanced composite structures where high strength and low weight are critical.

What Does “Plastic” Mean in Composite Materials?

In everyday usage, plastic usually refers to common materials such as polyethylene, polypropylene, or ABS. These materials are widely used in packaging, consumer goods, and molded products.

In composite manufacturing, however, the word “plastic” typically refers to polymer resins that act as the matrix material in a composite.

Common resins used with carbon fiber include:

Epoxy resin – widely used in aerospace and high-performance structures

Polyester resin – commonly used in marine and general composite applications

Vinyl ester resin – known for good corrosion resistance

Thermoplastic resins – used in advanced manufacturing processes

These resins play several essential roles:

Binding the fibers together into a solid structure

Transferring loads between individual fibers

Protecting fibers from moisture, chemicals, and environmental damage

Providing the final shape of the component

Without resin, carbon fiber fabrics or bundles would not be able to form rigid structural parts.

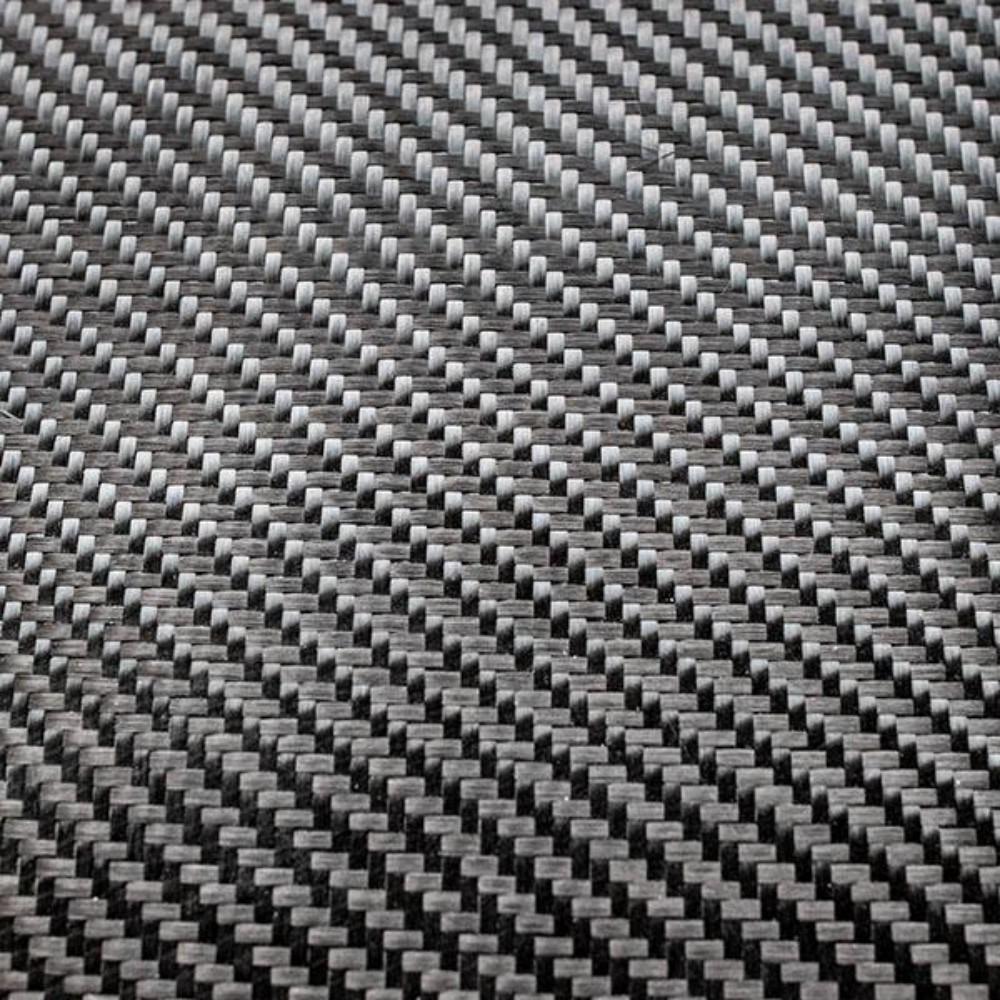

How Carbon Fiber and Plastic Work Together in Composites

Carbon fiber and resin perform different but complementary functions in a composite material.

Carbon fibers themselves are extremely strong along their length but cannot hold a shape without support. The resin matrix surrounds the fibers and locks them into position, allowing the material to act as a single structural component.

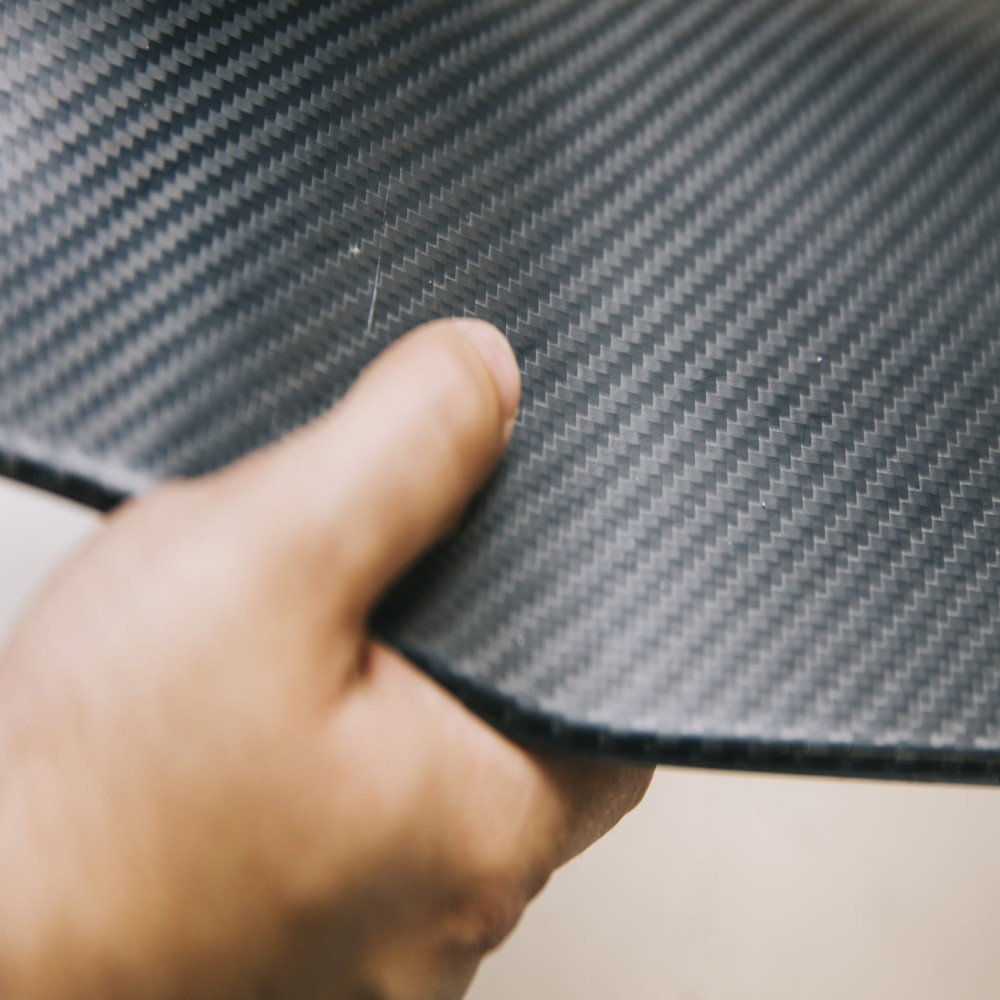

When combined, they form Carbon Fiber Reinforced Polymer, one of the most widely used high-performance composite materials.

In this structure:

Carbon Fiber vs Plastic: Key Differences

Although carbon fiber composites contain polymer resin, carbon fiber itself is fundamentally different from conventional plastic materials.

Feature	Carbon Fiber	Plastic
Material Type	Reinforcement fiber	Polymer material
Strength	Extremely high	Moderate
Stiffness	Very high	Usually lower
Weight	Very light	Light
Heat Resistance	High	Often lower
Structural Capability	Excellent	Limited

Because of these differences, carbon fiber composites are used in applications where ordinary plastics cannot provide sufficient structural performance.

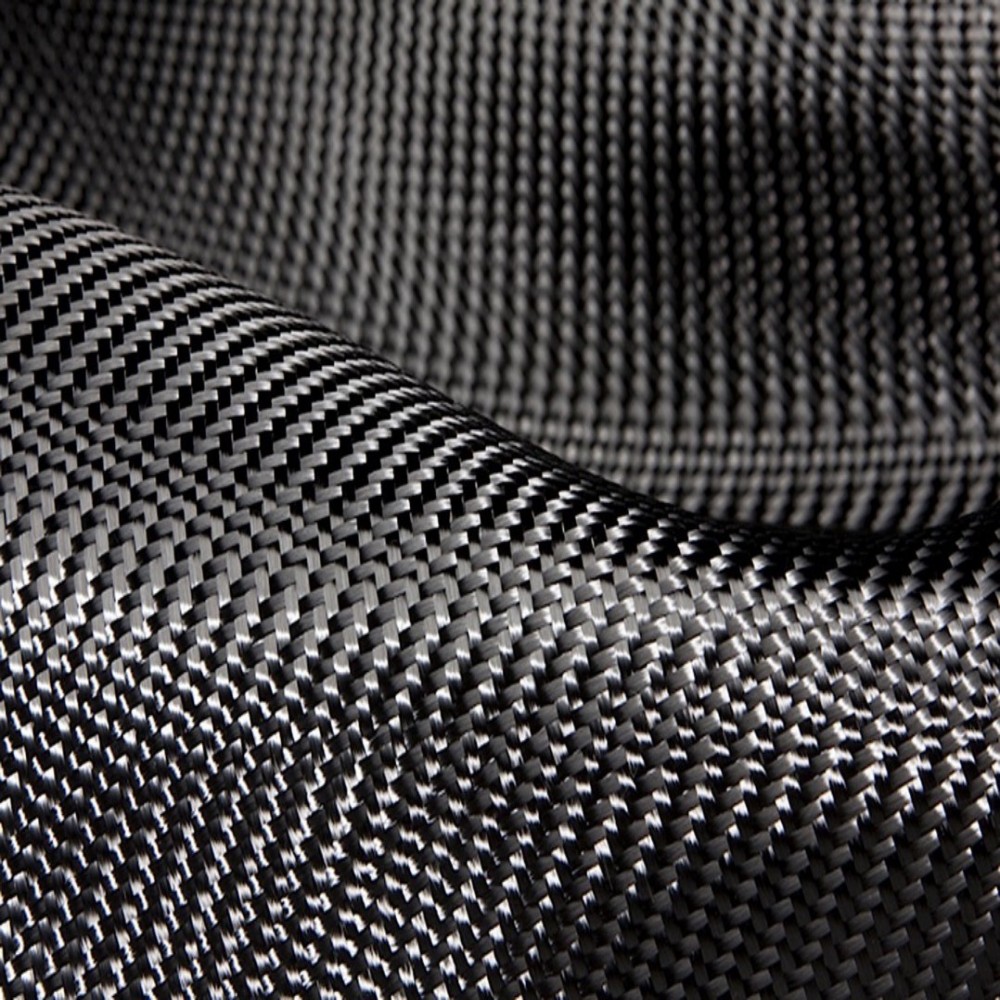

Why Carbon Fiber Is Often Mistaken for Plastic

Many people assume carbon fiber is plastic because of how carbon fiber products look and how they are manufactured.

One reason is surface appearance. Carbon fiber components often have a smooth, glossy surface finish that resembles molded plastic. This is especially common in consumer products.

Another reason is resin content. Since polymer resins are used during composite manufacturing, people sometimes assume the entire material is plastic.

Advantages of Carbon Fiber Composites Compared with Plastics

Carbon fiber composites offer several advantages over traditional plastic materials.

Higher strength-to-weight ratio

Carbon fiber composites can provide significantly higher strength while maintaining a low weight, which is critical in industries such as aerospace and automotive engineering.

Better stiffness

Carbon fiber materials are much stiffer than most plastics, allowing engineers to design lightweight structures without excessive deformation.

Improved fatigue resistance

Carbon fiber composites can withstand repeated stress cycles better than many plastics, making them suitable for structural applications.

Excellent corrosion resistance

Unlike metals, carbon fiber composites do not rust and perform well in marine or chemically aggressive environments.

Because of these benefits, carbon fiber composites are increasingly replacing traditional materials in high-performance engineering applications.

Common Applications of Carbon Fiber Composites

Thanks to their outstanding strength-to-weight ratio, carbon fiber composites are widely used in many advanced industries.

Typical applications include:

Aerospace

aircraft structural components

satellite structures

high-performance interior parts

Automotive

lightweight body panels

performance chassis components

structural reinforcements

Marine

boat hulls

masts and structural laminates

corrosion-resistant components

UAV and drones

lightweight frames

structural arms

high-stiffness panels

These industries require materials that combine light weight, high strength, and long-term durability, making carbon fiber composites an ideal solution.

Conclusion

Carbon fiber is not a type of plastic. It is a high-strength reinforcement fiber made primarily from carbon atoms arranged in a crystalline structure.

However, most carbon fiber products combine these fibers with polymer resins to form Carbon Fiber Reinforced Polymer, a composite material that offers exceptional mechanical performance.

By combining the strength of carbon fibers with the versatility of polymer resins, manufacturers can create lightweight, durable components used in industries ranging from aerospace and automotive to marine engineering and UAV manufacturing.
