Carbon Fiber Sheets vs Fiberglass Sheets

Selecting between Carbon Fiber Sheets and Fiberglass Sheets is one of the most common—and most misunderstood—decisions in composite engineering.

Many buyers focus only on:

· Strength

· Price

But in real-world applications, material selection depends on a much broader set of factors:

· Stiffness vs flexibility

· Impact behavior

· Manufacturing process compatibility

· Long-term performance and maintenance

· Structural vs non-structural roles

Choosing incorrectly can lead to:

· 30–200% cost overrun

· Structural deformation or failure

· Manufacturing defects

· Reduced product lifespan

This guide provides engineering data, real application scenarios, laminate design logic, and purchasing insights to help you make a correct and cost-effective decision.

1. Material Composition & Structure

1.1 Carbon Fiber Sheets Structure

Carbon fiber sheets are laminated composites made of:

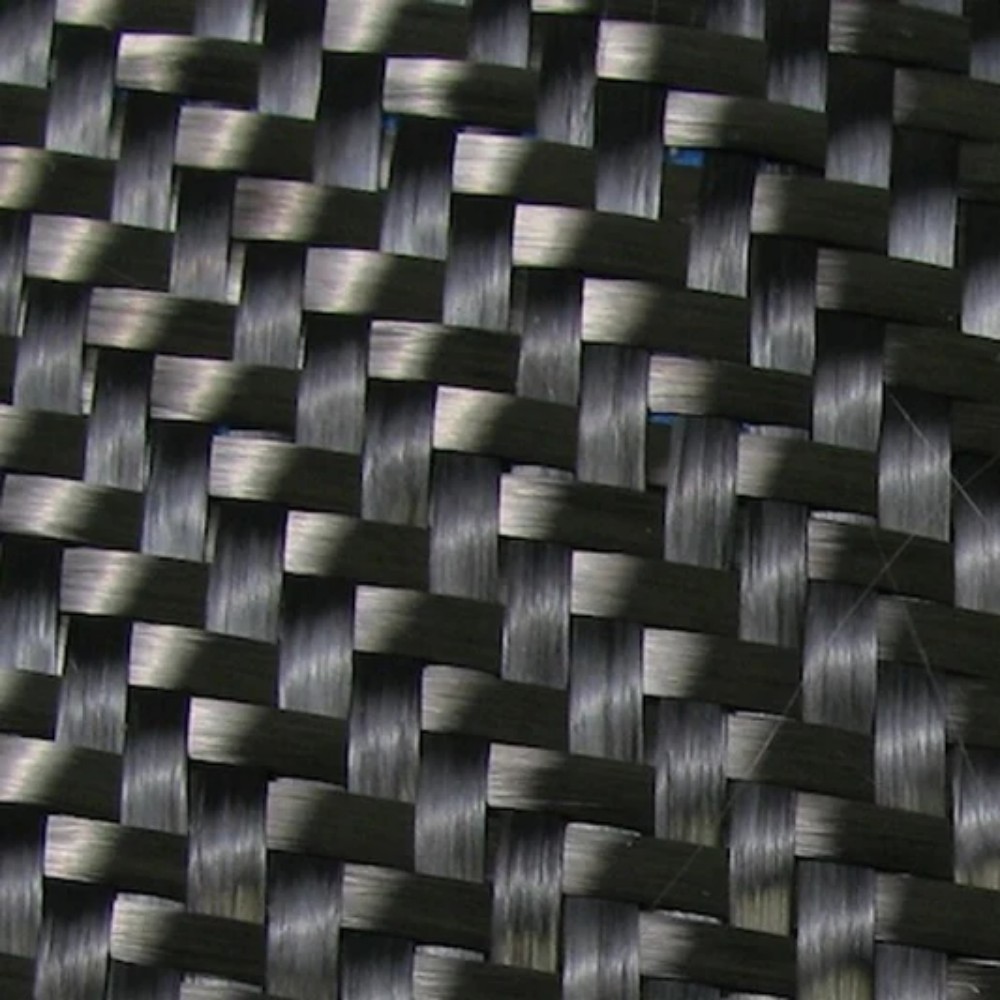

· Carbon fiber fabric (woven, unidirectional, biaxial)

· Resin system (epoxy, vinyl ester, polyester)

· Layered laminate structure (controlled orientation)

Fiber Orientation Matters

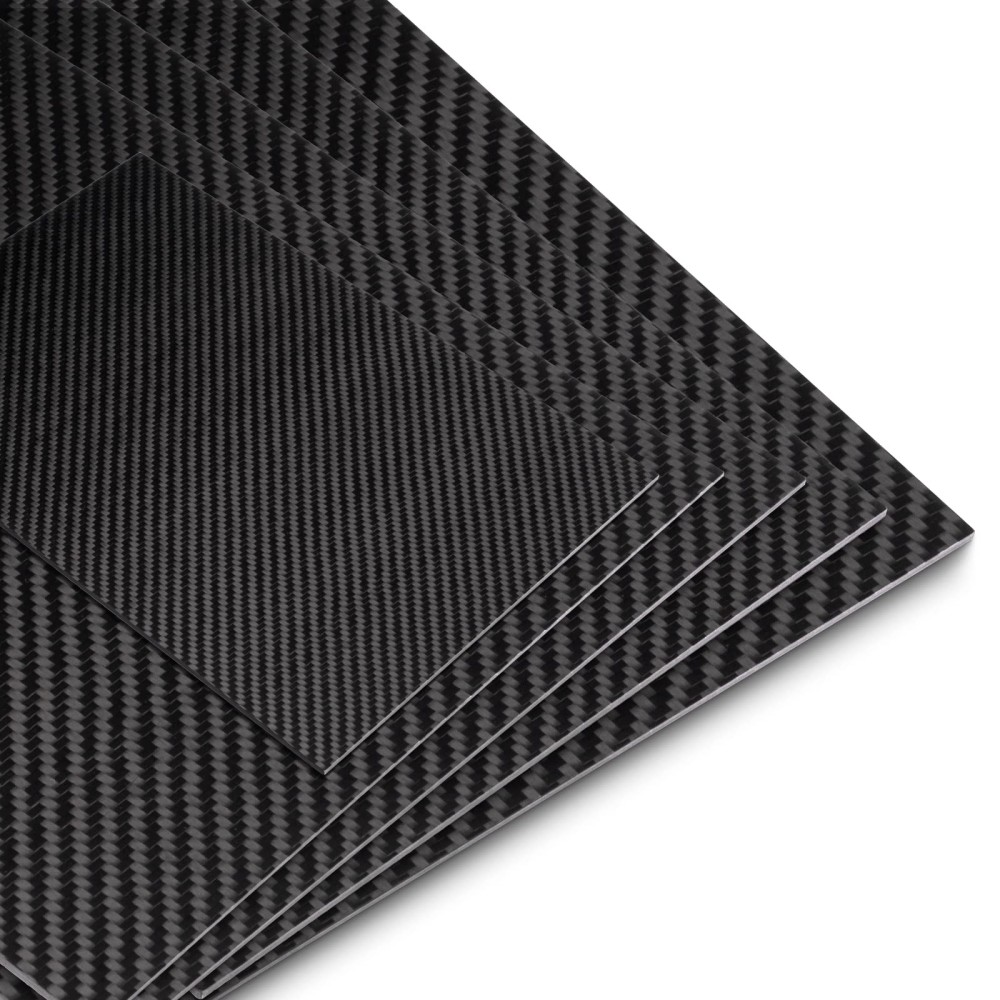

· 0° (unidirectional) → maximum tensile strength

· 90° → transverse reinforcement

· ±45° → shear strength

Real engineering laminates combine multiple orientations.

1.2 Fiberglass Sheets Structure

Fiberglass sheets are composed of:

· E-glass or S-glass fibers

· Resin matrix (polyester, vinyl ester, epoxy)

· Reinforcement forms:

o Chopped strand mat (CSM)

o Woven roving

o Multiaxial fabric

Structural Behavior

Fiberglass laminates tend to be:

· More isotropic (uniform properties)

· More tolerant to design simplifications

2. Detailed Engineering Property Comparison

2.1 Mechanical Properties Table

Property	Carbon Fiber Sheets	Fiberglass Sheets
Density (g/cm³)	1.5–1.6	1.8–2.0
Tensile Strength (MPa)	3,500–6,000	1,000–3,500
Tensile Modulus (GPa)	230–600	70–85
Flexural Strength (MPa)	600–1,500	300–900
Impact Strength	Moderate	High
Fatigue Resistance	Excellent	Moderate
Thermal Expansion	Very Low	Moderate

2.2 What These Numbers Actually Mean

Stiffness Dominates Design

Carbon fiber’s modulus can be 3–5× higher than fiberglass.

This means:

· Less deflection

· Thinner structures possible

· Higher dimensional stability

Toughness vs Brittleness

Fiberglass:

· Absorbs energy

· Deforms before failure

Carbon fiber:

· Higher peak strength

· More brittle failure mode

3. Weight vs Performance Optimization

Carbon Fiber Advantage

· Up to 50% weight reduction

· Higher performance per unit weight

When Weight Matters Most

· UAV frames

· Aerospace panels

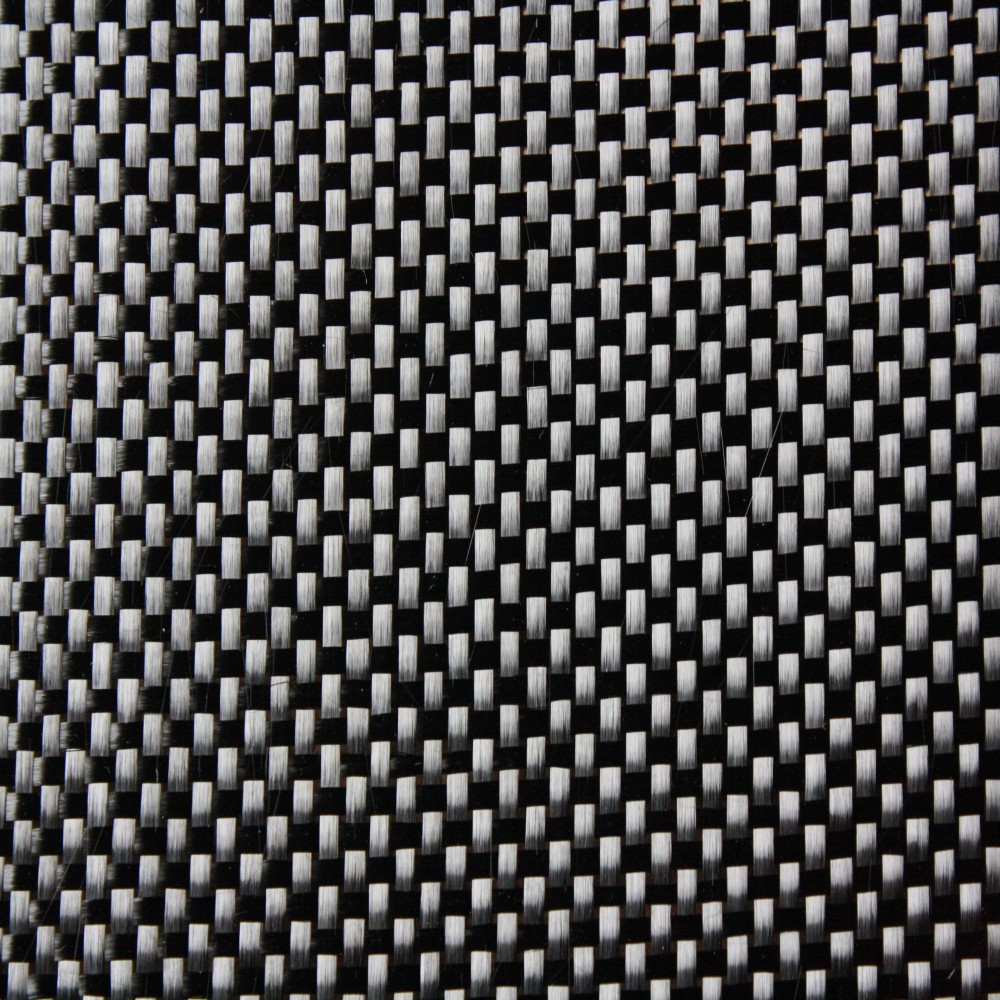

· Racing automotive parts

When Weight Is Secondary

· Boat hulls

· Industrial tanks

· Construction panels

In these cases, fiberglass is usually more economical.

4. Real Cost Breakdown (Beyond Material Price)

4.1 Raw Material Cost

Carbon fiber:

· 5–10× higher than fiberglass (fiber cost basis)

Fiberglass:

· Most economical reinforcement material

4.2 Processing Cost

Carbon fiber:

· Requires precise layup

· Sensitive to voids and defects

· Often needs controlled curing

Fiberglass:

· Easier handling

· Lower scrap rate

· Suitable for large-scale manual production

4.3 Lifecycle Cost Analysis

Carbon fiber reduces:

· Structural weight → energy savings

· Maintenance frequency

· Fatigue-related failures

Example:
In UAV applications, carbon fiber often pays back its cost within operational cycles.

5. Manufacturing Process Matching

5.1 Hand Lay-Up

Best for:

· Fiberglass

· Low-cost production

Limitations:

· Lower consistency

· Higher labor dependence

5.2 Vacuum Infusion

Works well for both materials.

Advantages:

· Better fiber wet-out

· Reduced voids

· Consistent quality

5.3 RTM / VARTM / LRTM

Best for:

· Medium to high volume production

· Complex shapes

Carbon fiber benefits more from controlled processes.

6. Application Deep Dive (Real Industry Use Cases)

6.1 Marine Industry

Boat Hull

· Fiberglass dominates due to:

o Impact resistance

o Cost efficiency

o Ease of repair

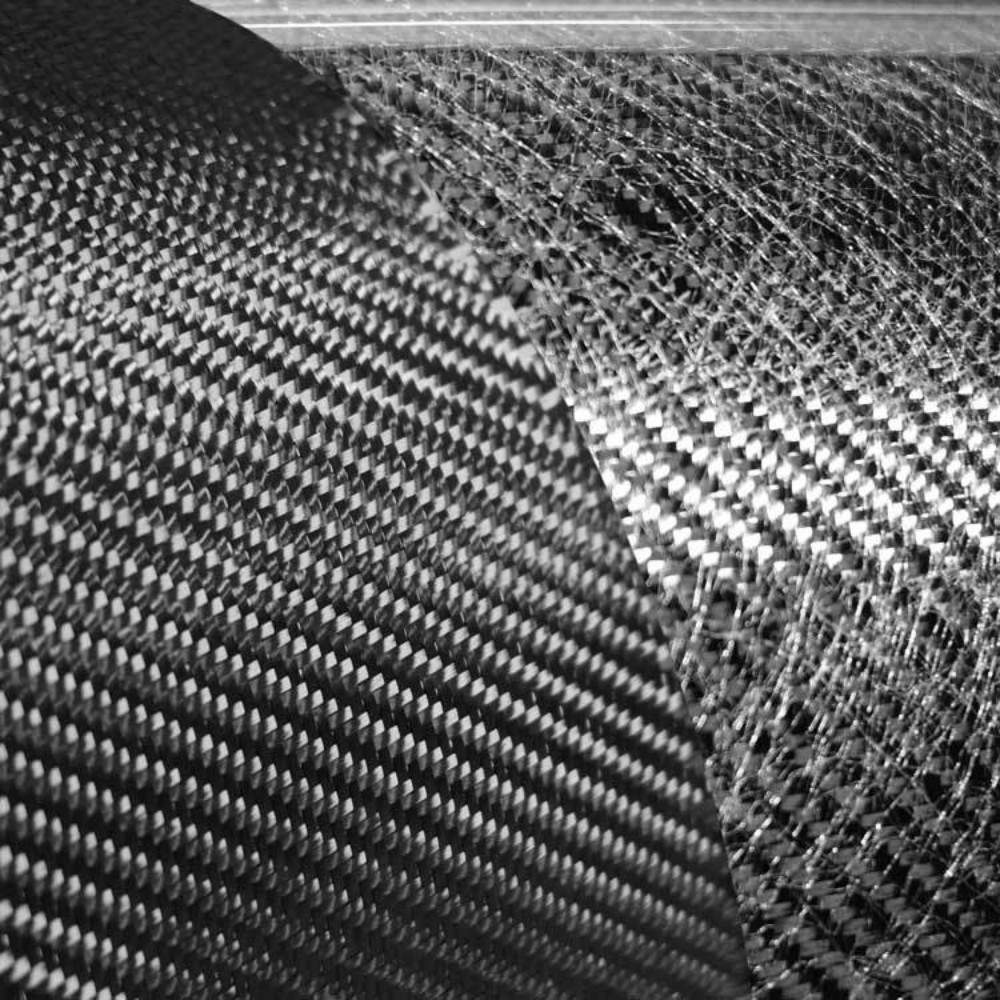

Structural Reinforcement

· Carbon fiber used in:

o High-performance yachts

o Racing boats

6.2 Wind Energy

Wind turbine blades use hybrid structures:

· Spar cap → carbon fiber (stiffness)

· Shell → fiberglass (cost + impact)

6.3 UAV / Drone Manufacturing

· Frame → carbon fiber (rigidity + weight reduction)

· Covers → fiberglass or hybrid

6.4 Construction & Infrastructure

· Panels → fiberglass

· Reinforcement → carbon fiber

6.5 Industrial Equipment

· Tanks → fiberglass (corrosion resistance)

· High-load supports → carbon fiber

7. Thickness & Laminate Design Guide

7.1 Fiberglass Sheet Thickness

Application	Thickness
Panels / Covers	3–5 mm
Structural Parts	6–10 mm
Heavy Load	10mm+

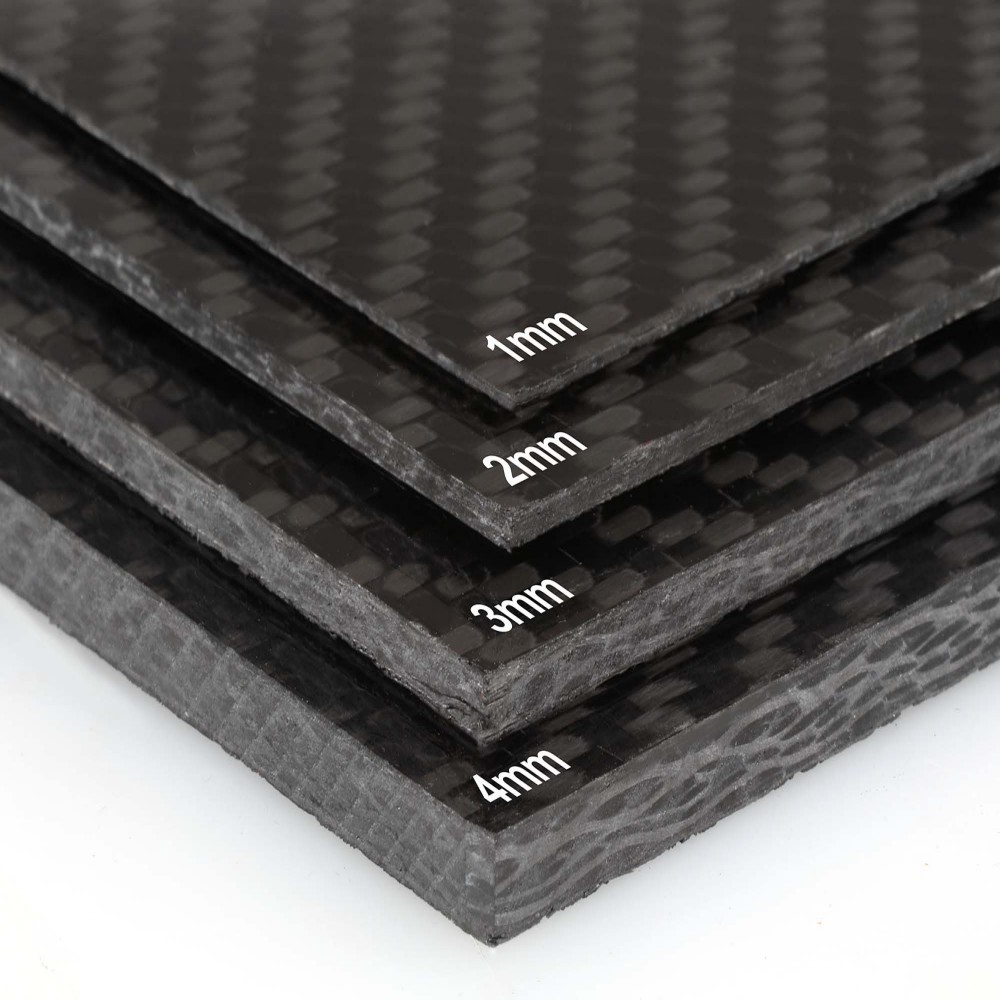

7.2 Carbon Fiber Sheet Thickness

Application	Thickness
UAV / Lightweight	1–2 mm
Structural Panels	2–5 mm
High Stiffness	Multi-layer

7.3 Laminate Strategy

· Carbon fiber outer layers → stiffness

· Fiberglass inner layers → cost + toughness

This is widely used in:

· Marine decks

· Wind blades

· Industrial panels

8. Hybrid Composite Design Strategy

Hybrid laminates combine both materials:

Typical Structure

· Outer skin → carbon fiber

· Core/bulk → fiberglass

Benefits

· 20–40% cost reduction

· Improved impact resistance

· Optimized stiffness

9. Failure Modes & Durability

Carbon Fiber

· Brittle fracture

· Delamination under impact

Fiberglass

· Progressive cracking

· Better damage tolerance

10. Common Mistakes in Material Selection

Overusing Carbon Fiber

Leads to unnecessary cost increase.

Ignoring Stiffness Requirements

Causes structural deformation.

Mismatch with Manufacturing Process

Results in defects and waste.

11. Practical Selection Workflow

Step 1: Define load type (static / dynamic / impact)
Step 2: Evaluate stiffness requirement
Step 3: Check weight constraints
Step 4: Match manufacturing process
Step 5: Optimize cost with hybrid design

12. FAQ (High-Intent Questions)

Is carbon fiber always better than fiberglass?
No. It depends on stiffness, cost, and application requirements.

Why is fiberglass still widely used?
Because it offers the best balance between performance and cost.

Can carbon fiber replace fiberglass in boats?
Yes, but usually only in high-performance or premium applications.

How much weight can carbon fiber save?
Typically 30–50% depending on design.

Is hybrid composite better?
In many industrial cases, yes.

13. Final Conclusion

Carbon fiber and fiberglass are not competing materials—they are complementary.

· Carbon fiber → performance, stiffness, weight reduction

· Fiberglass → cost efficiency, durability, impact resistance

· Hybrid → optimal balance

The best solution depends on your specific engineering requirements and budget constraints.
