Composite materials are made by combining two or more different materials to achieve better properties than the individual components.
A typical composite material consists of:
Provides strength and stiffness.
Common types include:
Fiberglass
Carbon fiber
Aramid fiber
The matrix binds the fibers together and transfers loads between them.
Common resins include:
Polyester resin
Vinyl ester resin
Epoxy resin
When these components are combined through specific manufacturing processes, they form a high-performance composite structure.
Composite manufacturing plays a key role in modern engineering because it enables the production of structures that are:
Composites are significantly lighter than metals while maintaining high strength.
Carbon fiber composites can be 5 times stronger than steel while being much lighter.
Unlike metals, composites are highly resistant to corrosion and environmental degradation.
Composite materials can be molded into complex shapes that are difficult or impossible with traditional materials.
Because of these advantages, composite manufacturing is becoming increasingly important in many high-performance industries.
Several manufacturing methods are used depending on the product design, production volume, and material requirements.
Vacuum infusion is a widely used process in modern composite manufacturing.
The steps include:
Dry reinforcement fabrics are placed in a mold.
A vacuum bag seals the mold.
Resin is drawn into the laminate through vacuum pressure.
Advantages:
Better fiber-to-resin ratio
Reduced voids
Improved mechanical performance
This process is commonly used in:
Wind turbine blades
Marine structures
Large composite panels
Resin Transfer Molding is a closed-mold composite manufacturing process.
Process steps:
Dry fiber preforms are placed inside a closed mold.
Resin is injected under pressure.
The resin impregnates the fiber structure.
The composite cures into the final shape.
Advantages:
High surface quality
Consistent part quality
Suitable for medium-volume production
RTM is widely used in automotive and industrial applications.
Filament winding is used to produce cylindrical composite structures.
Continuous fibers impregnated with resin are wound around a rotating mandrel in specific patterns.
Common applications include:
Pressure vessels
Composite pipes
LPG cylinders
Storage tanks
Pultrusion is a continuous manufacturing process used to produce constant cross-section composite profiles.
Examples include:
FRP beams
Structural profiles
Cable trays
Grating systems
The process involves pulling fibers through a resin bath and heated die to form the final product.
The performance of a composite part depends heavily on the materials used.

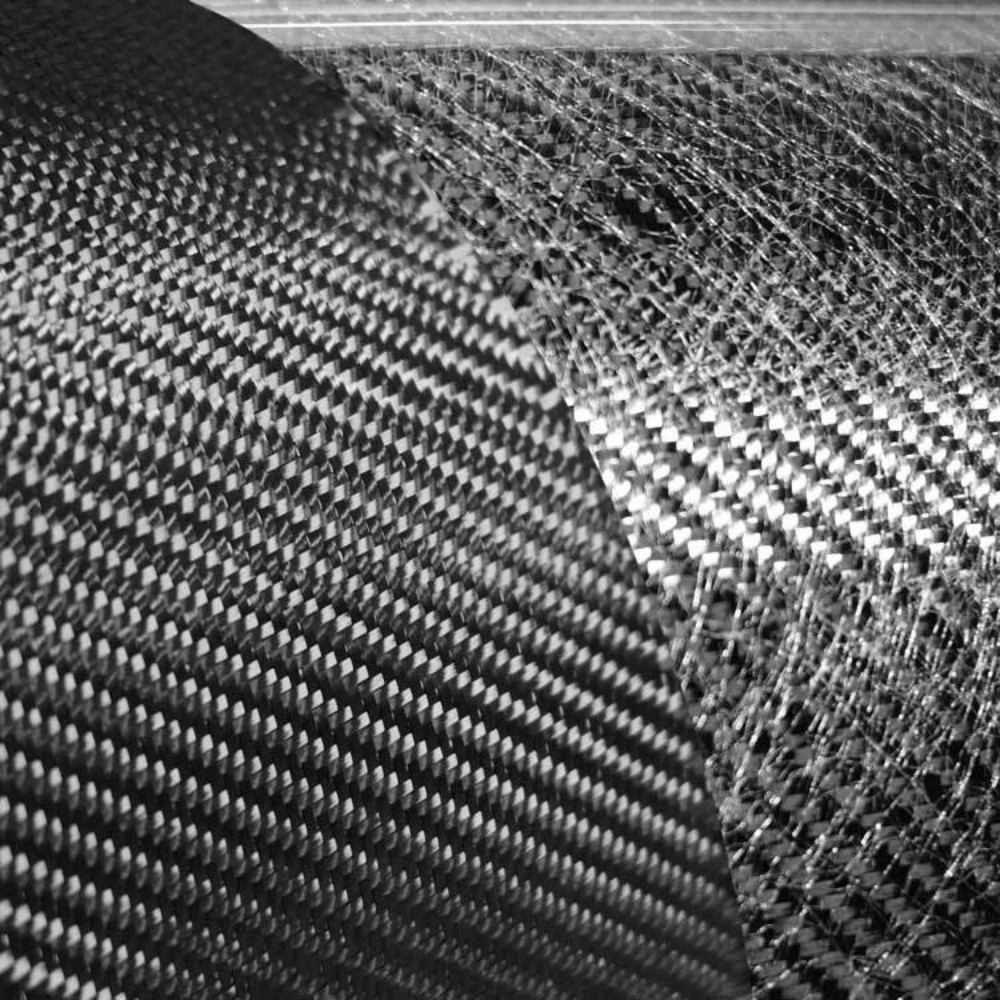

Carbon fiber provides extremely high strength and stiffness with very low weight.
It is widely used in:
Aerospace
Automotive racing
Wind energy
Sports equipment

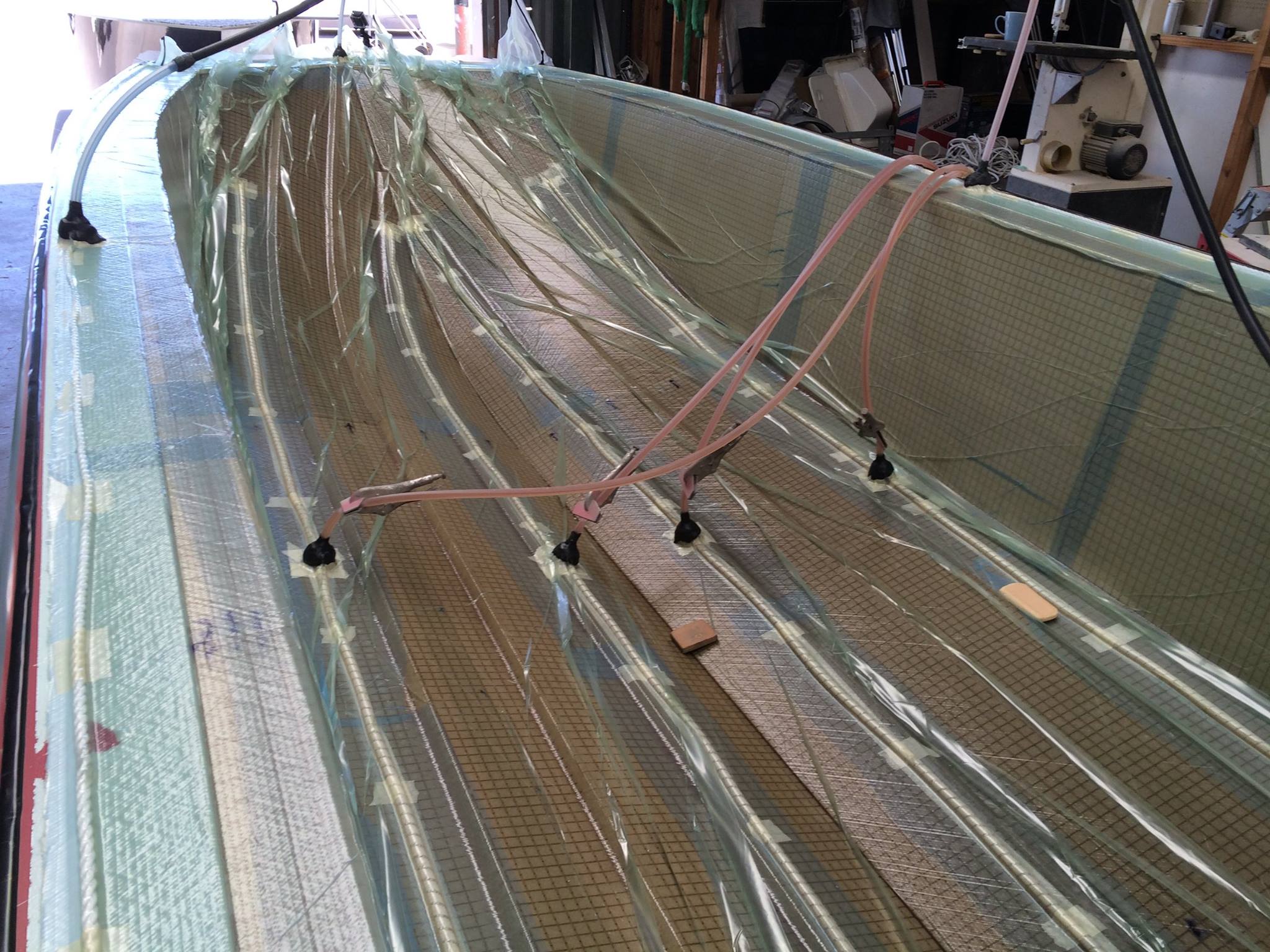

For sandwich structures, core materials such as foam or honeycomb are used to increase stiffness without adding significant weight.
Common core materials include:
PVC foam
PET foam
Nomex honeycomb
Resins act as the matrix that binds fibers together.
Common types include:
Polyester resin
Vinyl ester resin
Epoxy resin
Each resin type offers different mechanical and chemical properties.
Composite manufacturing is used across many industries.

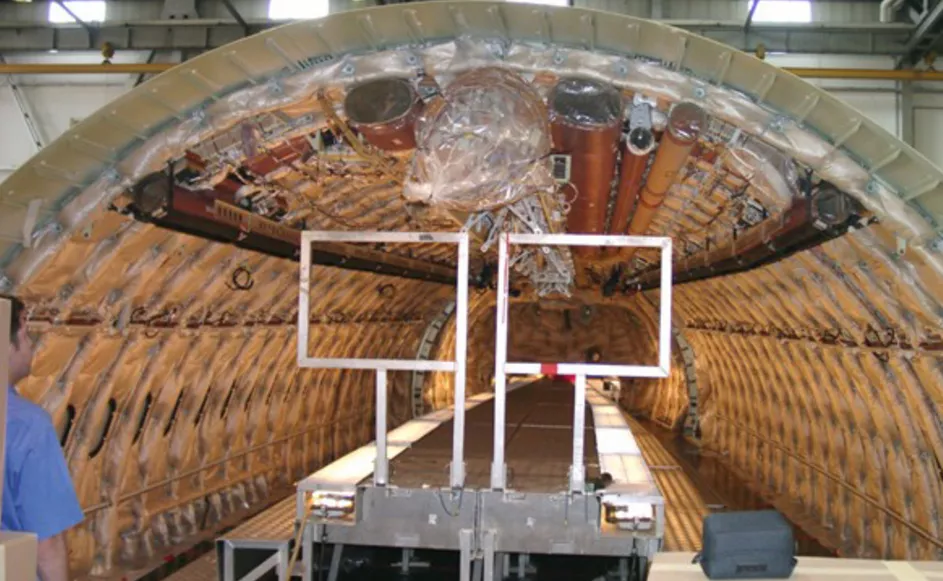

Aircraft structures use carbon fiber composites to reduce weight and improve fuel efficiency.
Modern wind turbine blades are primarily made from fiberglass composite materials.
Boat hulls, decks, and marine components are commonly produced using composite manufacturing methods.
Composites are used to manufacture lightweight structural parts, body panels, and performance components.
FRP composites are widely used in:
bridges
structural reinforcement
industrial platforms
High-quality reinforcement materials are critical to achieving reliable composite performance.
Suppliers such as JLON provide a wide range of composite reinforcement materials, including:

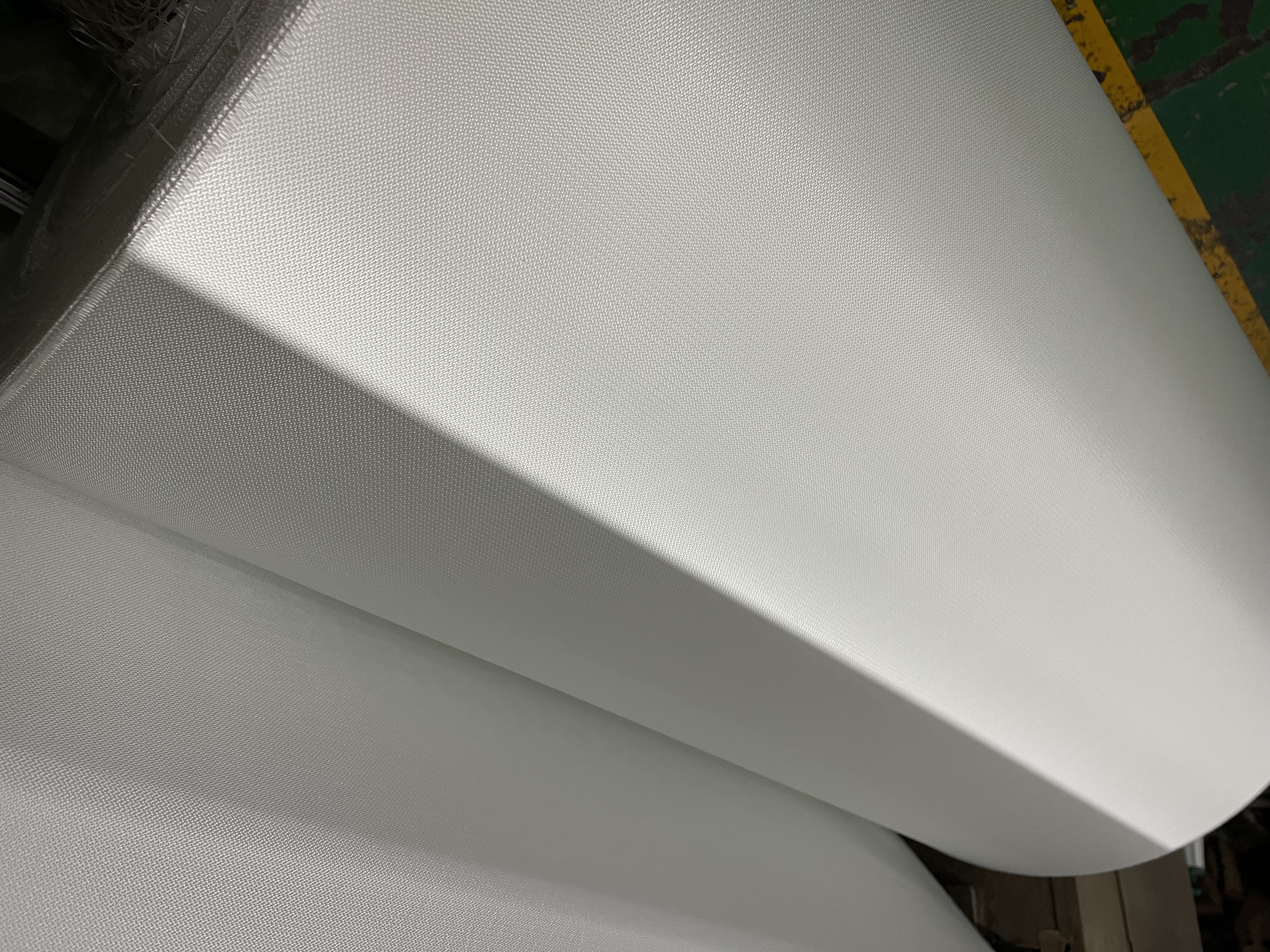

fiberglass fabrics
carbon fiber fabrics
core materials
composite processing materials
These materials are widely used in composite manufacturing across industries such as wind energy, marine, construction, and transportation.
Composite manufacturing is an essential technology for producing lightweight, strong, and durable materials used in modern engineering.
By combining reinforcement fibers with resin matrices through advanced manufacturing processes, composite materials offer superior performance compared to traditional materials.
As industries continue to demand lighter, stronger, and more efficient structures, composite manufacturing will play an increasingly important role in the future of materials engineering.
