PET Foam vs PVC Foam: Which Core Material Is Better for Composite Structures?

In the composite materials industry, selecting the right core material is one of the most important decisions affecting product performance, weight efficiency, durability, and cost. Among the most commonly used closed-cell foam core materials, PET foam and PVC foam are frequently compared in marine, wind energy, transportation, and industrial composite applications.

Both materials are widely used in sandwich structures, where a lightweight core is bonded between two strong composite skins such as fiberglass or carbon fiber. However, despite their similar appearance and application fields, PET foam and PVC foam differ significantly in mechanical properties, thermal behavior, environmental impact, and long-term performance.

With increasing demand for lightweight, sustainable, and high-performance composite materials, many industries are shifting from traditional PVC foam to PET foam. This article provides a detailed technical comparison between PET foam and PVC foam to help engineers, designers, and procurement teams choose the most suitable material for their applications.

1. Overview of PET Foam and PVC Foam Core Materials

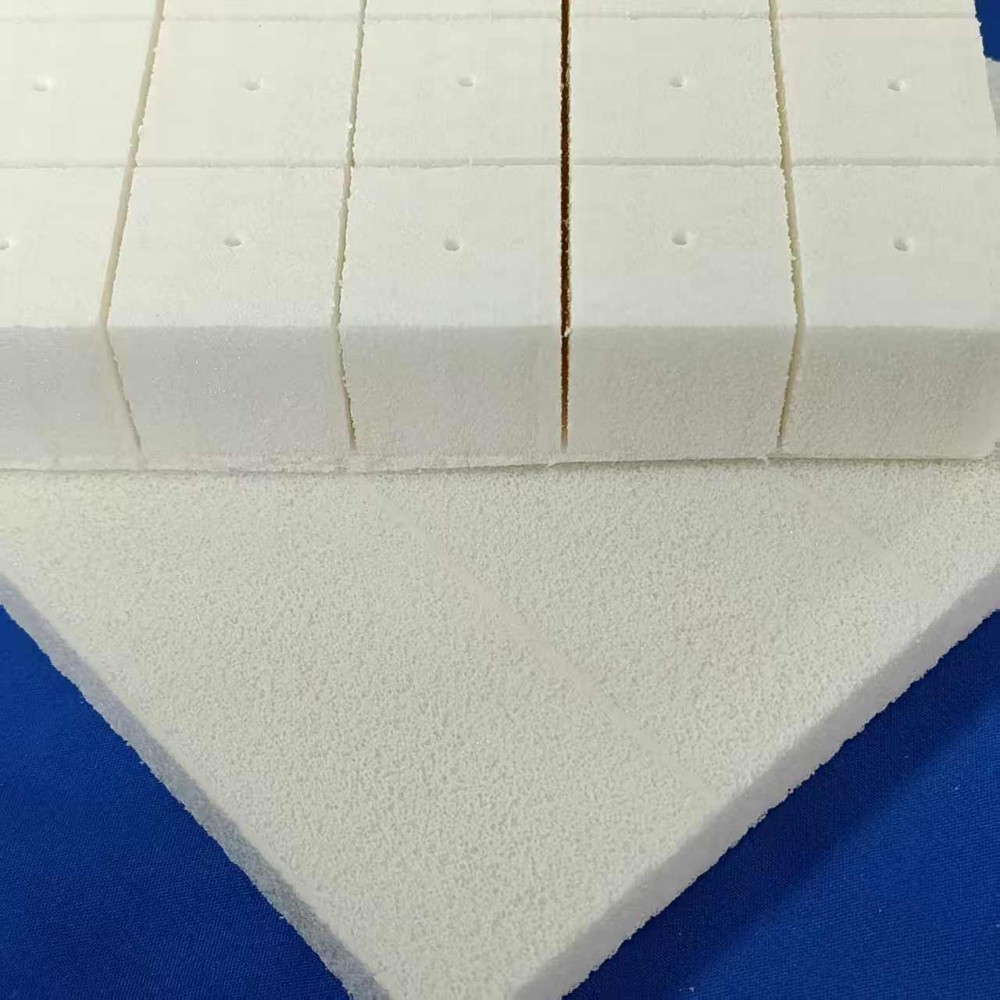

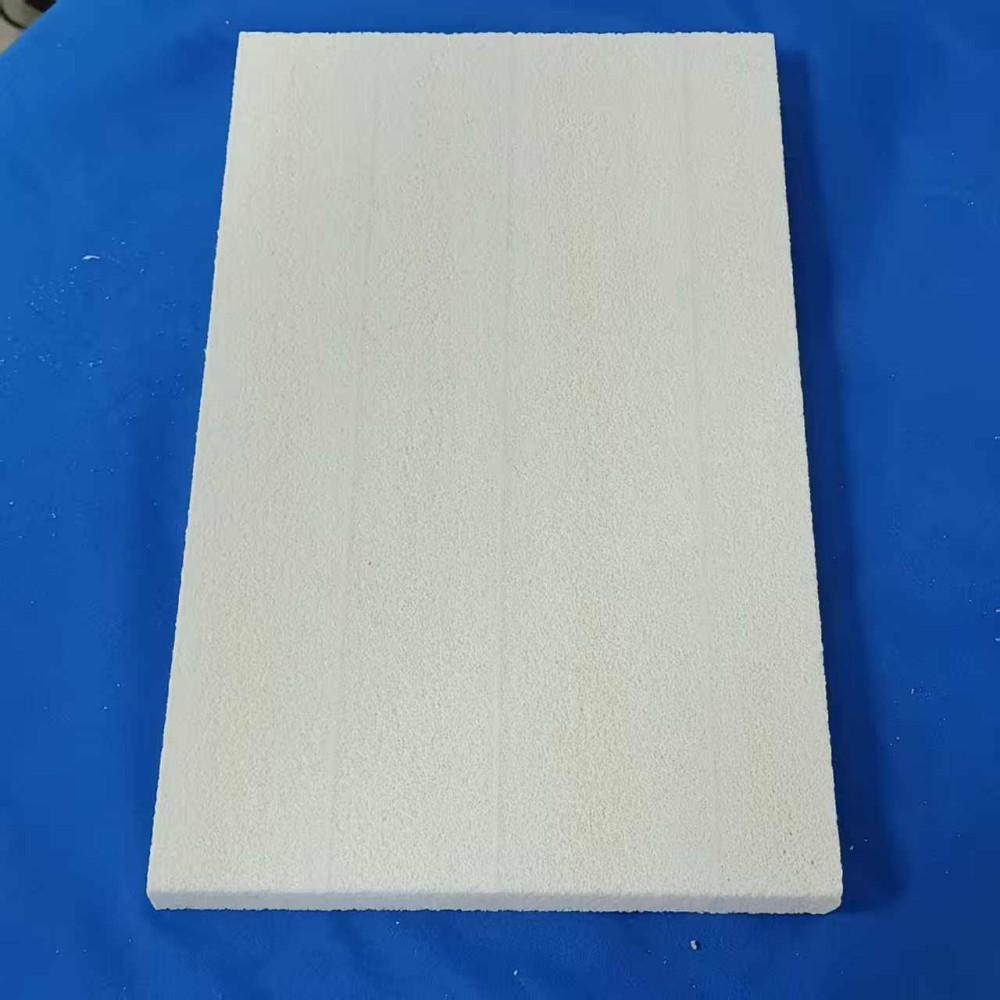

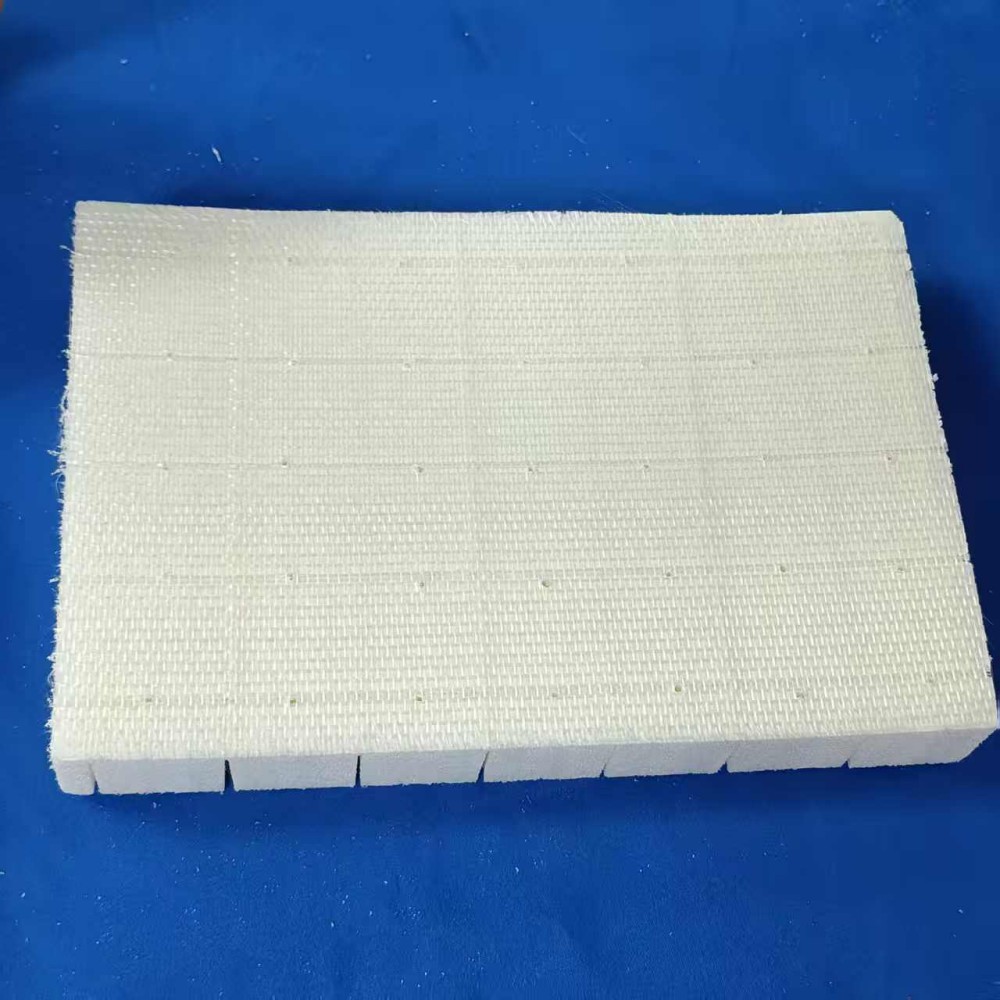

What is PET Foam Core?

PET foam core is a closed-cell thermoplastic structural foam made primarily from recycled polyethylene terephthalate (PET), often derived from post-consumer plastic bottles. It is widely used in composite sandwich structures due to its balance of mechanical strength, recyclability, and cost efficiency.

PET foam is produced through extrusion and foaming processes that create a uniform closed-cell structure. This structure provides excellent mechanical stability and resistance to fatigue under dynamic loading conditions.

Key features of PET foam:

· Closed-cell thermoplastic structure

· Made from recycled PET materials

· High fatigue resistance and impact strength

· Good compatibility with epoxy, polyester, and vinyl ester resins

· Recyclable and environmentally friendly

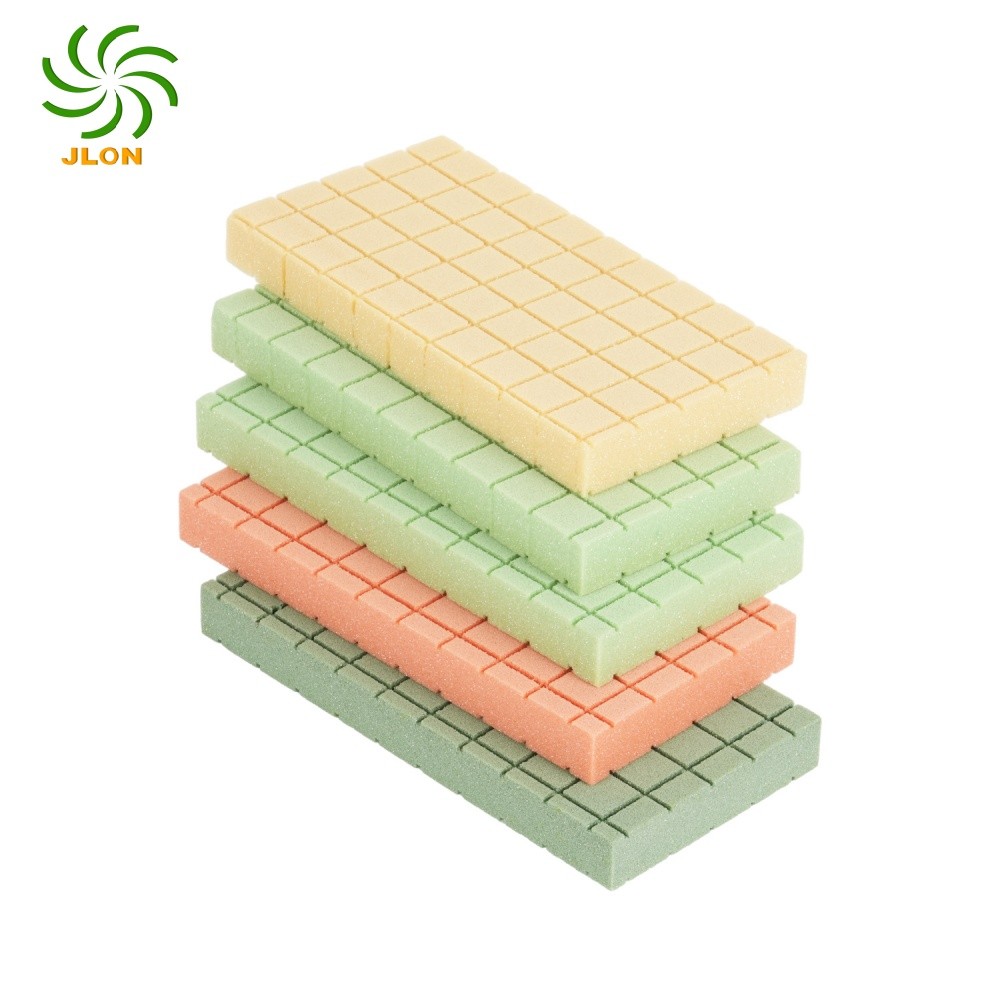

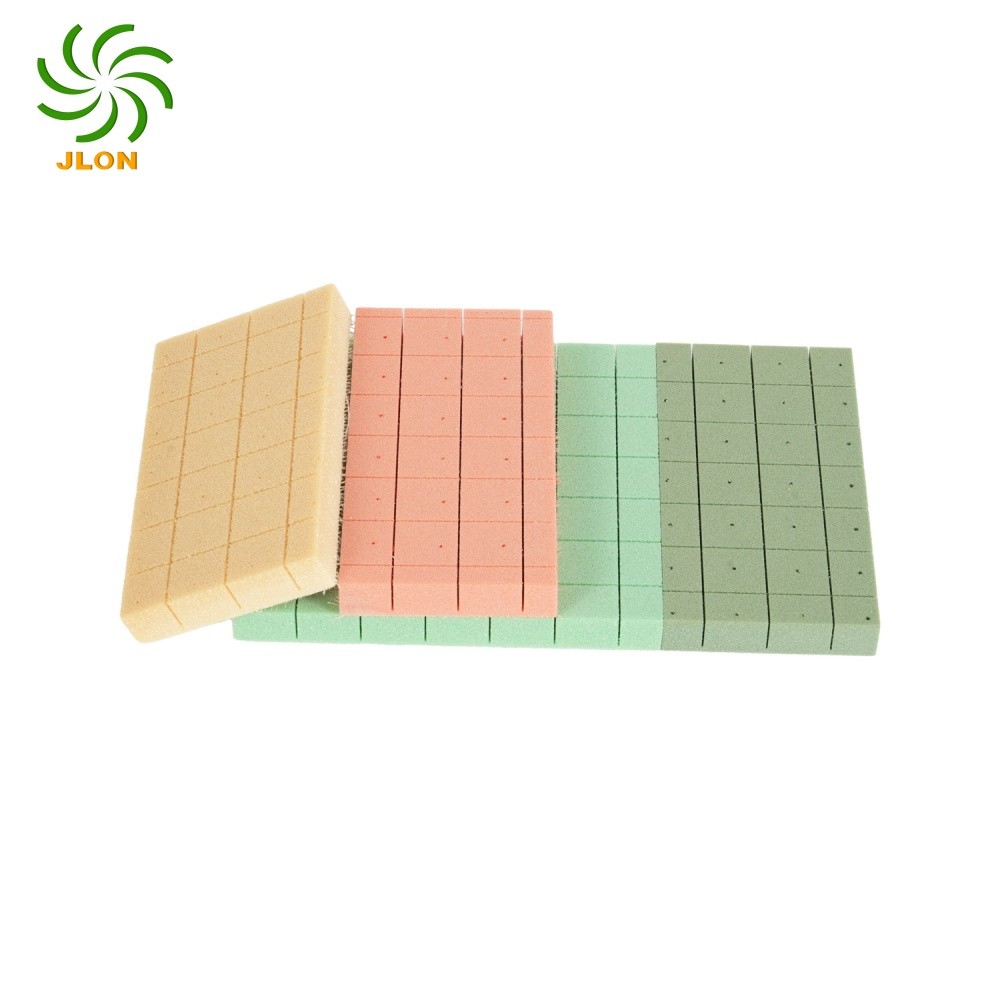

What is PVC Foam Core?

PVC foam core is a rigid closed-cell thermoset foam material widely used in marine and general composite applications. It has been one of the most established core materials in the boat building industry for decades.

PVC foam is manufactured through polymerization and foaming of polyvinyl chloride resin, resulting in a lightweight structure with good compressive strength at low densities.

Key features of PVC foam:

· Cross-linked closed-cell thermoset structure

· Good compressive strength at low density

· Easy machining and processing

· Widely used in marine applications

· Limited thermal resistance compared to advanced foams

2. PET Foam vs PVC Foam: Detailed Technical Comparison

2.1 Mechanical Strength and Structural Performance

One of the most important differences between PET foam and PVC foam is their mechanical behavior under load.

PET foam generally offers:

· Higher tensile strength

· Better shear strength

· Superior fatigue resistance under cyclic loading

PVC foam performs well in static load conditions but may experience long-term performance degradation under repeated stress or dynamic loading environments.

In applications such as wind turbine blades or transportation panels, where cyclic loading is constant, PET foam provides significantly better long-term reliability.

2.2 Density and Strength-to-Weight Ratio

Both PET foam and PVC foam are available in a wide range of densities, typically between 30 kg/m³ and 200 kg/m³ depending on application requirements.

At the same density level:

· PET foam generally provides a higher strength-to-weight ratio

· PVC foam offers acceptable performance but lower structural efficiency

This makes PET foam more suitable for applications where weight reduction and structural performance must be optimized simultaneously.

2.3 Temperature Resistance and Processing Stability

Thermal behavior is another critical factor in composite manufacturing processes such as vacuum infusion, RTM, and autoclave curing.

· PET foam: stable under moderate-to-high processing temperatures

· PVC foam: begins to soften at relatively lower temperatures

During resin curing, exothermic heat can significantly affect core material stability. PET foam maintains better dimensional stability under these conditions, making it more suitable for modern high-performance composite manufacturing.

2.4 Fatigue Resistance and Long-Term Durability

Fatigue resistance is a key performance indicator in structural composite applications.

PET foam demonstrates:

· Excellent resistance to cyclic fatigue

· Stable long-term mechanical properties

· Reduced risk of micro-cracking under dynamic load

PVC foam, while stable in static conditions, is more prone to fatigue-related degradation over time, especially in high-stress environments such as marine hulls or wind turbine blades.

2.5 Environmental Impact and Sustainability

2.6 Cost Comparison and Lifecycle Value

At first glance, PVC foam is generally more cost-effective in terms of raw material price. However, total lifecycle cost should also be considered.

· PVC foam: lower initial material cost

· PET foam: slightly higher material cost but better long-term value

PET foam often reduces:

· Maintenance costs

· Structural failure risk

· Replacement frequency

Therefore, in long-term industrial applications, PET foam can offer better overall economic efficiency.

2.7 Processing and Manufacturing Compatibility

Both PET and PVC foams are compatible with common composite manufacturing processes, including:

· Vacuum infusion

· Resin transfer molding (RTM)

· Hand lay-up

· Vacuum bagging

However:

· PET foam performs better in higher exotherm resin systems

· PVC foam requires more careful temperature control during processing

PET foam also shows better bonding stability with modern epoxy systems used in high-performance composites.

3. Application Comparison: Where Each Material Is Used

3.1 Marine Industry

PVC foam has traditionally been widely used in:

· Boat hulls

· Deck structures

· Bulkheads

However, PET foam is increasingly replacing PVC foam in:

· High-performance boats

· Lightweight racing vessels

· Advanced marine sandwich structures

The shift is driven by fatigue resistance and environmental requirements.

3.2 Wind Energy Industry

Wind turbine blades require materials with excellent fatigue resistance and structural stability.

· PET foam: widely used in modern wind blade cores

· PVC foam: limited use in large-scale wind energy applications

PET foam has become a mainstream core material in wind energy composites.

3.3 Transportation Industry

In rail, automotive, and RV manufacturing:

· PET foam is used in lightweight structural panels

· PVC foam is used in cost-sensitive, non-critical structures

PET foam is preferred where:

· Weight reduction is critical

· Structural integrity is required over long service life

3.4 Industrial and General Composites

PET foam is increasingly used in:

· Structural sandwich panels

· Industrial enclosures

· High-performance composite parts

PVC foam remains suitable for:

· General-purpose applications

· Low-load structural components

4. Advantages Summary

Advantages of PET Foam

· Higher fatigue resistance

· Better mechanical strength

· Recyclable and environmentally friendly

· Better performance in dynamic applications

· Increasingly preferred in wind and transportation industries

Advantages of PVC Foam

· Lower initial material cost

· Easy processing and machining

· Long history in marine applications

· Suitable for basic structural applications

5. PET Foam vs PVC Foam: Summary Table

Property	PET Foam	PVC Foam
Mechanical Strength	Higher	Medium
Fatigue Resistance	Excellent	Moderate
Temperature Stability	Better	Lower
Environmental Impact	Recyclable	Non-recyclable
Cost Efficiency	Medium	Low
Wind Energy Use	High	Low
Marine Use	Increasing	Traditional

6. How to Choose Between PET Foam and PVC Foam

Choose PET Foam if:

· Your application involves dynamic loading

· You require high fatigue resistance

· Sustainability is important

· You are working in wind energy or transportation

Choose PVC Foam if:

· Cost is the main priority

· Application is low-to-medium performance marine structure

· Processing simplicity is more important than long-term durability

7. Industry Trend: PET Foam Replacing PVC Foam

Conclusion

Both PET foam and PVC foam are widely used in composite sandwich structures, but they serve different performance and cost requirements. While PVC foam remains relevant in traditional applications, PET foam is emerging as the preferred material for modern high-performance and sustainable composite engineering.

For engineers and manufacturers, the choice between PET foam and PVC foam should be based on:

· Mechanical requirements

· Thermal conditions

· Fatigue loading

· Environmental considerations

· Long-term lifecycle cost

In most modern industrial applications, PET foam provides a more advanced and future-oriented solution.
