How to Fix Carbon Fiber

Carbon fiber composites are widely used in high-performance industries due to their exceptional strength-to-weight ratio, corrosion resistance, and fatigue performance. However, despite their durability, carbon fiber structures are not immune to damage.

Impact, overloading, fatigue, or manufacturing defects can lead to cracks, delamination, or structural failure.

Understanding how to fix carbon fiber properly is critical—not only to restore appearance, but to recover structural integrity and ensure long-term performance.

This guide provides a comprehensive, industry-level explanation of carbon fiber repair methods, materials, and best practices for applications such as marine, automotive, wind energy, and UAV structures.

1. Understanding Carbon Fiber Damage Mechanisms

Unlike metals, carbon fiber composites behave differently under stress.

· Metals → deform before failure

· Carbon fiber → brittle failure (sudden cracking)

1.1 Common Damage Types

1. Surface Damage (Cosmetic)

· Scratches

· Gelcoat damage

· No fiber breakage

No structural impact

2. Matrix Cracking

· Micro-cracks in resin

· Often invisible externally

Early-stage damage, can propagate

3. Delamination (Critical Issue)

· Separation between layers

· Caused by impact or fatigue

Reduces load transfer between plies

4. Fiber Breakage (Severe Damage)

· Load-bearing fibers broken

· Structural strength compromised

5. Core Damage (Sandwich Structures)

Common in:

· Marine panels

· Wind blades

Includes:

· Crushed foam core

· Debonding between skin and core

1.2 Why Proper Repair Matters

Incorrect repair can lead to:

· Stress concentration

· Premature failure

· Safety risks

Especially critical in load-bearing structures

2. Inspection & Damage Assessment

Before repair, proper inspection is essential.

2.1 Visual Inspection

Look for:

· Cracks

· Surface dents

· Fiber exposure

2.2 Tap Testing

· Use coin or hammer

· Hollow sound = delamination

2.3 Advanced Methods (Industrial Use)

· Ultrasonic testing

· Thermography

Recommended for:

· Aerospace

· Wind energy

· High-value marine structures

3. Carbon Fiber Repair Methods (Step-by-Step)

3.1 Surface Repair (Non-Structural)

Used for:

· Minor scratches

· Cosmetic defects

Process:

1. Sand damaged area (grit 120–240)

2. Clean with solvent

3. Apply epoxy filler

4. Sand smooth

5. Paint or coat

3.2 Scarf Repair (Structural Standard Method)

This is the industry-preferred method.

Key Concept:

Create a tapered transition (scarf joint) to distribute stress.

Typical Scarf Ratio:

· 20:1 to 50:1 (length : thickness)

Step-by-Step Process:

Step 1: Remove Damaged Material

· Grind area into a taper

· Ensure no damaged fibers remain

Step 2: Prepare Surface

· Clean with acetone

· Ensure dry, contamination-free

Step 3: Cut Carbon Fiber Layers

· Match original laminate sequence

· Each layer slightly larger

Step 4: Lay-Up Process

· Apply epoxy resin

· Lay fiber layers one by one

· Maintain correct fiber orientation

Step 5: Vacuum Bagging (Recommended)

Benefits:

· Removes air voids

· Improves fiber wet-out

· Increases strength

Step 6: Curing

· Room temperature or elevated temperature

· Follow resin system specs

Step 7: Finishing

· Sand

· Apply coating

3.3 Core Replacement (Sandwich Structures)

Used when:

· Foam core is damaged

Steps:

1. Remove skin

2. Replace core material (PVC/PET foam)

3. Re-laminate skins

4. Vacuum cure

3.4 Resin Injection Repair

Used for:

· Minor delamination

Process:

· Drill small holes

· Inject resin

· Clamp or vacuum

Limited to non-critical structures

4. Materials Selection for Carbon Fiber Repair

Material choice directly affects repair performance.

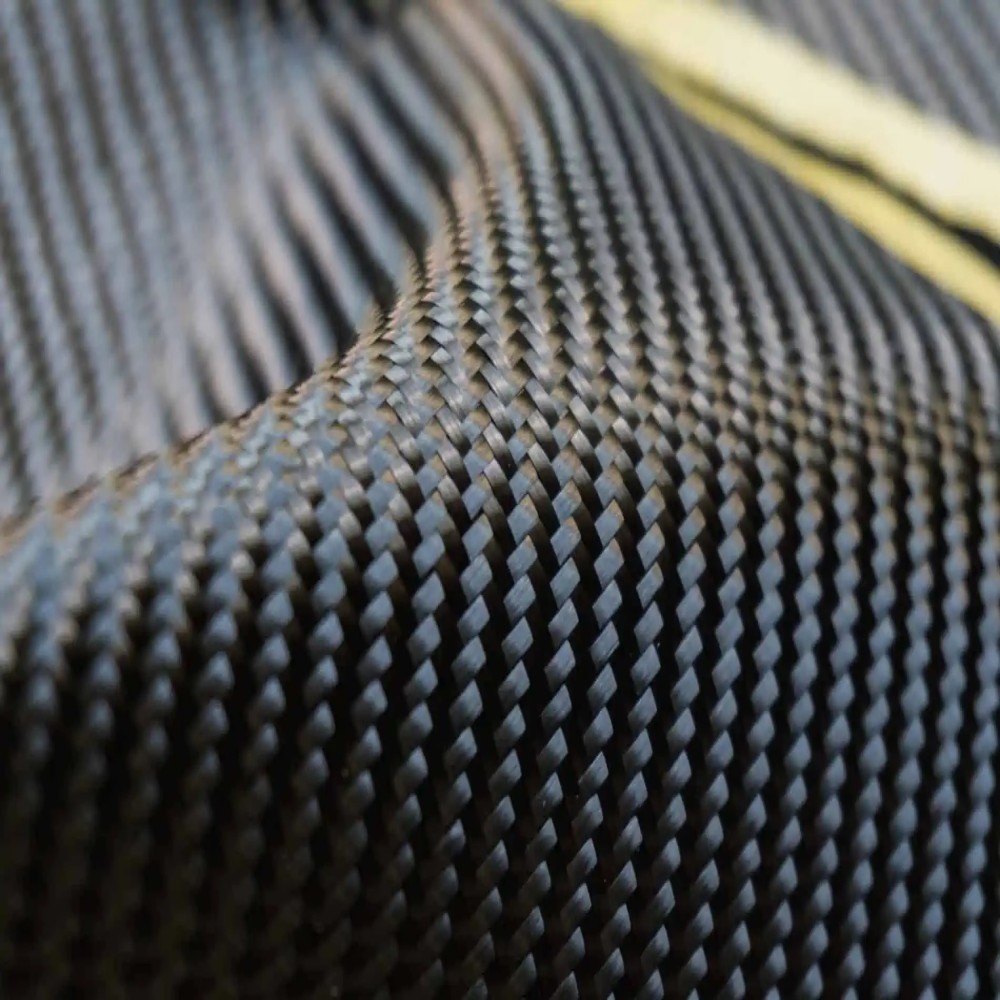

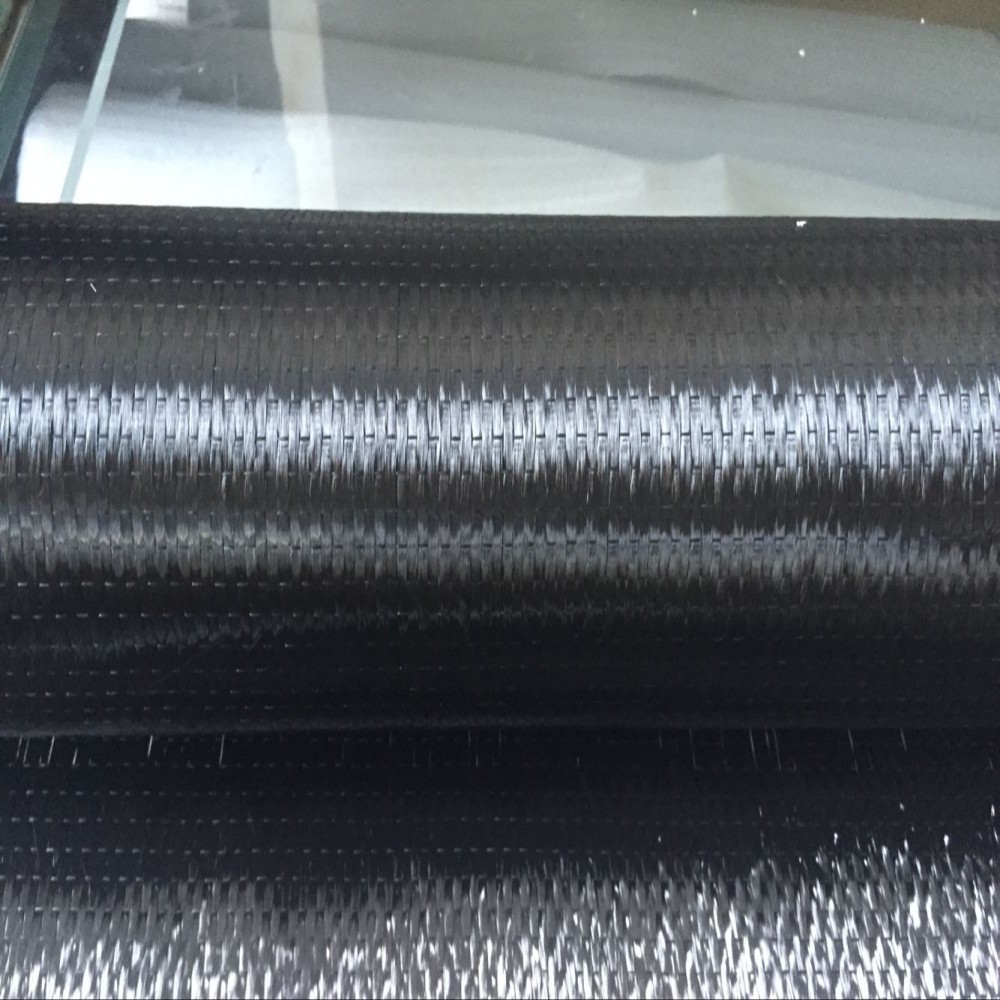

4.1 Carbon Fiber Fabric

Types:

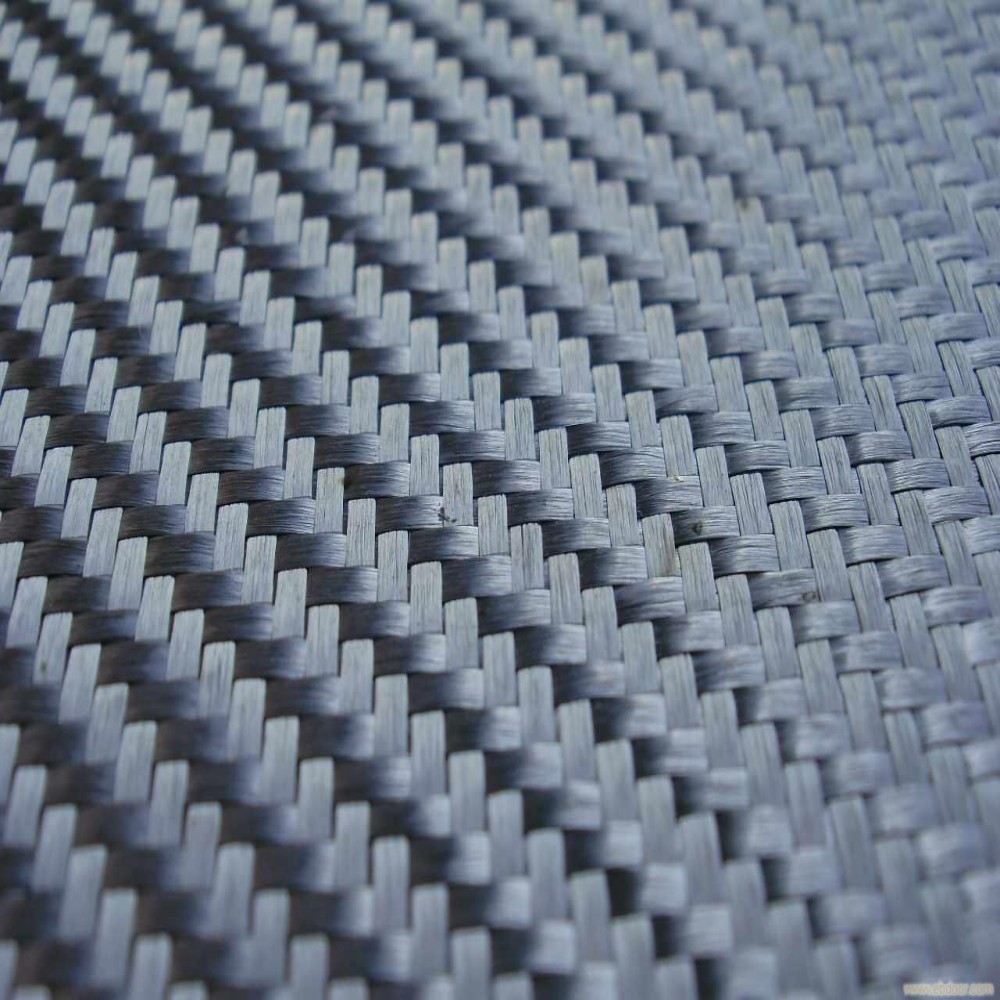

· Unidirectional (UD) → maximum strength in one direction

· Biaxial (±45°) → shear strength

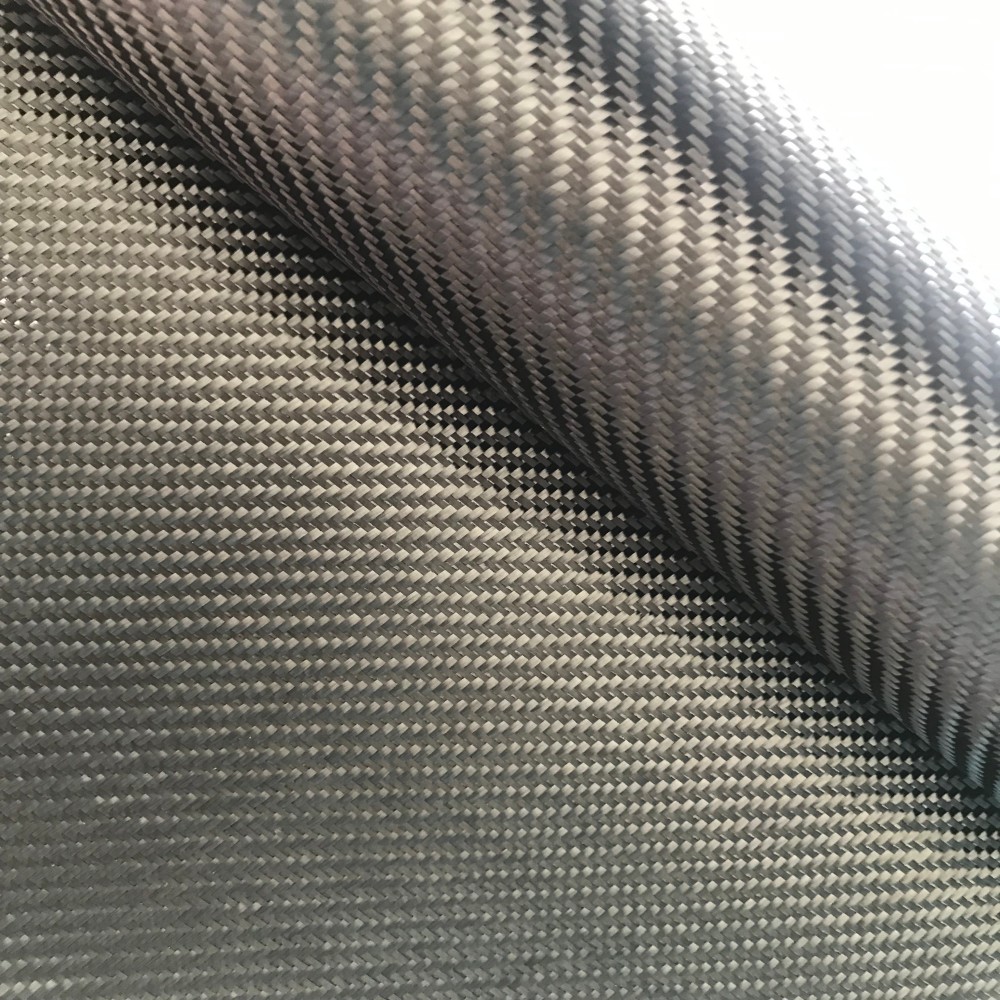

· Woven fabric → balanced properties

Must match original laminate design

4.2 Resin System

Preferred:

· Epoxy resin

Why:

· High adhesion

· Low shrinkage

· Superior mechanical properties

Key parameters:

· Viscosity

· Pot life

· Cure temperature

4.3 Core Materials

For sandwich repair:

· PVC foam core

· PET foam core

4.4 Auxiliary Materials

· Peel ply

· Release film

· Breather fabric

· Vacuum bagging film

5. Critical Factors for Successful Repair

5.1 Fiber Orientation

Most important factor

Wrong orientation = major strength loss

5.2 Surface Preparation

Poor bonding = repair failure

5.3 Resin Control

Too much resin:

· Adds weight

· Reduces strength

5.4 Void Content

Air bubbles weaken structure

Vacuum bagging reduces voids

5.5 Curing Conditions

· Temperature

· Time

Directly affect mechanical properties

6. Repair Strength & Performance

Typical results:

· Manual repair → 60–80% strength recovery

· Vacuum-assisted repair → 80–95%

6.1 Limitations

Repair cannot:

· Fully restore original factory conditions

· Replace large structural sections effectively

7. Applications of Carbon Fiber Repair

Widely used in:

Marine

· Hulls

· Decks

· Masts

Automotive

· Body panels

· Structural parts

Wind Energy

· Blade repair

UAV / Aerospace

· Lightweight structures

Industrial Equipment

· Composite panels

· Structural components

8. Common Mistakes to Avoid

· Skipping damage inspection

· Incorrect fiber orientation

· No vacuum process

· Using wrong resin system

· Inadequate curing

9. When to Repair vs Replace

Repair when:

· Damage is localized

· Structure still stable

Replace when:

· Extensive delamination

· Critical structural failure

10. Professional Material Support for Carbon Fiber Repair

1. Recommended Repair Parameters (Engineering Reference)

For industrial applications, repair quality depends heavily on proper process control. The following parameters are commonly used as engineering references:

Scarf ratio (length : thickness):

· 20:1 → standard industrial repair

· 30:1–50:1 → high-performance structures

Fiber orientation:

· Must match original laminate (0° / 90° / ±45°)

· Misalignment significantly reduces strength

Vacuum pressure:

· Recommended: 0.08 – 0.095 MPa

Resin consumption:

· Fiber-to-resin ratio should be controlled

· Excess resin reduces mechanical performance

Curing conditions (epoxy systems):

· Room temperature cure: 24–48 hours

· Optional post-cure: 60–80°C to improve thermal resistance

Proper control of these parameters ensures consistent repair quality and structural reliability.

12. Difference Between Carbon Fiber Repair and Manufacturing

Carbon fiber repair differs significantly from original composite manufacturing:

Aspect	Repair	Manufacturing
Fiber continuity	Interrupted	Continuous
Structural strength	60–95% recovery	Full design strength
Process control	Limited	Fully controlled
Cost	Lower	Higher
Application	Local damage	Full structure

Understanding these differences helps set realistic expectations for repair performance.

13. Relevant Standards for Composite Repair

In industrial and high-performance applications, carbon fiber repair may follow established testing and evaluation standards:

· ASTM D3039 – Tensile properties of composites

· ASTM D5528 – Delamination resistance

· ISO 14125 – Flexural properties

While repair processes are often customized, these standards are commonly referenced for performance validation.

14. Typical Repair Case Examples

Marine Structure Repair

· Damage: Hull impact crack

· Method: Scarf repair with biaxial carbon fiber + epoxy resin

· Result: Restored structural integrity and surface finish

Wind Turbine Blade Repair

· Damage: Internal delamination

· Method: Resin injection + vacuum-assisted curing

· Result: Extended service life and reduced downtime

Industrial Composite Panel

· Damage: Local fiber fracture

· Method: Multi-layer patch repair

· Result: Recovered load-bearing capability

These examples demonstrate how different repair methods are applied depending on damage type and structure.

15. Related Carbon Fiber Repair Topics

16. Repair Process Overview (Workflow)

A typical carbon fiber repair process follows a structured workflow:

Inspection → Damage Removal → Surface Preparation → Lay-up → Vacuum Bagging → Curing → Finishing

Following a standardized process helps ensure repeatable and reliable repair results across different applications.
