How to Apply Fiberglass Cloth on a Boat

1. Introduction (Marine Lamination Fundamentals)

Applying fiberglass cloth on a boat is a structural composite manufacturing process, not a simple surface repair method. It involves controlled fiber placement, resin impregnation, air removal, and curing chemistry to form a durable reinforced laminate.

In marine applications, fiberglass cloth is used to create a fiber-reinforced polymer (FRP) structure, where:

· Fiberglass provides tensile strength and impact resistance

· Resin binds fibers and transfers load

· Proper lamination ensures long-term durability in saltwater environments

The performance of a finished repair or structure depends on:

· Fiber orientation and stacking sequence

· Resin type and mixing accuracy

· Wet-out quality (fiber saturation level)

· Air void control

· Curing conditions

Even small mistakes in any step can significantly reduce structural strength.

2. Material Selection (Engineering Decision Stage)

2.1 Fiberglass Cloth Types Used in Marine Industry

Different fiberglass fabrics are selected based on structural requirements:

Woven roving (heavy fiberglass fabric)

· High fiber density

· Excellent impact resistance

· Used for hull reinforcement and large structural repairs

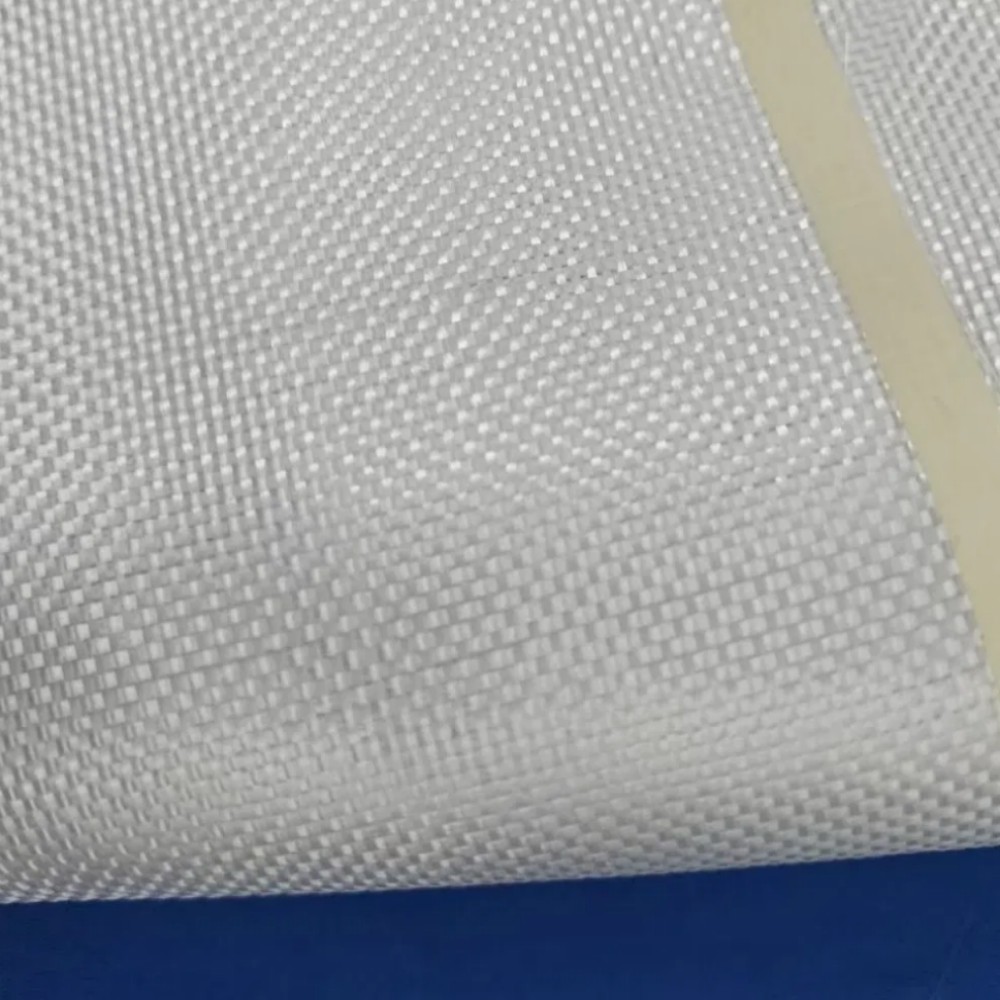

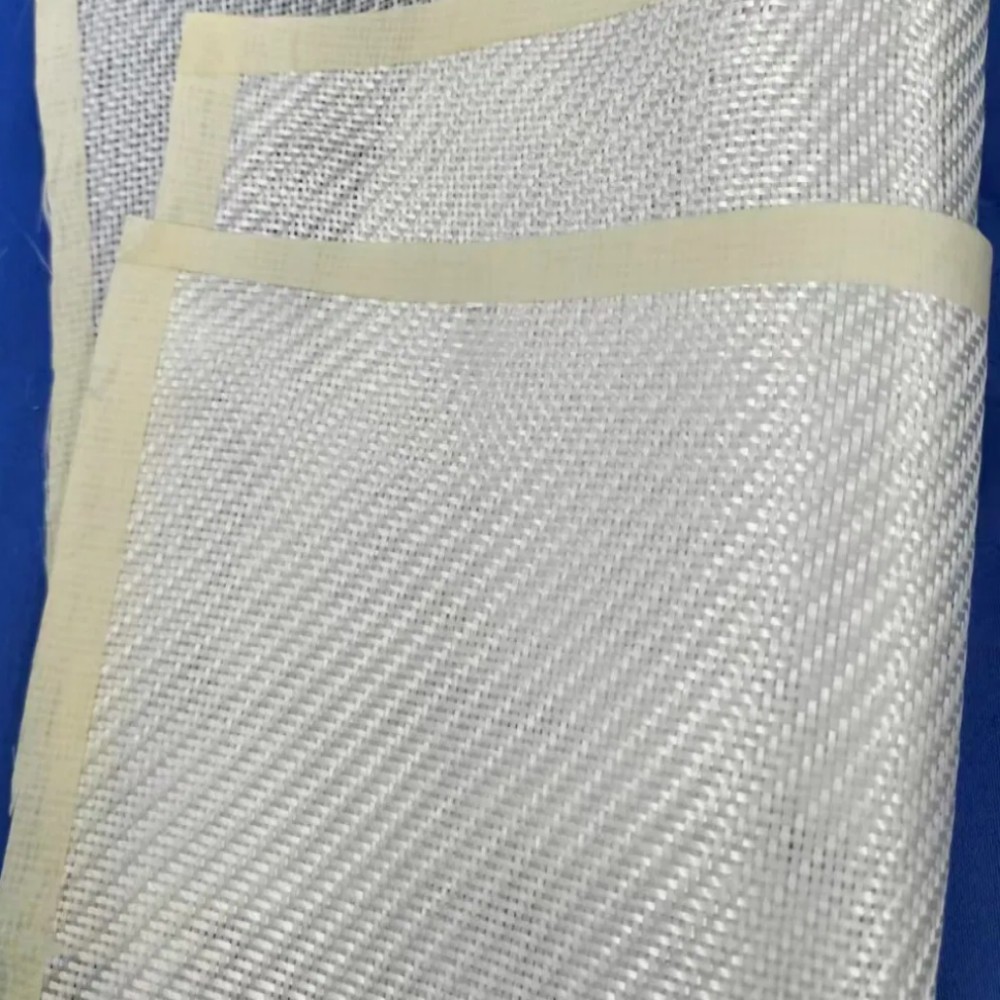

E-glass plain weave

· Balanced mechanical properties

· Easy to handle and conform to curved surfaces

· Common in general boat repair and surface lamination

Biaxial fiberglass fabric (+45/-45)

· Non-crimp stitched structure

· Excellent shear strength

· Ideal for structural hull zones, stringers, and high-load areas

Multiaxial fiberglass fabric

· Multiple fiber directions (0°/±45°/90°)

· Used in high-performance boatbuilding and racing hulls

· Provides optimized load distribution

Chopped strand mat (CSM)

· Random fiber orientation

· Used mainly in polyester systems

· Less structural strength, but good for surface build-up

2.2 Resin System Selection (Critical Engineering Factor)

The resin system determines water resistance, bonding strength, and fatigue life.

Polyester resin

· Low cost

· Fast curing

· Limited adhesion strength

· Suitable only for non-structural above-waterline repairs

Vinyl ester resin

· Better chemical resistance

· Improved water barrier performance

· Widely used in commercial marine applications

Epoxy resin

· Highest mechanical strength

· Excellent adhesion to fiberglass and old laminates

· Superior water resistance

· Recommended for structural and below-waterline repair

Epoxy systems are considered the industry standard for professional marine structural repair.

3. Surface Preparation (Most Critical Step in Entire Process)

Poor surface preparation is the leading cause of fiberglass failure.

3.1 Cleaning Process

· Remove grease, oil, salt deposits, wax, and contaminants

· Use acetone, MEK, or industrial degreasers

· Ensure full evaporation before sanding

3.2 Mechanical Abrasion

· Use 60–80 grit sandpaper for GRP surfaces

· Extend sanding area at least 10–15 cm beyond repair zone

· Create a matte, rough bonding surface

· Avoid polishing or shiny finish (bond failure risk)

3.3 Moisture Control

· Surface must be completely dry

· Avoid lamination in high humidity environments (>70–80%)

· Moisture trapped under laminate leads to osmosis and blistering

3.4 Dust Removal

· Vacuum cleaning recommended

· Final wipe using solvent cloth

· Avoid compressed air containing oil or water

4. Lamination Design and Fiber Layout Planning

Proper laminate design determines structural performance.

Key principles:

· Each successive layer should extend 10–20 mm beyond previous layer

· Avoid sharp corners (stress concentration points)

· Always use rounded patch geometry

Fiber orientation strategy:

· 0° orientation → longitudinal strength

· ±45° orientation → shear resistance

· 90° orientation → transverse stiffness

Typical structural stack:

· Layer 1: 0°

· Layer 2: ±45°

· Layer 3: 90°

For high-load zones, additional layers are added with staggered orientation.

5. Resin Mixing and Pot Life Control

Accurate mixing is essential for mechanical performance.

Epoxy mixing guidelines:

· Standard ratio: 100:30 or 2:1 (system dependent)

· Mix for at least 2–3 minutes

· Scrape container walls and bottom repeatedly

· Avoid high-speed mixing (introduces air bubbles)

Important factors:

· Pot life decreases with higher temperature

· Large batch mixing increases exothermic reaction risk

· Improper ratio leads to incomplete curing or brittle laminate

6. Wet-Out Process (Core Structural Step)

Wet-out defines fiber-to-resin ratio and final strength.

Step 1: Resin pre-coating

Apply thin resin layer on prepared surface.

Step 2: Fabric placement

Carefully place fiberglass cloth onto wet resin without stretching.

Step 3: Impregnation

Use roller to fully saturate fiber structure.

Proper wet-out indicators:

· Fiberglass cloth becomes transparent

· No white dry fiber spots remain

· Resin evenly distributed across surface

Common errors:

· Over-saturation → weak resin-rich laminate

· Under-saturation → dry fiber zones and delamination risk

7. Air Removal and Compaction Techniques

Air voids significantly reduce structural integrity.

Tools used:

· Aluminum laminating rollers

· Bubble rollers

· Squeegees

· Brushes for edges and corners

Technique:

· Cross rolling (vertical + diagonal passes)

· Apply moderate pressure only

· Continuously check for trapped air

Advanced applications may use vacuum bagging systems for improved consolidation.

8. Multi-Layer Lamination Strategy

Multi-layer construction improves structural performance.

Green stage bonding:

Next layer should be applied when previous layer is still tacky but not fully cured.

Benefits:

· Chemical bonding between layers

· No need for sanding between layers

Fully cured surface:

· Must be sanded with 80 grit before next layer

· Ensures mechanical adhesion

9. Curing Process Control

Curing conditions directly affect final mechanical strength.

Parameter	Recommended Range
Temperature	18–28°C
Humidity	<70%
Cure time	12–48 hours

Avoid:

· Low temperature curing (<10°C)

· Direct sunlight exposure during gel phase

· High humidity environments

Improper curing leads to soft spots and structural instability.

10. Post-Curing Processing

After full curing:

· Trim excess fiberglass edges

· Sand surface progressively (120 → 240 grit)

· Apply gelcoat or epoxy primer coating

· Add UV protective layer for long-term durability

11. Professional Tools and Industrial Methods

Industrial marine lamination often uses:

· Vacuum bagging systems

· Resin infusion systems (VARTM)

· Peel ply and release films

· Digital mixing scales

· Industrial laminating rollers

· Low-viscosity marine epoxy systems

These methods improve fiber-to-resin ratio and reduce void content.

12. Marine Application Areas

Fiberglass cloth is widely used in:

· Yacht hull construction

· Fishing boat repair

· Workboat structural reinforcement

· Deck and superstructure strengthening

· Transom reinforcement (outboard motor area)

· Keel and bottom hull repair

· Bulkhead bonding and sealing

13. Common Installation Failures (Field Data)

Delamination

Caused by contamination or insufficient surface preparation.

Resin-rich laminate

Caused by excessive resin application, reducing strength-to-weight ratio.

Dry spots

Caused by insufficient wet-out or poor rolling technique.

Osmosis blistering

Caused by improper resin selection or moisture entrapment.

Structural cracking

Caused by incorrect fiber orientation design.

14. Professional Installation Recommendations

· Always pre-cut fiberglass before mixing resin

· Use multiple thin layers instead of one thick layer

· Maintain correct fiber orientation stacking

· Round all repair edges

· Control temperature during curing

· Use epoxy resin for structural repairs

15. Structural Performance Considerations

Fiberglass laminate performance depends on:

· Fiber volume fraction

· Resin-to-fiber ratio

· Void content

· Laminate thickness

· Fiber orientation balance

Optimized laminates can significantly improve:

· Impact resistance

· Fatigue life

· Stiffness-to-weight ratio

· Corrosion resistance in marine environments

16. Material Recommendations for Marine Industry

Professional marine construction typically uses:

· Woven fiberglass cloth (general reinforcement)

· Biaxial and multiaxial fiberglass fabrics (structural strength)

· Marine epoxy resin systems (high-performance bonding)

· Vinyl ester systems (chemical resistance applications)

· PVC foam core materials (sandwich structure lightweighting)

Sandwich structures (fiberglass + PVC foam core) are widely used in modern yacht and high-speed boat construction due to superior stiffness-to-weight ratio.

17. Frequently Asked Questions

Can fiberglass cloth be applied over old fiberglass?
Yes, but proper sanding is required to create mechanical bonding.

How long does fiberglass boat repair last?
Proper epoxy repairs can last more than 10 years in marine environments.

Which fiberglass cloth is best for boat hulls?
Biaxial and multiaxial fabrics are preferred for structural applications.

Do I need to sand between layers?
Only if the previous layer is fully cured.

Can polyester resin be used for boat repair?
Only for non-structural and above-waterline applications.

Why is epoxy resin preferred?
It provides higher adhesion strength and better water resistance.

Can fiberglass be applied in cold weather?
Not recommended below 10°C due to incomplete curing risk.

What causes bubbles in fiberglass lamination?
Air entrapment during wet-out or improper rolling technique.
