Fiberglass Mat Vs Cloth: Complete Engineering Guide for Composite Manufacturing (2026)

In composite manufacturing, choosing between fiberglass mat and fiberglass cloth is not just a material decision—it directly impacts:

· Mechanical strength

· Resin consumption

· Production efficiency

· Final product durability

Across industries such as marine, wind energy, FRP poles, and industrial panels, selecting the wrong reinforcement can increase total costs by 20–40% or significantly reduce performance.

This guide provides a practical, engineering-focused comparison to help engineers, buyers, and manufacturers make the right decision based on process, cost, and performance.

What Is Fiberglass Mat?

Fiberglass mat, commonly known as chopped strand mat (CSM), consists of randomly oriented short glass fibers bonded together with a chemical binder.

Types of Fiberglass Mat

· Emulsion bonded CSM – better flexibility and drapability

· Powder bonded CSM – better compatibility with resin infusion

Key Characteristics

· Random fiber orientation (isotropic but low strength)

· High resin absorption (typically 2–3× fiber weight)

· Excellent conformability for complex shapes

· Easy handling in manual processes

Typical Applications

· Hand lay-up

· Boat hull surface layers

· Mold making

· Repair and reinforcement

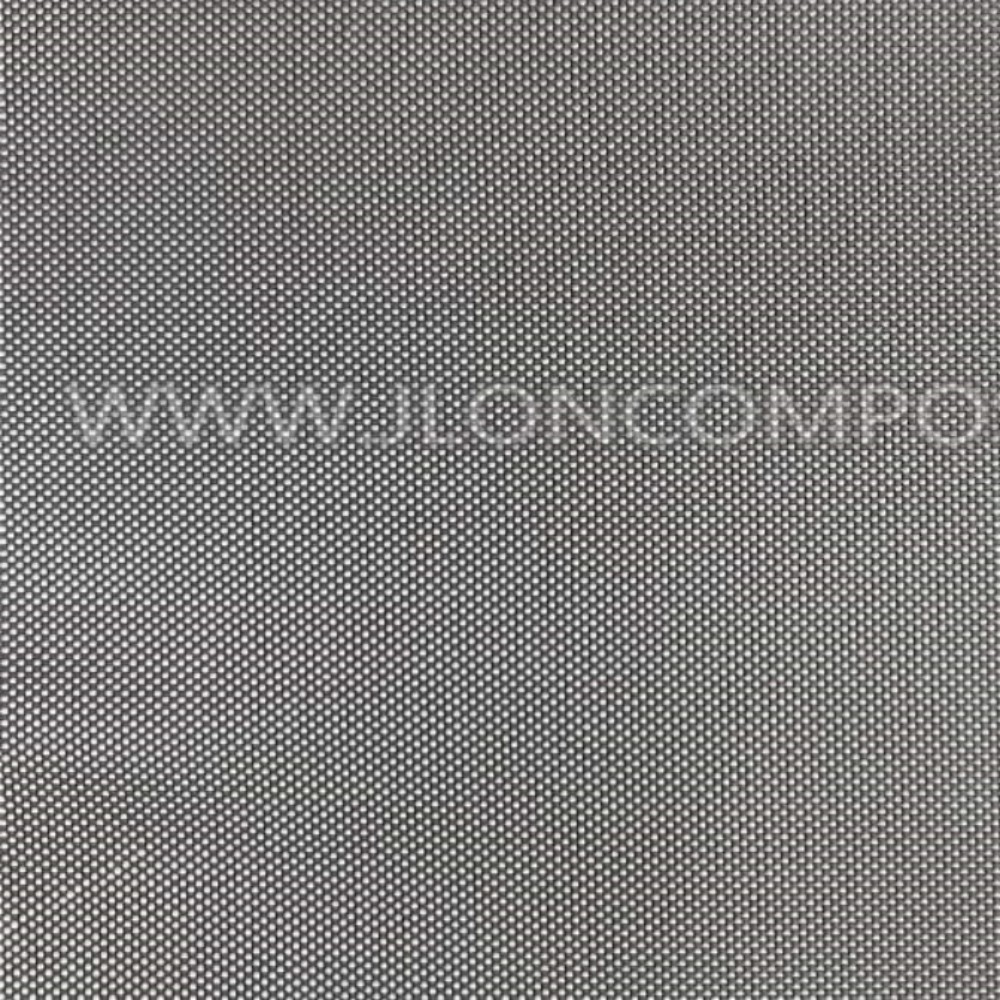

What Is Fiberglass Cloth?

Fiberglass cloth is a woven fabric made from continuous glass filaments arranged in structured patterns.

Common Weave Types

· Plain weave

· Twill weave

· Satin weave

· Woven roving (heavy structural reinforcement)

Key Characteristics

· Directional strength (anisotropic properties)

· High tensile and flexural performance

· Lower resin consumption

· Better structural consistency

Typical Applications

· Structural reinforcement

· Marine and wind energy components

· FRP poles and profiles

· Vacuum infusion and RTM processes

Typical Technical Specifications

Property	Fiberglass Mat (CSM)	Fiberglass Cloth
Areal Weight	225–600 g/m²	100–800 g/m²
Tensile Strength	Low	High
Resin Content	65–75%	45–55%
Fiber Volume Fraction	Low	High
Thickness Control	Poor	Good

These differences explain why fiberglass mat is typically used for surface and bonding, while fiberglass cloth is used for structural performance.

Fiberglass Mat vs Cloth: Engineering Comparison

Mechanical Performance

Fiberglass cloth provides significantly higher tensile and flexural strength due to continuous fiber alignment.

Fiberglass mat is mainly used for bonding layers, improving interlaminar adhesion, and building thickness—not for structural strength.

Resin Consumption and Cost Impact

Fiberglass mat absorbs a large amount of resin, increasing laminate weight and overall cost.

Fiberglass cloth enables better fiber-to-resin ratios, improving performance while reducing resin usage.

Real Cost Insight

Although fiberglass mat has a lower price per kilogram, it often leads to higher total laminate cost due to excessive resin consumption.

Fiberglass cloth, despite a higher material price, is often more cost-efficient in structural applications.

Process Compatibility

Process	Fiberglass Mat	Fiberglass Cloth
Hand Lay-up	Ideal	Suitable
Spray-up	Ideal	Not suitable
Vacuum Infusion	Limited use	Highly suitable
RTM / VARTM	Not recommended	Preferred
Prepreg	Not applicable	Standard

Wet-Out Behavior and Handling

Fiberglass mat wets out quickly due to its random fiber structure, making it easy to use in manual processes.

Fiberglass cloth requires proper rolling and technique to remove air bubbles, but offers better control and consistency in advanced manufacturing.

Surface Finish and Print-Through

Fiberglass mat is commonly used behind gelcoat to prevent fiber pattern visibility and achieve a smooth surface.

Fiberglass cloth may cause print-through if used directly under gelcoat, especially in marine applications.

Resin Compatibility

Different resin systems affect the performance of fiberglass reinforcements:

· Polyester resin – widely compatible with both mat and cloth

· Vinyl ester – improved corrosion resistance, suitable for both

· Epoxy resin – best paired with fiberglass cloth

Important Note

· Emulsion bonded mat may not perform well with epoxy

· Powder bonded mat is more suitable for epoxy systems

Application-Based Selection Guide

Marine Industry

Typical laminate structure:

· Gelcoat

· 300g CSM

· 600g woven roving

· 450g CSM

· Biaxial fabric layers

Fiberglass mat improves surface finish and bonding, while fiberglass cloth provides structural strength.

Wind Energy

Wind turbine blades rely heavily on fiberglass cloth and multiaxial fabrics.

Fiberglass mat is rarely used in structural areas due to its lower strength and higher resin consumption.

FRP Poles and RTM Applications

For RTM, LRTM, and vacuum molding:

· Fiberglass cloth or stitched fabrics are preferred

· Fiberglass mat is generally avoided

Reasons:

· Binder can restrict resin flow

· Increased risk of defects

· Lower process consistency

Repair and DIY Applications

Fiberglass mat is widely used due to:

· Easy handling

· Good conformability

· Lower cost

Can Fiberglass Mat Be Used in Vacuum Infusion?

In most cases, fiberglass mat is not recommended for vacuum infusion.

Key Issues

· Binder may not fully dissolve

· Poor resin flow

· Higher risk of voids

Exception

Powder-bound mat may be used in limited cases, but performance remains inferior to woven or stitched fabrics.

Hybrid Laminate Strategy

In many industrial applications, fiberglass mat and cloth are used together.

Example Laminate Design

· Surface layer: fiberglass mat

· Structural layers: woven roving or biaxial fabric

· Reinforcement layers: fiberglass cloth

Benefits

· Improved surface quality

· Better bonding between layers

· Optimized cost-performance balance

Strength Efficiency Insight

Fiberglass cloth achieves higher strength with less material due to continuous fibers.

Fiberglass mat requires more layers to build thickness but does not significantly improve structural strength.

A common industry understanding:

Mat builds thickness, cloth builds strength

Alternatives to Fiberglass Mat and Cloth

For advanced applications, alternative reinforcements may be more suitable:

· Biaxial fabric – improved load distribution

· Triaxial fabric – high-performance structural parts

· Multiaxial stitched fabrics – ideal for RTM and infusion

These materials are widely used in wind energy, marine, and industrial composite structures.

Common Mistakes to Avoid

· Using fiberglass mat as structural reinforcement

· Using fiberglass cloth directly under gelcoat

· Ignoring process compatibility

· Overusing mat, leading to excessive resin consumption

What Happens If You Choose the Wrong Material?

· Structural failure or cracking

· Poor surface finish

· Increased production cost

· Manufacturing defects such as voids or dry spots

Proper material selection is critical for both performance and cost control.

How to Choose the Right Material

Use fiberglass mat when:

· Surface finish is critical

· Complex shapes are involved

· Non-structural layers are required

Use fiberglass cloth when:

· Structural strength is required

· Resin efficiency matters

· RTM or infusion processes are used

Use both when:

· A balance of cost, performance, and surface quality is needed

Supply and Customization Options

Fiberglass materials can be customized based on application requirements:

· Areal weight (GSM)

· Roll width and length

· Fiber type (E-glass, etc.)

· Surface treatments

Working with a manufacturer ensures better control over quality and performance.

Why Material Selection Matters

Material selection affects not only product performance but also manufacturing efficiency and long-term cost.

At JLON, we support customers with:

· Application-based material recommendations

· Process optimization for RTM, infusion, and hand lay-up

· Customized fiberglass reinforcement solutions

Conclusion

Fiberglass mat and fiberglass cloth serve different but complementary roles in composite manufacturing.

· Fiberglass mat is ideal for surface layers and shaping

· Fiberglass cloth is essential for structural performance

· Combining both often delivers the best results

Understanding these differences allows manufacturers to improve product quality, reduce costs, and optimize production processes.

FAQ

Is fiberglass mat stronger than fiberglass cloth?

No, fiberglass cloth provides significantly higher structural strength due to continuous fibers.

Can fiberglass mat be used with epoxy resin?

Only powder-bound mat is recommended for epoxy systems.

Why does fiberglass mat use more resin?

Its random fiber structure creates more void space, leading to higher resin absorption.

Which material is better for RTM or vacuum infusion?

Fiberglass cloth or stitched fabrics are the preferred choice.
