What Is Prepreg Carbon Fiber? (Complete Engineering & Buying Guide)

Quick Summary

· Prepreg = pre-impregnated carbon fiber with controlled resin

· Higher strength and consistency than dry carbon fiber

· Requires cold storage and controlled curing

· Ideal for high-performance structural applications

1. What Is Prepreg Carbon Fiber?

Prepreg carbon fiber (short for “pre-impregnated”) is a semi-finished composite material in which carbon fibers are pre-impregnated with a precisely controlled resin system.

Unlike dry carbon fiber:

· Resin is applied under factory-controlled conditions

· Fiber-to-resin ratio is optimized

· Performance is consistent and repeatable

More importantly, prepreg is not just a material—it is a pre-engineered system within Composite Materials, combining fiber, resin chemistry, and curing behavior.

2. Resin Systems (Core of Performance)

Epoxy Prepreg

· Cure temperature: 120–180°C

· Balanced properties

· Widely used in automotive, UAV, industrial

BMI (Bismaleimide) Prepreg

· Cure temperature: 180–230°C

· High thermal resistance (Tg > 200°C)

· Aerospace applications

Cyanate Ester Prepreg

· Low dielectric loss

· Ideal for radomes and antenna structures

Choosing the wrong resin system can lead to thermal failure or performance mismatch

Practical Selection of Resin Systems

In real applications, resin selection is not only about temperature resistance, but also about processing compatibility and end-use environment.

For example:

· Epoxy prepreg is preferred when:

o Cost efficiency is important

o Moderate curing temperatures are required

o Mechanical strength is the main priority

· BMI prepreg is selected when:

o Service temperature exceeds 180°C

o Thermal stability and creep resistance are critical

· Cyanate ester prepreg is used when:

o Low dielectric performance is required

o Applications involve radar or antenna systems

In practice, resin selection is always a balance between performance, processing, and cost

3. Fiber Architecture (Where Strength Comes From)

Unidirectional (UD) Prepreg

· Fibers aligned in one direction

· Maximum strength along load direction

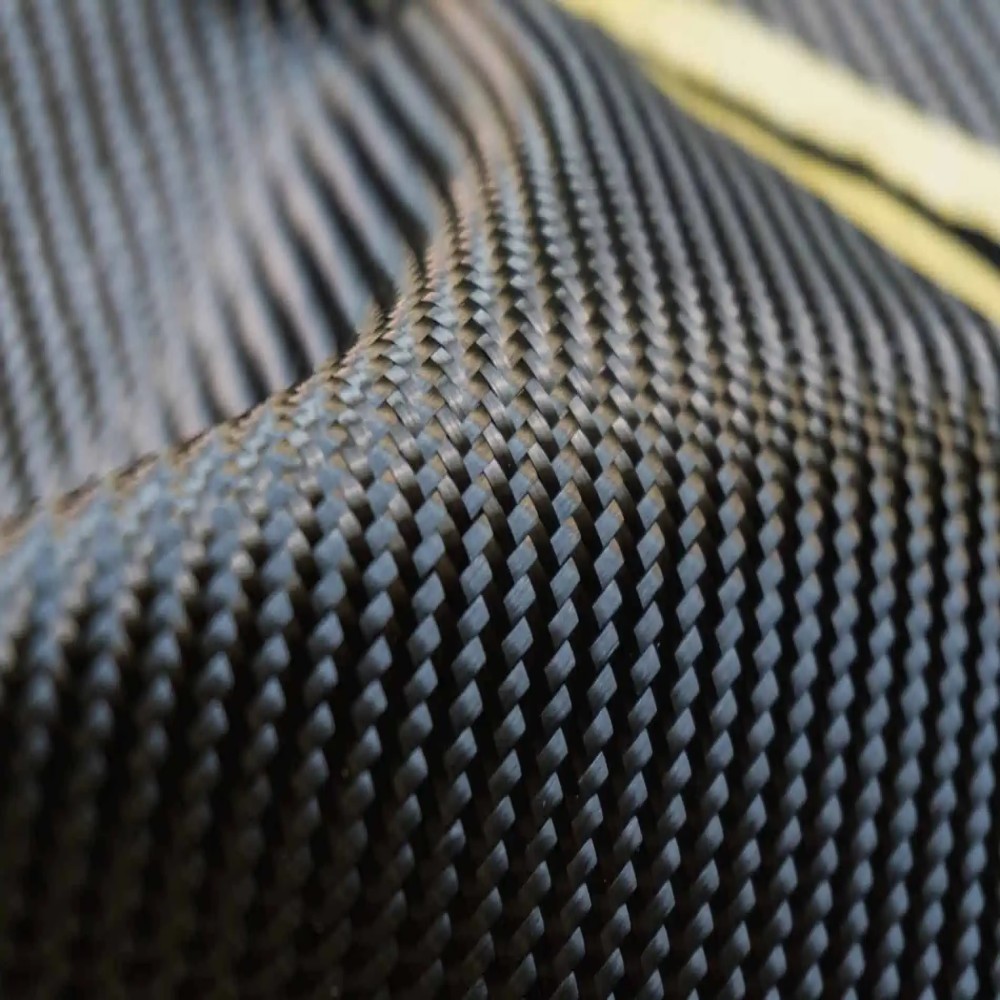

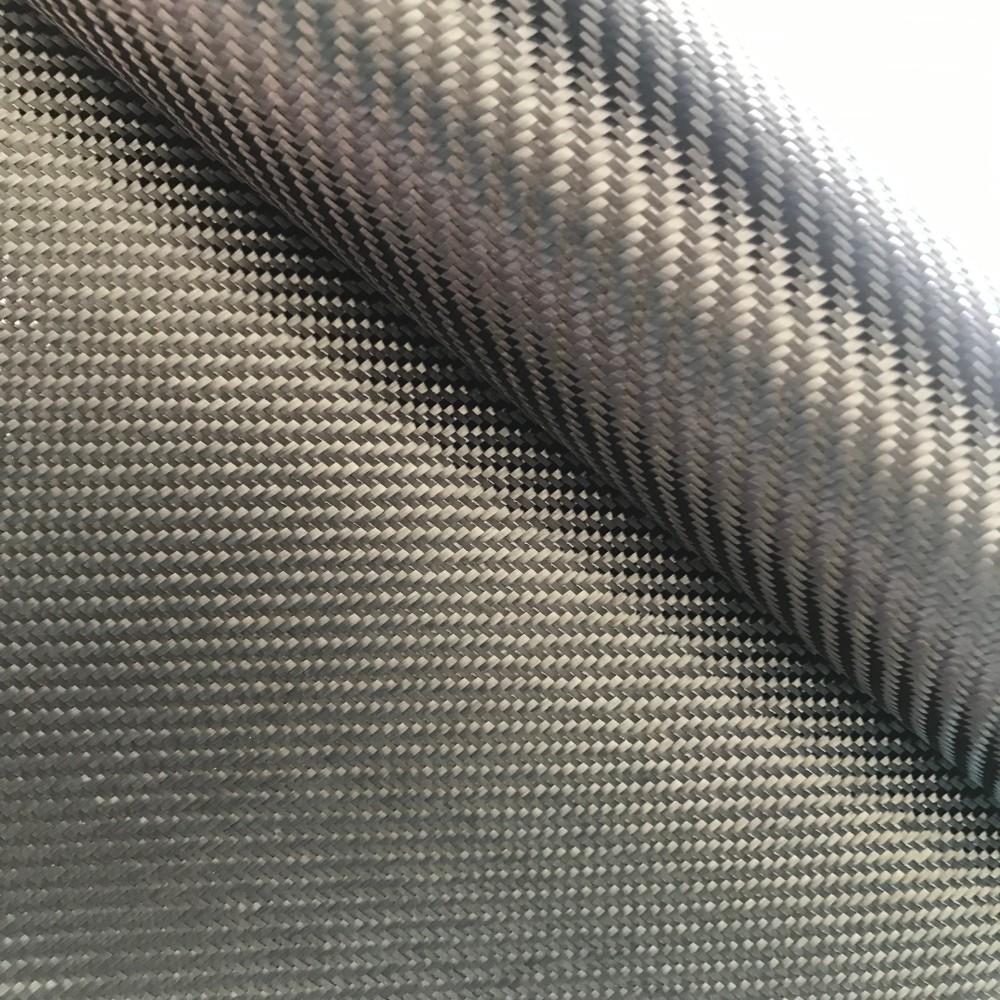

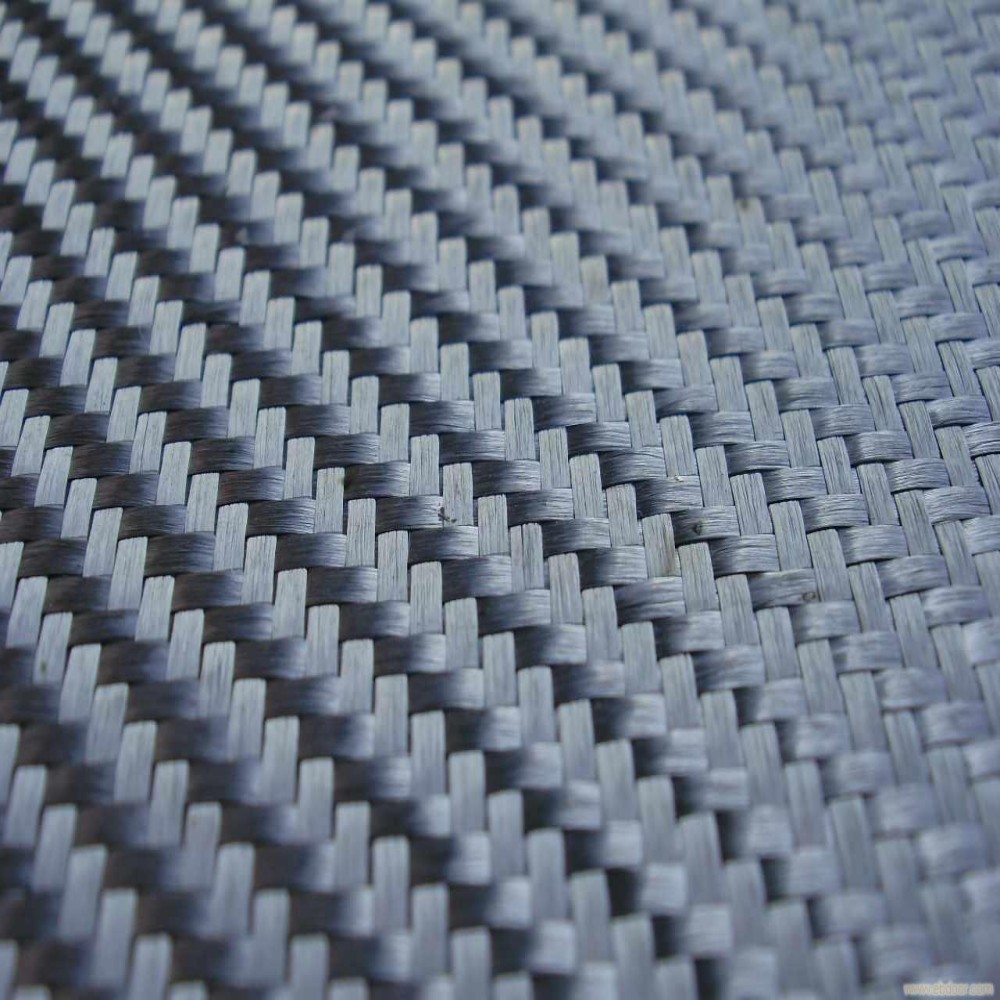

Woven Prepreg (Plain / Twill / Satin)

· Balanced properties

· Better drapability

· Suitable for complex shapes

Multiaxial Prepreg

· Multiple orientations (±45°, 0°, 90°)

· Reduces layup time

Performance depends more on fiber orientation than material type

4. Critical Technical Parameters

Resin Content

· Typical: 30–40%

· Too high → brittle / heavy

· Too low → dry areas

Fiber Volume Fraction (FVF)

· Prepreg: up to 60–65%

· Infusion: typically 45–55%

Higher FVF = better mechanical performance

Areal Weight

· 80g – 600g

· Determines laminate thickness

Glass Transition Temperature (Tg)

Related to Glass Transition Temperature:

80–120°C → industrial

120–180°C → structural

200°C → aerospace

Exceeding Tg can lead to structural failure

Out Time (Critical)

· Room temperature working time

· Typically 7–30 days

Exceeding out time leads to premature curing

5. Manufacturing Processes

Autoclave Processing

· Pressure: 5–7 bar

· Void content: <1%

· Aerospace standard

Out-of-Autoclave (OOA)

· Oven + vacuum bag

· Lower cost

· Void: ~1–3%

Press Molding

· High efficiency

· Suitable for mass production

Key Processing Considerations

Successful prepreg processing depends on strict control of:

· Layup sequence and fiber orientation

· Vacuum bagging quality

· Heating rate and curing cycle

· Pressure consistency during curing

Even small deviations can result in:

· Increased void content

· Uneven resin distribution

· Reduced mechanical performance

This is why prepreg is widely used where precision and repeatability are critical

6. Prepreg vs Dry Carbon Fiber (Infusion)

Factor	Prepreg	Infusion
Fiber Volume	60–65%	45–55%
Void Content	<1%	1–5%
Consistency	Excellent	Operator-dependent
Cost	High	Lower

Use prepreg for performance, infusion for cost and scalability

7. Typical Mechanical Properties

Typical values (depending on system):

· Tensile Strength: 600–1500 MPa

· Tensile Modulus: 50–150 GPa

· Compressive Strength: 500–1200 MPa

· Interlaminar Shear Strength (ILSS): 60–120 MPa

8. Common Failure Modes

· Delamination

· Voids

· Resin-rich areas

· Fiber misalignment

Most failures are caused by processing issues, not material defects

9. Storage & Handling Requirements

· Storage: -18°C

· Shelf life: 6–12 months

· Cold chain required

10. Shelf Life vs Out Life

· Shelf Life → freezer storage time

· Out Life → allowable room temperature time

Exceeding limits can cause partial curing and performance loss

11. Supply Forms

Prepreg is typically supplied as:

· Rolls

· Slit tapes

· Cut kits

Custom formats are available based on production needs

12. What Affects Prepreg Carbon Fiber Price?

Key factors:

· Fiber type

· Resin system

· Areal weight

· Certification level

· Logistics and storage

Hidden Costs Buyers Should Consider

Beyond material price:

· Cold storage infrastructure

· Material waste

· Processing equipment

· Labor and QC costs

Smart buyers focus on total cost of ownership (TCO)

13. How Engineers Actually Select Prepreg

1. Load requirements

2. Service temperature

3. Processing capability

4. Cost constraints

5. Certification

It is a system-level engineering decision

14. Thermoset vs Thermoplastic Prepreg

· Thermoset: requires curing, widely used

· Thermoplastic: reheatable, faster, more expensive

Thermoset prepreg dominates most applications

15. When NOT to Use Prepreg

Avoid if:

· No cold storage

· No controlled curing

· Cost-sensitive project

· Very large structures

Infusion or wet lay-up may be more suitable

16. Applications

17. Advantages and Limitations

Advantages

· High strength and stiffness

· Excellent consistency

· Low defect rate

· High-quality surface finish

Limitations

· Requires cold storage

· Limited working time

· Higher cost

· Requires precise processing

Best used when performance justifies complexity

18. Conclusion

Prepreg carbon fiber is a precision-engineered composite system, not just a material.

It offers:

· High fiber efficiency

· Predictable performance

· Excellent repeatability

Success depends on material + process + design alignment

Typical Buyer Scenarios

· High temperature → choose high Tg prepreg

· Cost control → consider OOA prepreg

· Large structures → consider infusion
