How to Choose Carbon Fiber Fabric for Vacuum Infusion

A Complete Engineering Guide for Composite Manufacturers

1. Understanding Vacuum Infusion Requirements

Before selecting carbon fiber fabric, it is essential to understand what the infusion process demands from the material.

Key Process Characteristics

Vacuum infusion works by drawing resin through dry fiber under vacuum pressure. Unlike prepreg or hand lay-up, the resin must flow through the fabric network efficiently.

Therefore, the fabric must provide:

· Controlled permeability

· Good wet-out behavior

· Structural stability during infusion

· Compatibility with resin systems

What Makes Carbon Fiber Different?

Compared to fiberglass, carbon fiber fabrics:

· Have tighter weaves

· Offer lower permeability

· Are more sensitive to resin flow issues

This means fabric selection is even more critical when using carbon fiber.

2. Fabric Architecture: The Foundation of Performance

The structure of the fabric determines both mechanical properties and infusion behavior.

2.1 Woven Fabrics

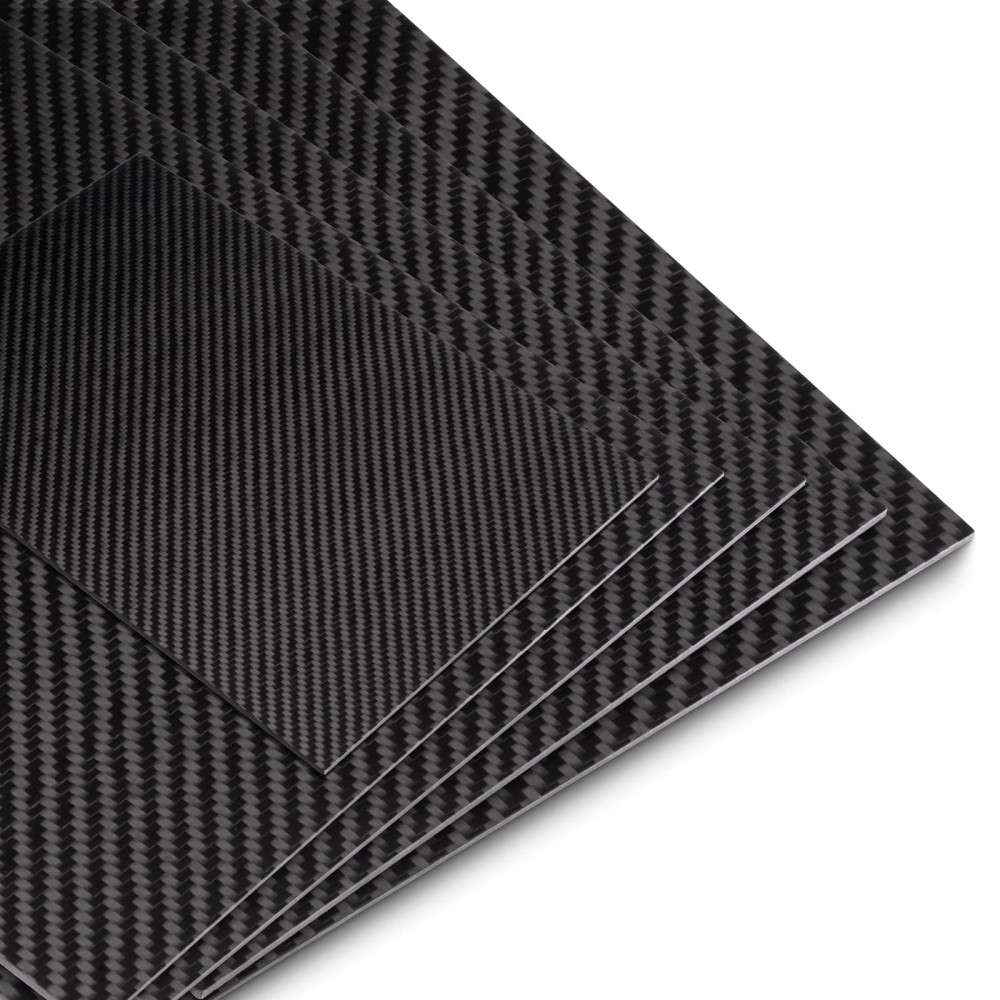

Twill Weave (2x2 Twill)

Advantages:

· Excellent drapability for complex shapes

· Smooth surface finish (cosmetic parts)

· Balanced mechanical properties

Limitations:

· Slightly lower stability compared to plain weave

Best for: UAV shells, marine exterior parts, curved molds

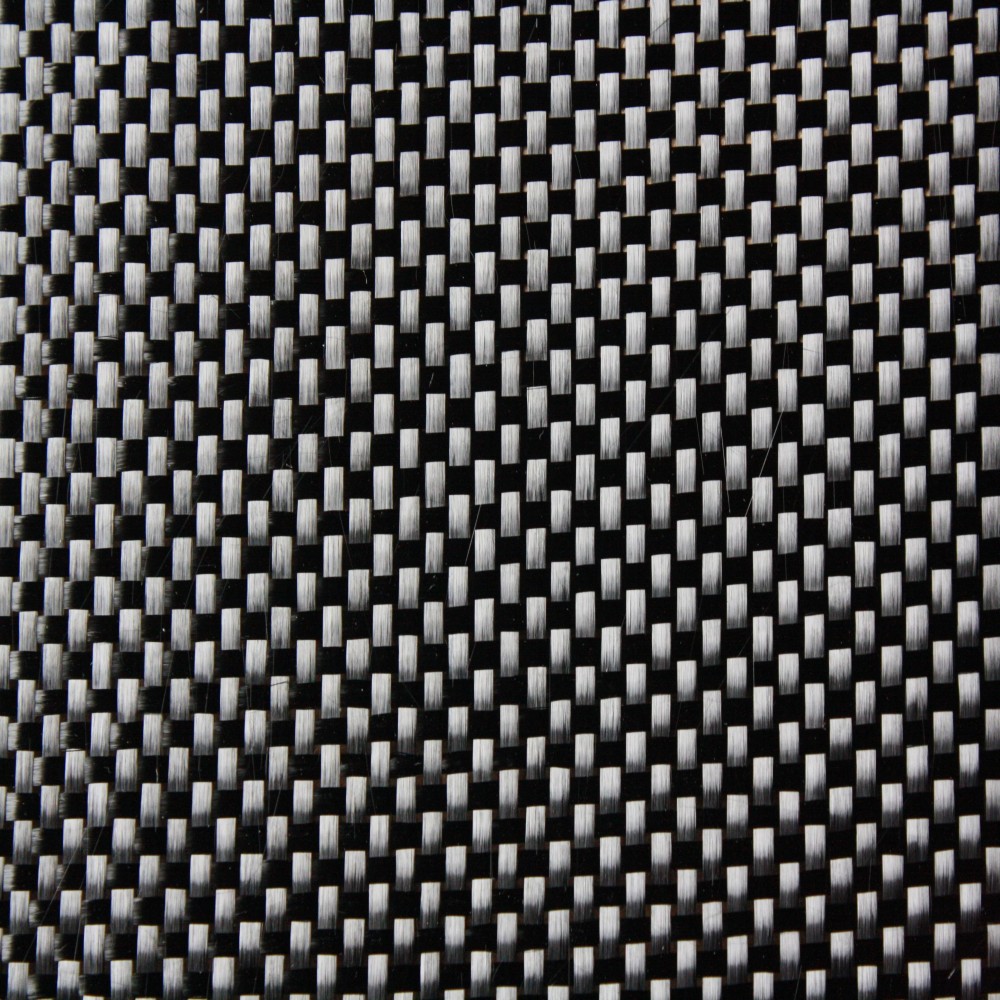

Plain Weave

Advantages:

· High dimensional stability

· Uniform fiber distribution

· Better resistance to distortion

Limitations:

· Poorer drapability

· Slightly more difficult resin flow compared to twill

Best for: Flat panels, structural skins

2.2 Unidirectional (UD) Fabric

Advantages:

· Maximum strength in one direction

· Efficient load transfer

· Reduced weight for structural performance

Limitations:

· No strength in transverse direction

· Requires layering strategy

Best for: Beams, reinforcement zones, load paths

2.3 Multiaxial Fabrics (Biaxial / Triaxial)

These are stitched (non-woven) fabrics with fibers oriented in multiple directions (e.g., 0°, ±45°, 90°).

Advantages:

· Excellent permeability (ideal for infusion)

· Reduced crimp → higher mechanical efficiency

· Faster layup for thick laminates

Limitations:

· Slightly rougher surface finish

· Higher cost

Best for: Structural components, marine panels, wind blades

3. Fabric Weight (GSM): Balancing Thickness and Flow

Fabric weight (grams per square meter) directly affects:

· Laminate thickness

· Mechanical strength

· Infusion behavior

Typical Selection Guidelines

GSM Range	Application	Infusion Characteristics
150–200g	UAV, lightweight skins	Fast resin flow
200–300g	Automotive, marine	Balanced
300–600g	Structural laminates	Slower flow

Key Engineering Insight

· Lighter fabrics (≤200g) improve flow but require more layers

· Heavier fabrics (≥400g) reduce layer count but increase infusion difficulty

A balanced layup often combines multiple weights.

4. Permeability: The Critical Factor in Infusion

Permeability determines how easily resin flows through the fabric.

Factors Affecting Permeability

1. Fiber Tow Size

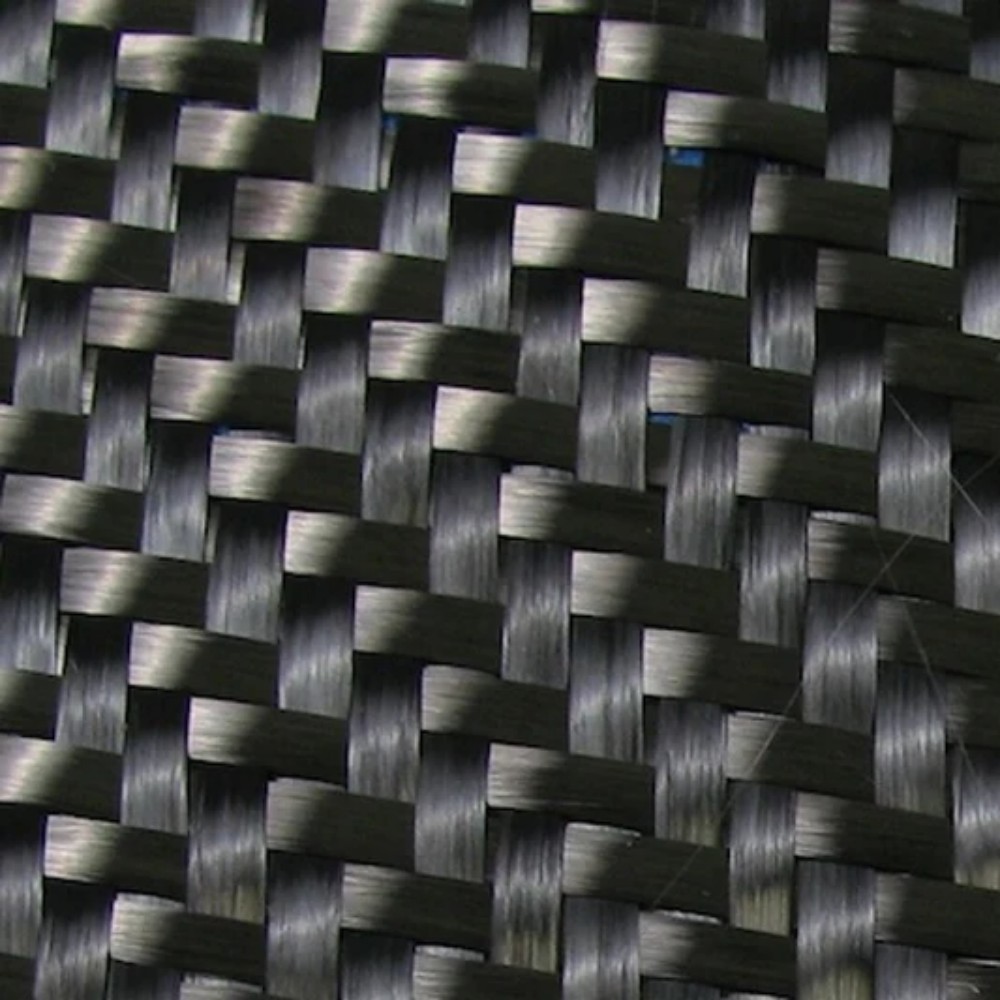

· 3K → tighter, smoother surface, lower permeability

· 6K / 12K → higher permeability, better for infusion

2. Weave Tightness

· Tight weave → slower flow

· Loose weave → faster infusion

3. Stitching (Multiaxial Fabrics)

· Creates flow channels

· Improves through-thickness permeability

Practical Recommendation

For most infusion applications:

· Use 3K twill for surface layers

· Use biaxial or 12K fabrics for core layers

This combination balances surface quality + process efficiency

5. Resin Compatibility and Wet-Out Behavior

Carbon fiber fabrics are treated with sizing to improve bonding with specific resin systems.

Common Resin Systems in Infusion

· Epoxy (most widely used)

· Vinyl ester

· Polyester

What to Look For

· Compatible sizing (especially for epoxy systems)

· Fast wet-out behavior

· Minimal air entrapment

Poor compatibility leads to:

· Slow impregnation

· Weak fiber-matrix bonding

6. Layup Strategy for Vacuum Infusion

Material selection is not just about individual fabrics—it’s about how they work together.

Typical Layer Configuration

Example (UAV Panel):

· Outer layer: 200gsm 3K twill (cosmetic)

· Core: foam or honeycomb

· Inner layers: UD carbon fiber

· Reinforcement: biaxial carbon

Flow Strategy

To ensure proper infusion:

· Use flow media on top

· Design resin inlet and vacuum outlet carefully

· Avoid excessive thickness in a single region

7. Common Mistakes to Avoid

❌ Using Only Woven Fabric

→ Leads to inefficient load-bearing structure

❌ Selecting Too Heavy Fabric

→ Causes dry spots and incomplete infusion

❌ Ignoring Fiber Orientation

→ Results in weak mechanical performance

❌ No Hybrid Strategy

→ Overuse of carbon fiber increases cost unnecessarily

8. Carbon Fiber vs Fiberglass in Infusion

Carbon fiber is not always the optimal choice.

When Carbon Fiber Is Better

· Weight reduction is critical

· High stiffness is required

· Premium performance applications

When Fiberglass Is Better

· Cost-sensitive projects

· Impact resistance needed

· Large structures with moderate loads

Many manufacturers use hybrid laminates:

· Carbon fiber for stiffness

· Fiberglass for cost and toughness

9. Material Recommendations by Application

UAV / Drone Structures

· 200gsm 3K twill (surface)

· UD carbon fiber (structure)

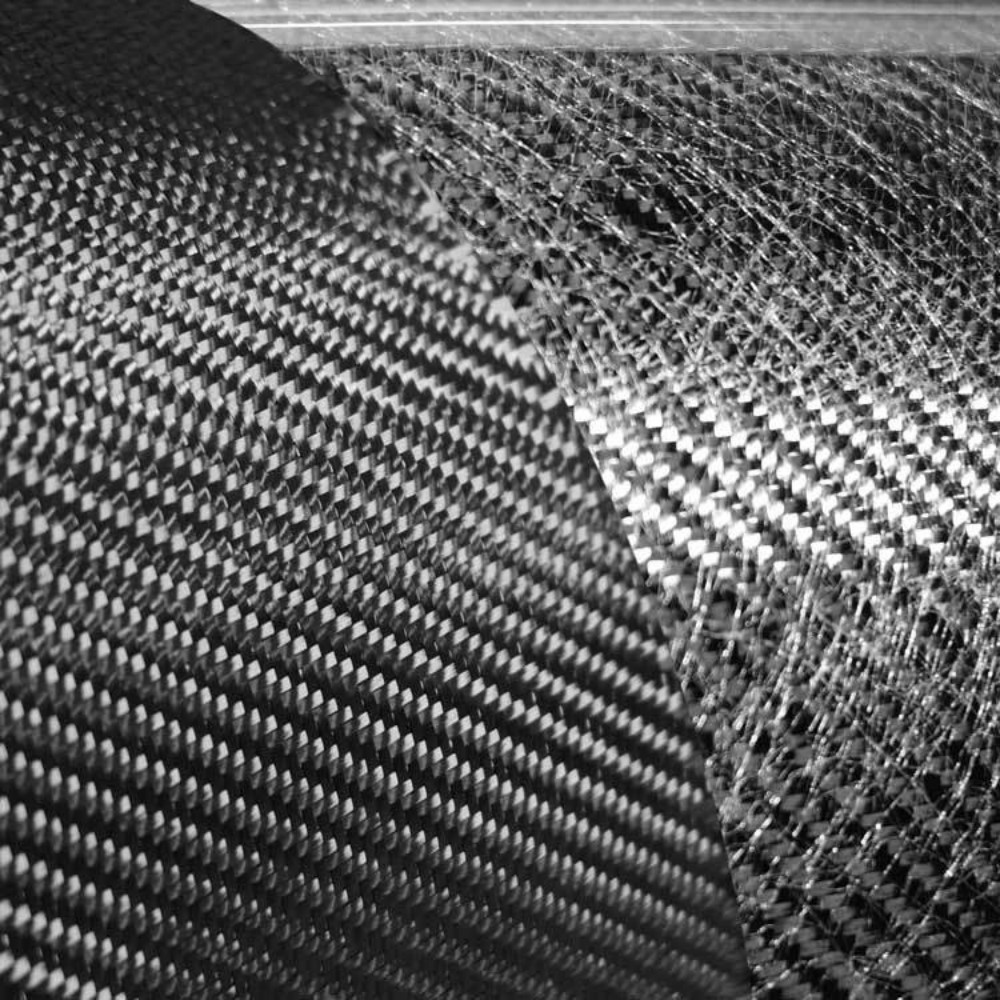

Marine Panels

· 300gsm biaxial carbon

· Hybrid with fiberglass

Structural Components

· Multiaxial carbon (400–600gsm)

10. How to Choose the Right Supplier

A reliable supplier should provide:

· Consistent fabric quality

· Technical support for infusion processes

· Customization (GSM, width, stitching)

· Stable delivery

Technical support is especially important for reducing trial-and-error costs.

Conclusion

Selecting carbon fiber fabric for vacuum infusion is not a simple specification decision—it is a process-driven engineering choice.

The optimal solution depends on:

· Fabric architecture

· Weight and permeability

· Resin compatibility

· Layup strategy

By understanding these factors and applying a structured selection approach, manufacturers can:

· Improve product performance

· Reduce production risks

· Optimize overall cost
