How to Solve Voids, Print-Through, and Airflow Instability in Vacuum Infusion

1. Introduction: Why Vacuum Infusion Is Widely Used—but Still Not Perfect

Over the past decade, vacuum infusion has become one of the most important manufacturing processes for composite materials.

Technologies such as Vacuum Assisted Resin Transfer Molding (VARTM), VARI, and LRTM are widely used in:

· Wind turbine blade manufacturing

· Marine composite structures

· Automotive lightweight components

· Aerospace and UAV structures

The reason is simple:

It produces strong, lightweight, and cost-efficient composite parts.

However, as production scales up and product geometries become more complex, manufacturers face a recurring reality:

Even with advanced vacuum systems, defects still happen.

These include:

· Voids inside laminates

· Uneven resin flow

· Surface print-through

· Air entrapment

· Vacuum line contamination

So the real question is not “why use vacuum infusion”, but:

Why do defects still exist in a supposedly closed and controlled process?

2. The Hidden Problem: Vacuum Infusion Is Not Truly “Uniform”

To understand the issue, we need to look at how traditional vacuum infusion actually works.

Most systems rely on edge-based vacuum extraction, meaning:

· Air is removed from the edges of the mold

· Resin flows from injection points toward vacuum outlets

· Air must travel through the laminate structure to escape

This creates a fundamental limitation:

Air does NOT escape uniformly.

This leads to three major failure zones:

1. Central “Dead Zones”

Air in the middle of large laminates has a long escape path.

2. Flow Imbalance Areas

Resin reaches some regions earlier than others.

3. Trapped Air Regions

Air gets sealed inside before it can exit.

3. Why Defects Form in Vacuum Infusion (Root Cause Analysis)

Let’s break down the most common defects scientifically.

3.1 Voids and Air Entrapment

Voids form when air cannot escape before resin solidifies.

Causes include:

· Uneven vacuum distribution

· Poor airflow channels

· Fast resin gel time

Even small void content can reduce fatigue performance significantly.

3.2 Uneven Resin Flow

Resin behaves differently depending on resistance inside the laminate.

If airflow paths are not balanced:

· Some areas become resin-rich

· Some areas remain dry

This leads to structural inconsistency.

3.3 Print-Through (Surface Marking)

One of the biggest quality problems in visible composite parts.

It is caused by:

· Physical pressure from flow media

· Uneven vacuum pressure distribution

· Resin shrinkage during curing

This is especially critical for:

· Yacht surfaces

· Wind blade skins

· Carbon fiber exterior parts

3.4 Vacuum Line Contamination

In severe cases, resin flows backward into vacuum systems.

This causes:

· Pump damage

· Pipeline blockage

· Production downtime

· High maintenance cost

4. Why Traditional Solutions Are Not Enough

Manufacturers usually try to fix these issues by:

· Adding more flow media

· Increasing vacuum points

· Relying on operator experience

· Adjusting resin viscosity

But these are symptom fixes, not root solutions.

Because the real problem is:

❌ Airflow is not controlled as a system
❌ It is managed manually and locally

5. The Evolution: From Vacuum Infusion to VAP Systems

To overcome these limitations, the industry developed a more advanced concept:

Vacuum Assisted Process (VAP)

Unlike traditional infusion, VAP introduces a critical innovation:

A semi-permeable membrane that separates air flow from resin flow.

This enables:

· Full-surface air evacuation

· Controlled pressure distribution

· Separation of gas and liquid pathways

In simple terms:

Air and resin no longer compete for the same path.

6. The Missing Link: Airflow Control Component

Even with VAP technology, one key challenge remains:

How do we ensure consistent and controlled air extraction across complex geometries?

This is where the Air Extraction Bag becomes essential.

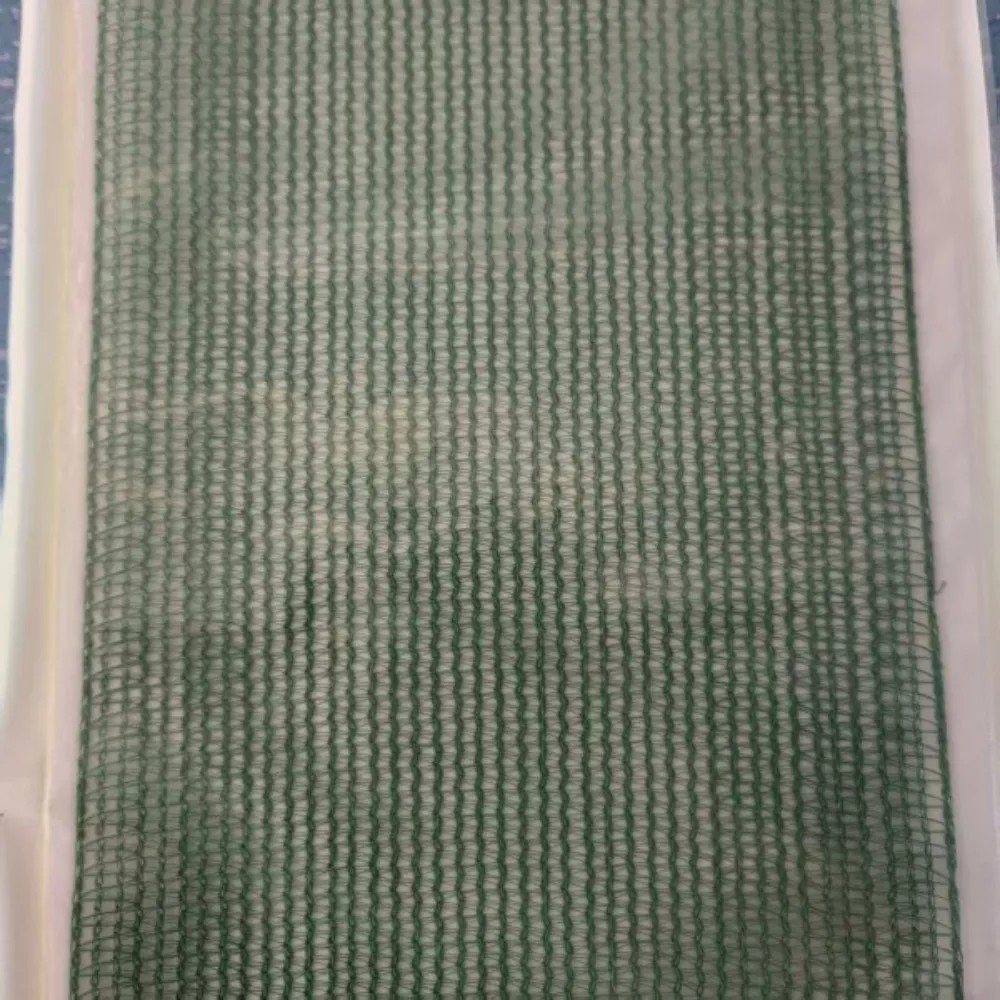

7. What Is an Air Extraction Bag?

An Air Extraction Bag is a pre-integrated vacuum airflow control system designed for composite infusion processes.

Instead of assembling multiple consumables manually, it combines:

· VAP membrane

· Flow distribution mesh

· Vacuum sealing film

into a single engineered structure.

It is not just a consumable

It is an airflow management module

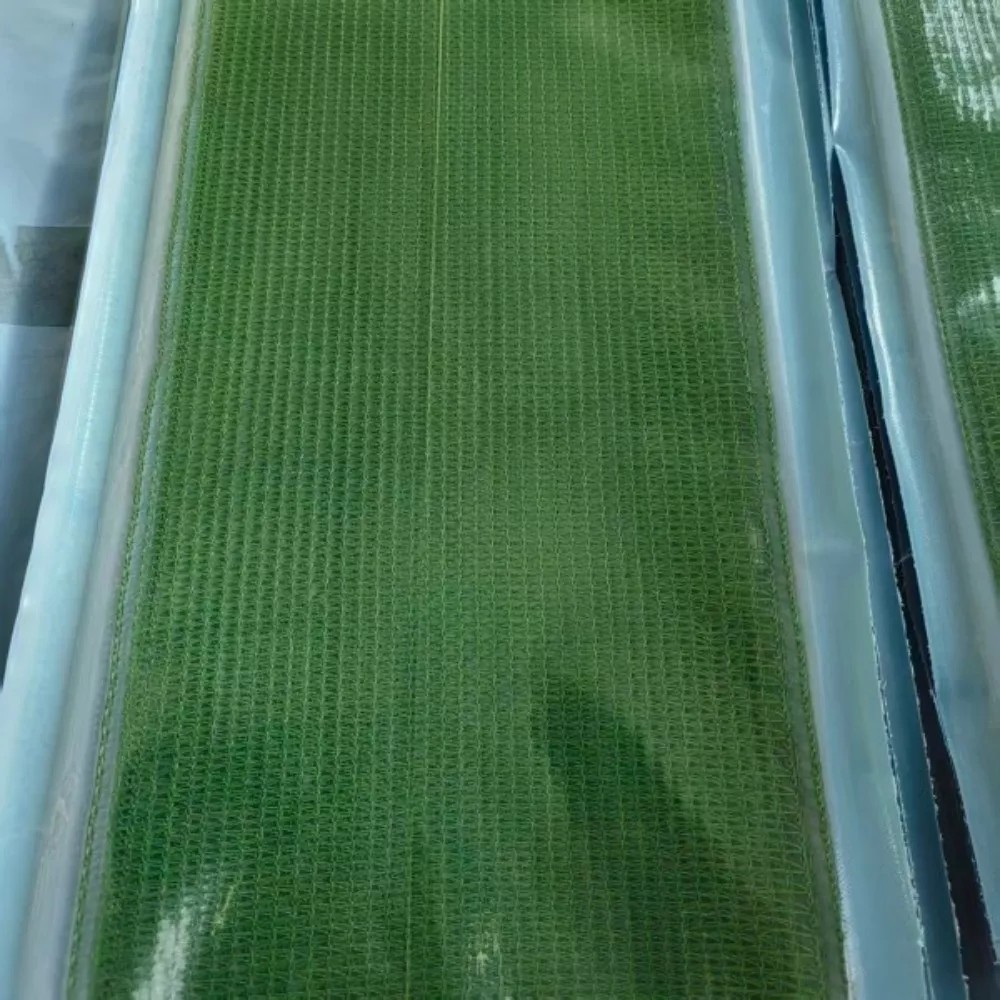

8. Structure and Engineering Principle

The Air Extraction Bag consists of three functional layers:

8.1 VAP Functional Membrane

· Semi-permeable material

· Allows air and gas molecules to pass

· Blocks liquid resin completely

This prevents resin from entering vacuum lines.

8.2 Airflow Distribution Mesh

· Creates continuous airflow channels

· Ensures uniform pressure distribution

· Eliminates localized vacuum imbalance

8.3 Vacuum Sealing Layer

· Maintains airtight environment

· Stabilizes vacuum pressure during infusion

9. How It Works in Real Infusion Process

Step-by-step:

1. Air Extraction Bag is placed on the laminate

2. Vacuum is applied across the system

3. Air travels through the internal mesh network

4. VAP membrane selectively allows gas passage

5. Resin is fully blocked from vacuum channels

Result:

Uniform airflow across entire structure
Stable resin infusion
Defect-free composite surface

10. Key Advantages (Why It Matters in Production)

✔ Full-Surface Air Evacuation

No more dead zones or trapped air regions.

✔ Zero Resin Leakage

Protects vacuum pumps and pipelines.

✔ No Print-Through Marks

Improves surface quality for visible components.

✔ More Stable Production Process

Less dependence on operator skill.

✔ Faster Setup Time

Reduces manual layup work by 30–50%.

✔ Higher Batch Consistency

More stable quality across mass production.

11. Industrial Applications

Air Extraction Bags are widely used in:

· Wind turbine blade manufacturing

· Marine hull and deck structures

· Automotive composite components

· UAV and aerospace structures

· Large carbon fiber panels

· Industrial FRP structures

Compatible with:

· Epoxy resins

· Vinyl ester resins

· Polyester systems

12. Custom Engineering Options

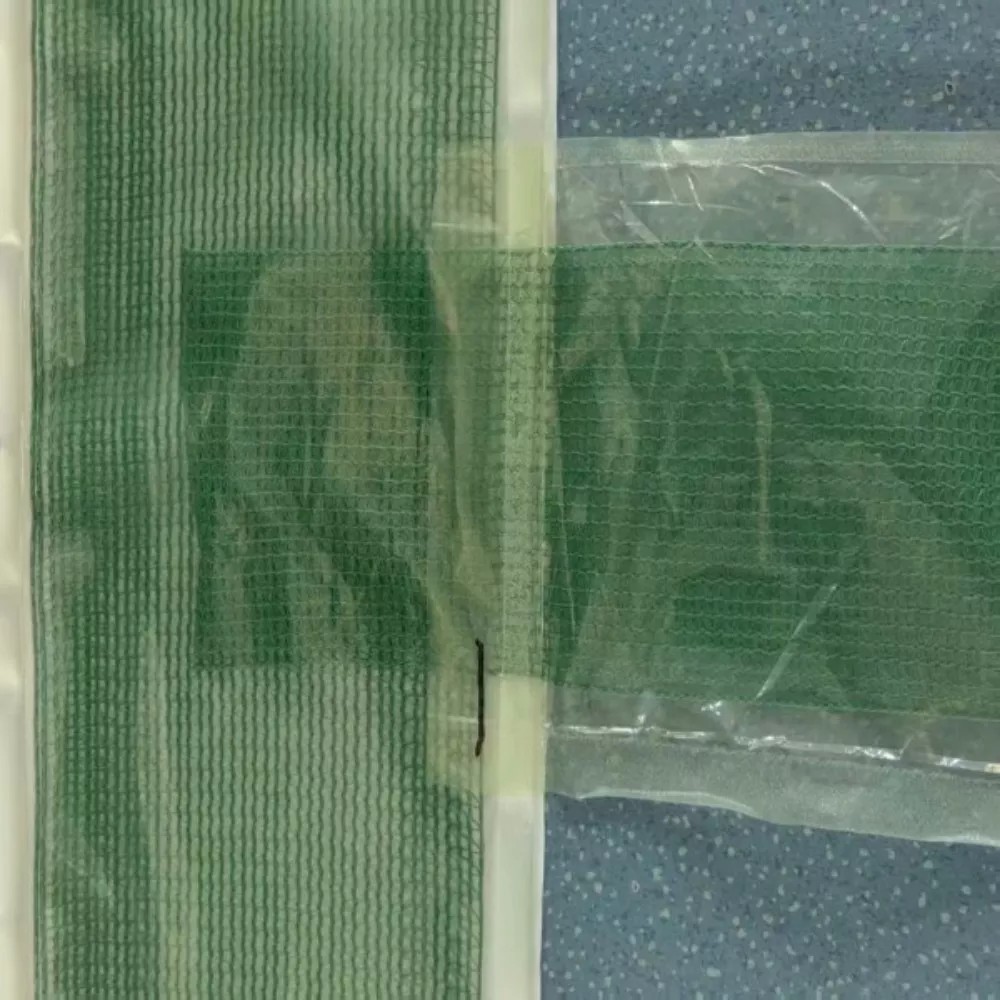

To match different mold and production designs, the system can be customized as:

· I-shaped airflow layout

· T-shaped distribution

· H-shaped multi-zone control

Custom width, length, and airflow path design are available.

13. Traditional vs Air Extraction Bag (Clear Comparison)

Factor	Traditional Vacuum Infusion	Air Extraction Bag System
Airflow	Edge-based, uneven	Full-surface controlled
Setup	Manual multi-layer	Integrated structure
Defects	High risk	Significantly reduced
Surface quality	Print-through risk	Smooth finish
Efficiency	Operator dependent	System controlled

14. Conclusion: From Manual Control to System-Level Airflow Engineering

Vacuum infusion has evolved significantly, but its biggest limitation has always been airflow control.

As composite parts become larger and more performance-critical, traditional methods are no longer sufficient.

By combining VAP technology with Air Extraction Bag systems, manufacturers can finally achieve:

· Stable airflow distribution

· Predictable resin behavior

· Reduced defects

· Higher production efficiency

· Improved surface quality

15. Final Insight

The future of composite manufacturing is not about adding more layers or materials.

It is about:

Controlling airflow as a system, not as a manual process
