Can You Paint Carbon Fiber?

Can Carbon Fiber Be Painted?

Why Paint Carbon Fiber?

1. UV Protection (Critical for Epoxy Systems)

Epoxy resin degrades under UV exposure:

· Yellowing

· Microcracking

· Surface embrittlement

Outdoor CFRP (marine / UAV / wind energy) must be coated.

2. Environmental Resistance

Environment	Risk
Saltwater	Osmotic blistering
Chemicals	Resin degradation
Humidity	Moisture ingress

Coating acts as a protective barrier system.

3. OEM Surface Requirements

Industrial buyers often require:

· RAL / Pantone color control

· Gloss / matte finish

· Hidden carbon weave

· Branding consistency

Surface Condition Before Painting

A. As-Molded CFRP Surface

· Smooth but low surface energy

· Mold release agent contamination
High adhesion risk

B. Post-Cured Surface

· Slight oxidation
Better coating bonding

C. Gelcoat Surface

· Similar to fiberglass systems
Easiest to repaint

Industrial Carbon Fiber Painting Process

Step 1: Surface Cleaning

Remove contaminants:

· Mold release agents

· Oil / grease

· Dust

Recommended:

· Isopropyl alcohol (IPA)

· Industrial acetone

Step 2: Mechanical Sanding

Purpose: increase surface roughness

· Grit: 320–600

· Finish: uniform matte surface

Avoid fiber exposure (structural risk)

Step 3: Surface Activation (Optional Advanced Step)

For aerospace / UAV / marine applications:

· Plasma treatment

· Corona treatment

Improves surface energy significantly

Step 4: Primer Application

Primer is essential in CFRP systems.

Type	Application
Epoxy primer	Best adhesion
PU primer	Flexible systems
Adhesion promoter	Difficult surfaces

Thickness: 15–30 μm

Step 5: Topcoat Application

Common systems:

✔ Polyurethane (PU)

· UV resistant

· Marine-grade durability

· Industry standard

✔ Acrylic Coating

· Lower cost

· Indoor use

Thickness: 25–50 μm

Step 6: Clear Coat (Optional)

Used when:

· High gloss required

· Carbon weave visibility needed

· Extra UV protection required

Thickness: 30–50 μm

Total Coating System Thickness

Typical system:

· Primer: 15–30 μm

· Topcoat: 25–50 μm

· Clear coat: 30–50 μm

Total: 70–130 μm

✔ Minimal weight impact
✔ High durability gain

Will Painting Affect Strength?

✅ Proper Process:

· No impact on stiffness or strength

❌ Improper Process:

· Over-sanding → fiber damage

· Solvent attack → resin weakening

· Poor adhesion → delamination

Carbon Fiber Sandwich Structures (Important)

Critical Engineering Point

Painting systems must include:

· Edge sealing

· Core protection

· Moisture barrier design

Failure leads to:

· Core degradation

· Delamination

· Structural failure

Common Coating Failure Modes

❌ 1. Adhesion Failure

Cause:

· No sanding

· Contamination

❌ 2. Peeling

Cause:

· No primer

· Wrong coating system

❌ 3. Blistering

Cause:

· Moisture trapped

· Poor curing

❌ 4. Yellowing

Cause:

· No UV-resistant topcoat

Best Practices for OEM Manufacturers

✔ Standardize surface roughness
✔ Use epoxy-compatible primers
✔ Always test coating system on sample panels
✔ Use UV-stable systems for outdoor use
✔ Seal all edges in sandwich structures

Core Materials for CFRP Structures (Industrial Solution)

Painted CFRP parts are often built on sandwich structures.

Typical structure:

· Carbon fiber skin

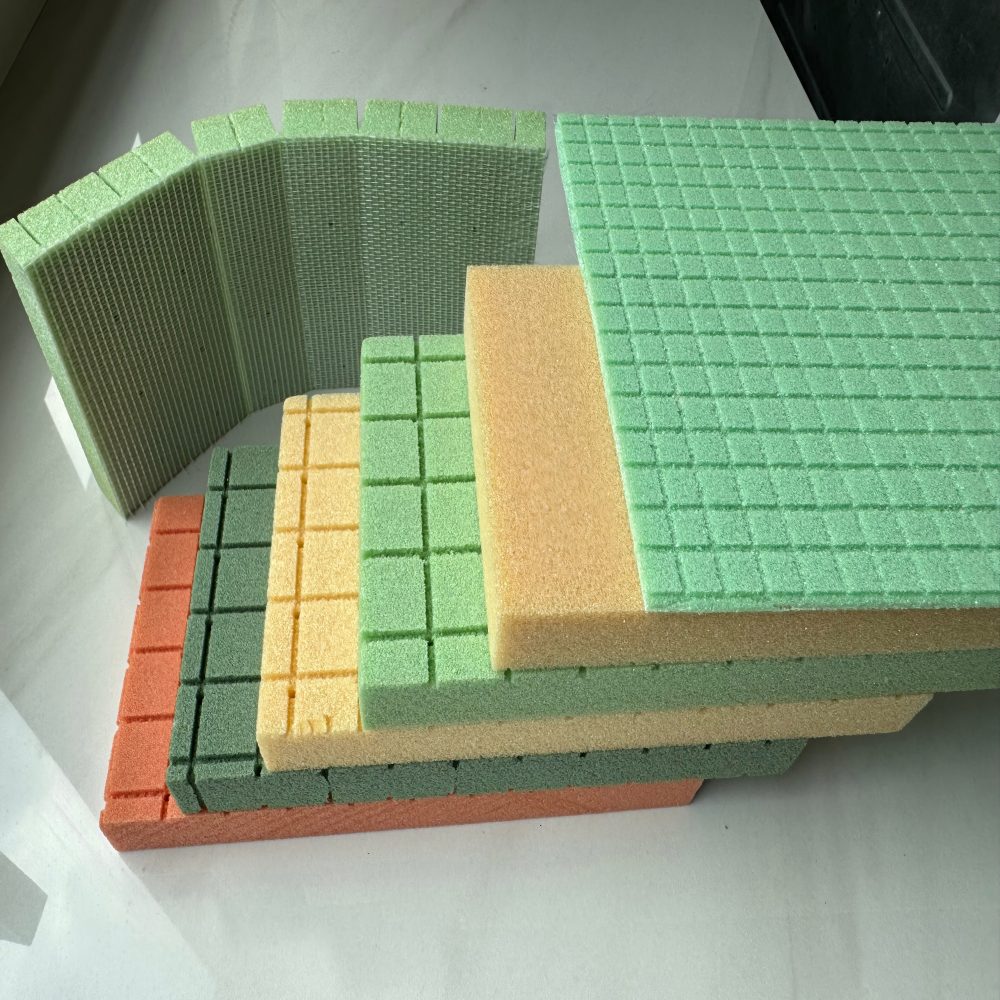

· PVC foam / PET foam core

FAQ

Can you paint carbon fiber without sanding?

No. Sanding is required for adhesion.

What paint is best for carbon fiber?

Polyurethane (PU) coatings are industry standard.

How long does painted CFRP last?

Typically 5–10 years outdoors with proper system.

Do I need primer on carbon fiber?

Yes, primer is essential.

Can carbon fiber be fully hidden with paint?

Yes, with high-build primer + opaque topcoat.

Need Help with CFRP Surface Solutions?

If you are working on:

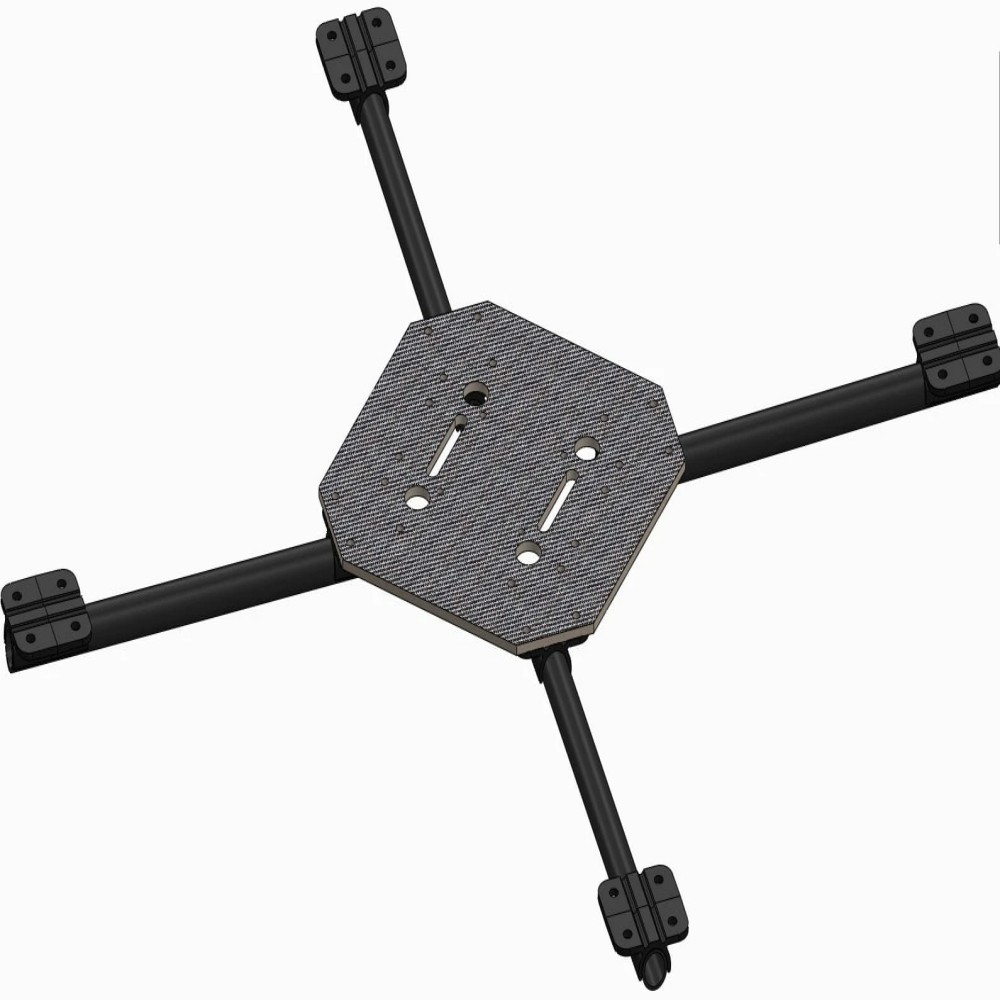

· UAV structures
