Polyester Breather

Polyester Breather is used during vacuum infusion to allow for the even removal of air from a vacuum bagged composite part, as well being used as an infusion resin brake.
  • BR150

  • JLON

  • bag/pallet

  • 1500mm

  • 205 ℃

  • white

  • 100m per roll

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


Introduction of Polyester Breather

Polyester Breather is used during vacuum infusion to allow for the even removal of air from a vacuum bagged composite part, as well being used as an infusion resin brake.  With a weight of  10oz Breather cloth can be used at pressures up to 200PSI (13.8 Bar) , and also has the benefit of being multi-directionally comformable. This  means that it can be used in even the most complex infusion layups, while still being easy enough for a beginner at infusions to use.  Our breather does not contain any binders that could block off the flow of air or otherwise negatively impact your vacuum infusion.



Technical Data Sheet of Polyester Breather

TDS-Polyester Breather.pdf

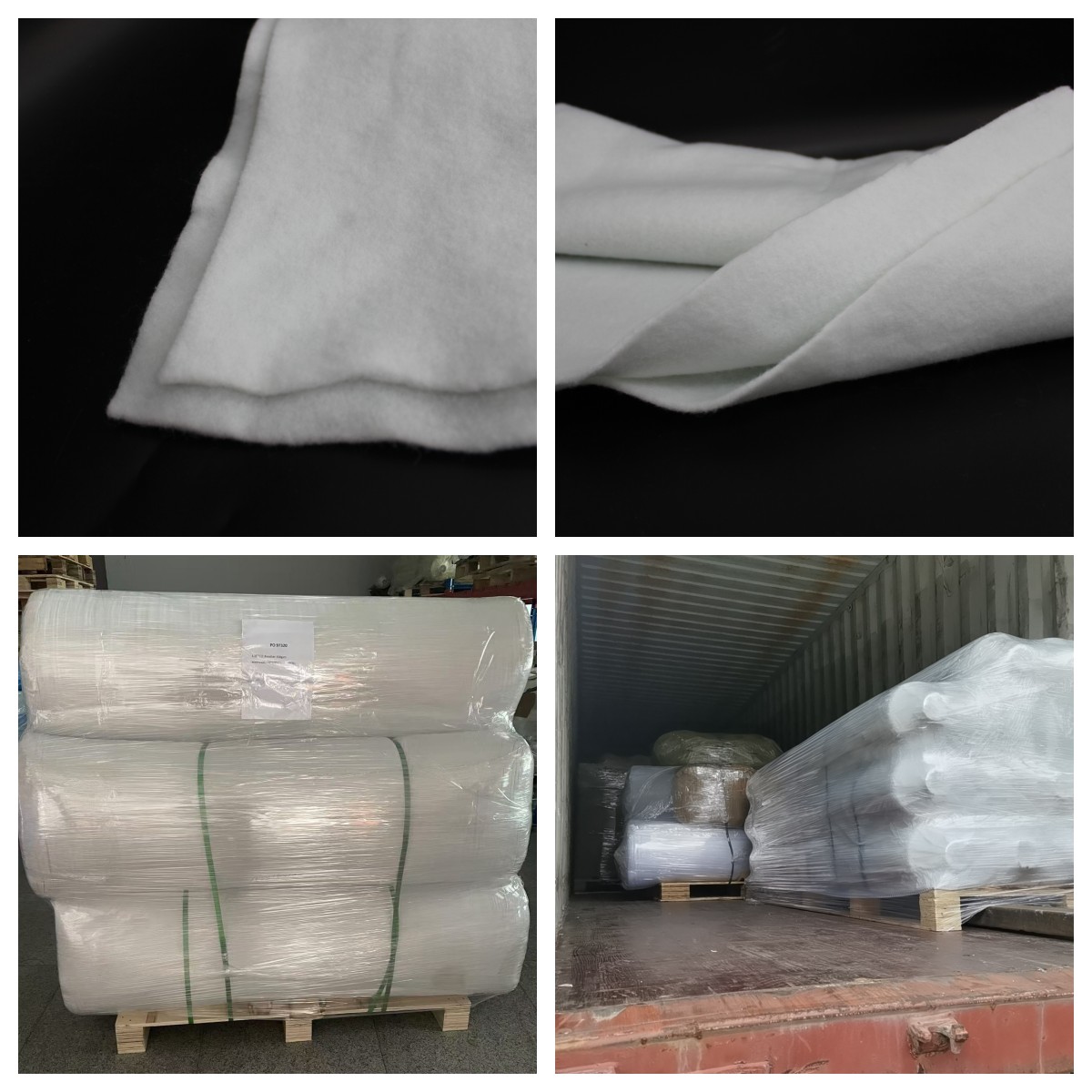

Pictures of Polyester Breather

breather packing



Specification of Polyester Breather

Specification Materials Temperature resistence Application Characteristics
340GSM*1.6M JXPETD6 230 Aviation,Autoclave,Blade High breathability,Not remove hair,High temperature stability,Stable shrinkage rate
340GSM*1.52M JXPETD6 230 Aviation,Autoclave,Blade High breathability,Not remove hair,High temperature stability,Stable shrinkage rate
340GSM*1.5M JXPETD6 230 Aviation,Autoclave,Blade High breathability,Not remove hair,High temperature stability,Stable shrinkage rate
340GSM*1.5M JXPETD6 230 Blade Stable performance
310GSM*0.1M JXPETD6 230 Blade Stable performance
300GSM*1.52M JXPETD6 230 Blade Stable performance
250GSM*1.5M JXPETD6 230 Blade Stable performance
180GSM*2M DHPETD6D2 230 Drones Appropriate breathability,Not remove hair,High temperature stability,Stable shrinkage rate
180GSM*1.5M JXPETD6D2 230 Autoclave,Blade Stable performance,High temperature stability
150GSM*1.52M JXPETD6D2 230 Autoclave,Blade Stable performance
150GSM*1.5M JXPETD6D2 230 Autoclave,Blade Stable performance
150GSM*1.2M JXPETD6D2 230 Autoclave,Blade Stable performance
150GSM*0.15M JXPETD6D2 230 Blade Stable performance
150GSM*0.1M JXPETD6D2 230 Blade Stable performance
150GSM*0.35M JXPETD6D2 230 Blade Stable performance
80GSM*1M JXPETD2 230 Glass fibre lamination Stable performance
340GSM*1.5M*50M HTPY66100 240 Autoclave Does not easily loosen hair in high temperature



Features of Polyester Breather


Porosity and Airflow Control

One of the most important features of polyester breather is its porosity. The fabric allows for controlled airflow, which is essential for directing the vacuum force and resin flow evenly through the mold. The higher the porosity, the better the airflow and the faster the infusion.

Durability and Strength

Polyester is well-known for its durability. Polyester breather fabrics can withstand high pressures and repetitive use without degrading, making them a long-term investment for manufacturers.

Chemical Resistance

Given that the infusion process often involves exposure to various resins and chemicals, polyester breather fabrics are specifically designed to resist these substances, ensuring that they don’t degrade or weaken during the infusion process.



Typical Uses of Polyester Breather


Polyester breather fabric is widely used across a range of industries, and here’s how:


Marine Industry

Polyester breather is often used in the marine industry to produce lightweight, durable parts for boats and yachts. The vacuum infusion process ensures that the composite materials are both strong and resistant to water damage.

Automotive Manufacturing

In the automotive industry, polyester breather helps in creating lightweight parts for cars and trucks, contributing to overall fuel efficiency and performance.

Aerospace and Aviation

In aerospace applications, every part must meet strict standards for safety, weight, and durability. Polyester breather ensures high-quality results when infusing resin into carbon fiber or fiberglass for aircraft parts.

Wind Energy

Wind turbine blades require large, strong composite materials. Polyester breather fabric helps create uniform, strong blades for maximum efficiency and durability.


Advantages of Using Polyester Breather in Vacuum Infusion


Time Efficiency

Polyester breather fabric speeds up the infusion process by ensuring consistent airflow and resin absorption. This can result in a faster production cycle.

Cost-Effectiveness

Although the initial cost may seem high, polyester breather is a reusable material that helps lower production costs in the long run.

High-Quality Results

The even distribution of resin and airflow facilitated by polyester breather ensures that the final product is of the highest quality.


FAQs of Polyester Breather


Q1.Can your company customize products?

A: Yes, We usually discuss with customers and help them find solutions.


Q2. How can I get a sample from you to check quality?

A: Usually a sample will be prepared within one week after specification agreed.


Q3. What about your delivery time? Can we receive our goods on time?

A: Usually around 2-3 weeks after order confirmed. Exact delivery time depends on order quantity and Off-season/ busy season.


Q4. What is the Guarantee to buy your products? How to resolve quality complaints?

A: Offer TDS of each lot of production for confirmation before delivery.Once you have any quality problem, you can provide samples /pictures /test data. With our quality tracking system, we will give you feedback in short time. If the quality problem confirmed,we will send you replacement or make refund as you like.


Q5. What are your terms of payment?

A: Usually we do EXW, FOB, CIF, and DDU.
