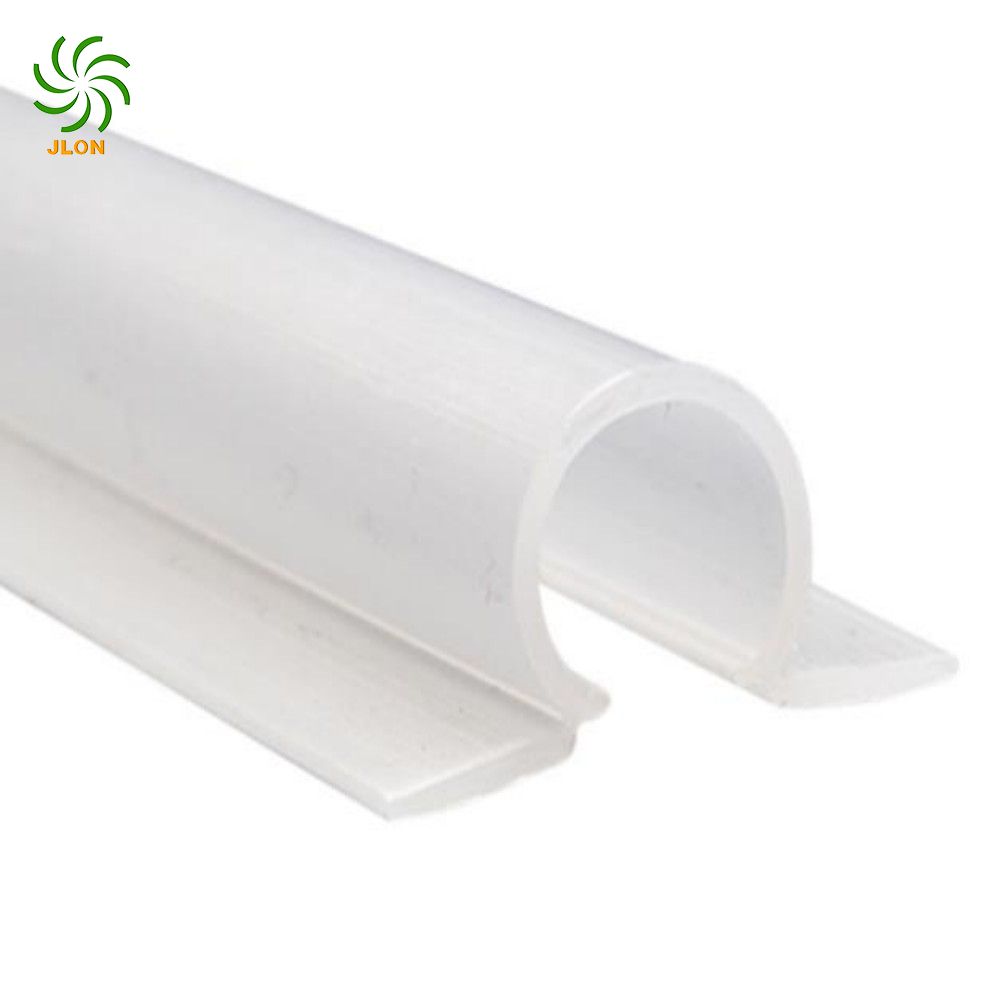

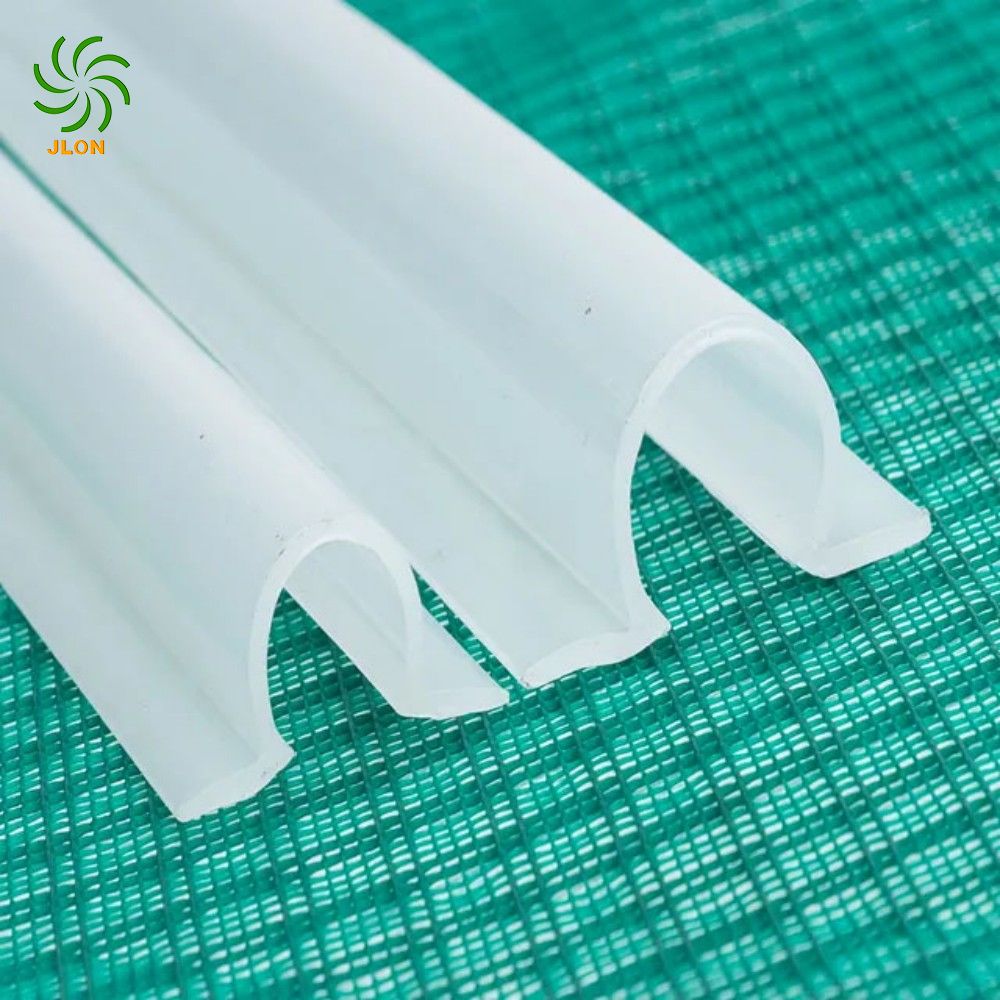

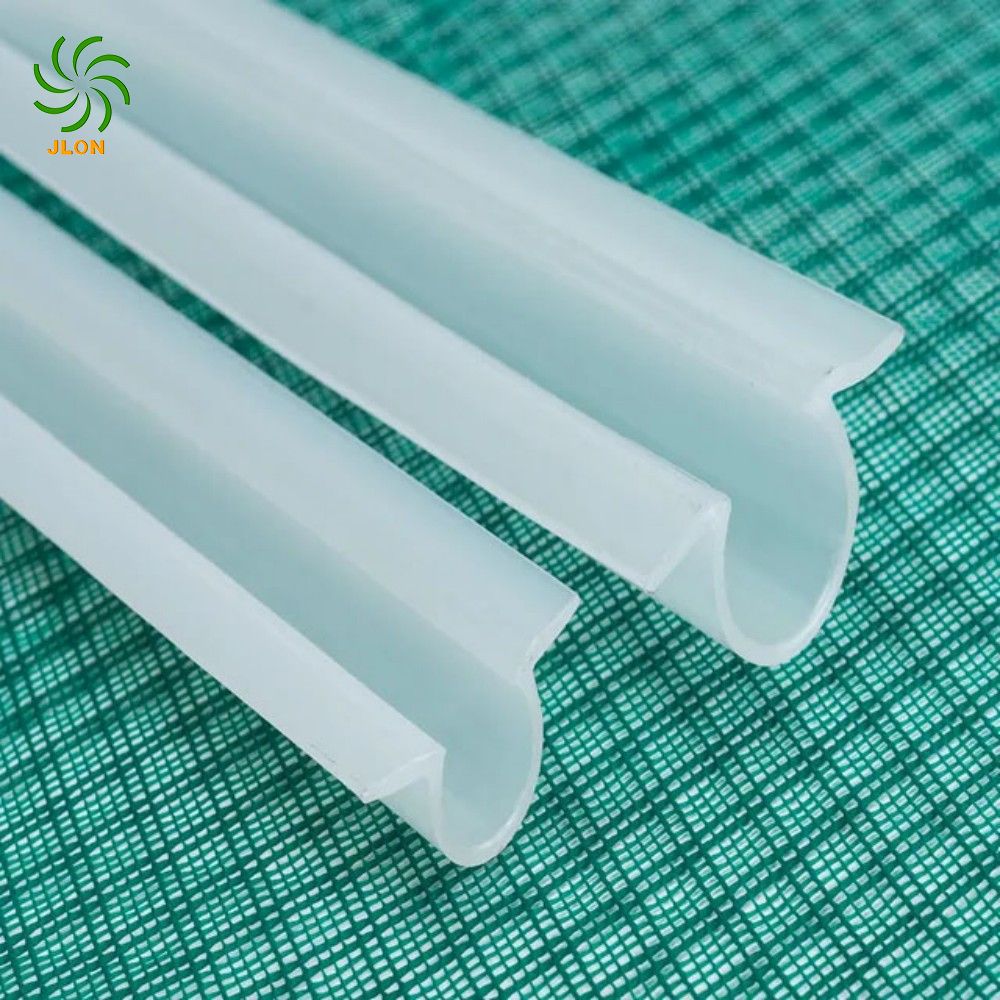

The Include Base Plate Tube is an engineered extrusion product made from high-quality polyethylene and polypropylene. With superior dimensional stability, high temperature tolerance, and excellent aging resistance, this tube is widely used in the vacuum infusion process of wind turbine blades, ensuring consistent resin flow and reliable process performance.
Its translucent appearance allows visual monitoring during operation, while customizable specifications meet various mold and process requirements in composite manufacturing.
Manufactured from premium polyethylene (PE) and polypropylene (PP)
Excellent thermal stability with a maximum operating temperature of 140°C
Outstanding aging resistance, suitable for long-term industrial use
Specifically designed for vacuum infusion (VARI/VARTM) of wind turbine blades
High pressure resistance: 20 bar (positive), 1 bar (negative)
Available in custom colors and lengths
Item | Specification |
Materials | Polyethylene (PE), Polypropylene (PP) |
Max Operating Temperature | 140°C |
Temperature Stability | No deformation below 120°C |
Diameter Options | 25 mm (ID) × 29 mm (OD) / 18 mm (ID) × 21 mm (OD) |
Color | Translucent (customizable) |
Length | 4 meters (customizable) |
Pressure Resistance (RT) | 20 bar positive, 1 bar negative |
Standard Sizes | 25–29 mm / 18–21 mm |
Smooth inner and outer surfaces ensure optimal resin flow
High dimensional consistency due to precision extrusion
Lightweight, corrosion-resistant structure suitable for composite workshop environments
Semi-transparent design for visual inspection during vacuum processing
This tube is primarily used in composite vacuum infusion systems, including:
Wind turbine blade manufacturing (main application)
Vacuum-assisted resin infusion (VARI/VARTM)
Large composite panel production
Hull, nacelle, tooling, and structural component fabrication
Industrial environments requiring high temperature & pressure stability
Withstands up to 140°C, suitable for resin systems requiring elevated processing temperatures.
20 bar positive pressure capability ensures reliable performance under demanding industrial conditions.
Excellent resistance to aging, oxidation, and long-term environmental exposure.
Polyethylene/Polypropylene structure ensures compatibility with commonly used resins and process chemicals.
Standard length 4 meters, packaged in protective PE wrapping
Bulk or palletized packaging available
Custom-cut lengths available upon request
Fast delivery: 5–7 working days (standard models)
