Is Carbon Fiber a Composite Material? A Complete Guide

What Is Carbon Fiber?

Carbon fiber is a high-performance material made from thin filaments of carbon atoms. These fibers are typically:

· Woven into fabrics (carbon fiber cloth)

· Arranged in unidirectional (UD) form

· Used as reinforcement in composite structures

Key Properties of Carbon Fiber

· High strength-to-weight ratio (stronger than steel at much lower weight)

· High stiffness (modulus)

· Excellent fatigue resistance

· Corrosion resistance

· Thermal stability

Despite these advantages, carbon fiber alone is not suitable as a standalone structural material because it lacks cohesion and shape without a binding matrix.

What Is a Composite Material?

A composite material is formed by combining two or more distinct materials to achieve better performance than each individual component.

Typically, a composite consists of:

· Reinforcement (fibers such as carbon fiber or glass fiber)

· Matrix (resin such as epoxy, polyester, or vinyl ester)

The reinforcement provides strength and stiffness, while the matrix binds everything together and transfers loads.

When Does Carbon Fiber Become a Composite?

Carbon fiber becomes a composite when it is combined with a polymer resin system.

This results in:

Carbon Fiber Reinforced Polymer (CFRP)

Structure of Carbon Fiber Composites

· Carbon fibers → carry tensile loads and provide stiffness

· Resin matrix → distributes stress, protects fibers, and maintains shape

Without resin, carbon fiber cannot function as a structural material. Therefore, all practical carbon fiber products are actually composites.

Types of Carbon Fiber Composites

Not all carbon fiber composites are the same. Depending on fiber form, resin system, and manufacturing process, CFRP can be categorized into several types:

By Fiber Form

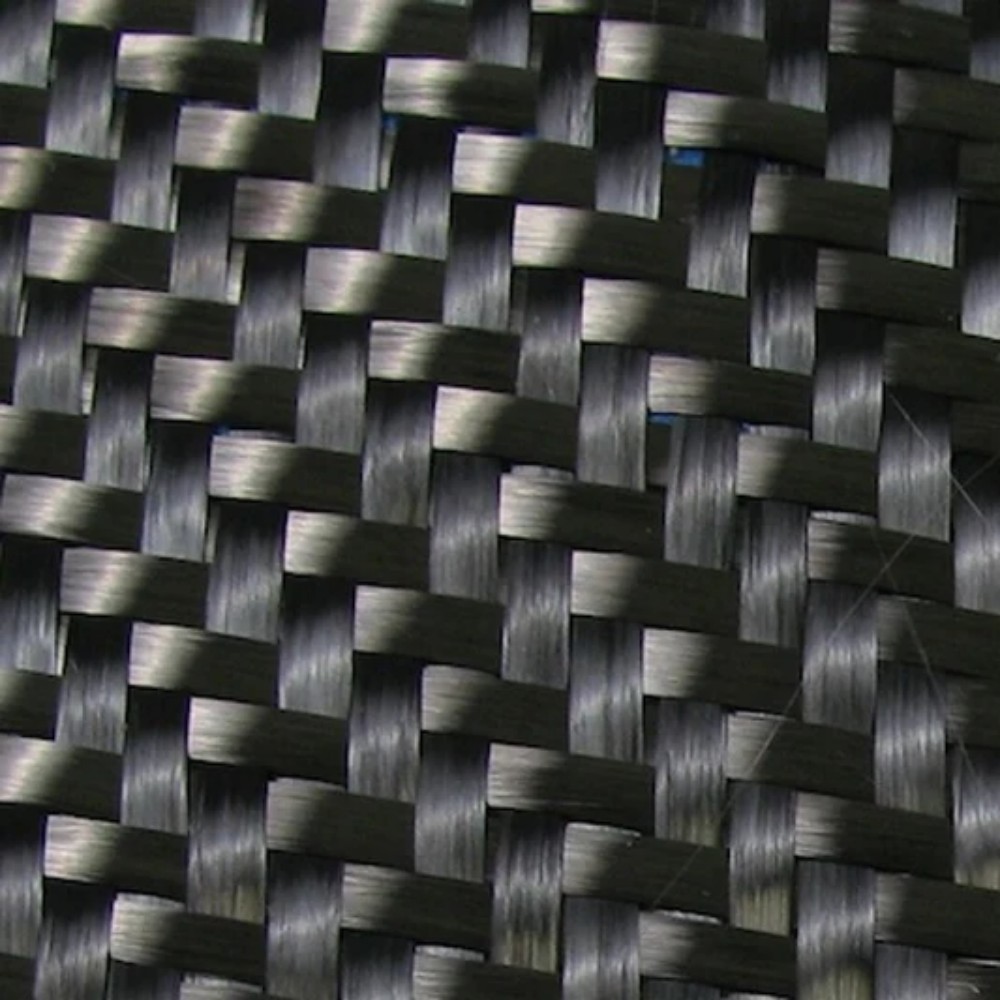

· Woven Carbon Fiber Fabric

Balanced strength in multiple directions; widely used in structural and cosmetic applications

·Unidirectional (UD) Carbon Fiber

Fibers aligned in one direction; provides maximum strength along fiber axis

· Carbon Fiber Nonwoven / Mat

Random orientation; used for surface layers or specific industrial applications

By Resin Type

· Epoxy Resin Systems

Best mechanical performance; used in aerospace and high-end industries

· Polyester Resin Systems

Lower cost; suitable for general industrial applications

· Vinyl Ester Resin Systems

Good balance of cost and performance; excellent corrosion resistance

Choosing the right combination of fiber and resin is critical for performance.

Why the Terminology Causes Confusion

Manufacturing Processes of Carbon Fiber Composites

Understanding how carbon fiber is used in composites helps clarify why it is not a standalone material.

1. Hand Lay-Up

· Manual placement of fabric with resin

· Suitable for low-volume production

2. Vacuum Infusion (VARTM)

· Resin infused under vacuum

· Widely used in marine and wind energy

3. Prepreg + Autoclave

· Pre-impregnated fibers cured under pressure

· Used in aerospace and high-performance applications

4. Resin Transfer Molding (RTM / LRTM)

· Closed-mold process

· High consistency and efficiency

Carbon Fiber vs Fiberglass Composites

Carbon fiber composites are often compared with fiberglass composites.

Property	Carbon Fiber Composite	Fiberglass Composite
Strength & stiffness	Very high	Moderate
Weight	Lower	Higher
Cost	Higher	Lower
Electrical conductivity	Conductive	Insulating
Applications	Aerospace, automotive	Marine, construction

Choosing Between Them

· Choose carbon fiber when performance and weight are critical

· Choose fiberglass when cost-effectiveness is the priority

Carbon Fiber Composites vs Metal (Steel & Aluminum)

Carbon fiber composites are also widely compared with traditional metals:

Property	Carbon Fiber Composite	Steel	Aluminum
Density	Very low	High	Medium
Strength-to-weight ratio	Excellent	Moderate	Good
Corrosion resistance	Excellent	Poor	Good
Fatigue resistance	Very high	Moderate	Moderate
Design flexibility	High	Limited	Limited

In weight-sensitive applications, carbon fiber significantly outperforms metals.

Advantages of Carbon Fiber Composites

· Significant weight reduction

· Superior mechanical performance

· Excellent fatigue resistance

· Long service life

· Design flexibility (complex shapes possible)

Limitations of Carbon Fiber Composites

· Higher cost compared to fiberglass and metals

· Brittle failure behavior

· Complex manufacturing processes

· Difficult recycling

Design Considerations When Using Carbon Fiber

What Drives the Cost of Carbon Fiber Composites?

The high cost comes from:

· Energy-intensive raw fiber production

· High-performance resin systems

· Advanced manufacturing processes

· Skilled labor requirements

· Lower production scale

However, lifecycle cost can be lower due to durability and weight savings.

Sustainability and Recycling

· Long service life reduces replacement frequency

· Lightweight structures reduce energy consumption

· Recycling technologies include:

o Mechanical recycling

o Pyrolysis

o Solvolysis

Recycled carbon fiber (rCF) is becoming increasingly important.

Typical Applications of Carbon Fiber Composites

Aerospace

· Aircraft structures

· Interior components

Automotive

· Lightweight body panels

· Structural reinforcements

Wind Energy

· Structural components

Marine

· Hulls and decks

Sports & Leisure

· Bicycles, rackets, helmets

Industrial

· Rollers, tanks, structural parts

Why This Distinction Matters for Buyers

Understanding the difference between carbon fiber and composites helps:

· Improve material selection

· Choose correct processing methods

· Control cost and performance

· Avoid supplier miscommunication

What you actually need is not “carbon fiber,” but a carbon fiber composite solution.

Choosing the Right Carbon Fiber Supplier

When sourcing carbon fiber materials, it is important to work with a supplier who can provide:

· Consistent material quality

· Technical support

· Custom specifications

· Stable long-term supply

A professional supplier can help you select the most suitable composite solution for your application.

Conclusion

Carbon fiber itself is not a composite material—it is a reinforcing fiber.

However, when combined with resin, it forms:

Carbon Fiber Reinforced Polymer (CFRP)

In real-world applications, almost all “carbon fiber” products are actually composites.

Understanding this distinction is essential for engineering, design, and purchasing decisions.

FAQ

Is carbon fiber stronger than steel?
Yes, carbon fiber composites have a higher strength-to-weight ratio than steel.

Is carbon fiber a type of plastic?
It is often classified as a polymer composite due to the resin matrix, but performs far beyond typical plastics.

Can carbon fiber be used without resin?
No, it requires a matrix material to function structurally.

Why is carbon fiber so expensive?
Due to raw material production, energy consumption, and complex manufacturing.

What is CFRP?
Carbon Fiber Reinforced Polymer, the most common carbon fiber composite.

Can carbon fiber replace metal completely?
Not always; it depends on cost, design, and application requirements.
