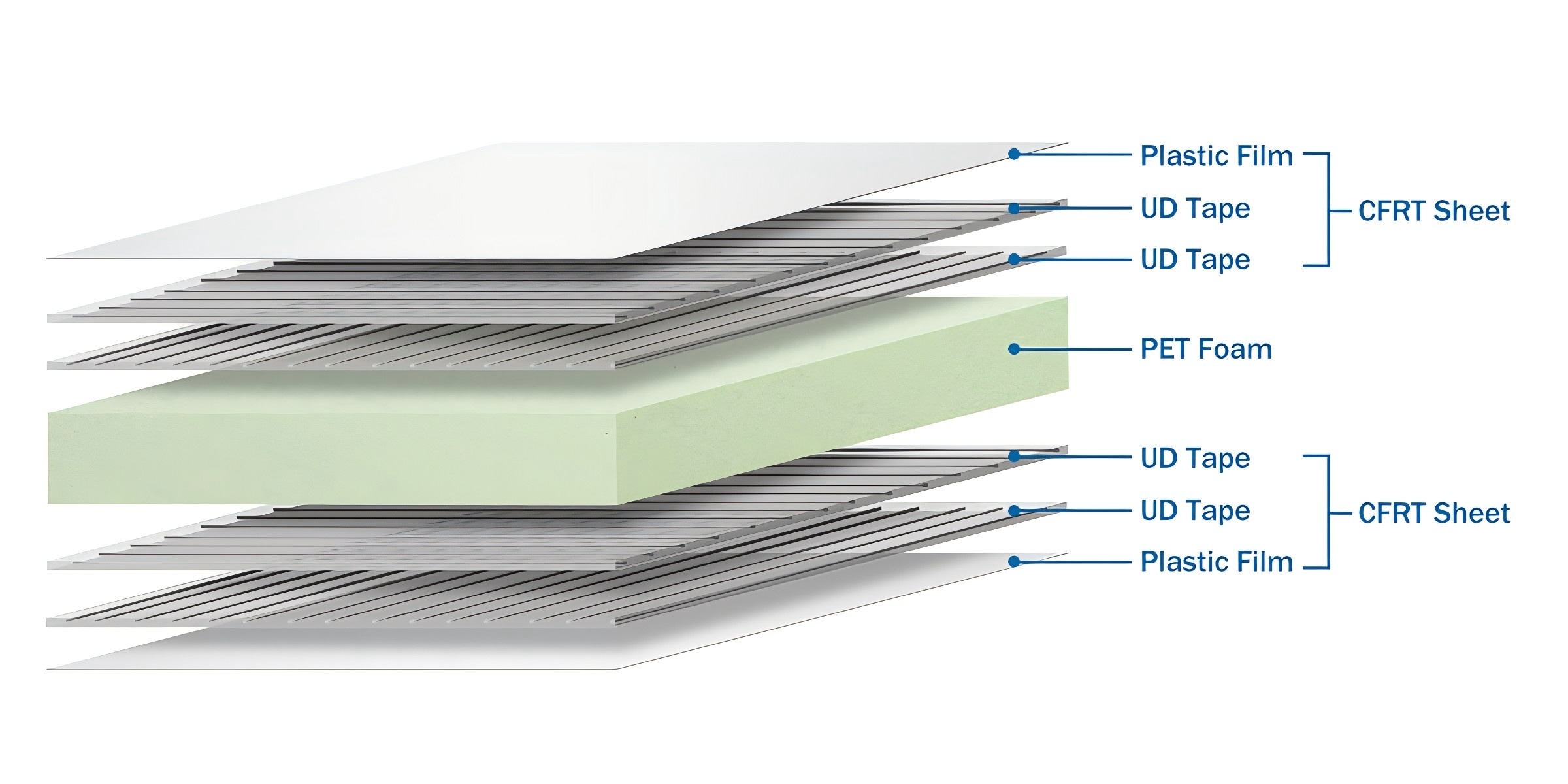

CFRT PET Sandwich Panel is a high-performance, lightweight thermoplastic composite panel designed for structural applications. The panel features a core of PET foam, paired with a reinforcing laminate composed of continuous glass fiber-reinforced PET resin unidirectional prepreg tape, arranged in a 0°/90° multi-layer configuration. This construction delivers exceptional strength, rigidity, and toughness while maintaining excellent recyclability. The panel's surface can be customized with various facings, including PET, PVC, or metal sheets, to meet specific application requirements. CFRT sheet represents an advanced thermoplastic composite material, offering superior mechanical properties and sustainability.
Structural composition: Board composition: HUV layer + reinforcement layer + structural core polymer polyester board + reinforcement layer
Plate width: ≤2800mm
Plate thickness: Can be customized within the range of 10mm-100mm
Plate length: Continuous
Combined PET core material and PET layers without glue. Better performance than comparable CFRT sandwich panels and will not peel. More environmentally friendly.
The outer layer of CFRT sandwich panels uses continuous fiber reinforcement technology, giving it excellent strength and stiffness while maintaining a relatively low weight. This makes it ideal as an alternative to traditional materials, especially in applications where lightweight structures are required.
It is usually made of high-temperature thermoplastic materials and has good heat resistance, making it suitable for applications in high-temperature environments.
Its outer fiber reinforced material usually has good corrosion resistance, making it suitable for use in harsh environments, such as ship manufacturing in marine environments.
CFRT sandwich panels have good impact resistance due to their strength and toughness, making them suitable for applications that need to withstand impact loads.
CFRT sheets are made of thermoplastic materials, have good recyclability, and meet environmental protection requirements.
CFRT sandwich panels can be processed into different shapes and sizes for easy processing and assembly.
CFRT sandwich panels have good durability, are not easily affected by the external environment, and have a long service life.
CFRT PET sandwich panels are widely used in RVs, trucks, boats, mobile homes, furniture, public transportation, aviation, medical, sports, solar energy and other fields. It can be used as wall panels, floors, ceilings, partitions, cabinets, desktops, back panels, etc.
