Infusion Mesh for Vacuum Infusion: The Key to Faster Resin Flow and High-Quality Composite Manufacturing

In modern composite manufacturing, production efficiency and laminate quality are critical factors for industries such as wind energy, marine, transportation, aerospace, and industrial FRP structures. As vacuum infusion and VARTM (Vacuum Assisted Resin Transfer Molding) processes become increasingly popular, manufacturers are paying more attention to one essential consumable material: Infusion Mesh, also known as Resin Flow Mesh, Flow Media, or Resin Distribution Mesh.

As a professional composite materials supplier, JLON provides high-performance Infusion Mesh solutions designed to improve resin distribution efficiency, reduce resin waste, and ensure consistent laminate quality for fiberglass and carbon fiber composite parts.

This article will introduce everything you need to know about Infusion Mesh, including its working principle, material types, applications, technical specifications, and how it works together with carbon fiber fabric, fiberglass reinforcement, PVC foam core materials, and resin systems in composite manufacturing.

What Is Infusion Mesh?

Infusion Mesh is a specialized resin distribution medium used in vacuum infusion processes. It is typically made from HDPE (High-Density Polyethylene) and designed with an open mesh structure that creates resin flow channels across the laminate surface.

During the vacuum infusion process, resin must travel evenly through dry reinforcement layers such as fiberglass fabric or carbon fiber cloth. Without a proper flow medium, resin may move too slowly or unevenly, resulting in dry spots, voids, or incomplete wet-out.

Infusion Mesh solves this problem by dramatically increasing resin flow speed and distribution efficiency.

Common Names of Infusion Mesh

Depending on the region or application, this product may also be called:

· Resin Flow Mesh

· Resin Distribution Media

· Flow Media

· Vacuum Infusion Mesh

· Resin Distribution Net

· Vacuum Flow Net

· Resin Flow Netting

All these terms refer to materials designed to accelerate resin flow during vacuum bagging and infusion processes.

Why Infusion Mesh Is Important in Vacuum Infusion

Vacuum infusion technology is widely used because it provides:

· Better fiber-to-resin ratio

· Lower emissions

· Improved mechanical properties

· Cleaner manufacturing environment

· Reduced labor costs

· Lightweight composite structures

However, successful vacuum infusion heavily depends on proper resin flow management.

Without Infusion Mesh, resin may:

· Flow too slowly

· Fail to reach complex areas

· Create air entrapment

· Cause inconsistent laminate thickness

· Increase production time

Infusion Mesh acts like a “highway” for resin movement inside the vacuum bag.

Its open-channel structure allows resin to rapidly spread across the entire mold surface before penetrating into the reinforcement layers below.

This significantly improves:

· Wet-out consistency

· Infusion speed

· Laminate quality

· Production repeatability

How Infusion Mesh Works

During the VARTM or vacuum infusion process, manufacturers typically stack materials in the following order:

1. Mold surface

2. Gel coat or release system

3. Fiberglass fabric or carbon fiber fabric

4. Core materials such as PVC foam

5. Peel ply

6. Infusion Mesh

7. Spiral tubing and vacuum lines

8. Vacuum bag film

Once vacuum pressure is applied, resin is drawn into the laminate.

The Infusion Mesh creates a low-resistance flow path above the reinforcement layers, allowing resin to spread rapidly across large surfaces before flowing downward into the fibers.

This method helps eliminate:

· Resin-rich zones

· Dry spots

· Incomplete saturation

· Uneven curing

Especially for large composite parts like wind turbine blades or boat hulls, Infusion Mesh is absolutely essential.

Types of Infusion Mesh

There are generally two types of Infusion Mesh used in the composite industry:

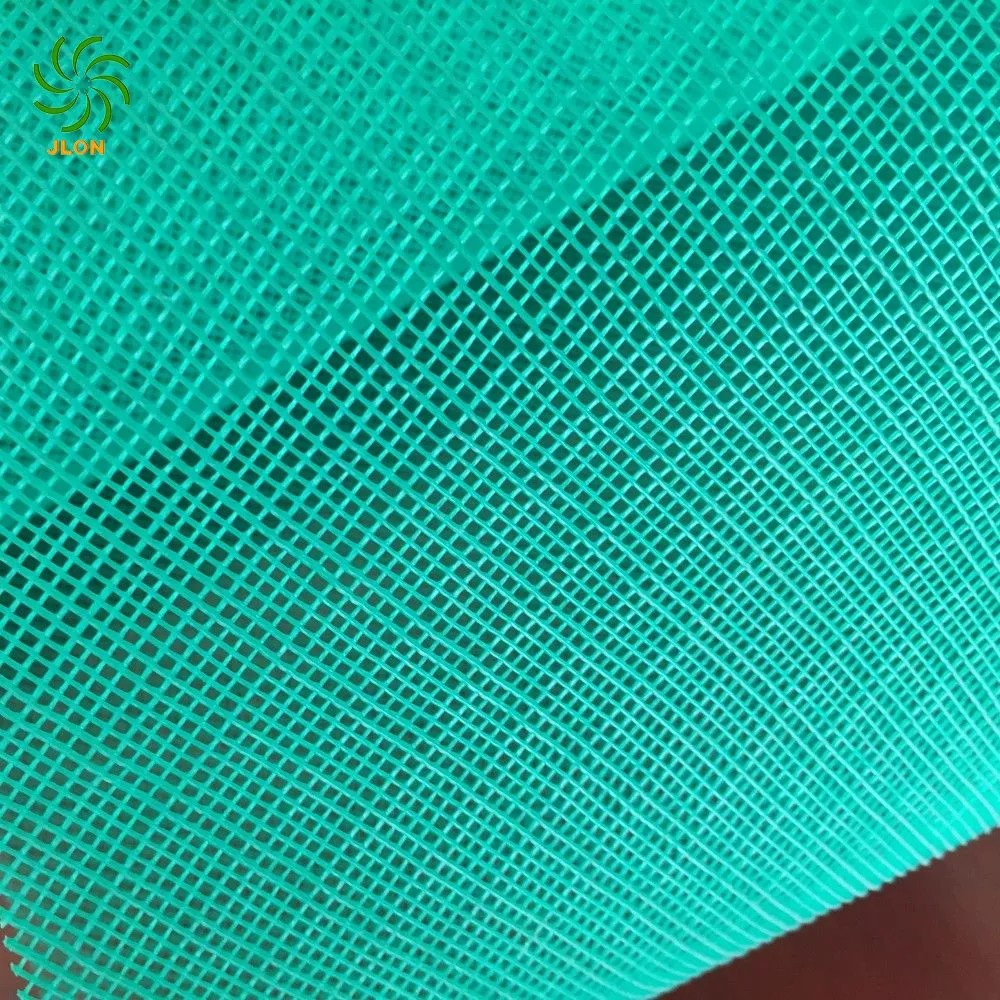

1. Extruded Infusion Mesh

Extruded mesh is manufactured through an extrusion process and forms a continuous plastic net structure.

Advantages:

· Does not fray when cut

· Stable resin flow performance

· Cost-effective

· Easy handling

· Uniform thickness

This is one of the most widely used types for vacuum infusion applications.

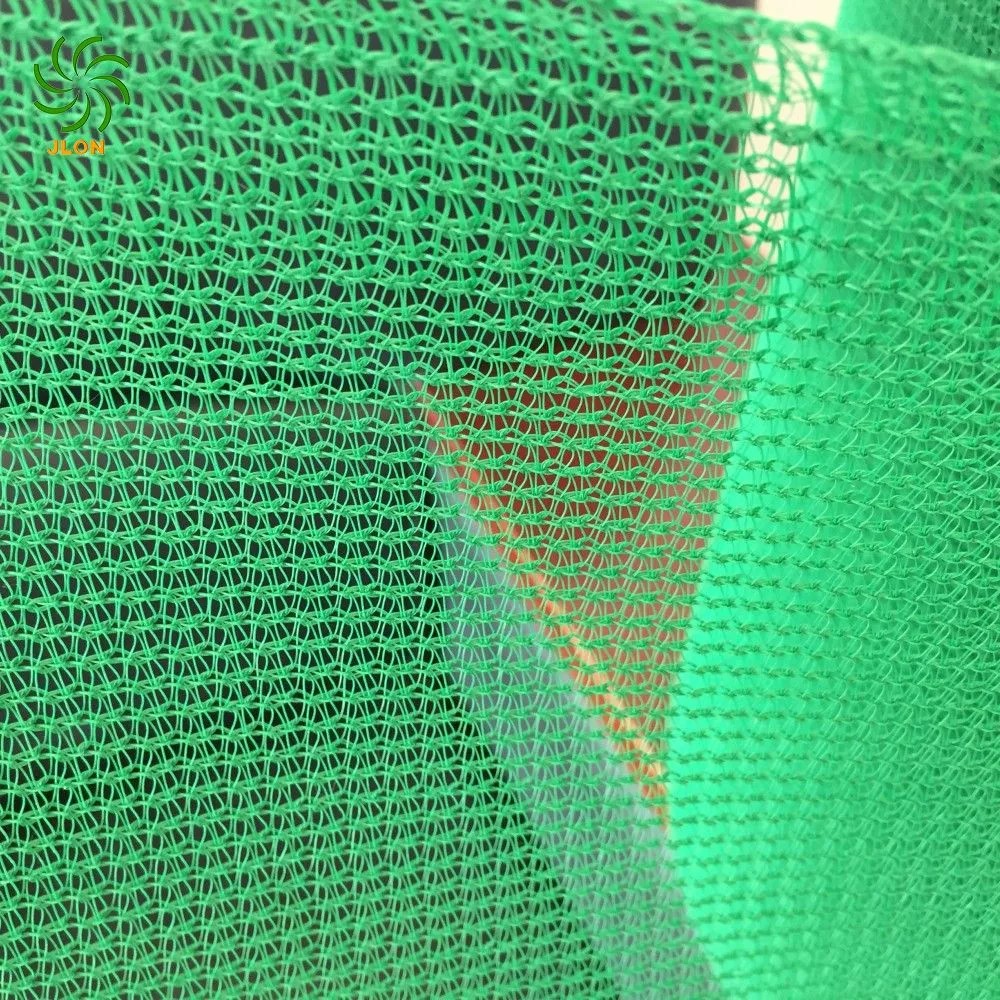

2. Woven Infusion Mesh

Woven mesh is produced using woven synthetic fibers.

Advantages:

· More flexible

· Suitable for complex contours

· Better drapability

However, woven mesh may fray during cutting and is generally more expensive than extruded mesh.

JLON Infusion Mesh Specifications

JLON offers multiple Infusion Mesh options to meet different infusion requirements.

Main Specifications

Property	Specification
Brand	JLON
Model	IM120 / IM140
Material	HDPE
Color	Green
Width	Max 4m
Standard Width	2000mm
Length	100m
Thickness	1.0 ± 0.2mm
Area Weight	100–240 g/m²
Working Temperature	120°C
Structure Type	Extruded / Woven

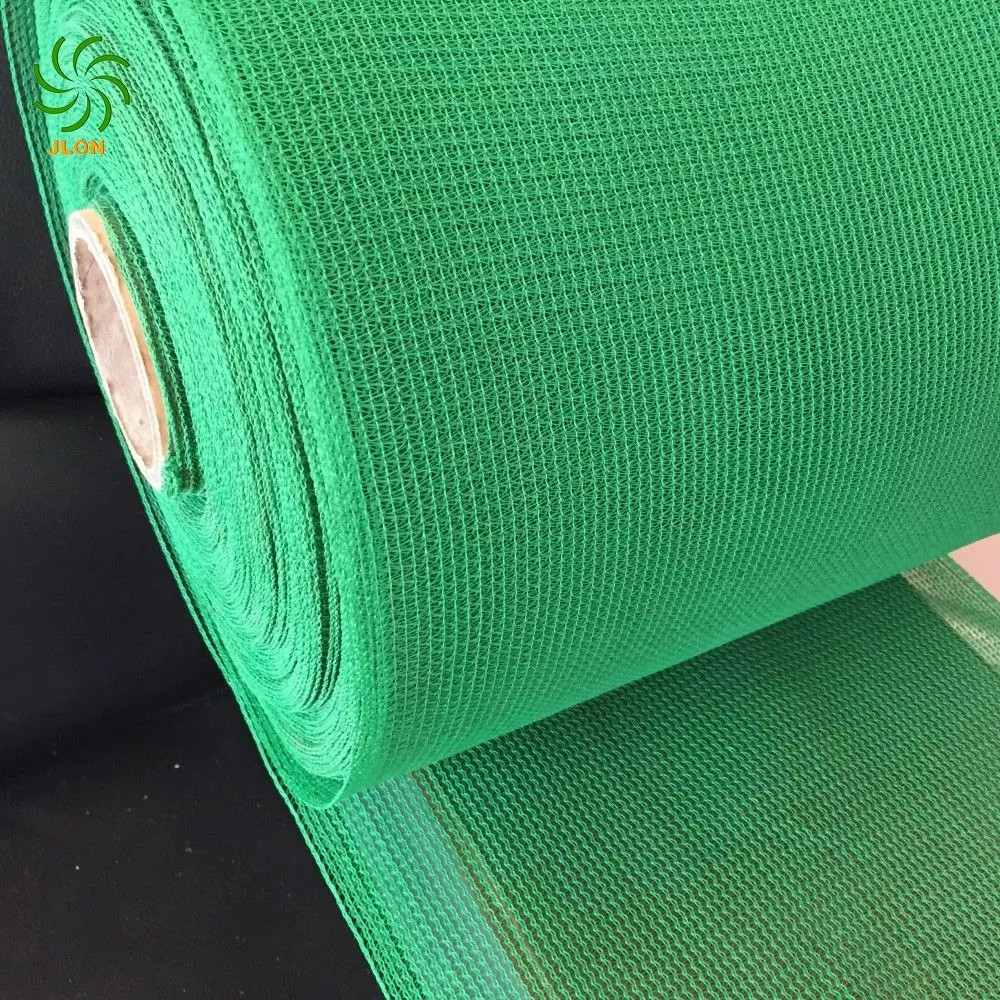

Packaging	Roll

Key Features of JLON Infusion Mesh

1. Fast Resin Distribution

The optimized mesh geometry creates efficient resin channels, significantly accelerating infusion speed.

This is especially important for:

· Large boat hulls

· Wind turbine blades

· Thick sandwich structures

· Carbon fiber panels

2. Low Resin Waste

JLON Infusion Mesh features a low-profile structure that minimizes unnecessary resin accumulation.

Benefits include:

· Reduced resin consumption

· Lower manufacturing costs

· Improved laminate consistency

3. Excellent Compatibility with Resin Systems

JLON Infusion Mesh works well with:

· Polyester resin

· Vinyl ester resin

· Epoxy resin

This makes it suitable for a wide range of composite applications.

4. Clean Cutting Without Fraying

Extruded mesh construction prevents edge fraying during cutting and handling.

This improves workshop efficiency and reduces contamination risks.

5. Stable Under Working Temperature

The HDPE material provides reliable thermal stability during infusion and curing processes.

The green color also maintains good color fastness without contaminating finished composite parts.

Applications of Infusion Mesh

1. Wind Turbine Blades

Wind turbine blades are among the largest vacuum-infused composite structures in the world.

Infusion Mesh is used to:

· Accelerate resin flow across massive blade surfaces

· Reduce infusion time

· Improve laminate quality

· Prevent dry spots in thick laminates

The combination of:

· Fiberglass fabrics

· Carbon fiber reinforcement

· Epoxy resin

· PVC foam cores

· Infusion Mesh

creates lightweight yet extremely strong blade structures.

2. Marine and Boat Building

Modern yacht and FRP boat manufacturers widely use vacuum infusion technology.

Infusion Mesh helps achieve:

· Lightweight hull structures

· Better resin control

· Improved strength-to-weight ratio

· Cleaner manufacturing

It is commonly used together with:

· Fiberglass woven roving

· Multiaxial fabrics

· Carbon fiber cloth

· PVC foam core

· Vinyl ester or epoxy resin

3. Carbon Fiber Automotive Parts

Carbon fiber automotive components require high surface quality and low void content.

Infusion Mesh enables:

· Uniform resin penetration

· Faster production cycles

· Better mechanical performance

Typical applications include:

· Hoods

· Roof panels

· Aerodynamic parts

· Racing car structures

4. Industrial FRP Panels

Vacuum infusion is widely used for:

· FRP tanks

· Composite covers

· Structural panels

· Infrastructure components

Infusion Mesh ensures consistent quality across large flat laminates.

Infusion Mesh and Carbon Fiber Fabric

Carbon fiber fabrics are expensive reinforcement materials, so resin flow efficiency is extremely important.

Poor resin distribution can lead to:

· Dry carbon areas

· Cosmetic defects

· Delamination

· Reduced mechanical properties

Using high-quality Infusion Mesh helps carbon fiber manufacturers:

· Reduce scrap rates

· Improve resin penetration

· Achieve better fiber wet-out

· Maintain lightweight performance

For high-end carbon fiber structures, epoxy resin combined with optimized Infusion Mesh is the preferred solution.

Infusion Mesh and Fiberglass Reinforcement

Fiberglass remains the most commonly used reinforcement in composite manufacturing due to its excellent balance of cost and performance.

Infusion Mesh works effectively with:

· Chopped strand mat

· Woven roving

· Biaxial fiberglass

· Triaxial fabrics

· Quadraxial fabrics

In thick fiberglass laminates, resin flow resistance becomes much higher.

Infusion Mesh dramatically improves:

· Through-thickness wet-out

· Resin transfer speed

· Production consistency

This is particularly important for:

· Boat hulls

· Swimming pools

· FRP pipes

· Industrial tanks

Infusion Mesh and PVC Foam Core Materials

PVC foam core materials are widely used in sandwich composite structures because they provide:

· Lightweight performance

· High stiffness

· Excellent fatigue resistance

· Thermal insulation

However, sandwich structures create more complex resin flow paths.

Infusion Mesh helps resin distribute evenly around:

· Core joints

· Grooved foam surfaces

· Complex geometries

This improves bonding quality between:

· Fiberglass skins

· Carbon fiber laminates

· PVC foam cores

The result is a stronger and more reliable composite sandwich structure.

Choosing the Right Infusion Mesh

Selecting the correct Infusion Mesh depends on several factors.

Consider the Following:

1. Part Size

Large structures require higher flow capacity.

2. Resin Viscosity

Higher-viscosity resins may need more aggressive flow media.

3. Laminate Thickness

Thicker laminates require faster resin distribution.

4. Surface Complexity

Complex geometries may require more flexible woven mesh.

5. Infusion Strategy

Flow direction and vacuum layout affect mesh selection.

JLON can help customers select suitable Infusion Mesh based on:

· Process requirements

· Resin system

· Reinforcement type

· Production goals

Why Composite Manufacturers Choose JLON

JLON Composite Materials supplies a wide range of composite materials for vacuum infusion applications, including:

· Infusion Mesh

· Carbon Fiber Fabric

· Fiberglass Fabric

· PVC Foam Core

· Peel Ply

· Vacuum Bagging Film

· Resin Infusion Consumables

Advantages of Working with JLON

Stable Quality

Strict production control ensures consistent performance.

Customization Support

Customized widths, area weights, and packaging are available.

Fast Delivery

Efficient production scheduling helps meet urgent project timelines.

Technical Support

JLON assists customers in optimizing infusion processes and material selection.

FAQs About Infusion Mesh

Q1. Can Infusion Mesh be reused?

Generally, Infusion Mesh is considered a consumable material and is usually discarded after infusion.

Q2. Is Infusion Mesh compatible with epoxy resin?

Yes. JLON Infusion Mesh works well with epoxy, polyester, and vinyl ester resin systems.

Q3. What is the working temperature?

The standard working temperature is approximately 120°C.

Q4. Does the mesh fray when cut?

JLON extruded Infusion Mesh does not fray during cutting.

Q5. Can JLON customize specifications?

Yes. Customized widths, weights, and roll lengths are available according to customer requirements.

Conclusion

Infusion Mesh is one of the most important consumable materials in modern vacuum infusion composite manufacturing.

By improving resin flow efficiency, reducing waste, and enhancing laminate quality, it plays a critical role in producing high-performance composite parts for:

· Wind energy

· Marine

· Automotive

· Industrial FRP

· Carbon fiber structures

As vacuum infusion technology continues to expand globally, selecting reliable resin distribution media becomes increasingly important for achieving consistent production quality.

With professional manufacturing capability and extensive composite material experience, JLON provides dependable Infusion Mesh solutions for demanding composite applications worldwide.
