Introduction of Bagging Film: A Critical Vacuum Consumable for Composite Manufacturing

In modern composite manufacturing, achieving a stable vacuum environment is essential for producing lightweight, high-strength composite parts with excellent surface quality and structural integrity. Among all vacuum consumables, bagging film plays one of the most important roles in ensuring process reliability during vacuum infusion and vacuum bagging operations.

As industries such as wind energy, aerospace, marine, and automotive increasingly adopt advanced composite materials, the demand for high-performance vacuum bagging film continues to grow. At JLON Composite Materials, we supply high-quality multi-layer nylon bagging film designed for demanding composite manufacturing environments.

This article introduces what bagging film is, its structure, specifications, applications, and why selecting the right vacuum bagging film is essential for composite production efficiency and product quality.

What Is Bagging Film?

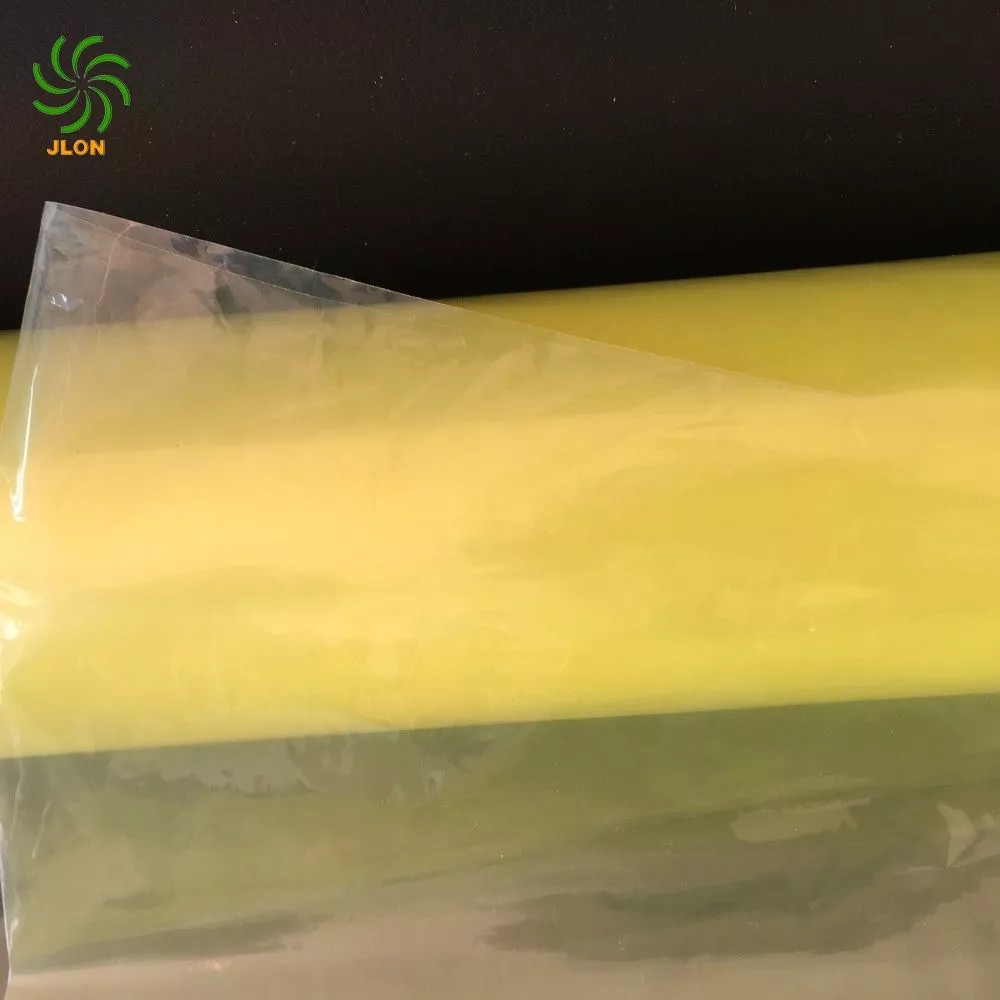

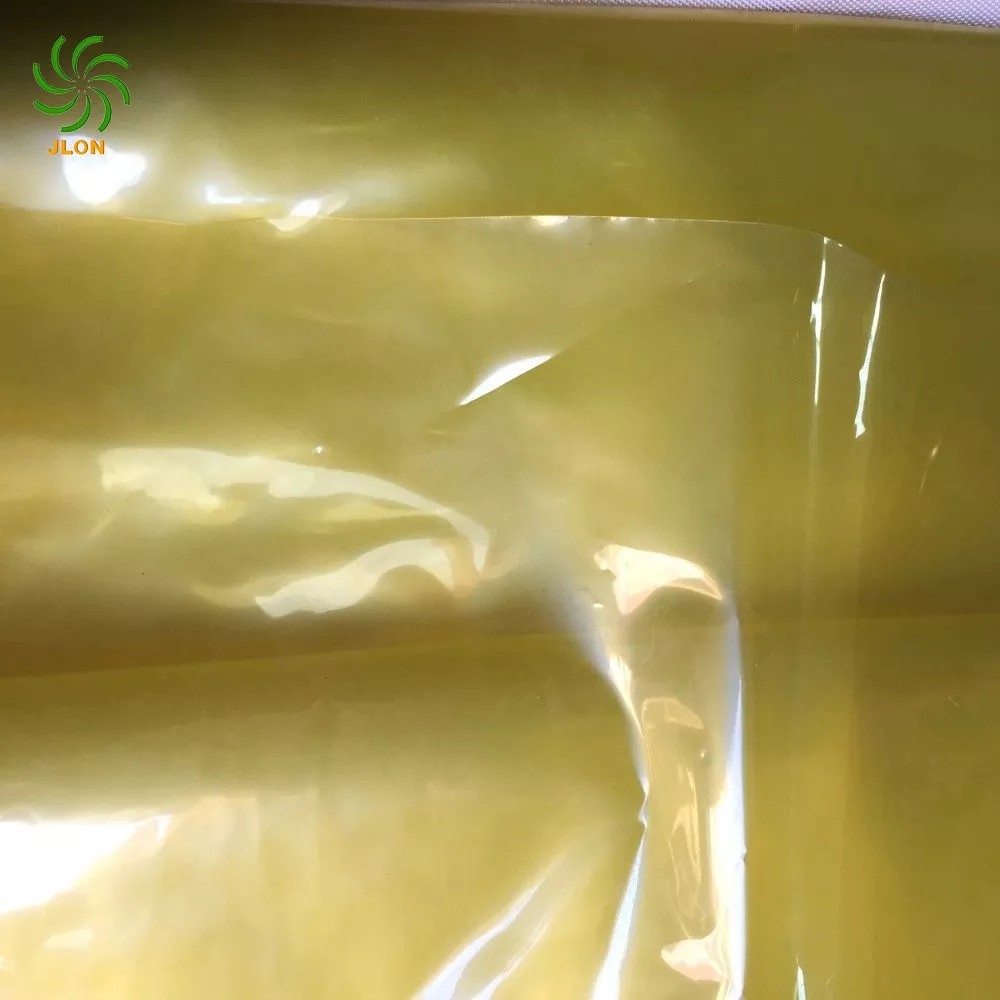

Bagging film, also called vacuum bagging film or vacuum bag film, is a flexible sealing membrane used in composite molding processes. It is placed over the mold and sealed around the edges using sealant tape to create an airtight vacuum environment.

Once vacuum pressure is applied, the film compresses the fiber reinforcement layers and allows resin to flow evenly through the laminate during vacuum infusion or vacuum bagging processes. This helps eliminate trapped air, improve fiber-to-resin ratio, and enhance the mechanical properties of the final composite part.

High-quality bagging film must provide:

· Excellent vacuum integrity

· High elongation

· Strong puncture resistance

· Stable heat resistance

· Good flexibility for complex mold shapes

Without reliable bagging film, manufacturers may face vacuum leakage, resin dry spots, poor consolidation, or even complete production failure.

Structure and Material of JLON Bagging Film

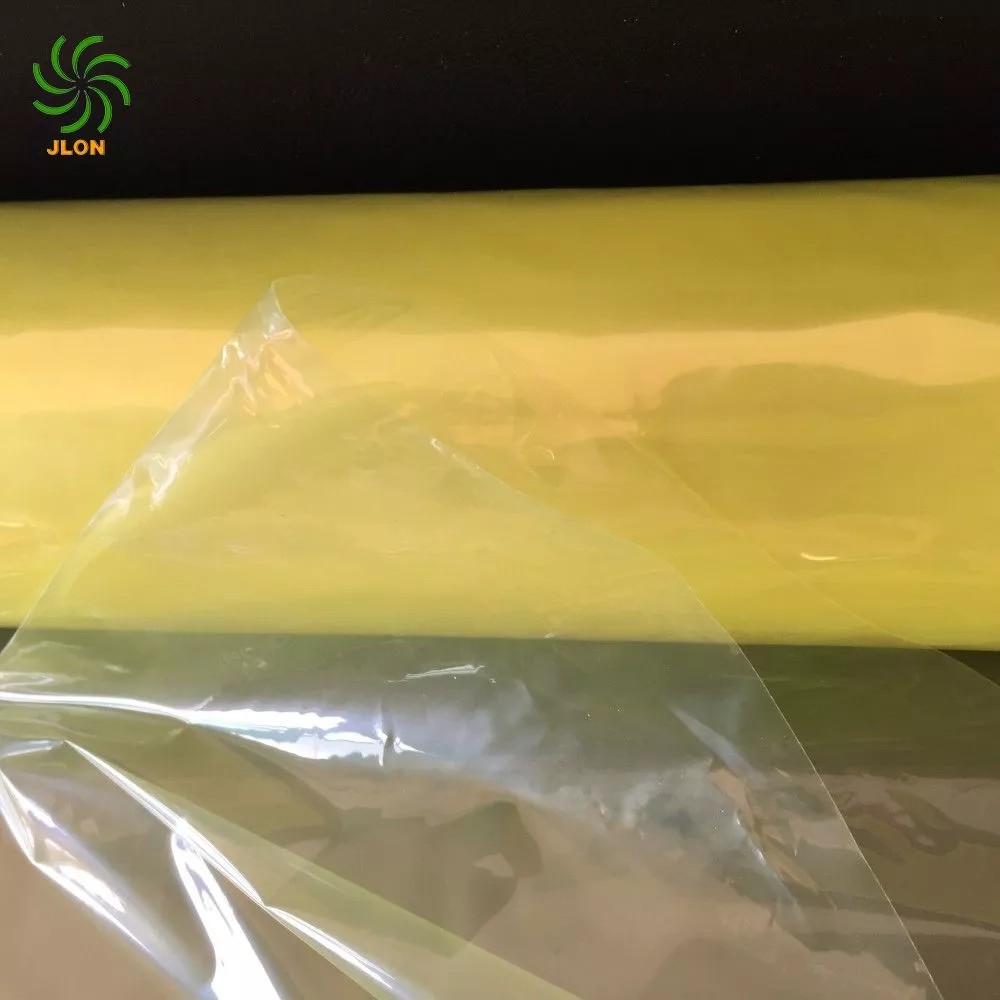

JLON bagging film is manufactured from multi-layer co-extruded Nylon film technology.

Unlike single-layer films, the multi-layer structure provides multiple levels of vacuum security and significantly reduces the risk of:

· Pinholes

· Weak spots

· Brittleness

· Film inconsistency

· Vacuum leakage during curing

The Nylon-based structure also provides excellent flexibility and elongation, allowing the film to conform tightly to complex molds without tearing under vacuum pressure.

This type of film is widely used in composite manufacturing because Nylon offers a balanced combination of:

· Mechanical strength

· Heat resistance

· Chemical stability

· Flexibility

· Puncture resistance

The result is a durable vacuum bagging solution suitable for large composite structures and demanding industrial applications.

Specifications of JLON Bagging Film

JLON provides various film widths and roll lengths to meet different production requirements, from small composite parts to extra-large industrial molds.

Physical Properties

Property	Unit	Specification
Thickness	μm	50 / 65 / 75
Material	-	Multi-Layer Nylon
Color	-	Light Yellow / Green
Maximum Working Temperature	°C	170
Elongation	%	350
Tensile Strength	MPa	34
Maximum Roll Width	m	12
Maximum Roll Length	m	200
Forms	-	V Fold / W Fold

Test Standards

· Elongation: ASTM D882

· Tensile Strength: ASTM D882

Why Multi-Layer Bagging Film Matters

In vacuum infusion and vacuum bagging applications, even a tiny leak can compromise the entire production process.

Traditional single-layer films may develop microscopic defects or weak spots during stretching and heating. Multi-layer bagging film greatly reduces this risk by creating several protective layers within the film structure.

The advantages include:

1. Improved Vacuum Security

Multi-layer technology reduces the possibility of pinholes and vacuum leakage, helping maintain stable vacuum pressure throughout the curing cycle.

This is especially important for:

· Large wind turbine blades

· Marine hulls

· Aerospace structures

· Long curing cycles

2. Better Mechanical Strength

JLON bagging film provides excellent tensile strength and elongation, allowing it to stretch over complex geometries without tearing.

Its high elongation of 350% enables the film to adapt to:

· Deep molds

· Sharp corners

· Curved composite parts

· Complex sandwich structures

3. High Temperature Resistance

With a maximum working temperature of 170°C, the film is compatible with many common resin systems, including:

· Epoxy resin

· Vinyl ester resin

· Polyester resin

The stable thermal performance ensures reliable sealing during resin curing.

4. Reduced Scrap Risk

Vacuum loss during composite curing can lead to expensive production scrap.

By minimizing leakage risks, multi-layer bagging film helps manufacturers:

· Reduce defective parts

· Improve production consistency

· Lower manufacturing costs

· Increase process reliability

5. Wide Film Width for Large Composite Parts

JLON bagging film is available in widths up to 12 meters.

Extra-wide film reduces the need for seam joining during large-part manufacturing. Fewer seams mean:

· Faster setup time

· Lower labor costs

· Reduced leakage points

· Better vacuum integrity

This is especially valuable in wind energy and marine industries where very large molds are common.

Applications of Bagging Film

Bagging film is widely used in composite manufacturing industries that require lightweight structures with high mechanical performance.

Wind Energy

Wind turbine blades are among the largest composite structures manufactured today.

Vacuum bagging film is used to create a sealed environment during resin infusion, ensuring:

· Uniform resin flow

· Reduced void content

· Stable laminate quality

· Improved blade strength

Large-width films are particularly important for modern long-blade production.

Aerospace Industry

Aircraft structures require extremely high-quality composite laminates with minimal defects.

Bagging film helps aerospace manufacturers achieve:

· Accurate consolidation

· Stable curing conditions

· Lightweight high-strength structures

· Better dimensional consistency

Typical aerospace components include:

· Aircraft panels

· Interior structures

· Fairings

· Secondary structural components

Marine and Boat Building

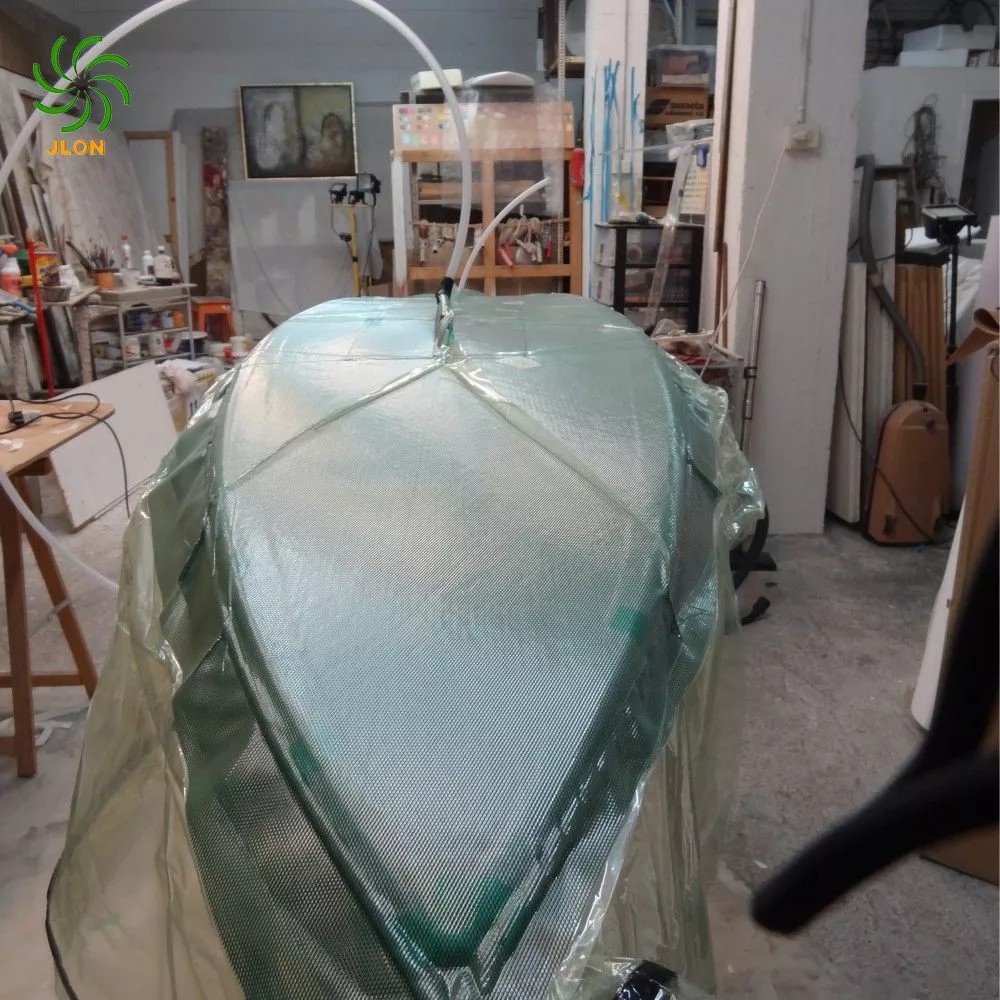

Composite boat hulls and decks commonly use vacuum infusion technology.

Bagging film plays a critical role in manufacturing:

· Yacht hulls

· FRP boats

· Racing boats

· Marine sandwich panels

A stable vacuum environment helps improve laminate strength while reducing excess resin weight.

Automotive Lightweight Components

Automotive manufacturers increasingly use composites to reduce vehicle weight and improve fuel efficiency.

Vacuum bagging film is widely used in the production of:

· Carbon fiber body panels

· Structural reinforcement parts

· Battery enclosures

· Lightweight interior components

Industrial Composite Products

Bagging film is also used for industrial FRP and advanced composite products such as:

· Composite tanks

· Pipes

· Architectural panels

· Sports equipment

· Industrial covers

Features of JLON Bagging Film

High Temperature Resistance

Suitable for multiple resin curing systems with stable performance up to 170°C.

Excellent Flexibility

The film conforms well to complicated mold surfaces and curved geometries.

High Elongation

Provides strong adaptability during vacuum forming without tearing.

Strong Vacuum Integrity

Multi-layer structure minimizes leakage risk and improves process safety.

Excellent Mechanical Strength

High puncture resistance helps prevent accidental film damage during manufacturing.

Large Width Availability

Wide films reduce seam joints and improve production efficiency for large composite parts.

Typical Vacuum Bagging Process

A standard vacuum bagging setup typically includes:

1. Mold surface

2. Release agent

3. Fiber reinforcement

4. Resin distribution media

5. Peel ply

6. Flow media

7. Bagging film

8. Sealant tape

9. Vacuum line

After sealing the bagging film around the mold perimeter, vacuum pressure removes air inside the cavity. Resin is then infused evenly through the reinforcement layers.

The bagging film must maintain airtight sealing during the entire curing cycle.

Why Choose JLON Bagging Film?

At JLON Composite Materials, we understand the challenges faced by composite manufacturers in demanding industries.

Our bagging film solutions are designed to provide:

· Reliable vacuum performance

· Stable high-temperature resistance

· Consistent film quality

· Wide-size flexibility

· Reduced production risk

We support customers worldwide in industries including:

· Wind energy

· Marine composites

· Aerospace

· Automotive

· Industrial FRP manufacturing

Our technical team can also help customers select suitable vacuum consumables according to:

· Resin system

· Process temperature

· Mold size

· Production method

· Part geometry

Frequently Asked Questions About Bagging Film

Q1. Can JLON customize bagging film specifications?

Yes. JLON can discuss customer requirements and provide suitable solutions based on process conditions and application needs.

Q2. Can I request samples for testing?

Yes. Samples are typically prepared within one week after specifications are confirmed.

Q3. What is the normal delivery time?

Usually around 2–3 weeks after order confirmation. Exact delivery time depends on order quantity and production schedule.

Q4. How are quality complaints handled?

JLON provides technical data sheets (TDS) for each production batch before delivery. If any quality issue occurs, customers can provide samples, pictures, or testing data for analysis. Replacement or compensation solutions can be arranged after confirmation.

Q5. What payment terms are available?

Common trade terms include:

· EXW

· FOB

· CIF

· DDU

Conclusion

Bagging film is a critical vacuum consumable in modern composite manufacturing. Its performance directly affects vacuum integrity, resin flow quality, laminate consistency, and final product reliability.

JLON multi-layer Nylon bagging film offers excellent elongation, strong puncture resistance, high-temperature stability, and reliable vacuum security for demanding composite applications.

Whether you are manufacturing wind turbine blades, marine structures, aerospace parts, or automotive composite components, choosing the right bagging film can help improve process efficiency and reduce production risk.
