As global demand for renewable energy continues to rise, wind turbine blade manufacturers are under increasing pressure to improve production efficiency, maintain consistent product quality, and reduce manufacturing costs. Modern wind turbine blades are becoming longer, lighter, and structurally more complex, which places higher requirements on composite manufacturing processes.
Among all composite molding technologies, Vacuum Assisted Resin Infusion (VARI) and Vacuum Assisted Resin Transfer Molding (VARTM) have become the mainstream production processes for large wind turbine blades because of their advantages in lightweight performance, strength consistency, and lower emissions.
However, many blade manufacturers still face hidden production losses caused by unstable vacuum infusion auxiliary materials. One small component — the base plate tube — can directly affect resin flow efficiency, vacuum stability, molding quality, labor costs, and even the final qualification rate of wind turbine blades.
Low-quality infusion tubes often lead to:
Tube deformation under high temperatures
Resin flow instability
Air leakage during infusion
Resin backflow problems
Frequent tube replacement
Increased downtime and maintenance
Incomplete wet-out and dry spots
Scrap or rework of expensive composite blades
For large-scale wind blade production lines, these issues can result in significant material waste and unnecessary operational costs.
To solve these process challenges, JLON developed a high-performance Base Plate Tube for Wind Turbine Blade Vacuum Infusion, specifically engineered for industrial composite infusion applications.
This article explains how the right vacuum infusion base plate tube can improve production stability, optimize resin flow, lower total manufacturing costs, and help wind blade manufacturers achieve more reliable composite molding results.

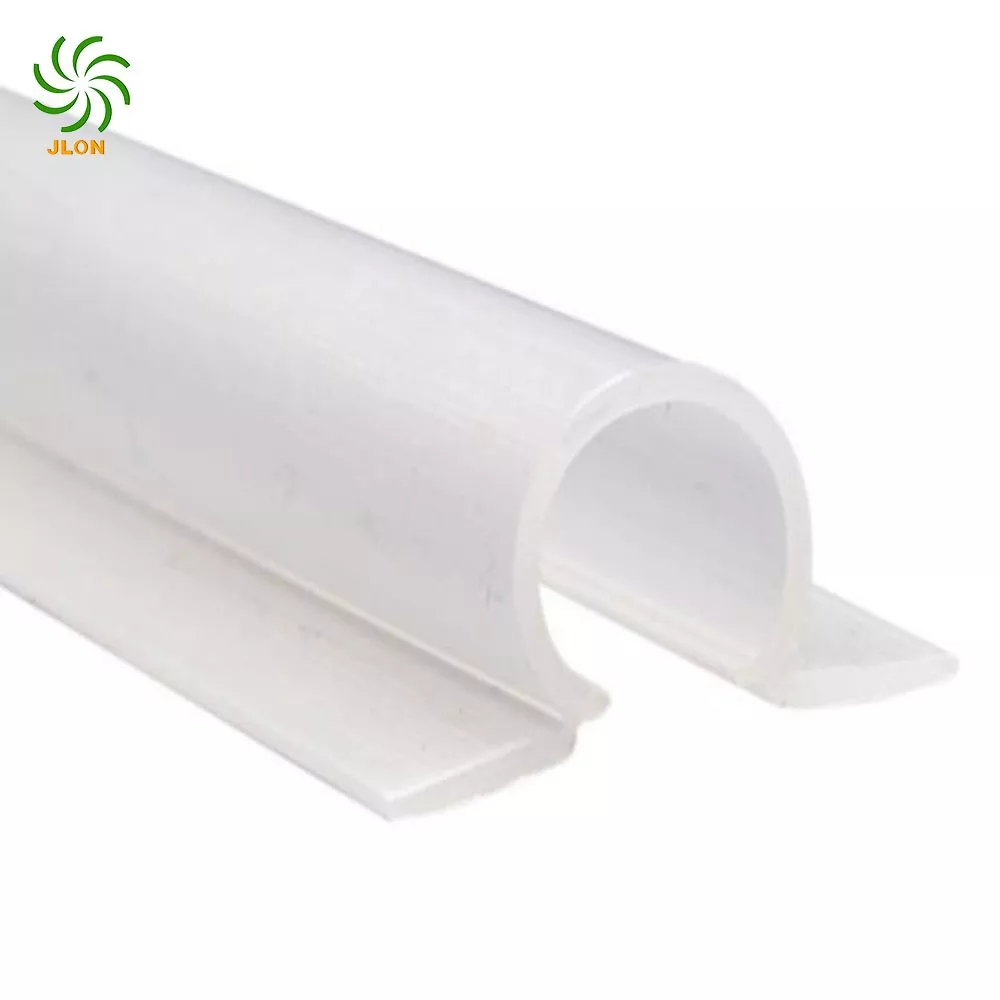

A base plate tube is a specialized resin distribution tube used in vacuum infusion systems for large composite structures such as wind turbine blades.
During the VARI/VARTM process, resin must travel efficiently and evenly across large mold surfaces while maintaining stable vacuum pressure. The base plate tube acts as a controlled resin transfer channel, helping resin flow smoothly throughout the blade laminate.
Because wind turbine blades can exceed 50–100 meters in length, infusion consistency becomes extremely critical. Even minor resin flow interruptions may cause:
Dry fiber areas
Uneven laminate thickness
Voids and bubbles
Structural weakness
Reduced fatigue resistance
Therefore, industrial-grade vacuum infusion accessories are essential for ensuring high-quality blade production.
Many traditional infusion tubes available on the market are designed for general FRP applications rather than large-scale wind energy composite manufacturing.
When used in wind blade production, ordinary tubes may suffer from several limitations.
Wind turbine blade infusion processes often involve elevated curing temperatures. Inferior plastic materials may soften or deform under heat, resulting in unstable resin channels and interrupted resin flow.
This can directly impact:
Infusion speed
Vacuum integrity
Resin distribution consistency
Final blade quality
Large composite structures require stable vacuum pressure during the entire infusion process.
Low-strength tubes may collapse under vacuum pressure or fail under positive pressure conditions, causing:
Air leakage
Resin leakage
Flow interruption
Increased risk of defective products
Frequent tube replacement increases:
Material costs
Labor costs
Equipment downtime
Production interruptions
For high-volume wind blade manufacturers, unstable auxiliary materials create hidden long-term operational losses.
Our Base Plate Tube for Wind Turbine Blade Vacuum Infusion is specifically developed for demanding industrial composite applications.
Unlike ordinary resin infusion tubes, this product focuses on:
Long-term durability
Stable resin flow
High temperature resistance
Strong pressure resistance
Process consistency
Reduced production risk
It is widely used in:
Wind turbine blade manufacturing
Large composite structural parts
Industrial VARTM processes
Vacuum infusion molding lines
Renewable energy composite applications
The tube is manufactured using high-density polyethylene (PE) and polypropylene (PP) engineering-grade materials.
Compared with ordinary plastic infusion tubes, these materials offer:
Better dimensional stability
Stronger aging resistance
Improved durability
Enhanced fatigue resistance
Longer service life
Even under repeated industrial use, the tube maintains excellent structural integrity without cracking or deformation.
Reduce replacement frequency
Lower procurement costs
Minimize production interruptions
Improve operational stability
Wind blade curing environments require infusion materials capable of handling elevated temperatures.
Our base plate tube supports:
Maximum operating temperature: 140°C
This makes it highly suitable for:
Epoxy resin systems
High-temperature curing processes
Large-scale composite blade production
Industrial vacuum infusion applications
The tube maintains stable performance throughout the curing cycle, helping prevent deformation and resin flow disruption.
Stable resin transfer under heat
Reduced process failure risk
Improved molding consistency
Better blade structural quality
The tube is engineered to withstand:
20 bar positive pressure
1 bar negative pressure
This ensures stable performance even under complex vacuum infusion conditions.
Strong pressure resistance helps prevent:
Tube collapse
Air leakage
Resin backflow
Vacuum instability
Infusion interruption
For large wind turbine blades, vacuum stability directly affects resin penetration and laminate quality.
Stable pressure control means:
More uniform resin distribution
Lower defect rate
Improved production consistency
Higher qualification rate
The tube is produced using a precision extrusion manufacturing process, ensuring highly consistent dimensions.
This allows:
Uniform resin flow rate
Predictable infusion behavior
Improved process control
Better repeatability between production batches
Stable resin flow can significantly reduce common infusion defects such as:
Dry spots
Resin-rich areas
Voids
Bubbles
Incomplete wet-out
Improve blade forming quality
Reduce scrap rate
Minimize rework costs
Increase production efficiency

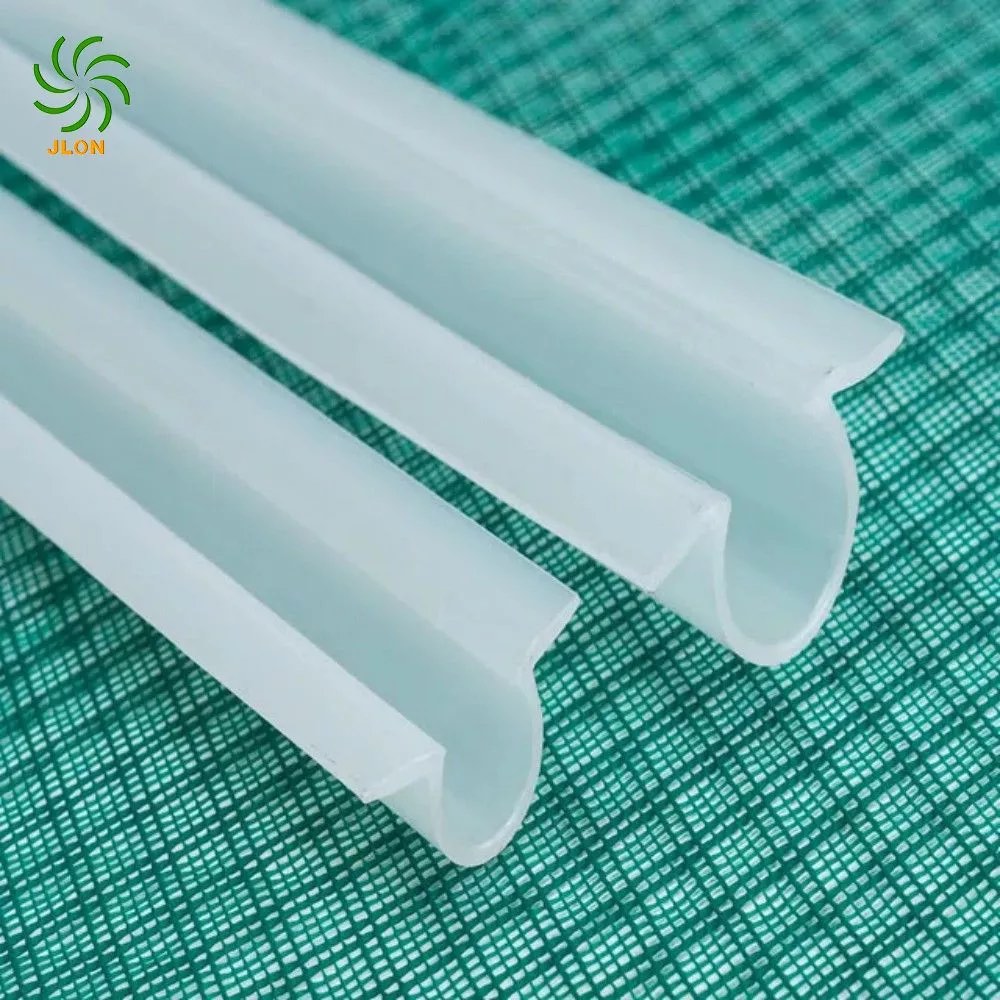

The translucent tube structure allows operators to visually monitor resin flow during the infusion process.
This helps production teams:
Detect flow abnormalities early
Adjust process parameters faster
Improve operational accuracy
Avoid blind process control
Visual resin monitoring is especially valuable in large wind blade manufacturing where infusion distances are extremely long.
Different wind blade manufacturers often use different:
Mold sizes
Resin systems
Vacuum layouts
Production processes
We provide customized solutions including:
Tube dimensions
Colors
Lengths
Packaging methods
Process matching support
This flexibility helps customers optimize their infusion systems based on actual production requirements.
Our base plate tube is widely used in:
Wind turbine blades
Wind nacelle composite structures
Wind power composite components
Large FRP structures
Structural sandwich panels
Industrial composite molds
Vacuum infusion structural parts
Lightweight energy structures
High-strength industrial composite parts
Large resin infusion projects
Many manufacturers focus only on the purchase price of auxiliary materials while ignoring long-term production efficiency.
In reality, unstable infusion accessories often create much larger hidden costs.
Better resin flow stability improves blade quality consistency, reducing:
Defective products
Secondary repairs
Material waste
Production delays
Durable tubes require fewer replacements, minimizing:
Maintenance interruptions
Production stoppages
Labor costs
Stable infusion means:
Faster molding cycles
More predictable production
Better process repeatability
Higher output capacity
Although industrial-grade tubes may initially cost more than ordinary products, their longer service life significantly reduces overall operating expenses.
JLON focuses on composite materials and vacuum infusion solutions for industrial applications.
We understand the strict requirements of wind energy composite manufacturing and provide reliable supporting materials for large-scale infusion production.
Our advantages include:
Stable product quality
Industrial-grade manufacturing standards
Customized solutions
Technical support
Bulk supply capability
Fast response for global customers
We support wind turbine blade manufacturers, composite processing factories, and industrial composite production teams worldwide.
A base plate tube is used in vacuum infusion systems to distribute resin evenly during the manufacturing of composite wind turbine blades.
Our tubes are manufactured using high-density PE and PP engineering materials for better durability, pressure resistance, and thermal stability.
The tube can withstand operating temperatures up to 140°C.
Yes. The product is specifically designed for VARI/VARTM vacuum infusion molding applications.
Yes. We support customized dimensions, lengths, colors, and specifications according to customer requirements.
Stable resin flow helps prevent dry spots, bubbles, and incomplete wet-out, improving overall blade structural quality and reducing defect rates.
In modern wind turbine blade manufacturing, production efficiency and molding consistency are critical for maintaining competitiveness.
Choosing a professional industrial-grade Base Plate Tube for Wind Turbine Blade Vacuum Infusion is not simply purchasing an auxiliary material — it is an investment in process stability, product quality, and long-term manufacturing efficiency.
JLON high-performance base plate tubes help manufacturers:
Improve vacuum infusion reliability
Reduce production defects
Optimize resin flow performance
Lower maintenance and replacement costs
Improve overall production efficiency
Reduce total manufacturing cost
Whether you are producing large offshore wind blades or industrial composite structures, stable vacuum infusion accessories can directly improve your production results.
Looking for reliable and cost-effective vacuum infusion base plate tubes?
JLON provides:
Customized specifications
Bulk supply support
Technical consultation
Fast delivery service
Global export support
Contact us now to get:
Free product consultation
Competitive bulk quotation
Product samples
Customized infusion solutions for your wind turbine blade production line.
