In modern composite manufacturing, maintaining stable vacuum pressure and reliable heat resistance during the curing process is essential for producing high-quality parts. High temperature nylon vacuum bagging film has become one of the most important consumable materials in advanced vacuum infusion, prepreg molding, and autoclave processing industries. From aerospace carbon fiber structures to wind energy components and automotive lightweight parts, manufacturers require vacuum bagging films that can withstand high temperatures while maintaining excellent elongation, sealing performance, and mechanical strength.
JLON high temperature nylon vacuum bagging film is specially designed for demanding composite applications where standard vacuum films cannot meet the process requirements. With excellent thermal stability, high tensile strength, and wide-width production capability, JLON vacuum bagging film helps manufacturers reduce vacuum leakage risks, improve production efficiency, and lower scrap rates during composite molding processes.
High temperature nylon vacuum bagging film is a high-performance polyamide (PA) film used to create an airtight vacuum environment during composite manufacturing. The film covers the laminate structure and is sealed using sealant tape to ensure consistent vacuum pressure throughout the curing cycle.
Compared with standard vacuum films, high temperature nylon films can withstand curing temperatures above 180°C and maintain excellent flexibility and puncture resistance under extreme processing conditions. This makes them ideal for carbon fiber prepreg curing, aerospace structures, high-speed rail components, and decorative aluminum alloy transfer applications.
JLON high temperature nylon vacuum bagging film is widely used in:
During vacuum bagging and composite curing, the film acts as the primary barrier that maintains vacuum integrity. If the film fails due to excessive heat, puncture, or insufficient elongation, manufacturers may experience:
· Vacuum loss
· Resin leakage
· Air entrapment
· Poor laminate consolidation
· Surface defects
· High scrap rates
· Increased labor costs
Using a reliable high temperature nylon vacuum bagging film significantly improves production stability and ensures consistent composite part quality.
JLON vacuum bagging films are engineered to maintain strong sealing performance throughout the curing process, even under high temperature and high vacuum conditions. Their superior mechanical strength also reduces the risk of film tearing during installation and processing.
Currently, JLON offers multiple grades of high temperature nylon vacuum bagging films for different processing requirements.
The NL180 series is suitable for medium temperature composite curing applications. It provides excellent flexibility and vacuum stability for standard resin systems.
Available colors:
· Yellow
· Green

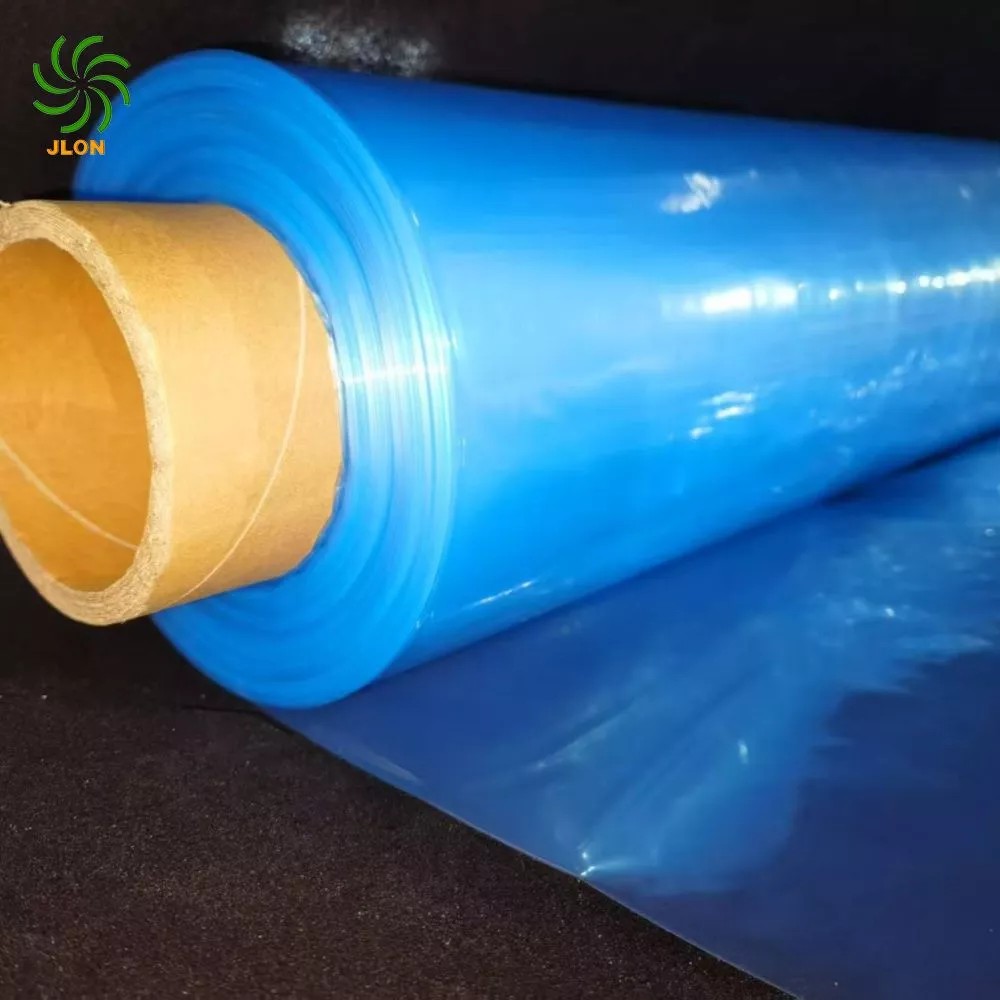

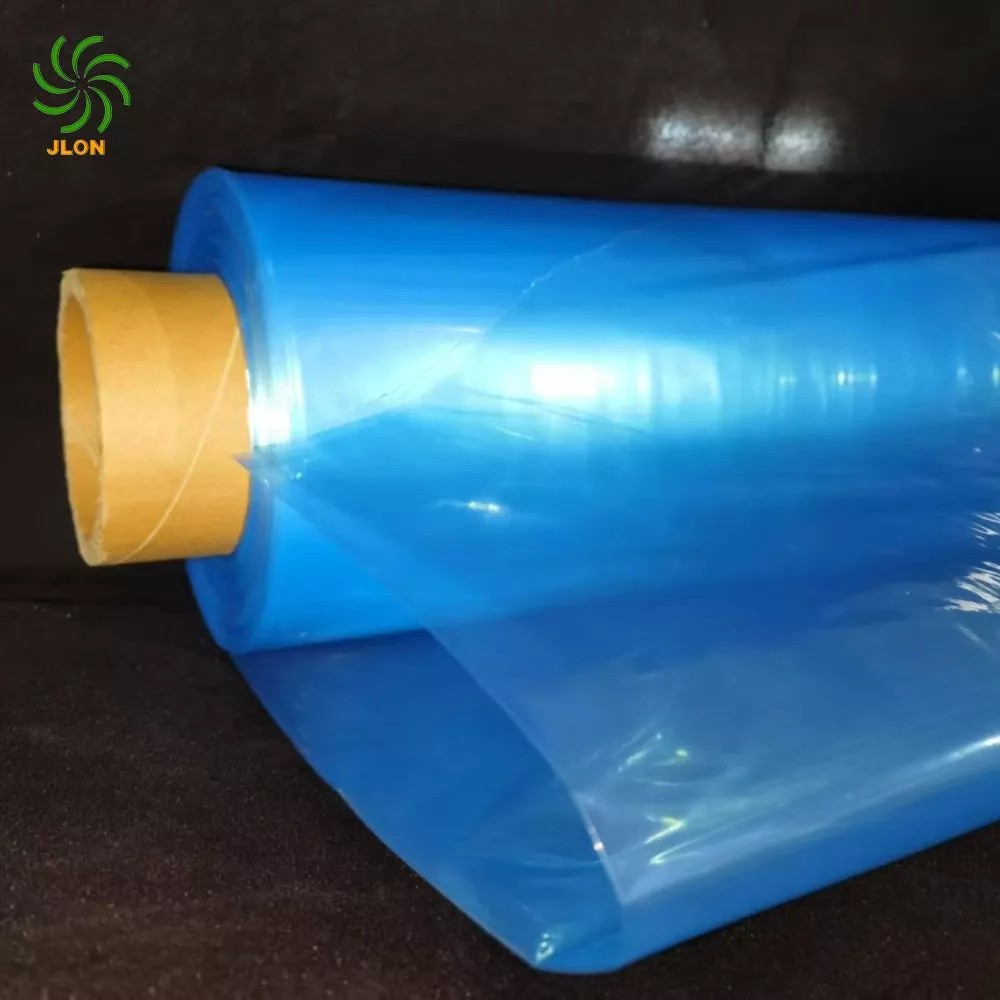

The NL204 series is one of the most commonly used high temperature vacuum bagging films in advanced composite manufacturing.
Available colors:
· Blue
· Green
This grade is widely used for:
· Carbon fiber prepreg molding
· Automotive composite parts
· Vacuum infusion processes
· Marine composite applications
The NL230 series is designed for higher temperature curing environments and demanding aerospace or industrial composite applications.
Available color:
· Green
Its high thermal resistance makes it ideal for:
· Aerospace structures
· Autoclave processing
· High-performance prepreg curing
The NL250 series offers even higher temperature capability for specialized composite manufacturing applications requiring extreme heat resistance.
Code | Temperature (°C) | Thickness (μm) | Width (m) | Tensile Strength (MPa) | Elongation at Break (%) | Material | Color |
NL180 | ≤180 | 50 / 65 / 75 | ≤7 | ≥60 | ≥350 | PA | Yellow / Green |
NL204 | ≤204 | 50 / 65 / 75 | ≤7 | ≥65 | ≥350 | PA | Green / Blue |
NL230 | ≤230 | 50 / 65 / 75 | ≤7 | ≥65 | ≥300 | PA | Green |
NL250 | ≤250 | 50 / 65 / 75 | ≤3.6 | ≥65 | ≥300 | PA | Green |
JLON nylon vacuum bagging films are compatible with multiple resin systems and can maintain stable performance during high-temperature curing cycles. The films remain flexible and durable even under demanding processing conditions.
High tensile strength and elongation properties help the film conform easily to complex mold surfaces without tearing. This minimizes leakage risks and improves vacuum integrity.
JLON vacuum bagging film can be produced up to 7 meters wide. Wider films reduce the number of seams required for large composite parts, significantly lowering labor costs and leakage risks.
Conventional widths include:
· 1.5 meters
· 3 meters
· 4 meters
Large-width vacuum bagging film is especially beneficial for:
· Wind turbine blades
· Marine hulls
· Aerospace structures
· Large industrial composite panels
Vacuum leakage is one of the primary causes of composite defects and production scrap. JLON multi-layer high temperature nylon films provide enhanced vacuum security and reduce the risk of defective parts caused by unstable vacuum conditions.
The high elongation properties allow the film to conform to complex shapes and sharp corners without bridging or tearing. This ensures proper laminate compaction and uniform resin distribution.
In aerospace applications, vacuum bagging film must withstand high curing temperatures while maintaining dimensional stability and vacuum integrity. JLON high temperature nylon films are suitable for aircraft shells, structural components, and carbon fiber prepreg molding.
Automotive manufacturers increasingly use carbon fiber composites to reduce vehicle weight and improve fuel efficiency. JLON vacuum bagging films support the production of high-performance carbon fiber body panels, structural reinforcements, and interior components.
Wind turbine blade manufacturing requires large-area vacuum infusion processes. JLON wide-width vacuum bagging film minimizes seams and improves vacuum reliability during blade production.
Marine composite structures require durable vacuum bagging materials that can handle large molds and long infusion cycles. JLON nylon vacuum films are widely used in:
· Yacht hulls
· Boat decks
· Marine panels
· Structural reinforcements
Carbon fiber sports equipment requires precise composite consolidation for optimal strength and lightweight performance. JLON vacuum bagging films are suitable for:
· Carbon fiber fishing rods
· Bicycle components
· Sporting goods
· Racing equipment
One of the biggest advantages of JLON vacuum bagging film is the availability of ultra-wide film widths up to 7 meters.
Traditional narrow films require multiple seams when covering large molds. Every seam introduces additional:
· Labor cost
· Installation time
· Leakage risk
· Quality uncertainty
Using wider vacuum bagging films helps manufacturers:
· Reduce film joining operations
· Shorten setup time
· Improve vacuum consistency
· Lower production scrap rates
· Increase manufacturing efficiency
For large composite structures such as wind turbine blades and marine hulls, wide-width vacuum films can significantly improve overall process stability.
Proper storage conditions are essential for maintaining film performance and extending shelf life.
JLON recommends storing vacuum bagging film under the following conditions:
· Temperature: approximately 23°C ± 3°C
· Relative humidity: 50% ± 5%
The storage area should avoid:
· Direct sunlight
· Sharp objects
· Excessive heat
· Humid environments
· Mechanical damage
Correct storage helps preserve the film’s flexibility, elongation properties, and vacuum sealing performance.
Selecting the correct vacuum bagging film depends on several factors:
Choose a film with temperature resistance higher than the maximum curing temperature of the resin system.
Large composite parts benefit from wider films to reduce seams and improve vacuum reliability.
Different resin systems may require different levels of chemical resistance and thermal stability.
Common processes include:
· Vacuum infusion
· Autoclave curing
· Oven curing
· Prepreg processing
· RTM applications
JLON technical team can help customers select the most suitable vacuum bagging film for their manufacturing process.
JLON focuses on supplying reliable composite materials and vacuum consumables for advanced manufacturing industries worldwide.
Advantages of working with JLON include:
· Stable product quality
· Wide product range
· Large-width production capability
· Customization support
· Technical assistance
· Fast delivery
· Professional export experience
JLON works closely with customers to optimize composite manufacturing processes and reduce production costs through reliable vacuum consumable solutions.
Yes. JLON can discuss specific processing requirements with customers and help provide suitable customized solutions.
Samples are usually prepared within one week after specifications are confirmed.
Normally, delivery takes approximately 2–3 weeks after order confirmation. Exact delivery time depends on order quantity and production schedule.
JLON provides technical data sheets for each production lot before shipment. If any quality issue occurs, customers can provide samples, pictures, or testing data for analysis. JLON will respond quickly and provide replacement products or compensation when necessary.
JLON commonly supports:
· EXW
· FOB
· CIF
· DDU
High temperature nylon vacuum bagging film plays a critical role in modern composite manufacturing. Whether used in aerospace, automotive, marine, wind energy, or sports equipment production, reliable vacuum bagging film directly impacts product quality, manufacturing efficiency, and production cost.
JLON high temperature nylon vacuum bagging film offers:
· Excellent heat resistance
· High tensile strength
· Superior elongation
· Wide-width production
· Reliable vacuum performance
· Reduced leakage risk
With temperature resistance up to 250°C and widths up to 7 meters, JLON provides advanced vacuum bagging solutions for demanding composite applications worldwide.
