In high-frequency systems, material behavior under electromagnetic fields determines signal integrity and transmission efficiency.
The dielectric constant represents a material’s ability to store electrical energy.
Lower Dk → Faster signal propagation
Higher Dk → Slower signal transmission
In antenna substrates and microwave PCB structures, low Dk improves impedance control and radiation efficiency.
Loss tangent measures dielectric energy dissipation.
Lower Df → Lower signal attenuation
Higher Df → Increased energy loss
At frequencies above 3 GHz, Df becomes a critical parameter.
Dielectric loss can be approximated by:
Dielectric Loss (dB) ≈ 27.3 × Df × Frequency (GHz) × Thickness (mm) × √Dk
This equation shows:
Loss increases linearly with frequency
Higher Df significantly increases attenuation
Higher Dk further amplifies dielectric loss
This explains why material selection is critical in Low Loss Base Station Antenna design.

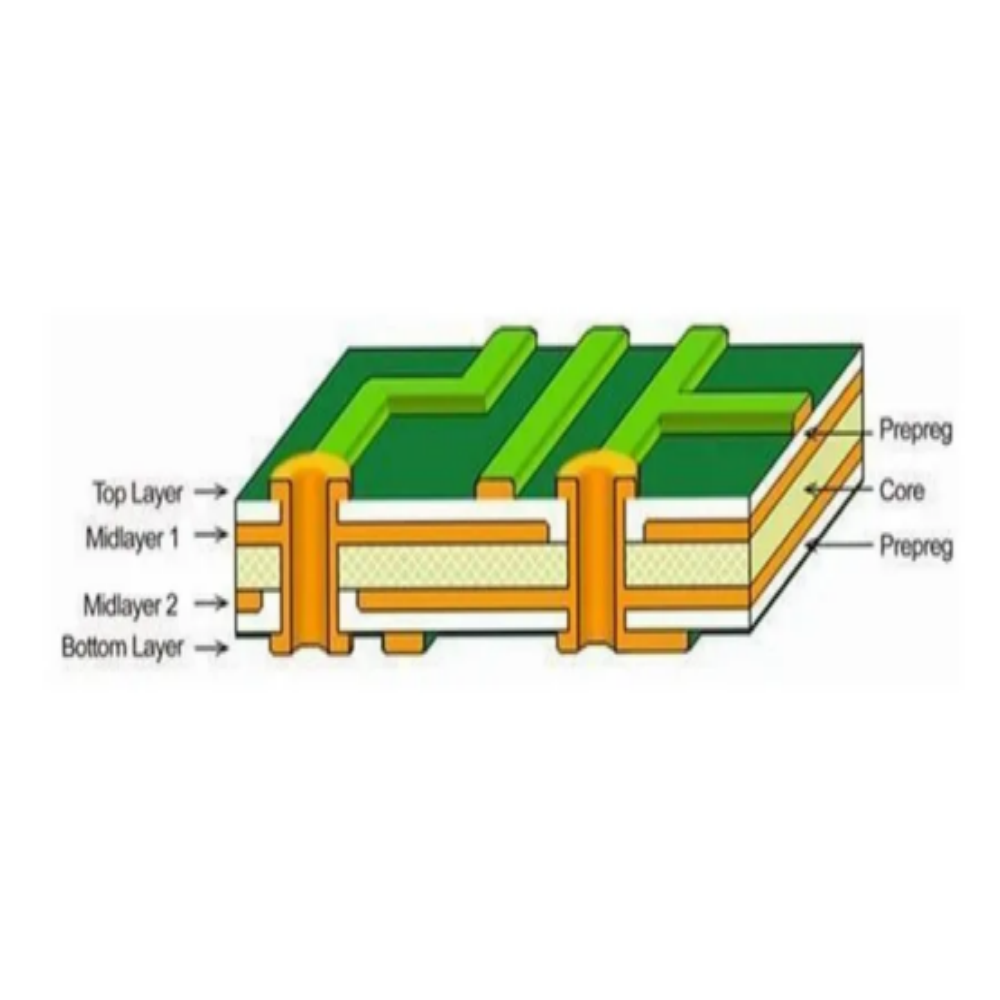

Electronic glass fabric reinforced epoxy laminates are widely used in conventional PCB manufacturing.
Typically 130–150°C (depending on epoxy Tg)
Moderate moisture resistance
Limited long-term UV stability

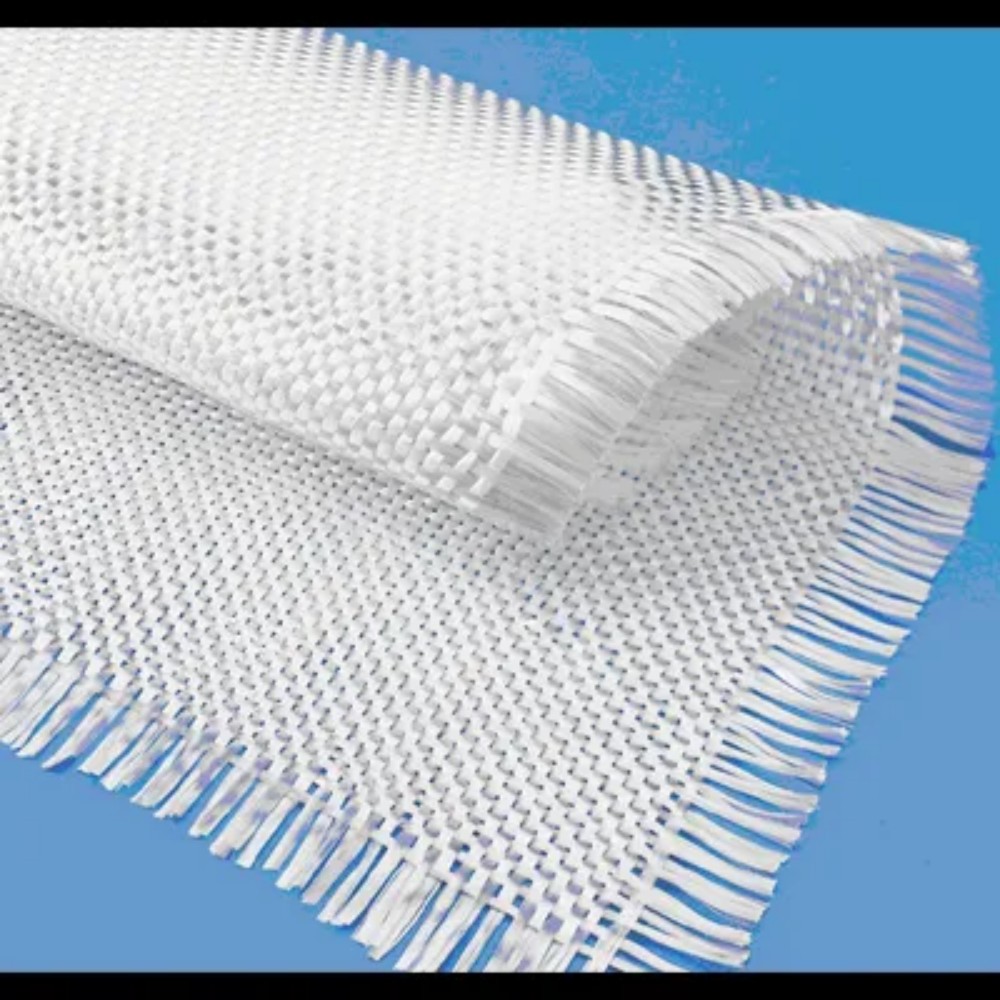

Electronic glass fabric provides:
High mechanical strength
Dimensional stability
Good lamination compatibility
Cost efficiency
FR4 PCB
Consumer electronics
Automotive control boards
Industrial electronics
Medium-frequency communication systems
Electronic Glass Fabric + Epoxy is suitable for cost-sensitive and medium-frequency applications. However, it is not optimized for high RF performance environments such as 5G antenna systems.
For microwave and high-frequency applications, Electronic Glass Fabric reinforced PTFE resin systems have become the industry standard.
Especially in:
Low Loss Base Station Antennas
Continuous service above 200°C
Extremely low moisture absorption
Outstanding UV resistance
Long-term environmental stability
PTFE provides:
Stable dielectric properties across frequency bands
Minimal performance drift under temperature variation
Resistance to humidity and aging
Excellent chemical stability

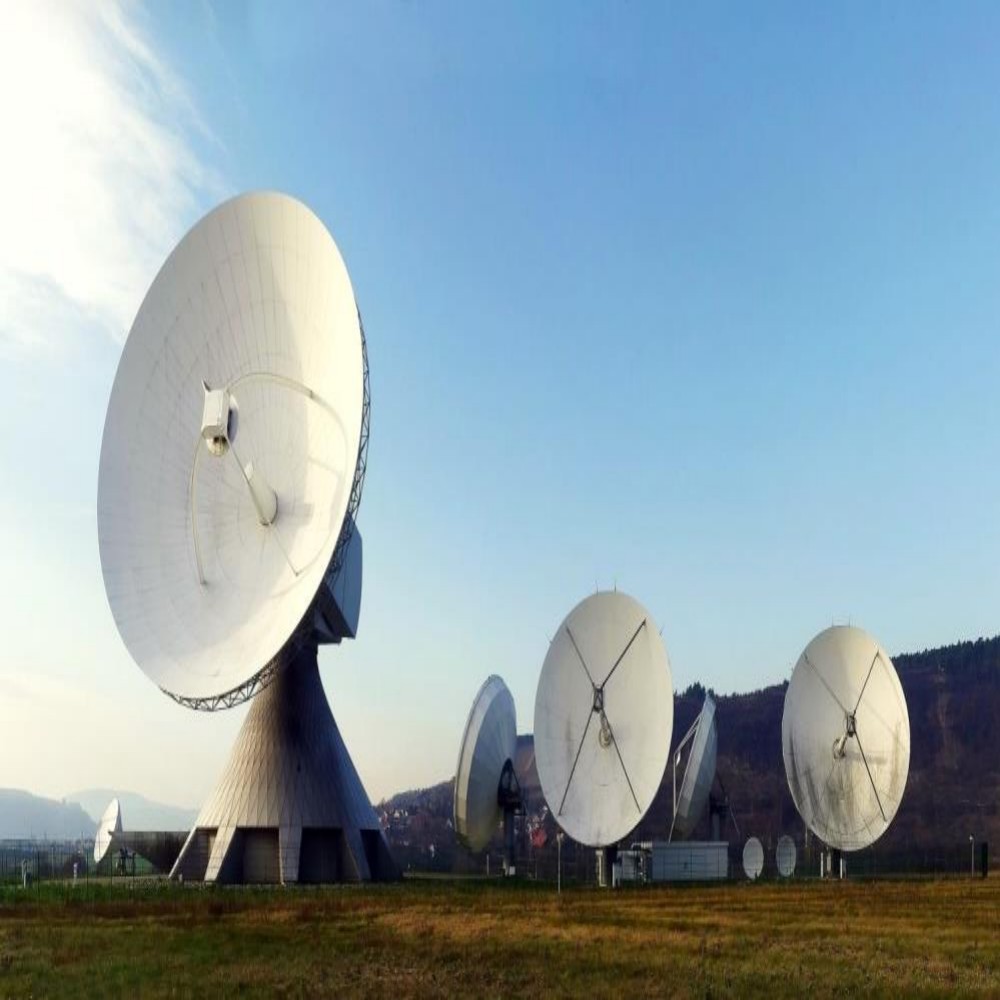

For outdoor base station antennas exposed to heat, moisture, UV radiation, and pollution, PTFE ensures stable long-term RF performance.

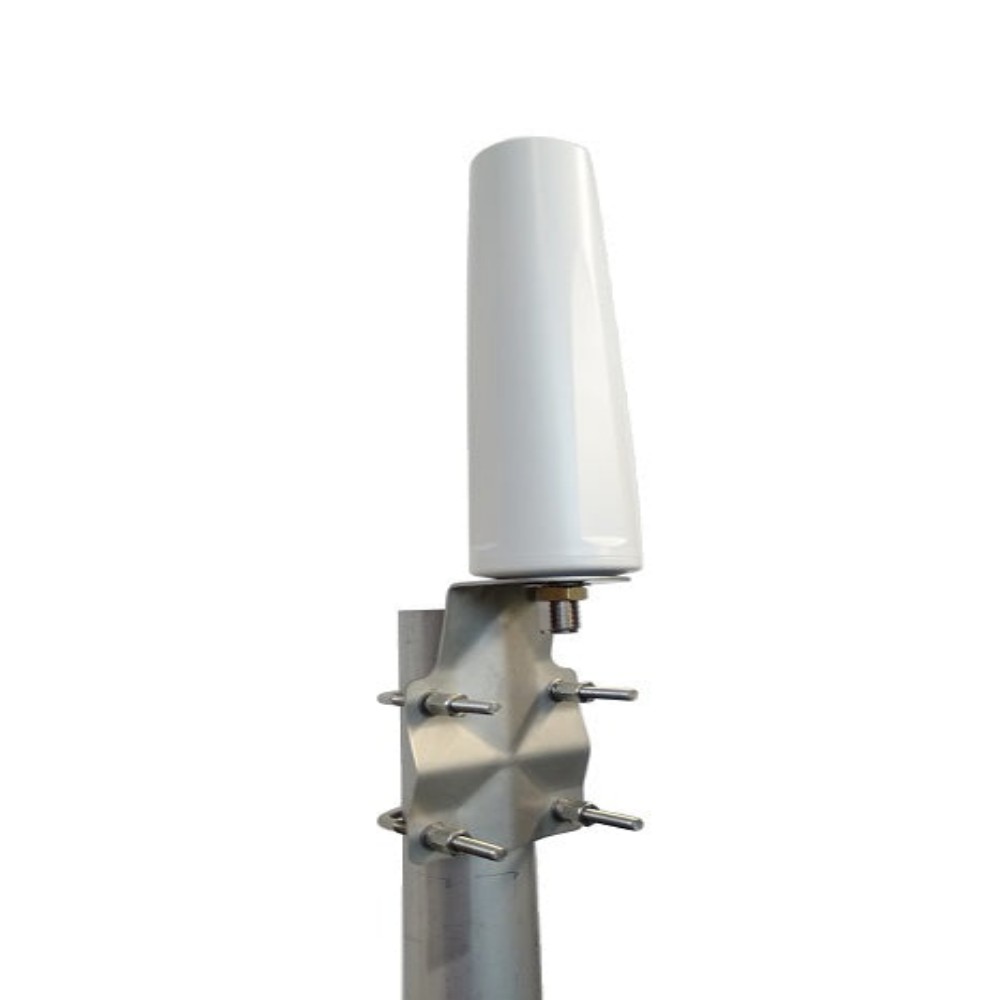

In modern base station antennas, materials must satisfy strict electrical and mechanical requirements.
Low Dk ensures:
Faster electromagnetic wave propagation
Improved impedance matching
Higher radiation efficiency
Reduced phase error
Low Df ensures:
Minimal dielectric absorption
Higher antenna gain
Lower signal attenuation
Antenna radomes and internal dielectric substrates must:
Allow efficient electromagnetic wave transmission
Minimize reflection loss
Maintain signal integrity
Electronic Glass Fabric reinforced PTFE systems provide optimal transparency to RF signals due to low Dk and ultra-low Df.
Dielectric substrate layers
Microwave PCB structures
Radome composite panels
Structural reinforcement components
Electronic glass fabric ensures mechanical stability, dimensional precision, and consistent dielectric behavior.
Although electronic glass fabric + epoxy is economical, it has:
Higher Dk
Higher Df
Higher moisture absorption
Greater dielectric drift over time
At microwave frequencies, this results in reduced antenna efficiency.
PTFE coated fiberglass fabric consists of glass fiber fabric coated with a PTFE layer.
High temperature resistance
Non-stick surface
Chemical resistance
UV resistance
Excellent weatherability
Although PTFE coated fiberglass fabric contains PTFE, it is not designed as an engineered RF substrate material.
It is primarily used for:
Conveyor belts
Architectural membranes
Industrial heat-resistant covers
Anti-corrosion applications
It does not provide the controlled dielectric performance required in antenna substrates.
System | Dk | Df | RF Performance | Temperature of Operation | Main Application |
Electronic Glass Fabric + Epoxy | High | High | Moderate | 130–150°C | Standard PCB |
Electronic Glass Fabric + PTFE | Low | Ultra Low | Excellent | >200°C | Low Loss Base Station Antenna |
PTFE Coated Fiberglass Fabric | Not engineered | Not engineered | Non-RF structural | High | Industrial |
Electronic Glass Fabric is a versatile reinforcement material. When combined with different resin systems, it serves completely different industries.
Electronic Glass Fabric + Epoxy supports mainstream electronics manufacturing.
Electronic Glass Fabric + PTFE enables high RF performance in low loss base station antennas and microwave systems.
PTFE Coated Fiberglass Fabric serves industrial thermal and corrosion-resistant applications.
For next-generation communication infrastructure, the combination of Electronic Glass Fabric reinforced PTFE resin systems provides the optimal balance of dielectric performance, mechanical strength, temperature resistance, and long-term environmental stability.
