In modern composite manufacturing, vacuum infusion has become one of the most efficient and cost-effective methods for producing lightweight, high-strength composite structures. Industries such as wind energy, marine, aerospace, transportation, construction, and industrial equipment increasingly rely on vacuum infusion technology to manufacture large and complex components with superior mechanical properties.
While reinforcement fabrics, resin systems, and core materials often receive the most attention, experienced composite engineers understand that the success of an infusion project depends heavily on the proper selection of consumable materials. Among these consumables, PE Hose—also known as Flow Tube, Resin Flow Hose, or Vacuum Infusion Hose—plays a critical role in ensuring stable resin distribution and vacuum pressure throughout the infusion process.
Although it appears to be a simple polyethylene tube, PE hose directly affects resin flow speed, wet-out quality, laminate consistency, and overall production efficiency. A poorly designed flow network can lead to dry spots, trapped air, incomplete impregnation, and expensive production failures. In contrast, a properly selected and installed PE hose system helps manufacturers achieve reliable, repeatable, and high-quality infusion results.
This guide explains everything manufacturers need to know about PE hose, including its functions, benefits, applications, selection criteria, common mistakes, and best practices for vacuum infusion.
Before discussing PE hose, it is important to understand how vacuum infusion works.
Vacuum infusion is a closed-mold composite manufacturing process in which dry reinforcement materials are placed inside a mold and covered with a vacuum bag. Once a vacuum is established, resin is drawn through the reinforcement by atmospheric pressure rather than being manually applied.
The process generally involves the following steps:
1.Mold preparation
2.Placement of reinforcement fabrics
3.Installation of core materials if required
4.Positioning of flow media and consumables
5.Installation of resin feed lines and vacuum lines
6.Vacuum bag sealing
7.Leak testing
8.Resin infusion
9.Curing
10.Demolding
During infusion, vacuum pressure pulls resin from the supply container through the laminate until all fibers are completely saturated.
The challenge is controlling how resin travels across the mold. This is where PE hose becomes extremely important.

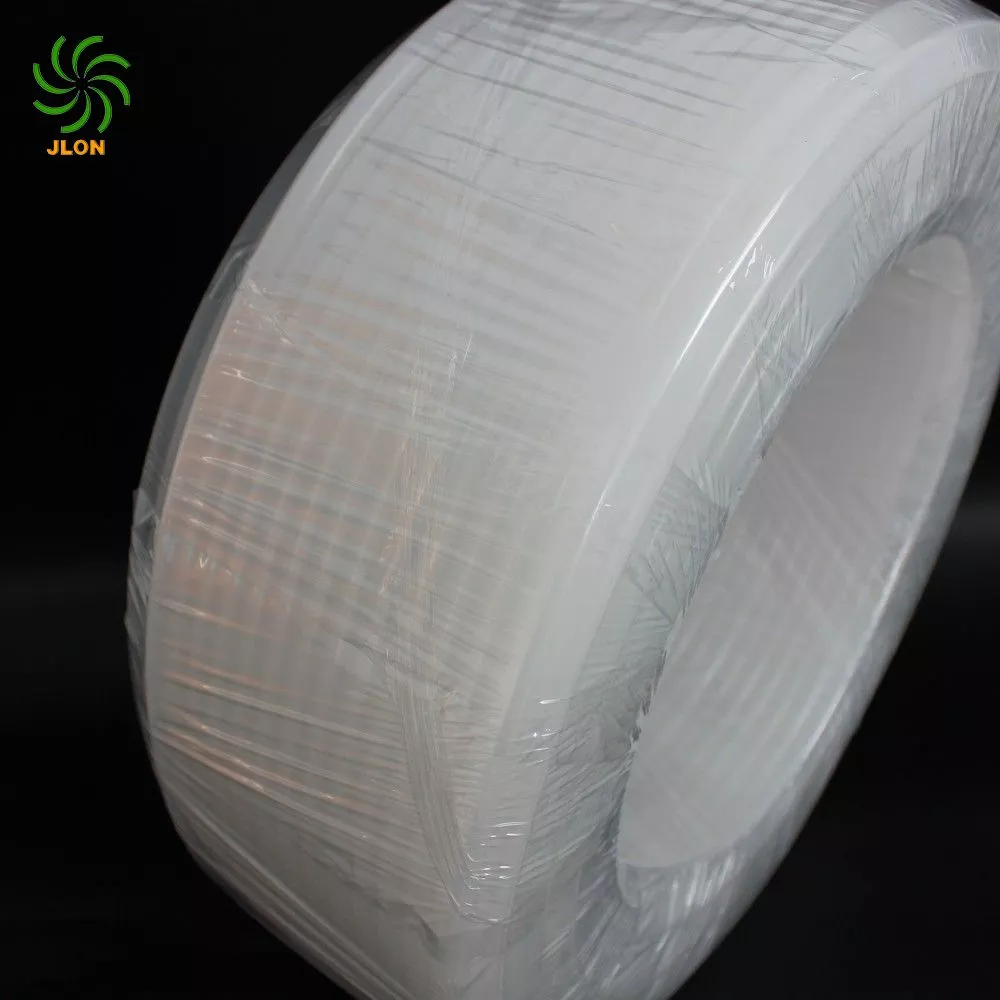

PE Hose is a flexible tubing manufactured from polyethylene (PE), a durable thermoplastic material known for its chemical resistance, flexibility, and affordability.
In composite manufacturing, PE hose is specifically designed to transport resin and vacuum pressure during vacuum infusion operations.
Depending on the region and application, PE hose may also be referred to as:
1.Flow Tube
2.Resin Flow Tube
3.Resin Feed Hose
4.Vacuum Infusion Hose
5.Infusion Transfer Line
6.Resin Delivery Hose

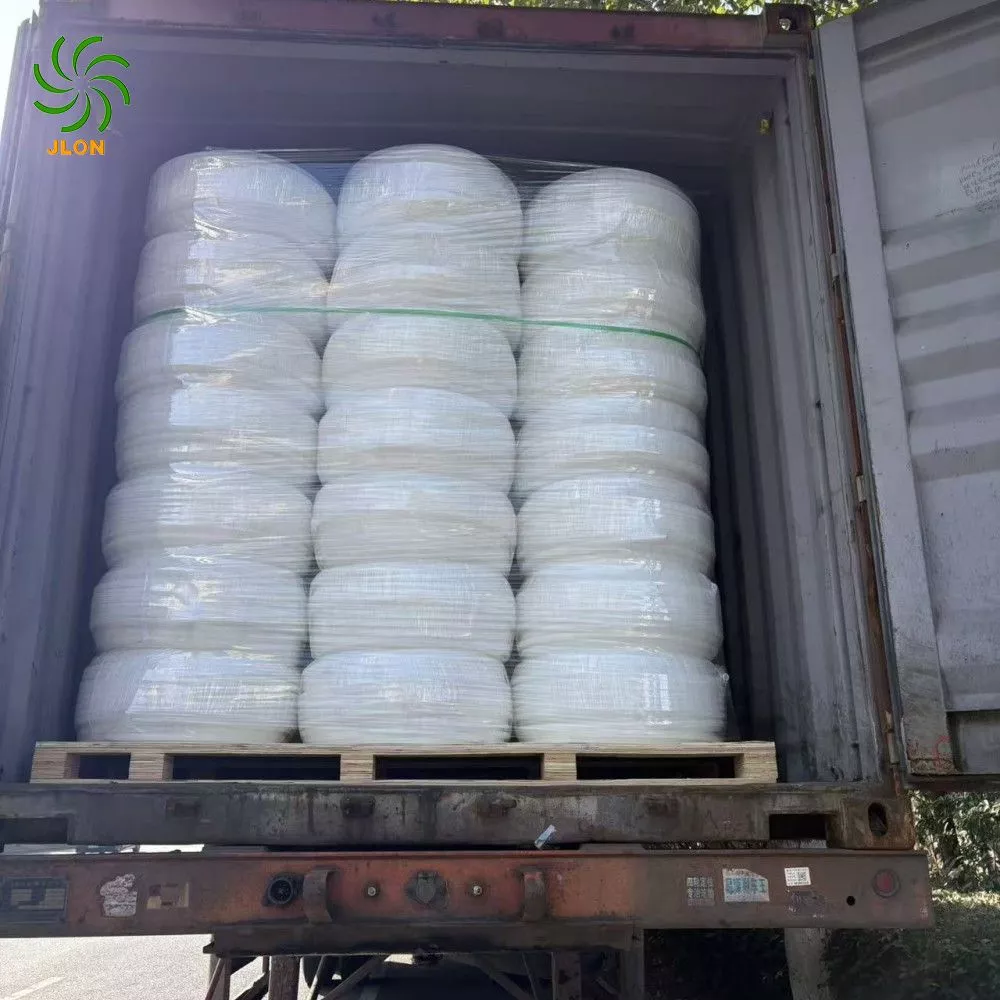

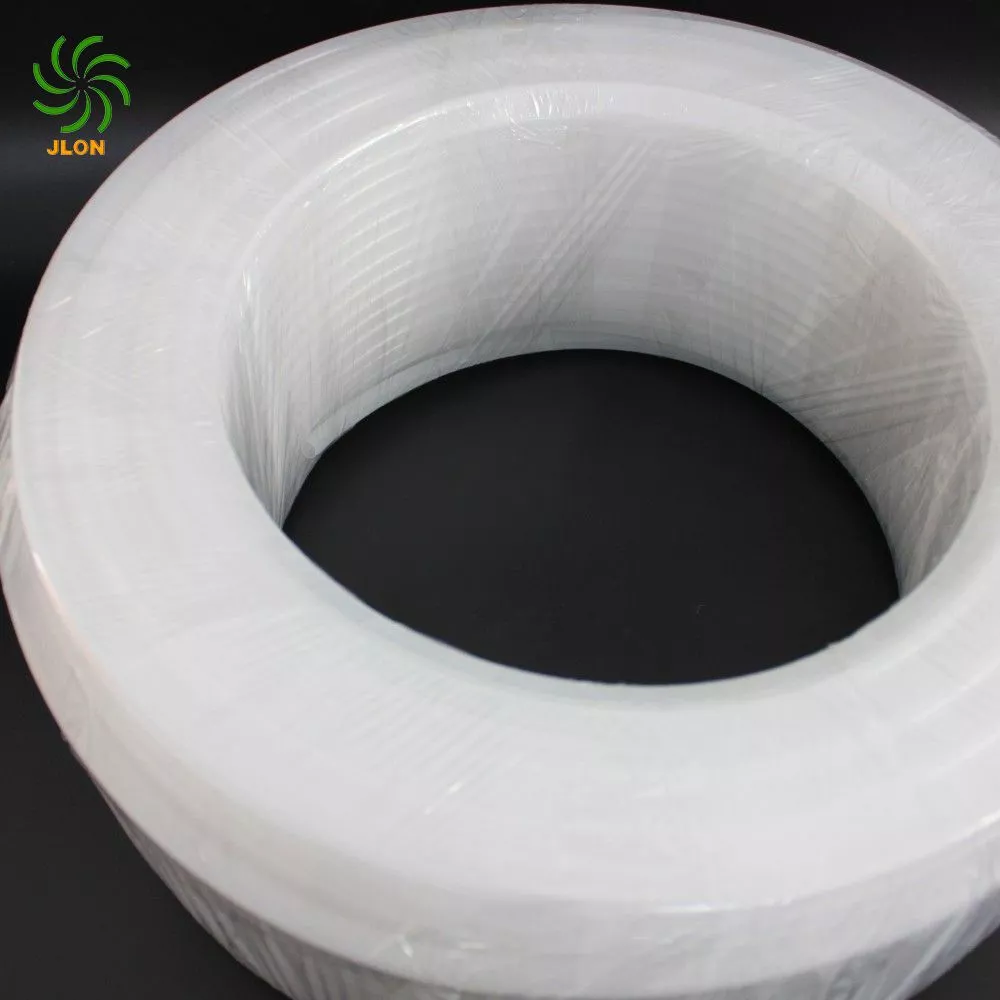

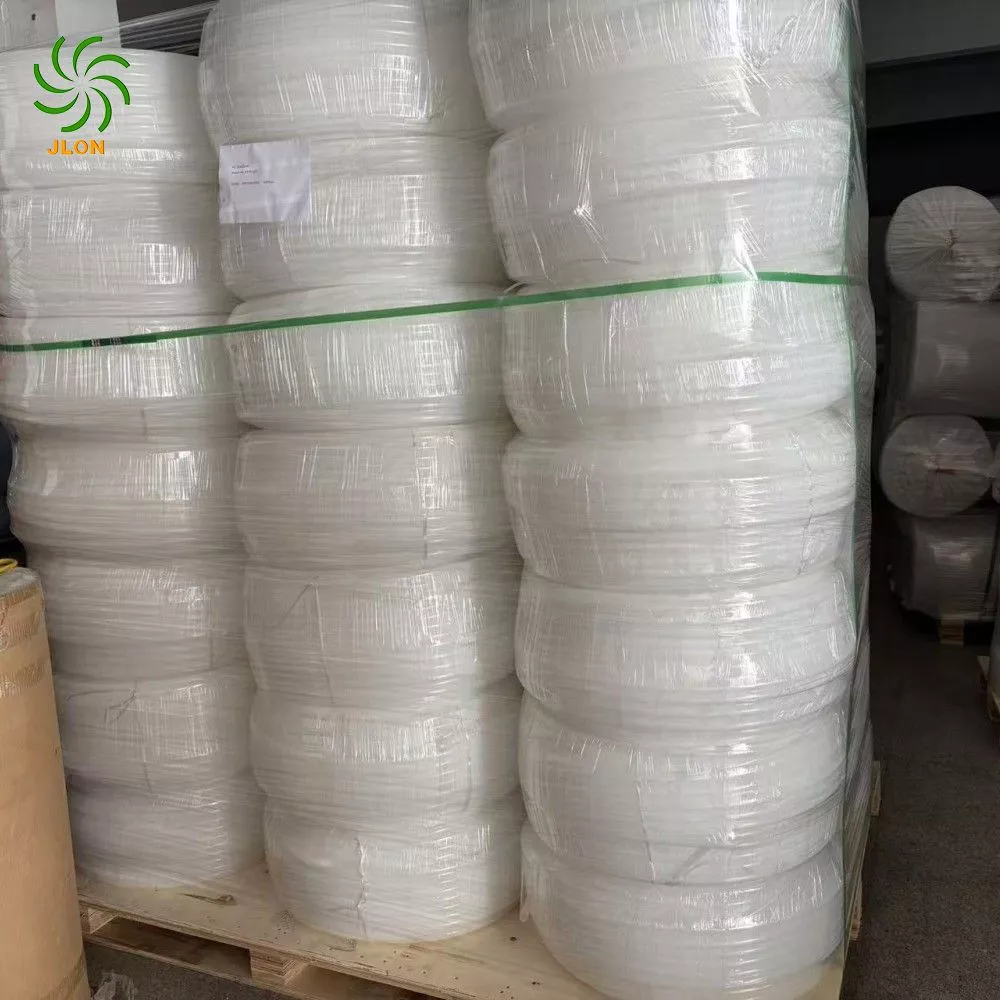

The hose is typically supplied in rolls and cut to the required length during production.
Its semi-transparent appearance allows operators to visually monitor resin movement during infusion, making process control easier.
Many composite manufacturers underestimate the importance of resin transport systems.
In reality, the quality of resin distribution directly influences:
1.Fiber wet-out quality
2.Laminate consistency
3.Mechanical properties
4.Surface finish
5.Production efficiency
6.Scrap rate
Without an effective flow path, resin may not reach all areas of the laminate evenly.
This can result in:
Areas where fibers remain unsaturated.
Air pockets trapped inside the laminate.
Regions containing excessive resin and insufficient fiber reinforcement.
Variations in laminate thickness and resin content.
Reduced mechanical performance and fatigue resistance.
PE hose helps eliminate these issues by providing controlled pathways for resin and vacuum pressure.
The most obvious function of PE hose is transporting resin.
The hose connects resin reservoirs to infusion ports and distributes resin into strategic locations throughout the mold.
Its smooth inner surface minimizes friction and flow resistance, allowing resin to move efficiently even over long distances.
For large structures such as wind turbine blades or yacht hulls, resin may need to travel several meters before reaching the furthest reinforcement layers.
PE hose helps maintain consistent resin delivery during this process.
PE hose also functions as part of the vacuum system.
Vacuum pressure must be transmitted uniformly across the entire mold to achieve effective resin impregnation.
The hose connects vacuum outlets to the vacuum pump and helps maintain stable pressure throughout the infusion cycle.
Consistent vacuum pressure contributes to:
Better fiber compaction
Lower void content
Improved laminate quality
Enhanced structural performance
Composite molds often contain complex geometries, curves, corners, and varying elevations.
PE hose can easily adapt to these shapes without requiring complicated fittings or installation procedures.
This flexibility simplifies setup and reduces labor time.
During infusion, hoses come into contact with aggressive resin systems and chemical additives.
Polyethylene exhibits excellent resistance to:
1.Epoxy resins
2.Polyester resins
3.Vinyl ester resins
4.Catalysts
5.Common infusion additives
This ensures reliable performance throughout the manufacturing process.
PE hose is significantly lighter than metal or reinforced industrial tubing.
Lightweight consumables simplify handling and reduce installation effort.
Compared with many alternative tubing materials, polyethylene provides an excellent balance of performance and cost.
This is especially important for manufacturers running large-scale production operations.
Because PE hose is often semi-transparent, operators can observe resin movement during infusion.
This allows quick identification of:
Air bubbles
Flow interruptions
Resin front progression
Potential blockages
A common question among composite manufacturers is whether PE hose can replace spiral wrap tubing.
The answer is no.
The two products serve different purposes.
PE hose primarily functions as a transport line for resin and vacuum pressure.
Spiral wrap tubing acts as a distribution medium, helping resin spread uniformly along the edge of the laminate.
In most infusion systems, both products are used together.
PE hose delivers resin to the mold.
Spiral tubing distributes that resin across a wider area.
Using both components properly improves infusion efficiency and laminate quality.
Wind turbine blades are among the largest composite structures manufactured today.
Modern blades may exceed 100 meters in length, requiring carefully designed resin distribution systems.
PE hose helps transport resin across long distances while maintaining consistent flow rates.
Boat builders frequently use vacuum infusion to manufacture:
Hulls
Decks
Bulkheads
Superstructures
Interior components
Reliable resin transport is essential for producing lightweight and durable marine structures.
Aircraft manufacturers require exceptional quality control.
PE hose contributes to accurate resin delivery and repeatable manufacturing results.
Vacuum infusion is increasingly used for:
Body panels
Structural reinforcements
Battery enclosures
Lightweight composite components
PE hose supports efficient production of these advanced parts.
Applications include:
Storage tanks
Pipes
Architectural panels
Transportation components
Infrastructure products
Choosing the correct hose depends on several factors.
Larger diameters provide higher flow capacity.
Smaller diameters may offer greater control in localized infusion areas.
Common sizes include:
10 mm ID
12 mm ID
16 mm ID
Manufacturers should verify compatibility with expected processing temperatures.
The hose should be suitable for the intended resin system.
Complex molds often require highly flexible tubing.
Large structures generally require larger flow channels to maintain efficient infusion.
Even experienced manufacturers can encounter infusion problems.
Common mistakes include:
Too few feed lines can create uneven resin flow.
Incorrect positioning may lead to race tracking or dry areas.
Small diameters can restrict resin flow and increase filling time.
Long flow paths increase resistance and may reduce process efficiency.
Vacuum losses can negatively affect resin impregnation quality.
Proper planning and testing can prevent most of these issues.
To maximize infusion quality, manufacturers should:
Design resin flow paths before production
Perform vacuum leak testing
Use appropriate hose diameters
Monitor resin front progression
Position feed and vacuum lines strategically
Combine PE hose with suitable flow media
Verify compatibility with resin systems
Following these practices can significantly improve process consistency and reduce production risks.
As composite structures continue to grow in size and complexity, resin distribution systems are becoming increasingly important.
Manufacturers are focusing on:
Faster infusion cycles
Lower material waste
Improved automation
Better process monitoring
Higher production consistency
Although advanced technologies continue to emerge, PE hose remains one of the most practical and cost-effective consumables for controlling resin flow in vacuum infusion operations.
PE hose may appear to be a simple consumable, but its impact on composite manufacturing is substantial. By providing reliable resin transport and vacuum pressure distribution, it helps manufacturers achieve consistent wet-out, lower defect rates, improved laminate quality, and higher production efficiency.
Whether producing wind turbine blades, marine structures, aerospace components, automotive parts, or industrial FRP products, selecting the right PE hose is an important step toward successful vacuum infusion.
For composite manufacturers seeking stable, repeatable, and cost-effective infusion processes, PE hose remains an indispensable component of modern vacuum infusion technology.
