Polyester Breather Fabric for Vacuum Infusion

In modern composite manufacturing, achieving consistent resin flow, complete air evacuation, and high laminate quality is essential. Whether producing wind turbine blades, marine structures, aerospace components, automotive parts, or carbon fiber products, manufacturers rely on specialized vacuum infusion consumables to ensure successful molding results.

Among these consumables, Polyester Breather Fabric plays a critical role in maintaining vacuum efficiency and improving laminate quality. Also known as Breather Cloth, Vacuum Breather, Breather Felt, or Resin Absorbing Breather, it is widely used in vacuum infusion, vacuum bag molding, resin transfer molding (RTM), and autoclave composite processes.

JLON's Polyester Breather Fabric is designed to provide excellent air permeability, high-temperature resistance, dimensional stability, and resin absorption performance, making it a trusted solution for composite manufacturers worldwide.

What Is Polyester Breather Fabric?

Polyester Breather Fabric is a nonwoven polyester material specifically engineered for composite vacuum bagging processes. It is placed beneath or above the vacuum bag to create a continuous airflow path throughout the laminate during evacuation and curing.

The material serves two primary functions:

1. Air Evacuation

The breather allows air trapped inside the vacuum bagging system to move freely toward the vacuum outlet. This ensures:

· Uniform vacuum distribution

· Elimination of trapped air

· Reduced void content

· Improved laminate consolidation

· Consistent curing quality

2. Resin Control and Absorption

Polyester breather can also act as a resin brake or resin absorber by capturing excess resin during the infusion process.

This helps:

· Prevent resin accumulation

· Protect vacuum lines

· Reduce the risk of vacuum blockage

· Improve fiber-to-resin ratios

· Produce lighter and stronger composite structures

As a result, polyester breather has become a standard consumable material in FRP and carbon fiber manufacturing.

Why Polyester Breather Is Essential in Vacuum Infusion

Vacuum infusion is one of the most widely adopted composite manufacturing methods because it enables high fiber volume fractions, low void content, and excellent mechanical performance.

However, the process depends heavily on maintaining consistent vacuum pressure and controlled resin flow.

Without an effective breather material, manufacturers may encounter:

· Air entrapment

· Dry spots

· Uneven resin distribution

· Poor surface quality

· Delamination

· Reduced mechanical properties

Polyester breather creates a three-dimensional air passage network that ensures vacuum pressure reaches every part of the mold cavity. This improves process reliability and significantly reduces production defects.

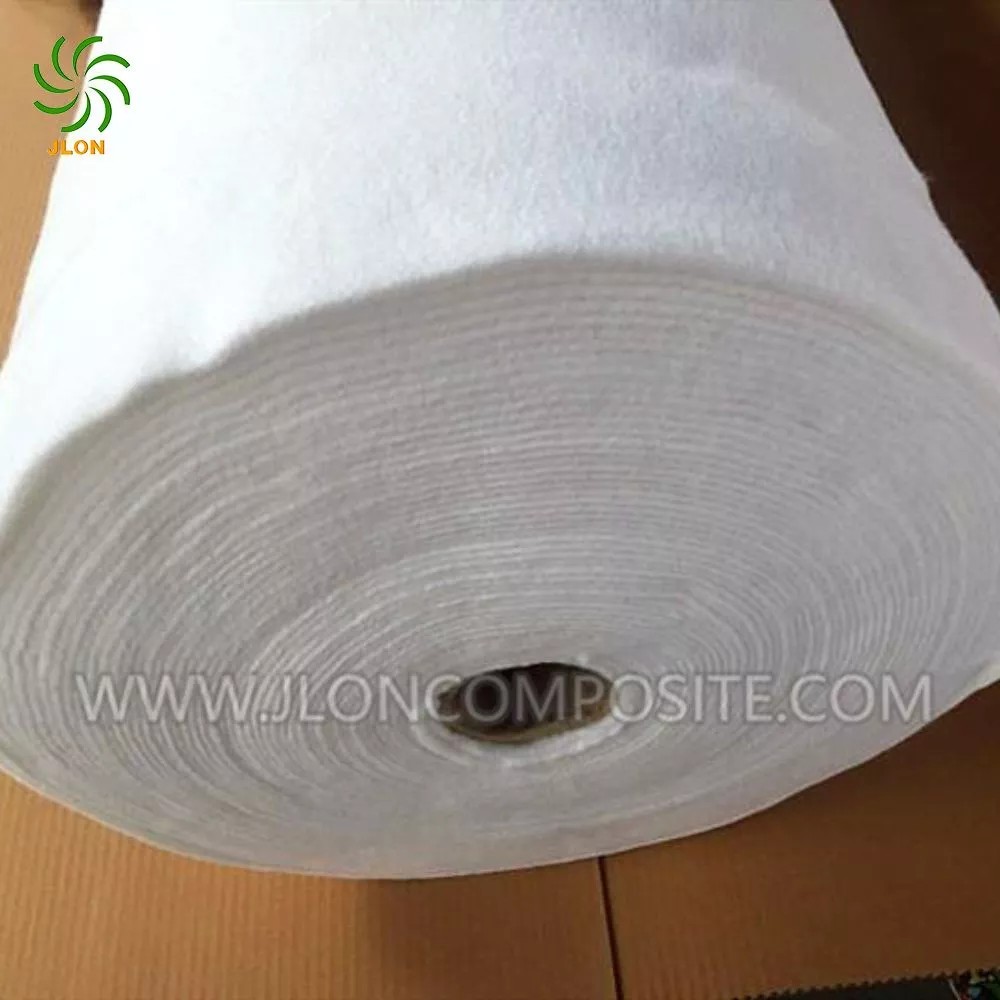

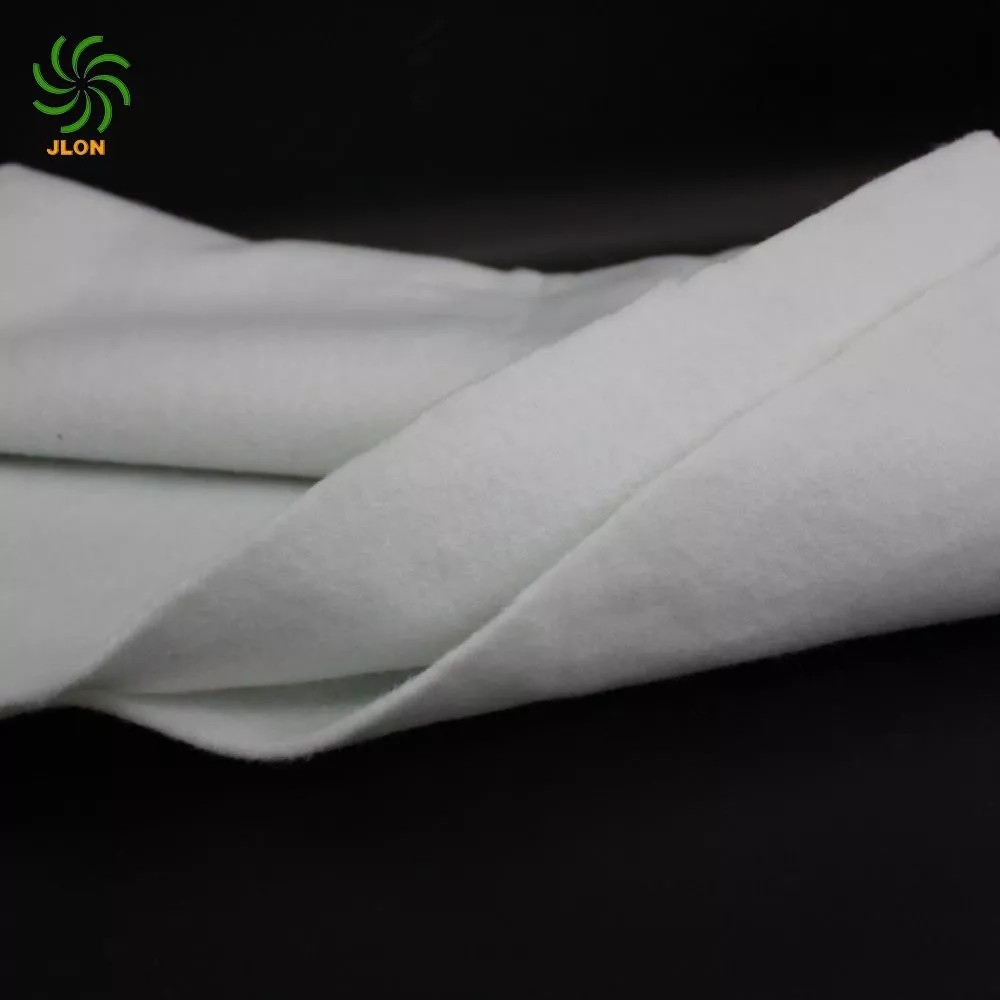

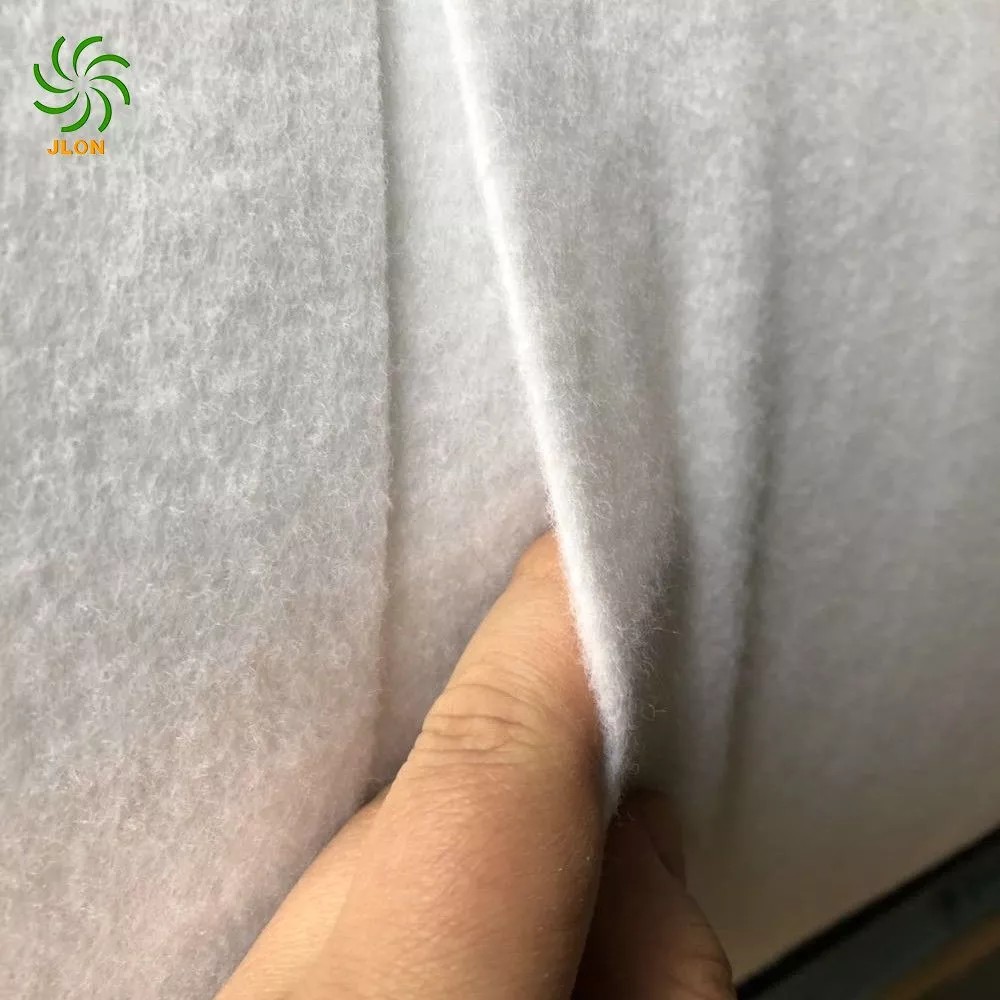

JLON BR150 Polyester Breather Fabric

JLON offers high-quality Polyester Breather Fabric developed specifically for vacuum infusion and vacuum bagging applications.

Product Specifications

Item	Specification
Product Name	Polyester Breather Fabric
Brand	JLON
Model	BR150
Material	Polyester Nonwoven Fabric
Color	White
Width	1500 mm
Roll Length	100 m
Temperature Resistance	Up to 205°C
Packaging	Woven Bag or Pallet Packaging
Application	Vacuum Infusion and Vacuum Bagging

The BR150 grade is widely used in marine, wind energy, automotive, aerospace, and industrial composite production.

Key Features of JLON Polyester Breather Fabric

Excellent Air Permeability

One of the most important characteristics of breather fabric is airflow performance.

JLON Polyester Breather Fabric provides:

· Uniform vacuum distribution

· Rapid air evacuation

· Stable vacuum pressure

· Improved laminate compaction

The porous structure allows air to travel efficiently throughout the entire vacuum bag system.

High Resin Absorption Capacity

During infusion, excess resin often flows beyond the reinforcement layers.

The polyester breather effectively absorbs surplus resin and acts as a buffer layer between the laminate and vacuum bag.

Benefits include:

· Cleaner infusion process

· Better resin control

· Reduced waste

· Protection of vacuum equipment

High Temperature Resistance

Composite curing often involves elevated temperatures.

JLON breather fabrics can withstand temperatures up to:

· 205°C for BR150

· 230°C for standard high-temperature grades

· 240°C for autoclave-specific grades

This makes them suitable for:

· Epoxy systems

· Vinyl ester systems

· Phenolic resins

· High-temperature prepreg curing

Dimensional Stability

The fabric maintains its structure under vacuum pressure and elevated temperatures.

Advantages include:

· Minimal shrinkage

· Stable thickness

· Consistent permeability

· Reliable process performance

Low Fiber Shedding

High-quality polyester fibers reduce lint generation and contamination risks.

This is particularly important for:

· Aerospace composites

· Carbon fiber laminates

· High-performance sporting goods

· Precision industrial parts

Available Polyester Breather Fabric Specifications

JLON provides multiple specifications to meet different manufacturing requirements.

Heavy-Duty Breather Fabrics

Suitable for:

· Wind turbine blades

· Large marine structures

· Aerospace tooling

Examples:

· 340 GSM × 1.5 m

· 340 GSM × 1.52 m

· 340 GSM × 1.6 m

Features:

· High breathability

· Excellent thermal stability

· Stable shrinkage rate

· Long service life

Medium-Weight Breather Fabrics

Suitable for:

· Autoclave molding

· RTM support applications

· Industrial composite panels

Examples:

· 250 GSM × 1.5 m

· 300 GSM × 1.52 m

Lightweight Breather Fabrics

Suitable for:

· UAV manufacturing

· Sporting goods

· Thin laminate structures

Examples:

· 150 GSM × 1.5 m

· 180 GSM × 2.0 m

· 80 GSM × 1.0 m

These grades provide balanced airflow and excellent handling characteristics.

Applications of Polyester Breather Fabric

Wind Turbine Blade Manufacturing

Wind energy is one of the largest consumers of vacuum infusion materials.

Polyester breather is extensively used during the production of:

· Wind turbine blades

· Spar caps

· Shear webs

· Blade root structures

Benefits include:

· Uniform vacuum distribution across large molds

· Improved resin infusion consistency

· Reduced void formation

· Enhanced structural performance

Marine Composite Manufacturing

Boat builders and yacht manufacturers rely heavily on vacuum infusion.

Typical applications include:

· Hulls

· Decks

· Bulkheads

· Superstructures

Polyester breather helps achieve:

· Lightweight structures

· Reduced resin consumption

· Superior surface finish

· Improved mechanical strength

Aerospace Industry

Aircraft and aerospace components demand exceptional quality standards.

Breather fabrics are commonly used in:

· Carbon fiber components

· Structural panels

· Interior composite parts

· Tooling applications

Key advantages:

· Low contamination risk

· Consistent vacuum performance

· High-temperature resistance

· Reliable autoclave compatibility

Automotive Manufacturing

Automotive manufacturers increasingly use composite materials to reduce vehicle weight.

Applications include:

· Body panels

· Structural reinforcements

· Battery enclosures

· Motorsport components

Polyester breather contributes to:

· Faster production cycles

· Improved dimensional accuracy

· Better laminate quality

Carbon Fiber Sporting Goods

High-performance sporting goods often utilize carbon fiber composites.

Examples include:

· Bicycles

· Surfboards

· Paddle boards

· Tennis rackets

· Golf shafts

The use of polyester breather ensures:

· Consistent resin content

· Lightweight construction

· High structural integrity

Benefits of Using JLON Polyester Breather Fabric

Improved Product Quality

Proper vacuum distribution minimizes:

· Air bubbles

· Voids

· Dry areas

· Surface defects

Resulting in stronger and more reliable composite parts.

Increased Production Efficiency

Efficient airflow shortens evacuation times and improves process consistency.

Manufacturers benefit from:

· Faster production cycles

· Reduced downtime

· Lower rejection rates

Cost Savings

Although breather fabric is a consumable material, it helps reduce overall manufacturing costs through:

· Reduced scrap rates

· Improved resin efficiency

· Better process reliability

· Lower labor costs

Compatibility with Multiple Processes

JLON Polyester Breather Fabric is suitable for:

· Vacuum Infusion

· Vacuum Bagging

· Resin Transfer Molding (RTM)

· VARTM

· LRTM

· Prepreg Processing

· Autoclave Curing

This versatility makes it a valuable solution for composite manufacturers across various industries.

How to Use Polyester Breather Fabric in Vacuum Infusion

A typical vacuum infusion stack may include:

1. Mold Surface

2. Release Agent

3. Reinforcement Layers

4. Peel Ply

5. Flow Media

6. Polyester Breather Fabric

7. Vacuum Bag Film

During vacuum application, the breather provides a continuous pathway for air evacuation while also absorbing excess resin when necessary.

For best results:

· Ensure full coverage of vacuum areas.

· Avoid compressed or blocked sections.

· Maintain proper vacuum line positioning.

· Use appropriate breather weight for the application.

Proper placement helps maximize vacuum efficiency and laminate quality.

Why Choose JLON as Your Vacuum Infusion Consumables Supplier?

JLON specializes in advanced composite materials and vacuum infusion consumables for global manufacturers.

Our product portfolio includes:

· Polyester Breather Fabric

· Peel Ply

· Flow Media

· Vacuum Bagging Film

· Sealant Tape

· Infusion Mesh

· Vacuum Connectors

· Spiral Tubing

· Fiberglass Reinforcements

· Carbon Fiber Fabrics

· Core Materials

Advantages of working with JLON:

Consistent Product Quality

Strict manufacturing controls ensure stable performance from batch to batch.

Industry Experience

Serving composite manufacturers in:

· Wind Energy

· Marine

· Aerospace

· Automotive

· Construction

· Industrial Applications

Flexible Supply Capabilities

We provide:

· Standard roll sizes

· Custom widths

· OEM packaging

· Global shipping support

Technical Support

Our experienced team helps customers optimize vacuum infusion processes and material selection.

Conclusion

Polyester Breather Fabric is an indispensable component in modern vacuum infusion and vacuum bagging processes. By providing reliable air evacuation, resin absorption, and process stability, it helps manufacturers achieve superior composite quality while reducing production costs.

JLON BR150 Polyester Breather Fabric combines excellent breathability, high-temperature resistance, dimensional stability, and consistent performance, making it an ideal choice for wind energy, marine, aerospace, automotive, and industrial composite applications.

Whether you are manufacturing large wind turbine blades, advanced carbon fiber components, marine structures, or industrial FRP products, JLON can provide the vacuum infusion consumables needed to support efficient and reliable composite production.

Contact JLON today to learn more about our complete range of vacuum infusion materials and composite manufacturing solutions.
